Old 04-29-2015, 04:51 PM   #21
Junior Member
Join Date: Sep 2014
Location: Portland (left coast)
Posts: 191
Total Cats: 2

My permanent modifications to the car are all under the carpet the way I did things.

Sprint seats and custom brackets, no sliders. The front mounting points connect to the OE point. The rear OE points were shaved and re-welded to allow for the custom bracket to sit lower. The rear bolting points for the custom bracket sits further back than OE and have a backing plate and bolt welded to the floor of the car. Then, when bolting in the race seat, you bolt from the bottom, using another backing plate that is not permanent. When not in use the holes are filled with a simple rubber plug. The OE seats bolt in as usual.

The mounts for the harness are of similar design. I can bolt in and out the racing seats and harness attachments and belts for the OE seats in about 30min for both sides. Sliders would be ideal, but with the OE front hump on the NB and being 5'10" with a helmet I can't pass a height test using the blackbird bar...b/c that bar works with both the hard and soft top. Also, I got a roll bar cover from harddog with no slitting and made the cuts myself to work with my bar along with the padding.

It was a lot of custom fab work I paid a local rally shop to do, but the end result is such an easy seat swap there is nothing to complain about. And, you can't tell any of it is there with the OE seats in place.
tazswing is offline   Reply With Quote
Old 04-30-2015, 11:09 AM   #22
Elite Member
iTrader: (5)
Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,968
Total Cats: 50

Originally Posted by Swanpuppy View Post
While on this topic..... One other question, padding the roll bar. Must it be covered with an official brand or style of padding? Or are people able to slap something together to get through an event?
SFI padding is required, but generally not enforced. Since you are only running a roll bar, you won't need much. I would definitely go with SFI, but I have seen plenty of people get away with pool noodle stuff. Definitely make sure you have SOMETHING for padding though.

Our local club requires SFI padding anywhere where your body may hit the roll cages. Two of NASA mid atlantic tech guys suggested that SFI padding is still better than pool noodle padding for your hands, knees, etc. (ie non-helmet body parts that could hit a roll cage). I haven't been able to research this, but SFI padding does give with a big enough impact...so maybe.

We put SFI around most places, then pool noodle around the nascar bars, but we are discussing changing that before our Sept. race.
Seefo is offline   Reply With Quote
Old 04-30-2015, 01:35 PM   #23
Supporting Vendor
iTrader: (1)
OGRacing's Avatar
Join Date: May 2014
Posts: 1,547
Total Cats: 74

good ideas and products to think about.

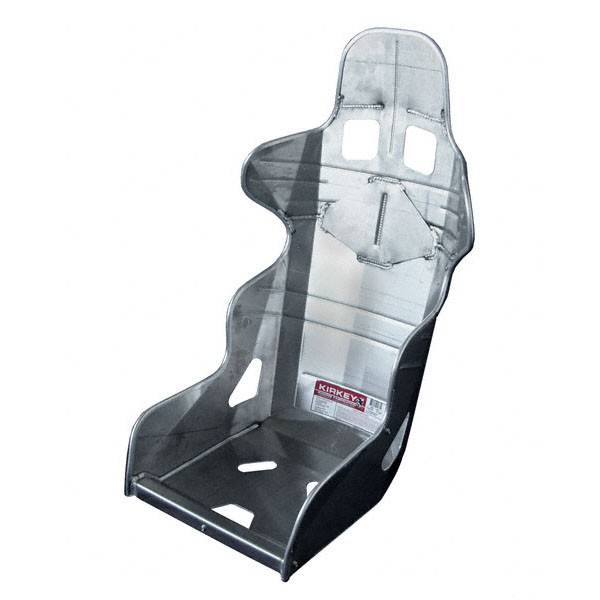

foamectomys are good way to get lower but a aluminum seat is the best way to get lower. at 250 a seat these are inexpensive. make sure you brace it.

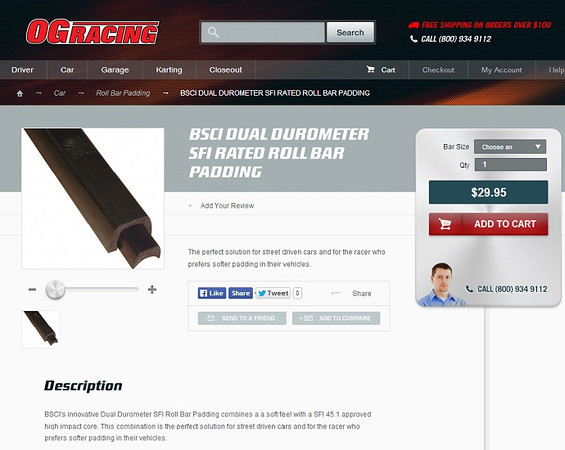

for roll bar padding on a street/race car the bsci padding is the way to go. it's dual foam density makes it a less of a headace if you knock it while entering or exiting the vehicle.
i made a thread that covers it. FYI one stick was enough to cover the important parts of the roll bar.
Roll Bar Padding. available At OG Racing.
Attached Thumbnails
HPDE Seat Height Issues-intrr_web_1.jpg   HPDE Seat Height Issues-bar%2520pad-m.jpg
OGRacing is offline   Reply With Quote
Old 05-01-2015, 08:27 AM   #24
Junior Member
Thread Starter
Join Date: Jun 2013
Location: Milwaukee
Posts: 113
Total Cats: 0

Thanks for the padding info, ill look into that and pick some up. Signed up for the Milwaukee Mile Track Night in America. Should be a good time.
Swanpuppy is offline   Reply With Quote
Old 05-02-2015, 10:43 PM   #25
Senior Member
iTrader: (1)
Join Date: Nov 2010
Posts: 947
Total Cats: -246

According to SCCA for a HPDE with a hardtop there is no broomstick test, in fact, they don't even require a rollbar. I'm not saying I agree with their position but it is the way it is.

Mounting a race seat to a Track Dog mount and swapping for track days is a good idea. Then swap your stock seat back in for street driving.
wannafbody is offline   Reply With Quote
