Old 10-21-2015, 11:48 AM   #21
SadFab Sales Lady
iTrader: (5)
aidandj's Avatar
Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,278
Total Cats: 893

There was a set of K1 rods and weiscos in the for sale a bit ago.
aidandj is offline   Reply With Quote
Old 10-21-2015, 10:17 PM   #22
Junior Member
iTrader: (1)
Join Date: Aug 2008
Location: Austin, TX
Posts: 236
Total Cats: 4

+1 mm valves for low end off boost torque. Doing that and some head work was epic with my new motor (same bottom end/pistons).

More boost is not the answer. More torque under the curve at all times is the best answer. More boost will just makes the car harder to launch at Pro Solos. My XP car is very difficult to launch well.
mcfandango is offline   Reply With Quote
Old 03-20-2016, 07:46 PM   #23
Junior Member
Thread Starter
iTrader: (2)
Join Date: Oct 2007
Location: Louisville, KY
Posts: 410
Total Cats: 0

Build is progressing....slowly, but progressing.

I ended up building my own cage. Lots of work, but saved a bunch of cash doing it myself. I've welded in some pre-built cages before. This is my first attempt from scratch.

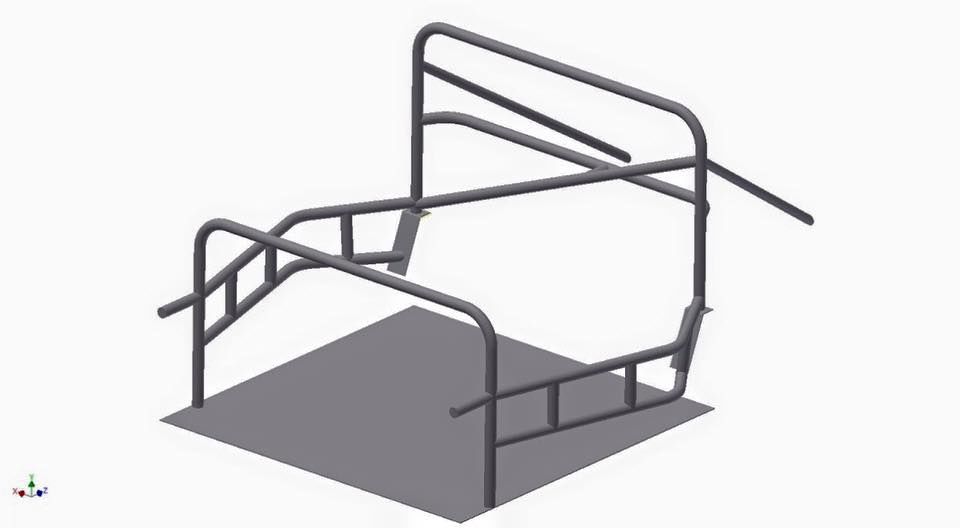

Here's the concept drawing:

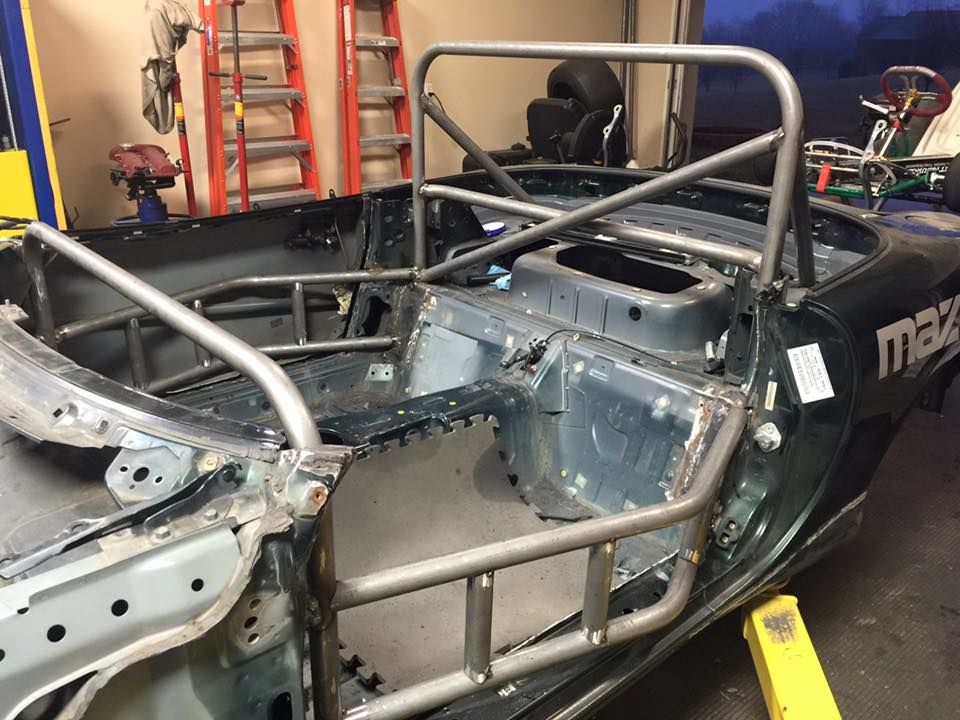

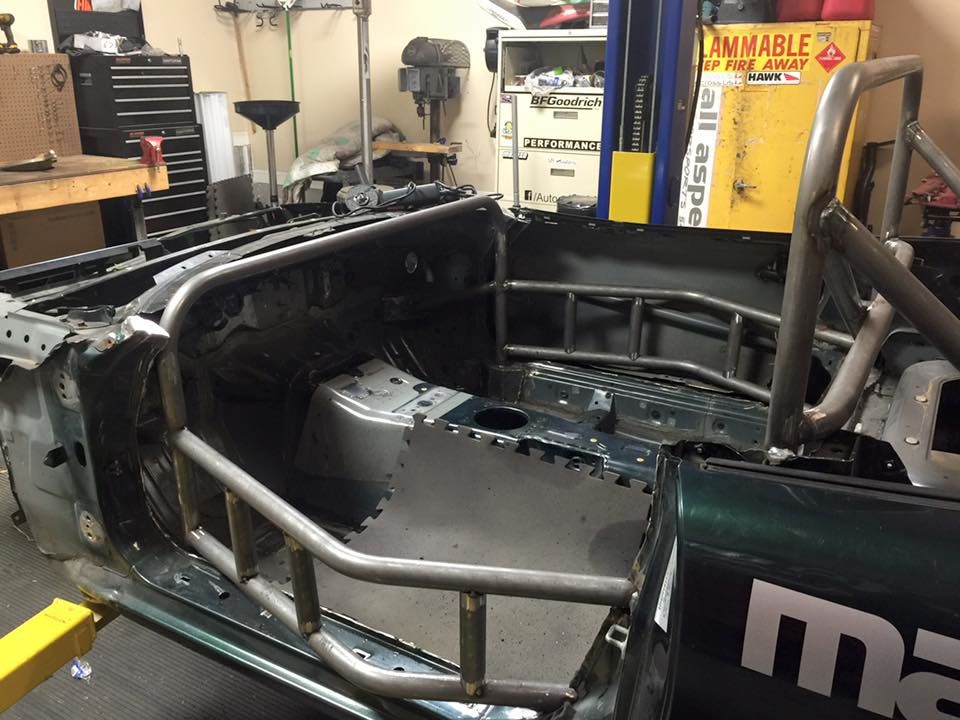

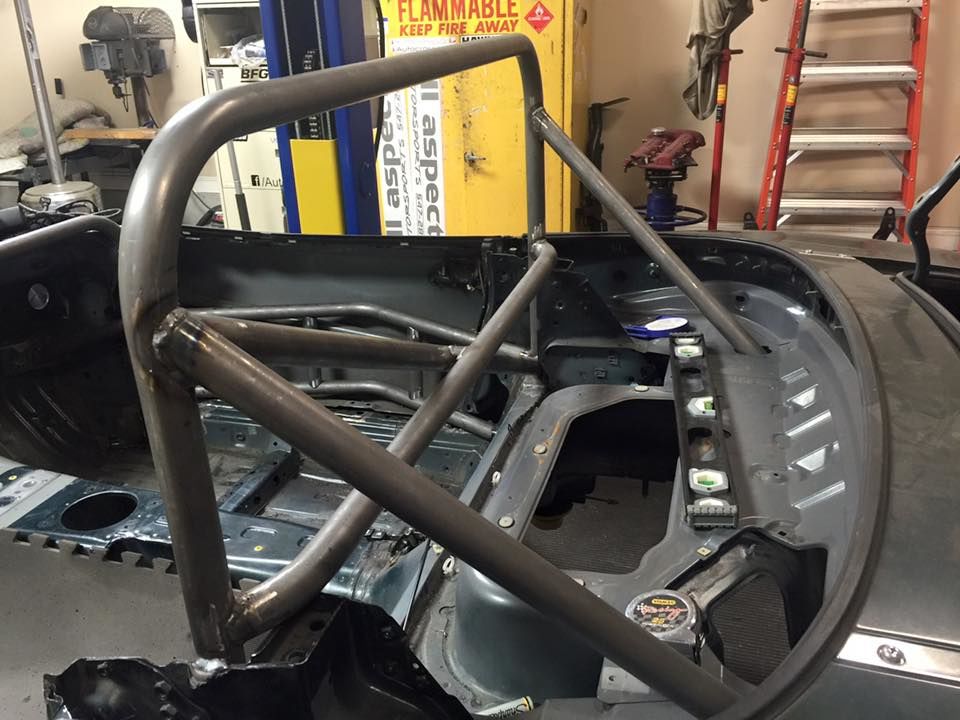

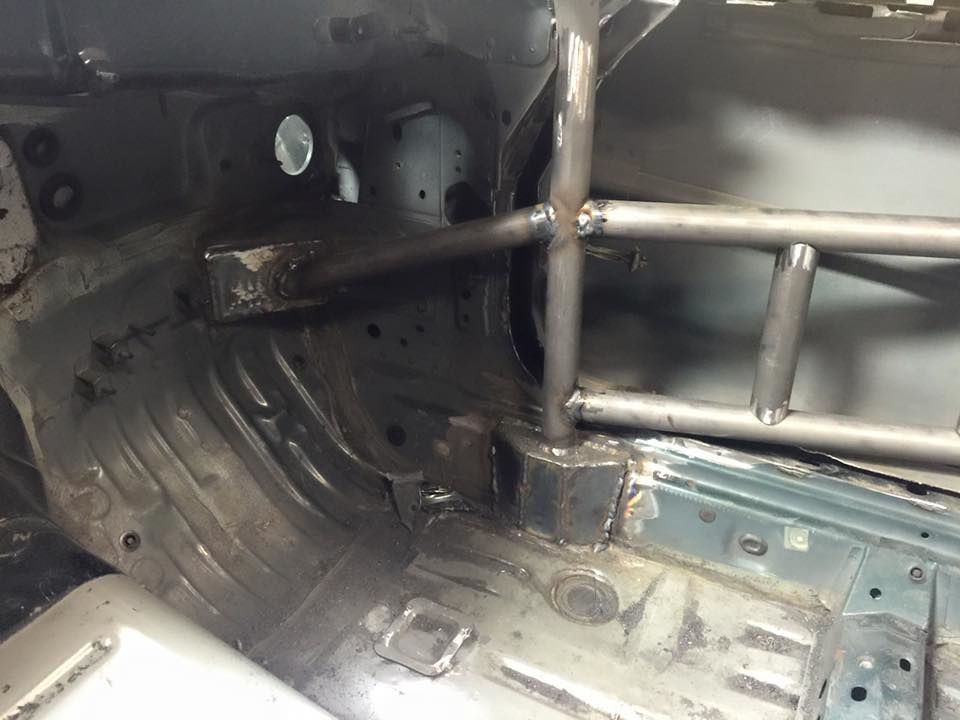

And final product:


Attached Thumbnails
Planning a FP (F-Prepared) autocross build-80-12734052_583768855103483_1279203555721613683_n_ac08733d76491e6cc97beae6f2df66797086471a.jpg   Planning a FP (F-Prepared) autocross build-80-12832368_591639630983072_2116635466459305828_n_0670a1dafcb4ac9897cbda6e679bdee048acb4a7.jpg   Planning a FP (F-Prepared) autocross build-80-12794327_591639637649738_5739037080015647891_n_3cbbe5d8669f0edcf52b8e4a35a61cb1254c44cb.jpg   Planning a FP (F-Prepared) autocross build-80-12805817_591639650983070_4971675432479910782_n_06a95304e97fbd630e400d66503851b8d10e4a67.jpg   Planning a FP (F-Prepared) autocross build-80-12794371_591639657649736_855556175018655927_n_c1e516c3201bdac71dfbee90f642f40545e8121d.jpg

Planning a FP (F-Prepared) autocross build-80-12718049_592427250904310_2582846358260480629_n_f6ed598ca0cdc01d23c7c8c4eaae3b9496b8ae83.jpg   Planning a FP (F-Prepared) autocross build-80-12814668_592427257570976_8110989670670400053_n_a91442397b8ee4230d4f286cd1a39480d1478899.jpg
fourwhls is offline   Reply With Quote
Old 03-20-2016, 07:57 PM   #24
Junior Member
Thread Starter
iTrader: (2)
Join Date: Oct 2007
Location: Louisville, KY
Posts: 410
Total Cats: 0

Here's where it gets interesting....

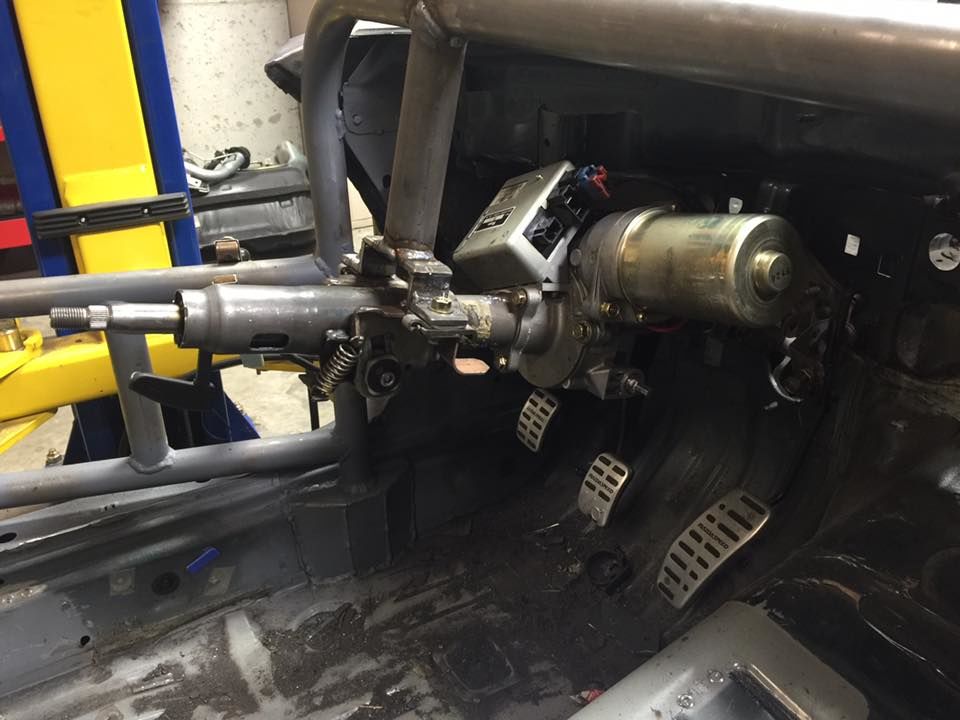

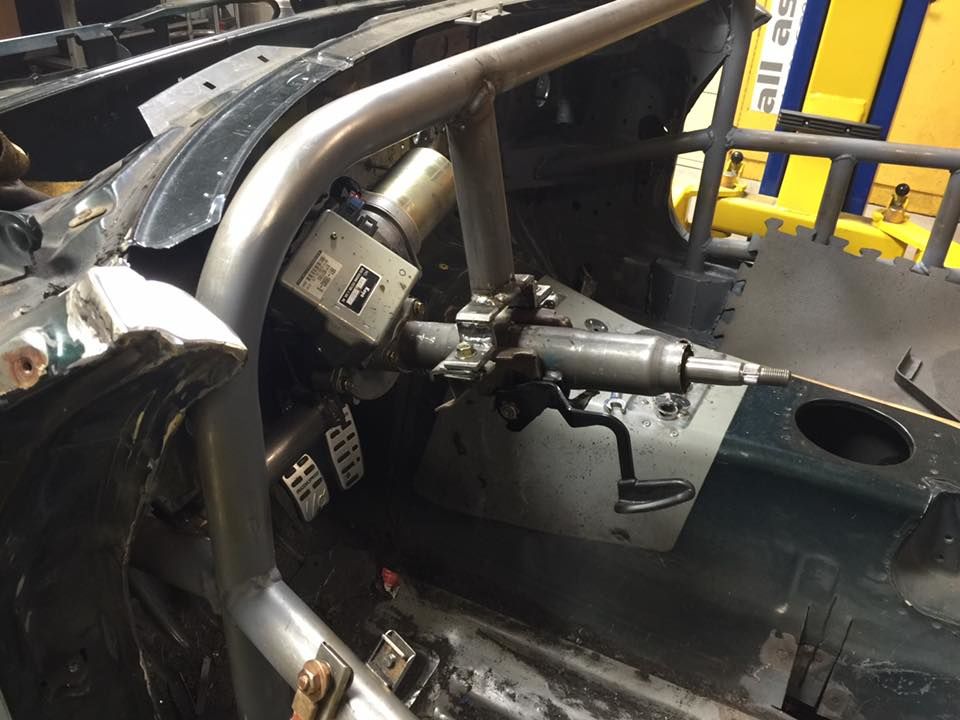

I decided to go with Electric Power Steering. Ended up using the entire GM column and left the tilt wheel functional as well.

Column is out of a 2003 Saturn Vue. There is a guy in Portugal that sells controllers for this column on eBay. Basically a potentiometer to adjust the resistance. EPS Controller

I don't have pictures yet, but I ended up extending the rear shaft using a section of the Miata upper shaft so I could match the Miata universal spline. I was shocked to find that the GM steering wheel spline is the same as the Miata. I didn't have to mess with that side at all.

Attached Thumbnails
Planning a FP (F-Prepared) autocross build-80-10176025_598802976933404_2680864626036985436_n_332b3237871aa7674015e9a06ede1189749790e9.jpg   Planning a FP (F-Prepared) autocross build-80-10399920_598802980266737_3944384780551330046_n_0e75fa83e3dcd3bdbb1b819d000f975210a8a1da.jpg
fourwhls is offline   Reply With Quote
