Default Measuring heatsoak vs actual AIT?

I was at the track on the weekend doing some datalogging and saw some AIT's of 180odd fahrenheit. I really wonder if this is accurate.

On the dyno I dont see these numbers so I want to know how to accurately test AIT and eliminate heatsoak. The sensors are in stainless or alloy tubes right before the throttle. Regular GM sensors.

Can I dangle a sensor in the pipe or something to eliminate any chance of heatsoak? Run a hose over the pipe?

Pls help me get accurate AIT data.

Thanks,
Dann
nitrodann is offline   Reply With Quote
Old 03-15-2016, 08:23 AM   #2
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,405
Total Cats: 200
Default

Run a thermocouple into the intake and compare?
ryansmoneypit is offline   Reply With Quote
Old 03-15-2016, 08:26 AM   #3
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Quote:
Originally Posted by ryansmoneypit View Post
Run a thermocouple into the intake and compare?
So how can this be done @>20psi, 7500rpm?

Dann
nitrodann is offline   Reply With Quote
Old 03-15-2016, 08:30 AM   #4
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,405
Total Cats: 200
Default

A really tight fitting rubber plug with a tiny hole for the wire. Cram the plug in as tight as you can, then trust it a few times, so the tube cuts into it and holds on.
ryansmoneypit is offline   Reply With Quote
Old 03-15-2016, 08:32 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,857
Total Cats: 1,788
Default

180F. Your IC is broken.





I'm going to say this for the 10,000th time: STOP PUTTING AIT SENSORS RIGHT BEFORE THE TB SO YOUR HOT *** RADIATOR *RADIATES* +200F OF FURY ALL OVER THEM.

seriously, if I could enforce it, I'd make it illegal and fine/jail all offenders on this site.


move your AIT bung to your IC endtank.



But, with that being said, if this is while driving, I'd trust the readings. So long as you have airflow over the sensor element, it's going to report back fairly actual temps. Sounds like your IC is severely undersized/poorly designed for your application.
Braineack is offline   Reply With Quote
Old 03-15-2016, 08:34 AM   #6
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

The throttle body intake elbow houses the IAT sensor and its right behind the 210* radiator.

Dann
nitrodann is offline   Reply With Quote
Old 03-15-2016, 08:36 AM   #7
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Quote:
Originally Posted by ryansmoneypit View Post
A really tight fitting rubber plug with a tiny hole for the wire. Cram the plug in as tight as you can, then trust it a few times, so the tube cuts into it and holds on.
Just go to an electronics store and do what you say and wire it to the ecu and go racing?

Dann
nitrodann is offline   Reply With Quote
Old 03-15-2016, 08:43 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,857
Total Cats: 1,788
Default

N/A miatas can see well over 190-200F intake temps

This is why someone invented this thing called a cold-air intake, to source air outside the hot-*** engine bay.
Braineack is offline   Reply With Quote
Old 03-15-2016, 08:48 AM   #9
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Its turbo. It has an intercooler.

Quote:
Originally Posted by nitrodann View Post
So how can this be done @>20psi, 7500rpm?

Dann
How do I test?
nitrodann is offline   Reply With Quote
Old 03-15-2016, 08:52 AM   #10
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,405
Total Cats: 200
Default

Quote:
Originally Posted by nitrodann View Post
Just go to an electronics store and do what you say and wire it to the ecu and go racing?

Dann
If your set on not moving it, then yeah. Put a harbor freight cheapo multimeter with a thermo couple and a rubber plug. It's 20 psi, not 120.

30 bucks worth of science equipment.
ryansmoneypit is offline   Reply With Quote
Old 03-15-2016, 08:54 AM   #11
Junior Member
iTrader: (2)

Join Date: Apr 2013
Location: Bryan, TX
Posts: 149
Total Cats: 7
Default

Maybe it's a top mount intercooler.
Code Monkey is online now   Reply With Quote
Old 03-15-2016, 09:00 AM   #12
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Quote:
Originally Posted by ryansmoneypit View Post
If your set on not moving it, then yeah. Put a harbor freight cheapo multimeter with a thermo couple and a rubber plug. It's 20 psi, not 120.

30 bucks worth of science equipment.
Is this, or is there, an industry standard way to do this?

Best idea so far, it was all I could think of also.

Dann
nitrodann is offline   Reply With Quote
Old 03-15-2016, 09:29 AM   #13
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,405
Total Cats: 200
Default

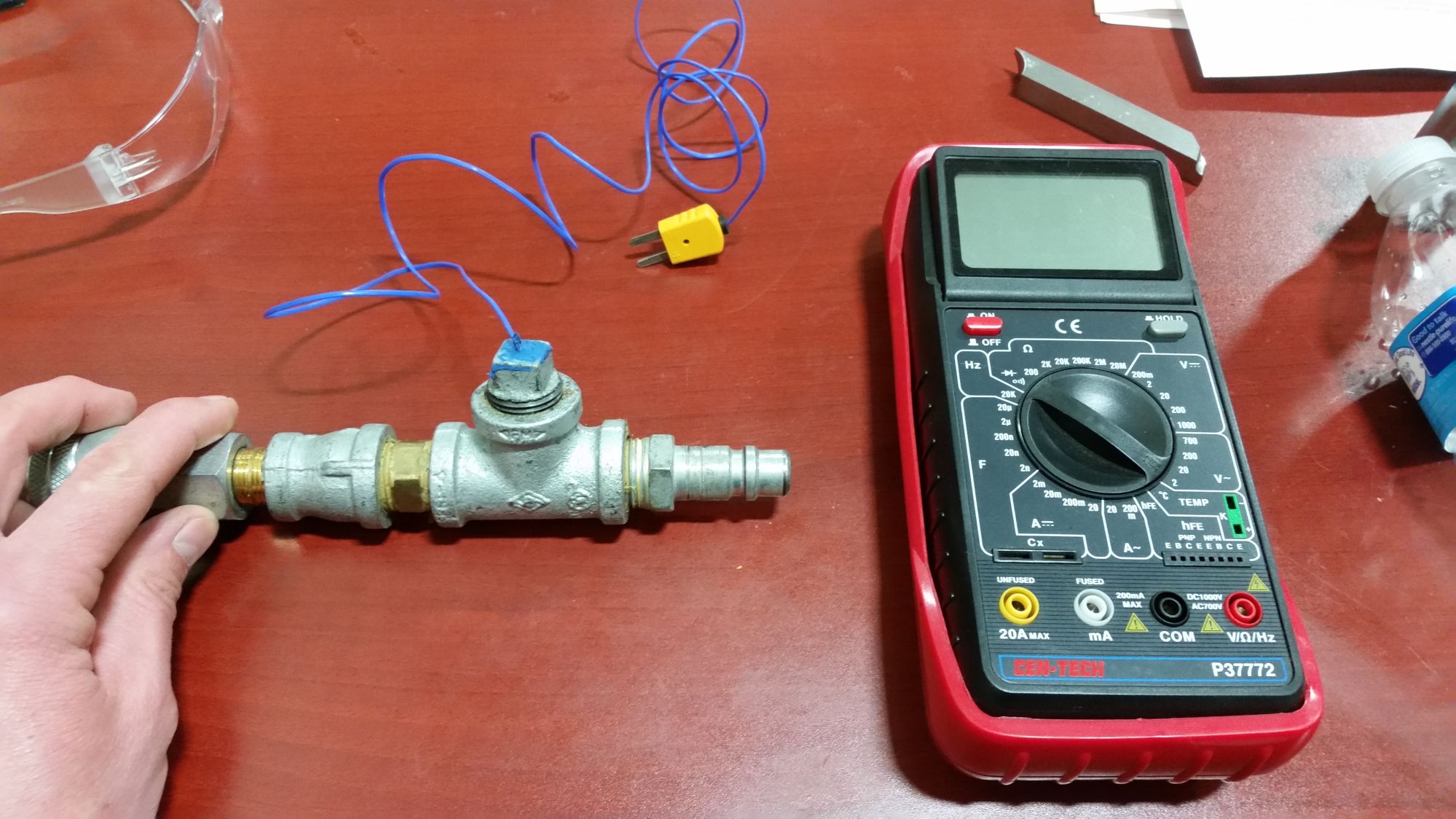

Certainly not an industry standard, I'm sure. But this is how I measured the air temp output on an air compressor. In this case, I had a steel pipe. Drilled a hole in the plug, dangle the probe wire in the airstream (don't touch the pipe wall) RTV, and done. This didn't leak at 120 psi.
Attached Thumbnails
Measuring heatsoak vs actual AIT?-80-20160315_082624_3e7f25498a1fbebc2bcbdcee8d9c951e9a61d60a.jpg
ryansmoneypit is offline   Reply With Quote
Old 03-15-2016, 09:32 AM   #14
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Champion, thanks.

Dann
nitrodann is offline   Reply With Quote
Old 03-15-2016, 10:16 AM   #15
Junior Member
iTrader: (1)

Downmented's Avatar

Join Date: Oct 2014
Location: Annapolis, MD
Posts: 485
Total Cats: 59
Default

Quote:
Originally Posted by Code Monkey View Post
Maybe it's a top mount intercooler.
Mazdaspeed 3/6 style
Downmented is offline   Reply With Quote
Old 03-15-2016, 10:22 PM   #16
Junior Member
iTrader: (5)

Join Date: Oct 2011
Location: San Diego, CA
Posts: 402
Total Cats: 21
Default

Quote:
Originally Posted by Braineack View Post
180F. Your IC is broken.
Really though, is 180F not feasible for a heat soaked intercooler, on track @ 20psi?

I feel like that could be possible especially if ambient temp is 80-90 outside.

Or still would that just implicate a crappy intercooler?
slmhofy is offline   Reply With Quote
Old 03-15-2016, 10:57 PM   #17
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Quote:
Originally Posted by slmhofy View Post
Really though, is 180F not feasible for a heat soaked intercooler, on track @ 20psi?

I feel like that could be possible especially if ambient temp is 80-90 outside.

Or still would that just implicate a crappy intercooler?
It was 95f, 22psi.

I can't answer any of your questions but id like to.
nitrodann is offline   Reply With Quote
Old 03-16-2016, 12:18 AM   #18
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 248
Default

Quote:
Originally Posted by nitrodann View Post
I was at the track on the weekend doing some datalogging and saw some AIT's of 180odd fahrenheit. I really wonder if this is accurate.

On the dyno I dont see these numbers so I want to know how to accurately test AIT and eliminate heatsoak. The sensors are in stainless or alloy tubes right before the throttle. Regular GM sensors.

Can I dangle a sensor in the pipe or something to eliminate any chance of heatsoak? Run a hose over the pipe?

Pls help me get accurate AIT data.

Thanks,
Dann
Test your sensor. I run a GM open element sensor. On mine, I can have the car running at idle, and heat the end of the sensor with a heat gun and it doesn't change the readings. Because the element is measuring the air temp in the pipe, not the body of the sensor. I keep my sensor close to the intake manifold since heat soak doesn't affect it much. When the ait sensor is showing say, 30*F over ambient, I can grab the IC pipe and yeap, it's warm. Put it on the highway and both drop close to ambient.

Just test and see if heat soak changes the readings.
patsmx5 is offline   Reply With Quote
Old 03-16-2016, 12:35 AM   #19
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

So heat the whole sensor, then remove the heat gun and see if.it registers atmospheric?

Sounds like an easy and good test.
nitrodann is offline   Reply With Quote
Old 03-16-2016, 12:38 AM   #20
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 248
Default

Quote:
Originally Posted by nitrodann View Post
So heat the whole sensor, then remove the heat gun and see if.it registers atmospheric?

Sounds like an easy and good test.
Try it. On my car I used a heat gun, AIT sensor, and infared temp gun on a black pipe.

With the SC, if I let it heatsoak at idle, the AITs dropped if stomped it and went into boost, as there was a rush of cool air from the intercooler that cooled everything down. AIT sensor would show this, and infared temp gun/hand test confirmed it too.
patsmx5 is offline   Reply With Quote
