Old 09-23-2016, 03:29 PM   #21
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,895
Total Cats: 1,093
Default

Ughhh. Come on guys.

Ride height does not affect this at all. I could be stance bro low and never have this issue, because I drove like a sissy.

No idea exactly when this happened. Hitting a big ledge at 60 feels like **** even hitting bumpstops.
aidandj is offline   Reply With Quote
Old 09-24-2016, 01:23 AM   #22
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,895
Total Cats: 1,093
Default



aidandj is offline   Reply With Quote
Old 09-24-2016, 04:14 AM   #23
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,895
Total Cats: 1,093
Default





aidandj is offline   Reply With Quote
Old 09-24-2016, 12:12 PM   #24
afm
Junior Member
iTrader: (3)

Join Date: Nov 2015
Location: Berkeley, CA
Posts: 485
Total Cats: 45
Default



afm is offline   Reply With Quote
Old 09-25-2016, 09:07 PM   #25
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,760
Total Cats: 922
Default

BTW

Comp weight?
Pinch weld heights?
Tire size and compound/model?
emilio700 is offline   Reply With Quote
Old 09-25-2016, 09:23 PM   #26
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,895
Total Cats: 1,093
Default

Weight: your guess is as good as mine. Probably ~2300 depending on when I **** last. Not a competition car.

4.25"f 4.5"r

225 rs3v2s
i know if at least 4-5 "oh **** that curb hurt" moments in the past season. Could have come from any of those. I hate ORP in that regard. Dropoffs are steep.
aidandj is offline   Reply With Quote
Old 09-25-2016, 11:55 PM   #27
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,760
Total Cats: 922
Default

Quote:
Originally Posted by aidandj View Post
Weight: your guess is as good as mine. Probably ~2300 depending on when I **** last. Not a competition car.

4.25"f 4.5"r

225 rs3v2s
i know if at least 4-5 "oh **** that curb hurt" moments in the past season. Could have come from any of those. I hate ORP in that regard. Dropoffs are steep.
All that looks good. Stop crashing into the things.
emilio700 is offline   Reply With Quote
Old 09-26-2016, 12:00 AM   #28
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,895
Total Cats: 1,093
Default

Quote:
Originally Posted by emilio700 View Post
All that looks good. Stop crashing into the things.
I hear that a lot actually.
aidandj is offline   Reply With Quote
Old 09-26-2016, 06:04 AM   #29
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,324
Total Cats: 379
Default

We're gonna start calling you Danica.
rleete is offline   Reply With Quote
Old 09-26-2016, 01:23 PM   #30
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,176
Total Cats: 249
Default

Quote:
Originally Posted by rleete View Post
We're gonna start calling you Danica.
OK, that's just mean. I was going to say Maldonado.

--Ian
codrus is offline   Reply With Quote
Old 09-26-2016, 03:51 PM   #31
afm
Junior Member
iTrader: (3)

Join Date: Nov 2015
Location: Berkeley, CA
Posts: 485
Total Cats: 45
Default

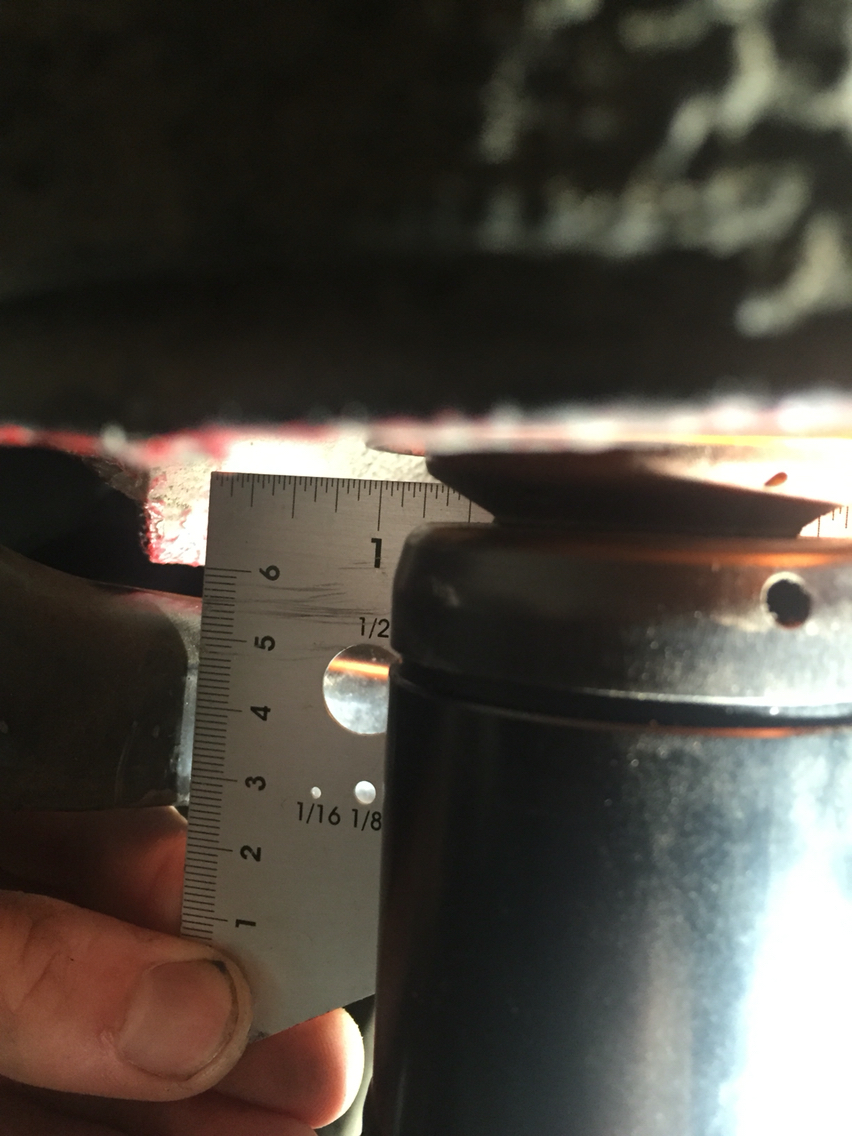

Control arm bottoming out on body-photo482.jpg

I have 5mm room between the RUCA and rear shock tower at the beginning of bumpstop engagement.

To get contact, the bumpstop has to compress to 19 from a starting length of 23mm.

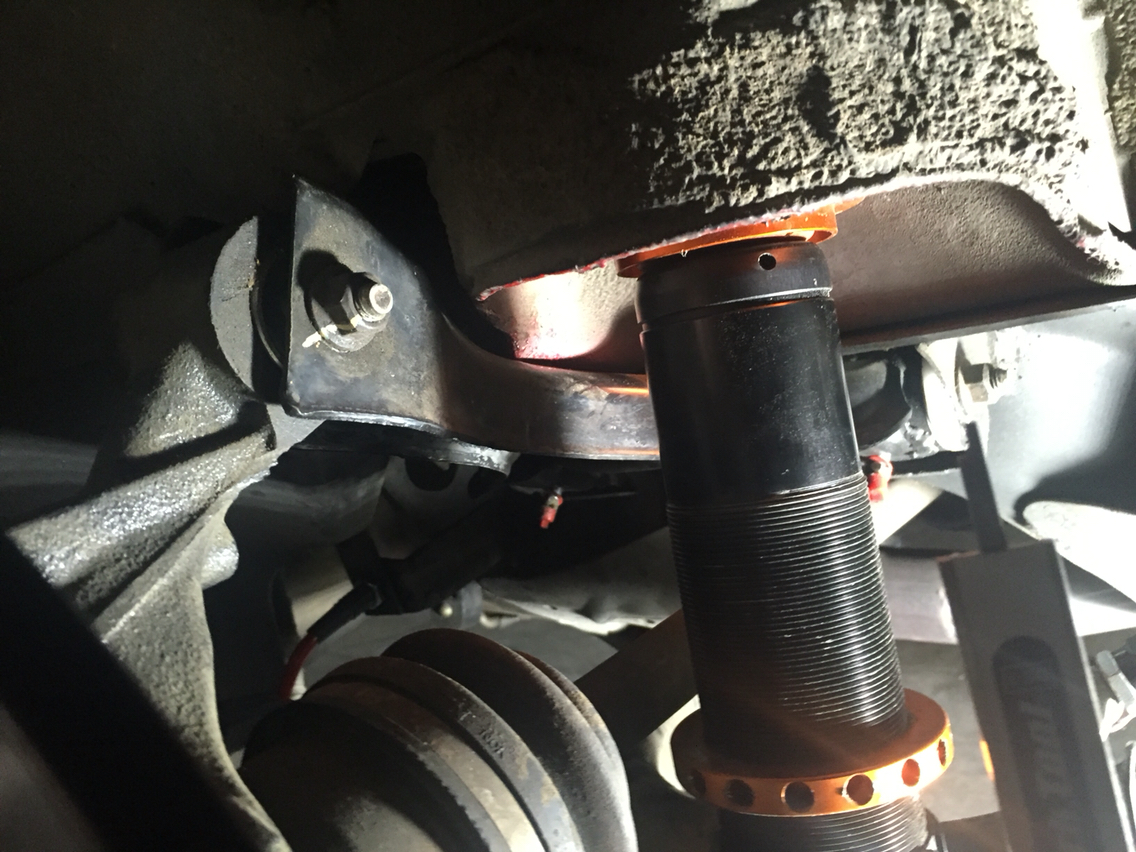

Control arm bottoming out on body-photo892.jpg

I get RUCA contact before tire contact at the fender top.
afm is offline   Reply With Quote
Old 09-26-2016, 03:53 PM   #32
afm
Junior Member
iTrader: (3)

Join Date: Nov 2015
Location: Berkeley, CA
Posts: 485
Total Cats: 45
Default

Just don't spin over any orange curbs at Laguna
afm is offline   Reply With Quote
Old 09-26-2016, 04:11 PM   #33
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,895
Total Cats: 1,093
Default

5mm sounds like not very much to compress a bumpstop. Anybody know what the "block" height is for those bumpstops?
aidandj is offline   Reply With Quote
Old 09-26-2016, 05:08 PM   #34
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,760
Total Cats: 922
Default

As mentioned earlier, make sure your NB mount rear Xidas have two bushing beneath the shock mount.
emilio700 is offline   Reply With Quote
Old 09-26-2016, 05:10 PM   #35
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,895
Total Cats: 1,093
Default

I am on BCM. Not sure about afm.

aidandj is offline   Reply With Quote
Old 09-26-2016, 05:17 PM   #36
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,760
Total Cats: 922
Default

Quote:
Originally Posted by aidandj View Post
I am on BCM. Not sure about afm.
Caught that. I live in a world of search engines and forum threads. I mentioned that for the guy that does a google search, finds your thread (having NB mounts incorrectly installed) and needs an answer.

As you were..
emilio700 is offline   Reply With Quote
Old 09-26-2016, 05:18 PM   #37
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,443
Total Cats: 109
Default

Mine does that. or I should say did. Now the chassis side is bent out of the way enough it doesn't. Also have the nice rub marks on the inner fender directly above the center of the tire indicating 100% use of bump travel.
bbundy is offline   Reply With Quote
Old 09-26-2016, 05:20 PM   #38
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,895
Total Cats: 1,093
Default

Interesting.

What would be a better option. Trim chassis? Or lower the shock mount.

Trimming the chassis would give me more travel, which according to the top of my fender well I really don't need. But lowering the shock mount without changing ride height would give me a net loss of travel.
aidandj is offline   Reply With Quote
Old 09-26-2016, 06:58 PM   #39
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,443
Total Cats: 109
Default

Quote:
Originally Posted by aidandj View Post
Interesting.

What would be a better option. Trim chassis? Or lower the shock mount.

Trimming the chassis would give me more travel, which according to the top of my fender well I really don't need. But lowering the shock mount without changing ride height would give me a net loss of travel.
looks to me you have just enough rubbing to say you have maximum usable bump travel. The A-arms are just kissing the frame. Its actually mostly just the lip on the sub frame. A hammer will clearance things right up.
bbundy is offline   Reply With Quote
Old 09-26-2016, 06:59 PM   #40
SadFab Sales Lady
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,895
Total Cats: 1,093
Default

Quote:
Originally Posted by bbundy View Post
looks to me you have just enough rubbing to say you have maximum usable bump travel. The A-arms are just kissing the frame. Its actually mostly just the lip on the sub frame. A hammer will clearance things right up.
Now that is a tool I'm good with!
aidandj is offline   Reply With Quote
