18 mpg - Page 2 - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Reply



LinkBack Thread Tools Search this Thread
Old 03-04-2010, 06:06 PM   #21
Senior Member
iTrader: (3)

Join Date: Jul 2005
Location: Connect-I-Cut
Posts: 1,431
Total Cats: 0
Default

That's the worst afr targets I've seen....Your AFT + Narrow band = Fail at life
miataspeed2005 is offline   Reply With Quote
Old 03-04-2010, 07:08 PM   #22
Junior Member

Join Date: Jan 2008
Location: Central, NJ
Posts: 201
Total Cats: 0
Default

I'm getting around 19mpg too. I just haven't leaned it out yet since I'm not confident about the base timing map.
PhantomRoadster is offline   Reply With Quote
Old 03-04-2010, 08:10 PM   #23
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,181
Total Cats: 2,581
Default

HOLY **** those afr targets are fucked up
18psi is offline   Reply With Quote
Old 03-04-2010, 08:46 PM   #24
Senior Member
Thread Starter

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

The target table behaves completely different when used with a narrowband sensor. I've got mine to go to open loop above 85 kPa, and anything that isn't set to a target of 14.7 is ignored by the Adaptronic.

I've already had all the cells tuned on a stead state dyno so I think having a wideband O2 sensor is bordering on useless now, unless I want to target a 15:1 cruise or something.

If I was plugging in an wideband O2 sensor into the Adaptronic then yes it would be fail city.

This is what I came up with on my old car (LC-1 equipped) which gave good economy:



It's not really relevant for this setup, as discussed above re narrowband sensor.

Last edited by timk; 03-04-2010 at 08:57 PM.
timk is offline   Reply With Quote
Old 03-04-2010, 09:13 PM   #25
Senior Member
iTrader: (3)

Join Date: Aug 2005
Location: Gig Harbor, WA
Posts: 504
Total Cats: 3
Default

What are your startup enrichments? My mpg went up as I've adjusted mine.

I still only get ~20mpg unless I baby it, but I'm almost always in boost at ~75+ mph with lots of hills.
TurboRoach is offline   Reply With Quote
Old 03-04-2010, 09:14 PM   #26
Newb

Join Date: Sep 2008
Location: Brisbane Australia
Posts: 9
Total Cats: 0
Default

I know - get rid of that POS and get another SE!
Plenty for sale atm.

Stu
MINX is offline   Reply With Quote
Old 03-05-2010, 08:23 AM   #27
Senior Member
Thread Starter

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Here's a link to a datalog from tonight:
http://sites.google.com/site/timkent/5-03-2010_2104.csv

It appears that the narrowband O2 is hovering around stoich at cruise like it should.
timk is offline   Reply With Quote
Old 03-05-2010, 09:53 AM   #28
Senior Member
iTrader: (1)

Join Date: Sep 2007
Location: Trenton, NJ
Posts: 1,125
Total Cats: 0
Default



That sexy thing gets me about 27mpg.
ArtieParty is offline   Reply With Quote
Old 03-05-2010, 10:14 AM   #29
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Damn, that's a lot of AFR target points, nice.
dgmorr is offline   Reply With Quote
Old 03-05-2010, 01:07 PM   #30
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

I know I'm jealous.
y8s is online now   Reply With Quote
Old 03-05-2010, 02:35 PM   #31
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

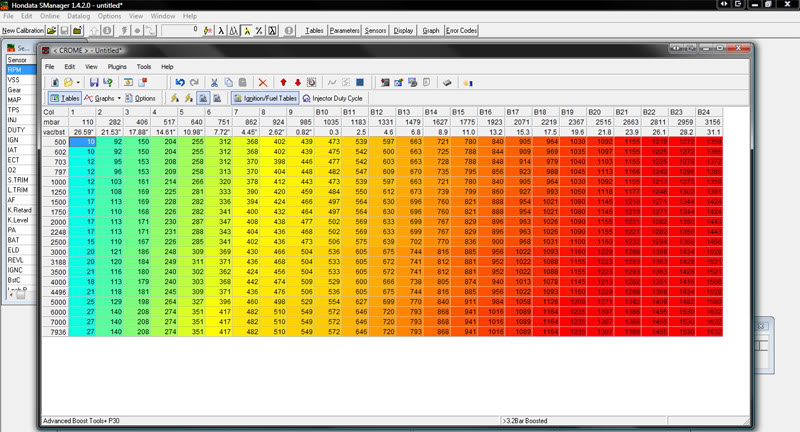

You guys are silly with your low resolution maps

Name:  high_res.jpg
Views: 2
Size:  107.5 KB
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-05-2010, 03:18 PM   #32
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
You guys are silly with your low resolution maps

yes your map is very high resolution. what the **** is a millbar and does thsi "hondata" make miata stuff? :P
y8s is online now   Reply With Quote
Old 03-05-2010, 03:23 PM   #33
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

hehe

Thats actually Crome, which is FREE!
You can re-chip the factory ECU, burn a Crome tune onto the chip, and you have the resolution of a standalone AEM and it only cost you 30 bucks.

Now why couldnt mazda have made their ECUs so capable?
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-05-2010, 03:43 PM   #34
Senior Member
iTrader: (3)

Join Date: Aug 2005
Location: Gig Harbor, WA
Posts: 504
Total Cats: 3
Default

Quote:
Originally Posted by y8s View Post
yes your map is very high resolution. what the **** is a millbar and does thsi "hondata" make miata stuff? :P
It has inches/psi of vac/boost on the row below millibar

We wire up after market ecu's, why couldn't we use a honda ecu? They can be reprogrammed so it shouldn't matter as long as the cylinder count is the same. Or does honda use some wierd cam/crank signal? Then we could have powered by honda stickers too!
TurboRoach is offline   Reply With Quote
Old 03-05-2010, 03:58 PM   #35
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Quote:
Originally Posted by TurboRoach View Post
It has inches/psi of vac/boost on the row below millibar

We wire up after market ecu's, why couldn't we use a honda ecu? They can be reprogrammed so it shouldn't matter as long as the cylinder count is the same. Or does honda use some wierd cam/crank signal? Then we could have powered by honda stickers too!
I've thought long and hard about using a 1g EPROM ecu from a DSM. I know it is possible because 1.People have run sr20's on them before. and 2. From an electronics standpoint, our cars are basically 99% identical to a 1g dsm. The ignitors, the coilpacks, the cas, everything. They are infinitely adjustable, have built in knock detection(probably worthess for us due to bore size) And can run in speed density mode with a simple flash. Plus the stock ECU ROM only takes up 1/2 the space on the chip, so there is plenty of room to write custom code (to double the available resolution for example, I've done it, works well) Add an ostrich into the mix and you have a very slick tuning solution. I think it would be super easy to get it drivable too because once you change the main VE maps, everything (startup and AE included) are modified by changing a the injector size globally (you can edit deadtime too ).


Quote:
Now why couldnt mazda have made their ECUs so capable?
Actually in Japan, they did. Japanese miatas used an ecu that had a separate ROM chip on it. You could change the fuel/timing curves, injector size, etc. For whatever reason, when they brought these cars to America, they integrated the ROM into the CPU and noone to my knowledge has come up with a way to break it out into something flashable.
Jeff_Ciesielski is offline   Reply With Quote
Old 03-05-2010, 04:05 PM   #36
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

You could make a honda ECU wok on a miata, but you would have to mount the honda distributor on the front of a cam gear.
It has to go on the front of the cam because honda engines spin backwards, and they have the distributor on the back of the cam.

I actually thought about doing, but it would probably prove to be pretty difficult.
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-05-2010, 04:08 PM   #37
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Quote:
Originally Posted by Jeff_Ciesielski View Post
Actually in Japan, they did. Japanese miatas used an ecu that had a separate ROM chip on it. You could change the fuel/timing curves, injector size, etc. For whatever reason, when they brought these cars to America, they integrated the ROM into the CPU and noone to my knowledge has come up with a way to break it out into something flashable.
Why cant we get these ECUs? and do you know if there is already software developed to write a tune to them?
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-05-2010, 04:09 PM   #38
Senior Member
iTrader: (3)

Join Date: Aug 2005
Location: Gig Harbor, WA
Posts: 504
Total Cats: 3
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
You could make a honda ECU wok on a miata, but you would have to mount the honda distributor on the front of a cam gear.
It has to go on the front of the cam because honda engines spin backwards, and they have the distributor on the back of the cam.

I actually thought about doing, but it would probably prove to be pretty difficult.
I wonder how hard this would be to fake with the CAS or a trigger wheel...
TurboRoach is offline   Reply With Quote
Old 03-05-2010, 04:15 PM   #39
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Why cant we get these ECUs? and do you know if there is already software developed to write a tune to them?
We can, and there is. Let me try to find the link, I haven't seen it for a long time. I'm pretty sure I got it deep from within the bowels of M.Net.
Jeff_Ciesielski is offline   Reply With Quote
Old 03-05-2010, 04:23 PM   #40
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Why cant we get these ECUs? and do you know if there is already software developed to write a tune to them?
Bingo.

The company is called GRID Japan.

Some info:
ROMチューニング用追加基板の取付
ROM????

(all in japanese )

And the jackpot:
Japanese Performance Parts and ROM Tuning GRID


Not even sure if they still make the miata version.
Jeff_Ciesielski is offline   Reply With Quote
