Default Electronic boost control

I am using a gm ebc solenoid that i have attached to my car in a way so that i can run wg pressure (7psi), or flip a switch and run the ebc (11psi) program in the adaptronic.

I have it set so that as soon as it spools up to 11psi (roughly 3600rpm) it adjusts the EBC solenoid so that it holds within .5 psi of my target up till red-line.

My issue is that, if i stab the throttle at anything above 4500 rpm or flat-shift, the boost pressure spikes to 14psi (where my over-boost protection is at).

I am currently using open loop wastegate control since i can't see any difference when i activate any of the closed loop settings.

any idea how to remedy this spike? i already have a MBC connected in parallel with the EBC and it does not fix the spikes. If i set the MBC to a point where it reduces the spike to 11 psi, it vents pressure after that initial spike down to 8 or 9 psi.
swimming108 is offline   Reply With Quote
Old 11-04-2009, 09:08 AM   #2
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

If you have not done so already, set the EBC at 100% across the board, then adjust the MBC for the cutoff pressure you want. Then, go back and retune the EBC.

When I first installed the EBC/MBC hybrid it was doing some weird stuff like that. Once I tuned the MBC with the EBC closed (100%) and then retuned the EBC, everything was fine.
ZX-Tex is offline   Reply With Quote
Old 11-04-2009, 11:28 AM   #3
Senior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2007
Location: Seven Valleys, PA
Posts: 639
Total Cats: 11
Default

ok, i will try that again. Even with just the MBC i was getting a similar spike. any idea how to fix a spike from a MBC
swimming108 is offline   Reply With Quote
Old 11-04-2009, 11:29 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Does your MBC have a small bleeder port on it? Where is your boost source for the wastegate?
Braineack is offline   Reply With Quote
Old 11-04-2009, 11:38 AM   #5
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Yeah good questions. I am assuming you installed and plumbed everything correctly. Post up some picts of your install, or describe in detail.
ZX-Tex is offline   Reply With Quote
Old 11-04-2009, 11:57 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

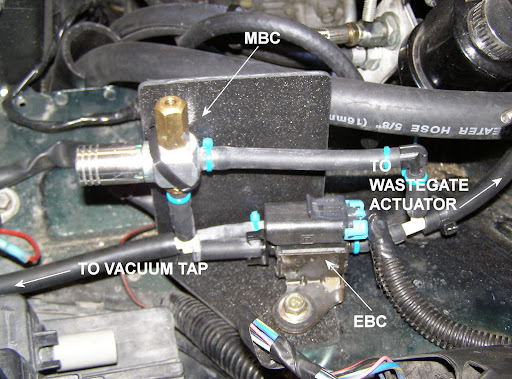

also you have the Solenoid hooked up like this on the right:

Braineack is offline   Reply With Quote
Old 11-04-2009, 01:27 PM   #7
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

This works too; that is how I did it.


Read this, specifically post #25...
https://www.miataturbo.net/forum/t30067/#post372400

Brain that avatar is really... disturbing...
ZX-Tex is offline   Reply With Quote
Old 11-04-2009, 01:55 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

that's exactly the same as the diagram I posted.
Braineack is offline   Reply With Quote
Old 11-04-2009, 05:13 PM   #9
Senior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2007
Location: Seven Valleys, PA
Posts: 639
Total Cats: 11
Default

yes the MBC does have a small bleeder hole in it. Should i enlarge it slightly?

My pressure source is on the compressor outlet.

My EBC and MBC are configured similarly to your first diagram (left side) Brain

i will post pics as soon as i get home.
swimming108 is offline   Reply With Quote
Old 11-04-2009, 05:25 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by swimming108 View Post
My EBC and MBC are configured similarly to your first diagram (left side) Brain
Do I need to even say what I'm planning on suggesting?
Braineack is offline   Reply With Quote
Old 11-04-2009, 05:32 PM   #11
Senior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2007
Location: Seven Valleys, PA
Posts: 639
Total Cats: 11
Default

wait till i get a picture to you before you suggest it
swimming108 is offline   Reply With Quote
Old 11-04-2009, 06:29 PM   #12
Senior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2007
Location: Seven Valleys, PA
Posts: 639
Total Cats: 11
Default

swimming108 is offline   Reply With Quote
Old 11-04-2009, 10:05 PM   #13
Senior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2007
Location: Seven Valleys, PA
Posts: 639
Total Cats: 11
Default

Brain, the way you have posted on the right doesn't make any sense at all. if 0% duty cycle sent all of the charge to the wastegate, 100% duty cycle would send absolutely no charge to the wastegate. none of it would be sent to the MBC or the wastegate.

At least not with the GM, ebc
swimming108 is offline   Reply With Quote
Old 11-04-2009, 10:09 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

why did you say you had the GM Solenoid?!

.... I would have posted this:



this is have i do mine and it works perfectly.
Braineack is offline   Reply With Quote
Old 11-04-2009, 10:13 PM   #15
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

I cannot tell for sure from your picture but it looks like you have it hooked up the same way I use it. The EBC and MBC are in parallel. It works for me. But, we have two things that are different. The MBC (yours is DIY) and the EBC (but I believe it is functionally identical).

Are you sure everything with your MBC internals is fine? No leaks anywhere in any of the fittings? How big is your bleeder hole?
ZX-Tex is offline   Reply With Quote
Old 11-04-2009, 10:46 PM   #16
Senior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2007
Location: Seven Valleys, PA
Posts: 639
Total Cats: 11
Default

there are no leaks in the mbc, permatex on all threads. as for internal functionality, how would i check that? it is just a plain old ball and spring. i got it from a company on ebay called NXS

the bleeder hole is really tiny, 1/16"
swimming108 is offline   Reply With Quote
Old 11-05-2009, 09:53 AM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

DO IT LIKE I JUST FREaKIN POSTED AND PROFIT HARDCORE>....





WHY Do YOU DOUBT GLORIOUS BRAIN!?!??!


although it makes perfectly good sense that it will work in your configuration....You can always try to lengthen the wastegate rod something like 2 turns. so the same boost levels will crack it open ever so slightly more.
Braineack is offline   Reply With Quote
Old 11-05-2009, 10:48 AM   #18
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by Braineack View Post
WHY Do YOU DOUBT GLORIOUS BRAIN!?!??!
Because you are a damned terrorist that is trying to blow up his car!








ZX-Tex is offline   Reply With Quote
Old 11-05-2009, 11:28 AM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

The way he has it is functionally 'exactly' the same.

In his configuration, if the solenoid is off, the boost will bypass the mbc. If it's set to 100% DC, the boost will try to escape through the blocked port but have no place to go but back through the MBC. Instead of blocking the port I utilize it.

So I suggest lengthening the wastegate rod a touch, should help with the spike without noticeably affecting spool-up.
Braineack is offline   Reply With Quote
Old 11-05-2009, 11:48 AM   #20
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Yeah I know. It's all good. Not saying yours does not work, just being silly.
ZX-Tex is offline   Reply With Quote
