If your going to start going that far then why don't you just use a front wing like blackbird? A simple vented hood should reduce lift. Incorporating a wing above the radiator would be way too hard. If you design it wrong it might cause more drag, and more lift.

That's just how I see it.



I do, and if you stick a big flow restriction below it, it wont work. He is spot on, wings work by having low pressure high velocity air under them and higher pressure low velocity air above them. Radiators work by having higher pressure air in front of them and low pressure air behind them, and slow down the air passing through them. I know a cambered wing like that has a pool of stagnant air in the cambered pocket of varying size, and the back 1/3-1/4 of the bottom experiences flow separation. The boundary layer is going to be no more than 1/2" off the surface of the wing unless the surface finish is WAY too smooth.

If you stick the radiator at the back of that wing duct it will raise the pressure of ALL the air under the wing. If you put it at the front, the turbulence will completely **** with how the air interacts with the wing, but at least there'll be low pressure under the wing. However there is going to be more surface area and higher speeds on the lower section of the rad duct so that would likely end up making more lift. Along that line of thinking, if you want to use a rad duct to make downforce, shape it like an inside out wing.



Well the debate is whether or not you should butt up the radiator across the wing or leave the half an inch or whatever room there is between the radiator and the wing. Obviously a different location for the radiator would be much better.



If you dont butt the rad up to the wing you'll certainly create some fast *** air against the wing for that 1-2 inches of width of the radiator. But you might end up with an ineffective radiator.

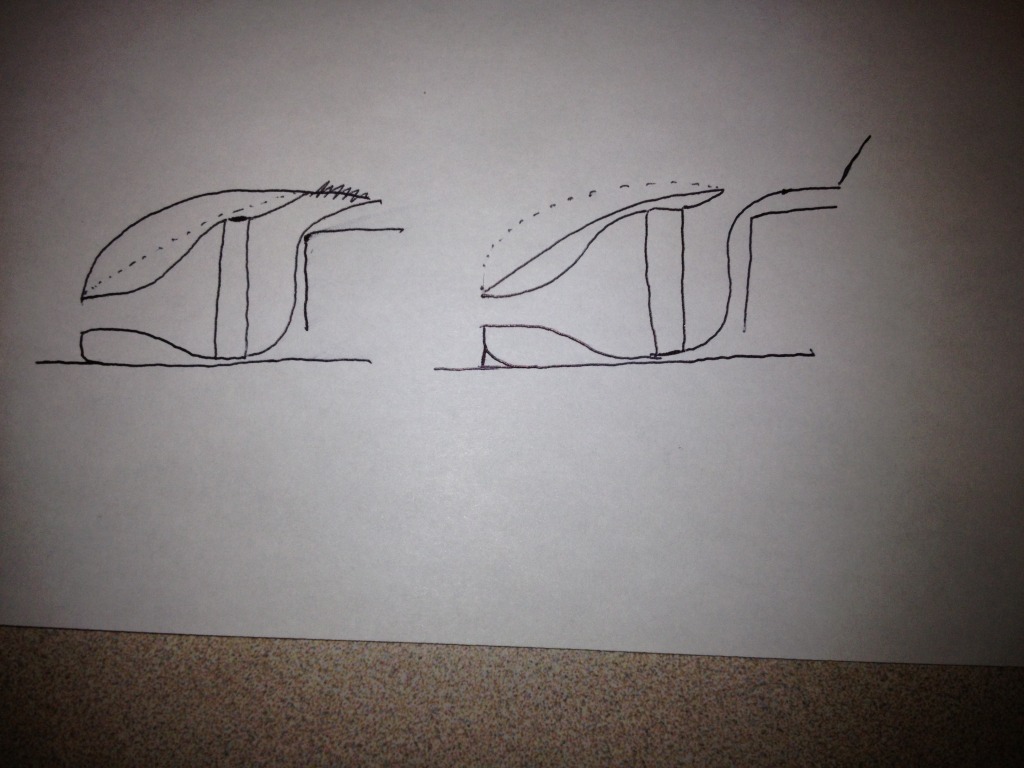

^ Like this.

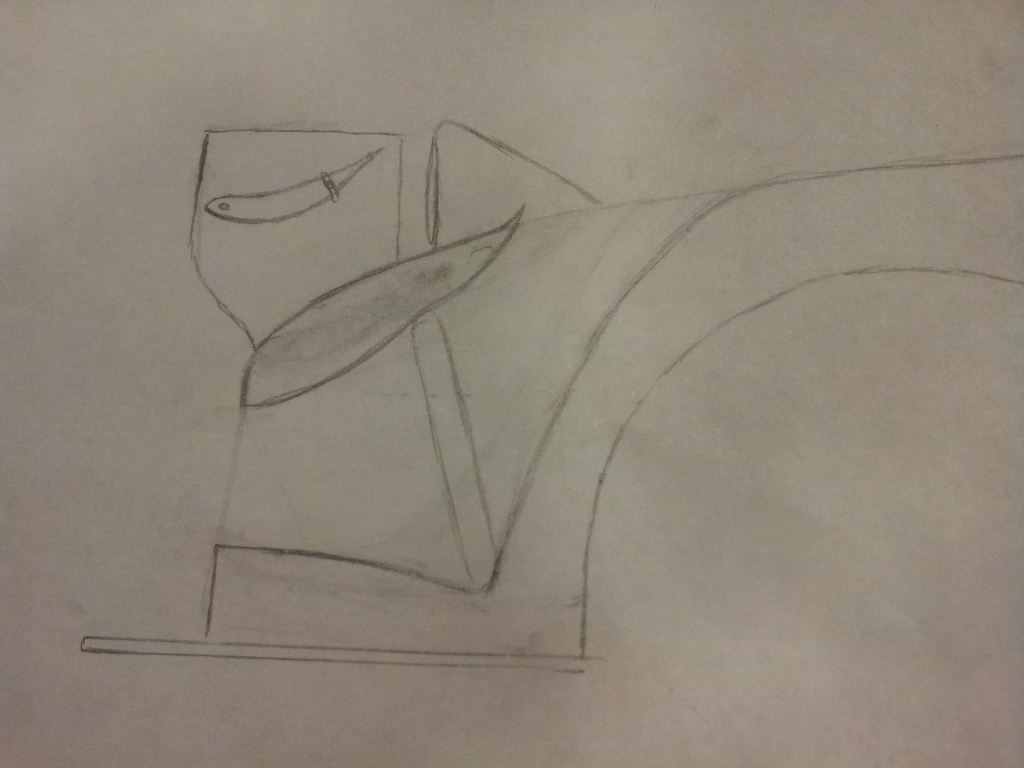

I changed it up to a more realistic size

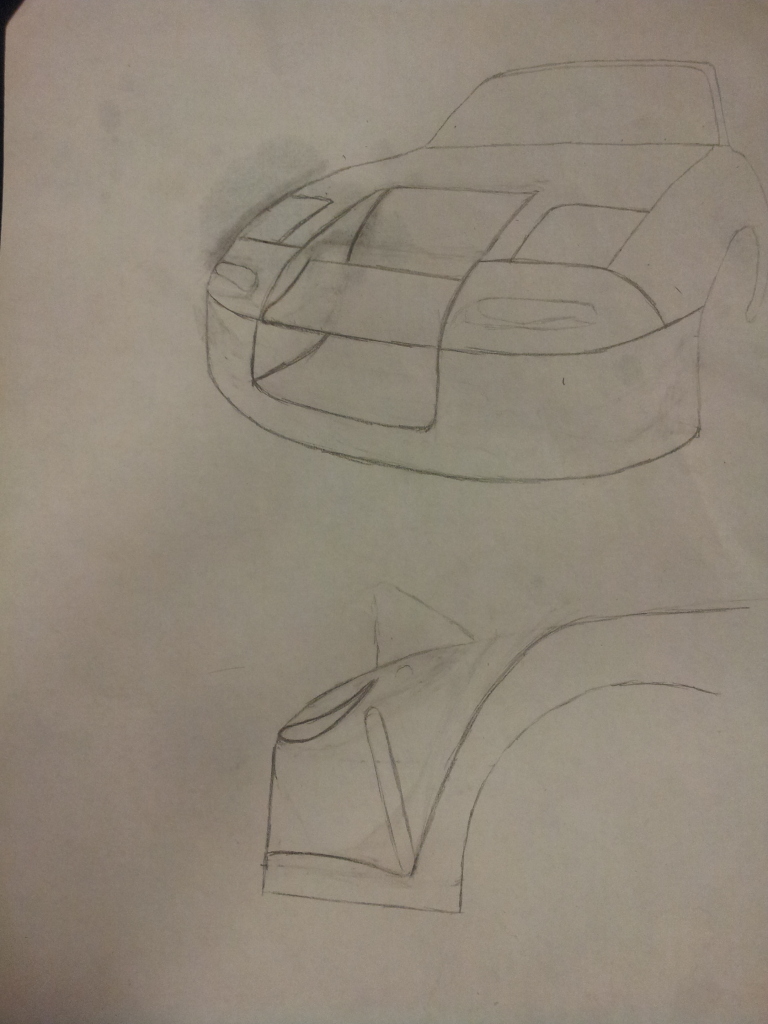

And another idea that would be even more realistic

I am in a seminar so i will change to different designs through the day
I haven't got to show what the frontal view looks like yet



Yep. If the wing is above the radiator, it might work but the radiator wont (no ducting). You'd be better off having the wing and the radiator ducting separate from each other (ala Blackbird)



You could also shake the front to be a bit sleeker to reduce drag



A: Its WTAC which, in my books, is a respectable motorsport.

B: The last name of the guy he is interviewing is Brilliant.



Also, I checked out Andrew Brilliant's youtube cannel and he has a few videos of Matt Andrews in his time attack miata featured on there.



Is Matt Andrews his stage name?



****. Totally wrong use namer. Don't ask me how I got the two of them confused 'cus I don't know.



The radiator duct wing looks like it's way too complex to build for something that even in theory has shaky logic at best.
The second version with a wing placed above the cutoff line between the hood and the bumper has some problems with the theory too, but even if that was okay there's a significant practical issue - you can't see through the wing.
Remember that the air doesn't flow @ 0 up there, so even to set the wing to 0 AOA you'll be running it probably 20+ degrees AOA relative to the ground.

Moti

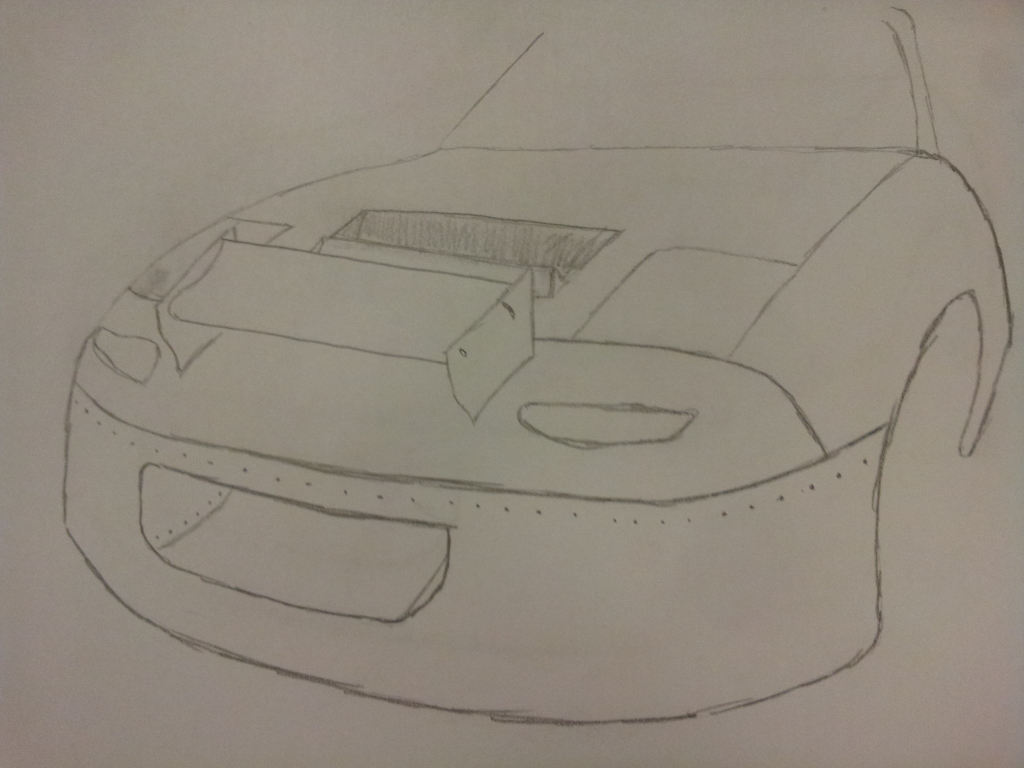

Here is the pic of the front



The width of the NA hood at the front is roughly 29" IIRC, put a 26-27" stick of 2x4 in your line of sight where you're thinking of putting the wing and see how you like it.
I suspect you're not going to like it at all even if it's flat, and it won't be.

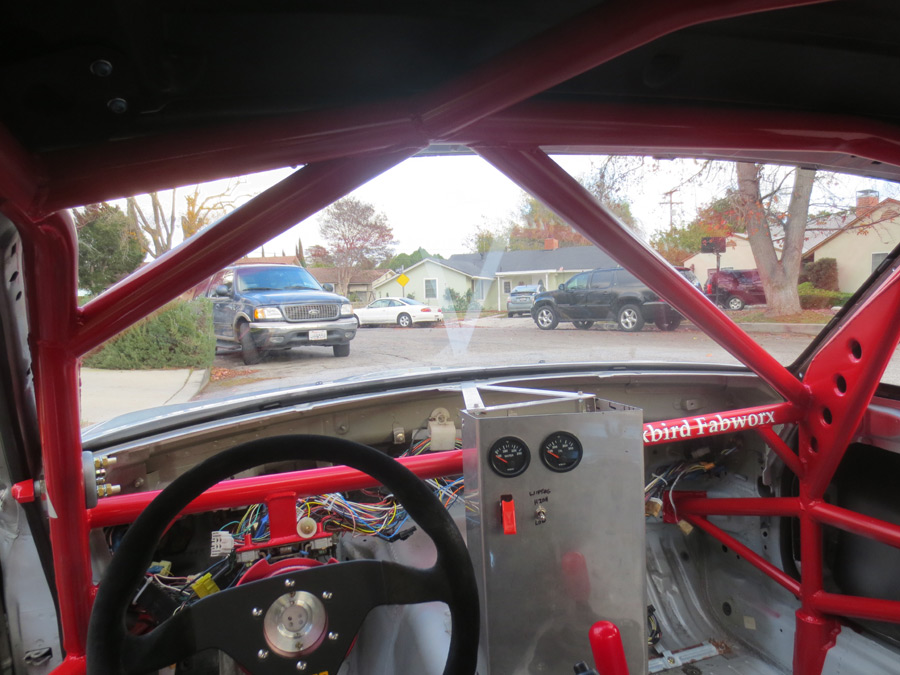

If you were building it for track only with zero street usage, it might be okay, heck some of the cages that I'm building include a windshield diagonal and that's totally okay on track -


For anything that has street use planned I'd avoid it.



Some cool CFD work on a Pikes Peak Subaru. Should be interesting to follow, but even the creation of a mesh for CFD is neat to see.

Subaru Impreza Pikes Peak



Might've gotten just a few of his ideas from the Peugot 208..



I believe that earlier in this thread we were discussing active rear wings for drag reduction..

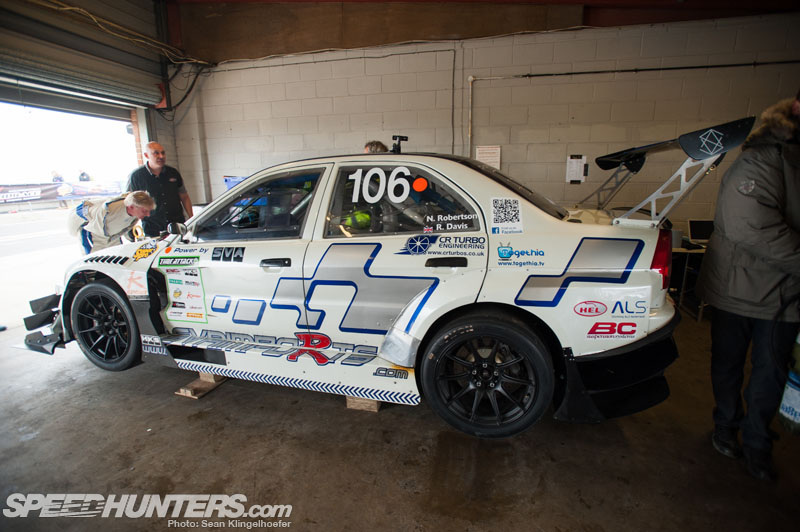

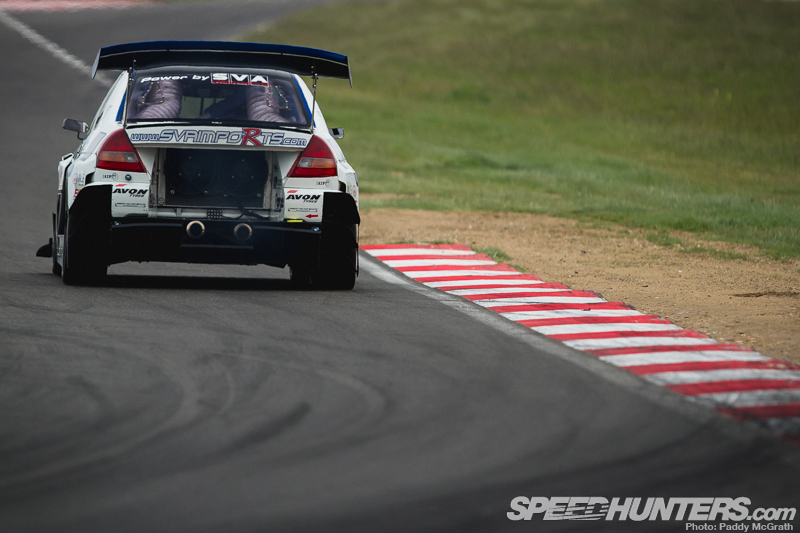

This UK time attack Evo rocks just that. You can see the actuator on the rear of the upright:



Any idea how they control it? How does it know when to reduce/increase the AOA? I guess you could reduce AOA after cornering G's fall below a threshold value, and then increase it again as brakes are applied... but then what about corners you don't brake for? You wouldn't want to wait for cornering G's or steering input, because by then its too late. Maybe a button on the steering wheel?

Or you could map out the course and pre-program it using GPS.



Driver control?
