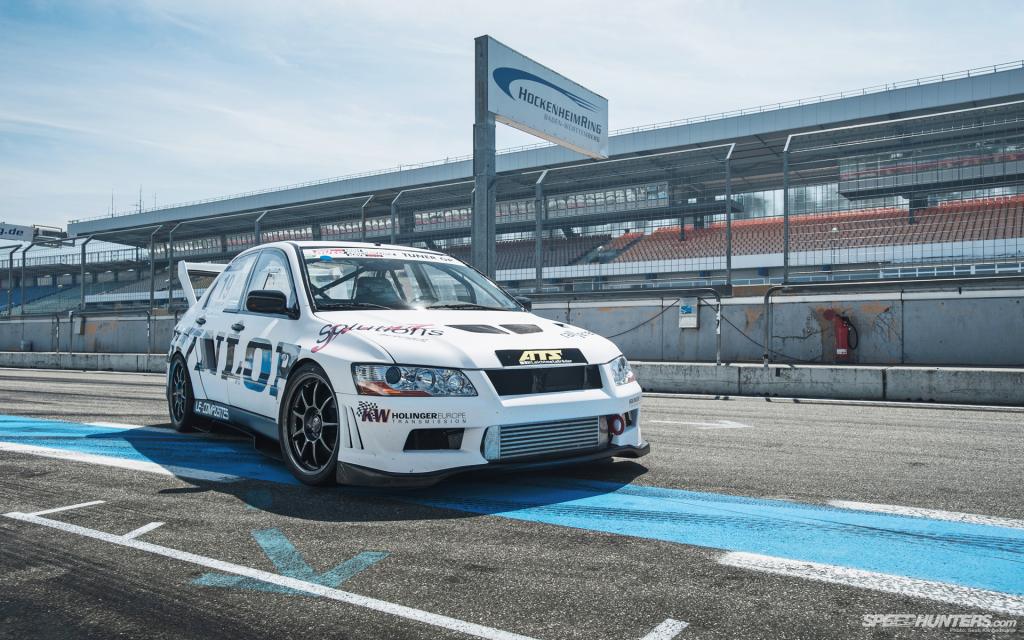

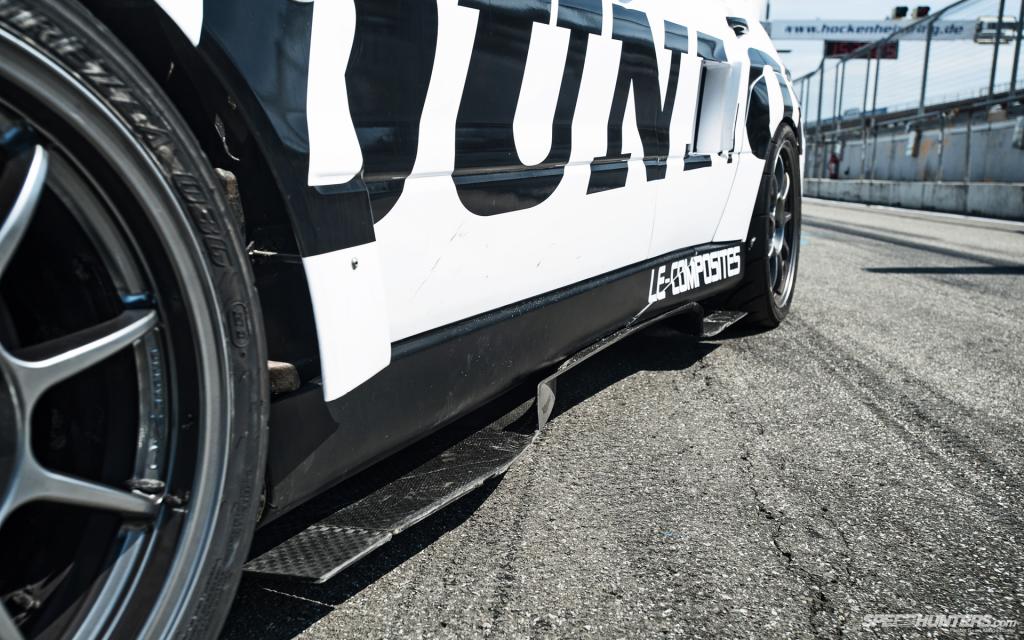

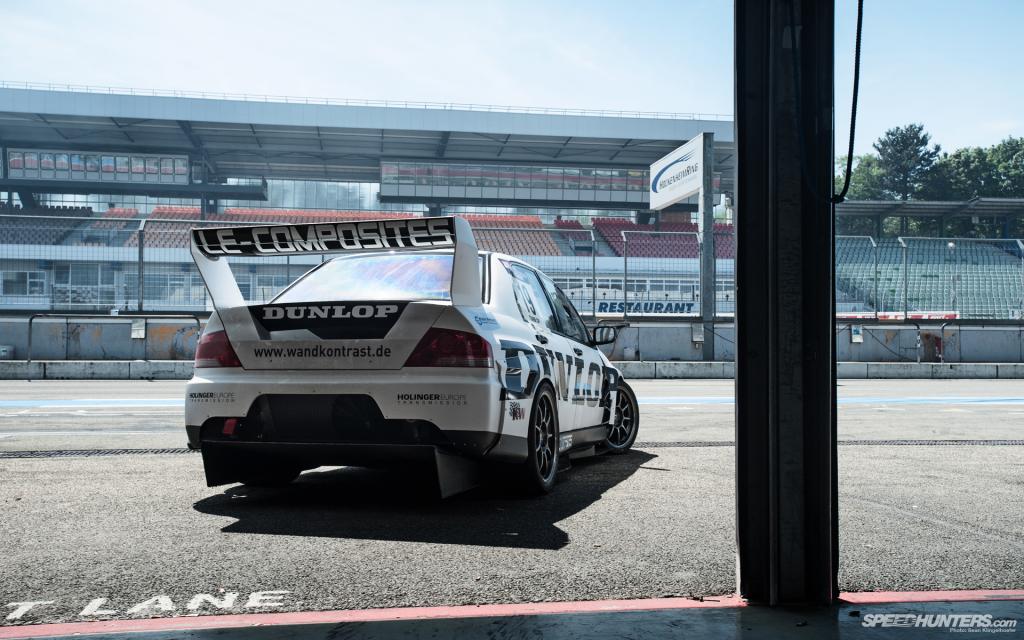

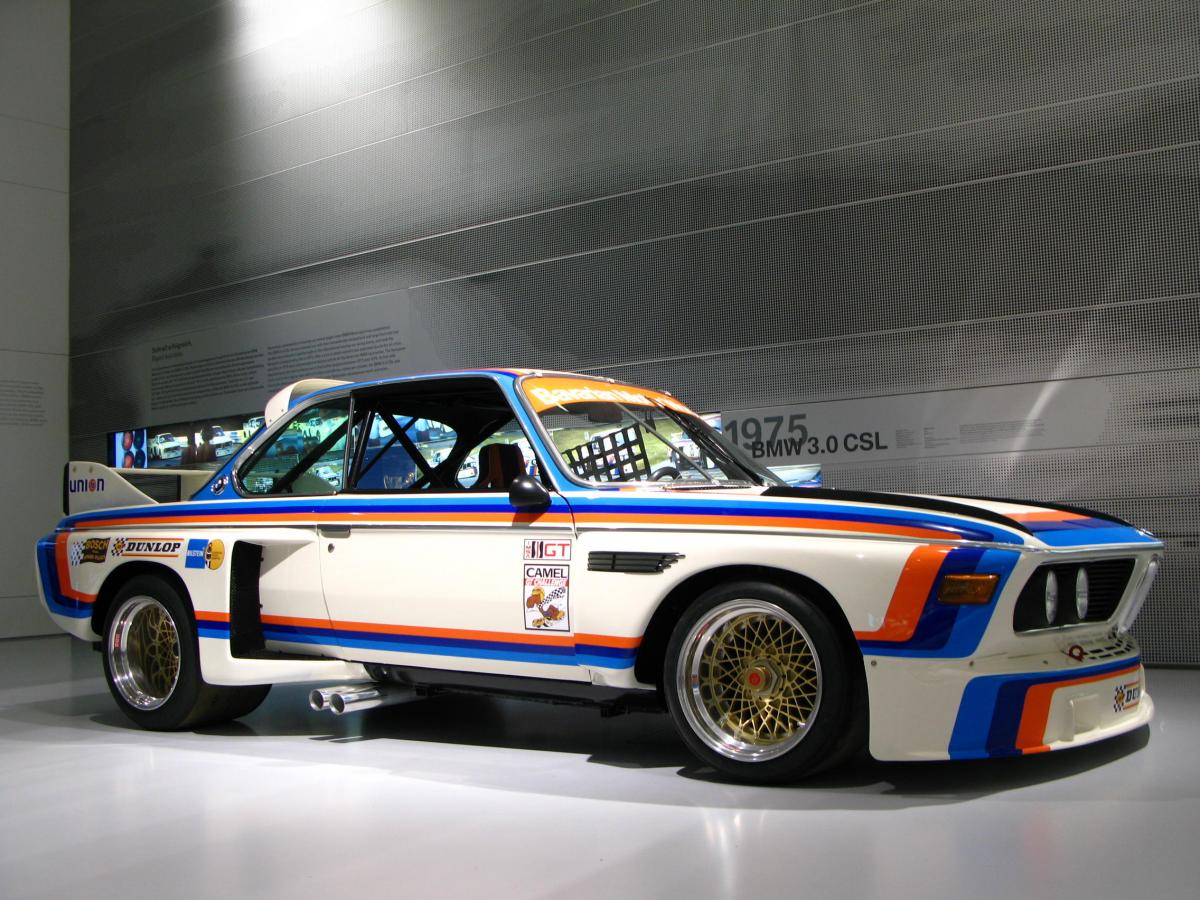

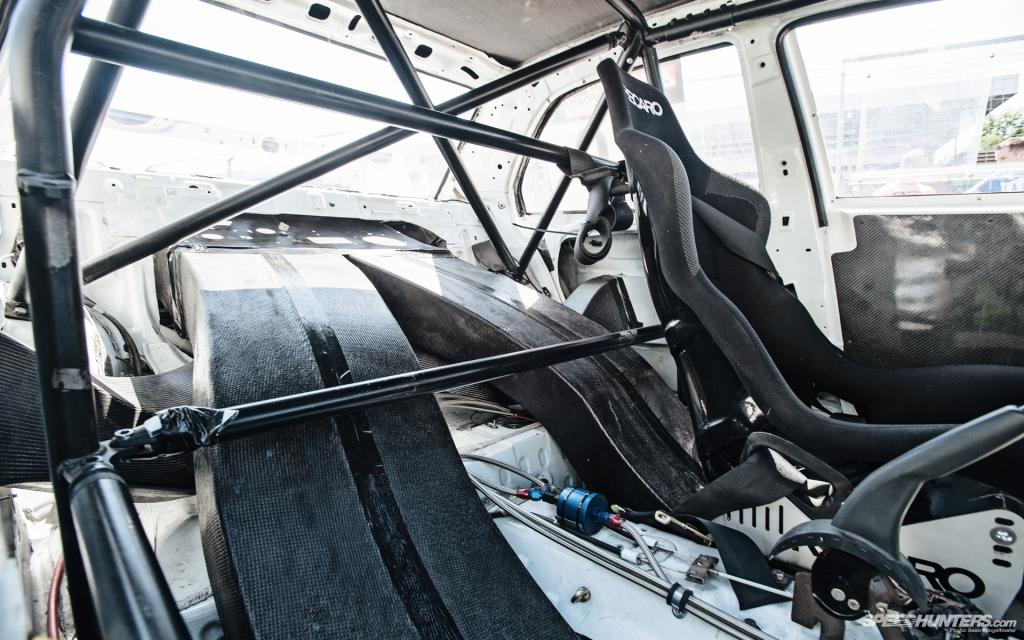

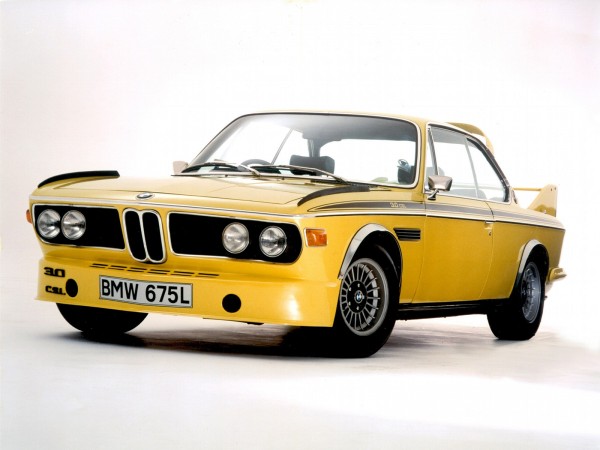

I always liked this aero treatment on the old Bimmers. Wonder if they worked....



wow that first bmw looks crazy


This is something I held off on sharing. I wanted to get mine started before adding this, but anyway here its is.

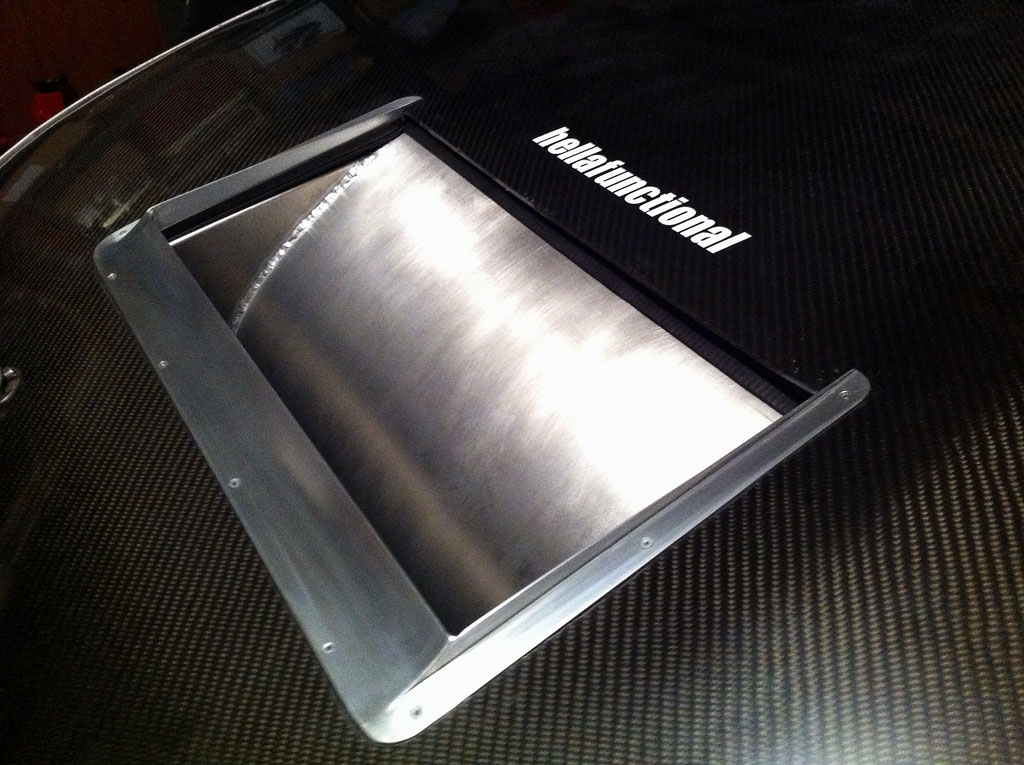

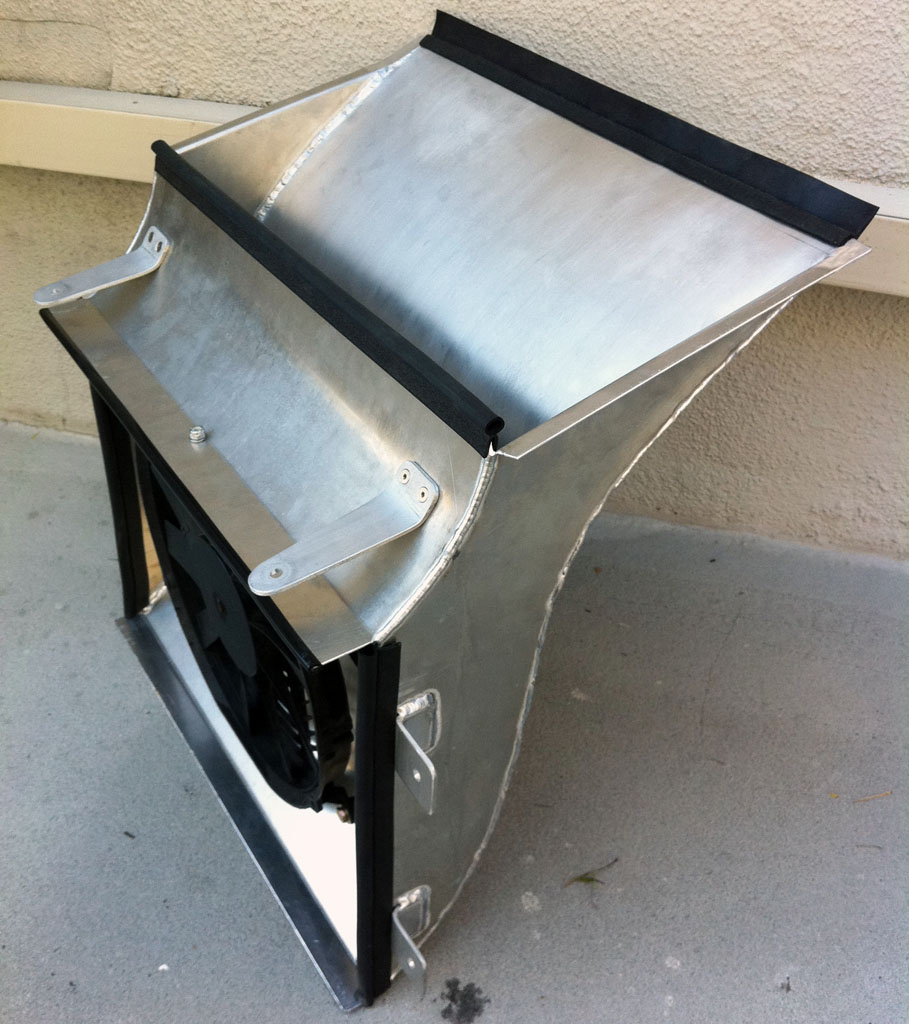

It is a GSX Radiator Duct I found

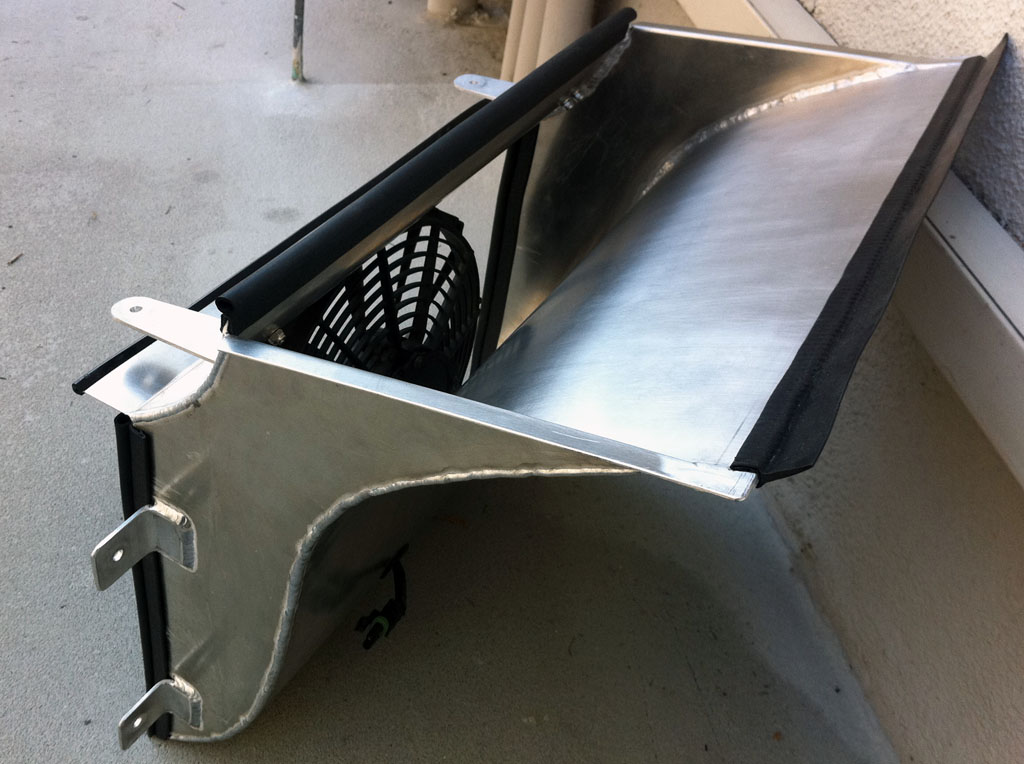

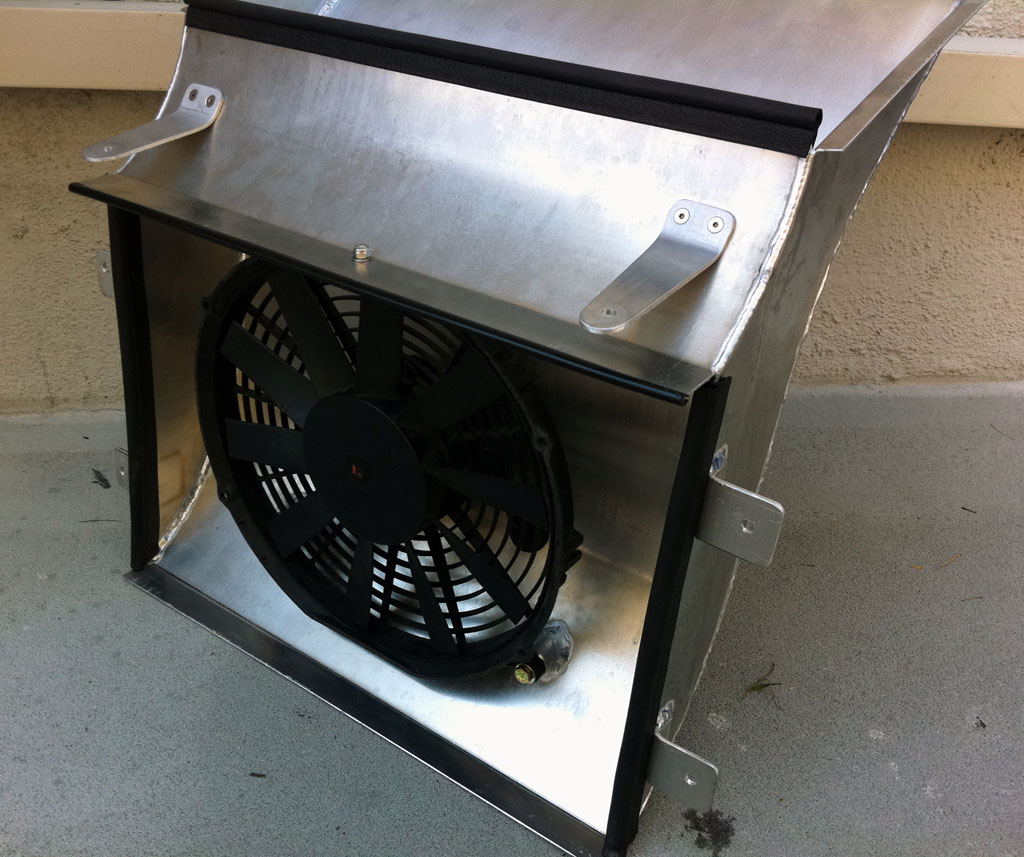

On the second pic what kind of fasteners are those on the two brackets?



^Thats pretty impressive for how tight of a space they are working with
I wish that was possible on a turbo civic



If you could mount the turbo lower or off to the side, you should have enough room



Look like nice countersink rivets to me.

"Flush-on-Both-Sides Countersunk Blind Rivets":
McMaster-Carr



Those are just stainless hex countersunk bolts. It's a well-made part.



What I was look at was the advantages of running a radiator duct is

better more efficient cooling
--The air isn't trapped under the hood causing less air flow(since I have a full underbody)

Less drag
--On one of the pics that Plucas graced us with, In the pic there is the low pressure region that would be the exit for the radiator

--Getting rid of that low pressure region will increase the downforce on the front

Since I am doing an engine swap, I will be changing the angle of the radiator from factory 8 deg angle to around 30-40 deg angle.

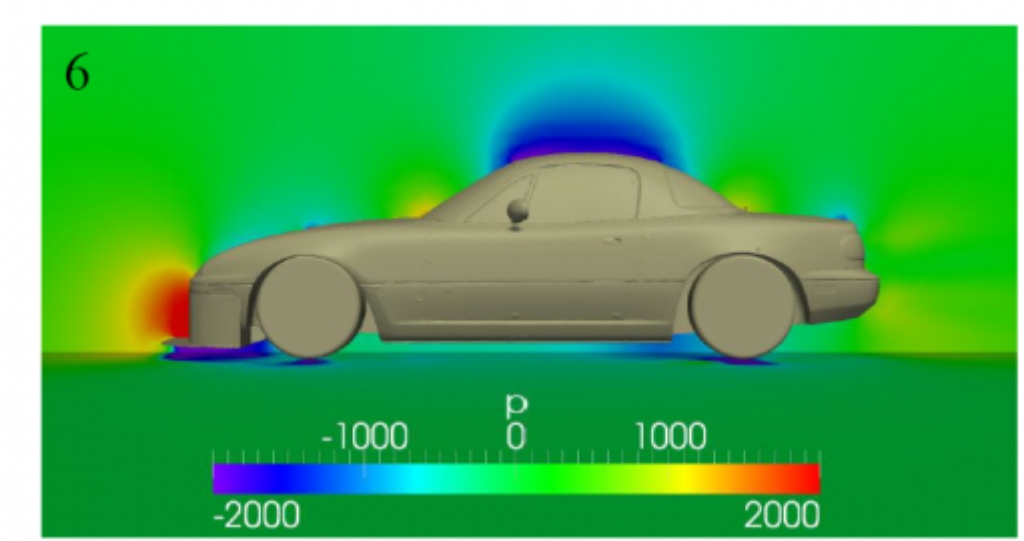

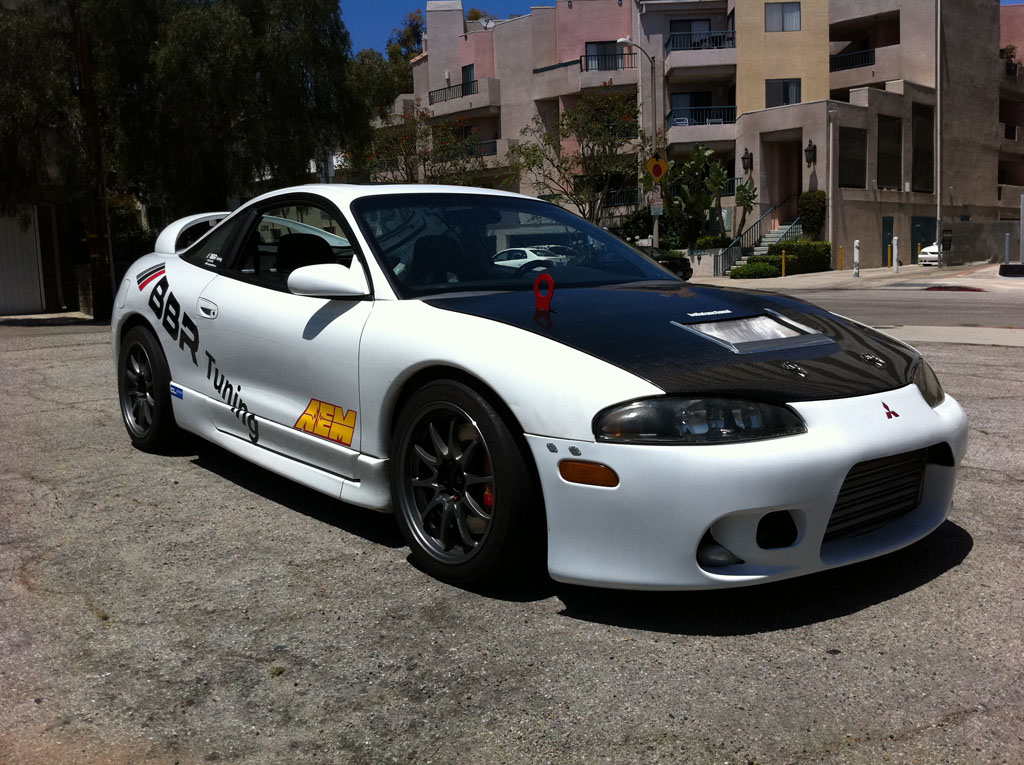

I'm debating doing something like that to the Miata if the need arises, my only concern is getting proper flow through and out the hood. Does anyone have a sim or do the strings test to see if there's proper flow going out the hood..?



Take some cardboard and tape it up to mock it. Show us what you got, thats the only way to know for sure. But with the stock amount of room looks plenty.



The NSX-R used similar a similar radiator ducting/hood scoop setup. It's the first thing I thought of when I saw it.



I tried searching so forgive me if this is a dumb question but how did you get the fender gap on the side of your car 1993ka24det? is it just mounted stock on top and pushed out on the bottom?

I have tires that stick out from the stock fenders so if i run a crusher style air dam that covers the front it would be great to widen the fenders like you did. I might even run a front diffuser too if i do.



Take out the stock fender bottom bolts, the 8mm/(2)10mm bolts. Then mark the 3 holes pattern on a piece of aluminium and drill it. Bolt the panel in with the 3 stock bolts, then pull the fender to where you want it and make those holes. Drill those holes and cut the excess. Rivet the panel to fender. I will post some more pics up.



perfect, thanks!

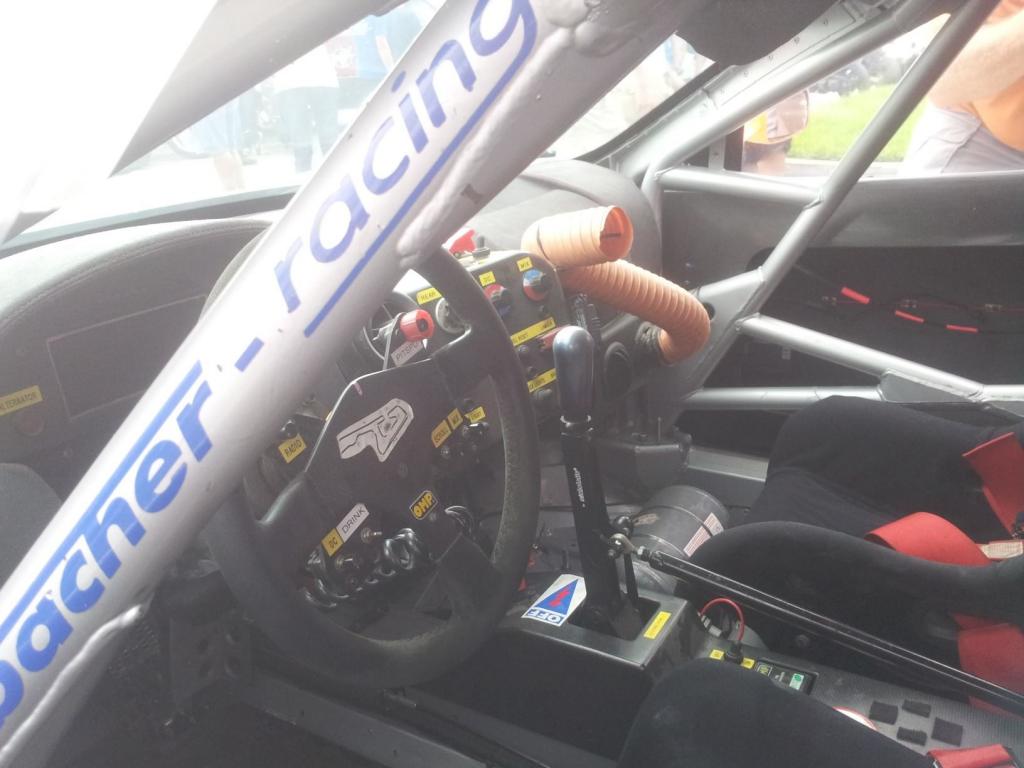

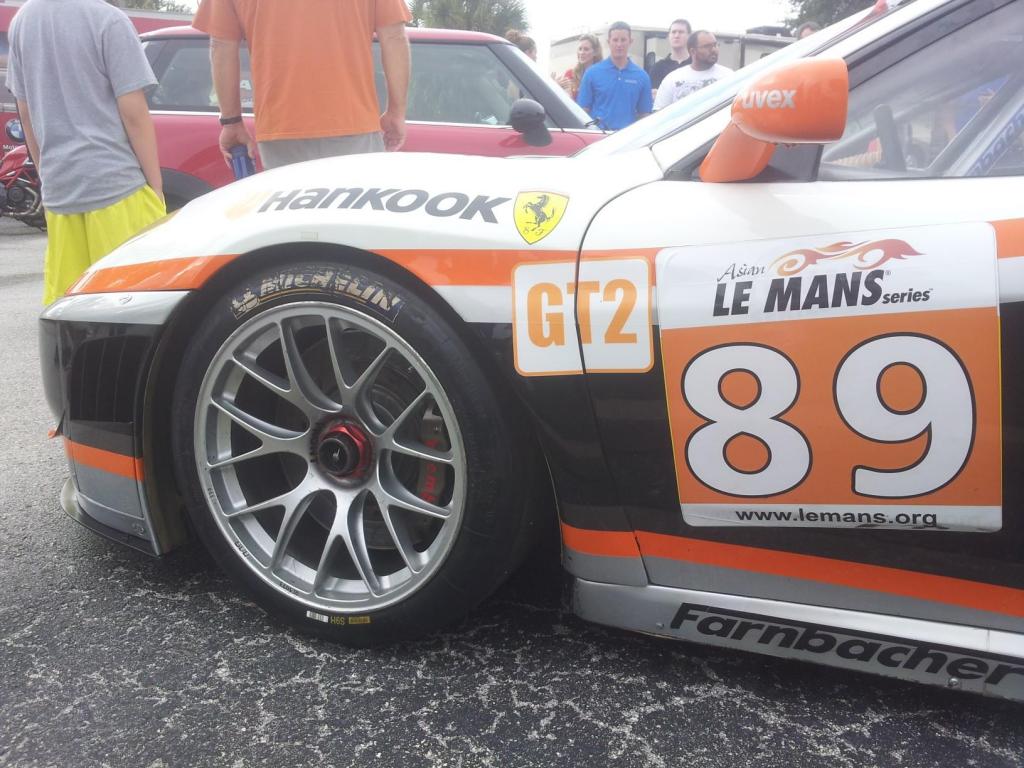

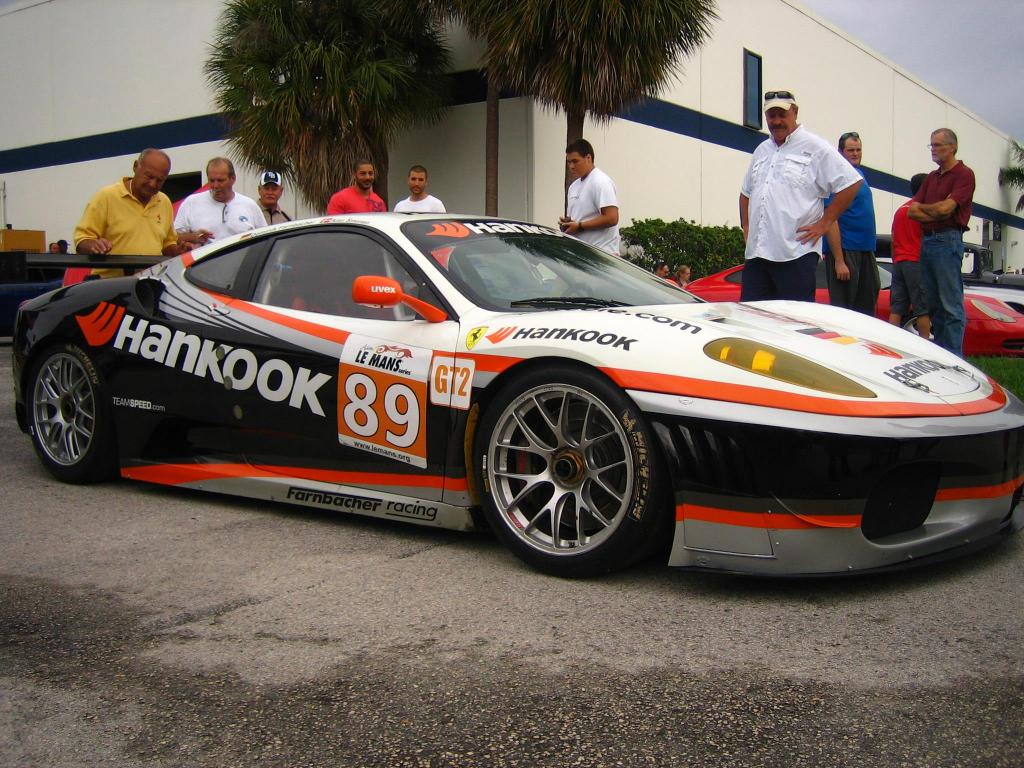

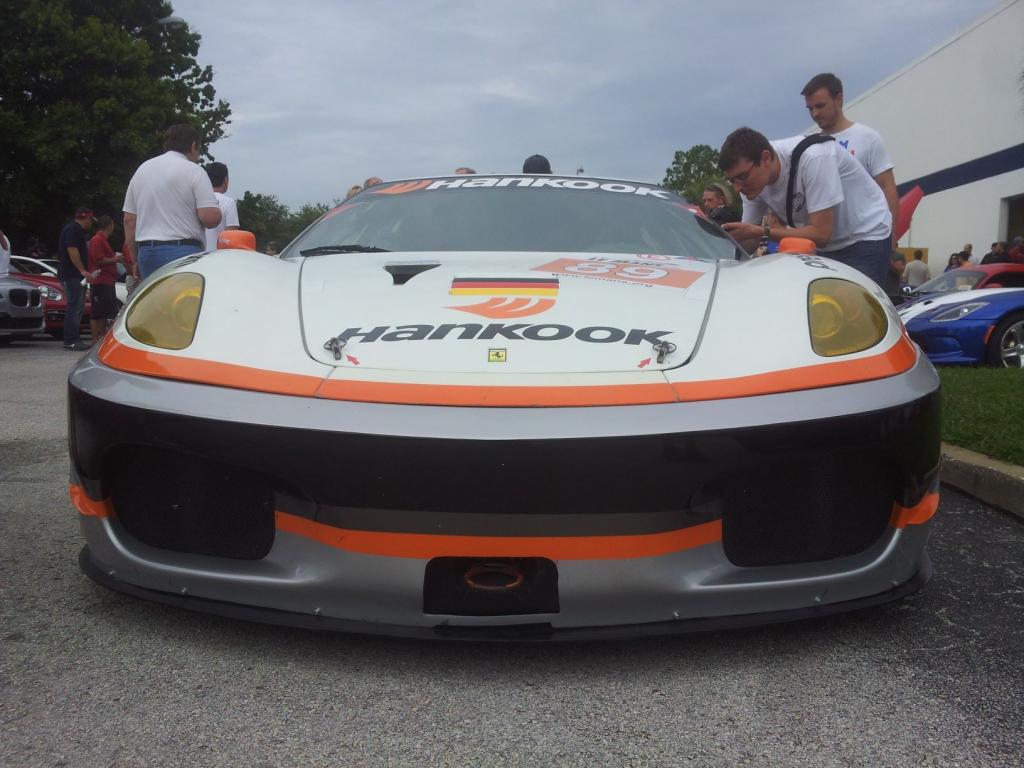

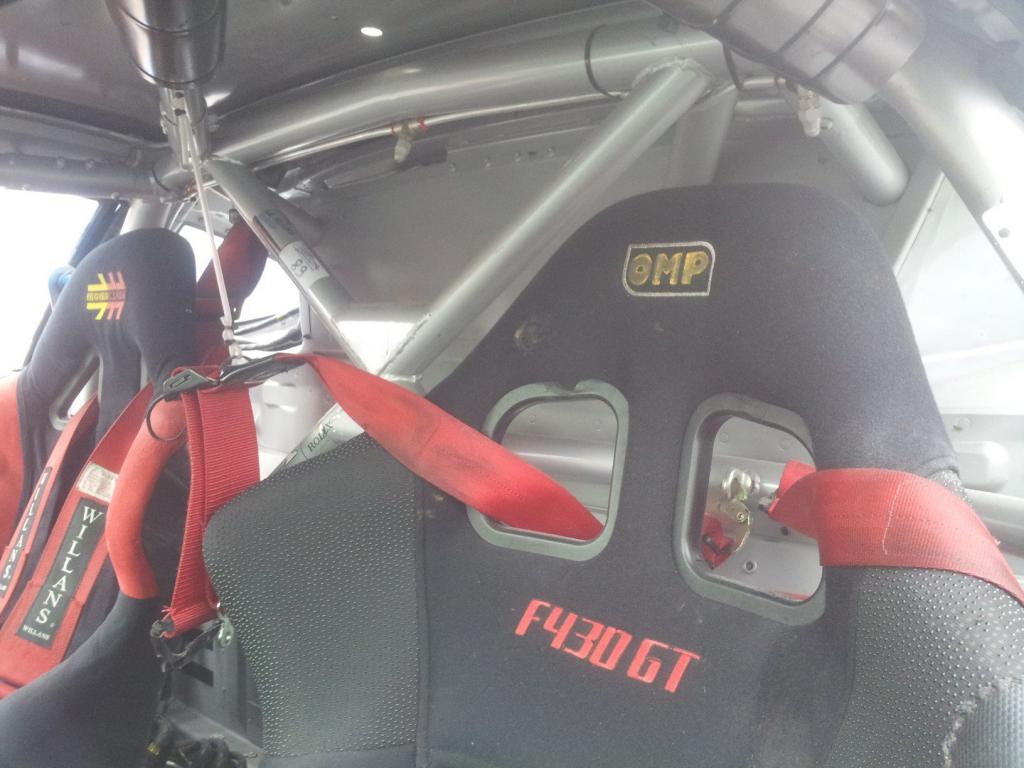

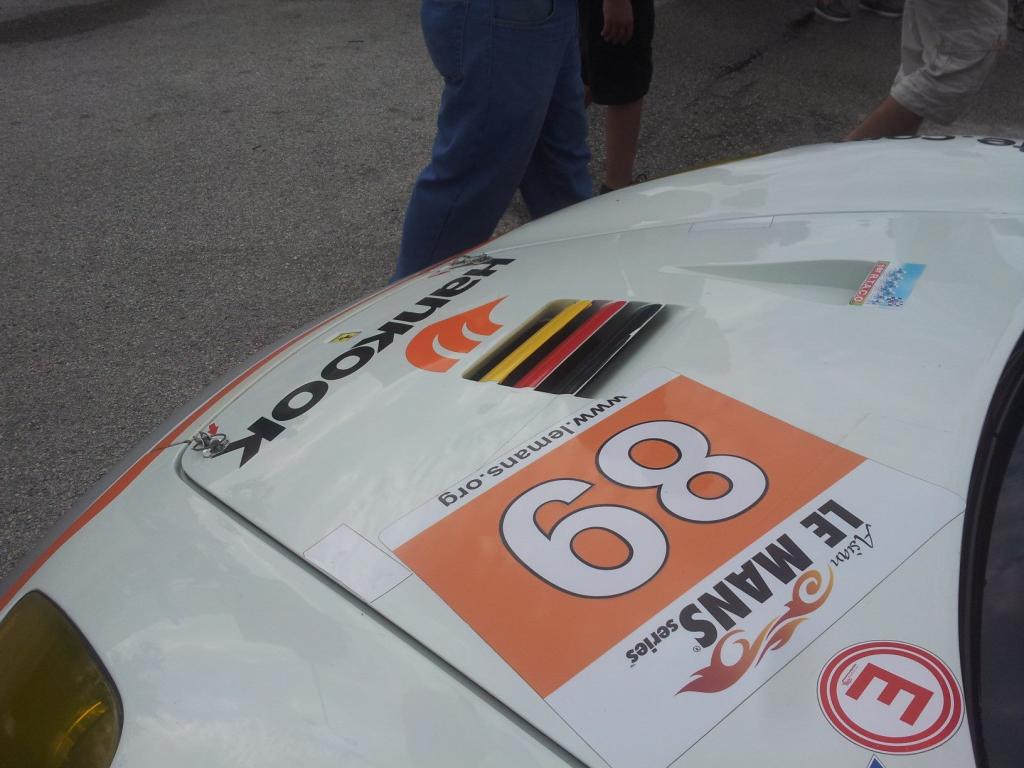

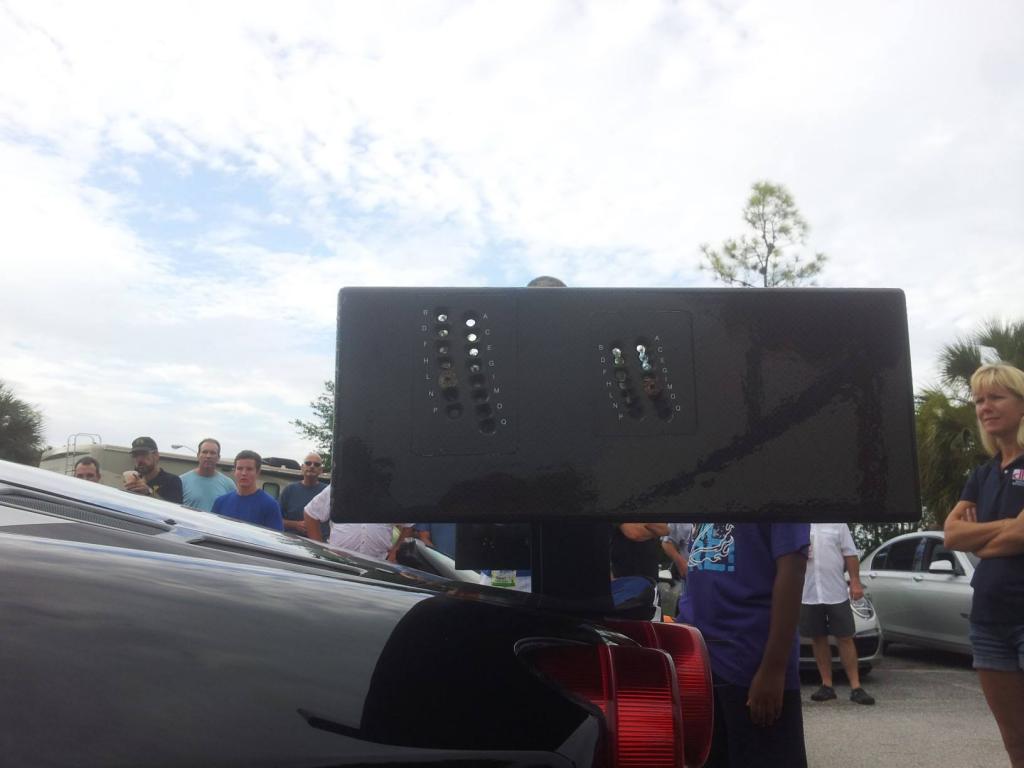

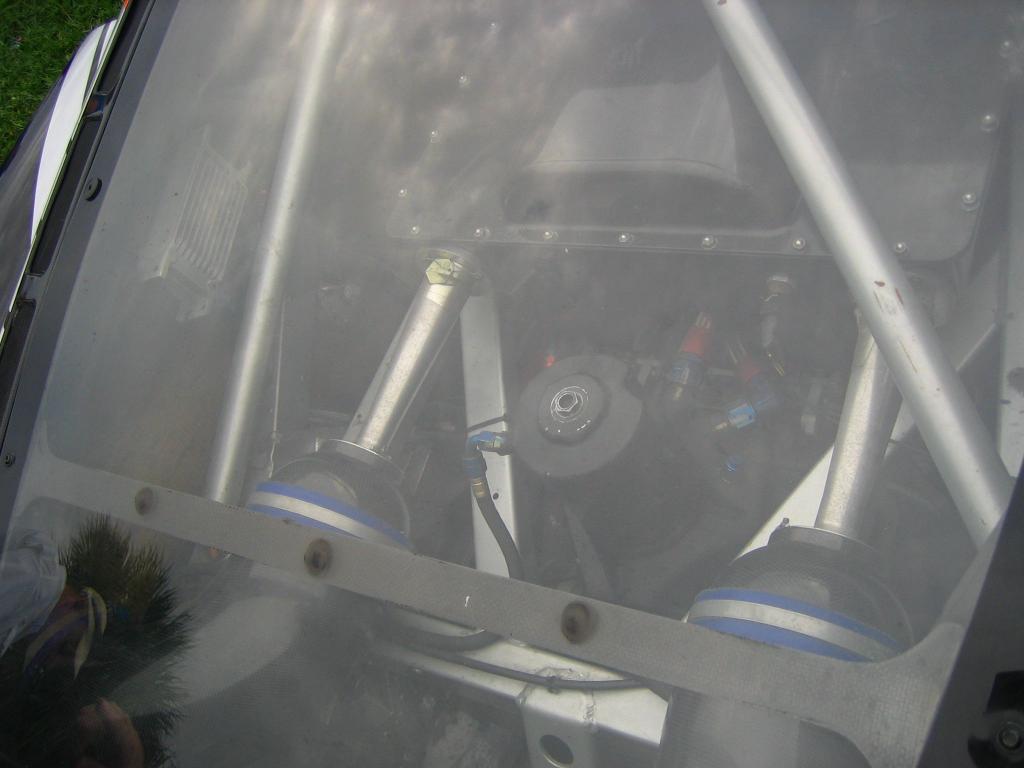

I am going to post up these pics of a F430 GT Race Car that showed up at our Cars & Coffee yesterday. Maybe some people might get new ideas for their project or get inspired to try something different with their own car.



Are those his radiator ducts?

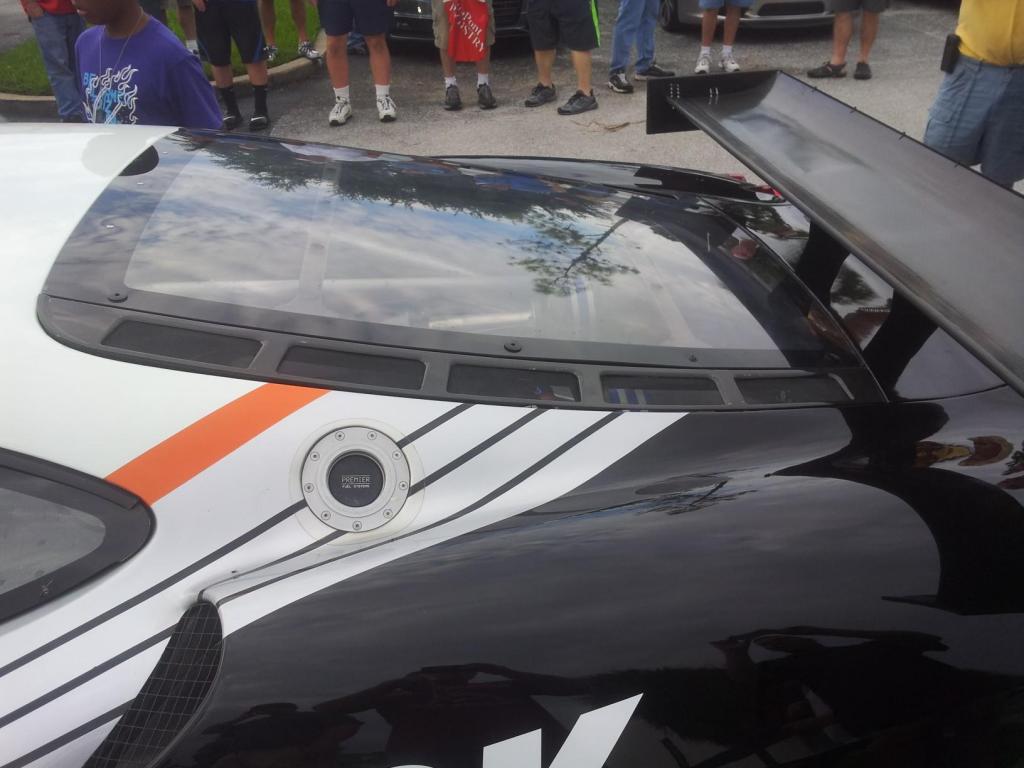

I looks like the air going under the car through the side skirts is coming out the diffuser. The air under the car is partially coming out the trunk lid and the air going into to the rear door ducts are feeding the rear radiator. Correct me if I am wrong.



I didn't even see the rear door ducts there, good catch.
