Another DIY splitter/air dam installation

Aerodynamics Splitters, spoilers, and all the aero advice you can handle.
Sponsored by:
Sponsored by:

Another DIY splitter/air dam installation


Old 11-20-2011, 05:18 PM
  #1
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,847
Total Cats: 28
Default Another DIY splitter/air dam installation

So though I had considered doing something like this before, I was not ready to take the plunge until I saw Handy_Man's installation on this thread...

https://www.miataturbo.net/race-prep-75/home-made-splitter-air-dam-ducting-60291/

I really like the way his turned out so I decided right there to use the same approach to remake the splitter and air dam for my car. The splitter is made from 3/8" birch plywood, which I had left over from the first splitter I had made. The front air dam is made from 1/8" black ABS purchased from my usual supplier, a local sign shop. The ducting is made from black coroplast, also from the same sign shop.

Here is the finished result...


The new splitter with a hammer shown for scale.

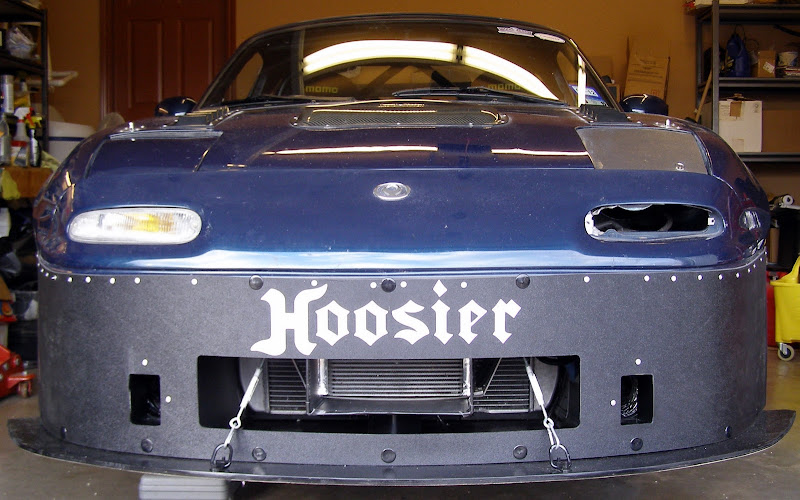

Front view

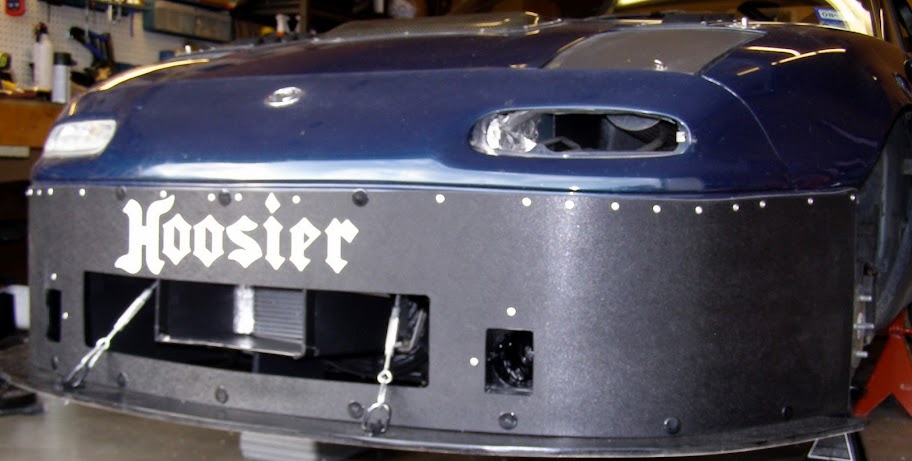

Ducting is visible on the sides inside of the dam, and around the oil cooler



Small holes on the sides are for the brake ducts



Inside the right side wheel well



The splitter from underneath



Miataturboz needs moar dogz, fast onez.



Canards and kitties to be added later.
ZX-Tex is offline
Old 11-20-2011, 05:46 PM
  #2
Elite Member
iTrader: (14)

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,095
Total Cats: 176
Default

Dude, I love it! That's gonna work wonders for the front aero. May have to give that a try over the winter months
GeneSplicer is offline
Old 11-20-2011, 06:53 PM
  #3
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,678
Total Cats: 11
Default

Very nice!! Moar pics
buffon01 is offline
Old 11-20-2011, 07:18 PM
  #4
Senior Member
iTrader: (1)

Join Date: May 2008
Location: south texas
Posts: 1,416
Total Cats: 9
Default

looks great. i may have to search for some of that abs around here. wasn't able to find any last time, may dig a little deeper.
spoolin2bars is offline
Old 11-20-2011, 07:46 PM
  #5
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,847
Total Cats: 28
Default

Thanks I am happy with how it turned out. With canards it should look better still. When I get it back on the ground I'll take some more pictures.

Spoolin, keep trying. There should be some places where you are at that sell it, like the sign shops. They might not know WTF ABS is since it is not something they would normally use, but if you talk them through it I'll bet they can order it from their normal plastics supplier. I went through this the first time.

If not, let me know and I can buy you a sheet and bring it to TWS. It is about $75 for a 1/8" x 4' x 8' sheet.
ZX-Tex is offline
Old 11-20-2011, 11:32 PM
  #6
Junior Member
iTrader: (2)

Join Date: May 2007
Location: Tulsa, OK
Posts: 181
Total Cats: 5
Default

I've looked at alot of these front splitter threads, and no one that saw mentions what the turnbunkles are mounted to on the car? Are you drilling and taping a hole, welding a nut on, or is it a pre-existing threaded hole?
ILoveOffRamps is offline
Old 11-21-2011, 03:00 AM
  #7
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,847
Total Cats: 28
Default

In my case the upper end of the turnbuckles are attached to an existing hole in the bumper via the same carabiner hooks you can see at the splitter end of the turnbuckle.
ZX-Tex is offline
Old 11-21-2011, 03:40 AM
  #8
Senior Member
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 798
Total Cats: 25
Default

This is happening to my car this winter too - thanks for starting another thread. What did you use for the little 'L' brackets mounted to the splitter in the first picture? I was going to just slice up pieces of aluminum angle but what you did looks better/easier/lighter.
-h
mr_hyde is offline
Old 11-21-2011, 04:06 AM
  #9
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,847
Total Cats: 28
Default

It is garden edging from Lowe's 'Racing Supply'. Cheap and effective FTMFW
ZX-Tex is offline
Old 11-21-2011, 05:10 PM
  #10
Elite Member

Join Date: Jul 2007
Location: Houston, TX
Posts: 3,175
Total Cats: 150
Default

That looks super effective, very similar to Spoolins. Get ready to tune the rear grip because you just increased the front a butt load

This year the flat front is the new hottness, next year...
Attached Thumbnails Another DIY splitter/air dam installation-front.jpg
jacob300zx is offline
Old 11-21-2011, 11:12 PM
  #11
Senior Member
iTrader: (21)

Join Date: May 2008
Location: San Antonio
Posts: 730
Total Cats: 16
Default

Looks even better in person!
rlogan is offline
Old 11-22-2011, 02:01 AM
  #12
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 928
Total Cats: 10
Default

This is exactly what I have planned for my car.
__________________
crashnscar is offline
Old 11-23-2011, 01:22 AM
  #13
Junior Member
iTrader: (2)

Join Date: Apr 2010
Location: Indianapolis, IN
Posts: 79
Total Cats: 1
Default

Was your main goal drag and lift reduction vs. downforce?

Last edited by Shahab; 11-23-2011 at 12:14 PM.
Shahab is offline
Old 11-23-2011, 02:07 AM
  #14
Elite Member

Join Date: Jul 2007
Location: Houston, TX
Posts: 3,175
Total Cats: 150
Default

When you understand this equation you will get it.

L > <
jacob300zx is offline
Old 11-23-2011, 08:50 PM
  #15
Senior Member
iTrader: (1)

Join Date: May 2008
Location: south texas
Posts: 1,416
Total Cats: 9
Default

Lift reduction = net downforce. That's what splitters and diffusers do with negligible drag. Wings and canards make downforce but add drag in proportion to downforce.
spoolin2bars is offline
Old 11-23-2011, 09:55 PM
  #16
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,847
Total Cats: 28
Default

Yep what Spoolin said.
ZX-Tex is offline
Old 11-24-2011, 01:17 AM
  #17
Junior Member
iTrader: (2)

Join Date: Apr 2010
Location: Indianapolis, IN
Posts: 79
Total Cats: 1
Default

Originally Posted by spoolin2bars View Post
Lift reduction = net downforce. That's what splitters and diffusers do with negligible drag. Wings and canards make downforce but add drag in proportion to downforce.
Positive pressure on the top side of the splitter that sticks out forward of the airdam will also make downforce.
Shahab is offline
Old 11-28-2011, 11:34 AM
  #18
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,847
Total Cats: 28
Default

[IMG][/IMG]

The testing at the race track was successful. Here it is in action at Texas World Speedway on the NASCAR banking in Turns 3 and 4. I set my personal best lap time, about 1.5 seconds faster. There were a lot of other variables so I cannot attribute all of the speed to the new splitter and air dam. But they were definitely working. The aero balance of the car was great everywhere.
ZX-Tex is offline
Old 11-28-2011, 11:58 AM
  #19
Elite Member

Join Date: Jul 2007
Location: Houston, TX
Posts: 3,175
Total Cats: 150
Default

That turn 3-4 session was crazy.
jacob300zx is offline
Old 11-28-2011, 12:00 PM
  #20
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,847
Total Cats: 28
Default

Stupid fast! We all had a good time trying it out.
ZX-Tex is offline
