Post your DIY aero pics


Old 10-15-2012, 12:46 PM
  #241
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,347
Total Cats: 85
Default

If the two designs jut the same amount in front of the bumper. The 2nd one will make a lot more downforce while having a bit more drag. It'll make more downforce because it will have a slightly higher pressure above the splitter and because there is just more area on that splitter for the pressure to act on. (pressure is pounds per square inch, have the same pressure but more square inches = more force).
Leafy is offline
Old 10-15-2012, 02:53 PM
  #242
Junior Member
iTrader: (2)

Join Date: Dec 2011
Location: Brandon, FL
Posts: 117
Total Cats: 0
Default

Anyone here use OpenFOAM to benchmark their ideas?
pmhaddad is offline
Old 10-16-2012, 12:57 AM
  #243
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,382
Total Cats: 60
Default

The second one will not "wear" well and will rip the bumper skin off during the first gravel incident.
NiklasFalk is offline
Old 10-16-2012, 11:04 AM
  #244
Moderator
iTrader: (12)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 18,724
Total Cats: 2,343
Default

The second one will have more downforce but also more lift because of the forces pushing upward on the underside of the nose as it protrudes. One of the major shortcomings of the stock bumper design is that the bumper overhangs the lowest portion, giving the pressure a point to "lift" against on the underside of the nose. Aerodynamacists caution against this. The one with a straight surface downward from the foremost point is more efficient. The designer obviously built it with this knowledge.
sixshooter is online now
Old 10-16-2012, 12:34 PM
  #245
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,347
Total Cats: 85
Default

Never thought of the upward force. BUT, empirically, at least on an NB1 front end the air dam further back yields more net front downforce.
Leafy is offline
Old 10-16-2012, 02:25 PM
  #246
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,098
Total Cats: 368
Default

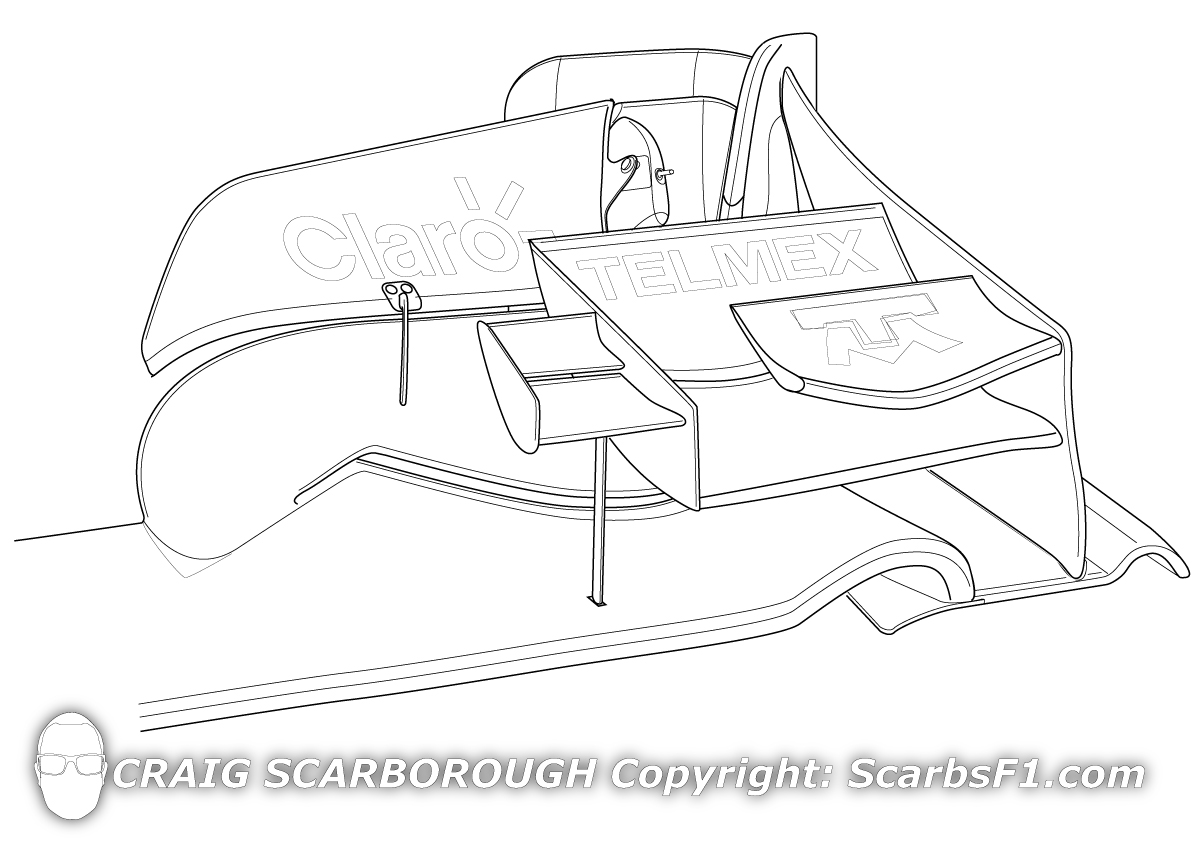

I made this a couple weeks ago:
Attached Thumbnails Post your DIY aero pics-sauber_fw_japan.jpg
hustler is offline
Old 10-16-2012, 02:29 PM
  #247
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,347
Total Cats: 85
Default

Is Craig your stage name?
Leafy is offline
Old 10-16-2012, 02:30 PM
  #248
Senior Member

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 940
Total Cats: 40
Default

Wow, thats a cool diffuser, hope you got the angle right....
mx5-kiwi is offline
Old 10-16-2012, 06:28 PM
  #249
Moderator
iTrader: (12)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 18,724
Total Cats: 2,343
Default

Scarred bro?
sixshooter is online now
Old 10-17-2012, 11:16 PM
  #250
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,847
Total Cats: 28
Default

Originally Posted by hustler View Post
I made this a couple weeks ago:
F1 aero is crazy awesome, and also crazy expensive.
ZX-Tex is offline
Old 10-18-2012, 10:04 PM
  #251
Newb

Join Date: Oct 2010
Posts: 12
Total Cats: 0
Default

That aero is weak lol
imnatelol is offline
Old 10-18-2012, 11:53 PM
  #252
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,098
Total Cats: 368
Default

Originally Posted by ZX-Tex View Post
F1 aero is crazy awesome, and also crazy expensive.
But you can use the autoclave to make gumbo.
hustler is offline
Old 10-19-2012, 12:18 AM
  #253
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,847
Total Cats: 28
Default

Originally Posted by hustler View Post
But you can use the autoclave to make gumbo.
Which means of course NOLA is the perfect place for a US F1 team to set up base.

Some say, he is writing the world's first cook book on making gourmet dishes using common hand tools, and that his recipe for Gear a l'Orange uses Motul for the sauce. All we know is, he's called The Hustler.
ZX-Tex is offline
Old 11-10-2012, 10:22 PM
  #254
Senior Member
iTrader: (3)

Join Date: Dec 2008
Location: KY
Posts: 838
Total Cats: 113
Default

Originally Posted by Leafy View Post
I've used epoxy like the, west systems kit and it works fine. Polyester resin, like the bondo stuff you buy at autozone will melt it.

Also, for air dam material, you're basically a moron to not use this stuff. http://www.speedwaymotors.com/Colore...0-Ft,1557.html Enough to make enough air dams for you and all your friends.
I finally ordered some of this stuff and got it in this past week. Easily the best option I've found for air dam material so far. I was a little worried that it'd be too thin, but now that I've seen it in person I'm not at all worried. A little over $50 for two sheets to my doorstep = win.
jpreston is offline
Old 11-11-2012, 04:49 AM
  #255
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 3,080
Total Cats: 898
Default

I'm definitely buying a roll of that stuff.
__________________
Ryan Passey
ThePass is offline
Old 11-14-2012, 04:56 AM
  #256
Senior Member

Join Date: Aug 2009
Location: melbourne aus
Posts: 515
Total Cats: 90
Default

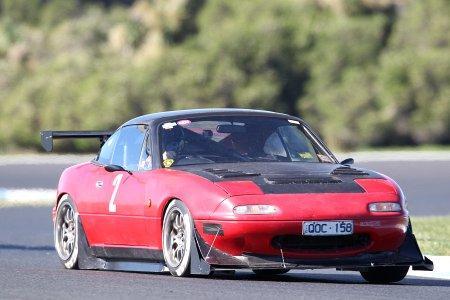

Pic of my latest low cost aero. Large front splitter, large front diffusers, canards, side skirts that start forward of the front axle line, fastback and dual element rear wing. The car has no mechanical changes (tyres were 2 meetings old last time, this time they are many track days old), just the aero. I picked up 0.9x seconds, with top speed 9mph faster on the straight, and 10mph faster at turn one, now 110mph.

Attached Thumbnails Post your DIY aero pics-meredone.jpg
lightyear is offline
Old 11-14-2012, 11:41 AM
  #257
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 3,080
Total Cats: 898
Default

Originally Posted by lightyear View Post
...large front diffusers, side skirts that start forward of the front axle line...
Looks great lightyear!

Can you elaborate on these two things? Do you have pics of them? I'm assuming the sideskirts start inwards near the center of the body then curve out to the sides of the car? And by front diffuser do you mean a diffuser shape in the front splitter forward of the front tires?

-Ryan
__________________
Ryan Passey
ThePass is offline
Old 11-14-2012, 03:39 PM
  #258
Senior Member

Join Date: Aug 2009
Location: melbourne aus
Posts: 515
Total Cats: 90
Default

Yep, the skirts run along the inside of the front wheel, actually part of the splitter/under tray. Then go around the back of the tyre to meet up to the sides. Front under tray is wedge shaped at the front in the middle. So there is a triangle that is level to the ground. The rest of the under tray is curved up. With sides to create tunnels. I have a cardboard model I made. If I get round to it I will take a pic.
lightyear is offline
Old 11-14-2012, 03:50 PM
  #259
Senior Member

Join Date: Aug 2009
Location: melbourne aus
Posts: 515
Total Cats: 90
Default

I would like to run the front splitter 2" of the ground, the same as the skirts. But I can only just get it on the trailer as is.
lightyear is offline
Old 11-14-2012, 03:53 PM
  #260
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,347
Total Cats: 85
Default

Originally Posted by lightyear View Post
I would like to run the front splitter 2" of the ground, the same as the skirts. But I can only just get it on the trailer as is.
What spring rates are you running up front? At the length of craftsman deep sockets (bit over 2 inches) off the ground with 900 lb front springs a splitter that does not extend past the body shape will scrape under braking.
Leafy is offline
