Post your DIY aero pics


Old 10-14-2018, 09:55 PM
  #1781
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,370
Total Cats: 86
Default

A nice coating of gelcoat will keep oil and water out of the wood.
Leafy is offline
Old 10-15-2018, 05:45 AM
  #1782
Junior Member

rrjwilson's Avatar

Join Date: Aug 2008
Posts: 379
Total Cats: 1
Default

Originally Posted by emilio700 View Post
I saw that post and moved it the aero sub forum a few weeks ago. Thanks for the contribution.
Thanks Emilio. I have tried to make it usable but without a modulus for all it makes it design decisions much harder. I am working on it
rrjwilson is offline
Old 10-15-2018, 10:42 AM
  #1783
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 6,114
Total Cats: 1,808
Default

Modulus key.
Failure mode also important.
Does it stay bent or shatter.
Abrasion resistance.
Cost per square/ft.
Before Alumalite, birch was the next best thing to Tegris or dry carbon.
__________________


www.facebook.com/SuperMiata

949RACING.COM Home of the 6UL wheel

.27 SNR
emilio700 is offline
Old 10-15-2018, 11:55 AM
  #1784
Junior Member

rrjwilson's Avatar

Join Date: Aug 2008
Posts: 379
Total Cats: 1
Default

Originally Posted by emilio700 View Post
Modulus key.
Failure mode also important.
Does it stay bent or shatter.
Abrasion resistance.
Cost per square/ft.
Before Alumalite, birch was the next best thing to Tegris or dry carbon.
That is an interesting point you make.
Perhaps there needs to be an idea of where the bend shatter cross over is.
Although given the range being very grouped I guess it won't be accurate.
rrjwilson is offline
Old 10-22-2018, 06:11 PM
  #1785
Junior Member

Join Date: Sep 2013
Location: SLC,UT
Posts: 167
Total Cats: 23
Default

I've been considering whipping up a wing setup for my car, and an end plate mounted wing came to mind, since big end plates seem to help with efficiency and normal uprights disrupt flow.
Is there a good reason why they're not used in GT cars or other racing? It's prevalent in F1 , but I wasn't sure if that was due to a restriction on F1s side, or a restriction in other race classes. the NOPRO guys used it on their GT300 car, but that wasn't exactly a winning car.

soot is offline
Old 10-23-2018, 08:02 AM
  #1786
Junior Member

Join Date: Jan 2016
Location: Atlanta, GA
Posts: 184
Total Cats: 20
Default

Not used on GT3 cars due to rules- note they are used on LMP cars.
Mounting on a Miata is a challenge, note how small the wing in that picture is. To have a full sized 65-68" wing you need to make some kind of fender mounts.
It's often easier, lighter, cheaper and stronger to just have a gooseneck setup. Which you often see on GT/GTLM cars.
Wingman703 is offline
Old 11-10-2018, 12:30 PM
  #1787
Junior Member

Join Date: Jan 2016
Location: Munich
Posts: 302
Total Cats: 52
Default

Question to those who run a splitter + flat underbody (+ diffuser): do you still run the stock undertray? I've seen a lot of splitter setups, yet nobody seems to shield the engine bay from the high pressure wheel well area. I guess this must decrease radiator efficiency, wouldn't it? Or does the wheel well have less pressure than the bay?

Last edited by Eunos91; 11-10-2018 at 01:09 PM.
Eunos91 is offline
Old 11-10-2018, 02:00 PM
  #1788
Junior Member

Join Date: Jan 2016
Location: Atlanta, GA
Posts: 184
Total Cats: 20
Default

I have full splitter only and ditched my undertray. Front airdam is tightly ducted to radiator and I have both hood vents and fender vents. I figure the combination of those two should be adequate to pull some air out of the bay, not that I'm really concerned about bay temps- my intake tube is wrapped and ducted though the headlight, and nothing else under there is going to get hot enough to care.
Wingman703 is offline
Old 11-10-2018, 02:18 PM
  #1789
Senior Member

Join Date: Feb 2007
Location: Columbus, OH
Posts: 1,094
Total Cats: 377
Default

I retain the stock undertray, but the fender liners are both missing.

The wheelwell holes by the headlights are problems. Fender liners or front mini tubs would be huge to minimize wheelwell air volume. Build them as close to full bump travel as possible.
doward is offline
Old 02-17-2019, 05:26 AM
  #1790
Newb

Join Date: Sep 2010
Posts: 33
Total Cats: -7
Default





Gn0m4 is offline
Old 02-17-2019, 12:14 PM
  #1791
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 6,114
Total Cats: 1,808
Default

Not sure what we are looking at. You appear to have an alumalite undertray and then he wooden one underneath that.
If the wood under tray is the final product those reinforcing braces are going to get caught on stuff if you drop a wheel off track. It needs to be smooth underneath for it to work, and survive. Also that oil color does not appear to have any ducting. Is that the final iteration or are you going to enclose it somehow?
__________________


www.facebook.com/SuperMiata

949RACING.COM Home of the 6UL wheel

.27 SNR
emilio700 is offline
Old 02-17-2019, 01:38 PM
  #1792
Newb

Join Date: Sep 2010
Posts: 33
Total Cats: -7
Default

Originally Posted by emilio700 View Post
Not sure what we are looking at. You appear to have an alumalite undertray and then he wooden one underneath that.
If the wood under tray is the final product those reinforcing braces are going to get caught on stuff if you drop a wheel off track. It needs to be smooth underneath for it to work, and survive. Also that oil color does not appear to have any ducting. Is that the final iteration or are you going to enclose it somehow?

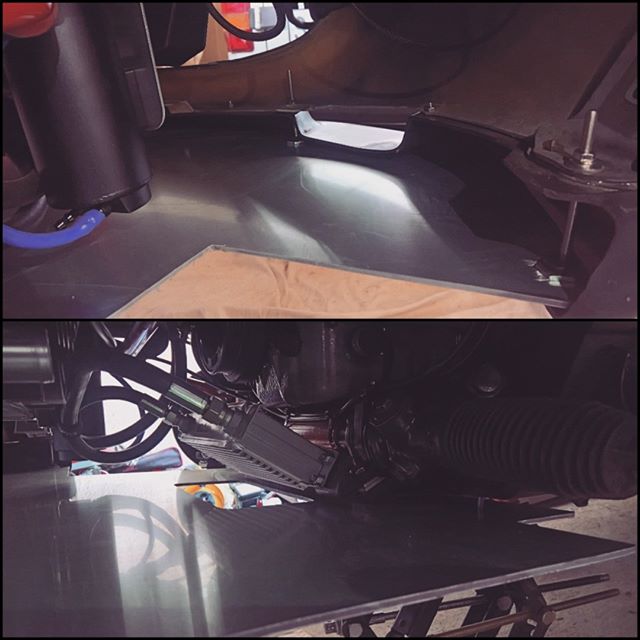

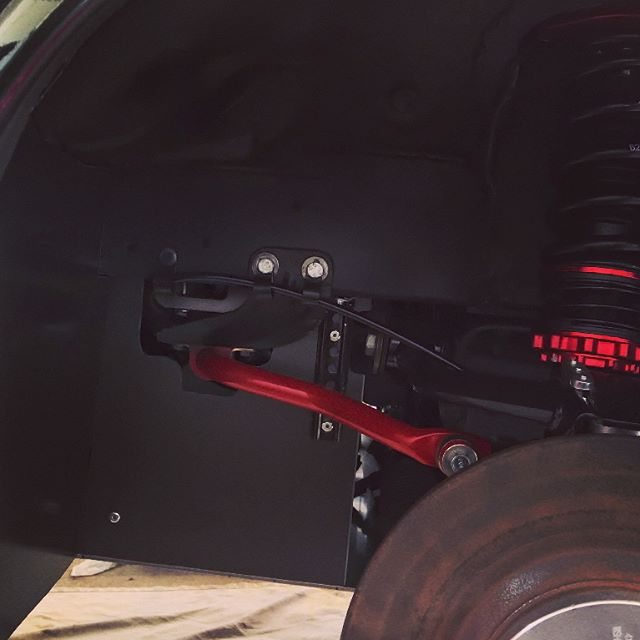

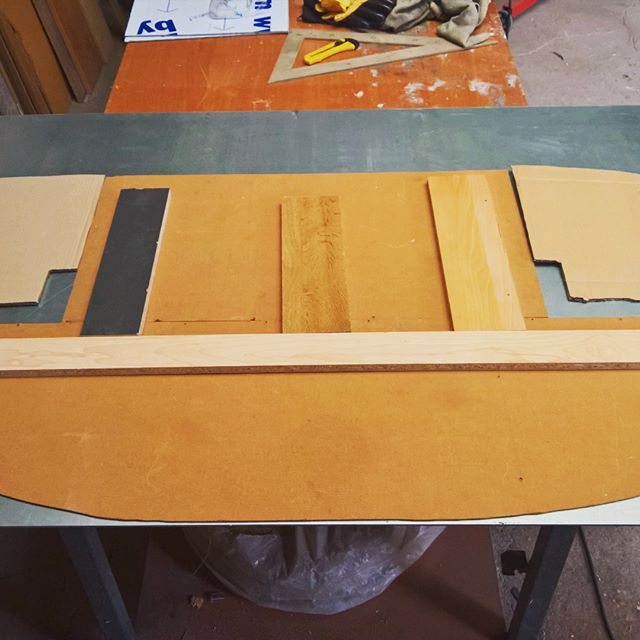

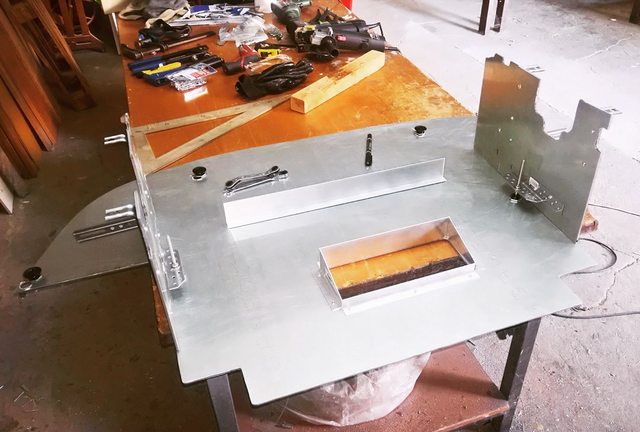

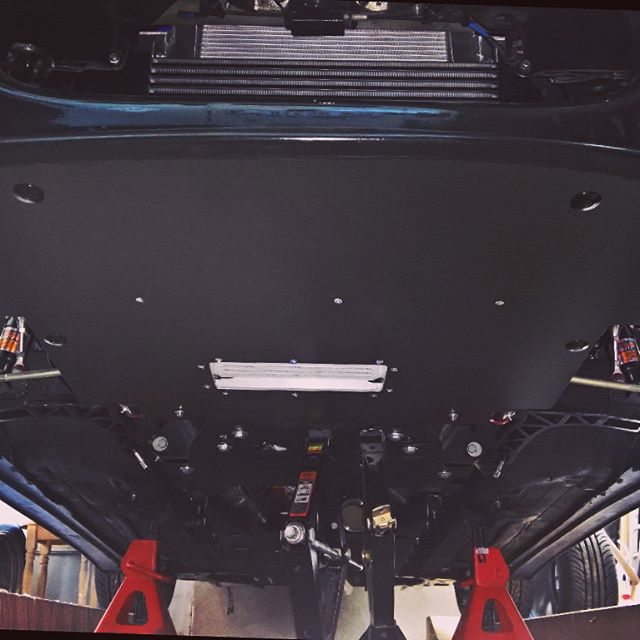

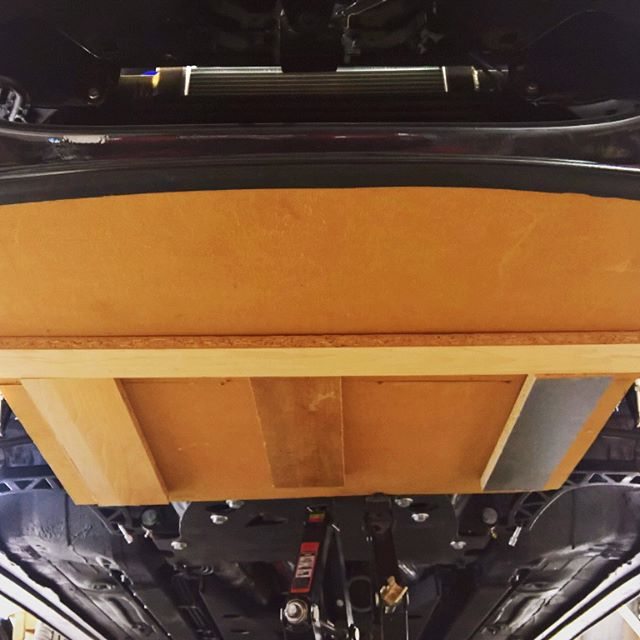

I just wanted to show the process to design my template.
Final product is a composite (not alumalite itself).








Flat floor has two security bolts to the lower subframe and rest of them are quick fasterners.

I will design front splitters and canards tomorrow (only for track events because they canīt be MOT registered and i use my car almost for daily).
Something easy to mount and not so big.
Gn0m4 is offline
Old 03-27-2019, 05:14 AM
  #1793
Newb

Join Date: Oct 2015
Location: Brittany, France
Posts: 30
Total Cats: 0
Default

no pics yet as i'm still thinking about my aero and ducting.. and i have a question.

it seems like the "right" opening size for the colling intake is about 1/3 of the radiator
What about if your add IC, and oil cooler ? Is it about "1/3 of the total surfaces, adding the surface of each radiators" or "1/3 of the visible surface"? IC will be probably in fornt of the rad, and oil cooler and i'm trying to find some "free flow", all this for a track car...
herduge is offline
Old 03-27-2019, 07:29 AM
  #1794
Senior Member

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 617
Total Cats: 51
Default

Originally Posted by herduge View Post
no pics yet as i'm still thinking about my aero and ducting.. and i have a question.

it seems like the "right" opening size for the colling intake is about 1/3 of the radiator
What about if your add IC, and oil cooler ? Is it about "1/3 of the total surfaces, adding the surface of each radiators" or "1/3 of the visible surface"? IC will be probably in fornt of the rad, and oil cooler and i'm trying to find some "free flow", all this for a track car...
Yes that is right 1/3 of the size of the heat exchangers. Now keep in mind following other race cars will lessen the air flow.
1993ka24det is offline
Old 03-27-2019, 02:37 PM
  #1795
Junior Member

Join Date: Dec 2012
Location: Charlotte, NC
Posts: 367
Total Cats: 32
Default

Just remember - adding tape is easier than cutting a bigger hole!
Supe is offline
Old 03-27-2019, 02:53 PM
  #1796
Newb

Join Date: Oct 2015
Location: Brittany, France
Posts: 30
Total Cats: 0
Default

i'll try not to stay behind for too long in order to keep my temps low enough

Just to make sure i got it right , if i have a an 65cmx30cm radiator and a 55x18cm (sorry for the metrics) my intake should be around (1 000cmē which could translate in an opening for the air intake of appr. 55x18cm).
Also, I intend to divide the intake in 2 parts :
- bottom half going through the IC and then to the bottom part of rad,
- top half going through the top half of the radiator.

do i overthink it?
i try to do it once do it right, measure twice cut once....so I ask many times!
herduge is offline
Old 04-09-2019, 06:22 PM
  #1797
Elite Member
iTrader: (7)

Join Date: Jan 2008
Location: Knoxville, TN
Posts: 2,448
Total Cats: 174
Default

Dollars spent: $250ish
Hours spent: 16+
How effective: 2
0=slower, 1, no improvement, 2 =slightly better,3= big improvement
Materials used: 0.100" HDPE, 10mm alumalite, turn-buckles/wires, 6x nuts/bolt/fender washers and rivets.......lots of rivets
Bracket location: Hard-mount in OEM holes for rear of under-tray. Cable-wire/turn-buckles for front and side mounting points. L-brackets on splitter for air-dam to rest on.
Tracks tested on: Roebling Road
Race/TT class built for: ST5/TT5/GLTC




Admittedly, a buddy and me slapped this together in a hurry. Did my best to off-set the rear downforce of the 9LR 64" swan-neck, even at 0 AOA.


This was put together with 9LR prototype air-dam made out of 0.100" HDPE. It has about 3x as many rivet holes as needed, I needed up using every other hole, which is still 40 rivets across the top of it. Thank god for air rivet gun!

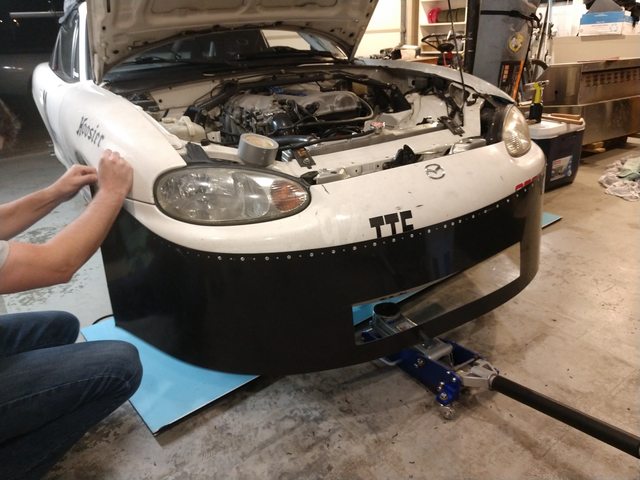

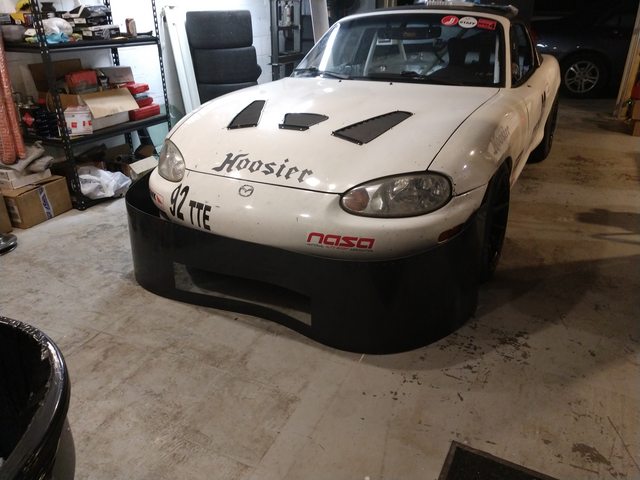

Mocking the air-dam up, I attempted to mount it on the furthest edge possible on the front bumper. Lining up this pre-cut prototype up with the very top of the bumper edge where it meets the fenders. I figured I didn't want it to be riveted to the fender in case of contact and for ease of disassembly on the fenders.

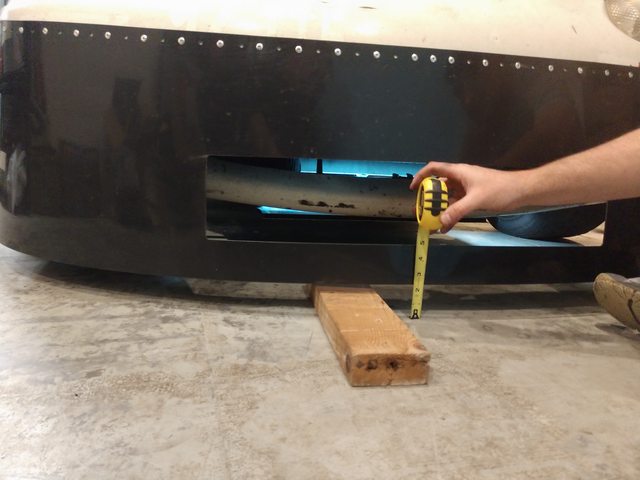

Once mounted, we realized it was low as damnit. So we'll have to do some custom fab work with box-cutter later. 2x4 for reference.......

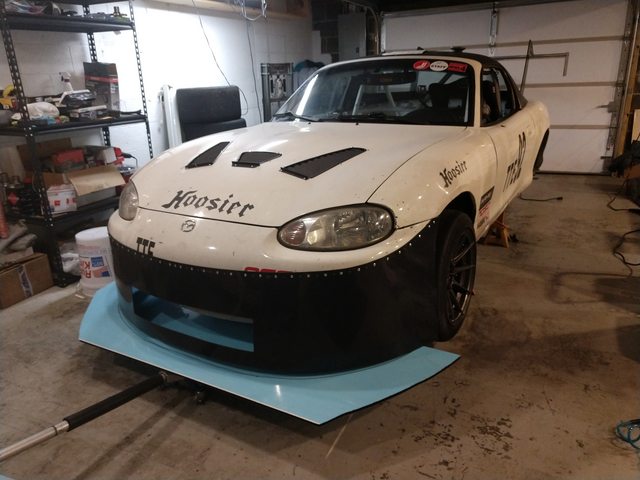

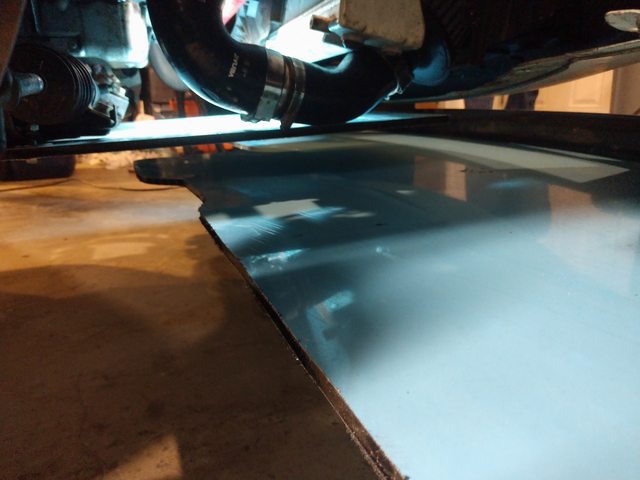

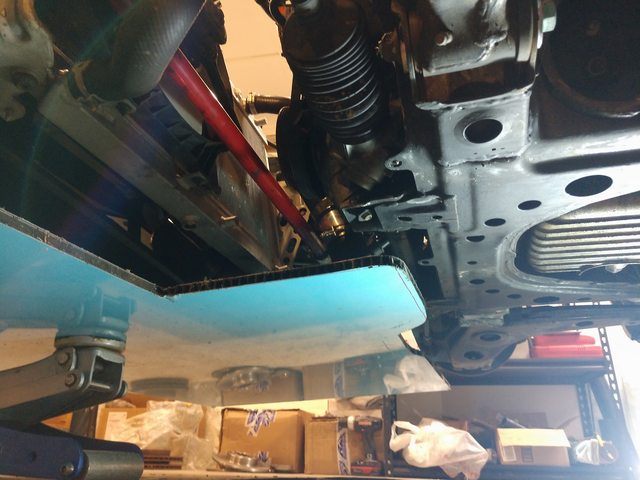

Got the left-over alumalite mocked up as well..... quickly noticed if this piece is mounted level with the subframe it'll point straight at the opening of the mouth of the air-dam. OR have so much AOA that'll dig into anything it gets near like..... sand, dirt, grass, curbs, or even loading ramps





Also noted the left-over piece doesn't quite reach the sub-frame if I intended to do a ~3" splitter lip.



So we opted for a uuhhh..... "modular" design here. Cut the very edge of this alumalite, drilled holes for sub-frame, mocked it onto main piece, drilled a few more holes, and fastened it together.



Thankfully during mock-up and I had the fore-sight to make sure the holes were 1. accessible from the top to tighten 2. don't send the drill-bit into something important, like the steering rack or oil-pan

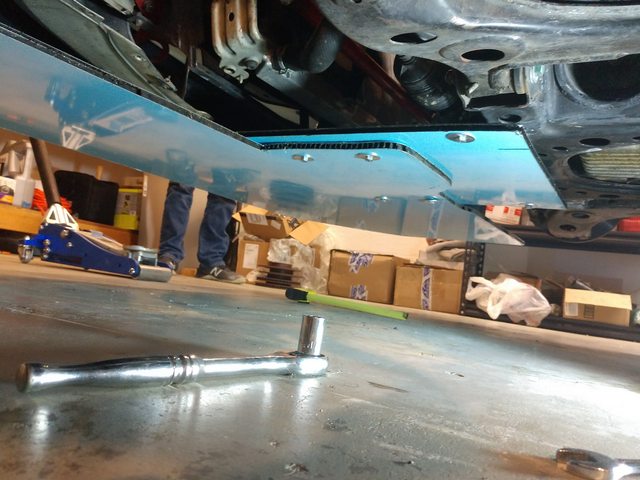

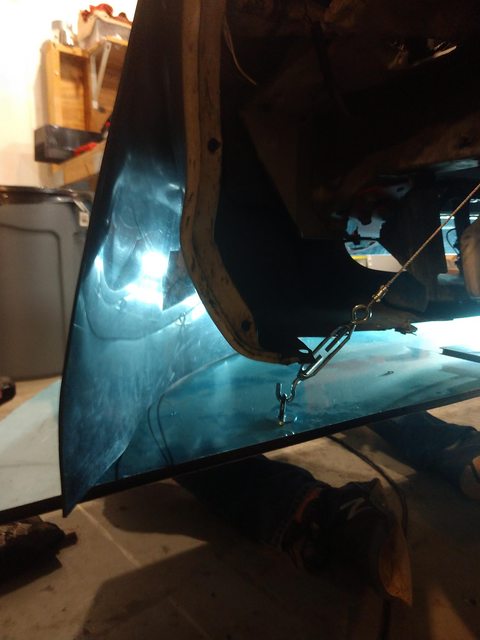

Used some cable-wire, turn-buckles with J-hooks on one side, and eye-lit bolts with bigass washers. Mounted two in the front to the edge of the mouth, using the two bolts on the bumper support. Two others mounted on the sides using two bolts right off the frame.
(Note: I stole this idea from Dan ) This actually works out pretty damn well and I'd recommend it. I would like to find a way to get the bottom of the eye-lit bolts counter-sunk or flush with the under-tray though. Maybe version 2 will have that?

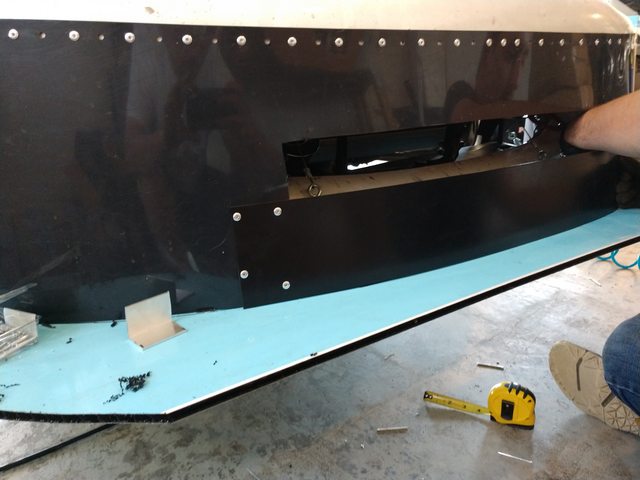

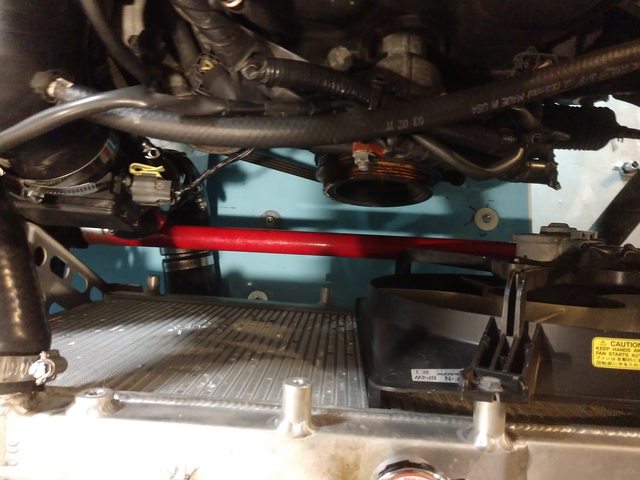

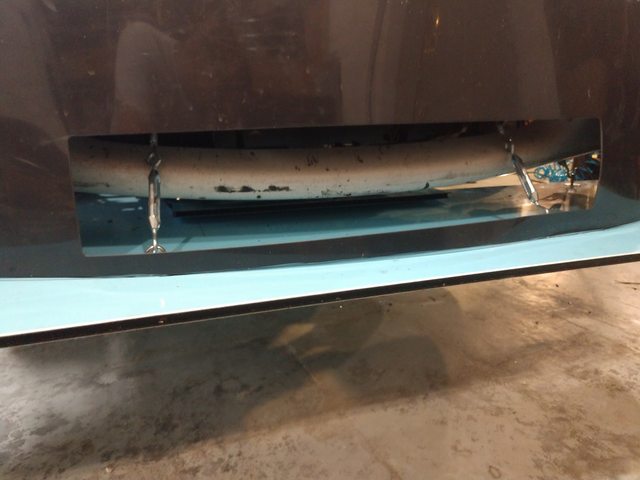

As you can see here, after cutting the bottom of the air-dam to line up with the "modular" splitter there's not much material of the air-dam at the bottom of the mouth opening. It's also super low, so not ideal for air-flow since I did not do/have time for proper ducting.





We cut the mouth higher and added a spare piece of ABS to cover the bottom and of course.... more rivets! Also pictured, is one of the L-brackets. I got some 1.5" aluminum angle stock and cut it into multiple 2", 1", and 1/2" slivers. Drilled holes into one side and riveted them onto the splitter following a tight path around the airdam. Carefully not surpassing 5* of air-dam angle

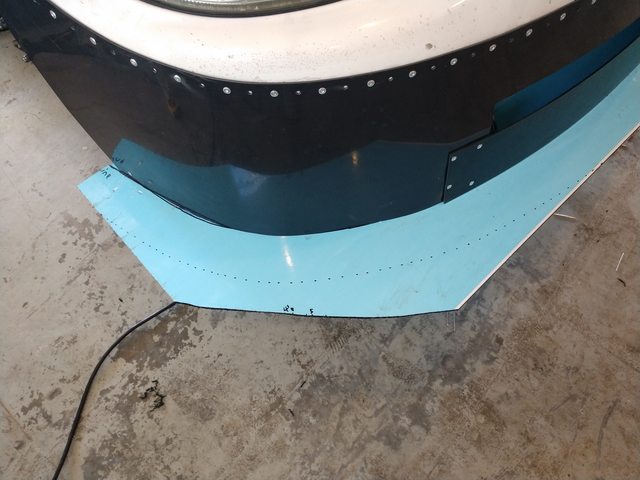

Marked the 3" lip with super precision and took the air-saw to it.

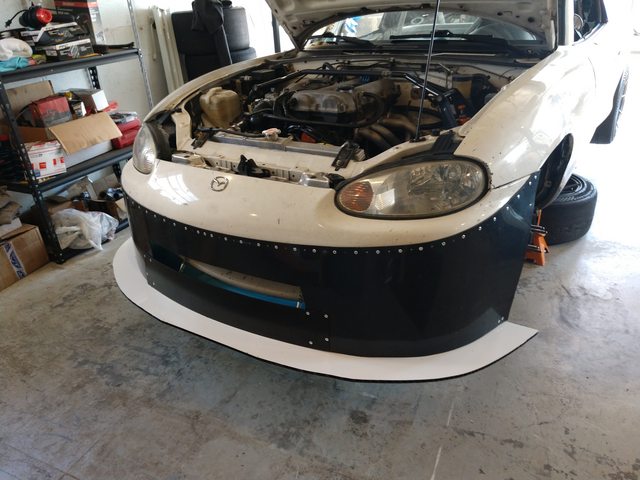

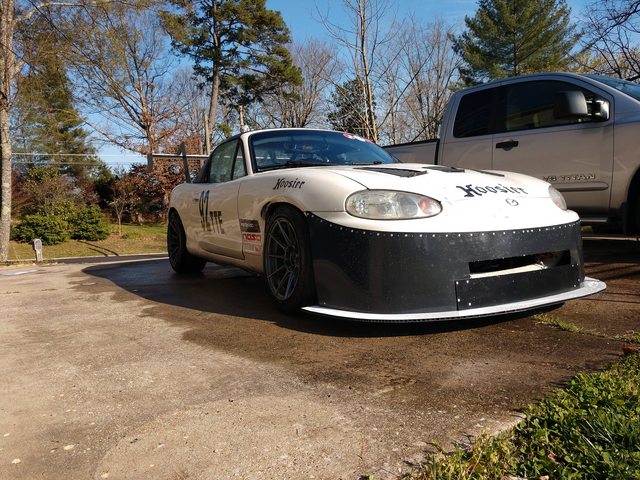

Relatively finished here. Ended up doing some more cutting on the air-dam to prevent the bulging on the sides in front of the wheels.

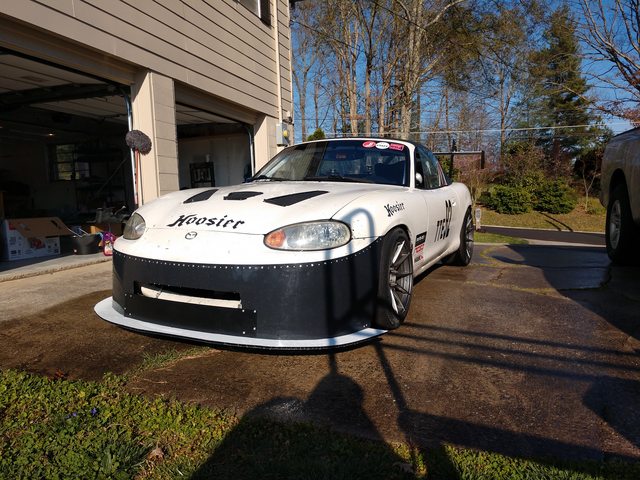

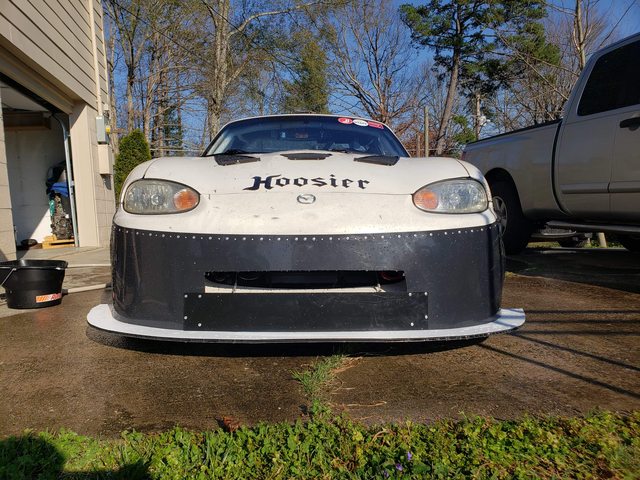

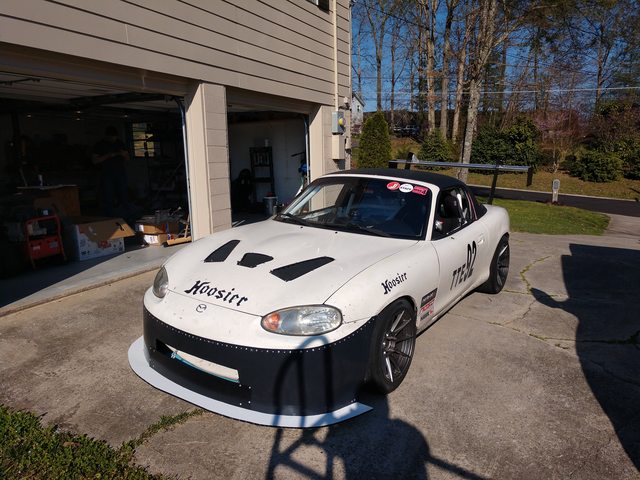

And on the ground!







Additional notes:
The mouth turned out to be too small for drafting. Car crept up to 3/4 on OEM temp gauge while drafting for 1/4 of a lap(2.2mile course) while it was slight over-cast and ~75* ambient. My miata has 37mm Koyo v-core and Qmazxreroute. Ducting would resolve this problem while in a draft with this size of an opening, IMO.

The car gained 5hp, lost ~150lbs, and added this aero package since the last time I was at Roebling.
Previous times in TTE trim of 130rwhp, 2440lbs,Xida800/500,RB1.125"/14mm, 205 R7s, 15x9s - 1:21.7xx - 1:23.0xx
New times in TT5 trim of 135rwhp, 2300lbs, Xida800/500,RB1.125"/14mm, 205 R7s, 15x8s - 1:19.4xx - 1:21.7xx

The largest difference with this aero both my co-driver and I noticed was how settled it was on a slip-angle. It required smaller inputs to correct to squiggle thru. Unfortunately I was not running AiM data two years when I was at Roebling last :(

This comparison actually does a decent job of showing the difference of inputs:
NASA TT5 Track Record Lap Roebling Road - 1:19.499 vs. NASA TTE Roebling unofficial track record - James Cathers by VJ why we slap | YouTube Doubler | Mashup Helper



New TT5 record with TT6 power..... I'm a believer in aero.
flier129 is offline
Old 04-09-2019, 08:29 PM
  #1798
Junior Member

Join Date: Jul 2016
Location: Orlando, FL
Posts: 150
Total Cats: 2
Default







Blkbrd69 is offline
Old 04-09-2019, 08:47 PM
  #1799
Junior Member

Join Date: Jul 2016
Location: Orlando, FL
Posts: 150
Total Cats: 2
Default

So much for trying to post text with photos.
Went kind of old school using the theory just do what Andrew does.
Have a gorgeous piece of directional carbon nomex honeycomb sitting in the garage but 1/2" birch is so easy and cheap. Not "that" heavy.
Used rivnuts and aluminum mounts tapping holes in frame for countersunk fasteners.
Oil cooler was in the way of the latest trend in mounting bracket so had to go a bit back and use sailboat rigging at the front.
Blkbrd69 is offline
Old 04-10-2019, 11:06 PM
  #1800
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,419
Total Cats: 329
Default

The birch is coated in what? Looks good.
Mobius is offline
