I've just bought 2 rear view camera/lcd setups to install instead of mirrors. Anyone else tried that?



No, but I'm REALLY interested in seeing how you like it. No matter where I put my mirrors, rear visibility is horrid in my car between the wing, cage bars, and containment seat.



I have a future project car that will be a single seater and I've always wanted camera mirrors. Where did you find them?



Here we go:

Dollars spent: ~$600 for entire wing setup, ~$200 for splitter and air dam
Hours spent: ~ 3 weeks of hand fitting each element. I can only work on the car 1-2 hours at a time every other day.
How effective: 3 BIG improvement
Materials used: Nine Lives Racing 64" aluminum ****, 3/8 Aluminum plate uprights, .090 aluminum end plates, 1/2" Birch plywood splitter, 1" Steel square tube splitter frame, 0.125" HDPE plastic roll airdam.
Bracket location: Wing uprights mount to inside of trunk rain channel. Splitter mounts to front bumper support (welded tabs) and hooks into the subframe in the back.
Tracks tested on: Autobahn CC (Joliet, IL)
Race/TT class built for: GridLife Street Mod RWD




I will be putting more documentation on the build process in my build thread.



interested to hear your thoughts on the wing...



Holy ****, post up how you made and mounted the splitter. That's exactly what I've been looking at making



I can't take credit for the design. It's largely inspired by Lincoln_Logs and his quick detach splitter setup:

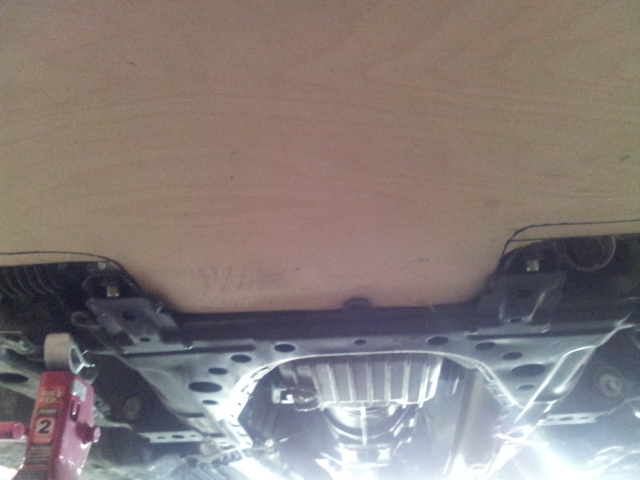

Here is a few more pictures of my process in my build thread here:
https://www.miataturbo.net/build-thr...3/#post1489657



^^^^ Singular - take MORE of my money!! Awesomeness



^^^ That is hot and sexy!!



Thoughts from those of you using duckbill spoilers in addition to your wings? Noticeable changes/ability to fine tune? I'm trying to throw the kitchen sink at the back of the car at this point to get more rear downforce with the COT wing. I have already located it as far back as my classing allows, and have enough scrap left over for a freebie attempt, just wondering if its worth while, even if from a drag perspective. Being an RX7, I already have the sloped rear glass. Idea would be to double the duck bill as extra lateral support for the wing stands.



Spoilers slow the airflow over the surface immediately preceding them, thereby reducing the lift. Your wing needs faster airflow beneath it than above it to produce downforce. I believe the two won't interfere with each other if there is sufficient height distance between them. You may possibly need to raise the wing. Experimentation will bear it out.



Wing element is slightly above the roof line, so may be worth a shot for a freebie.



you can also use a whale tail, aka ducktail laid flat, that will help with reducing lift/accelerating airflow under the wing.



I do love this thread. I keep coming back to it and fantasizing about adding that sort of kit.

I have competition car aerodynamics and have read it multiple times (whether it is in my head is another thing). Here we have covered several things with Ryan giving some more specific information from his experience but two things have not been discussed much.

1. Less extreme wings - I think this is due to you guys being all or nothing which is fine but i'd be interested in your take on a wing mounted in the spoiler area.
2. Diffusers (specifically charging them) - I think this is due to the difficulty and lack of consistency in use because of off throttle airflow but again I'd love to hear view points or even doodles on it.

Wings are best driven in free air and become especially effective in laminar flow near the ground. What can be done with an able to open the boot low profile type setup?
Could the boot lid be used as a flow guidance like a two element wing allowing a higher chord but with less drag?
Is top down rear downforce possible without going the full bore method?

As I believed diffuser driving air should match direction and cause as little flow change and separation as possible.
So would that mean an exhaust popping through the Lotus style is working but not effective.
If the exhaust was customised to exit though the slight at the top instead with the original hole and angled up some what. That should drive the diffuser with exhaust gases as well as a bit of bernoulli action on the transmission tunnel air.
Like on Ryans car the NACA ducts channeling air to the diff and tunnel would also benefit for this bernoulli based suction if theory meets reality.
A few pictures of ApexAddicts Lotus diffuser for immediate contemplation.
I have a frame rail butterfly kit so am considering these sorts of things but do track is enough to warrant a whooping wing so wondering if i can tune it "gently" with these sorts of things.



Sorry in advance for the picture quote, but I'm quoting an old post so thought the picture was needed as a reminder.

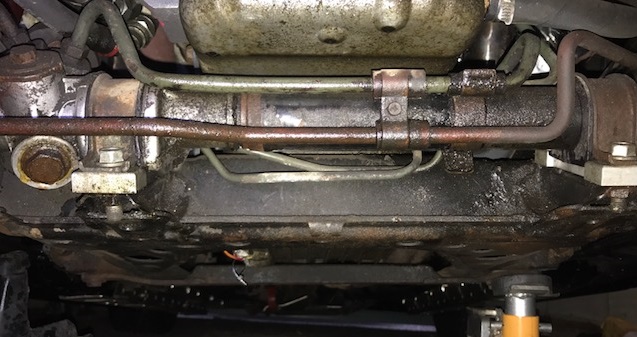

jpreston, do you (or anyone else running a setup like this) run PAS with a tongue mount splitter. While it looks very strong, I'm concerned about it moving vertically and damaging the PAS pipes.



Why would you mount it above the brace.



I believe it is two fold:

1. Secure mounting where it doesn't damage the car if you go off into a sand trap or something
2. The rake of the splitter helps produces a larger lower pressure zone

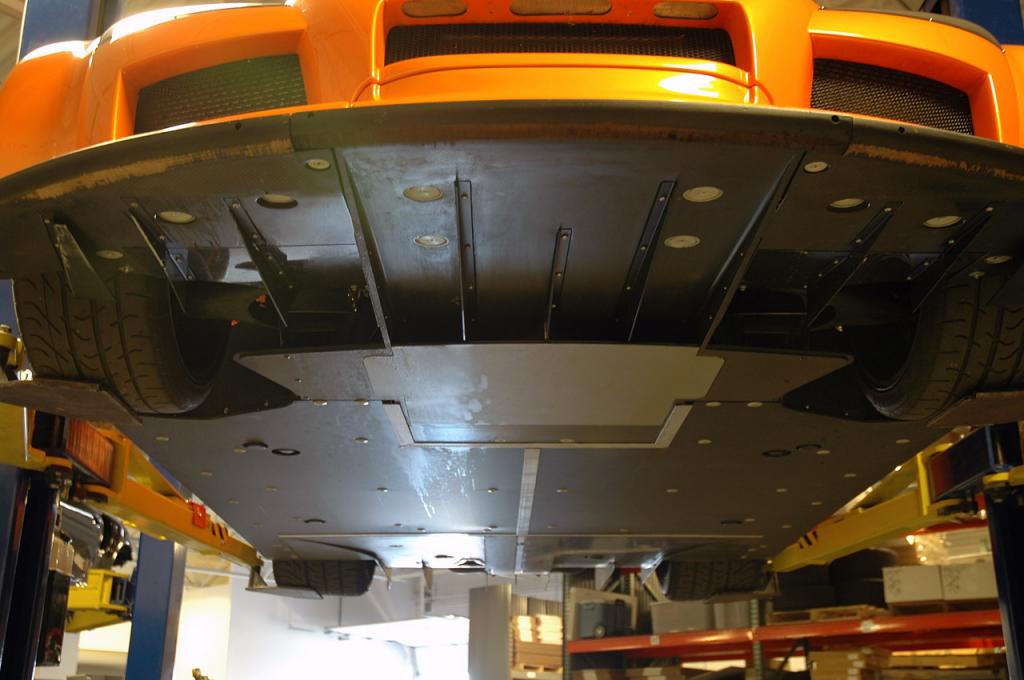

You can see on this Gumpert Apollo the splitter is raked the same mounting above the brace.



I suspect that car runs MUCH lower ground clearance which will enable the undertray rake to have significant influence and is probably designed with considerable CFD and/or wind tunnel.

The suspension movement is probably significantly less than what we run further controlling the ground effect. The strakes also help with controlling and retaining the low pressure zone, that tongue is also doing something beyond to influence.....all part of a much broader package.

I wouldn't say it won't work but it is unlikely to have much if any influence IMO.

What is interesting is the thickness of the leading edge...I suspect we could learn from that.



When you start angling a front splitter you get to a point where its more like a front diffuser.
