Old 06-15-2010, 01:15 AM   #1
Junior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default My Turbo Build

Within a year and a half I gathered all my parts for my turbo build. I wanted to do the build myself. But with a full time job and 2 part time jobs, wife and a 6 yr old son, doing it myself would be close to impossible. Since majority of my parts are from BEGi, I contacted Stephanie if they could just do the turbo install for me. 2 weeks ago, I dropped off my car, and so far these are some of the pictures that I got from Stephanie.

Kudos to Stephanie and Tim! Great crew and customer service. I know my car is in good hands. Looking forward to getting my car back after the build.

Enjoy!

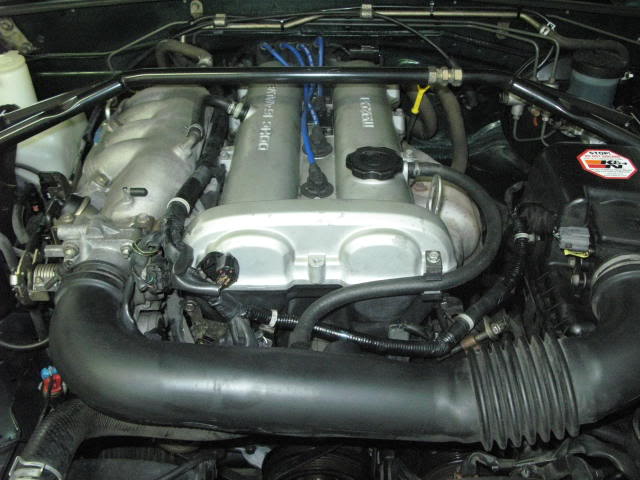

My stock engine

Name:  IMG_1387.jpg
Views: 8
Size:  52.3 KB

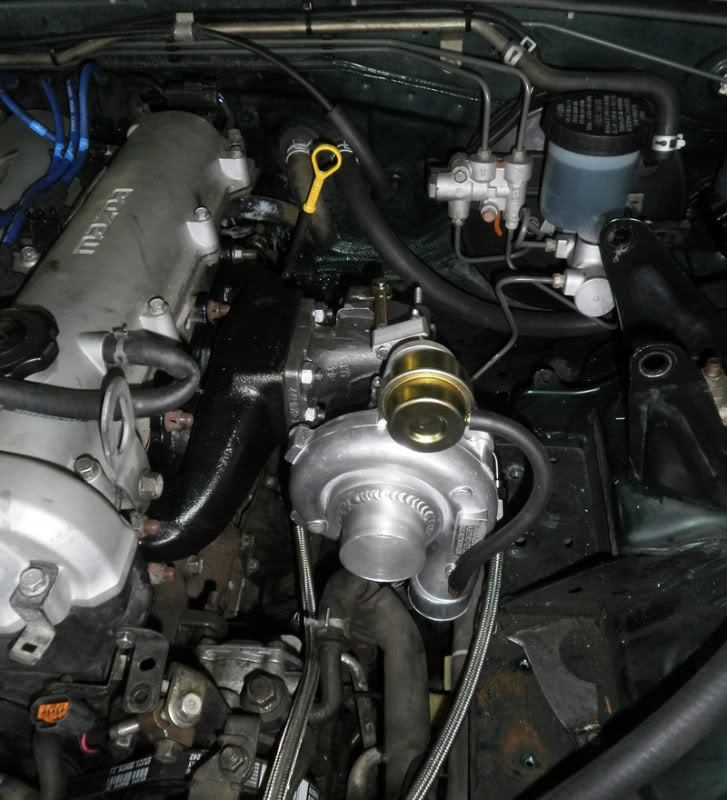

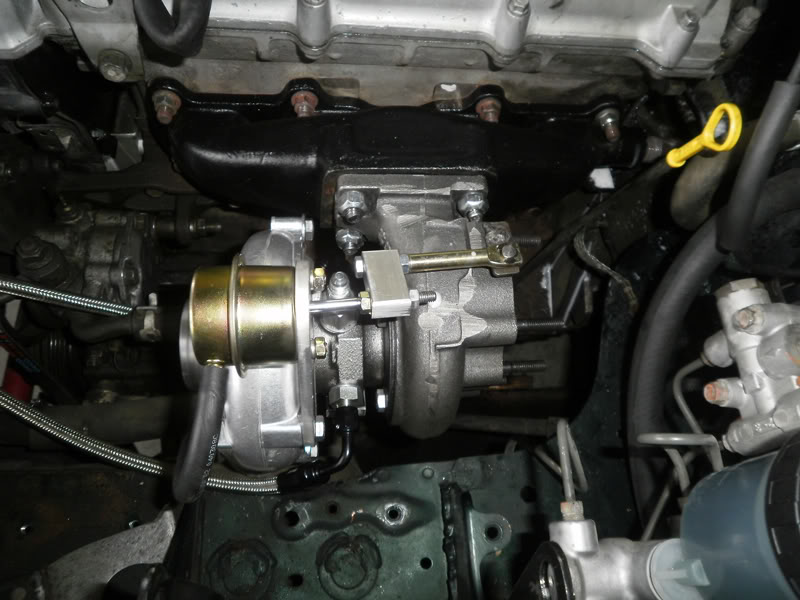

With the manifold and BEGi Chinacharger 2871

Name:  P6030015.jpg
Views: 6
Size:  110.4 KB

Name:  P6030013.jpg
Views: 8
Size:  81.9 KB

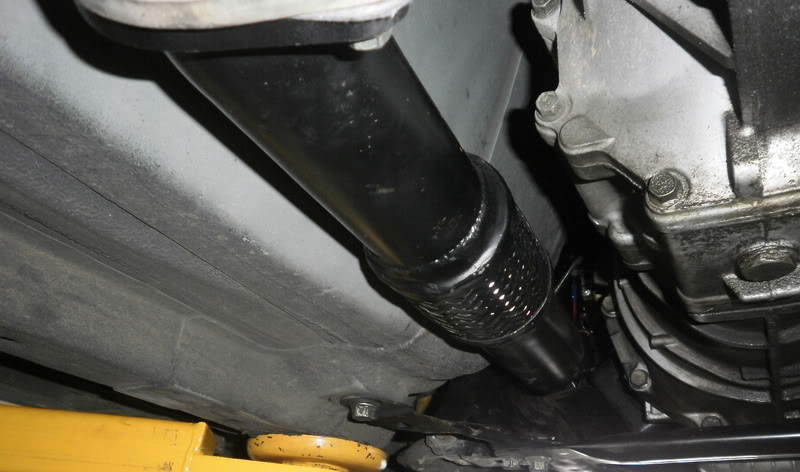

Downpipe

Name:  P6090068.jpg
Views: 8
Size:  62.3 KB

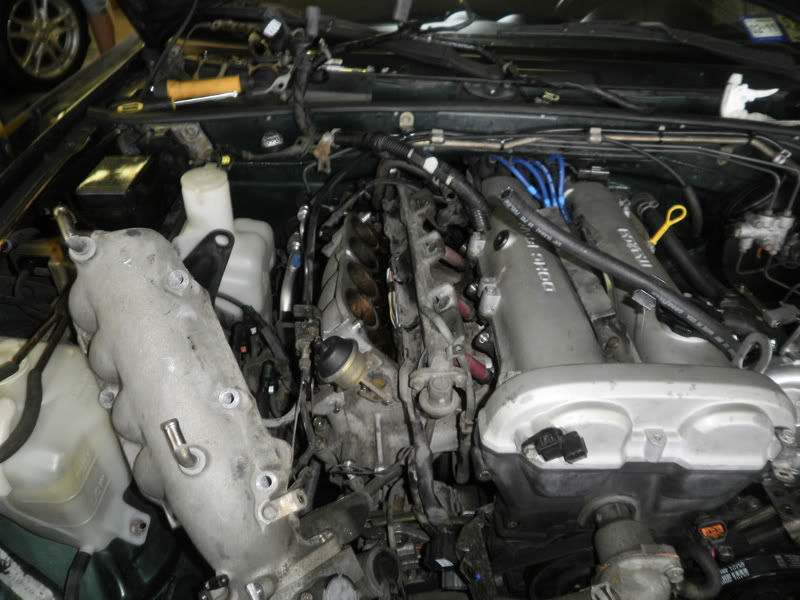

Before installing my EVO8 injectors

Name:  P6030016.jpg
Views: 7
Size:  86.2 KB

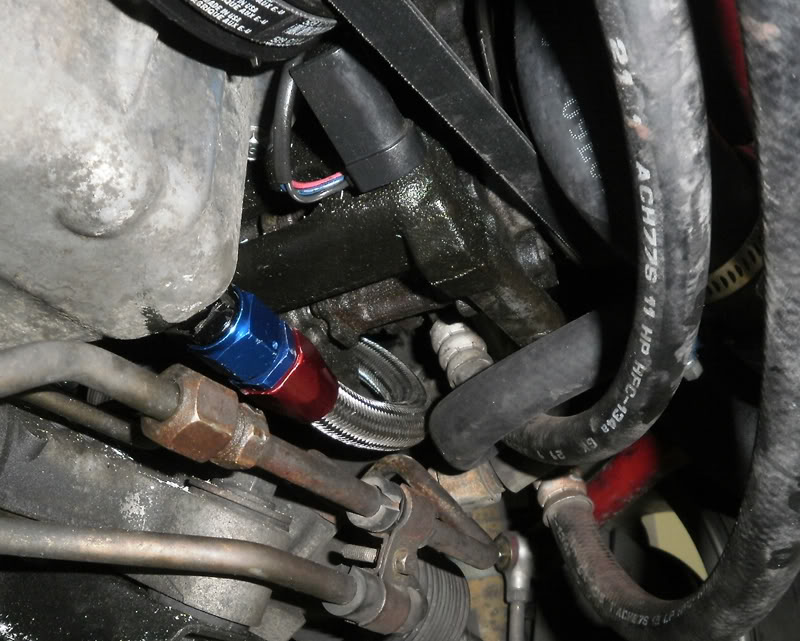

Drain line

Name:  P6090064.jpg
Views: 8
Size:  106.0 KB

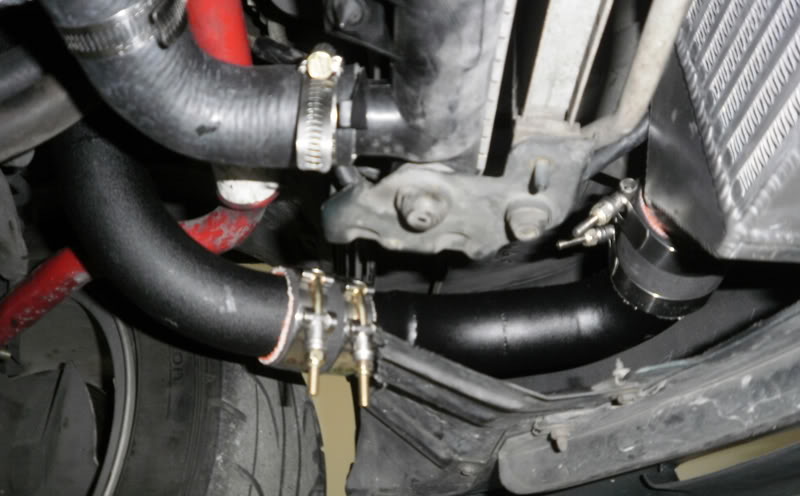

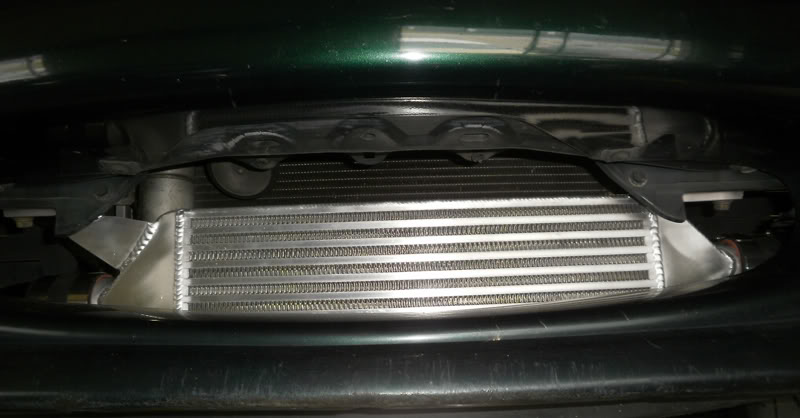

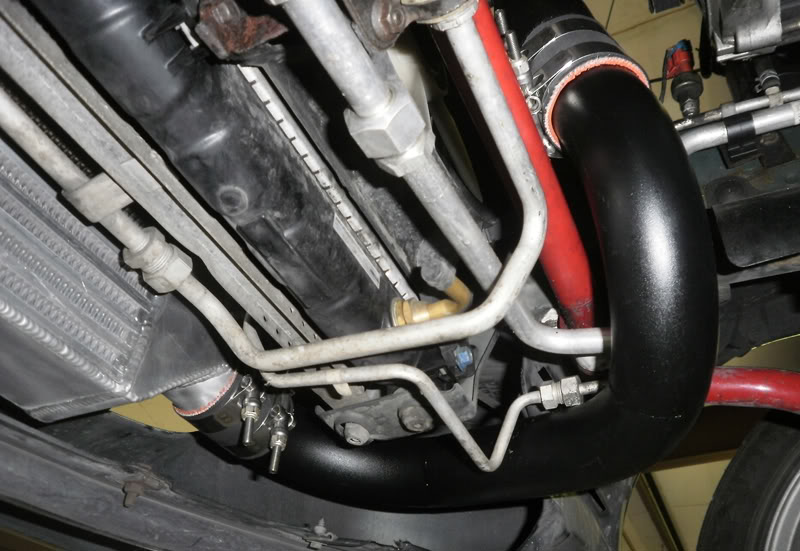

BEGi Intercooler Kit #1

Name:  P6090062.jpg
Views: 7
Size:  53.5 KB

Name:  P6090065.jpg
Views: 8
Size:  87.4 KB

Name:  P6090066.jpg
Views: 6
Size:  60.5 KB

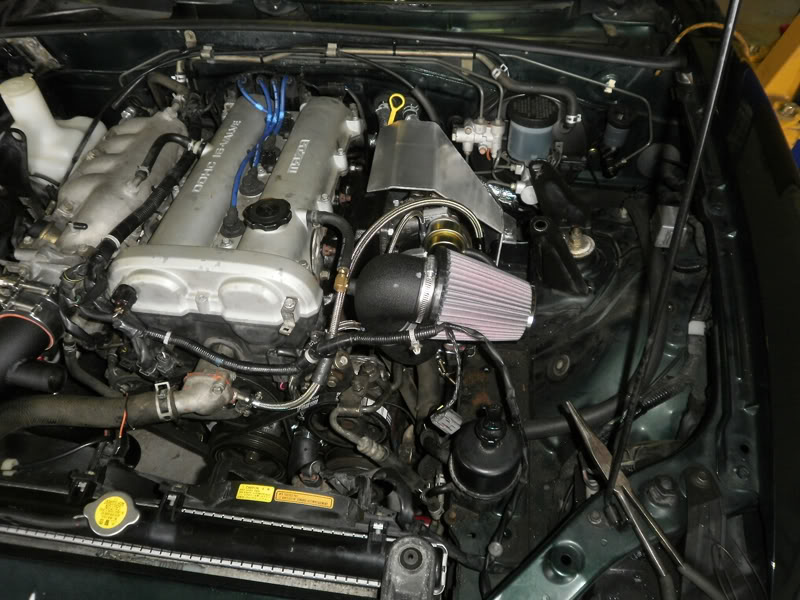

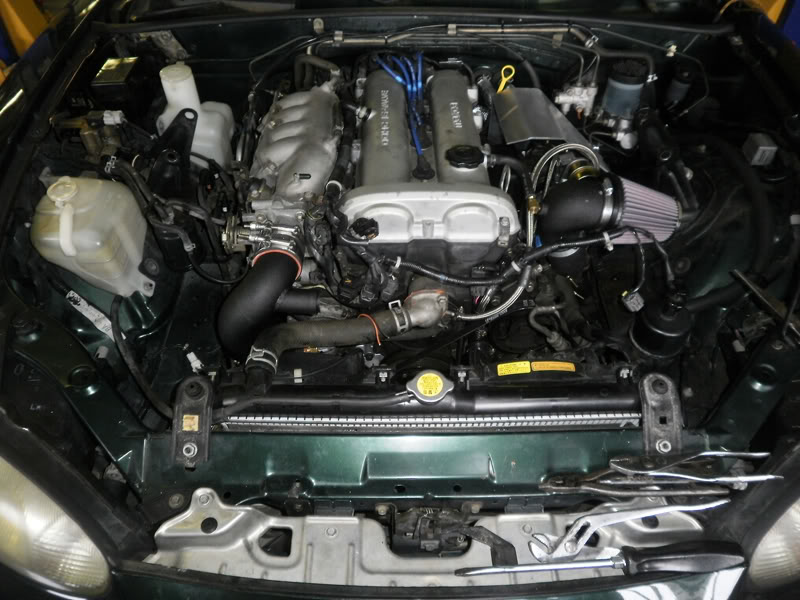

Some more engine pics

Name:  P6090060.jpg
Views: 9
Size:  97.8 KB

Name:  P6090059.jpg
Views: 7
Size:  104.6 KB
lsc224 is offline   Reply With Quote
Old 06-15-2010, 01:20 AM   #2
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

looks good man, sucks you can do wrenching on you own, but i understand your situation. welcome to the boosted life!
WonTon is offline   Reply With Quote
Old 06-15-2010, 01:24 AM   #3
Junior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

Quote:
Originally Posted by WonTon View Post
looks good man, sucks you can do wrenching on you own, but i understand your situation. welcome to the boosted life!
Thanks, yeah, their 3 week build would probably take me 3 months if I did it myself. And being my daily driver I can't afford the downtime.
lsc224 is offline   Reply With Quote
Old 06-15-2010, 01:26 AM   #4
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 185
Default

Looks like you're soon going to be pretty happy with this car. How's that Adaptronic? I didn't know BEGI carried a 2871 Chinacharger, is it a journal bearing unit? What are the specs?
thirdgen is offline   Reply With Quote
Old 06-15-2010, 01:33 AM   #5
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

Good choice on the 2871. I'm excited for you!
turotufas is offline   Reply With Quote
Old 06-15-2010, 10:01 AM   #6
Junior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

Quote:
Originally Posted by thirdgen View Post
Looks like you're soon going to be pretty happy with this car. How's that Adaptronic? I didn't know BEGI carried a 2871 Chinacharger, is it a journal bearing unit? What are the specs?
BEGi is installing the Adaptronic too, so I won't know till I get it back. Yes they do carry the 2871, it's got a journal bearing unit. http://www.bellengineering.net/produ...roducts_id=404 I don't know the specs.


Quote:
Originally Posted by turotufas View Post
Good choice on the 2871. I'm excited for you!
Thanks, yes I am very excited too!
lsc224 is offline   Reply With Quote
Old 06-16-2010, 06:36 PM   #7
Junior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

It's done! Just needs tuning! Thanks Stephanie.

More pics courtesy of Stephanie.

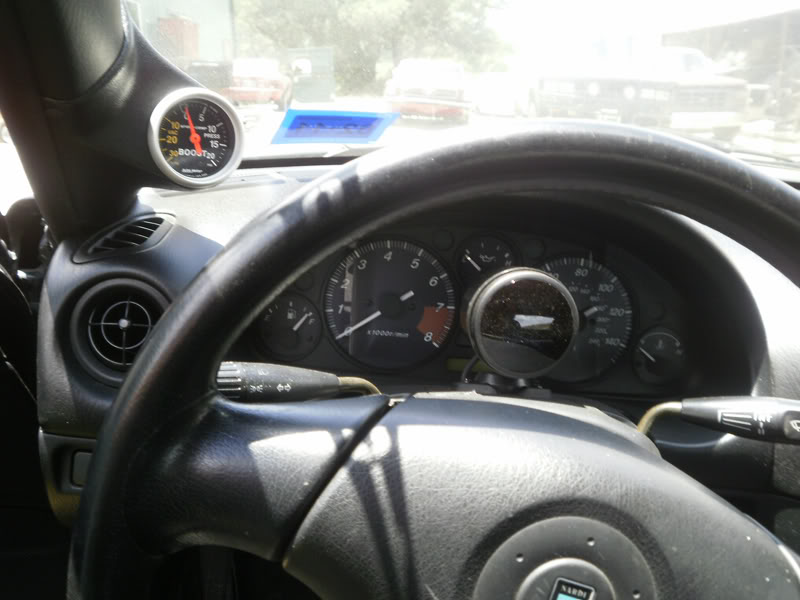

Interior

Name:  P6150002.jpg
Views: 6
Size:  65.3 KB

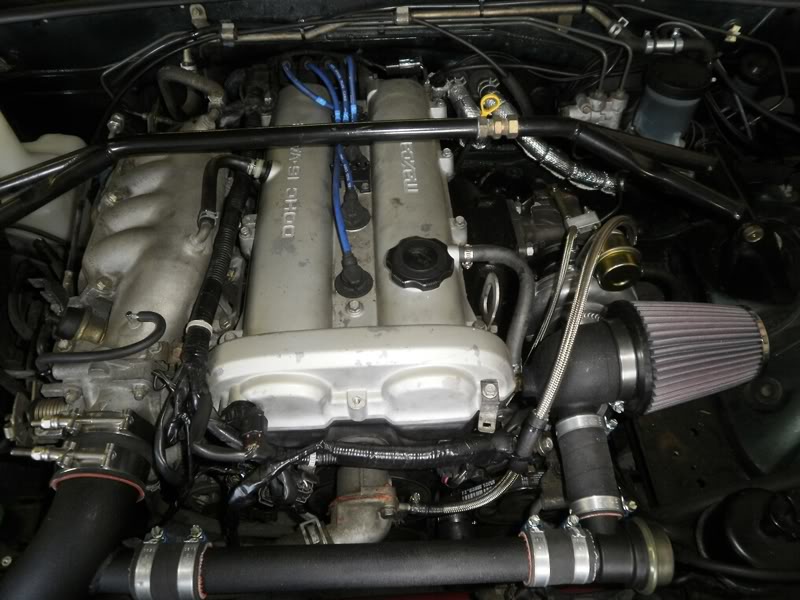

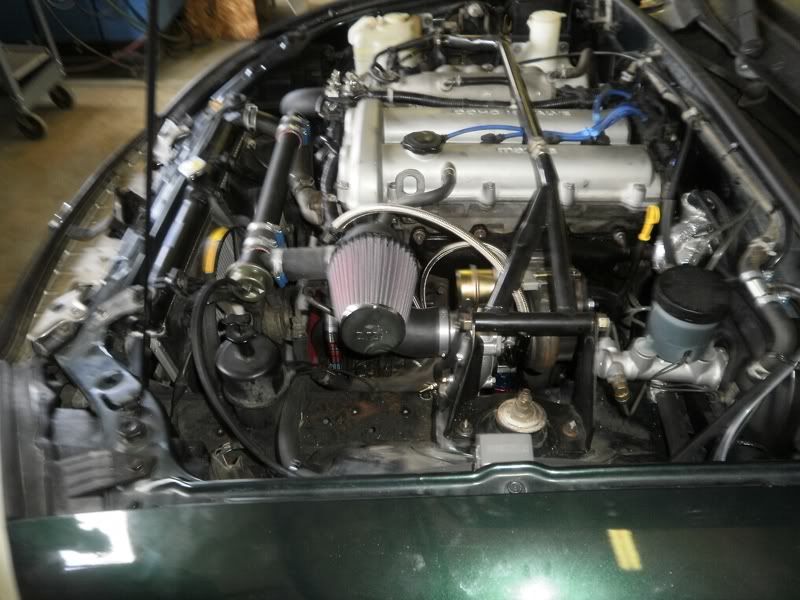

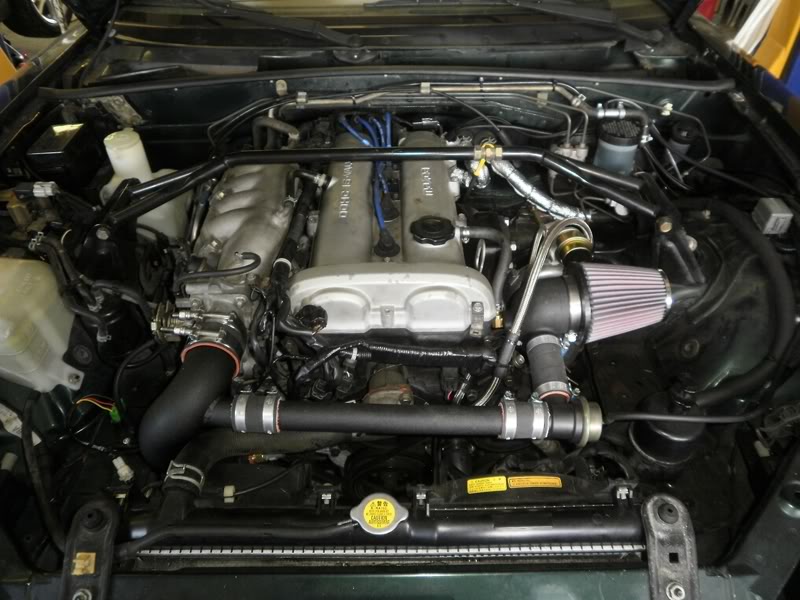

Engine shots

Name:  P6150009.jpg
Views: 8
Size:  85.3 KB

Name:  P6150010.jpg
Views: 6
Size:  79.6 KB

Name:  P6150012.jpg
Views: 7
Size:  79.3 KB
lsc224 is offline   Reply With Quote
Old 08-21-2010, 09:39 PM   #8
Junior Member

Join Date: Nov 2005
Location: Middletown, DE
Posts: 221
Total Cats: 1
Default

How much power is it making? What else do you have done to the car? Does it have an upgraded fuel pump? I'm going to be purchasing an S1 2871 in the next couple of months myself and I'm waiting for the DIYPNP group buy to commence so I can get some experience with the MS before installing FI!
Joseph B is offline   Reply With Quote
Old 08-21-2010, 11:22 PM   #9
Junior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

Quote:
Originally Posted by Joseph B View Post
How much power is it making? What else do you have done to the car? Does it have an upgraded fuel pump? I'm going to be purchasing an S1 2871 in the next couple of months myself and I'm waiting for the DIYPNP group buy to commence so I can get some experience with the MS before installing FI!
It's not done yet. The car is still with BEGi waiting for the Adaptronic to come back from Australia, then will be tuning it. In the meantime an ACT HD clutch is getting installed. It's still got the stock fuel pump. I am hoping and crossing my fingers I will have my car back in the next couple of weeks.

Last edited by lsc224; 08-27-2010 at 06:15 PM.
lsc224 is offline   Reply With Quote
Old 09-29-2010, 12:26 PM   #10
Junior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

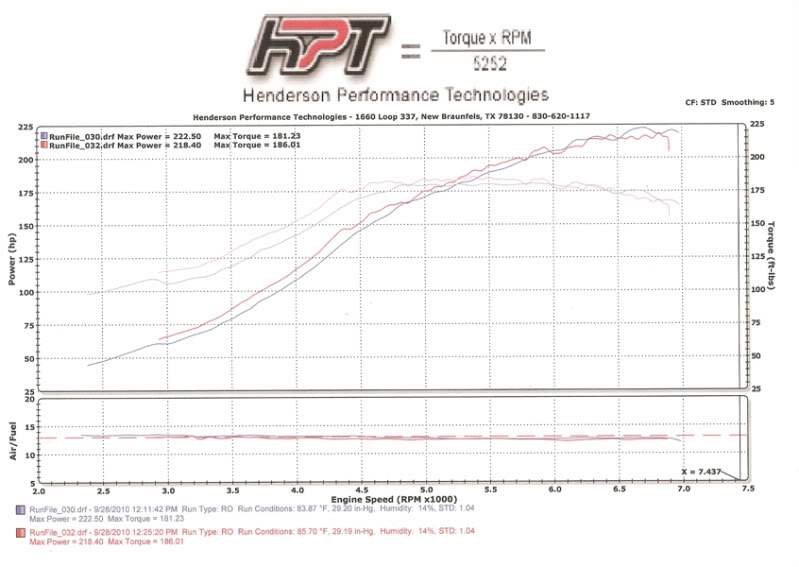

Dyno was done yesterday. Stephanie is still working on some minor issues with the Adaptronic. I should have my car back pretty soon. Can't wait. She said turbo is laggy which I expected. It's running on wastegate at 12psi. I'll add a MBC when I get my car back. I will also be changing out the midpipe and muffler to a 3" when funds are available.

Name:  99_Castaneda_ShanghaiS3_12psi.jpg
Views: 9
Size:  78.3 KB
lsc224 is offline   Reply With Quote
Old 10-13-2010, 05:34 PM   #11
Junior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

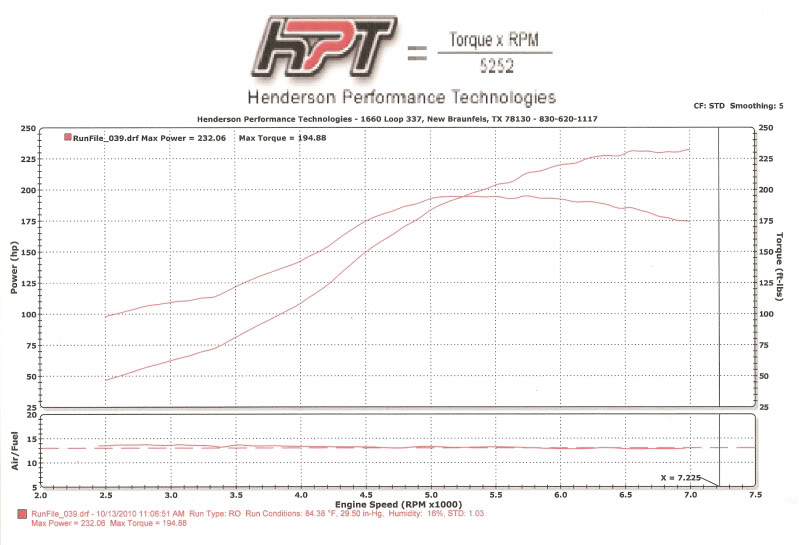

Dyno results for the 2nd time, added 10hp.

Name:  99_Castaneda_ShanghaiS3_12psi_b.jpg
Views: 9
Size:  88.0 KB
lsc224 is offline   Reply With Quote
Old 10-13-2010, 05:35 PM   #12
Junior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

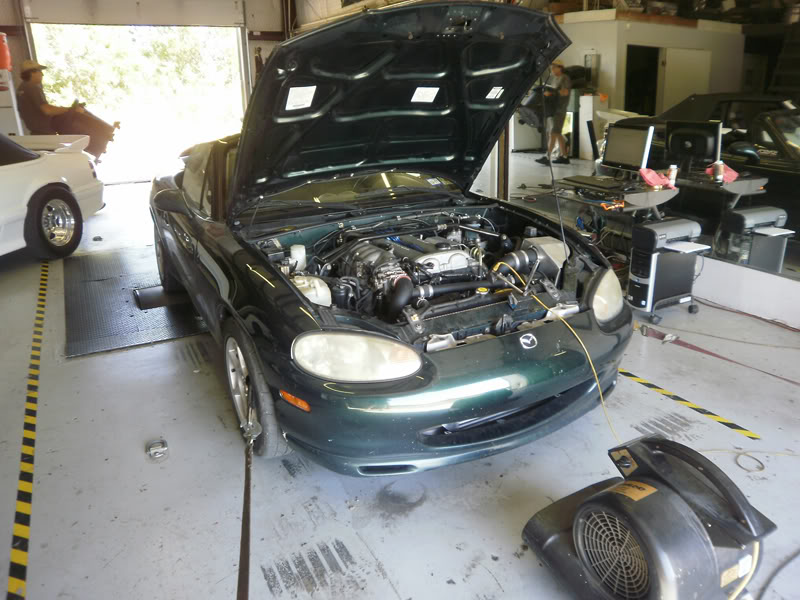

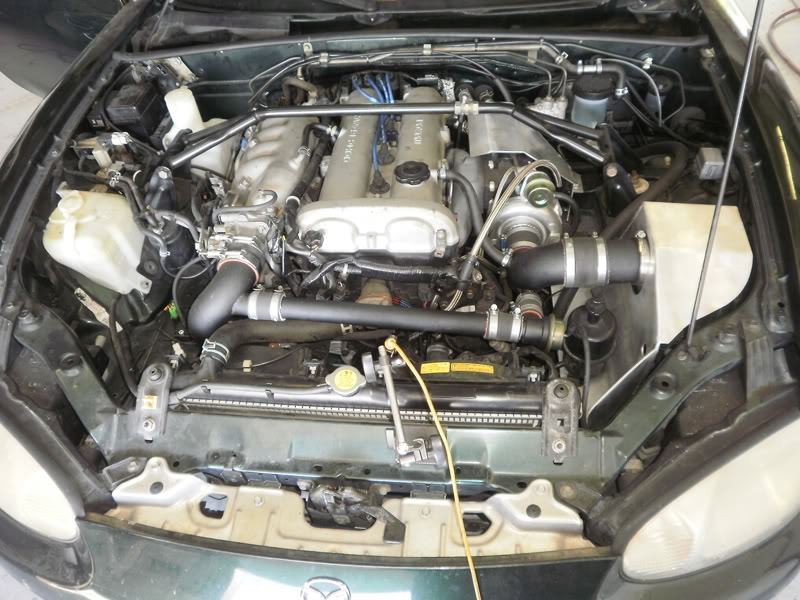

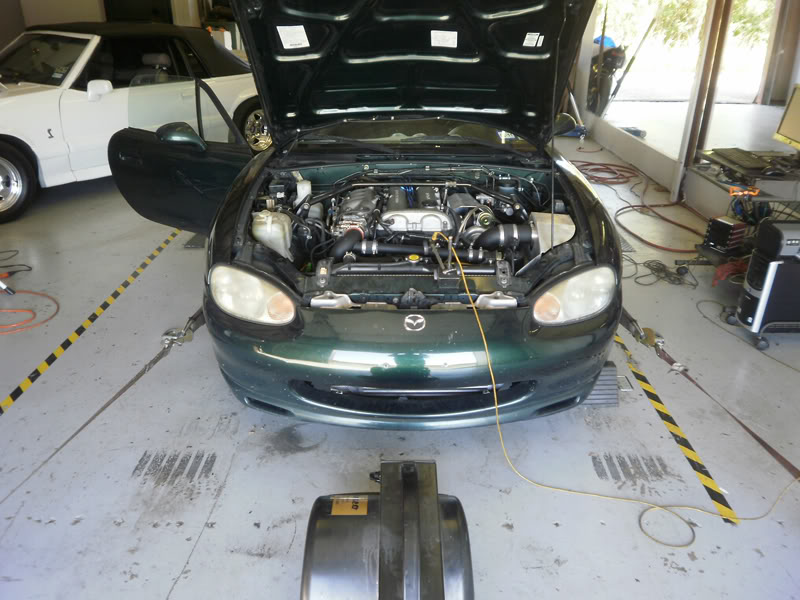

And some more pics

Name:  PA120009.jpg
Views: 7
Size:  99.9 KB

Name:  PA120005.jpg
Views: 8
Size:  110.9 KB

Name:  PA120003.jpg
Views: 7
Size:  93.6 KB
lsc224 is offline   Reply With Quote
Old 10-13-2010, 05:37 PM   #13
Junior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

And some video links, sorry I can't embed it, I don't have access to YouTube at work.

http://www.youtube.com/watch?v=q0Tj7wTN6rQ

http://www.youtube.com/watch?v=Di14KMRpEDQ
lsc224 is offline   Reply With Quote
Old 12-15-2011, 09:59 AM   #14
Newb

Join Date: Dec 2011
Location: SoCal
Posts: 16
Total Cats: 0
Default

so how much did all this cost parts and install just curious to see a ballpark estimate of how much i will be spending to do the same thing?
gl0v3r is offline   Reply With Quote
Old 12-15-2011, 10:11 AM   #15
Junior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

Quote:
Originally Posted by gl0v3r View Post
so how much did all this cost parts and install just curious to see a ballpark estimate of how much i will be spending to do the same thing?
I think I was a little over $4k, not counting the Adaptronic.
lsc224 is offline   Reply With Quote
Old 12-15-2011, 10:15 AM   #16
Newb

Join Date: Dec 2011
Location: SoCal
Posts: 16
Total Cats: 0
Default

sounds like i'm gonna have to sell my left nut but is it worth it?
gl0v3r is offline   Reply With Quote
Old 12-15-2011, 10:15 AM   #17
Newb

Join Date: Dec 2011
Location: SoCal
Posts: 16
Total Cats: 0
Default

actually maybe my right one too!
gl0v3r is offline   Reply With Quote
Old 12-15-2011, 10:18 AM   #18
Junior Member
Thread Starter
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

Quote:
Originally Posted by gl0v3r View Post
sounds like i'm gonna have to sell my left nut but is it worth it?
LOL...yeah car still running! Haven't blown up my engine yet! Just keeping it below 12psi.
lsc224 is offline   Reply With Quote
Old 10-17-2012, 10:26 PM   #19
Newb

Join Date: Oct 2012
Posts: 13
Total Cats: 0
Default

such a sick build!!
