Default Downpipe rattling against the subframe.

So i thought it was because of the engine mounts or the transmission bracket that holds the stock exhaust. Yesterday i got brand new mounts in and removed the tranny bracket. No luck, the downpipe is still rattling against the subframe. Any ideas?

This is the begi s kit with the regular non separated gasses dp.
triple88a is offline   Reply With Quote
Old 04-15-2013, 08:57 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,575
Default

bend it? lol
18psi is offline   Reply With Quote
Old 04-15-2013, 09:09 PM   #3
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

U mean smash it with a hammer? I'm trying to avoid that since its only a 2.5" pipe.
triple88a is offline   Reply With Quote
Old 04-15-2013, 09:49 PM   #4
Senior Member
iTrader: (3)

Join Date: Nov 2009
Location: Royal Palm Beach, FL
Posts: 725
Total Cats: 5
Default

sawzall? grinder? jaws of life?


can you clock the exhaust housing a few degrees somehow? mine rattled and still does sometimes but i have vband so i can rotate the pipe and clamp it in place again.
you can use exhaust wrap on the spot it rubs to stop the noise at least
Clos561 is offline   Reply With Quote
Old 04-15-2013, 10:51 PM   #5
Junior Member

Join Date: Jan 2011
Location: Winnipeg, Canada
Posts: 84
Total Cats: 1
Default

maybe if you cushioned it with something like a bunch of heat wrap or something fire resistant.
ACiFiC is offline   Reply With Quote
Old 04-15-2013, 11:01 PM   #6
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Sucks, surprised to see this seeing as though you have both the begi manifold and downpipe. I would try throwing some heat wrap around it as well, might make it tolerable....
aaronc7 is offline   Reply With Quote
Old 04-20-2013, 08:09 PM   #7
Former Vendor

Join Date: Jun 2006
Location: Bell Tuning & Performance
Posts: 1,338
Total Cats: -78
Default

Hi there,
Sorry for the late reply, I've been out with pneumonia. First, I would make sure you have the right down pipe. Did you get it new or used? If new, you can loosen all fasteners, wedging something between the subframe and the downpipe, then re-tighten the fasteners. If that does not work, give me a call and we will figure it out. If the pipe is used, can you post some photos and details of your car? Exhaust systems details too please.
Thanks,
Stephanie
Stephanie Turner is offline   Reply With Quote
Old 04-20-2013, 11:43 PM   #8
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

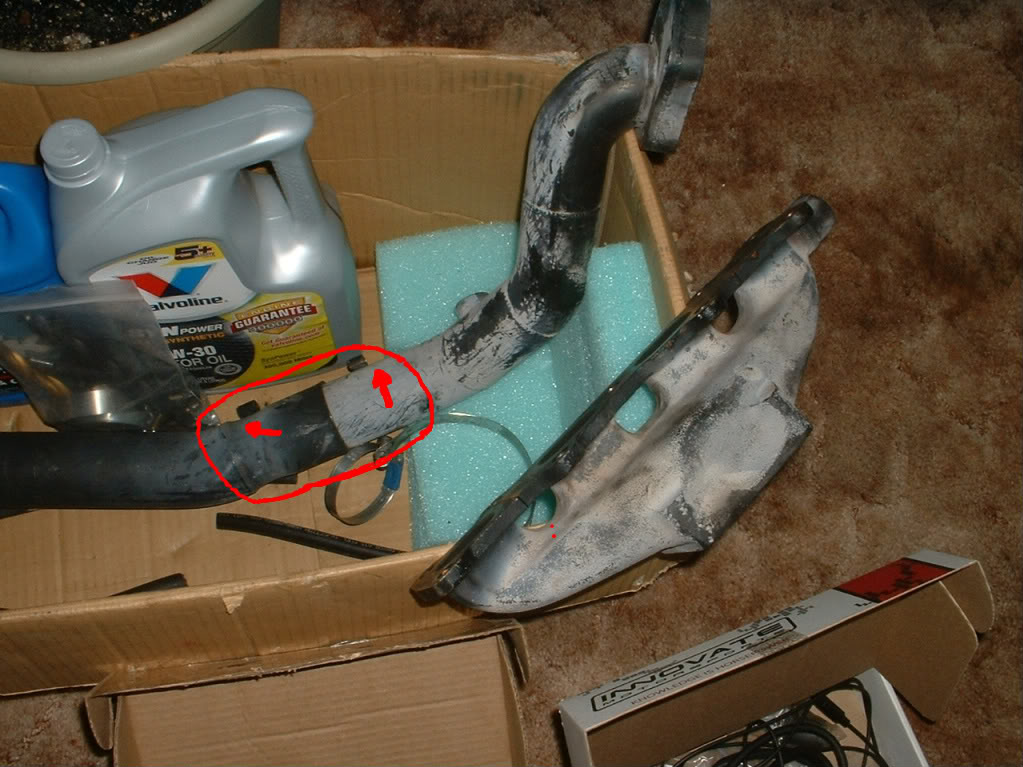

It was used. Its the begi s kit.

Attached Thumbnails
Downpipe rattling against the subframe.-dscf0046.jpg
triple88a is offline   Reply With Quote
Old 04-21-2013, 12:39 AM   #9
Senior Member
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 622
Total Cats: 16
Default

Try what Stephanie said first, if that doesn't give you enough clearance then see if clocking the turbo a small amount helps. One mm on top could be like 5mm on the bottom.
2manyhobyz is offline   Reply With Quote
Old 04-21-2013, 01:26 AM   #10
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

One cannot clock the turbine as its directly attached to the manifold.

I will try what Stephanie said once it stops raining since its like the rapture out there.
triple88a is offline   Reply With Quote
Old 04-22-2013, 04:00 AM   #11
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

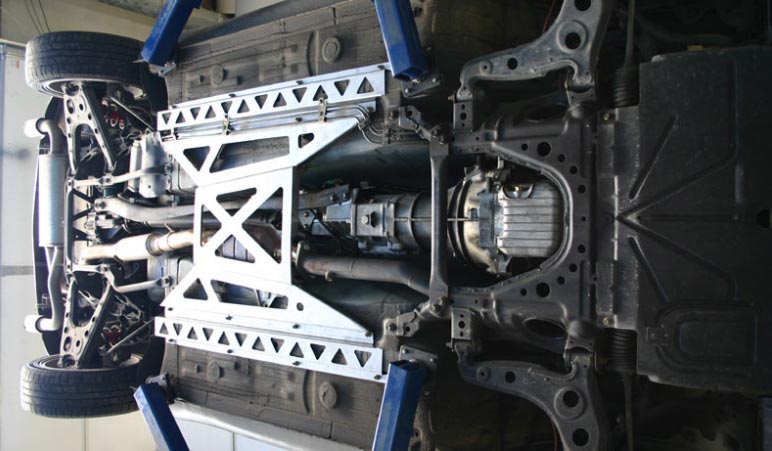

So today i found the problem. Its rattling against that pipe that connects both sides of the subframe. Any reason keep it or can i get rid of it?

Attached Thumbnails
Downpipe rattling against the subframe.-rwd-drivetrain-miata-bottom-view.jpg
triple88a is offline   Reply With Quote
Old 04-22-2013, 09:14 AM   #12
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by ACiFiC View Post
maybe if you cushioned it with something like a bunch of heat wrap or something fire resistant.
Stop posting.
Quote:
Originally Posted by aaronc7 View Post
I would try throwing some heat wrap around it as well, might make it tolerable....
You're an idiot too.

you either shim the engine mount or you sent it back to BEGi to get it fixed.
hustler is offline   Reply With Quote
Old 04-22-2013, 02:23 PM   #13
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Quote:
Originally Posted by triple88a View Post
So today i found the problem. Its rattling against that pipe that connects both sides of the subframe. Any reason keep it or can i get rid of it?

That's a pretty sweet image! Need to powder coat the control arms and subframe silver!!!

And I would keep that pipe. Could you perhaps use a couple of washers behind it to space down a bit?
bcrx7 is offline   Reply With Quote
Old 04-22-2013, 03:58 PM   #14
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

That is not my image. Was just a random image i found on google.

I was thinking about washers too.
triple88a is offline   Reply With Quote
Old 04-22-2013, 06:21 PM   #15
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

I have a BEGI-S SSSG downpipe that is also a hair away from that bar.
I'm going to add washers too.
Laur3ns is offline   Reply With Quote
Old 04-23-2013, 01:23 AM   #16
Elite Member
Thread Starter
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

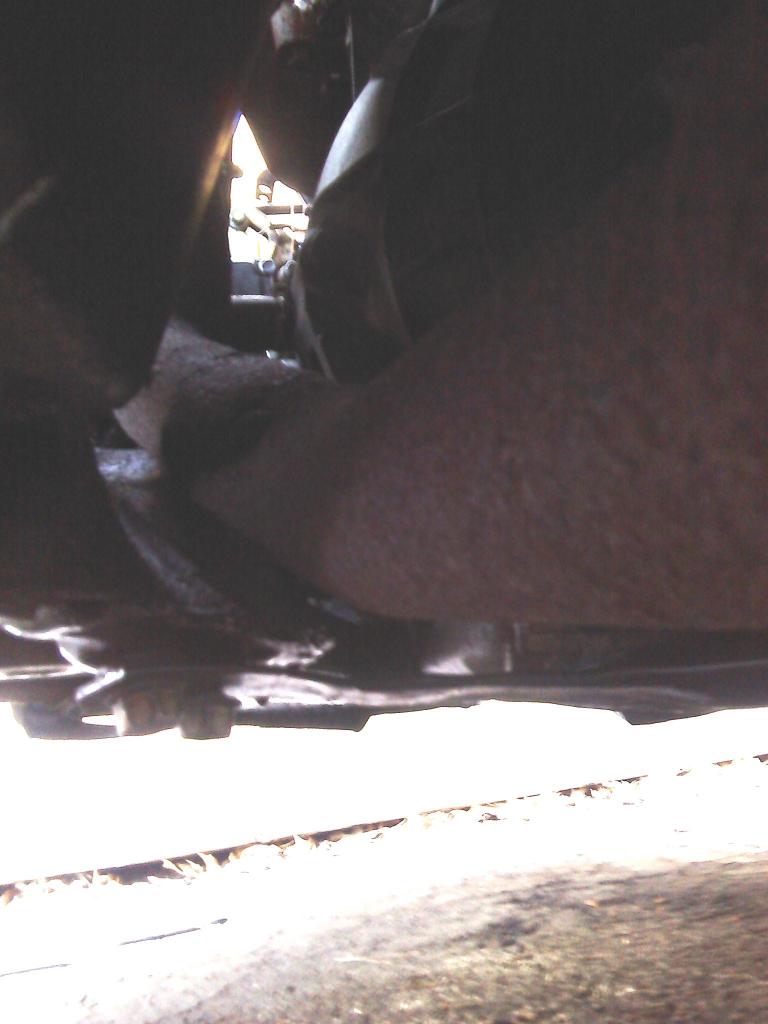

Well today i fixed it. I loosened the bolts on the turbo/dp. Used a C clamp to grip the flange and twist it and tightened the bolts. That gave me about half an inch or so.

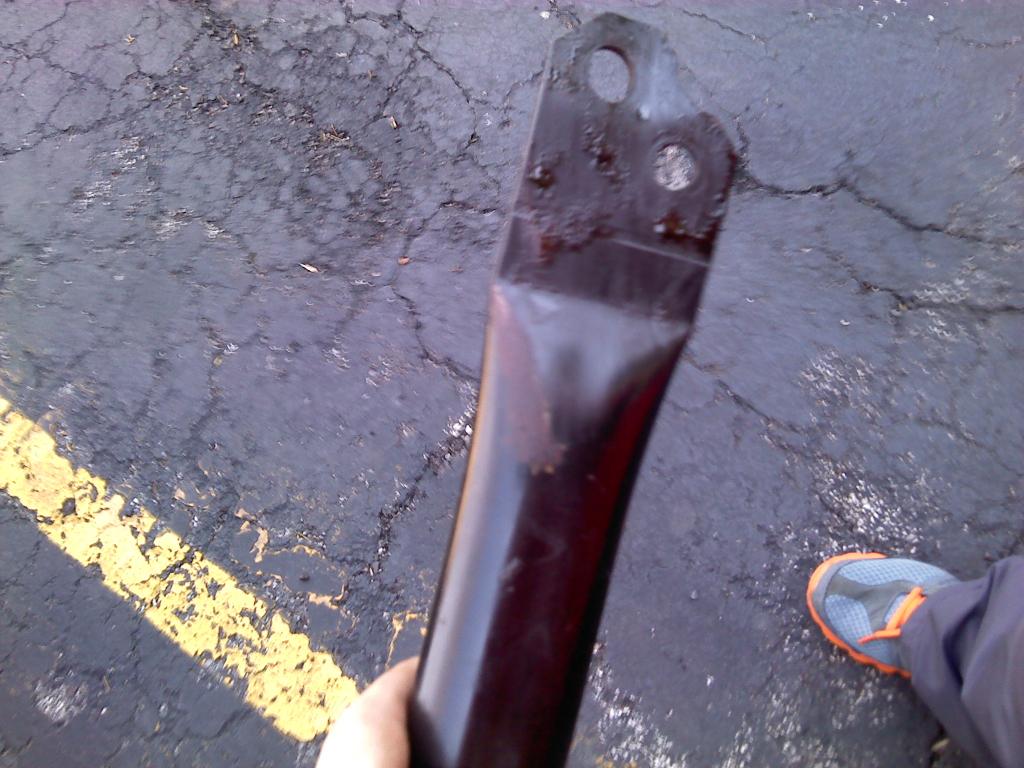

Now that was done but noo i wasn't stopping there. I lifted it so i'mma beat the crap out of it at least for annoying me all winter. I took off the pipe on the bottom and had my way with it.

You can see the paint all gone from where it was rattling. The dp had a shiny spot on it too.


It has washers on each side so i took the washers from the passenger side and used them on the drivers side as well.
I also beat the **** out of the pipe, put it together and it looks quite dandy now.

Attached Thumbnails
Downpipe rattling against the subframe.-p220413_1649_zps94cada29.jpg   Downpipe rattling against the subframe.-p220413_1709_zpsc8ca9ec5.jpg
triple88a is offline   Reply With Quote
Old 04-23-2013, 11:41 AM   #17
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

BFH! BFH! BFH! ...
hornetball is offline   Reply With Quote
Old 04-23-2013, 12:17 PM   #18
Former Vendor

Join Date: Jun 2006
Location: Bell Tuning & Performance
Posts: 1,338
Total Cats: -78
Default

If the down pipe hits that brace, the best thing to do is add some washers the brace mount or flatten the brace some. We just modify the braces here so there is adequate clearance.
Stephanie
