Old 10-26-2014, 09:40 PM   #1
Junior Member
Thread Starter
iTrader: (2)

Join Date: May 2014
Location: Latrobe PA
Posts: 100
Total Cats: 1
Default 1.6 build, no its not a typo!

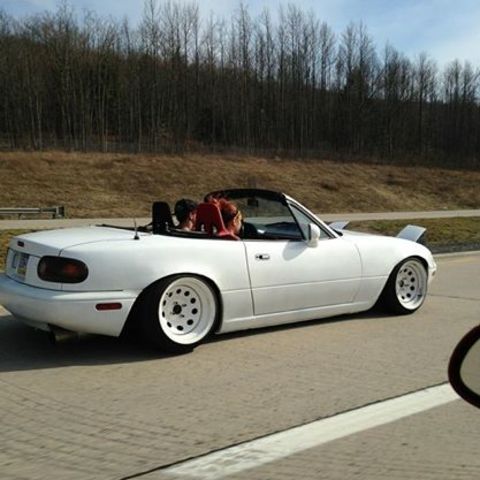

Im really late to the gate on my build thread, but in general here was my 1993 LE when i picked it up with 151,xxx miles

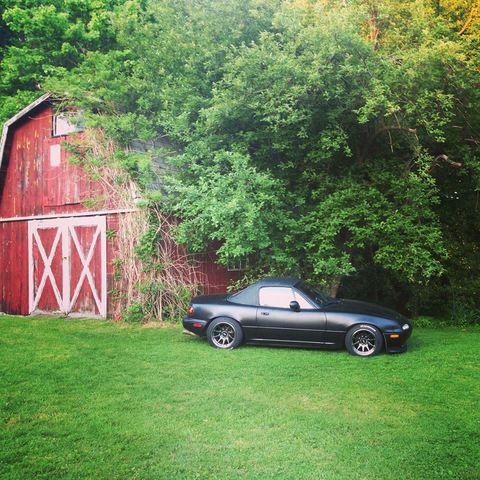

Here is how she currently sits
Attached Thumbnails
1.6 build, no its not a typo!-10013504_10202924678773821_3940051335249090254_n.jpg   1.6 build, no its not a typo!-10418157_10203163884713820_5543503000193002447_n.jpg

Last edited by Baxgordum; 10-27-2014 at 11:53 AM.
Baxgordum is offline   Reply With Quote
Old 10-26-2014, 09:44 PM   #2
Junior Member
Thread Starter
iTrader: (2)

Join Date: May 2014
Location: Latrobe PA
Posts: 100
Total Cats: 1
Default

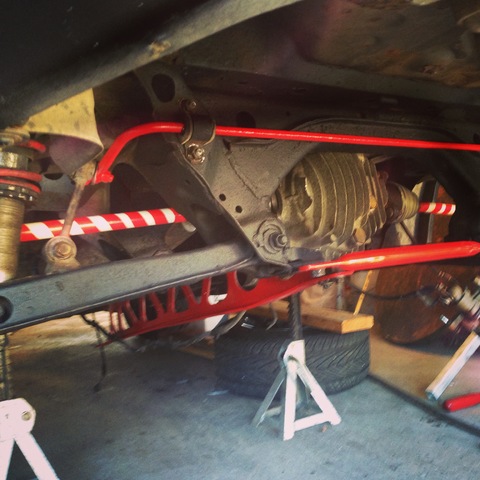

Since then shes has many upgrades and work. Mainly to get it road worthy. But for starters, a friend and i bought a 94 parts car, and i took the torsen LSD, along with rebuilding all 4 CV joints on the rear axles, and of course some painting.
Attached Thumbnails
1.6 build, no its not a typo!-image.jpg
Baxgordum is offline   Reply With Quote
Old 10-26-2014, 09:45 PM   #3
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,805
Total Cats: 183
Default

I saw your location and all I thought of was Double Post.
thirdgen is offline   Reply With Quote
Old 10-26-2014, 09:48 PM   #4
Junior Member
Thread Starter
iTrader: (2)

Join Date: May 2014
Location: Latrobe PA
Posts: 100
Total Cats: 1
Default

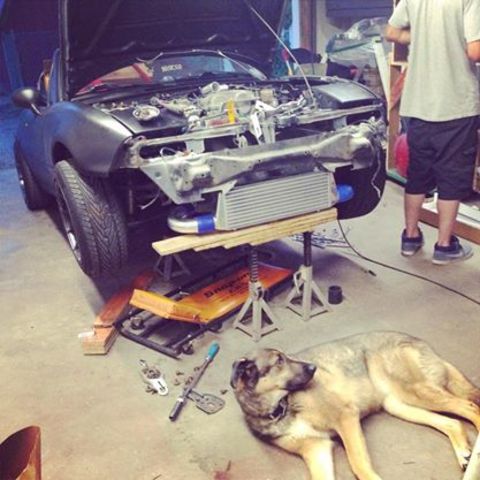

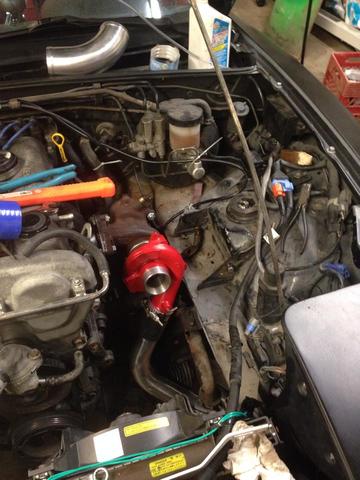

Next, was the turbo. Being the previous subaru enthusiast that I am, I opted or a used TD04 off a friend. I took it apart and powdercoated my cool side red, and purchased a FANTASTIC kit off fellow forum memeber Sturovo, who welds up exhaust bits. He made me a manifold, downpipe, oil and coolant feed and return lines all for $650!! Along with a used CX Racing intercooler, with help from my pup Harri.

Attached Thumbnails
1.6 build, no its not a typo!-10553606_10203618827647109_5841684901919758869_n.jpg   1.6 build, no its not a typo!-10530701_10203618826087070_7770579773035825293_n.jpg
Baxgordum is offline   Reply With Quote
Old 10-26-2014, 09:58 PM   #5
Junior Member
Thread Starter
iTrader: (2)

Join Date: May 2014
Location: Latrobe PA
Posts: 100
Total Cats: 1
Default

here is the current mod list:
AEM wideband and Autometer boost Gauge
AC and PS delete
Wells TPS201
Megasquirt Brainbuilt DIY PNP
460cc RX7 injectors (upgrading)
Koyorad and Gates timing belt
on the way:
Racing beat swaybar and mounts plus adjustable endlinks
ARP headstuds
Eagle H Beam rods

Last edited by Baxgordum; 10-27-2014 at 12:07 PM.
Baxgordum is offline   Reply With Quote
Old 10-26-2014, 10:23 PM   #6
Junior Member
Thread Starter
iTrader: (2)

Join Date: May 2014
Location: Latrobe PA
Posts: 100
Total Cats: 1
Default

Also, my head is out to the machine shop getting totally rebuild with new valves. Excited to get it back!
Baxgordum is offline   Reply With Quote
Old 10-27-2014, 12:38 AM   #7
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Hi ricer, welcome to the forum.
curly is online now   Reply With Quote
Old 10-27-2014, 12:45 AM   #8
Junior Member
Thread Starter
iTrader: (2)

Join Date: May 2014
Location: Latrobe PA
Posts: 100
Total Cats: 1
Default

Curly you already hurt my feelings :(
Baxgordum is offline   Reply With Quote
Old 10-27-2014, 12:54 AM   #9
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,163
Total Cats: 2,573
Default

ugh, another one of "those" kids

at least he's using decent Turbo bits
18psi is offline   Reply With Quote
Old 10-27-2014, 01:01 AM   #10
Junior Member
Thread Starter
iTrader: (2)

Join Date: May 2014
Location: Latrobe PA
Posts: 100
Total Cats: 1
Default

18psi, I'm trying here. Ruining this forum 1 post at a time, however I can't completely delete myself from it due to all of the help I've already received from the great people here that do know how it works, including both yourself and Curly.
Baxgordum is offline   Reply With Quote
Old 10-27-2014, 11:23 AM   #11
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

Oh look, another plasti-dipped flat black Miata, slammed on racelands and XXRs with a GV lip.

Good to see another thesameeverybodyelseclubroadster build.

Whatever happened to originality in the car scene?
dieselmiata is offline   Reply With Quote
Old 10-27-2014, 11:28 AM   #12
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,900
Total Cats: 601
Default

Quote:
Originally Posted by dieselmiata View Post

Whatever happened to originality in the car scene?
candy cane axle shafts?
hi_im_sean is offline   Reply With Quote
Old 10-27-2014, 11:31 AM   #13
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,798
Total Cats: 492
Default

Meh, at least it looks better than that first pic. If you get it off the ground and peel the dip it might be a pretty decent car.
Do you have some more pics of Sturovo's parts?
Monk is offline   Reply With Quote
Old 10-27-2014, 11:35 AM   #14
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 781
Default

Quote:
Originally Posted by hi_im_sean View Post
candy cane axle shafts?

I had to go back and look. My head exploded.
concealer404 is offline   Reply With Quote
Old 10-27-2014, 11:38 AM   #15
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

he deserves some credit, look at it when he got it
m2cupcar is offline   Reply With Quote
Old 10-27-2014, 11:40 AM   #16
Junior Member
Thread Starter
iTrader: (2)

Join Date: May 2014
Location: Latrobe PA
Posts: 100
Total Cats: 1
Default

If you would have seen in person the paint job that destroyed this LE, you would not so much care about the black. In the picture I know it just looks white, however it was white with blue/purple sparkle in it and felt like 120 grit sand paper; as If the PO had painted it with a roller and threw some arts and crafts sparkles on it. And I'm trying to get the motor up and running before I worry about how it looks, I've got all all winter for that. I will try and get some pics up of Sturovo's parts when I get home. And the XXRs are cheap, but weighed a lot less compared to the 15x10 and 15x8 diamond steelies that were on it.
Baxgordum is offline   Reply With Quote
Old 10-27-2014, 11:41 AM   #17
Junior Member
iTrader: (2)

Join Date: Apr 2010
Location: albion, mi
Posts: 303
Total Cats: 17
Default

For some reason, I keep thinking the photos are swapped. Like he got it when it was plasti dipped black, and looked ok-ish from 10 ft. And now it's transformed into the white pile.

I dunno, maybe it's the ricer dyslexia, where everything stated is fucked up and backwards.

Also, why two identical threads?

Not bashing op, it's just whenever I see something hella slammed, my eyes glaze over, and I have to re-read **** to comprehend it
glade is offline   Reply With Quote
Old 10-27-2014, 11:41 AM   #18
Junior Member
Thread Starter
iTrader: (2)

Join Date: May 2014
Location: Latrobe PA
Posts: 100
Total Cats: 1
Default

I also plan on some sort of flares or over fenders because they were rolled and pulled to look like pieces of bacon.
Baxgordum is offline   Reply With Quote
Old 10-27-2014, 11:42 AM   #19
Junior Member
Thread Starter
iTrader: (2)

Join Date: May 2014
Location: Latrobe PA
Posts: 100
Total Cats: 1
Default

Quote:
Originally Posted by glade View Post
For some reason, I keep thinking the photos are swapped. Like he got it when it was plasti dipped black, and looked ok-ish from 10 ft. And now it's transformed into the white pile.

I dunno, maybe it's the ricer dyslexia, where everything stated is fucked up and backwards.

Also, why two identical threads?
I don't know, I need the first post deleted. My internet double posted for some reason.
Baxgordum is offline   Reply With Quote
Old 10-27-2014, 12:01 PM   #20
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Quote:
Originally Posted by Baxgordum View Post
Curly you already hurt my feelings :(

Well, just to clarify, THIS:


Quote:
Originally Posted by Baxgordum View Post
here is the current mod list:
XXR 527 15x8 +0
Gv Lip
Kumho tires
Universal washer fluid tank/ pump (trunk mounted)
Ebay steering hub and wheel
LED interior lights
window tinit 5%
AEm wideband and Autometer boost Gauge
AC and PS delete
Wells TPS201
Megasquirt Brainbuilt DIY PNP
460cc RX7 injectors (upgrading)
Koyorad and Gates timing belt
on the way:
Racing beat swaybar and mounts plus adjustable endlinks
ARP headstuds
Eagle H Beam rods
is an incredibly retarded "mod" list.

Let's list the POS parts:

XXR 527 15x8 +0
Universal washer fluid tank/ pump (trunk mounted)
Ebay steering hub and wheel
LED interior lights
window tinit 5%

The above, it's all rice.
curly is online now   Reply With Quote
