Default 240_'s Project Paint

Finally. . . Its time for me to start my build thread.

Things are going to be SLOW going with this project. The project is happening at my parents house (~50 miles away from my apt, ~35 from work) , and my work schedule is a bit crazy right now.

My goal: Finish by the end of June

A very ROUGH outline of the project:
- rustoleum the interior and trunk black. Por15 where needed
- Complete the rocker patch panels and cover all welds with POR15.
- Use frame rust converter behind the patch panels
- seam seal around all the patches and make sure its done RIGHT this time.
- strip the body down as far as 60 grit will get me
- epoxy primer the entire body before starting bodywork
- body work... high build... wetsand... etc.
- Base / Clear
- Wetsand/ Buff

- install CF headlight cover and TougeRun Front Lip
- Install new race seat and harness

The color:
Lotus Magnetic Blue. Its a very heavy metalic blue found on the elise and exige


The facilities:
Just like when I painted my 240sx in highschool I will be setting up a portable garage (20' x 12'). I have a large (~3' dia.) vent fan hooked to a small briggs. I will be putting a filter on the fan to keep my parents possessions from turning blue.

The Fan. . .

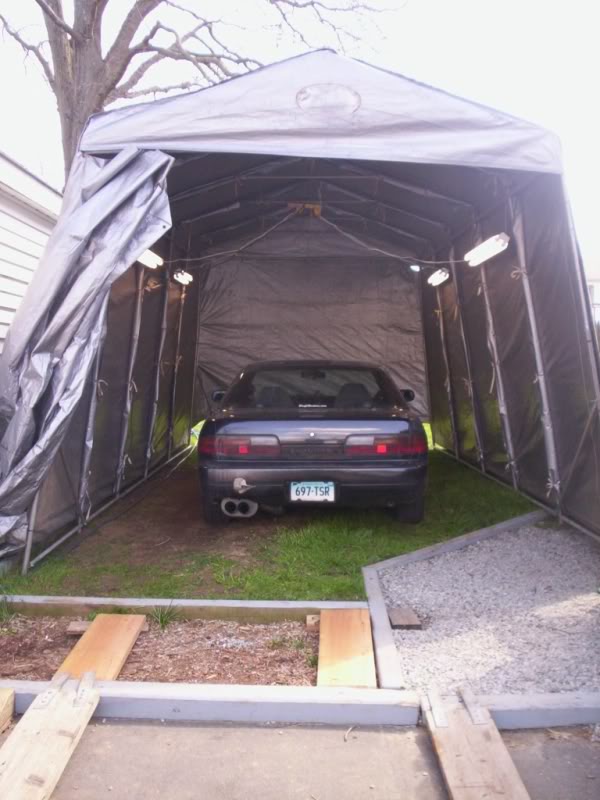

The tent from when I set it up in '06 (setup will be the same this time):
Name:  000_2572.jpg
Views: 6
Size:  69.3 KB

More to come. I will try to actually document this build although I never seem to keep up with them.
240_to_miata is offline   Reply With Quote
Old 04-24-2011, 09:31 PM   #2
Senior Member

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default

like this all ready!!!!

Last edited by miatamike203; 04-24-2011 at 10:05 PM.
miatamike203 is offline   Reply With Quote
Old 04-24-2011, 09:35 PM   #3
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

4/24/2011
Didnt want to clog up the Intro... so here is todays short amount of work i got done between socializing and easter dinner :

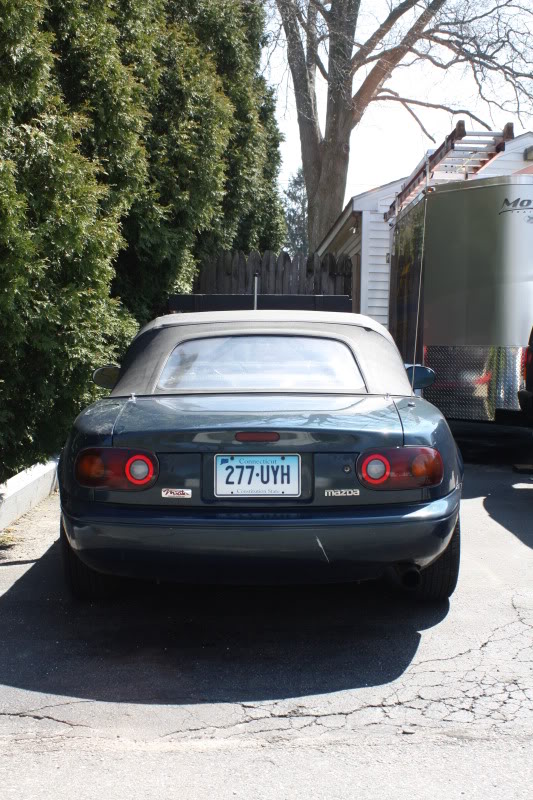

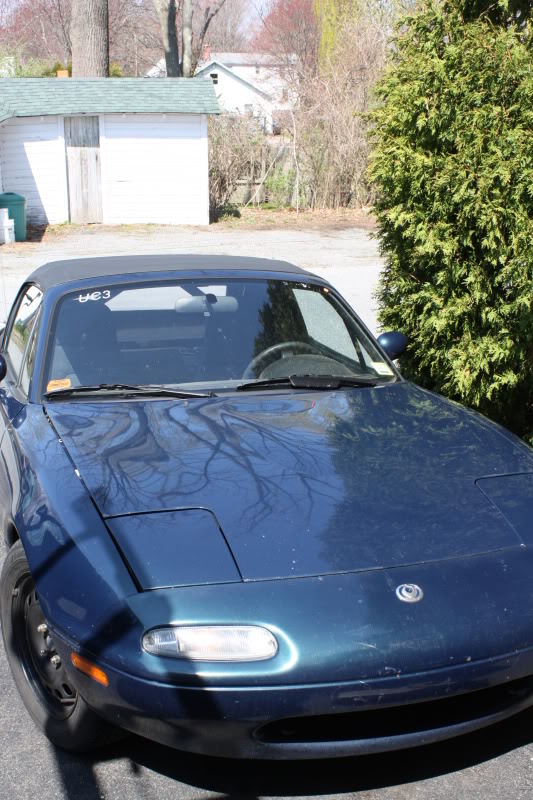

-Put winter tires on the thing. Figure I care less about getting these covered in bondo dust.
Name:  IMG_8516.jpg
Views: 6
Size:  117.1 KB

Name:  IMG_8512.jpg
Views: 6
Size:  120.4 KB

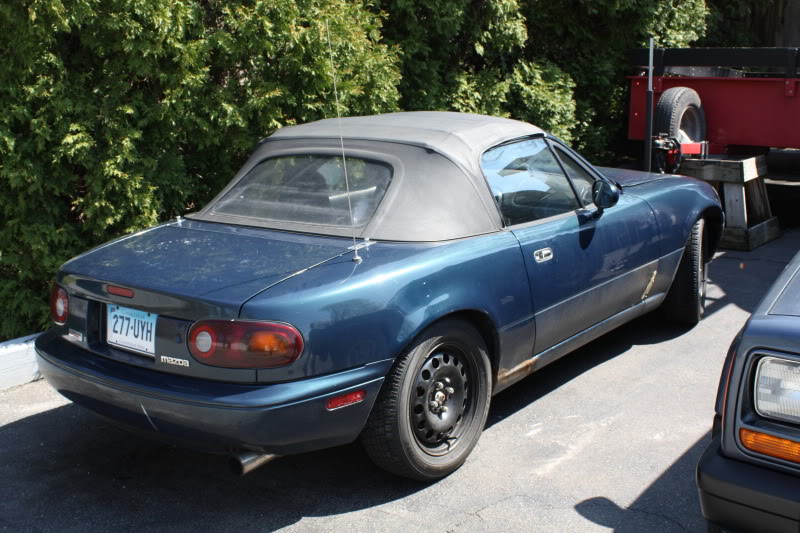

Name:  IMG_8510.jpg
Views: 6
Size:  104.4 KB

- Started gutting the interior but then it rained. Ill try to get down there to finish that during the week if I'm not stuck at work.

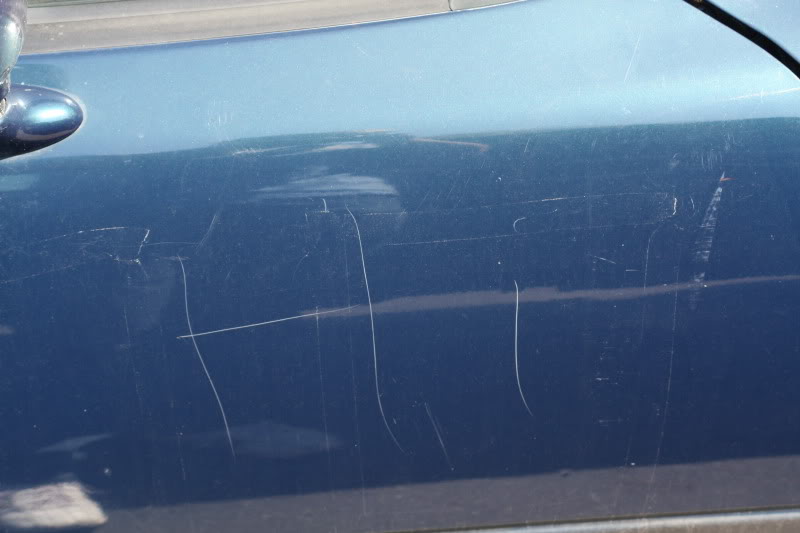

And to show how ready I am to paint this thing. . . I keyed my own car a few weeks ago. (this door has a rust hole and is getting replaced anyway)
Name:  IMG_8515.jpg
Views: 25
Size:  39.9 KB

I'll post up more pics of my goodies next time I am at my parents. Spent $150ish on supplies at home depot this weekend including lights for the tent, masking paper, tape, etc. Also have a set of brand new spray guns!
240_to_miata is offline   Reply With Quote
Old 05-03-2011, 10:26 PM   #4
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

5/1 Interior and Misc.

PROGRESS!

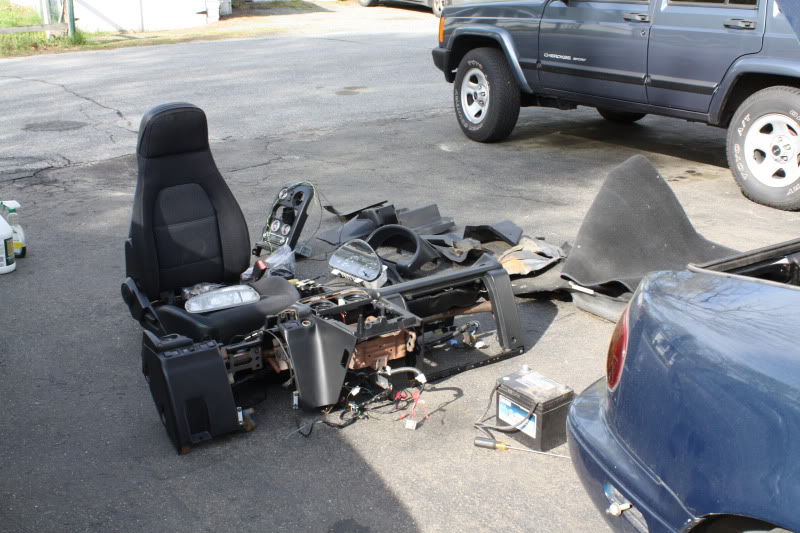

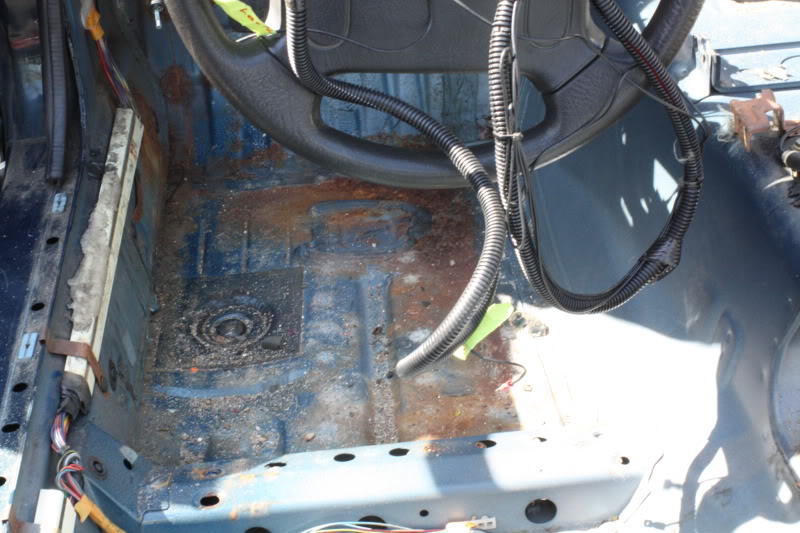

finished gutting the interior last weekend. I am installing a new carpet after paint, along with racing seats. . . So I took this opportunity to tear everything out and paint the interior.

I used Rustoleum on the rear deck and transmission tunnel cause I didnt have enough POR15 to do everything, and I am cheap as hell.

The floor boards and trunk got POR15. Before anyone asks why I brushed it instead of spray, my main intention was to prevent rust, not make it look nice. I wasnt ---- about moving wires out of my way or removing every little thing, but I think it came out pretty nice. So here are some pics:

Name:  IMG_8733.jpg
Views: 6
Size:  86.7 KB

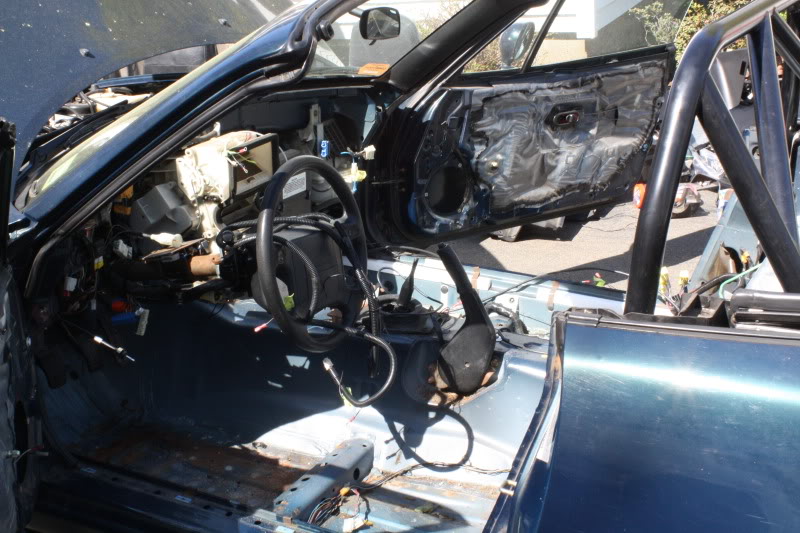

Name:  IMG_8734.jpg
Views: 6
Size:  100.1 KB

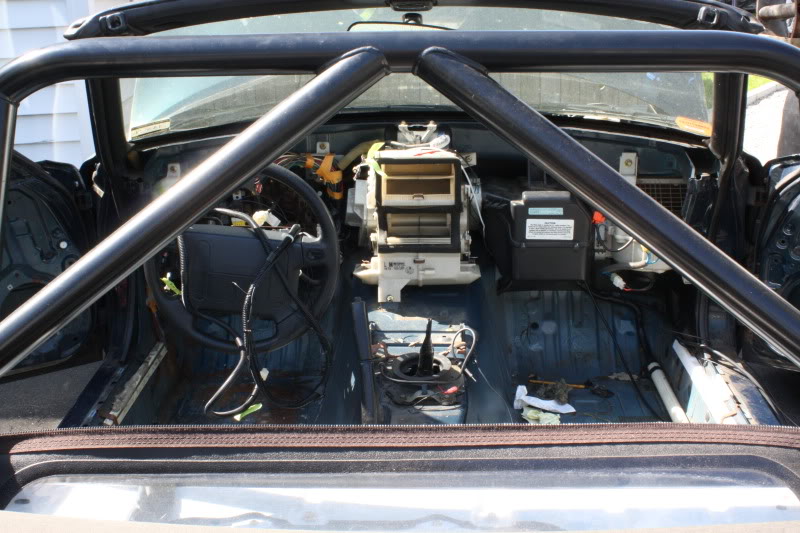

Name:  IMG_8731.jpg
Views: 6
Size:  94.9 KB

Name:  IMG_8773.jpg
Views: 6
Size:  97.2 KB

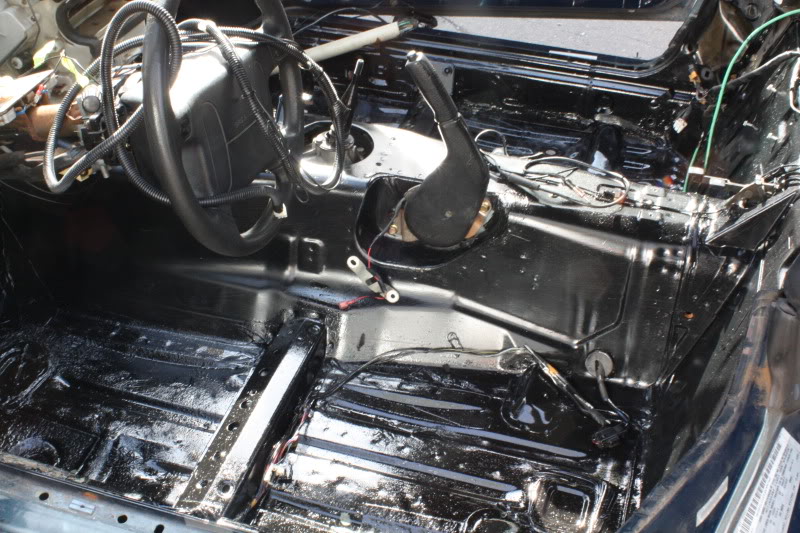

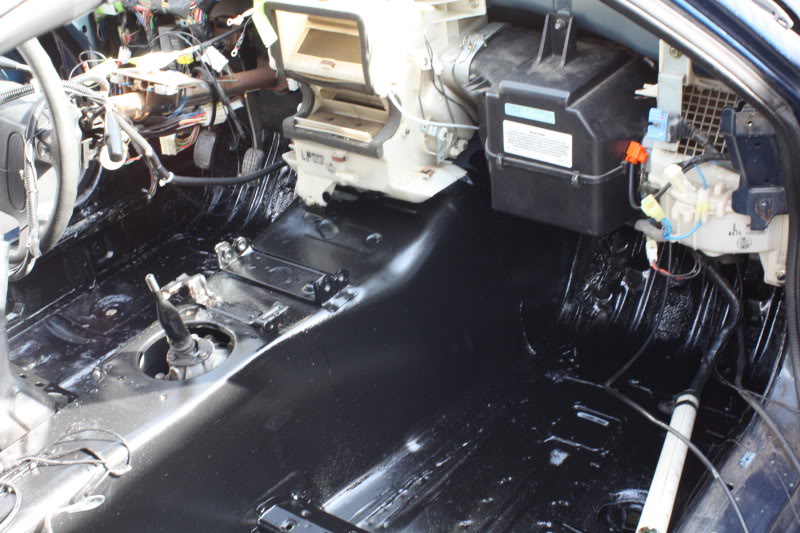

After:

Name:  IMG_8769.jpg
Views: 6
Size:  95.4 KB

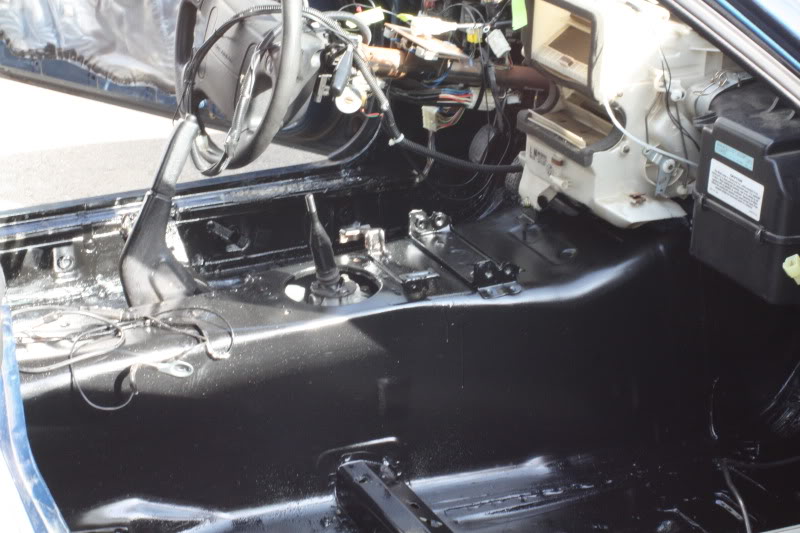

Name:  IMG_8764.jpg
Views: 6
Size:  77.4 KB

Name:  IMG_8754.jpg
Views: 7
Size:  122.2 KB

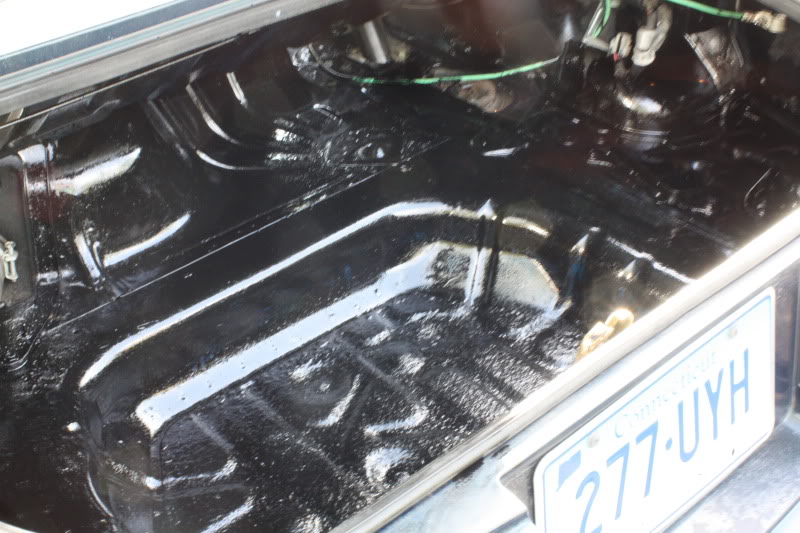

Name:  IMG_8752.jpg
Views: 6
Size:  92.3 KB
(yes I know I missed stuff in the trunk)

And because I am an idiot and didnt wear gloves:
Name:  IMG_8750.jpg
Views: 6
Size:  50.5 KB

I also used eastwood Frame Coating to get behind my patch panels and in my rockers. The stuff seemed to work great. It comes in a big can with a long tube and a nozzle designed to spray in a fan pattern. I covered the insides of the rockers and behind as much **** as I could get to from the access holes inside the car.

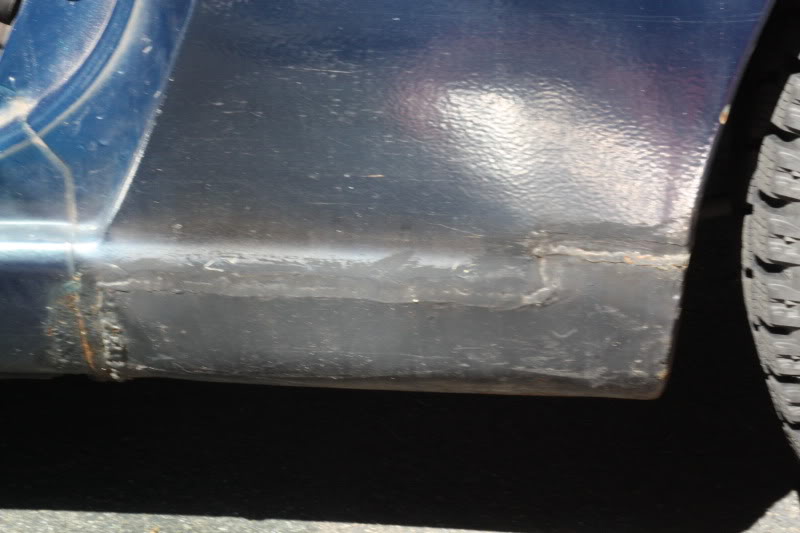

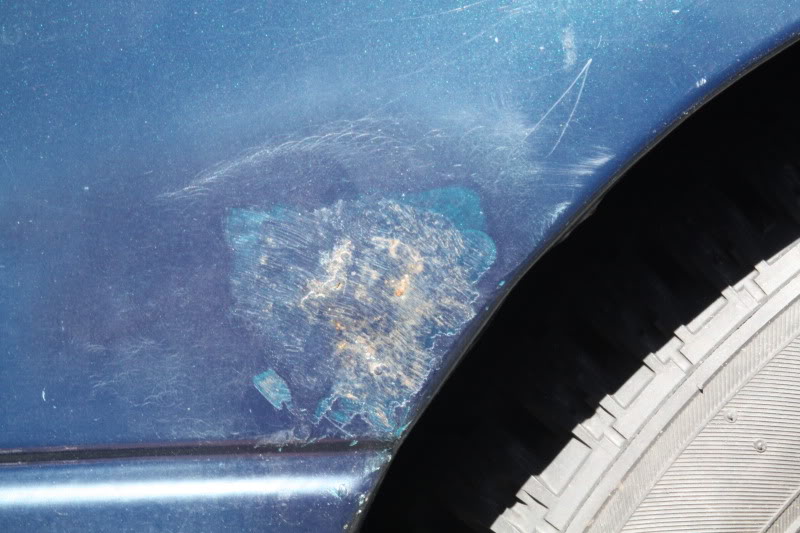

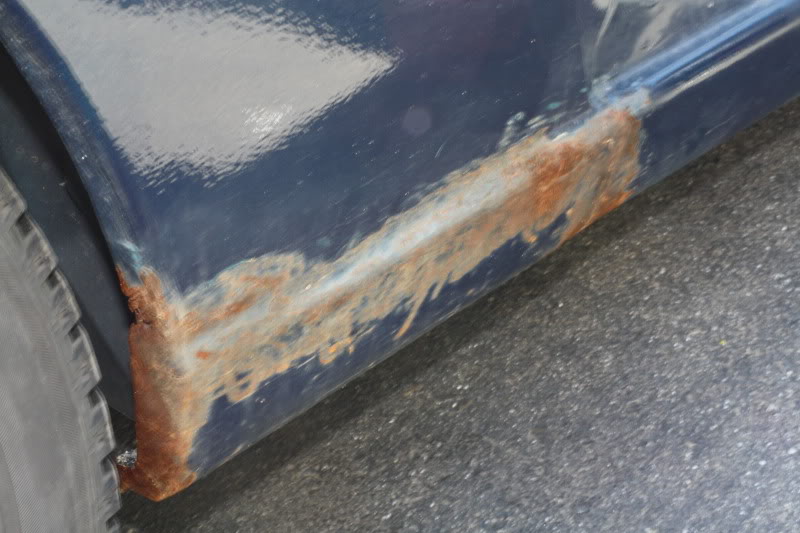

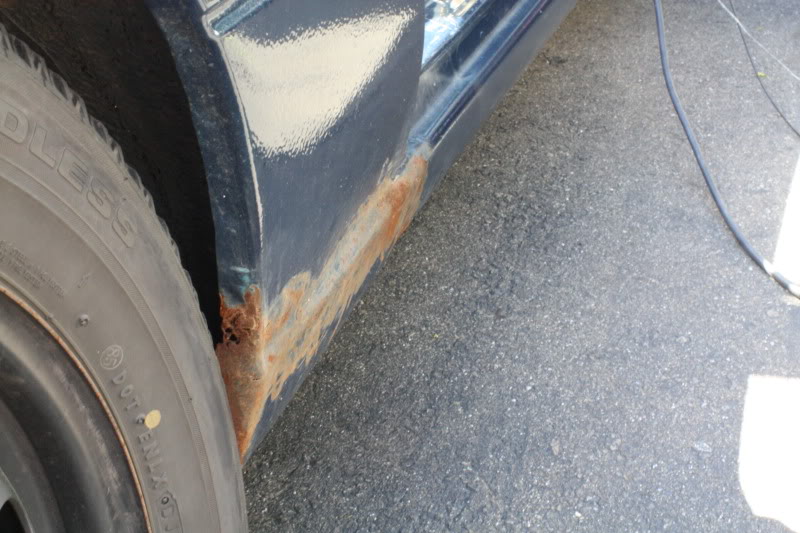

Here are some pics of the patch panels. I still need to grind the welds, seal them up with seam sealer on the bottom, and por15 them / epoxy primmer.

Name:  IMG_8748.jpg
Views: 6
Size:  71.1 KB

Name:  IMG_8745.jpg
Views: 8
Size:  87.0 KB

Name:  IMG_8736.jpg
Views: 6
Size:  77.3 KB

Name:  IMG_8735.jpg
Views: 6
Size:  50.9 KB

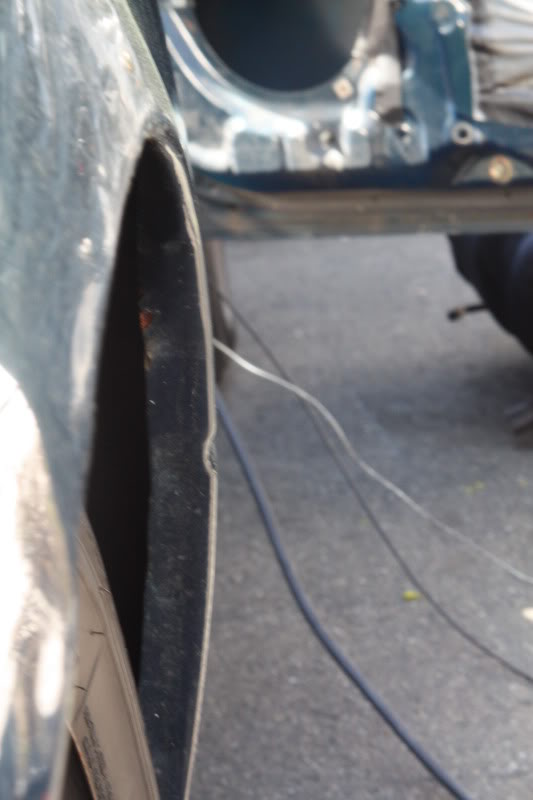

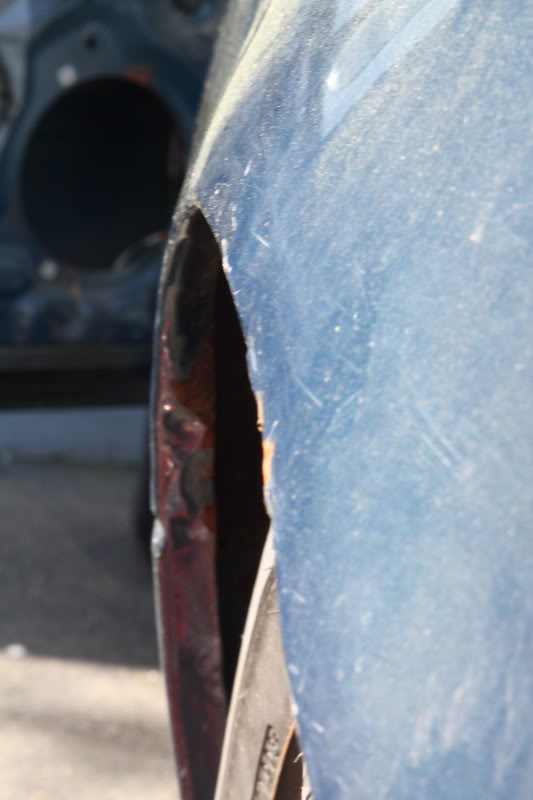

And last fall I rolled my fenders quickly. I ran into rust doing those too, so this is gunna take some massaging with a hammer to avoid mass amounts of filler:

Name:  IMG_8738.jpg
Views: 6
Size:  39.4 KB

Name:  IMG_8743.jpg
Views: 6
Size:  38.2 KB
240_to_miata is offline   Reply With Quote
Old 05-03-2011, 10:35 PM   #5
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

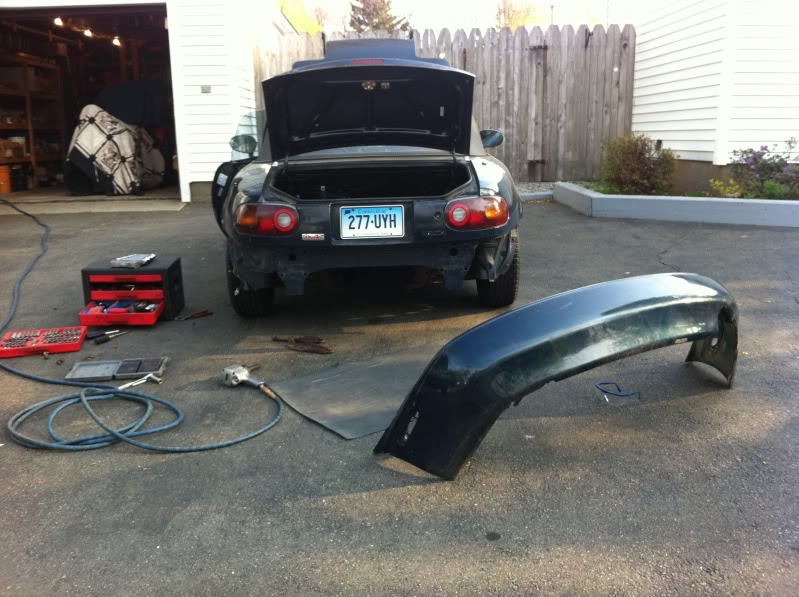

5/3 Rear Bumper

Actually was able to sneak out of work after only 9 hours (amazing!) so I went down to my parents house and got a bit of work done.

Due to my homemade POS test pipe, my exhaust managed to burn thru my bumper and enlarge the hole. . . So I decided I wanted to cut the bumper as a lot of guys seem to be doing lately. I think I got it pretty symmetric all things considered. I decided not to cut off the rear posts because without a welder on hand to box the frames back up I didnt want to take all that strength out in case **knock on wood** I do ever get rear ended. I also may make some tow hooks at some point instead of keeping the stock ones. For now the stockers will get sandblasted and POR15'ed...the posts will also go black.

Here are the pics (just iphone 4):

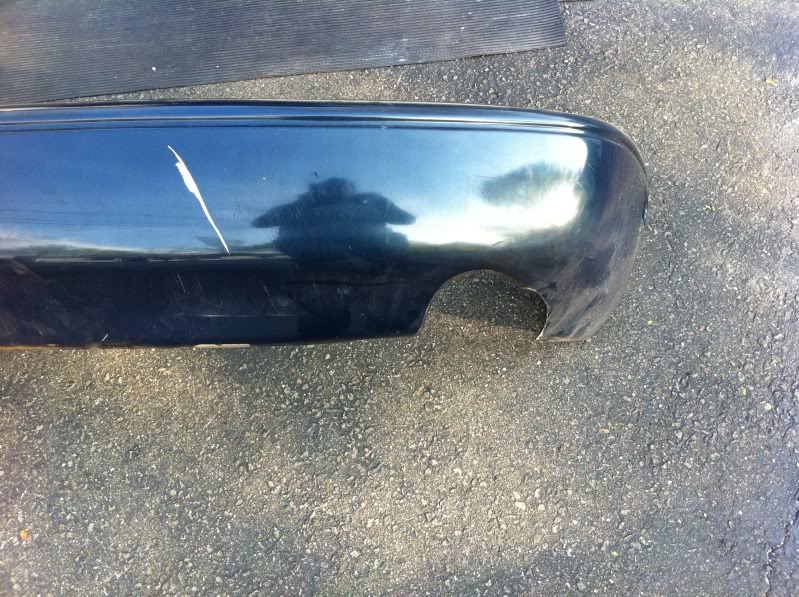

Name:  IMG_0392.jpg
Views: 6
Size:  160.8 KB

Name:  IMG_0391.jpg
Views: 6
Size:  100.6 KB

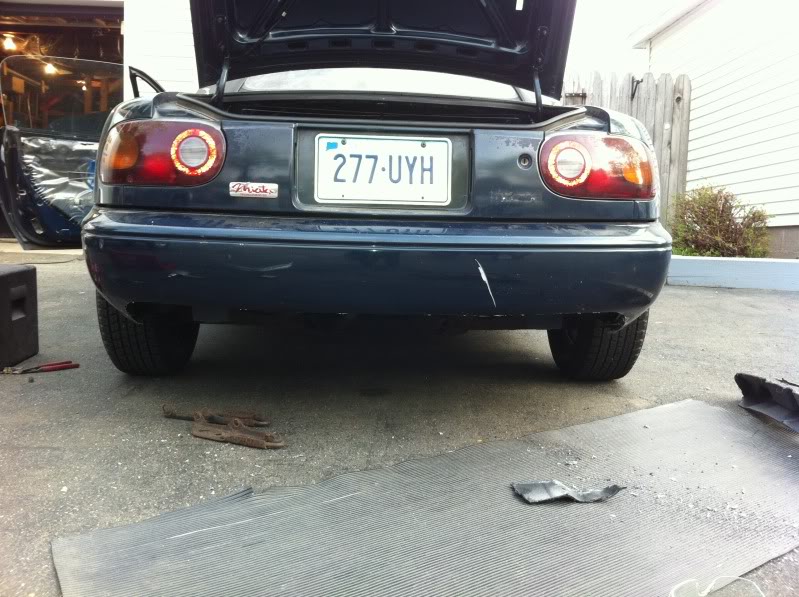

Name:  IMG_0393.jpg
Views: 6
Size:  103.8 KB

The edge will be cleaned up and finalized more when I start body work. The bumper isnt bolted in for this pic... and the exhaust is off (obviously)
240_to_miata is offline   Reply With Quote
Old 05-03-2011, 11:33 PM   #6
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Damn dude, how are you going to flaunt that you have a working car with it in pieces?

Good to see your finally painting this thing, if you want to finish off the fender rolling I have access to the tool for doing it rite. Also the cut bumper's lookin good. Making me want to start work on mine
astroboy is offline   Reply With Quote
Old 05-03-2011, 11:48 PM   #7
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Quote:
Originally Posted by astroboy View Post
Damn dude, how are you going to flaunt that you have a working car with it in pieces?
It still runs and moves. The seat isnt bolted in nor is the steering column, but it still moves! lol
Quote:
Originally Posted by astroboy View Post
Good to see your finally painting this thing, if you want to finish off the fender rolling I have access to the tool for doing it rite. Also the cut bumper's lookin good. Making me want to start work on mine
I used a roller. But rust doesnt bend it breaks, lol.
240_to_miata is offline   Reply With Quote
Old 05-03-2011, 11:59 PM   #8
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Quote:
Originally Posted by 240_to_miata View Post
I used a roller. But rust doesnt bend it breaks, lol.
I came to a similar conclusion when I rolled the Sentra's fenders last weekend. On another note do you still have your old turn signals? I need an extra set for another project
astroboy is offline   Reply With Quote
Old 05-04-2011, 12:01 AM   #9
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

The stock front ones? yup. I shouldnt need them.
240_to_miata is offline   Reply With Quote
Old 05-09-2011, 08:43 PM   #10
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Not much progress this weekend. Saturday I worked and then went Jet Skiing in between rain storms, sunday I worked on the car till it started raining and then moved on to other stuff.

-Got the rear bumper mostly stripped down
-Stripped the patch panels back down, finished grinding the welds down and applied seam sealer to the bottom seam
-Por-15ed the patch in the drivers wheel well. I couldnt get in there great with a welder or grinder so that patch is by no means sealed. I will be sealing it all up with seam sealer.

I also measured the tent frame so I could buy tarps cause the original one is shot. Went to home depot today and grabbed tarps. I hate that they dont actually sell tarps in true dimensions. I need a 20x30 not a F'in 19 x 29.5 you jackasses

Anyway. . . While I was at home depot I picked this sucker up:
3/8" air ratchet. Ive wanted one for so long.


BTW Martin I almost swung by your house saturday afternoon. I drove right by your house on my way home from Crystal Pond where I was jetskiing. I was still frozen tho and my GF and I figured you were hanging out with the Mrs. and the baby. Maybe next time.
240_to_miata is offline   Reply With Quote
Old 05-09-2011, 09:41 PM   #11
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Saturday I was trying to figure out why my Nissan sucks at life all day. You shoulda stopped man! If you want any seam sealer I have 9/10ths of a tube from when I did my bay that I most likely will never utilize.
astroboy is offline   Reply With Quote
Old 05-10-2011, 10:15 AM   #12
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,994
Total Cats: 13
Default

This looks like a fun project, sort of.
skidude is offline   Reply With Quote
Old 05-10-2011, 10:17 AM   #13
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Quote:
Originally Posted by skidude View Post
This looks like a fun project, sort of.
Body work always seems like a good idea. . . Until you start
240_to_miata is offline   Reply With Quote
Old 06-06-2011, 10:09 PM   #14
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

OK its been a few weeks. . . Work has been NUTS, but i have gotten to work on the car a little bit.

2 weeks ago I continued to strip down the car. Removed the fenders, bumper, and all the inner liners. I also rough cut the NACA duct for the headlight. Right now my plan is to place it over the top and use adhesive to mount it. I have some massaging to work, but as of right now it fits pretty flat on the headlight cover.

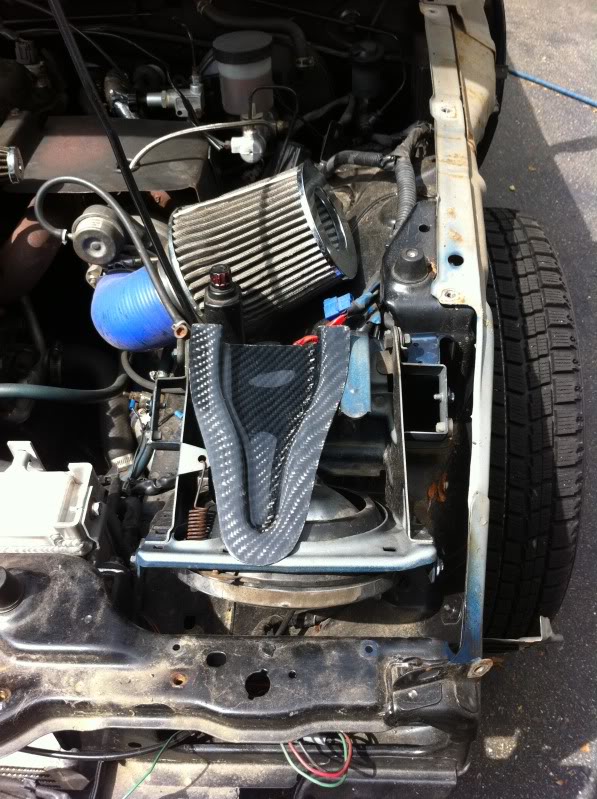

Name:  IMG_0409.jpg
Views: 6
Size:  123.0 KB

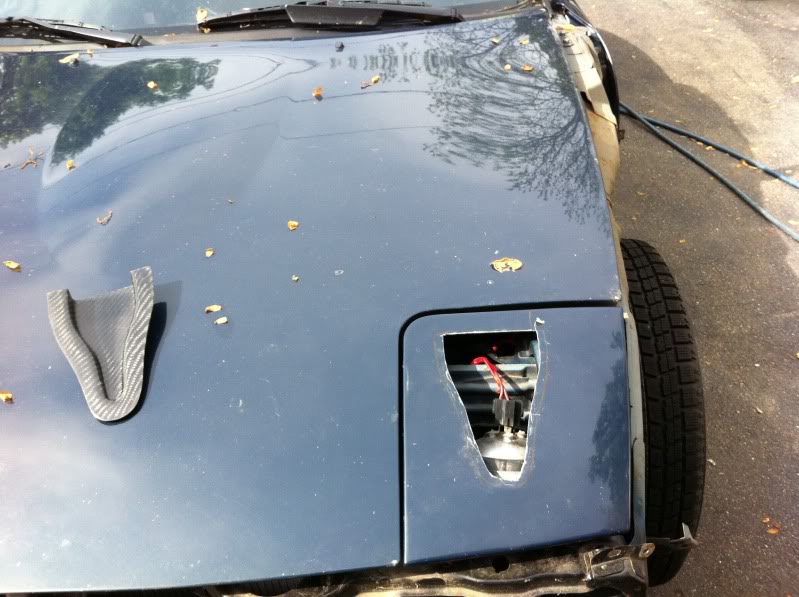

Name:  IMG_0410.jpg
Views: 6
Size:  83.9 KB

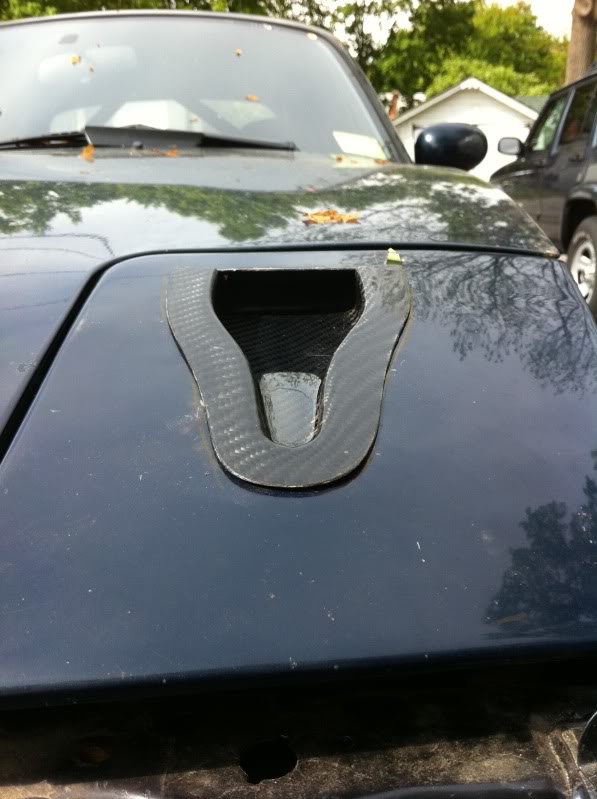

Name:  IMG_0412.jpg
Views: 6
Size:  66.2 KB

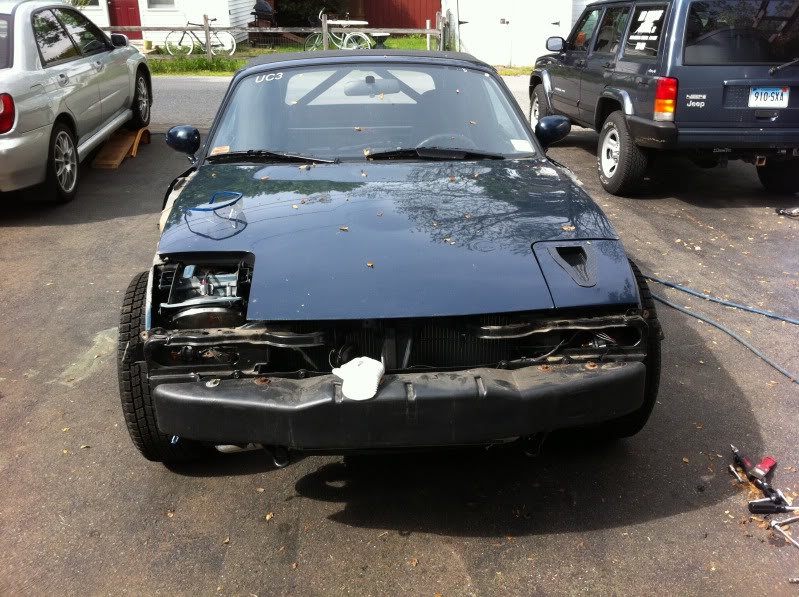

Name:  IMG_0414.jpg
Views: 6
Size:  122.2 KB

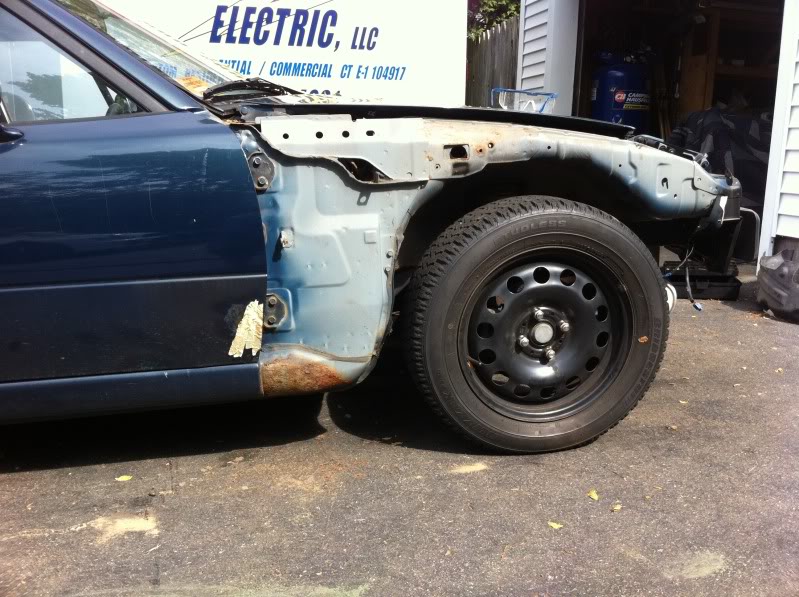

As expected there was some surface rust behind the fenders. . .

Name:  IMG_0416.jpg
Views: 6
Size:  114.1 KB

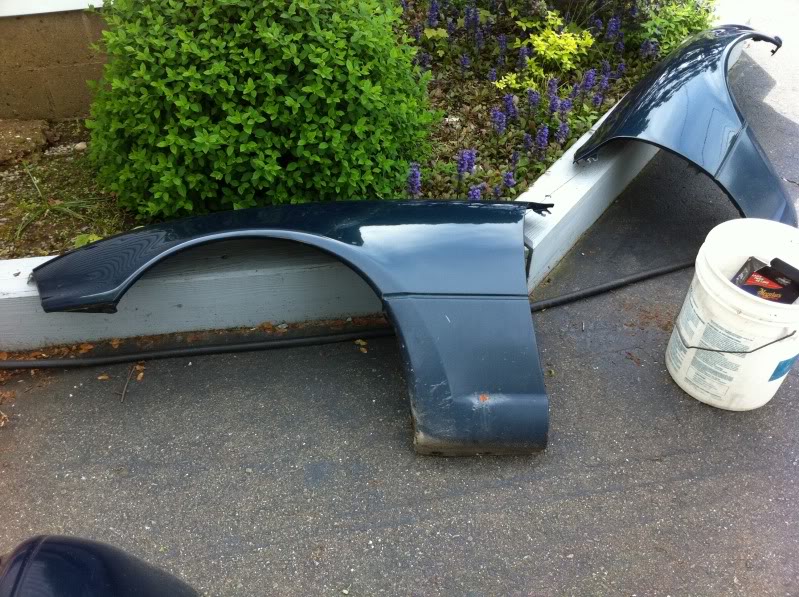

Name:  IMG_0415.jpg
Views: 6
Size:  142.7 KB
240_to_miata is offline   Reply With Quote
Old 06-06-2011, 10:16 PM   #15
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

6/4/11

Friday I bought the paint. I bought a lot more than I think I will need, but I figure i want extra of the original batch to color match stuff later on

1 Gallon of Epoxy Primmer & reducer (3:1 I think?) - I will use this as an epoxy primer and as a sealer before color

1 Gallon of High build primmer (4:1)

3 Qt. Lotus Magnetic Blue (1:1)

1 Gallon Clear (4:1)

Total cost with some other random supplies = about $1100
Pricey, but I didnt cheap out on the stuff.

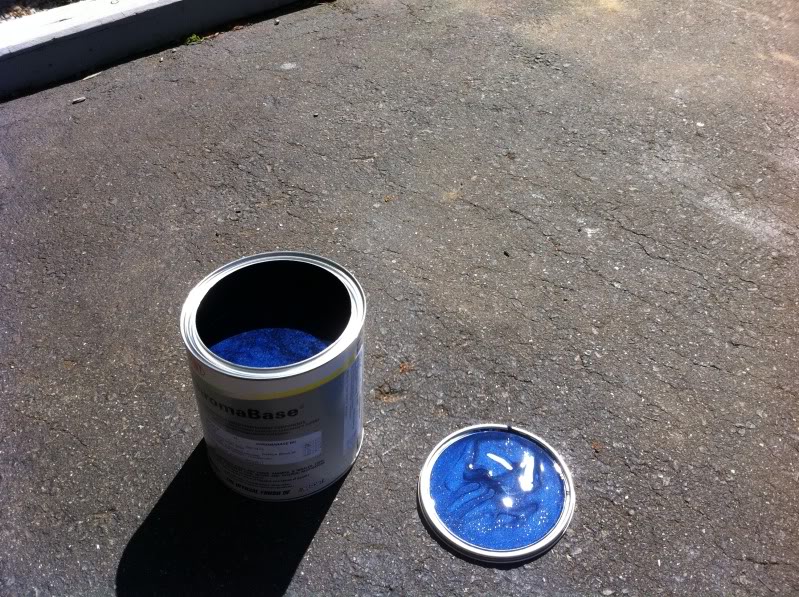

Name:  IMG_0418.jpg
Views: 6
Size:  165.1 KB

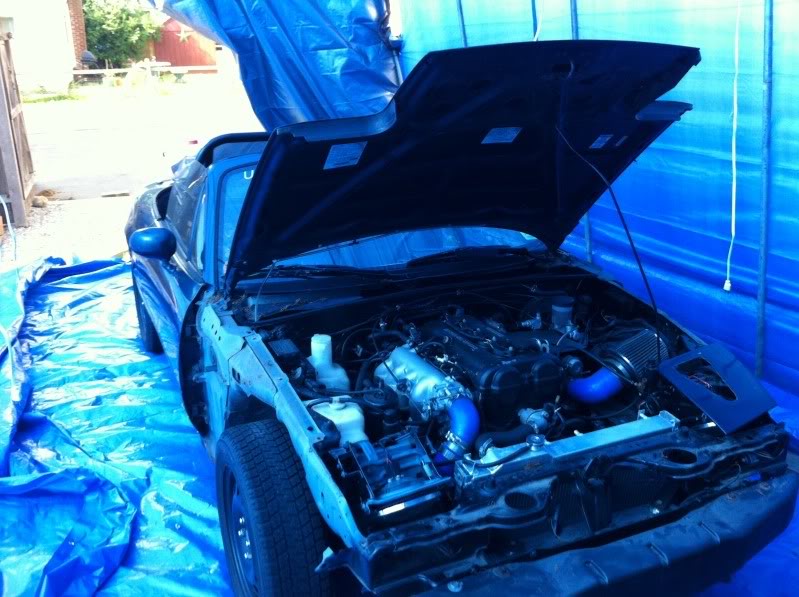

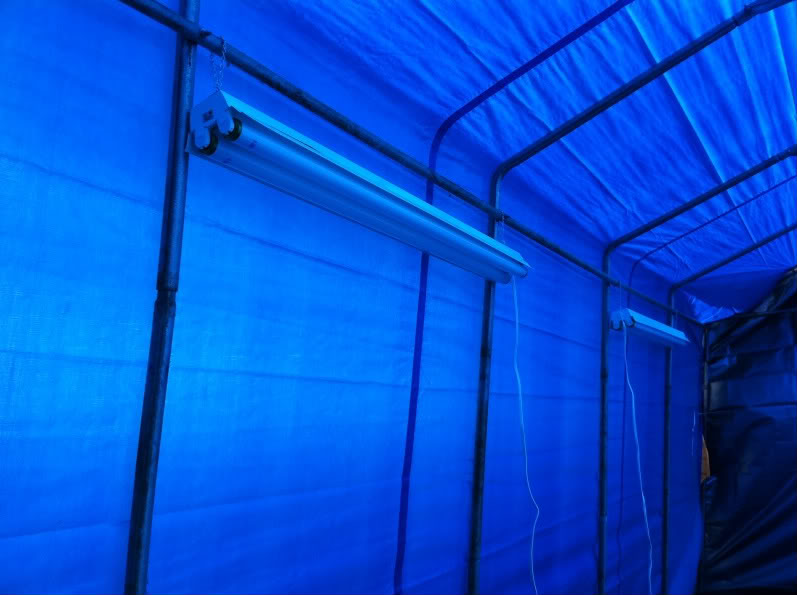

I also set up the tent. It is 20 x 12. I dont have the original tarp so i had to buy my own and improvise.
Name:  IMG_0422.jpg
Views: 6
Size:  60.5 KB

Name:  IMG_0424.jpg
Views: 6
Size:  94.5 KB

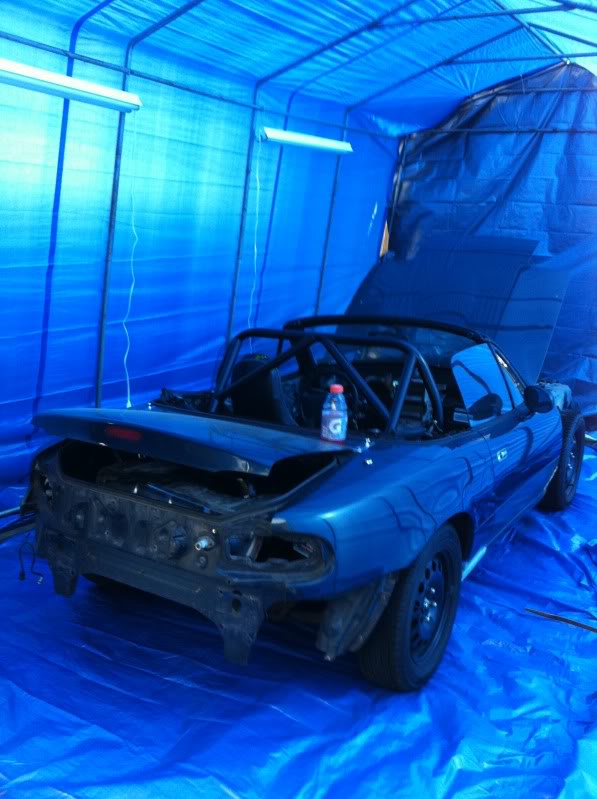

Name:  IMG_0421.jpg
Views: 7
Size:  71.2 KB

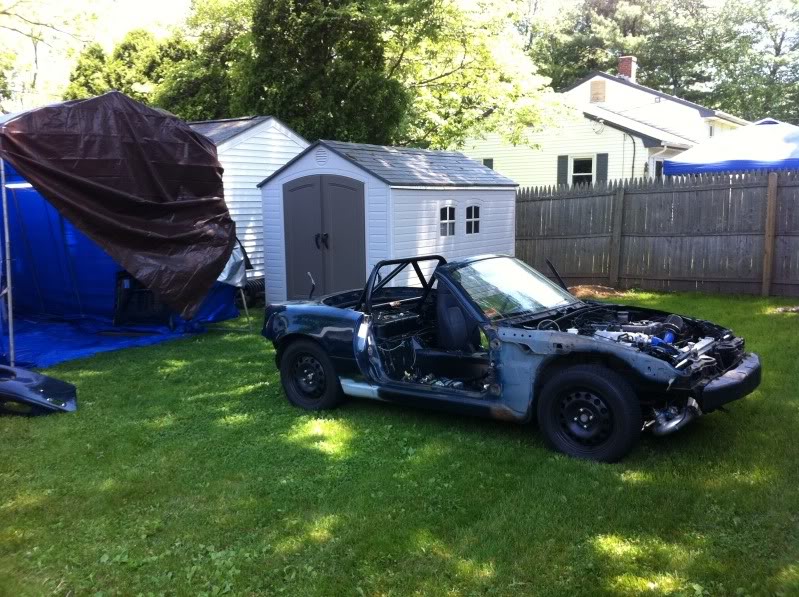

Name:  IMG_0426.jpg
Views: 6
Size:  134.9 KB

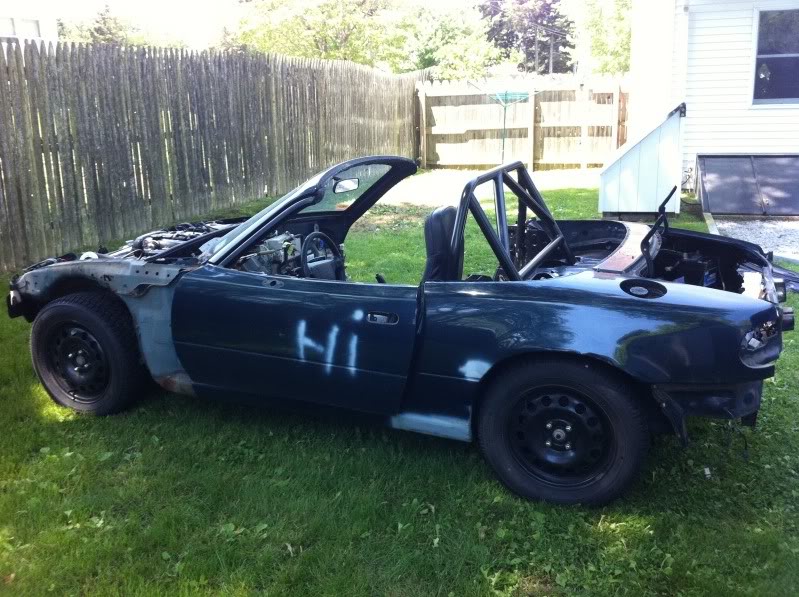

Name:  IMG_0427.jpg
Views: 6
Size:  120.6 KB

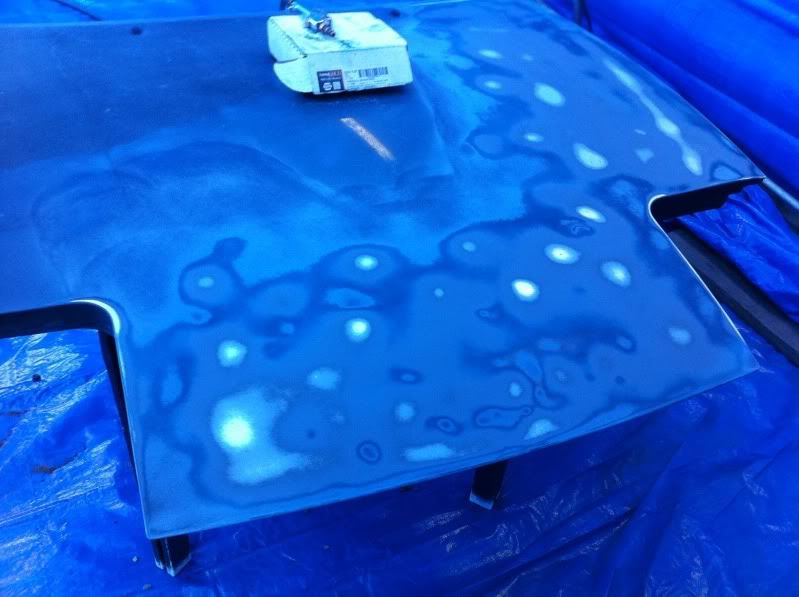

Also started stripping panels. My plan is to do all the panels off the car, epoxy primer them, then mask the body and start sanding & epoxy primering that stuff. THEN i can lay down bondo.

Name:  IMG_0428.jpg
Views: 7
Size:  59.2 KB
. . . Dented hood

And thats all till next weekend.
240_to_miata is offline   Reply With Quote
Old 06-11-2011, 10:53 AM   #16
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Good progress man, you have enough paint to do your car twice. But you won't have to worry about people not being able to color match the paint perfect if you end up needing to spray another panel. Also are you still doing the mini scoop?
astroboy is offline   Reply With Quote
Old 06-11-2011, 11:12 AM   #17
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,689
Total Cats: 560
Default

Pics inside the blue tarps have a sureal quality to them.
rleete is offline   Reply With Quote
Old 06-11-2011, 11:53 AM   #18
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

No mini Cooper scoop. Gunna sell it. I have enough to fix a panel or two but not a lot.

Oh and a lot of the pics are quick iPhone ones. Sorry for the quality
240_to_miata is offline   Reply With Quote
Old 06-11-2011, 03:27 PM   #19
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

I really envy you for taking on a project like this. I wish I could paint, my car needs it really really bad. Every time I try it turns out like ****. I just dont have the patience for it.

Cant wait to see how this turns out. Maybe it'll motivate me to give it a try again.
wayne_curr is offline   Reply With Quote
Old 06-11-2011, 07:49 PM   #20
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

Quote:
Originally Posted by wayne_curr View Post
cant wait to see how this turns out. Maybe it'll motivate me to give it a try again.
+1
turotufas is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Project Gemini - Turbo Civic on the Cheap Full_Tilt_Boogie Build Threads 59 12-15-2017 09:00 PM
LucaCarMods's Boosted Dutch Miata Build! LucaCarMods Build Threads 11 02-14-2016 07:13 AM
3rd Time's a Charm...hopefully. zephyrusaurai Meet and Greet 2 09-28-2015 11:59 PM
Project DDoS: '99 "Budget" boost build ProjectDDoS Build Threads 1 09-09-2015 02:52 PM
Obligatory "N00B" post! D_Breezy Meet and Greet 5 09-08-2015 06:37 PM


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 08:22 AM.
