Old 06-11-2011, 08:17 PM   #21
Junior Member

Join Date: May 2011
Location: Blacksburg VA
Posts: 115
Total Cats: 0
Default

good luck man
Cookiesoup is offline   Reply With Quote
Old 06-19-2011, 10:20 PM   #22
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

6/16 - 6/19:

I left the Canon XSi at my apartment, so Iphone pics only :(
Took Thursday and Friday off from work to get some stuff done on the car.

Wednesday night:

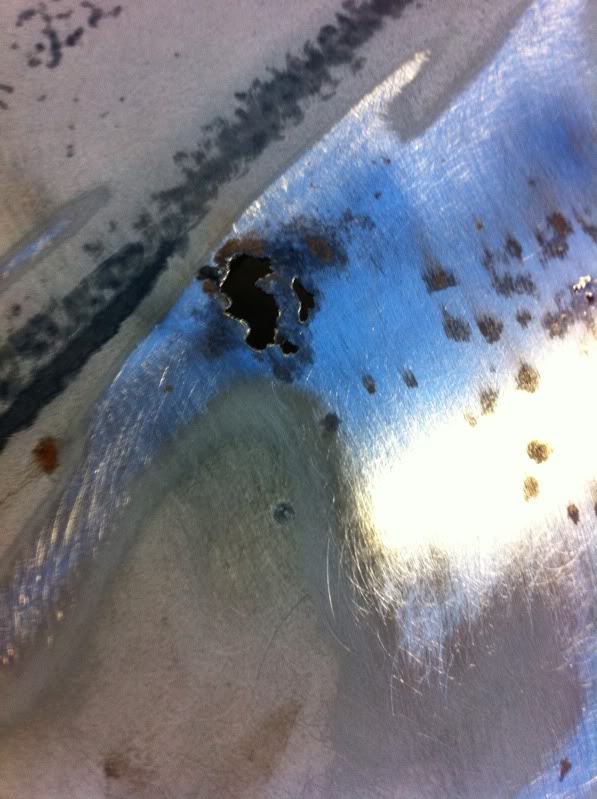

Wire brushed all the surface rust that was behind the fender and ended up POR15ing the entire front frame behind the fenders. (Didnt take pics , sorry). I did find that some of the "surface" rust on the Passenger fender actually went thru. I am not going to attempt to weld this pathetically thin metal, so instead I will adhere metal to the back of it with seam sealer (por15ed of course) and then use some kittyhair bondoglass. Not ideal, but it should never rust if I do it right.
Name:  IMG_0432.jpg
Views: 5
Size:  77.8 KB

Thursday:
Spent the majority of the day sanding the remaining parts and cleaning up for primer. I took apart my spare door that I will be using, converted it to manual windows, and then sanded everything. I organized everything a bit and got a game plan together for spraying epoxy primer. I decided to hang the doors, fenders, hood, and trunk lid. I layed out the headlight covers, mirrors, and finish panel on a table. There wasnt enough room for the bumpers so they will get sprayed when I do the body.

Here is what I ended up with:

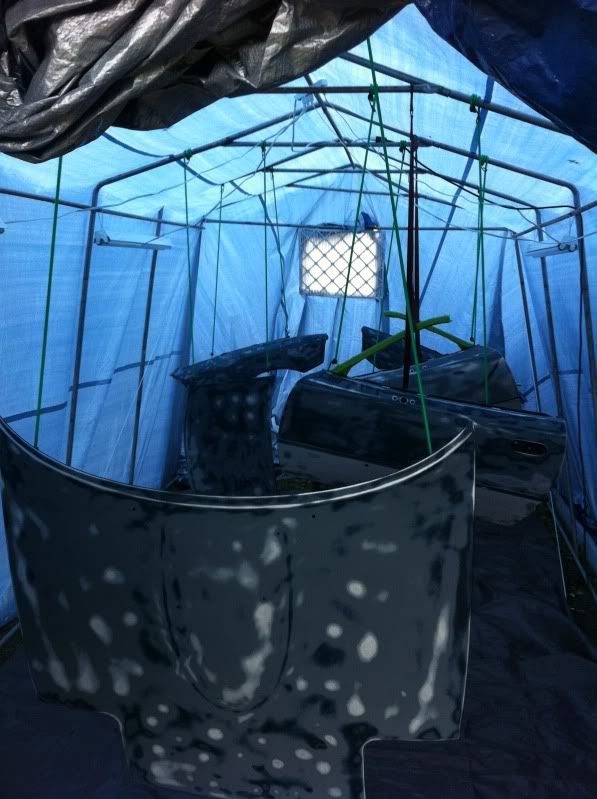

Name:  IMG_0433.jpg
Views: 5
Size:  83.2 KB

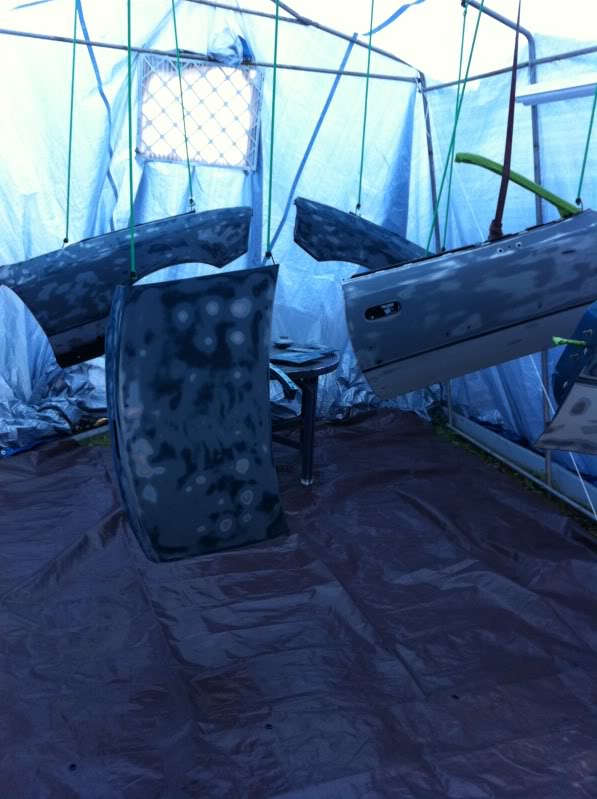

Name:  IMG_0435.jpg
Views: 6
Size:  71.3 KB

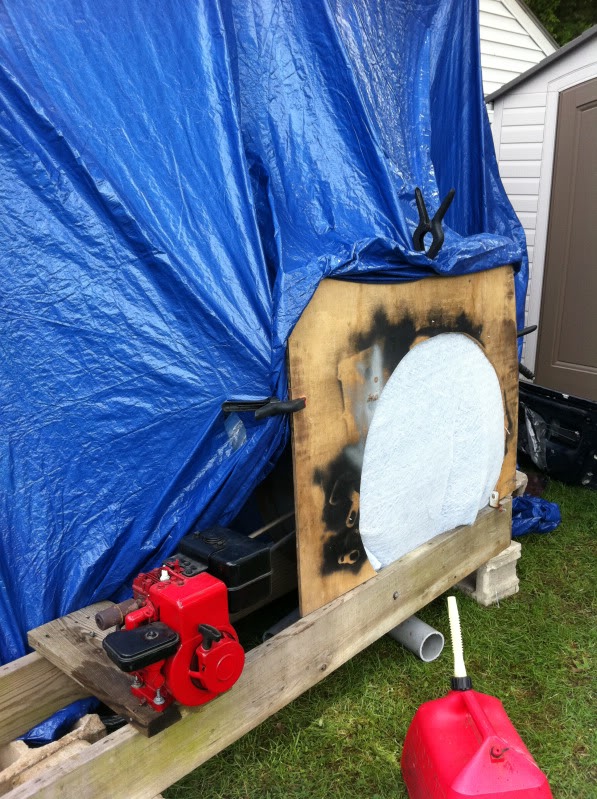

I also mounted the motor to the fan and installed intake and discharge filters:
Name:  IMG_0438.jpg
Views: 5
Size:  149.9 KB

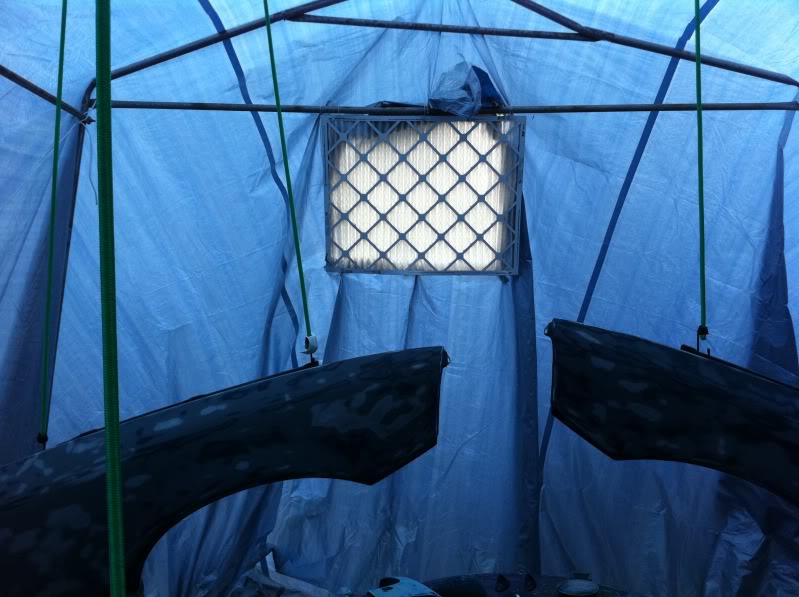

Name:  IMG_0436.jpg
Views: 5
Size:  79.2 KB

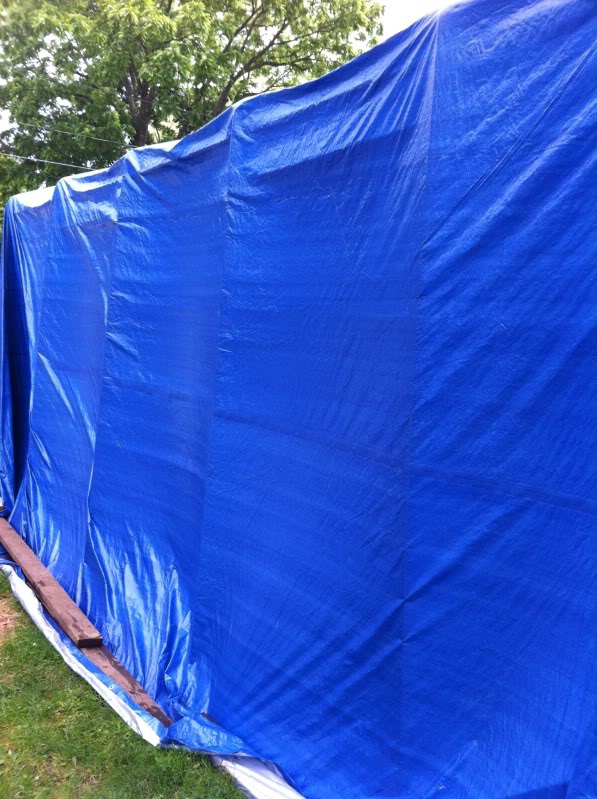

Intake filter isnt big enough. Look at the vacuum!!
Name:  IMG_0437.jpg
Views: 5
Size:  110.2 KB

Friday: It was raining on and off all day, so I sat on my *** and did nothing. I did go buy a new air hose and filter though. I also picked up more random supplies.

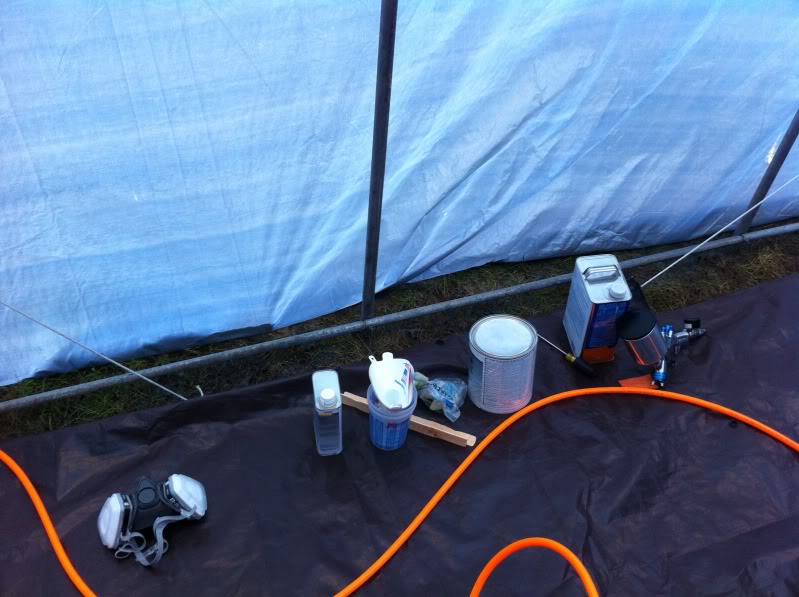

Saturday: SPRAY TIME. I originally bought 1 gallon of Dupont Epoxy Primer/ sealer. It is a 2:1 mix, and I expected it to be enough to do 2 good coats of all components (front and back) and then 1 coat on top of all the body work right before base/clear. Its looking like I need more. I went thru almost a half gallon spraying all this stuff alone.

Name:  IMG_0439.jpg
Views: 5
Size:  77.5 KB

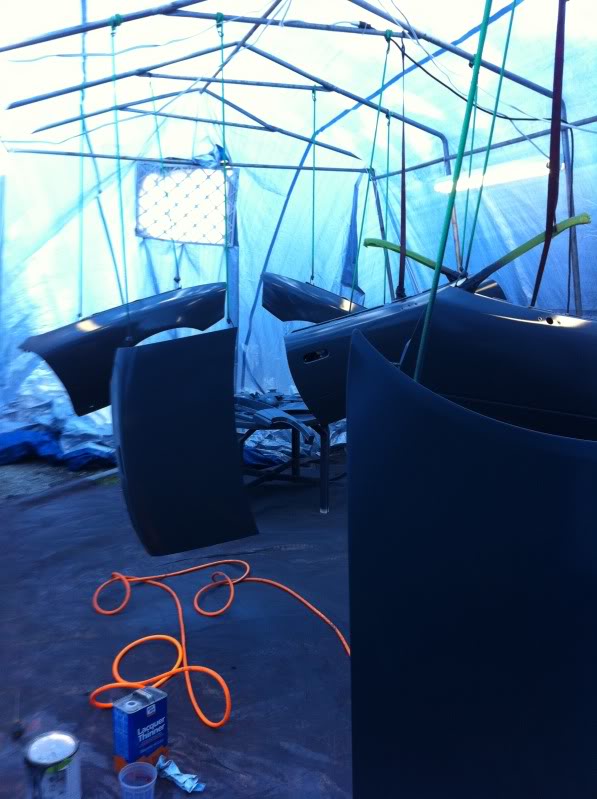

Name:  IMG_0440.jpg
Views: 5
Size:  72.7 KB

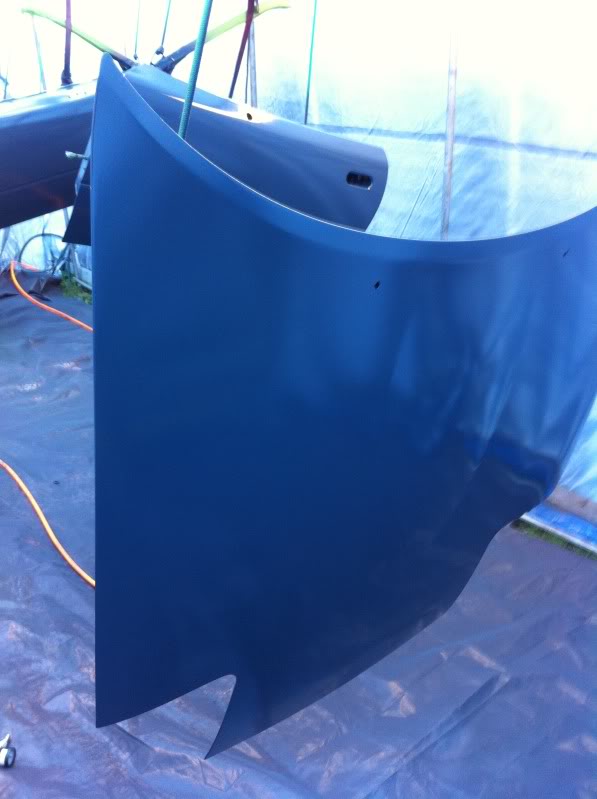

Name:  IMG_0441.jpg
Views: 5
Size:  44.4 KB

Name:  IMG_0444.jpg
Views: 6
Size:  71.8 KB

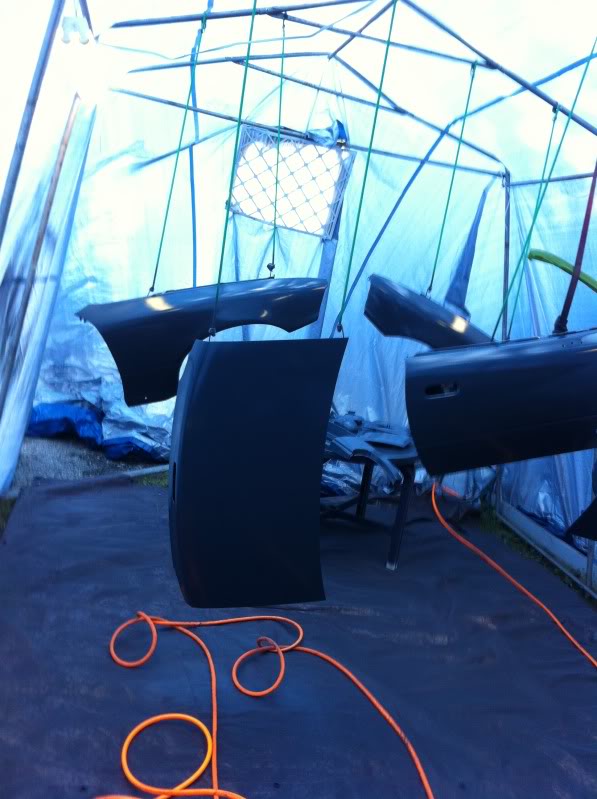

Overall It came out really nice. I layed a lot of paint on, and went over EVERY inch i could. My gun manners need work, It has been a while since I sprayed. By the second coat I was doing much better. I did get one drip in the trunk lid that I have to sand out, and I didnt clean my table well enough so I got some dust particles in the finish panel. Good thing there is A LOT of sanding ahead anyway.

BUGS IN PAINT: almost zero. I guess i got lucky this time around!

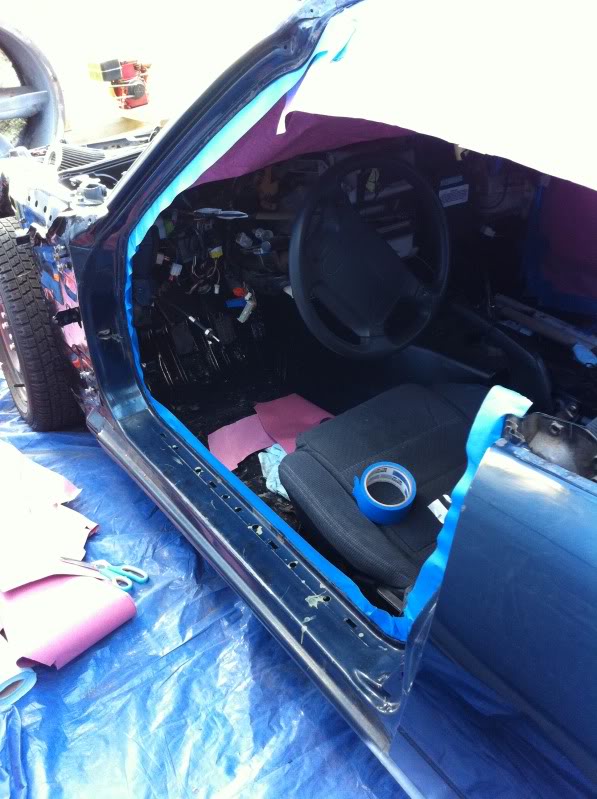

Sunday: masking

By far my least favorite part about painting. In the past I have always had my friend help me out with this task, but he is in NY for college, so its all me. My plan was to mask off the trunk and interior, and cover the front clip with plastic as well. I will do all the body work with this stuff, and then clean or repace it before I spray. I will also be adding skirting on the bottom of the car to mask for overspray. . . But for just keeping body work dust down, this will do.

The good news is my car is SO COMPLETELY GUTTED that I really dont care too much about dust or masking lines. I just want to keep most of the overspray out of the car and off of my rollbar.

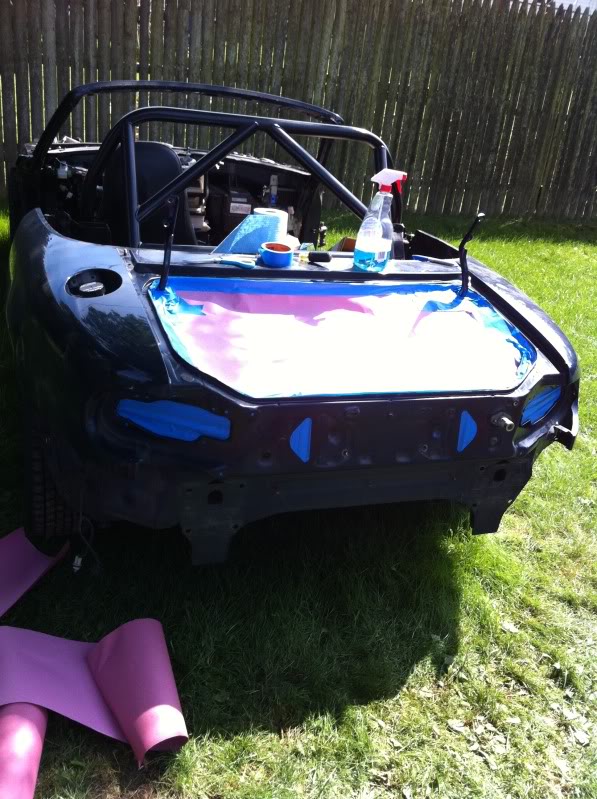

Name:  IMG_0445.jpg
Views: 5
Size:  118.0 KB

Name:  IMG_0447.jpg
Views: 5
Size:  88.3 KB

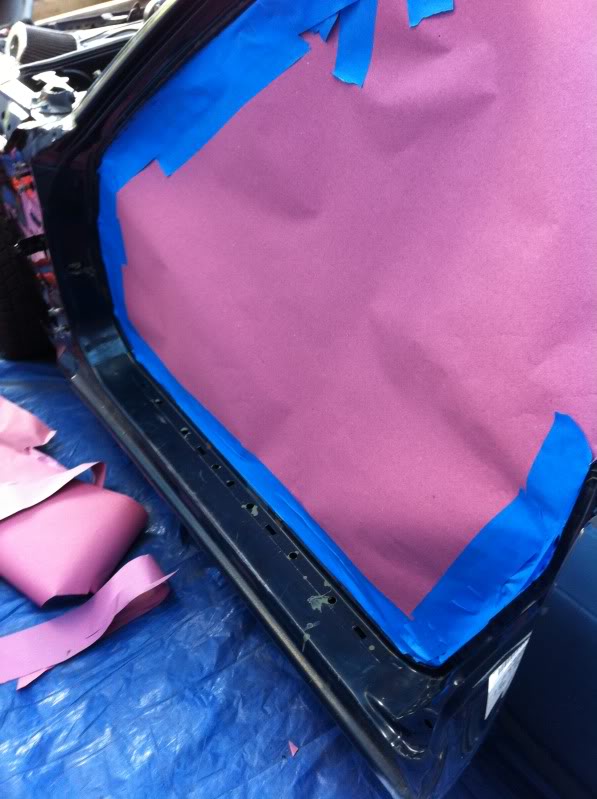

Name:  IMG_0448.jpg
Views: 5
Size:  68.5 KB

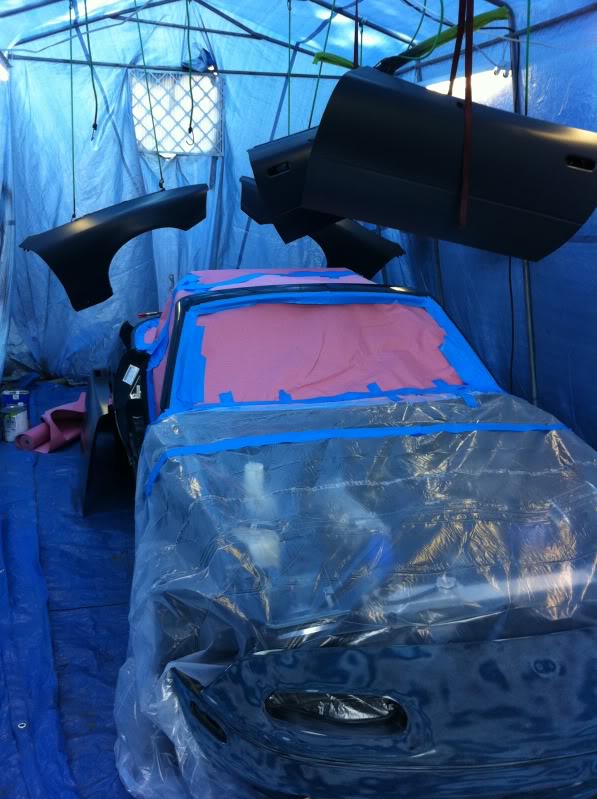

Name:  IMG_0449.jpg
Views: 6
Size:  88.7 KB

Name:  IMG_0446.jpg
Views: 5
Size:  73.4 KB

Next I will be sanding down the body with 80 grit, POR15ing the patch panels I have on the quarter to attempt to protect the welds from rusting on me, then i will be spraying epoxy primer. After all that I will FINALLY be laying down bondo.

Last edited by 240_to_miata; 06-19-2011 at 10:31 PM.
240_to_miata is offline   Reply With Quote
Old 06-20-2011, 12:54 AM   #23
Senior Member
iTrader: (4)

ThatGuy85's Avatar

Join Date: Mar 2010
Location: Waldo, Ohio
Posts: 750
Total Cats: 8
Default

Are you going to be using bondo to be patching the rust spots on your fenders? Or are those completely new fenders? I ask because I have the same exact problem with mine and just looking for options.

Great build thread though. Look forward to seeing more updates!
ThatGuy85 is offline   Reply With Quote
Old 06-20-2011, 07:23 AM   #24
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

I only have that 1 spot where the rust went thru. I already POR15ed over the surface before I used epoxy primer. I am going to fit a small piece of sheet metal to cover the hole, POR15 it, and then adhere it to the back with some seam sealer. Ill then use the "kittyhair" fiberglass bondo (a stronger bondo made for things like this) to cover over the patch.
240_to_miata is offline   Reply With Quote
Old 06-20-2011, 07:28 AM   #25
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Not kittyhair! That stuff sucks! I like to use the metal filler when taking care of dings in metal, I think this is the stuff I used:

http://www.google.com/products/catal...ed=0CGMQ8wIwAQ
astroboy is offline   Reply With Quote
Old 06-20-2011, 09:12 AM   #26
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

I hate Kittyhair too. I will gladly give that stuff a shot.
240_to_miata is offline   Reply With Quote
Old 06-20-2011, 10:18 AM   #27
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

I prefer the metal stuff on metal panels. In my mind it bonds better and as far as I know it doesn't crack, when it sets up it is metal...kinda like jbweld.

On another note that booth looks great, are you going to rent it out once your done?
astroboy is offline   Reply With Quote
Old 06-20-2011, 10:52 AM   #28
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Following this intently. The pics with the parts hanging looks like something from a horror film, kinda.

In case anyone else was wondering what POR15 is:

http://www.por15.com/whatispor15.asp
kotomile is offline   Reply With Quote
Old 06-20-2011, 10:57 AM   #29
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Quote:
Originally Posted by kotomile View Post
Following this intently. The pics with the parts hanging looks like something from a horror film, kinda.

In case anyone else was wondering what POR15 is:

http://www.por15.com/whatispor15.asp
Yeah i am kinda nervous that I left the doors hanging like that above the car. They are pretty secure, but I will be putting them down on the ground if a storm is coming any time soon. For now I just pulled them higher and they are nice and out of the way.
240_to_miata is offline   Reply With Quote
Old 06-20-2011, 01:03 PM   #30
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Looks good dude!

keep it up.
shlammed is offline   Reply With Quote
Old 06-20-2011, 10:41 PM   #31
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Quick Update:
6/20/11

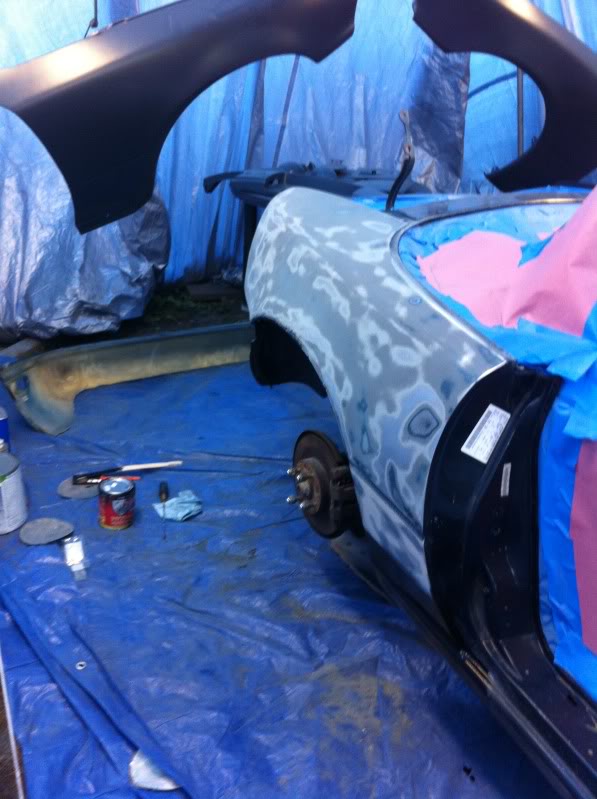

Went down to my parents house after work today. Sanded down one rear quarter, and then sanded all the patch panels and the fender lips where I rolled and hit a bit of rust. I got all of that in POR15 and called it a night.

Name:  IMG_0450.jpg
Views: 5
Size:  68.8 KB

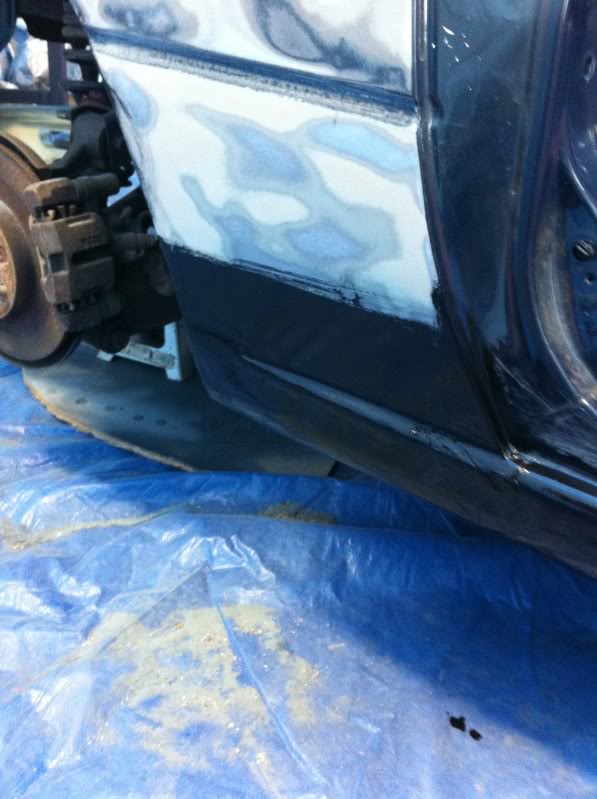

Name:  IMG_0451-1.jpg
Views: 4
Size:  76.7 KB

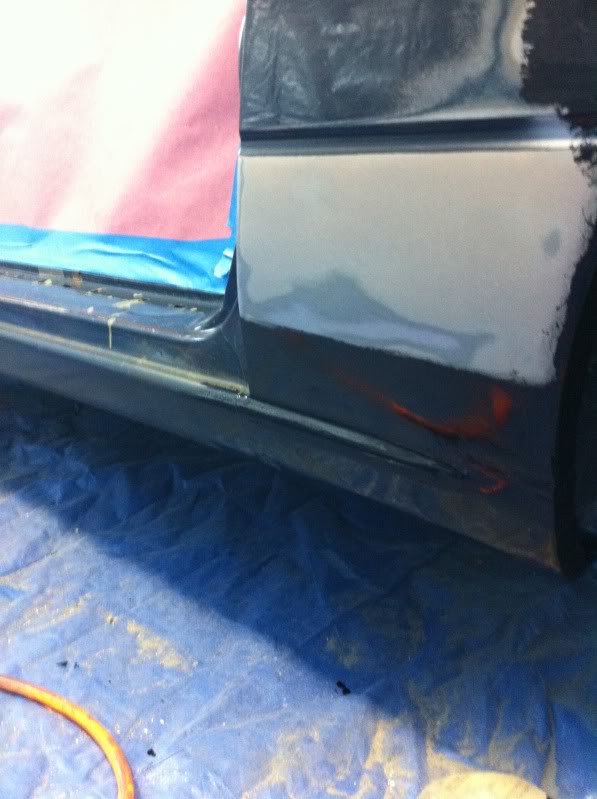

Name:  IMG_0452.jpg
Views: 5
Size:  58.6 KB
240_to_miata is offline   Reply With Quote
Old 06-20-2011, 11:18 PM   #32
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Have you ever done something like this before? Seems like you know what you are doing. Wish I could do this kind of work.
dgmorr is offline   Reply With Quote
Old 06-20-2011, 11:21 PM   #33
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Quote:
Originally Posted by dgmorr View Post
Have you ever done something like this before? Seems like you know what you are doing. Wish I could do this kind of work.
Here and there. I did my car senior year in High school and that was a huge learning experience, then from there I did a '69 Grand Prix, helped out on a Chevy dually, and a few other things here and there.

Body work has always been something that I enjoyed doing for some strange and painful reason.
240_to_miata is offline   Reply With Quote
Old 06-21-2011, 10:07 AM   #34
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,689
Total Cats: 560
Default

Quote:
Originally Posted by 240_to_miata View Post
Body work has always been something that I enjoyed doing for some strange and painful reason.
You are weird. Body work is just plain tedious.
rleete is offline   Reply With Quote
Old 06-21-2011, 10:24 AM   #35
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Yeah IK lol.

Ordered my body filler last night. Decided to take Martin's advice and got the Evercoat Metal to Metal to use on the patches. Also got Evercoat RAGE Gold for the lightweight filler. Its $$$$ but I have heard really good things, and hell I have gone this far, might as well do it right.

240_to_miata is offline   Reply With Quote
Old 06-21-2011, 11:06 PM   #36
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

6/21/2011

Finished stripping the car today.

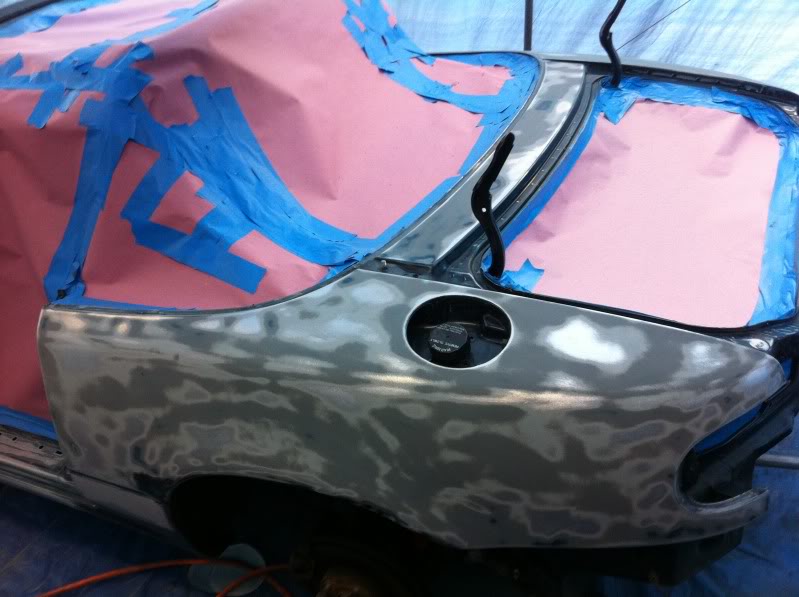

Name:  IMG_0454.jpg
Views: 6
Size:  64.5 KB

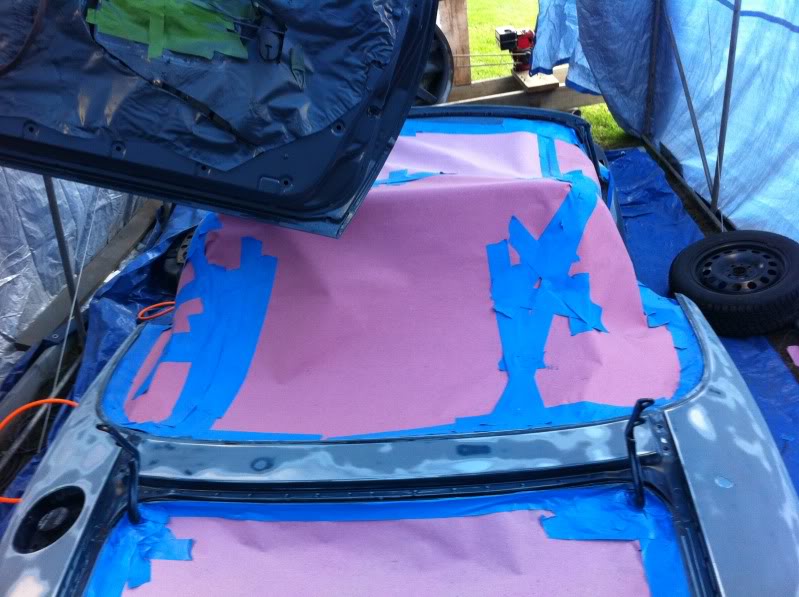

Name:  IMG_0453.jpg
Views: 5
Size:  80.1 KB

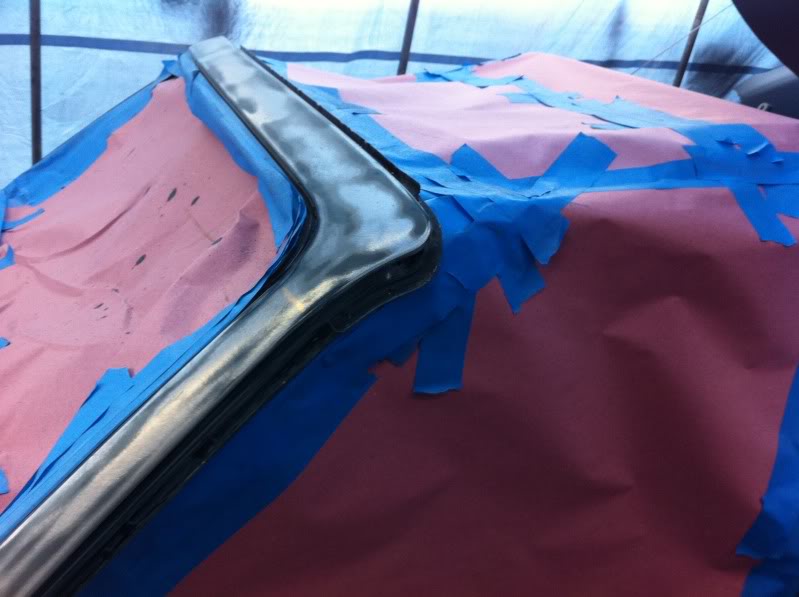

Name:  IMG_0456.jpg
Views: 5
Size:  52.6 KB

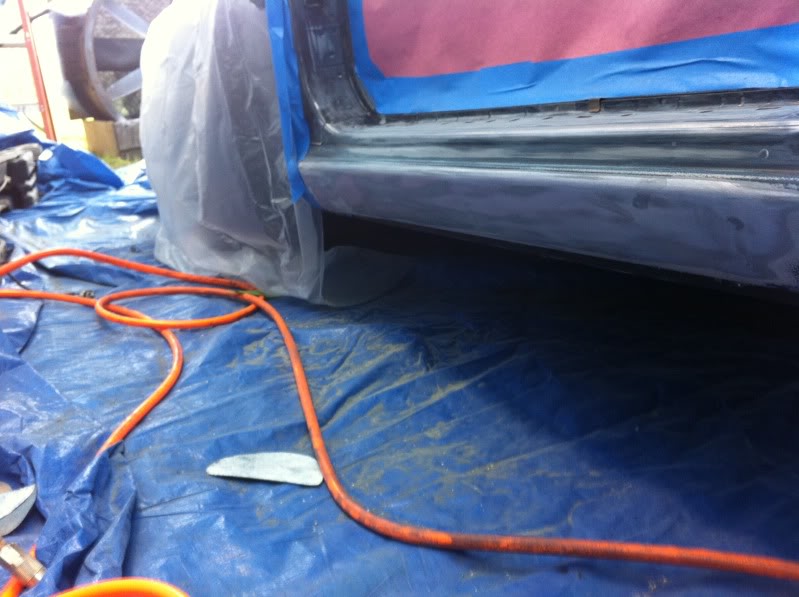

Why do I put myself thru the torture of sanding my rocker so detailed? I DONT KNOW
Name:  IMG_0455.jpg
Views: 6
Size:  69.4 KB

unfortunately that Nice job I did masking. . . Well its getting all re done before I spray primmer. I need to use better tape, plus i want dust free paper when I go to spray.

Too bad its gunna rain the rest of the week... :(
240_to_miata is offline   Reply With Quote
Old 06-21-2011, 11:49 PM   #37
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

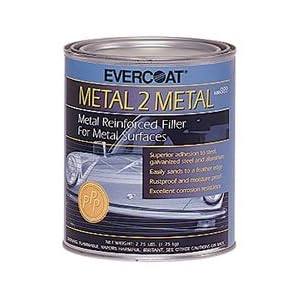

Glad to see your going with the metal 2 metal, I love the stuff. What did you mask it off with? I used the super cheap plastic drop cloth[plastic] from home depot, the tape seemed to hold onto it better. Also when I masked off my car I got one of each roll of tape they had at the body shop and tested each one...pretty positive I didn't use the blue tape.

Prep work is coming along well man, and that's the key to a good paint job. Totally lookin forward to seeing this thing back together!
astroboy is offline   Reply With Quote
Old 06-27-2011, 12:18 AM   #38
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

6-26-11
Updates:
shitty weather late in the week so I didnt come down till mid-saturday.

I re-masked the entire car. Used green tape this time (MUCH BETTER)

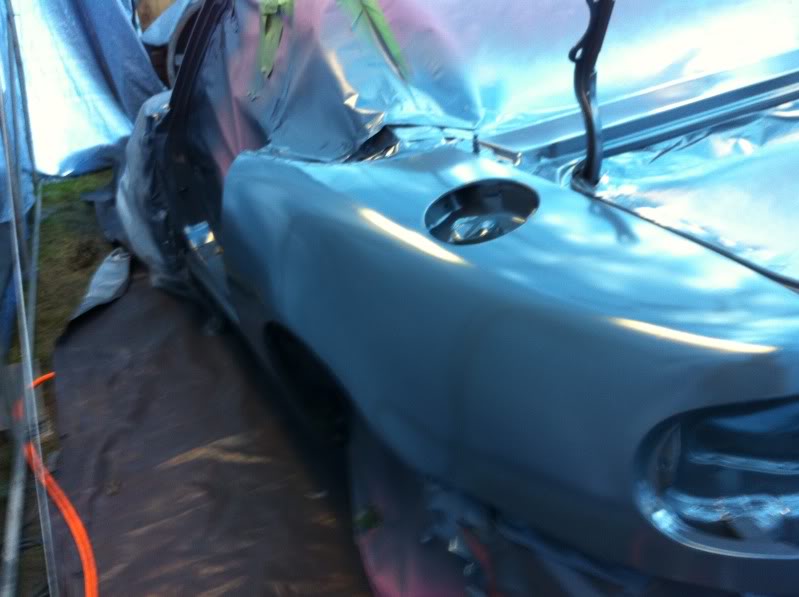

Then sprayed epoxy primer on the body and bumpers. I ran into a few problems
1) apparently there was quite a bit of dust around the windshield that I missed. it blew all over the roof line and got in the paint :( good thing this wasnt base/clear. Itll sand out
2) a few bugs here and there, one drip cause Im an idiot. No big deal. both will sand out
3) The big issue. The rear bumper is the first thing I stripped. When i did , I went nuts and ended up sanding too aggressively. The bumper started to melt and caused it to be really rough and almost hairy. I sprayed primmer on it anyway, big surprise it looks like ****. I am going to try to see if it'll sand flat. If not the bumper is getting a skim coat of body filler. Live and learn.

This week I will be going down after work to do body filler. Wednesday I am going over Martin's (astroboy) to start up his engine with him.

Pics:

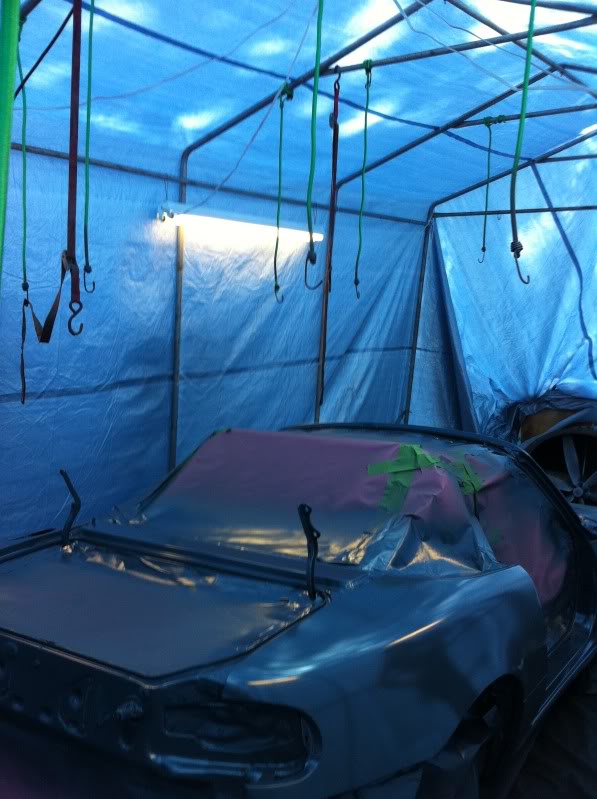

Name:  IMG_0458.jpg
Views: 5
Size:  74.3 KB

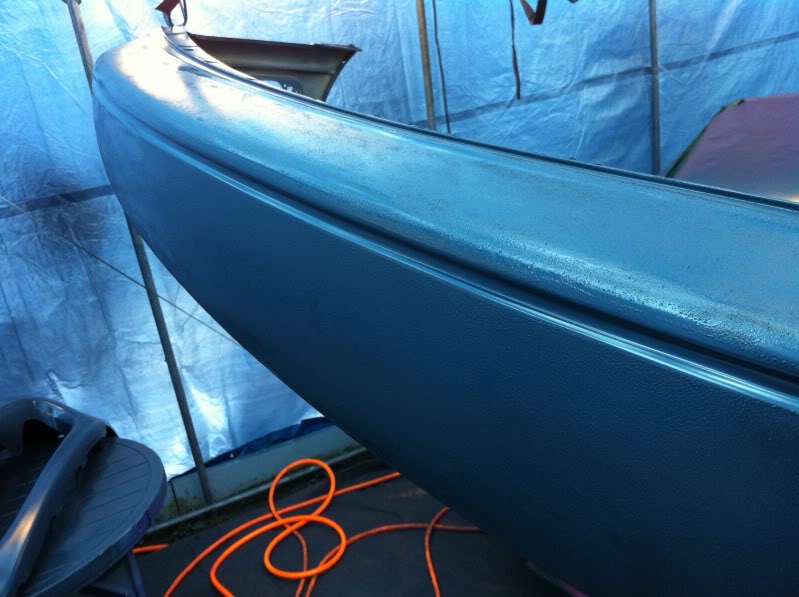

Name:  IMG_0460.jpg
Views: 5
Size:  72.4 KB

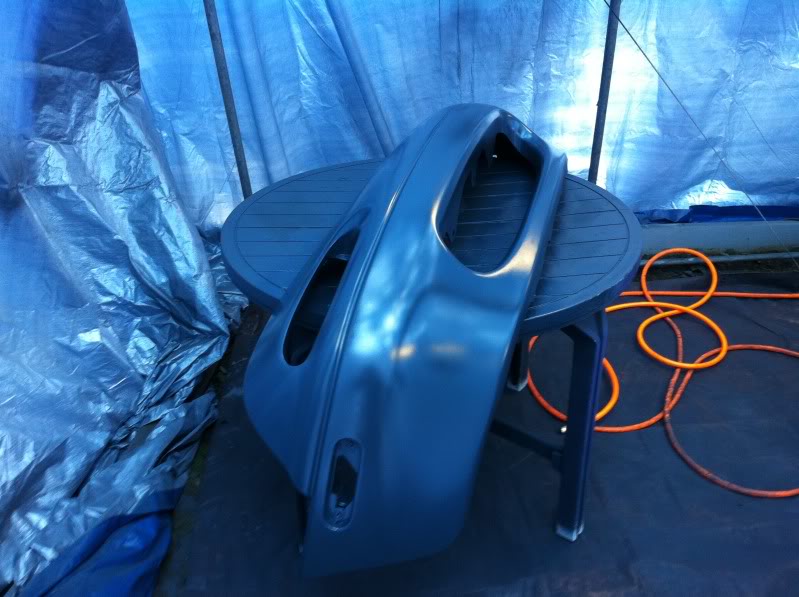

Name:  IMG_0461.jpg
Views: 5
Size:  76.6 KB
Name:  IMG_0462.jpg
Views: 5
Size:  50.3 KB

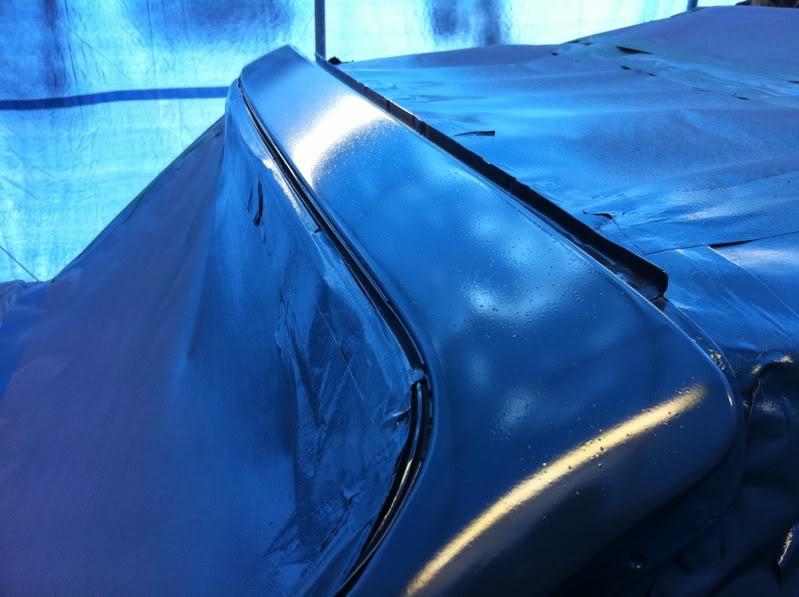

Name:  IMG_0463.jpg
Views: 6
Size:  65.0 KB

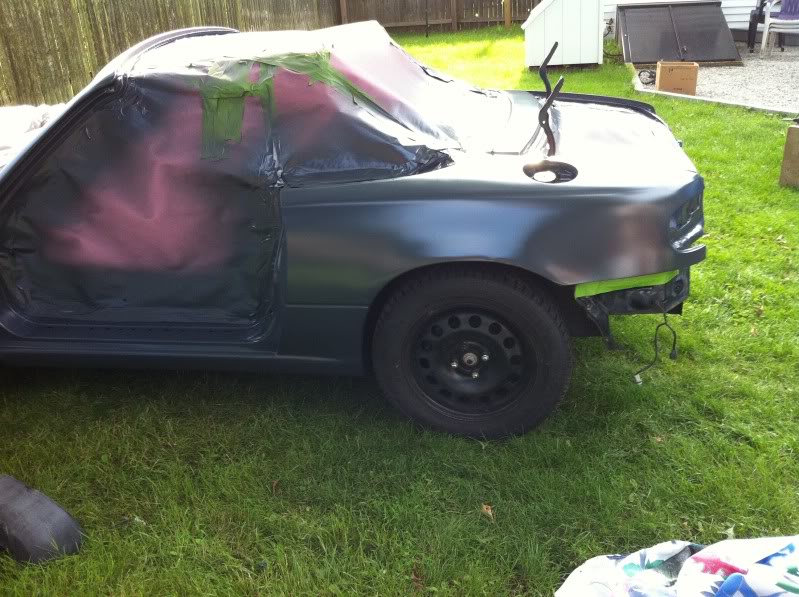

Name:  IMG_0464.jpg
Views: 5
Size:  106.3 KB

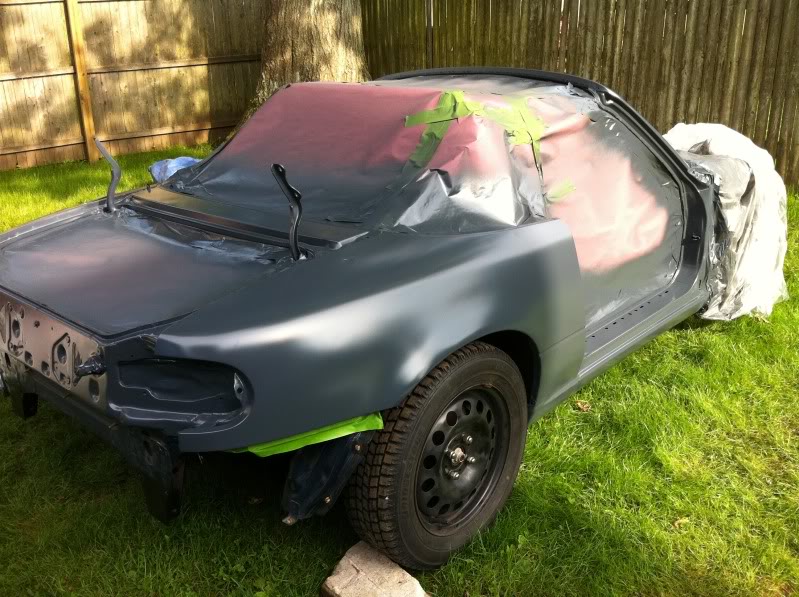

Name:  IMG_0465.jpg
Views: 5
Size:  119.6 KB
240_to_miata is offline   Reply With Quote
Old 06-27-2011, 12:40 PM   #39
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Lookin good except for the dust, but that should sand out. I did the same thing to my rear bumper that you did, and it got dropped by my drunk friend after we cleared it. Doesn't look bad from 5' though I don't know how.
astroboy is offline   Reply With Quote
Old 06-27-2011, 10:36 PM   #40
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

BODY FILLER TIME!
6/27/2011

So today I was trying out quite a few new products. I have always used bondo brand crap bondo, now I have this new evercoat stuff I listed earlier. I also have eastwoods 7 pc block set for sanding blocks, and guide coat(both black and tan). I have always used cheap spraypaint for guide coat.

What a difference using the right stuff makes!!! I started on the passenger door and the quarter panels today. It went really well. I sprayed on the guide coat, sanded the panels with 120, and found where I needed the filler. The filler went on great, no pin holes at all, good work time, and sands AMAZING. My blocks were really nice too. The paper stuck really well to them, and with 7 to choose from its always easy.

I more or less finished up the door. There was one spot I wasnt happy with so I put on one more skim coat of body filler. The quarter panels have the filler on them and are ready to be sanded.

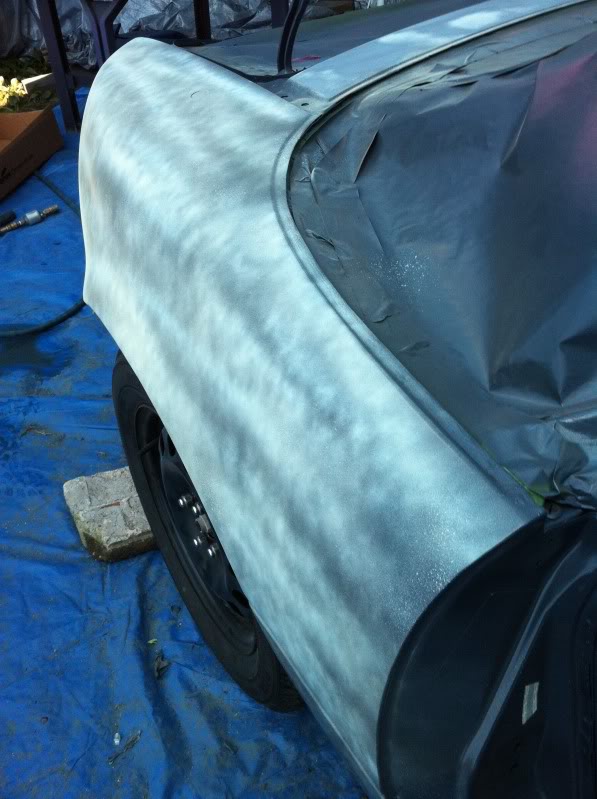

Guide coat:
Name:  IMG_0466.jpg
Views: 5
Size:  72.4 KB

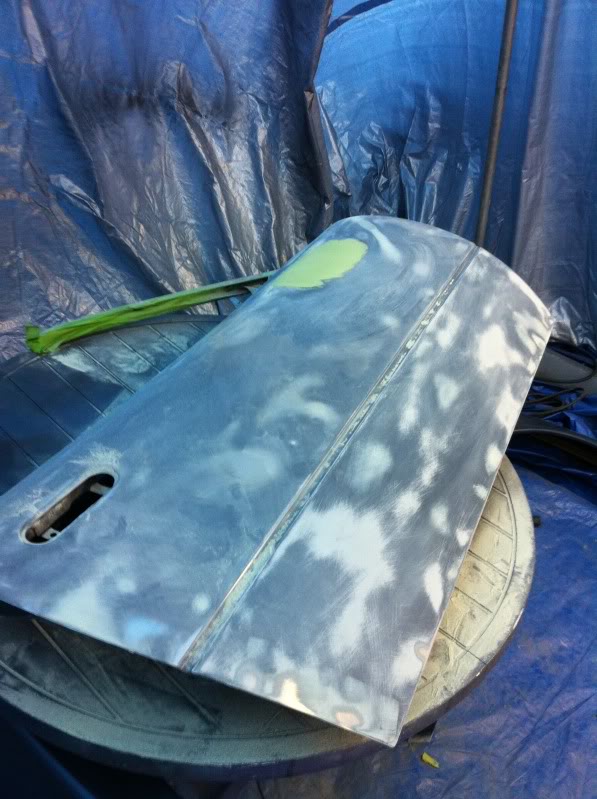

almost complete door:
Name:  IMG_0468.jpg
Views: 5
Size:  84.6 KB

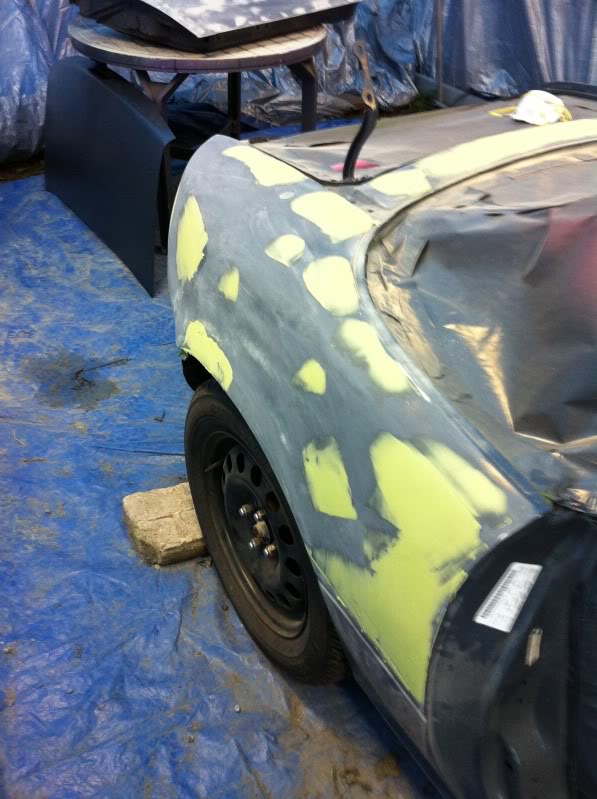

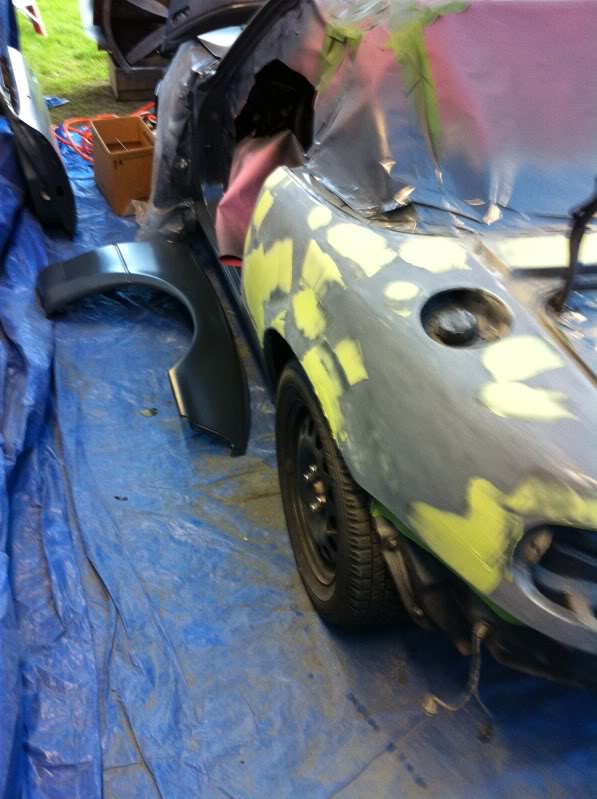

Quarter panels:
Name:  IMG_0467.jpg
Views: 5
Size:  85.5 KB

Name:  IMG_0469.jpg
Views: 5
Size:  78.2 KB

I am going to continue body work most of the rest of the week after work, but I might not post up more pics till this weekend. Its all repetitive from here until I spray high build
240_to_miata is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Project Gemini - Turbo Civic on the Cheap Full_Tilt_Boogie Build Threads 59 12-15-2017 09:00 PM
LucaCarMods's Boosted Dutch Miata Build! LucaCarMods Build Threads 11 02-14-2016 07:13 AM
3rd Time's a Charm...hopefully. zephyrusaurai Meet and Greet 2 09-28-2015 11:59 PM
Project DDoS: '99 "Budget" boost build ProjectDDoS Build Threads 1 09-09-2015 02:52 PM
Obligatory "N00B" post! D_Breezy Meet and Greet 5 09-08-2015 06:37 PM


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 08:13 AM.
