Old 05-07-2011, 11:35 AM   #41
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

So I didn't like how my previous wiring was done...the car used to be my daily driver (technically it still is, but since I'm now working from home, I depend much less on the car) so most of the wiring was done in hurry to get the car back on the road.

I have lots of sensors and dataloggers on it:

Innovate LM-1
Innovate LMA-2
Innovate LMA-3
4x LC-1
Innovate SSI-4 (and I need another couple of these to get everything in)
Innovate TC-4
Innovate DL-32

So yeah, wiring was a bitch. I took them all off the car, and started modding them, grouping them in boxes, redoing the wiring in the car, using positive lock circular connectors everywhere. So after measuring, soldering, drilling, cutting and swearing, they are ready. Result:

Name:  DSC_4882_1.jpg
Views: 1
Size:  64.8 KB

Left to right:
1) MS2 w/VVT controller, my expansion board and Boris' KnockSenseMS inside it
2) My junction box (From MS2 to engine bay and dataloggers)
3) LM-1 and LMA-2
4) TC4, SSI-4 and DL-32

Not pictured is the LMA-3, which sits on the fuel tank lid, and will probably stay there.

It's one of those moments where you ask yourself, do I really need to put these back in the car?
Reverant is offline   Reply With Quote
Old 05-07-2011, 12:03 PM   #42
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,707
Total Cats: 19
Default

top notch work. I'm really looking forward to the updates on this one.
Stealth97 is offline   Reply With Quote
Old 05-08-2011, 02:18 PM   #43
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

A little progress today.

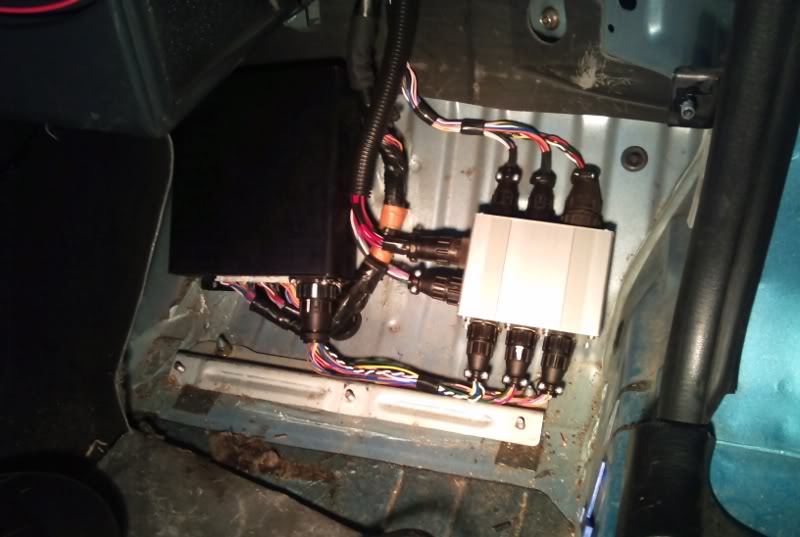

ECU with junction box:
Name:  DSC_0096_1.jpg
Views: 1
Size:  52.4 KB

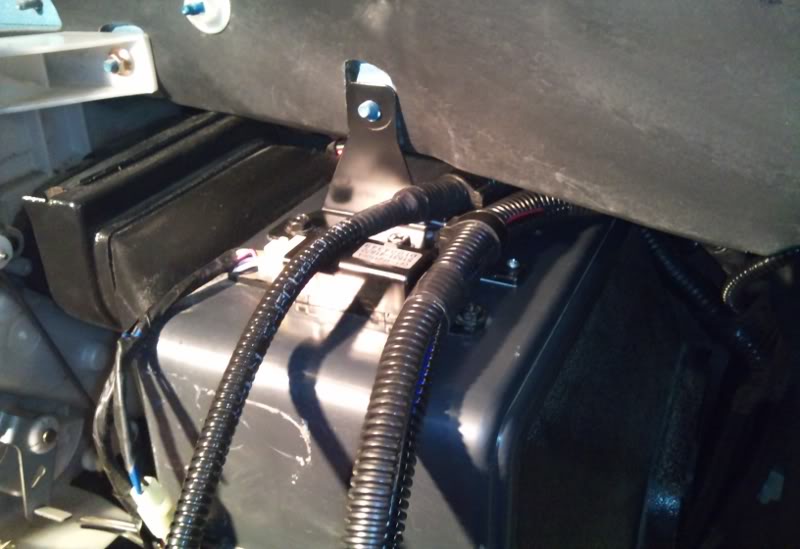

Thermocouples from the engine (left tubing), rest of the channels (right tubing),
Name:  DSC_0099_1.jpg
Views: 1
Size:  51.6 KB

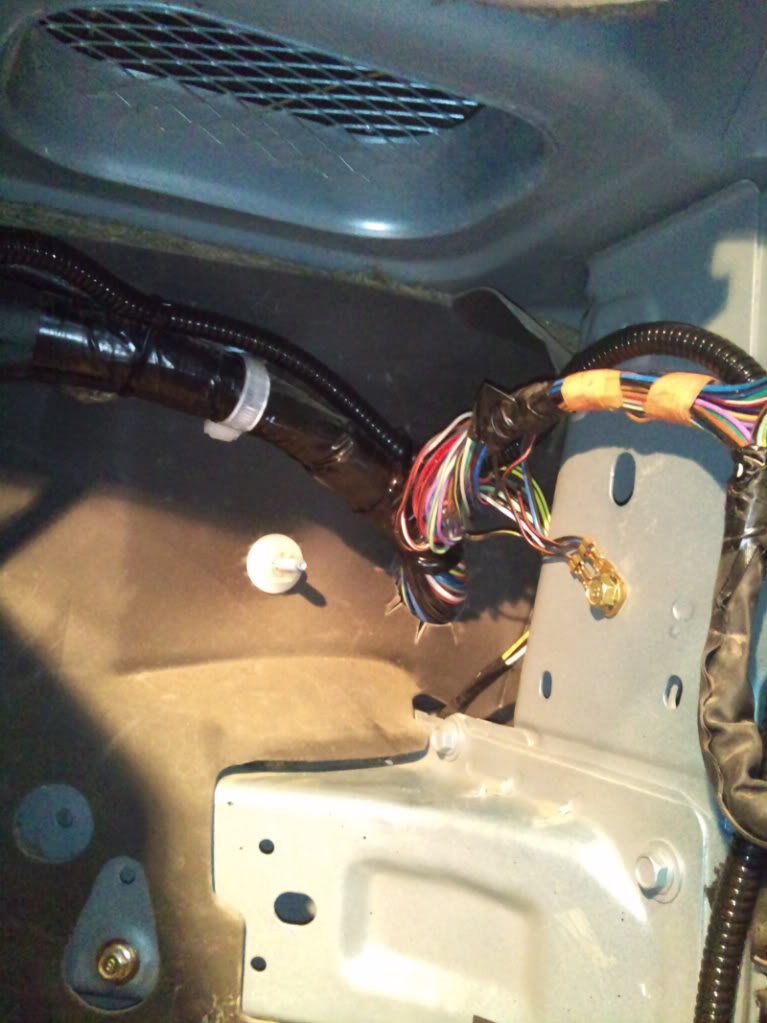

Power and TX/RX to the rear.
Name:  DSC_0101_1.jpg
Views: 1
Size:  89.8 KB

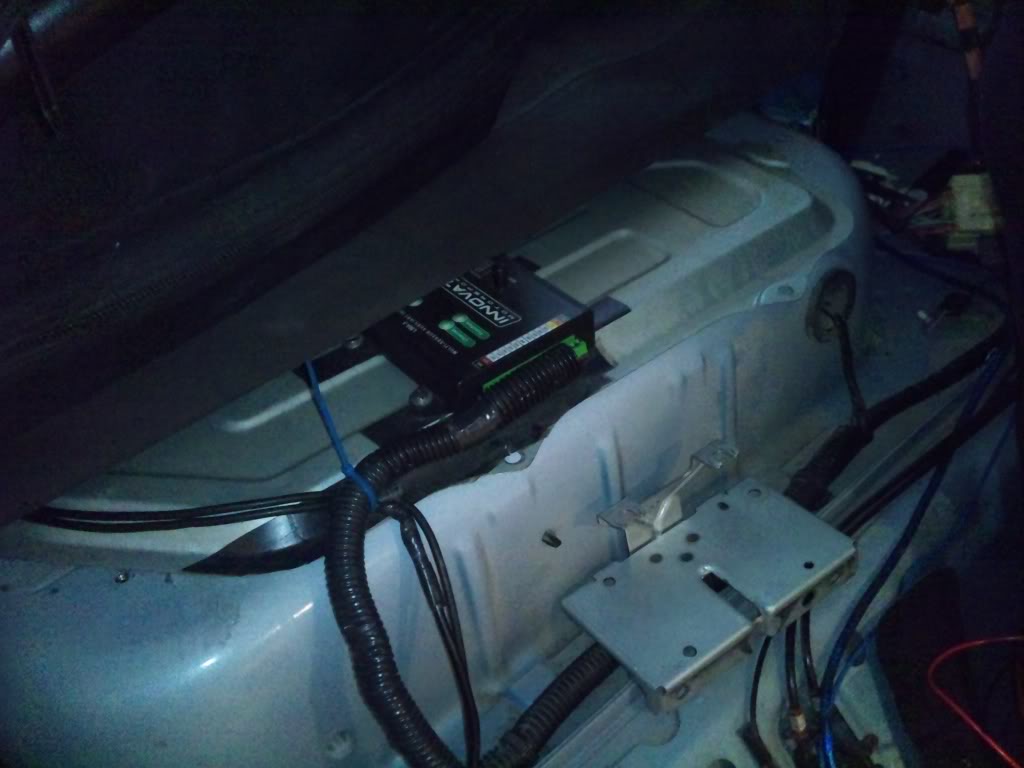

LMA-3, will move it inside an aluminum case like the other dataloggers and add another SSI-4 as I have a bunch of channels to add there.
Name:  DSC_0102_1.jpg
Views: 1
Size:  62.6 KB
