Old 03-11-2014, 06:16 AM   #1561
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

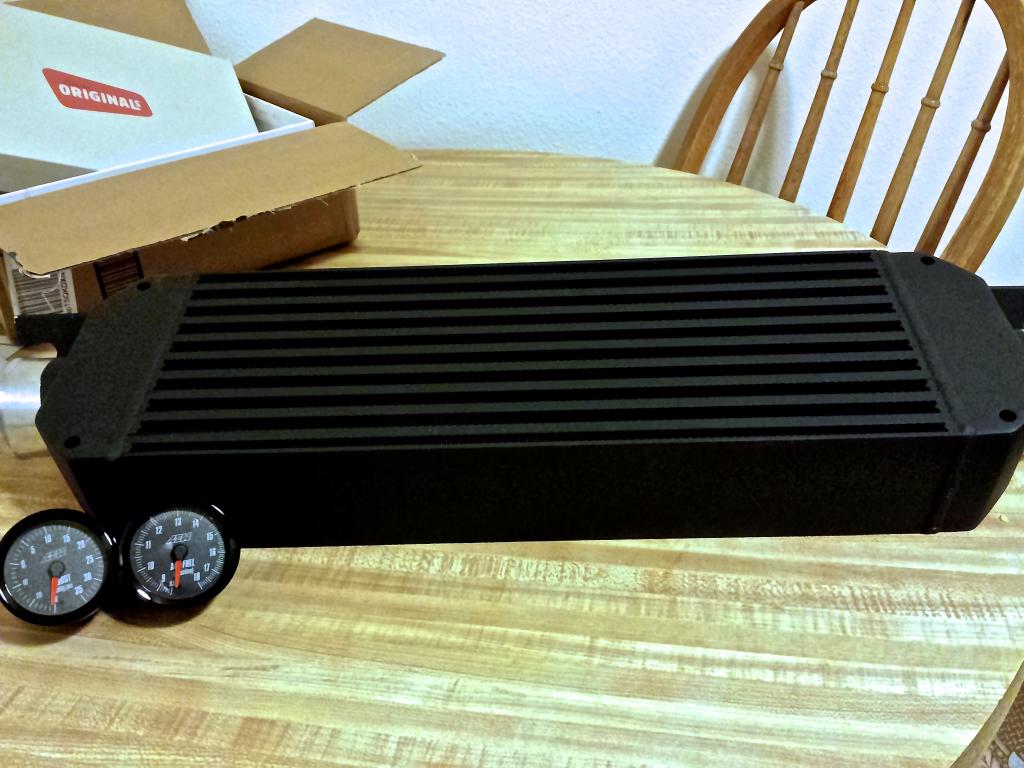

Bryan at Fab9 has earned my business, 3 days to ship it all the way to Utah and great prices to boot. Gotta say thanks for PM'ing with me several times to make sure we were both on the same page with everything. Great communication.

The intercooler looks even better in person. The analog gauges are perfect too. Excited to wire it all up. I think I'm going to scavenge some connectors off the 90' wiring harness and use them so I can quick disconnect the gauges if needed.

I'll get some better non-phone photos when I get back down to St. George tomorrow.

Attached Thumbnails
93' Miata stolen and flipped build thread-img_20140311_030736.jpg
Jeffbucc is offline   Reply With Quote
Old 03-11-2014, 08:23 PM   #1562
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,866
Total Cats: 104
Default

Am I the only one here who finds it mildly disturbing that more than half of your posts are propped?
miata2fast is offline   Reply With Quote
Old 03-11-2014, 08:28 PM   #1563
Crumple Zone Tester
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,647
Total Cats: 444
Default

Quote:
Originally Posted by miata2fast View Post
Am I the only one here who finds it mildly disturbing that more than half of your posts are propped?
[pedantry]

Almost certainly not true. Comparing his props to his post count only gives you a ratio; it doesn't tell you how many of those posts are propped, because the best posts will have more than one prop each. Granted, a higher than 1:2 prop:post ratio is impressive, but that's not the same as having more than half of your posts propped.

[/pedantry]

Last edited by mgeoffriau; 03-11-2014 at 10:03 PM.
mgeoffriau is offline   Reply With Quote
Old 03-11-2014, 08:49 PM   #1564
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,877
Total Cats: 518
Default

^this.

And just wait til' he gets it on the road. I predict a higher than 1:1 prop-to-post ratio.

Props might not really mean anything in most cases, but I think his P2P ratio illustrates how ridiculously awesome this is.
turbofan is offline   Reply With Quote
Old 03-11-2014, 10:45 PM   #1565
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

I just view the props as encouragement that I am doing a good job. Which helps me. Sometimes I don't think my work is that good so it helps getting a little bit of a boost to keep going at the pace I do.

As Mark said, I didn't even get a single props until about 9-10 pages in.

Oh well, props are just a "fun thing" in my head. I just hope that people don't think because I have a lot of props, that I actually know very much. That is just not true!
Jeffbucc is offline   Reply With Quote
Old 03-11-2014, 10:49 PM   #1566
Senior Member
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,293
Total Cats: 22
Default

*Considers propping this ^^ post for the lulz*
Der_Idiot is offline   Reply With Quote
Old 03-12-2014, 12:33 AM   #1567
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,877
Total Cats: 518
Default

Since I wish I could prop some of your posts more than once I will often hit the prop button on a "regular" post to make up for it

Anyway... In for vroom!
turbofan is offline   Reply With Quote
Old 03-12-2014, 12:34 AM   #1568
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,877
Total Cats: 518
Default

Double post!
turbofan is offline   Reply With Quote
Old 03-12-2014, 10:01 AM   #1569
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Little done last night

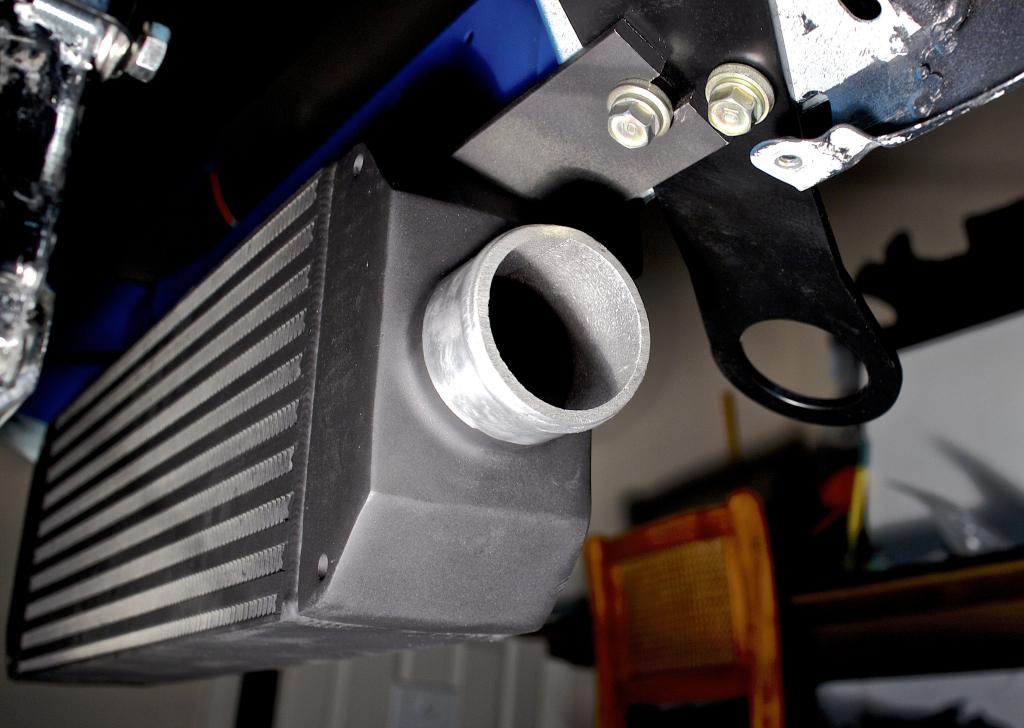

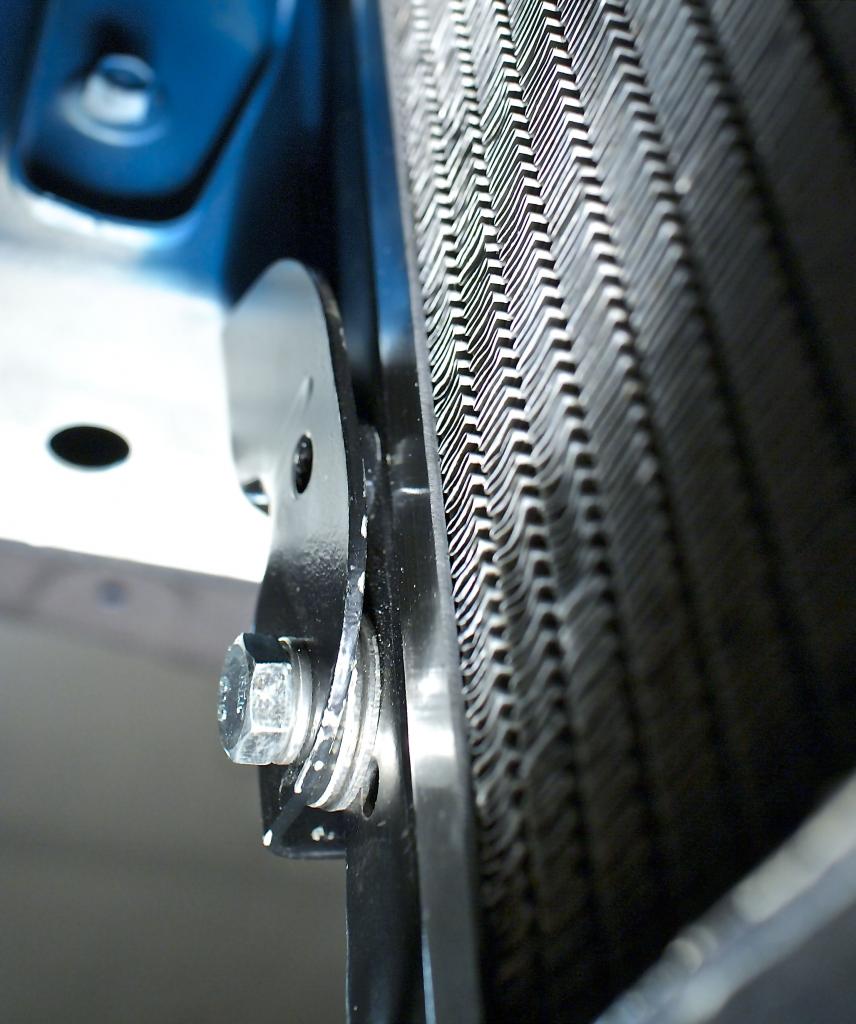

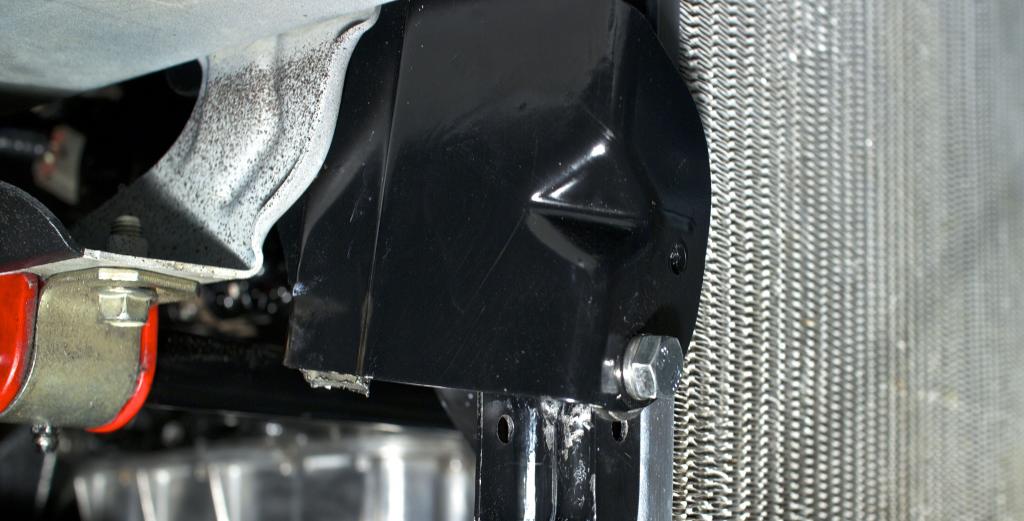

Decided I wanted to give myself another inch of room at the bottom of the radiator. So I moved the radiator bracket off the stock lower bracket and moved it forward a couple inches. Drilled and tapped a M8x1.25 hole, put 2 washers between the brackets so the radiator would clear the captive nut on the bracket, and slotted the bolt in. super easy and gives you a ton more space.

Yes I am going to touch up the bracket paint a little.

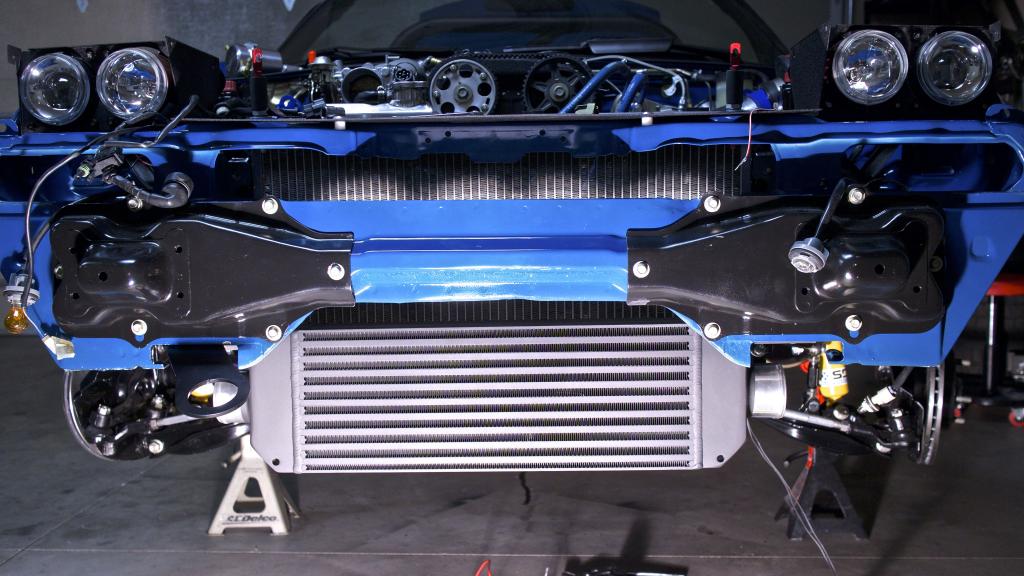

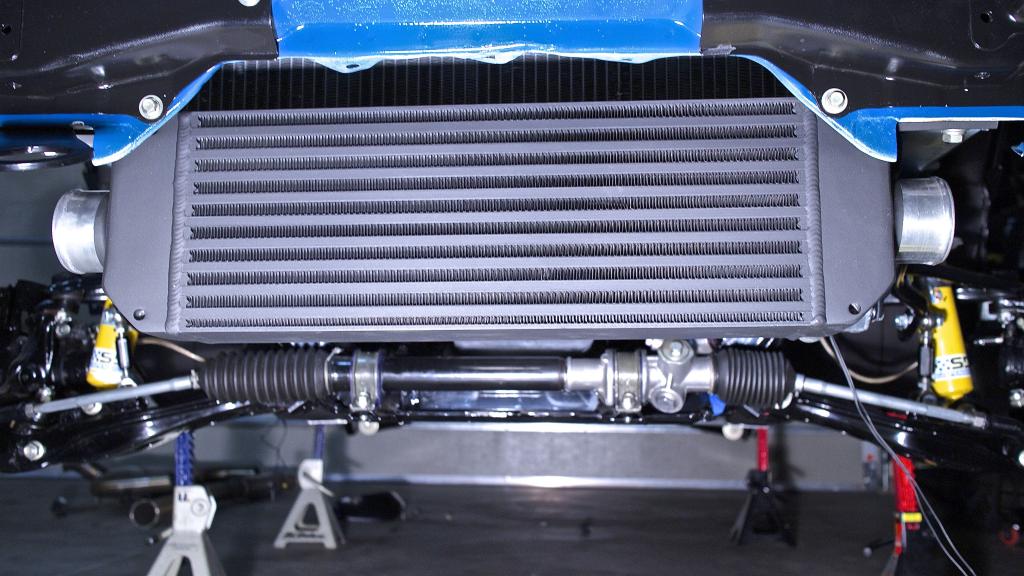

Also mounted up the new intercooler from Fab9. Talk about easy peasy. Took me longer to find the other grade 10 bolt for the drivers side then it did to install it. Absolutely perfect fit. No jiggling it or torquing it in a certain direction, just pops right on. Gotta hand it to Bryan at Fab9, he makes a quality product, the whole fit and finish/welds are perfect and the packaging was great too. Small box that fits the intercooler perfectly, with lots of padding to ensure the mailman who likes to throw things onto my bakery floor in a rush can't break it.

Correct me if I am wrong, just want to double check; but the AIT sensor bung for the boost gauge goes right before the cold side on the intercooler correct?







Thanks for the recommendation to purchase this guys. Way happier with this than I was with that old FM piece of crap lead weight.
Attached Thumbnails
93' Miata stolen and flipped build thread-img_2109.jpg   93' Miata stolen and flipped build thread-img_2111.jpg   93' Miata stolen and flipped build thread-img_2114.jpg   93' Miata stolen and flipped build thread-img_2118.jpg   93' Miata stolen and flipped build thread-img_2119.jpg

Jeffbucc is offline   Reply With Quote
Old 03-12-2014, 11:06 AM   #1570
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

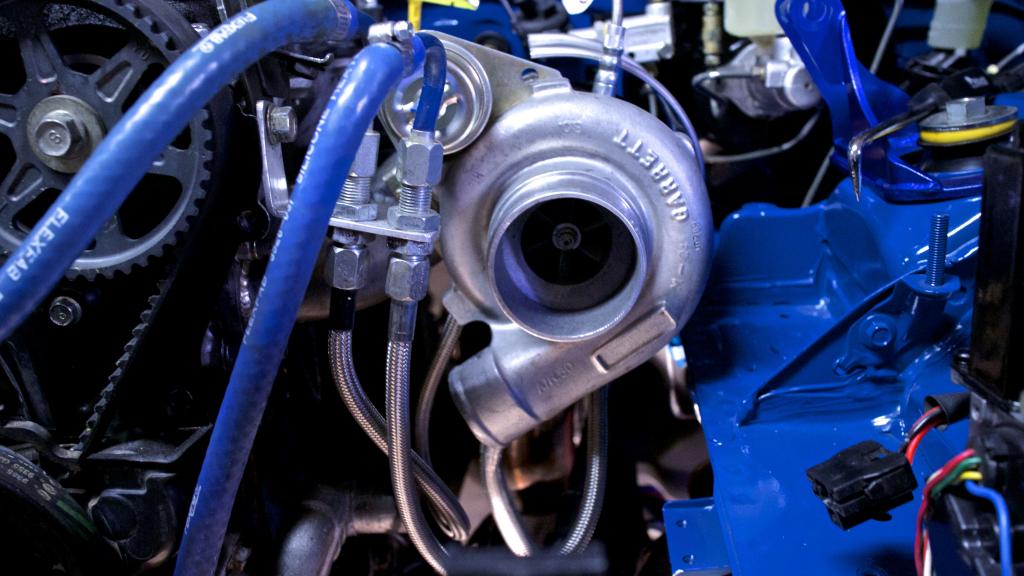

Also what is everyones opinion of clocking the turbo down more? Not sure what I was thinking when I decided to clock the turbo like this; probably thought, "well that is how the original owner had it, better not screw with it!"

The intercooler piping clears the coolant lines, but only by about 1/8". If I clock it down another 2-3" it would make it much easier to make a custom pipe at an exhaust shop(if I can make myself make accurate enough measurements that is).

I also want to turn the coolant bracket for the coolant return/feed lines counter-clockwise 90 degrees to make it a little more "cleaner". Or at least make a new bracket that is longer so the lines aren't as high by the V.C.. They are stretched pretty taught as is right now. You can see I had to bend it down a little since I was worried.

Attached Thumbnails
93' Miata stolen and flipped build thread-img_2120.jpg
Jeffbucc is offline   Reply With Quote
Old 03-12-2014, 11:10 AM   #1571
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 936
Total Cats: 394
Default

Clock it downward - then use a 90 degree long leg elbow from Vibrant. Should get you off to an easy start when fabricating the pipes and it will give you just enough flex to not require a hump hose coupler.
FAB is online now   Reply With Quote
Old 03-12-2014, 11:43 AM   #1572
Senior Member
iTrader: (5)

Join Date: Jul 2011
Location: Sonora, Ca
Posts: 623
Total Cats: 73
Default


This is how I am with Jeff's posts.
Attached Thumbnails
93' Miata stolen and flipped build thread-063c488e7ad1266b01e24638f54b072982190287f60441112cb7ef1137357c85.jpg
bikersam717 is offline   Reply With Quote
Old 03-12-2014, 11:45 AM   #1573
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,981
Total Cats: 576
Default

Quote:
Originally Posted by Jeffbucc View Post
Correct me if I am wrong, just want to double check; but the AIT sensor bung for the boost gauge goes right before the cold side on the intercooler correct?
Huh?

AIT measures the temperature of the air going into the engine so that the MS can calculate the mass of the air for proper fueling. So, you need to make sure the air temperature is measured on the cold side. Recommendation is cold side of intercooler to avoid heat soak. Was that your question?

As for boost gauge and also the boost/vacuum source for the MS, you should go to the intake manifold post-throttle for that. That's the other half of the air mass measurement.
hornetball is offline   Reply With Quote
Old 03-12-2014, 11:48 AM   #1574
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by hornetball View Post
Huh?

AIT measures the temperature of the air going into the engine so that the MS can calculate the mass of the air for proper fueling. So, you need to make sure the air temperature is measured on the cold side. Recommendation is cold side of intercooler to avoid heat soak. Was that your question?

As for boost gauge and also the boost/vacuum source for the MS, you should go to the intake manifold post-throttle for that. That's the other half of the air mass measurement.
Woops sorry, a bung was included with the AEM boost gauge that looked exactly like the the AIT bung in the intercooler, so my sleep deprived brain confused the two. Thanks!
Jeffbucc is offline   Reply With Quote
Old 03-12-2014, 12:12 PM   #1575
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,573
Total Cats: 924
Default

Man, that IC does look good.

such fitment. much temptation. wow.
EO2K is offline   Reply With Quote
Old 03-12-2014, 12:32 PM   #1576
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

So good it makes you go shiba EO2k!

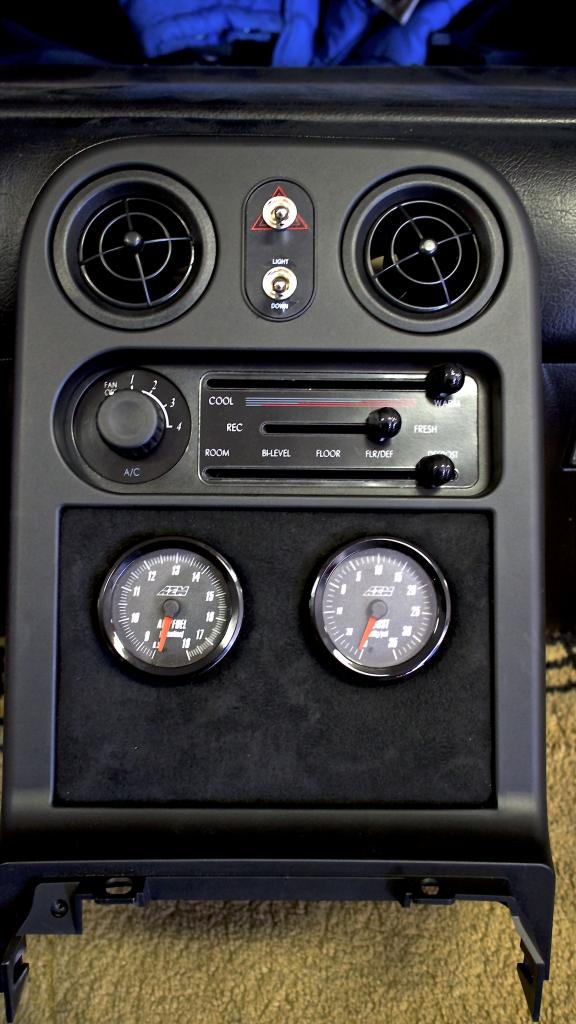

Also mounted the gauges up. Yup, happy as a clam with how this turned out. Also found the non-ac fan speed switch from the CO car, no chance of accidentally hitting the button now.

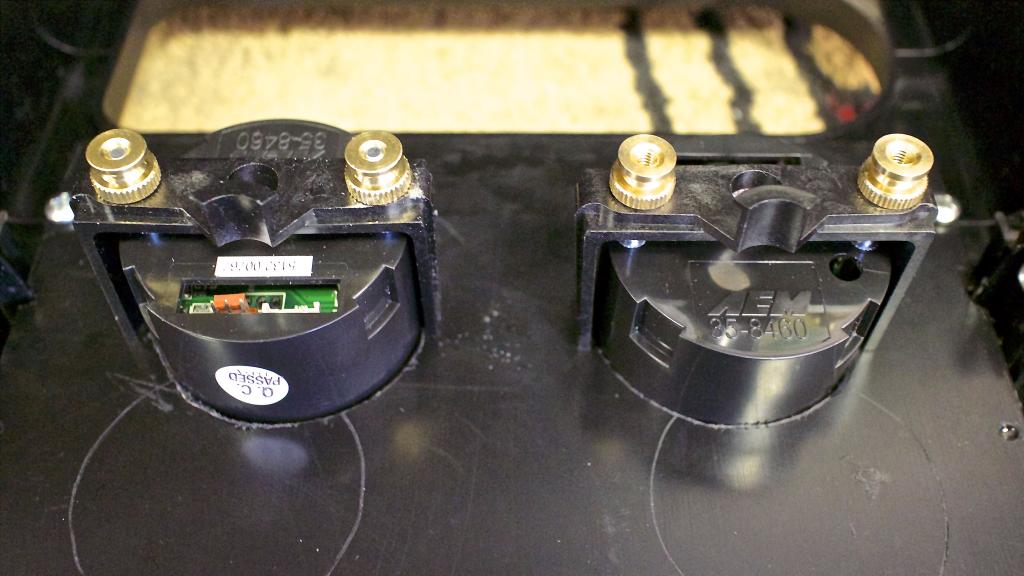

Plus they came with nifty mounting brackets that made it a cinch, thank goodness, my attempts were less than stellar to make brackets.

Attached Thumbnails
93' Miata stolen and flipped build thread-img_2122.jpg   93' Miata stolen and flipped build thread-img_2129.jpg
Jeffbucc is offline   Reply With Quote
Old 03-12-2014, 12:34 PM   #1577
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,229
Total Cats: 730
Default

I'm not understanding how those brackets work...

What are they attached to?
concealer404 is online now   Reply With Quote
Old 03-12-2014, 12:43 PM   #1578
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,071
Total Cats: 511
Default

That's a standard gauge bracket. They're just a big U. The two feet push on the panel, pulling the lip against the other side of the panel.
curly is offline   Reply With Quote
Old 03-12-2014, 12:49 PM   #1579
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

OK in regards to piping for the intercooler what do you guys recommend? What I'm thinking is ordering a couple 90 degree bends and then welding straight pipe sections to them and using only 2 silicone couplers for the turbo and intercooler.

Is it unrealistic to make it a one piece pipe? Just sitting here making several drawing of the easiest way to straight shot it from the turbo to the intercooler with the least amount of bends.

Also, will the 15% reduction of tubing diameter with non-mandrel bent metal really affect much? I'd love to just go to a local muffler shop and have it done but no one in the state of Utah has a mandrel bender.
Jeffbucc is offline   Reply With Quote
Old 03-12-2014, 12:56 PM   #1580
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,229
Total Cats: 730
Default

Quote:
Originally Posted by curly View Post
That's a standard gauge bracket. They're just a big U. The two feet push on the panel, pulling the lip against the other side of the panel.
Oh that makes sense. So the feet aren't actually attached. They're just pulled in. Neat. Now i wish i hadn't thrown all those ******* out. Derp.

Quote:
Originally Posted by Jeffbucc View Post
OK in regards to piping for the intercooler what do you guys recommend? What I'm thinking is ordering a couple 90 degree bends and then welding straight pipe sections to them and using only 2 silicone couplers for the turbo and intercooler.

Is it unrealistic to make it a one piece pipe? Just sitting here making several drawing of the easiest way to straight shot it from the turbo to the intercooler with the least amount of bends.

Also, will the 15% reduction of tubing diameter with non-mandrel bent metal really affect much? I'd love to just go to a local muffler shop and have it done but no one in the state of Utah has a mandrel bender.

After all this... you want crush bent intercooler piping? I swear i should give you negative props for that.
concealer404 is online now   Reply With Quote
