Default 94 LE VVT Build

This past spring I picked up a 94 that was pretty cheap. It was smoking some, and had been in a front end accident, but overall it ran and its body was straight with no rocker rust. It had all the options except for ABS, so I figured I could make a decent DD miata to replace my 92 B&T with 335k miles.

I have been lusting over 93 LE's since I first got into miata's years ago. The black and red color combo just touches me in all the right places. One of the things I have been looking for has either been a red interior for sale, or a cheap *** 93 LE to buy. I finally found one from a guy on here. I picked it up a few weeks ago, well everything but the seats and seat belts. I have a lead on the seats and seat belts and should hopefully be getting them this coming weekend.

The overall plan for the car is to be a nice naturally aspirated DD. For the drive train I am doing the standard 949 supermiata build. Stock VVT motor, flat-top manifold, eBay header for now, stock exhaust and intake, and MS3X. Long term I am planning on swapping in a RB header and building a 2.5" exhaust. Also plan on going with one of the new carbon fiber intakes that are possibly being made. I might eventually swap in a 6 speed and 3.63 rear end if I ever find the 3.63. Interior is getting sound deadening and then the red interior swapped in.

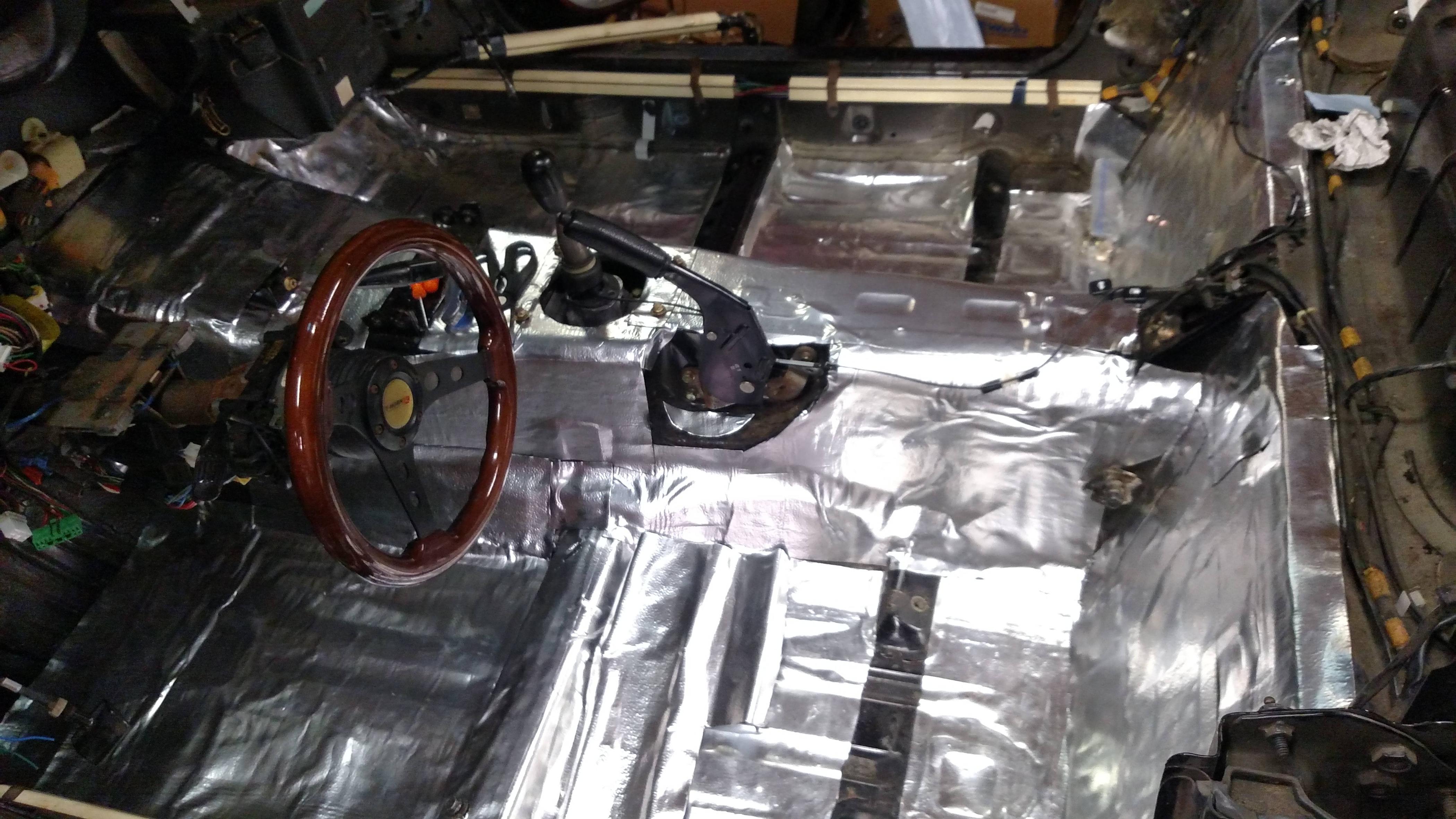

First layer of sound deadening.

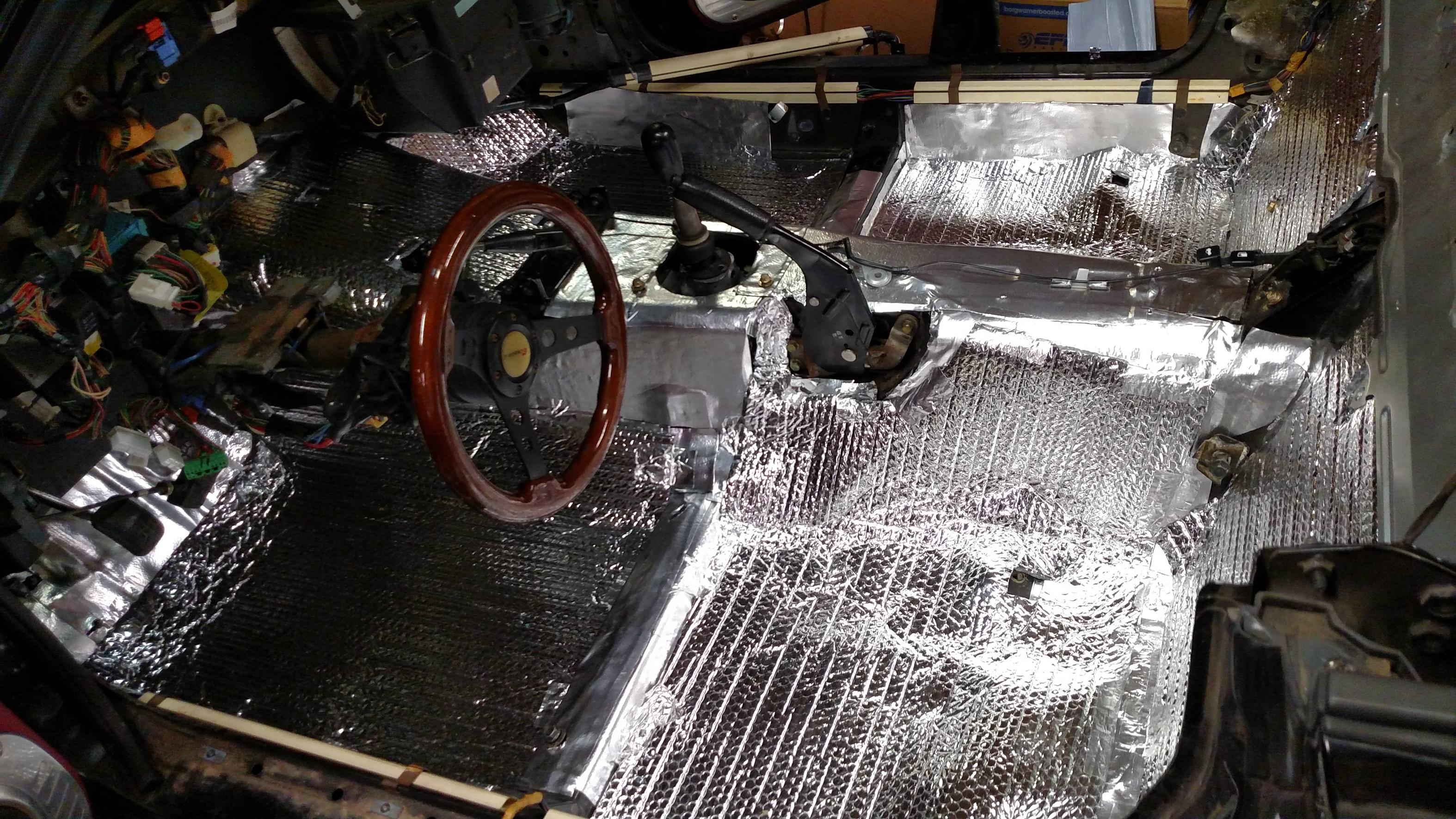

Second layer is some Refletix I got from Lowes. Was recommended by people on m.net

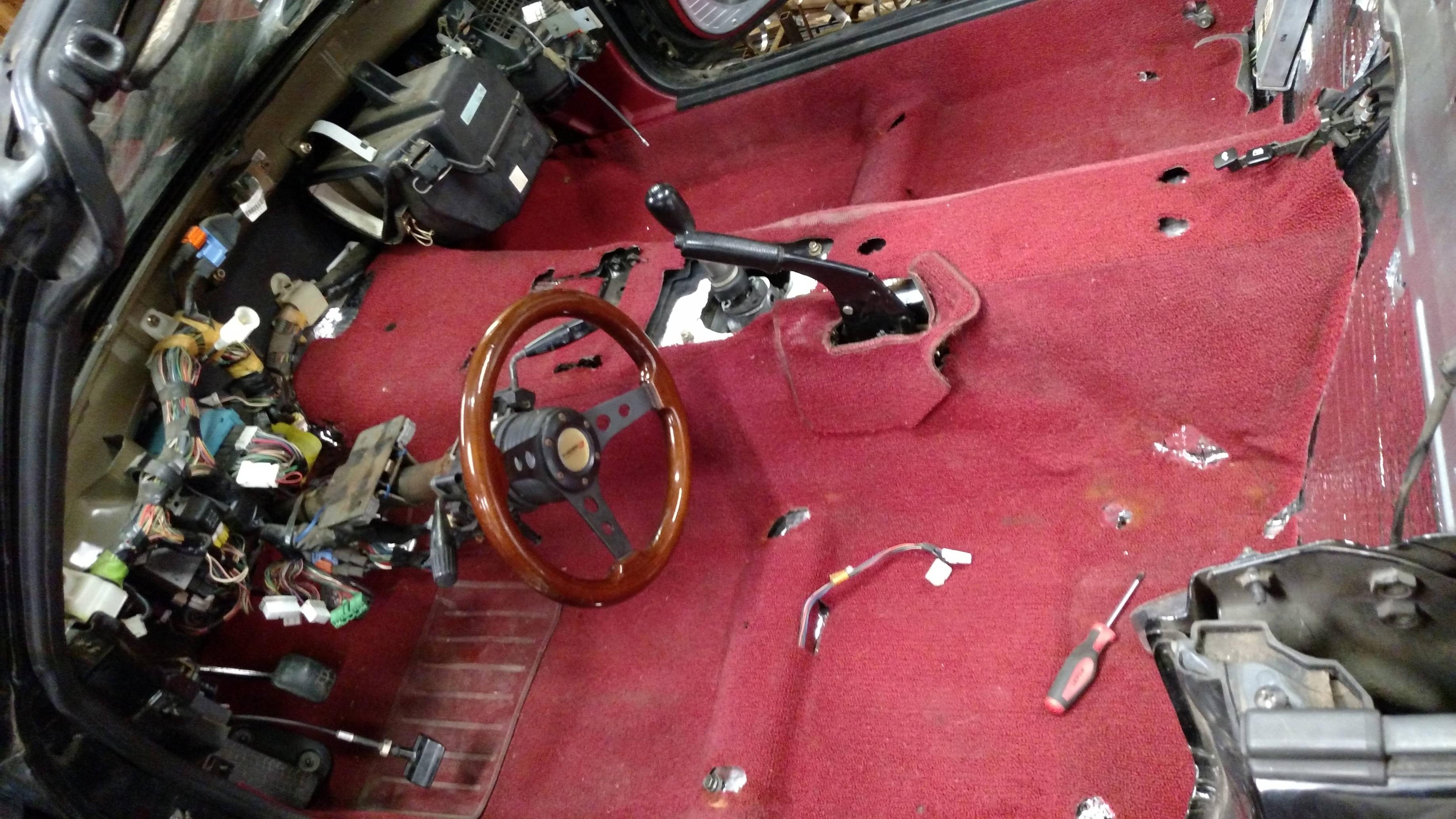

Bottom carpet is installed.

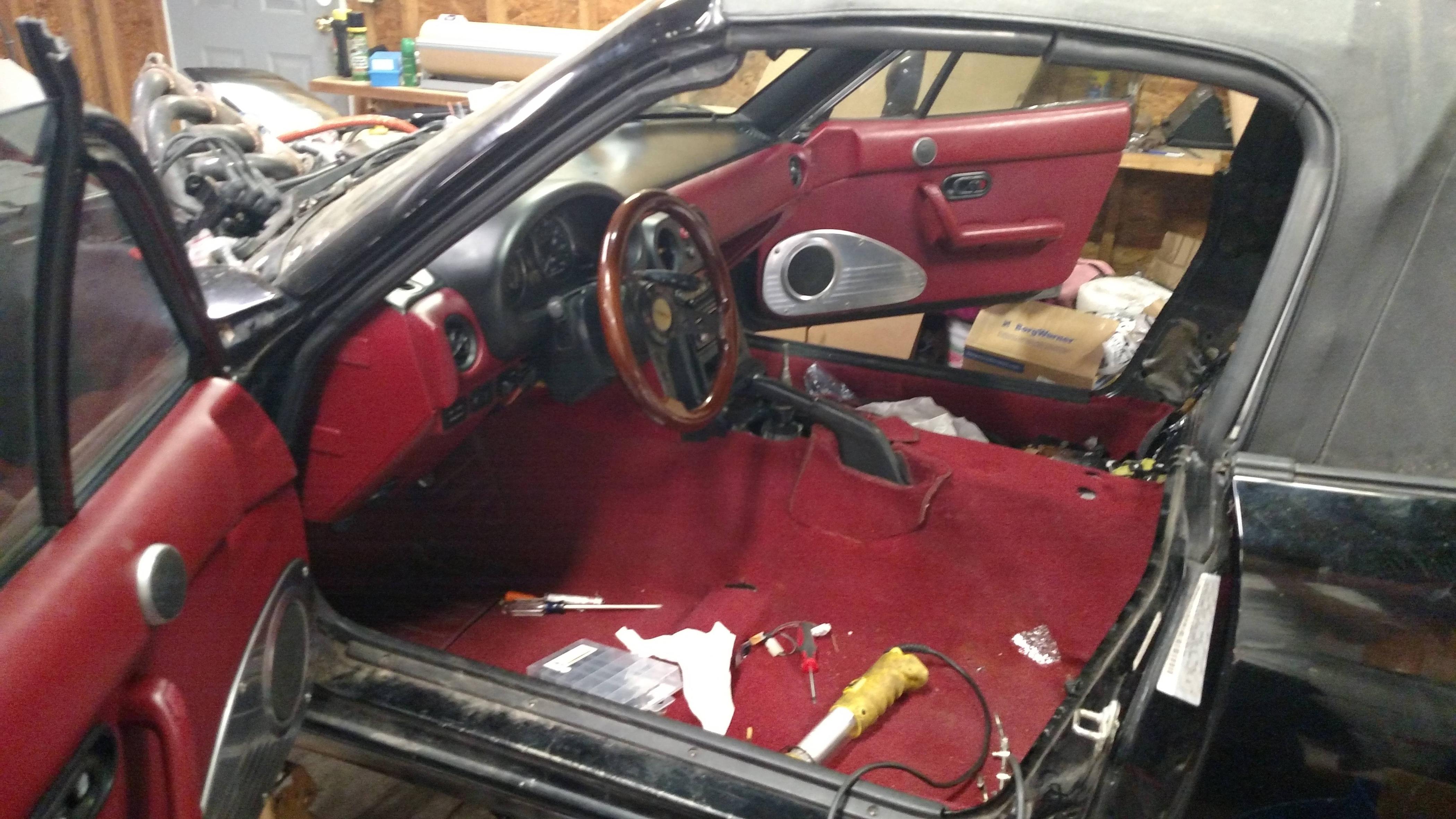

Dash and door cards are installed.

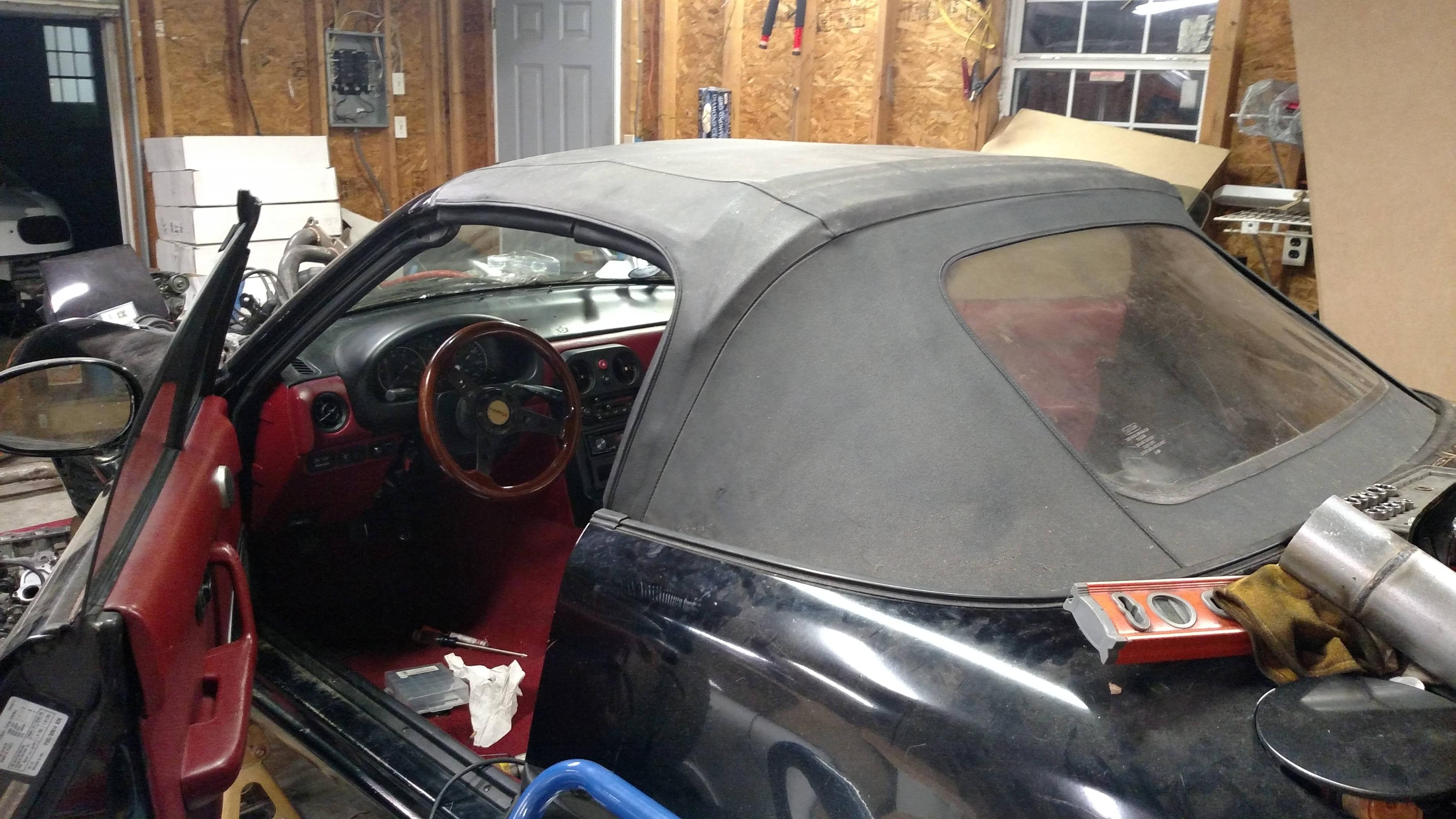

The rear window on the top installed was bad, the car came with a placement top which was cool. I ended up not using the replacement I got and instead swapped on a spare top where the rear window unzips. I prefer those over the ones where the rear window is fixed in.

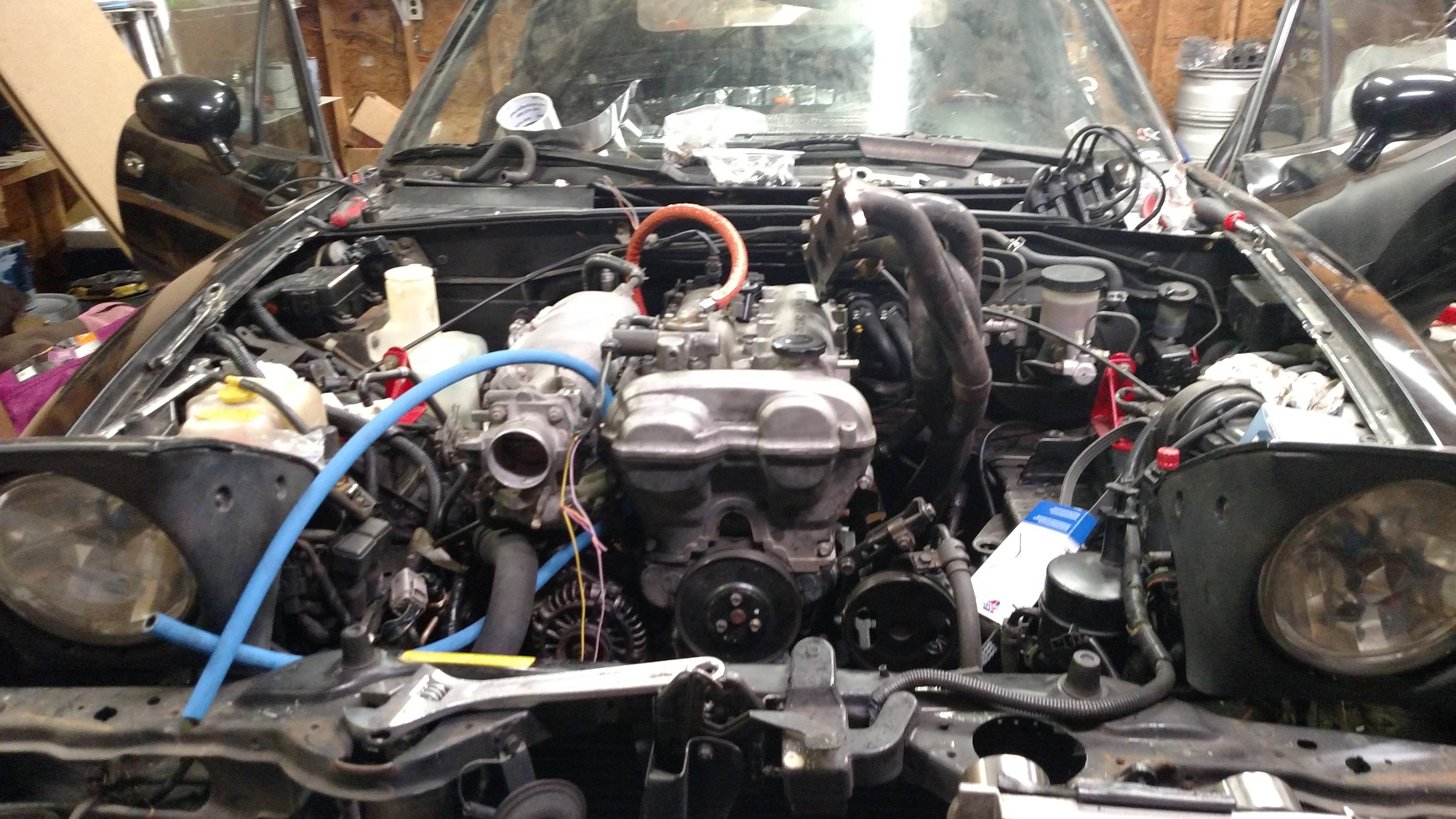

VVT motor and flat top is in. I have done a coolant reroute. I need to install the exhaust section, do all the wiring to NB sensors hook up accessory hoses, install and hook up radiator, hook up fuel lines, and install intake.
Attached Thumbnails
94 LE VVT Build-ryqcdb6.jpg   94 LE VVT Build-sdwgt1c.jpg   94 LE VVT Build-xlkeksr.jpg   94 LE VVT Build-ekxsjlq.jpg   94 LE VVT Build-n90fvew.jpg

94 LE VVT Build-wsesrck.jpg
shuiend is offline   Reply With Quote
Old 12-04-2015, 01:59 PM   #2
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

I hate LE red. Nothing else to add.

aidandj is offline   Reply With Quote
Old 12-04-2015, 02:01 PM   #3
mkturbo.com
Thread Starter
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by aidandj View Post
I hate LE red. Nothing else to add.

Would you hate it even more if I bought a second complete red interior this weekend?
shuiend is offline   Reply With Quote
Old 12-04-2015, 02:01 PM   #4
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

Go to hell lars.

Put both of them in one car.
aidandj is offline   Reply With Quote
Old 12-04-2015, 02:05 PM   #5
mkturbo.com
Thread Starter
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by aidandj View Post
Go to hell lars.

Put both of them in one car.
Honestly if I do pick up the full interior along with the seats this weekend, the second set will go into my track car. Then I will have 2 94's with VVT and red interior swaps. Have I mentioned yet how the black/red combo really gives me a boner.
shuiend is offline   Reply With Quote
Old 12-04-2015, 02:16 PM   #6
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

Its seriously a boner killer. Reminds me of my grandmas 80's Cadillac.
aidandj is offline   Reply With Quote
Old 12-04-2015, 02:22 PM   #7
Junior Member

Join Date: Jul 2015
Location: Bremerton, WA
Posts: 429
Total Cats: 30
Default

I agree. Not my thing. Other than that the car looks like it'll be awesome.
Itty is offline   Reply With Quote
Old 12-04-2015, 03:06 PM   #8
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by aidandj View Post
Its seriously a boner killer. Reminds me of my grandmas 80's Cadillac.
The 70s caddy we had had a white interior. Went better with the metallic lime green exterior.
y8s is offline   Reply With Quote
Old 12-04-2015, 03:08 PM   #9
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

Now that is boner material.
aidandj is offline   Reply With Quote
Old 12-04-2015, 05:56 PM   #10
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

The FD had a red interior option as well on a few models. I call it chainsaw death red.

It always reminds me of Fox body Mustangs.
90civichhb is offline   Reply With Quote
Old 12-08-2015, 02:25 PM   #11
Newb

Join Date: Oct 2015
Location: Hamilton, Ontario, Canada
Posts: 33
Total Cats: 3
Default

Porno Red was the affectionate name for the Fox body interior. I dig it and the tan two tone but I'm not sure if I want to own it for myself. My Pal built a black car with the red LE interior a while back and I thought it looked great.
Eunn is offline   Reply With Quote
Old 01-07-2016, 10:51 AM   #12
mkturbo.com
Thread Starter
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Over the past month I have done most of the work to get the car going, I will try to snap some pictures tonight. The interior is completed except for plugging the MS to my boomslang harness. I got the exhaust installed, oils filled and everything in the coolant system hooked up. I went to fill the car with coolant Monday night and it started leaking out of the back of the head at the reroute spacer. Last night I spent time removing the spacer and reinstalling it with all new gaskets and a metric **** ton of RTV. Today I will fill it with water again and see if it still leaks. Then get the MS hooked up and see if it starts and has any other issues.
shuiend is offline   Reply With Quote
Old 01-07-2016, 01:03 PM   #13
mkturbo.com
Thread Starter
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Thanks Chooofoojoo for hooking me up with a baller JDM manifold.
shuiend is offline   Reply With Quote
Old 01-07-2016, 05:02 PM   #14
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

Quote:
Originally Posted by shuiend View Post
I went to fill the car with coolant Monday night and it started leaking out of the back of the head at the reroute spacer. Last night I spent time removing the spacer and reinstalling it with all new gaskets and a metric **** ton of RTV. Today I will fill it with water again and see if it still leaks. Then get the MS hooked up and see if it starts and has any other issues.

Which reroute spacer do you have on the car? I am really dreading the day mine leaks. It looks like such a pain in the *** to get to with the motor installed. I went with the group buy spacer in the FS section and so far so good.
90civichhb is offline   Reply With Quote
Old 01-07-2016, 06:09 PM   #15
mkturbo.com
Thread Starter
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by 90civichhb View Post
Which reroute spacer do you have on the car? I am really dreading the day mine leaks. It looks like such a pain in the *** to get to with the motor installed. I went with the group buy spacer in the FS section and so far so good.
I have the Skou spacer on my car right now. I have gotten the same leak before with the begi spacer. So I will now always use rtv on them. I just filled the coolant and the rear spacer is no longer leaking, but the ******* hose that attaches to the oil filter warmer is. FML, guess I'm pulling intake manifold to get to it.
shuiend is offline   Reply With Quote
Old 01-07-2016, 08:23 PM   #16
Junior Member

Join Date: Apr 2011
Location: vancouver, bc
Posts: 115
Total Cats: 3
Default

I am trying to do some heat insulation on my miata as well. I'm going to the DIY "lizardskin" which consists of house paint and microspheres. We'll see if that's any good. The heat comes mostly from the header too so may be wrapping it would be a good idea.
rikaro is offline   Reply With Quote
Old 01-07-2016, 08:46 PM   #17
mkturbo.com
Thread Starter
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by rikaro View Post
I am trying to do some heat insulation on my miata as well. I'm going to the DIY "lizardskin" which consists of house paint and microspheres. We'll see if that's any good. The heat comes mostly from the header too so may be wrapping it would be a good idea.
On my turbo car which has a stripped interior the trans tunnel would get extremely warm. On long drives it was horrible. I wrapped the downpipe in heat wrapping I bought from Amazon, then got some Frost King ducting material from home depot racing. I put the Frost King in the trans tunnel under the car. The next time I went on a long trip the temps on the inside of the trans tunnel were significantly reduced.

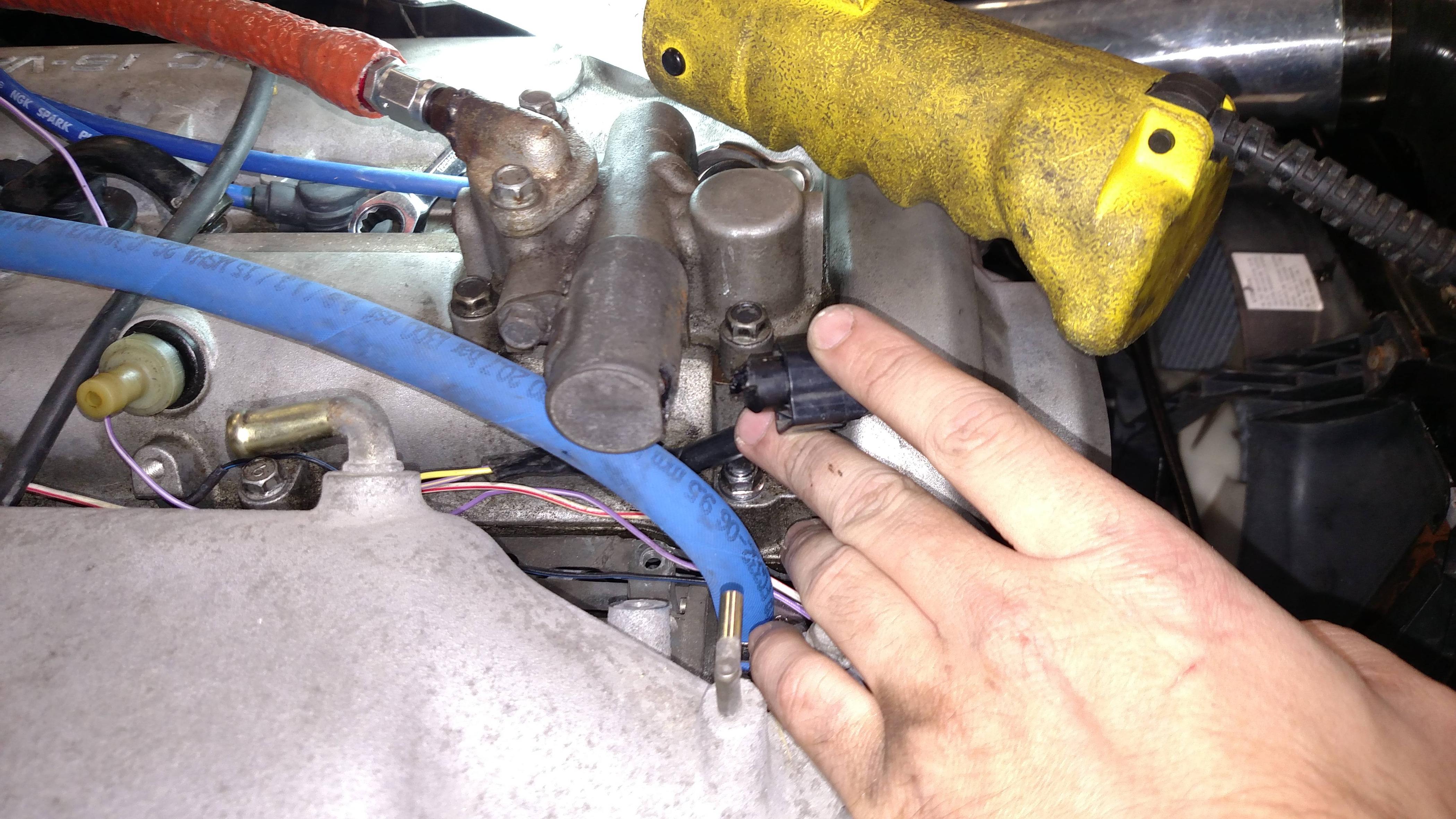

I got the second coolant leak fixed. Removing stock IM are PITA compared to my Begi cast manifold. As I was reassembling everything I somehow hit the VVT solenoid connector and broke it off. Stupid *** mistake, luckily since I stock up on VVT parts I have a spare somewhere. I just need to go find it tomorrow.

Attached Thumbnails
94 LE VVT Build-pagc7wj.jpg
shuiend is offline   Reply With Quote
Old 01-11-2016, 09:31 PM   #18
mkturbo.com
Thread Starter
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

The car attracts *****.

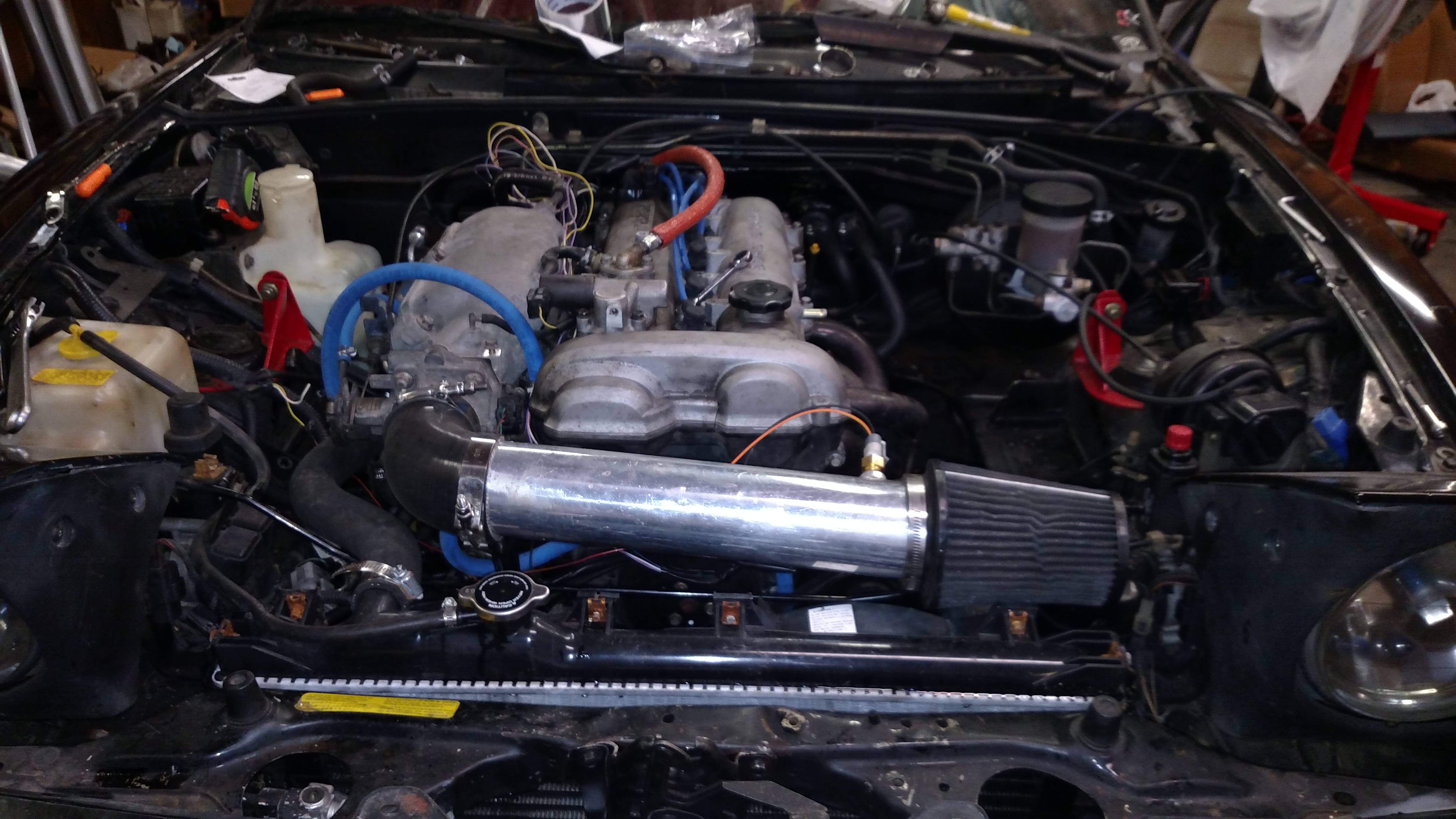

Engine bay.
Attached Thumbnails
94 LE VVT Build-ovlywhv.jpg   94 LE VVT Build-nryv2p4.jpg
shuiend is offline   Reply With Quote
Old 02-02-2016, 11:47 AM   #19
mkturbo.com
Thread Starter
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

I got the car out of the garage over the weekend. It is still leaking a bit of oil at the oil pressure sender and vvt line. The bigger problem is that last night I was working on burping the coolant. Temps got up to 195 degrees and then the car started stumbling and then shut off. I could not get it to restart after that. Unfortunately I was not logging so don't know exactly what happened. Tomorrow afternoon I am hoping to get some time to mess with it. I will be checking the crank sensor spacing from the trigger wheel, then checking to make sure the timing belt did not snap, then checking fuel and spark.
shuiend is offline   Reply With Quote
Old 02-02-2016, 05:13 PM   #20
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

Quote:
Originally Posted by shuiend View Post
Temps got up to 195 degrees and then the car started stumbling and then shut off. I could not get it to restart after that.

I just had this issue when I went to 460cc injectors and found that my warm up enrichment was making it shut down/stumble after 185 degrees. I bumped the numbers around a bit until it would maintain decent idle and it's been pretty good since. I still have some very rich hot start conditions that I am working on but it's all part of the MS game.
90civichhb is offline   Reply With Quote
