Old 02-02-2016, 05:23 PM   #21
mkturbo.com
Thread Starter
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by 90civichhb View Post
I just had this issue when I went to 460cc injectors and found that my warm up enrichment was making it shut down/stumble after 185 degrees. I bumped the numbers around a bit until it would maintain decent idle and it's been pretty good since. I still have some very rich hot start conditions that I am working on but it's all part of the MS game.
It is not WUE, I just checked my MSQ. I won't be home tonight while it is light out, so digging in won't be until tomorrow at the soonest. I may try starting it tonight to just see what it does since it will be cool.
shuiend is offline   Reply With Quote
Old 02-02-2016, 05:24 PM   #22
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

plz post msq for ridicule
aidandj is offline   Reply With Quote
Old 02-02-2016, 05:52 PM   #23
mkturbo.com
Thread Starter
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by aidandj View Post
plz post msq for ridicule
Here is the msq. It is something Scott made me which was a mix of a 99 and a 94 basemap with some VVT thrown in. I have touched just about nothing in it yet. I have started the car on it and was letting it warm up. Hell I don't even think I have VVT enabled on it yet.
shuiend is offline   Reply With Quote
Old 02-03-2016, 07:48 PM   #24
mkturbo.com
Thread Starter
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

So tonight I got some time to work on the car before it got dark and started raining. The first thing I did was try to start the car and took a video for you guys.

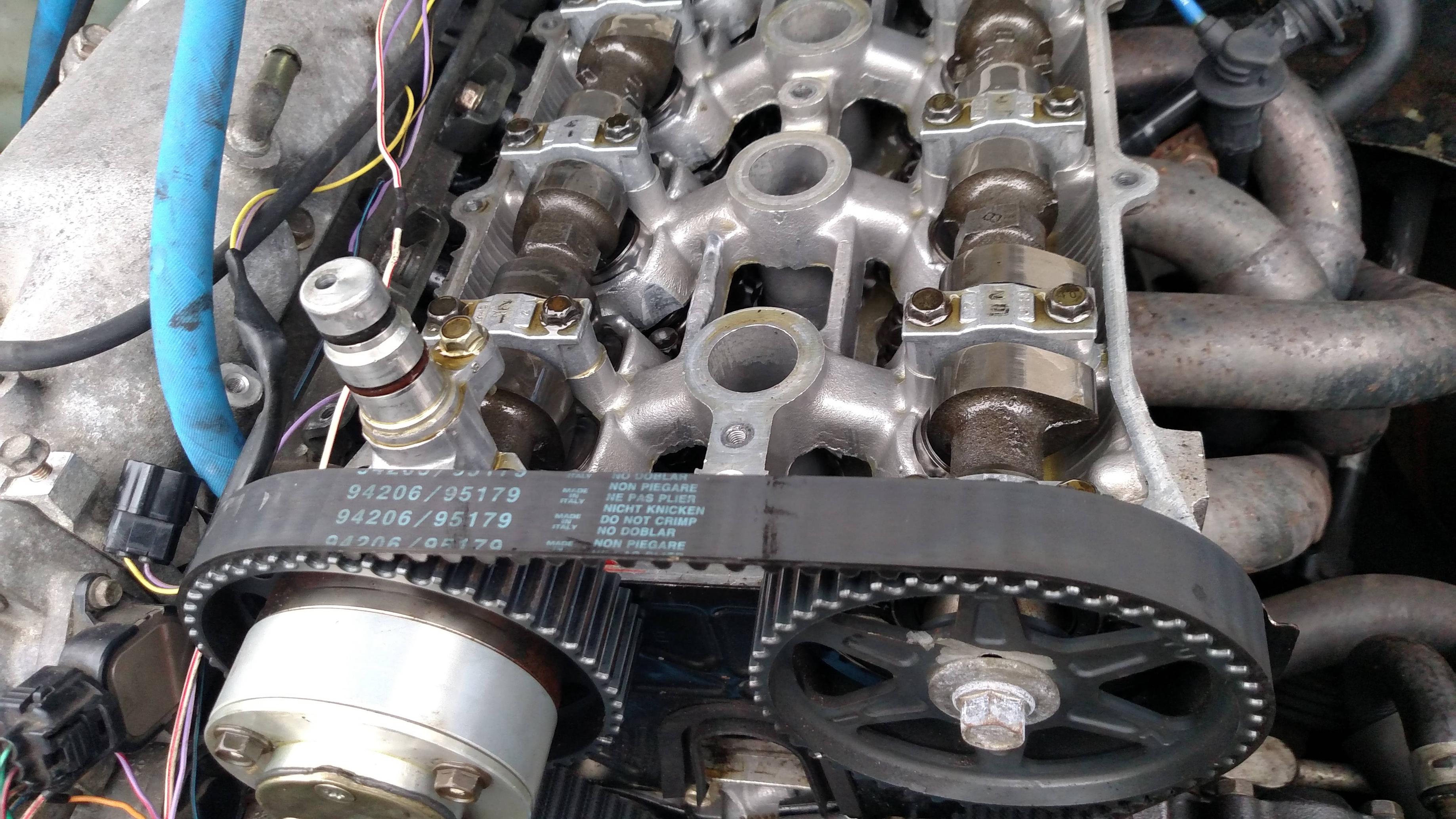

Something timing wise sounded off. I then decided to check for spark. Pulled out a wire and tried to start the car, got nothing. Swapped to a spare coil pack and same result. So I decided to pull off the valve cover to make sure the timing belt was in place, and timing was set correctly. First thing I noticed was oil on the intake cam gear. I figured one of the 10mm bolts was loose. Here is what the cam lobes looked like with the motor at TDC.


Intake cam gear is a good bit off.I then pulled off the cover to the 17mm bolt that hold the cam gear on. Lots of oil comes out and I find the bolt is loose. So at this point I figured out what happened. I put this motor together about 2.5 years ago. It was in my other 94 for about 6 months and I put about 1000 miles on it. I then pulled it and it has sat in my garage for about 1.5 years. I never checked that bolt when I dropped it in this car. So I remove the bolt and then gear and take a look at the back.

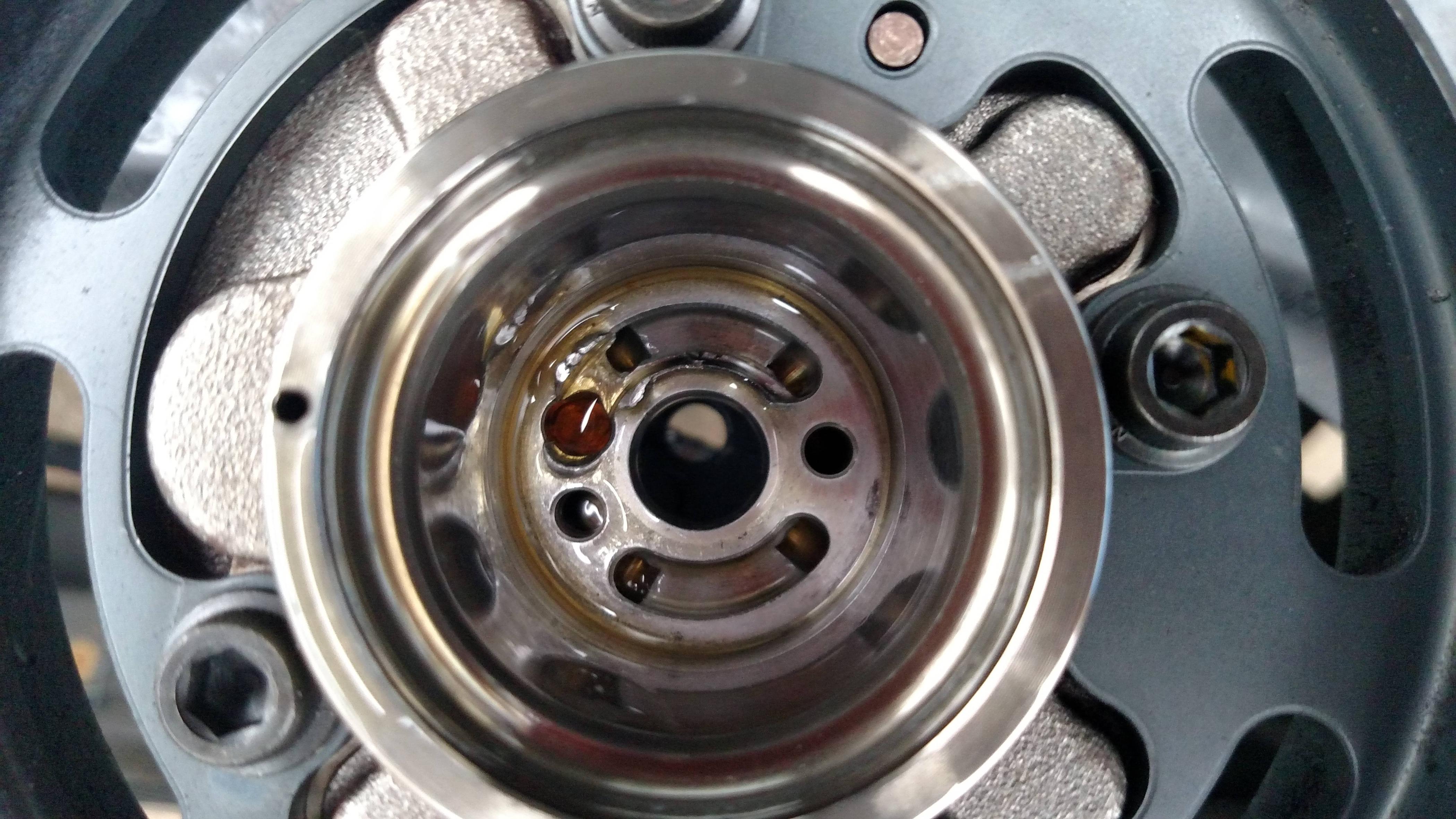

Yep cam gear is fucked. Luckily I have a spare just in case something like this happens. I had let concealer404 borrow it about a year back to test on a car he was working on. I go and dig it out of the box from when he sent it back. I put it on the car and notice something that seems out of the ordinary.


Never seen that before. I pull it off and I can move the inside.


Concealer is mailing me out another one. Hopefully it works and I can get the car back together. I will be making sure that 17mm bolt is torqued to spec.
Attached Thumbnails
94 LE VVT Build-kmdvuwv.jpg   94 LE VVT Build-yl9uher.jpg
shuiend is offline   Reply With Quote
Old 02-04-2016, 02:11 PM   #25
Junior Member

Join Date: Sep 2011
Location: Prescott, AZ
Posts: 433
Total Cats: 28
Default

FYI, if you manage to strip out the torx VVT actuator cover screws (like I did), it's just an M5 .8 10mm screw. I found allen replacements at my local hardware for about 1/4 the price of Mazda screws.

Why does everything torx seem to be made of case-hardened cheddar cheese?
Roda is offline   Reply With Quote
Old 02-04-2016, 02:30 PM   #26
mkturbo.com
Thread Starter
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by Roda View Post
FYI, if you manage to strip out the torx VVT actuator cover screws (like I did), it's just an M5 .8 10mm screw. I found allen replacements at my local hardware for about 1/4 the price of Mazda screws.

Why does everything torx seem to be made of case-hardened cheddar cheese?
I have stripped out so many of those torx screws that it is not funny. A few years back I ordered 20 or so from Rosenthal just so I would not have to worry about not having them in the future.
shuiend is offline   Reply With Quote
Old 03-24-2016, 10:01 PM   #27
mkturbo.com
Thread Starter
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

I installed Tokico Illumina shocks with FM springs today. My red seats are currently getting new leather covers installed along with seat warmers. Hoping to get those back from my friend on Sunday. Now I just need to swap in a NB throttle cable and install some hood pins and this car. Then time to start tuning it and driving it.
shuiend is offline   Reply With Quote
Old 06-03-2016, 09:35 AM   #28
mkturbo.com
Thread Starter
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

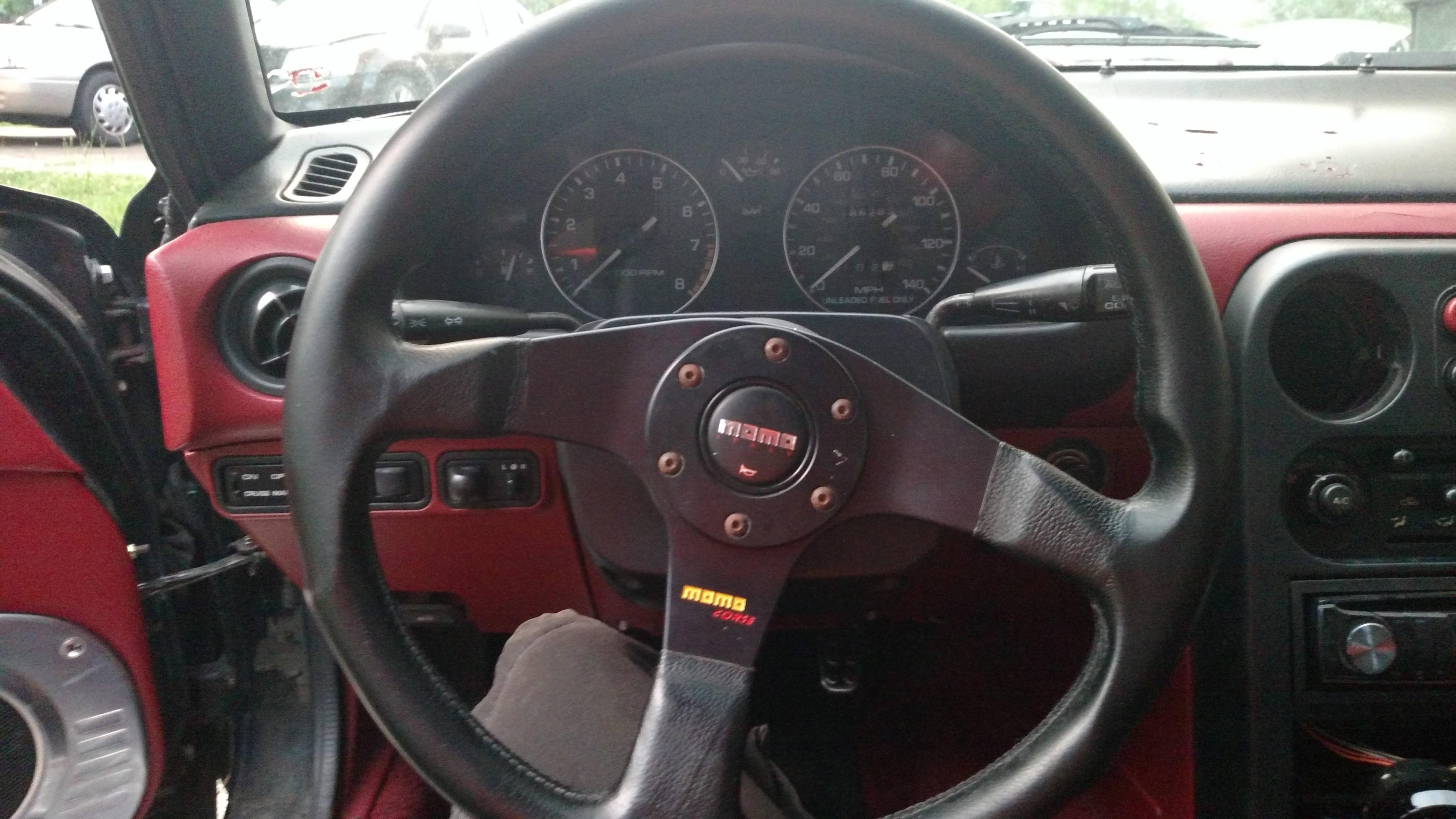

Installed a Momo Corse yesterday. Replaces the crappy knockoff steering wheel that was installed. I can now see the top of my gauge cluster.
Attached Thumbnails
94 LE VVT Build-j66p3jj.jpg
shuiend is offline   Reply With Quote
Old 06-04-2016, 12:14 PM   #29
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,707
Total Cats: 19
Default

This car reminds me much of my late '97. Sniff.
Stealth97 is offline   Reply With Quote
Old 06-04-2016, 12:53 PM   #30
mkturbo.com
Thread Starter
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by Stealth97 View Post
This car reminds me much of my late '97. Sniff.
Don't worry your LE interior will be going in my other 94. So then I will have 2 matching 94 LEs.
shuiend is offline   Reply With Quote
Old 06-04-2016, 03:37 PM   #31
Elite Member
iTrader: (1)

Join Date: Apr 2014
Location: SF Bay Area, CA
Posts: 1,819
Total Cats: 195
Default

This is going to be a sweet car, there's an LE on my local Craigslist but the guy's asking a fortune.
All the cool build threads make me want a non-DD miata to play with.
Nice work Lars!
sonofthehill is offline   Reply With Quote
Old 06-04-2016, 05:15 PM   #32
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,707
Total Cats: 19
Default

Quote:
Originally Posted by shuiend View Post
Don't worry your LE interior will be going in my other 94. So then I will have 2 matching 94 LEs.
At least it's going to a good home.
Stealth97 is offline   Reply With Quote
