Old 03-16-2010, 11:13 PM   #1
Junior Member
Thread Starter
iTrader: (7)

Join Date: May 2007
Location: Buffalo, NY
Posts: 332
Total Cats: 0
Default 94R Build - pic intensive

This is how I bought the car:



Stock except for wheels, JR racing intake, AGX Shocks, and RB front sway bar.

Then I bought a twinscrew supercharged 01 SE miata for parts:



Here is what I've done so far:



Changed the suspension out to Koni Yellows, Flyin' Miata Springs, FCM Bumpstops, and top mounts. Replaced the kosei's with 16" OEM SE Enkei's. With the springs at the bottom perch, current ride height is 11.5F/12R. Got a performance alignment:

2.3F/2.3R camber
Slight toe out front, slight tow in rear
Max caster

Close up of the "Enkei":


Interior shot: Includes NB nardi wheel, kenwood ipod player, NB chrome vent rings, miata cage shiftknob. Disregard the red seats, they are replaced with eBay Brides.



iPhone in armrest:



NB SE pedals bolted on:



Intake shot (turbo coming soon ):



Installed:

shorty antenna from napa, $10 bucks:


NB chrome gas lid:


I bought m-edition sill plates in ROUGH shape. 3M was having a sale on their CF material wrap so this is the result:


lamin-X turn signal covers:



Bride knockoffs:



ghey stickers:



glamor photo:



Here's some parts that are going on soon:



Bossfrog clearview rollbar:

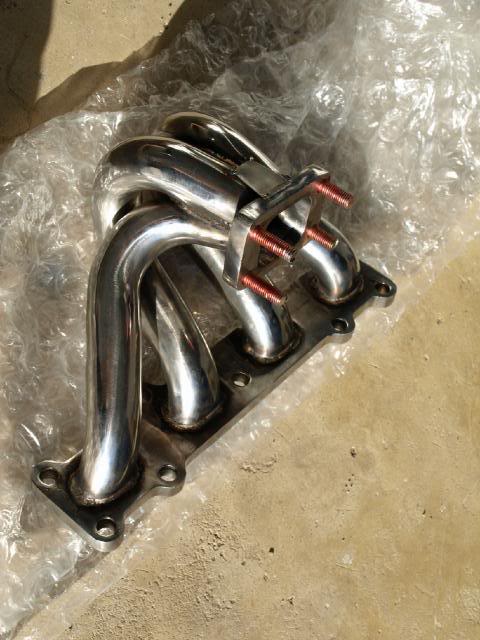

New Stainless Steel Begi S4 tubular manifold:



Name:  PA252211.jpg
Views: 14
Size:  60.7 KB

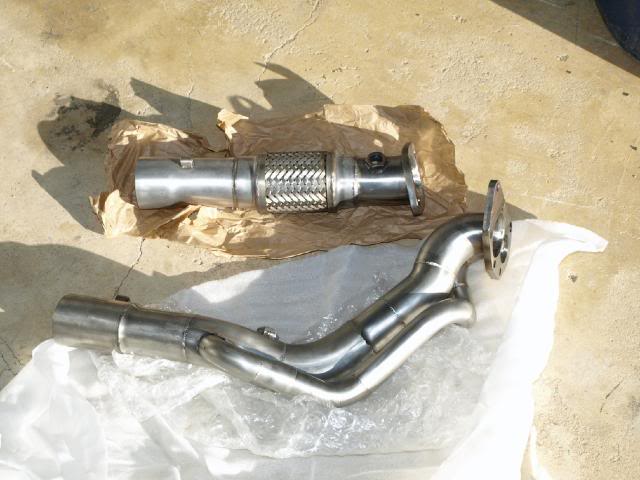

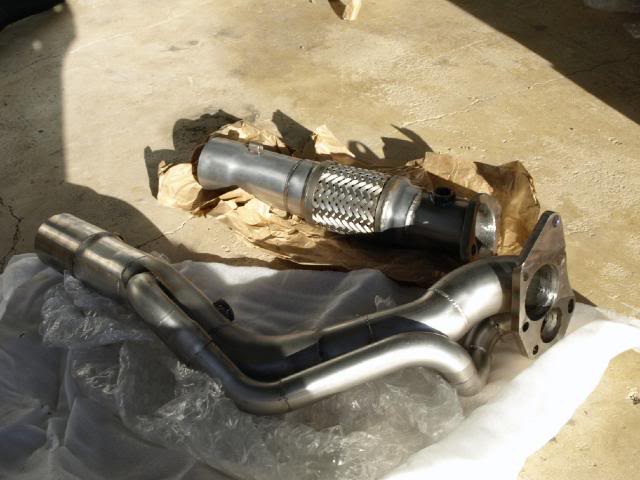

New Begi Stainless Steel Separated Gasses Downpipe w/ O2 Bung and flexpipe:

Name:  PA252212.jpg
Views: 14
Size:  53.5 KB

Name:  PA252213.jpg
Views: 14
Size:  51.8 KB

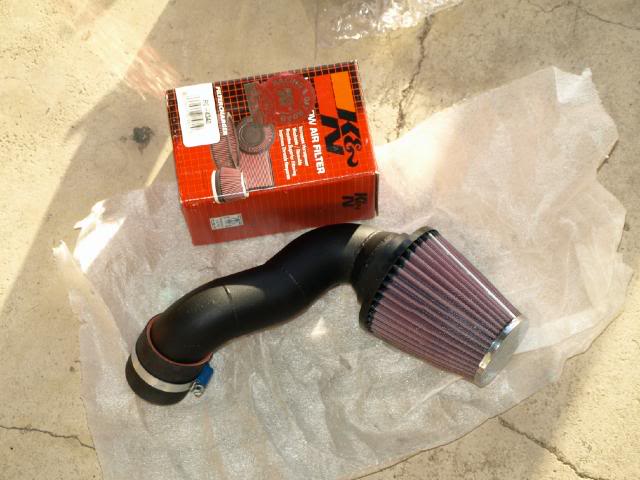

K&N intake filter and inlet tube:

Name:  PA252214.jpg
Views: 14
Size:  54.3 KB

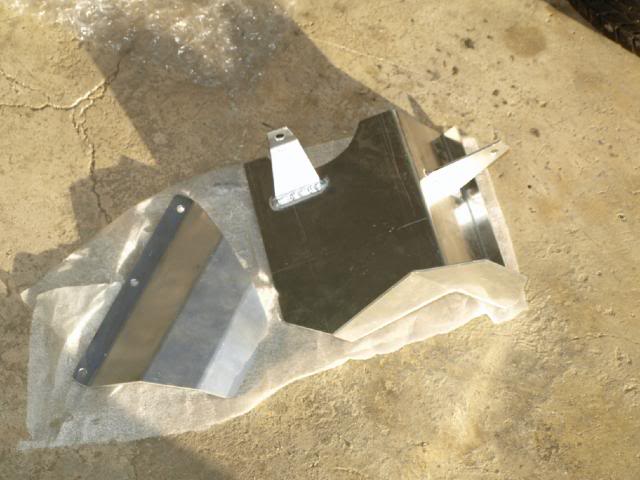

Begi heatshield:

Name:  PA252216.jpg
Views: 14
Size:  51.1 KB

Megasquirt DIYPNP:





Flyin' Miata 10.3 lb flywheel:



and no pictures but a used SR20 GT2560 turbo, eBay intercooler piping and intercooler.

Still need stainless steel lines, fittings, ect.
longuyen88 is offline   Reply With Quote
Old 03-16-2010, 11:52 PM   #2
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

Good stuff, thanks for sharing! Keep the pictures coming.
thesnowboarder is offline   Reply With Quote
Old 03-17-2010, 12:01 AM   #3
Elite Member
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default

Woohoo, a fellow turbo R Pkg owner in NY!

Keep up the good work.

C
chriscar is offline   Reply With Quote
Old 03-17-2010, 12:40 AM   #4
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Nice pics. GLWB.
FRT_Fun is offline   Reply With Quote
Old 03-17-2010, 02:59 AM   #5
I EAT CUM
iTrader: (6)

Join Date: Sep 2008
Location: Redneck, Texas
Posts: 1,218
Total Cats: -1
Default

Wanting more information on these "Ebay brides knockoffs"
Turbo_4 is offline   Reply With Quote
Old 03-17-2010, 04:07 PM   #6
Senior Member
iTrader: (8)

paNX2K&SE-R's Avatar

Join Date: Dec 2007
Location: Mocksville, NC
Posts: 676
Total Cats: 11
Default

Nice work so far. I think the switch from K1s to the Enkeis was a downgrade though.
paNX2K&SE-R is offline   Reply With Quote
Old 03-17-2010, 04:20 PM   #7
Junior Member
Thread Starter
iTrader: (7)

Join Date: May 2007
Location: Buffalo, NY
Posts: 332
Total Cats: 0
Default

Quote:
Originally Posted by Turbo_4 View Post
Wanting more information on these "Ebay brides knockoffs"
Search eBay

Quote:
Originally Posted by paNX2K&SE-R View Post
Nice work so far. I think the switch from K1s to the Enkeis was a downgrade though.
I really like the look of the enkei's. Although it's heavier and narrower, they serve as street wheels and I am not pushing the limits of 3lbs and 1" rim width on the street.
longuyen88 is offline   Reply With Quote
Old 05-30-2010, 12:29 AM   #8
Junior Member
Thread Starter
iTrader: (7)

Join Date: May 2007
Location: Buffalo, NY
Posts: 332
Total Cats: 0
Default

I sold my begi S4 manifold and dp to replace it with a begi S6 kit. I am having a tough time getting the downpipe in place. Any tips? I tried every angle I can think of, and it just isn't working. Any help please?
longuyen88 is offline   Reply With Quote
Old 05-30-2010, 01:22 AM   #9
I'm Miserable!
iTrader: (33)

Join Date: Jan 2009
Location: San Jose, CA
Posts: 1,066
Total Cats: -3
Default

nice build. love the seats!

if its no to much trouble can i ask the part number for that small K&N filter?? thats the exact one ive been looking for!
railz is offline   Reply With Quote
Old 05-31-2010, 11:32 PM   #10
Junior Member
Thread Starter
iTrader: (7)

Join Date: May 2007
Location: Buffalo, NY
Posts: 332
Total Cats: 0
Default

big updates:


I got the megasquirt up and running nicely. I installed a wideband to learn the megasquirt tuning software. Then I got an opportunity to street tune a 95 turbo miata, so that is a good learning experience for when I turbo my car. Currently, the car pulls hard (for a miata, anyways) with just basic street tuning on 93 octane gas and an increase in timing across the board.

Pics of my wideband in one of the factory air vents:





The stock 5sp tranny is known to blow when boost is added. So I installed the 6 speed tranny from my parts car, along with Flyin' Miata 10.3lb flywheel and centerforce dual friction clutch. Sorry, no pics of the installation.

Boss frog clearview single hoop roll car install:



While installing the rollbar, I removed my soft top (to replace it with the top from my parts car).



everything out:


I found a rusty fuel cover panel. I sanded the rust off and painted all the panels that were on top of the fuel tank.



End result:



Rspeed hood dampers:



I also repainted my valve cover. This is what I started with:



primer:



black base:



Design:



Final:



Installed RX7 460cc fuel injectors:



Stock 127k injectors vs. cleaned 460cc's:



also debadged the rear license panel:



And lastly, I put new wheels on. Kosei K1. 16x7.5+32 in the front and 17x7.5+25 in the rear:





Installed all-aluminum 55mm radiator with alum. shroud and slim fans wired in parallel:





Beginning of turbo install:



Deleted AC and PS bracket and pulley, removed EGR.



Look at all the weight savings!



Coolant rerouting to clear charge pipes.





Turbo on! Sorry, no progress pics. It did take me two days.



I am looking for a louder BOV. Any suggestions?



Cool air box:



Cast tubular manifold, tial 38mm wg, garret GT2860RS, 3" downpipe, all with baller v-bands:





Front mount:



Currently at 10.5-11.5 PSI.
longuyen88 is offline   Reply With Quote
Old 05-31-2010, 11:35 PM   #11
Elite Member
iTrader: (10)

rccote's Avatar

Join Date: Jan 2008
Location: Buffalo NY
Posts: 1,595
Total Cats: 17
Default

My injectors! Where in Buffalo do you live? I'm actually moving there towards the end of this month if all goes well.
rccote is offline   Reply With Quote
Old 05-31-2010, 11:44 PM   #12
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Would you please give us your opinion on the knockoff bride seats?

I know people bash them, but they honestly look great. It seems to me that they MUST be better/safer than stock seats just because how much lower they put you, this is if you run them with proper harnesses/rollbar of course.

Also, for some reason since they were knockoffs i was expecting them to read BIRDE or something along those lines. Rofl.
Fireindc is offline   Reply With Quote
Old 06-01-2010, 12:31 AM   #13
Junior Member
Thread Starter
iTrader: (7)

Join Date: May 2007
Location: Buffalo, NY
Posts: 332
Total Cats: 0
Default

Quote:
Originally Posted by rccote View Post
My injectors! Where in Buffalo do you live? I'm actually moving there towards the end of this month if all goes well.
1 of them was locked up from sitting for too long. I had to get them recleaned. But they work great now. They flowed 550 after the clean

Quote:
Originally Posted by Fireindc View Post
Would you please give us your opinion on the knockoff bride seats?

I know people bash them, but they honestly look great. It seems to me that they MUST be better/safer than stock seats just because how much lower they put you, this is if you run them with proper harnesses/rollbar of course.

Also, for some reason since they were knockoffs i was expecting them to read BIRDE or something along those lines. Rofl.
I love them
longuyen88 is offline   Reply With Quote
Old 06-01-2010, 12:45 AM   #14
Junior Member
iTrader: (4)

Join Date: Dec 2007
Location: Springfield, Mass
Posts: 364
Total Cats: 0
Default

This build came along very nicely, I was a little skeptical of the valve cover but it kinda grew on me. Very nicely done.

How do you like those seats? Are they the knock offs on factory rails? I would love to get a set like those.
seraph is offline   Reply With Quote
Old 06-01-2010, 12:53 AM   #15
I'm Miserable!
iTrader: (1)

Join Date: Mar 2010
Location: North Carolina
Posts: 471
Total Cats: 0
Default

+12 on the seats.

Would you mind posting build price, or PM me rough prices on some of the things you got if you wanted to keep quiet? Really curious.

Very nice though, I think it was done very well with very tasteful mods.
na8psi is offline   Reply With Quote
Old 06-01-2010, 08:19 PM   #16
Junior Member
Thread Starter
iTrader: (7)

Join Date: May 2007
Location: Buffalo, NY
Posts: 332
Total Cats: 0
Default

Quote:
Originally Posted by Fireindc View Post
Would you please give us your opinion on the knockoff bride seats?
I love them. I haven't seen a "real" bride yet, but I don't really care. Most of my "nice car" comments usually end up along the lines of... I love those seats man. One minor gripe is that one seat is actually an inch smaller than the other one. I didn't know this until my friend sat in both.

Quote:
Originally Posted by seraph View Post
This build came along very nicely, I was a little skeptical of the valve cover but it kinda grew on me. Very nicely done.

How do you like those seats? Are they the knock offs on factory rails? I would love to get a set like those.
I was iffy on the valve cover myself. But it looks much better in real life, and that matters more. The seats are mounted on factory rails. Driver's side is always a bitch and a half.

Quote:
Originally Posted by na8psi View Post
+12 on the seats.

Would you mind posting build price, or PM me rough prices on some of the things you got if you wanted to keep quiet? Really curious.

Very nice though, I think it was done very well with very tasteful mods.
Car: 5k
S6 turbo: 5k
02 6speed tranny: 600
Roll bar: 400
Koni yellows: 600
FM springs: 200
FCM mounts: 200
wheels/tires: 750
seats: 500
cd player: 200
SE pedals: 100
exhaust: 400
sway bar: 150
FM flywheel: 250
Clutch: 350
MS mounts: 70
DIYPNP: 425
rx7 460cc: 100+50cleaning= 150
AEM wb: 230

+a lot of misc. things

So like 14-15k. Obviously you can save ALOT buying used.
longuyen88 is offline   Reply With Quote
Old 06-01-2010, 09:03 PM   #17
Oni
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: Tasmania, AUS
Posts: 164
Total Cats: 3
Default

Very nice. Looks good and im sure pulls hard
Oni is offline   Reply With Quote
Old 06-01-2010, 09:20 PM   #18
Junior Member
iTrader: (1)

Join Date: Jun 2009
Location: Auburn Maine
Posts: 185
Total Cats: 0
Default

If you are looking for a louder BOV, the one you want is the Turbo XS RFL.

It will have people turning around everytime you chop the throttle. I prefer something more subtle. If you want one I have one I'd sell for $50. I prefer not to have people looking all the time..

Sweet Ride!
vw_nut is offline   Reply With Quote
Old 06-01-2010, 09:58 PM   #19
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Welcome to the baller v-band crew.
hustler is offline   Reply With Quote
Old 06-02-2010, 01:17 AM   #20
Newb

Join Date: May 2010
Location: ATL
Posts: 24
Total Cats: 0
Default

nice build! i'm digging the valve cover and the subtle NB interior pieces. and i will be going to ebay and looking for those seats
atl20ae is offline   Reply With Quote
