Default The car that Trackspeed built, vol. 1: 1993 BEGi S2 turbo track/autocross toy

This will be the first of hopefully many installments. This is actually the second turbo car we've done, but the first we've documented in any detail. We'll be bringing at least two more builds to you guys this summer, a tricked out N/A track car that will double as our new rental car, as well as our first V8 build, an LS2/T56 car.

The car we've just finished is a super clean white í93 chassis with a 1.6 and a 5-speed. It came in with a couple of the fundamental basics done, the MSPNP and Rx7 460s, as well as a full RB exhaust. Itís also got FCM Bilsteins and RP-F1s. Itís leaving with a whole lot more, of course.

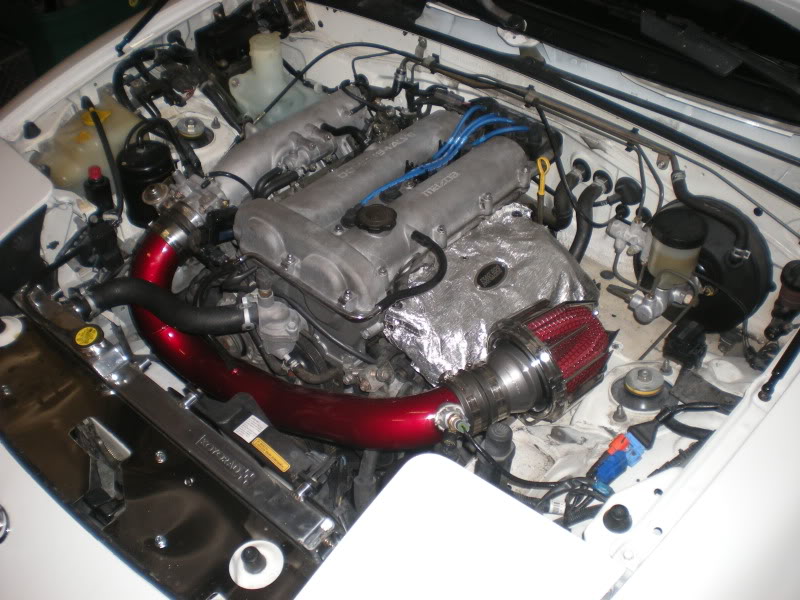

As it arrived:

Name:  DSCN1884.jpg
Views: 13
Size:  138.1 KB

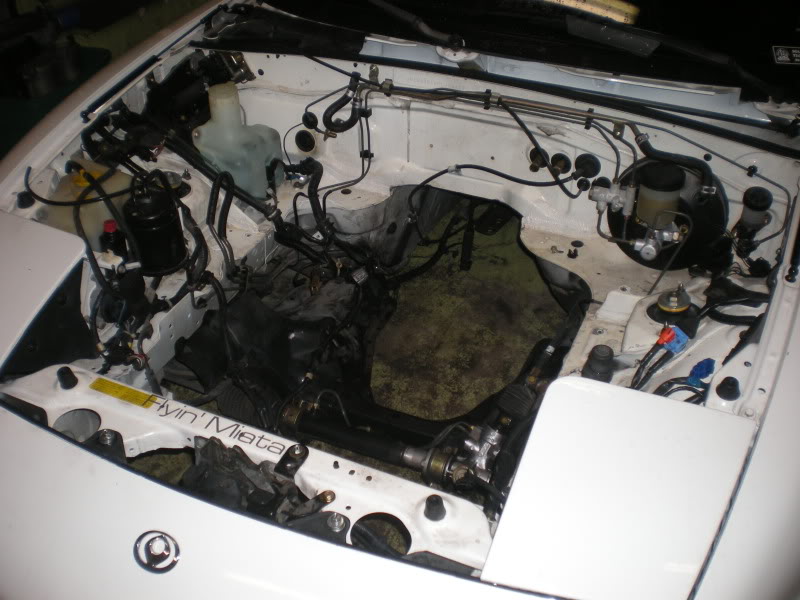

First step to any good project, rip the motor out.

Name:  DSCN1891.jpg
Views: 13
Size:  118.7 KB

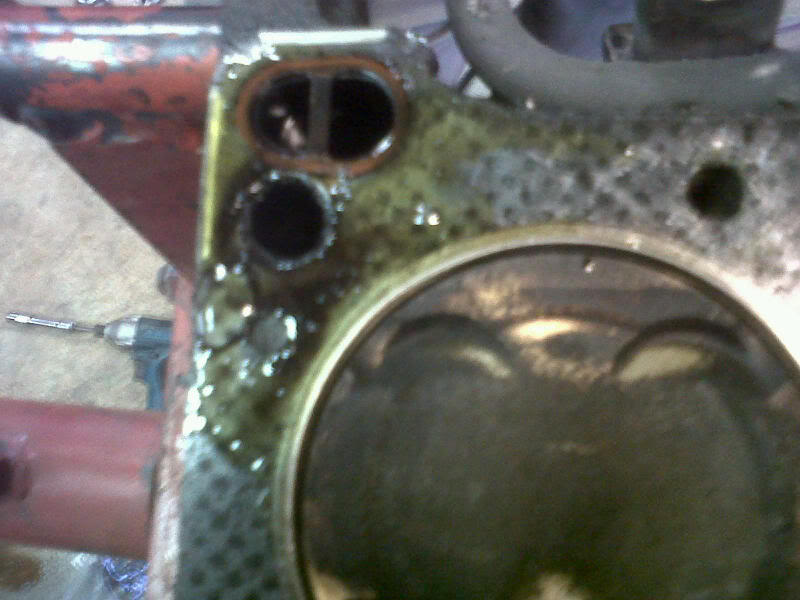

Oil drain leaks wonít do. Replaced this with a Cometic MLS head gasket.

Name:  IMG00024-20100426-1615.jpg
Views: 12
Size:  56.2 KB

Also pulled the pan off to do the oil pan seals and drill/tap for the oil return.

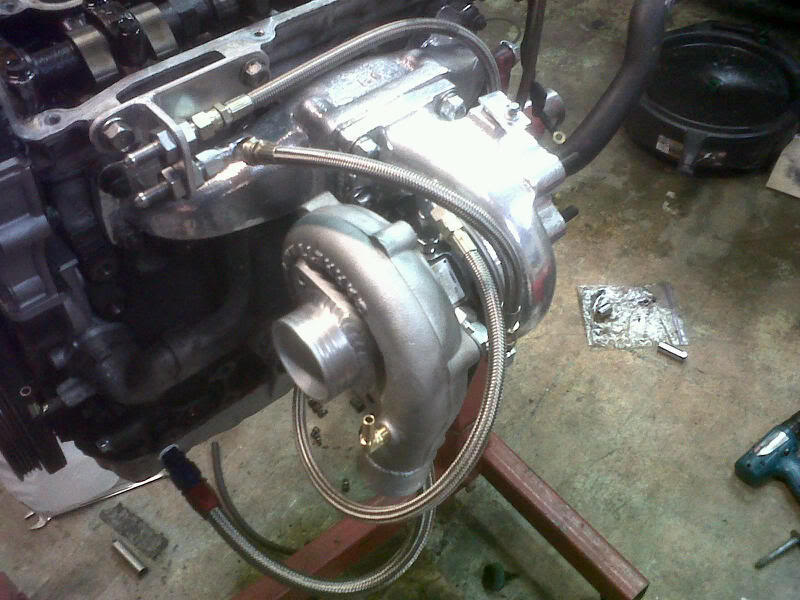

BEGi S2 kit going on.

Name:  IMG00026-20100429-2004.jpg
Views: 23
Size:  77.8 KB

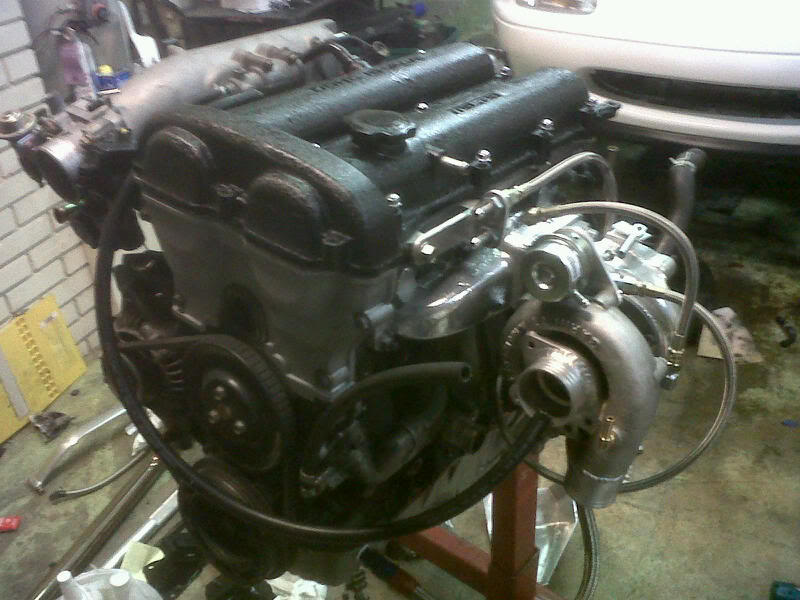

Going back into the car, all clean and tidy

Name:  IMG00029-20100429-2350.jpg
Views: 10
Size:  71.7 KB

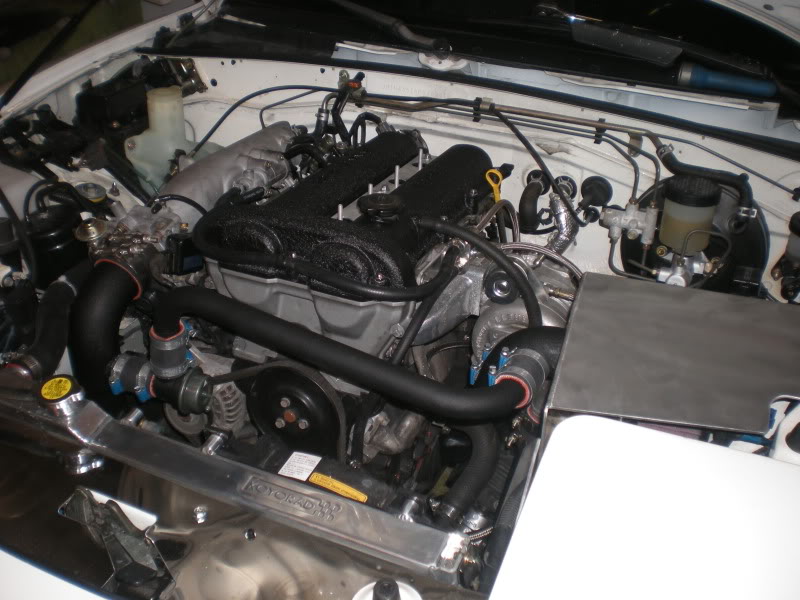

Just about done now. Nothing really outrageous, but that's the point of this build - a solid, exceptionally usable 225whp.

Name:  DSCN1905.jpg
Views: 26
Size:  123.7 KB

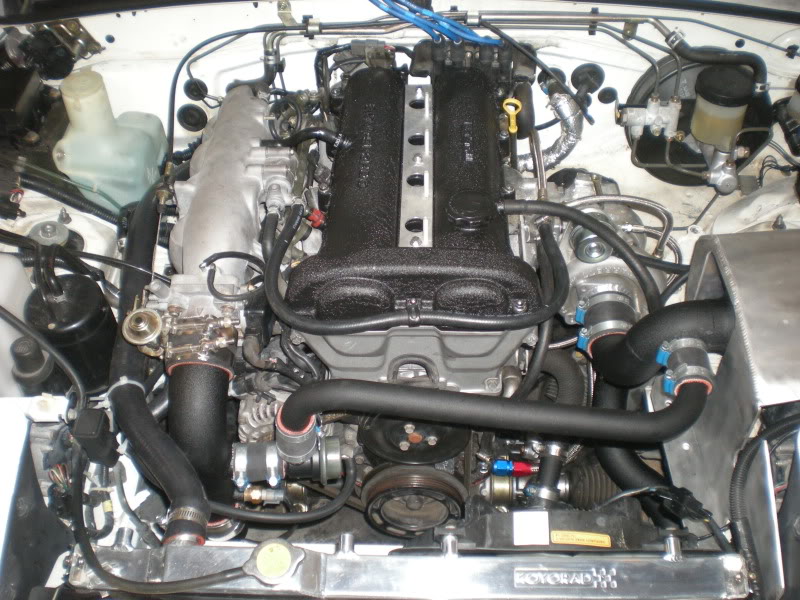

Name:  DSCN1908.jpg
Views: 70
Size:  156.9 KB

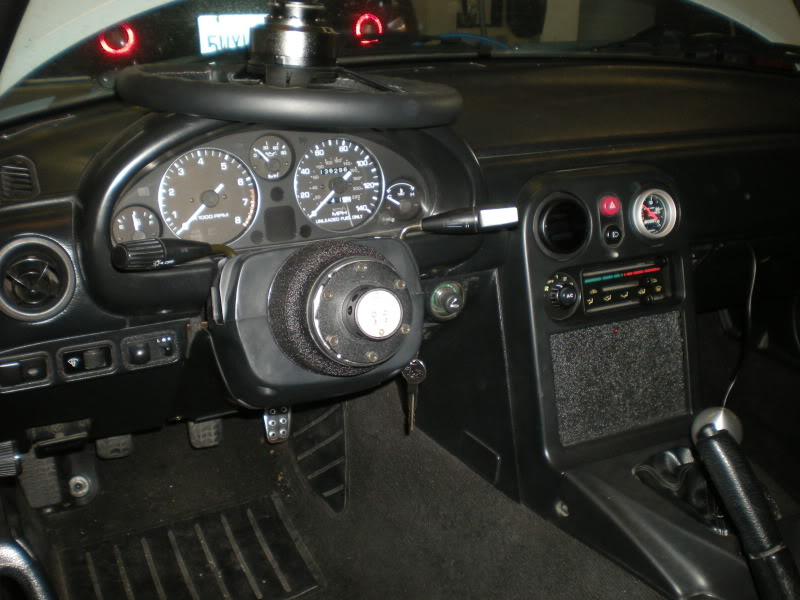

Name:  DSCN1909.jpg
Views: 10
Size:  113.5 KB

We did the MLS head gasket, the BEGi S2 install, M-Tuned coolant reroute, a set of Trackspeed COPs, R&Red the transmission seals, and installed a 3.909 Torsen LSD as well. Should make an excellent track toy and all around usable machine. Iíll let the proud owner introduce himself.
Savington is offline   Reply With Quote
Old 05-12-2010, 09:21 PM   #2
Senior Member
iTrader: (1)

Join Date: Apr 2010
Location: Portales, NM
Posts: 837
Total Cats: 2
Default

jbrown7815 is offline   Reply With Quote
Old 05-12-2010, 09:22 PM   #3
Want fries with that?
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

Those're some funky oil lines, got me intrigued. More pics/info on the oil setup?
rider384 is offline   Reply With Quote
Old 05-12-2010, 09:25 PM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

/\ +1

Nice job Sav. Looks like you guys are starting to pick up. Congrats
18psi is offline   Reply With Quote
Old 05-12-2010, 10:42 PM   #5
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Looks like fun, any plans for the interior or is the owner keeping it street friendly? And are you sure about that wrinkle valve cover paint? Mine looked great until after it's first track day when it started flaking like crazy. Another year of that and I finally stripped it bare, much easier to maintain.
curly is offline   Reply With Quote
Old 05-12-2010, 10:48 PM   #6
Junior Member
iTrader: (2)

Join Date: Dec 2006
Posts: 110
Total Cats: 0
Default

i think your confused with water lines.


also ,looks good andrew
urban is offline   Reply With Quote
Old 05-12-2010, 10:48 PM   #7
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

Quote:
Originally Posted by rider384 View Post
Those're some funky oil lines, got me intrigued. More pics/info on the oil setup?
Oil feed and return are pretty standard. Maybe the coolant lines is what you are referring to? They come up to a bracket that mount to the head and turn to rubber lines there, idea is to keep the bare rubber away from the heat of the turbo. That is just as it comes in the Begi kit.
crashnscar is offline   Reply With Quote
Old 05-12-2010, 11:02 PM   #8
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,331
Default

Quote:
Originally Posted by curly View Post
Looks like fun, any plans for the interior or is the owner keeping it street friendly? And are you sure about that wrinkle valve cover paint? Mine looked great until after it's first track day when it started flaking like crazy. Another year of that and I finally stripped it bare, much easier to maintain.
I did my '94 cover a long, long time ago and it still looks decent, even after being bounced around the garage a bunch.

Not sure what Jason has planned for the interior, it has a seat/harness on the driver's side so it may be nothing. It's an excellent blend of comfort and track prowess as is.
Savington is offline   Reply With Quote
Old 05-12-2010, 11:09 PM   #9
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

I must of had crappy paint or prep, did look damn fine for the first couple weeks, yours and his looks sweet.

I almost wish I left the carpet in for street comfort. It's on the track uncompetatively for 1-4 days a year, I think now I'd sacrifice the 1 second a lap difference for the comfort and quietness. Made a lot more sense when the car had 90hp.
curly is offline   Reply With Quote
Old 05-12-2010, 11:18 PM   #10
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Quote:
Originally Posted by curly View Post
I must of had crappy paint or prep, did look damn fine for the first couple weeks, yours and his looks sweet.

I almost wish I left the carpet in for street comfort. It's on the track uncompetatively for 1-4 days a year, I think now I'd sacrifice the 1 second a lap difference for the comfort and quietness. Made a lot more sense when the car had 90hp.
What about spray on truck bed liner. Not sure how the weight would compare to carpet, but it should do something at least for noise, maybe also some heat reduction.

Car looks great Sav. Really making me feel the turbo bug again. Really considering finding a junkyard/used engine and start rebuilding it in my spare time (with actual upgraded parts this time) for a future turbo build. At least moving to Seattle, I won't have to worry about a/c anymore, so it can come out.
NA6C-Guy is offline   Reply With Quote
Old 05-12-2010, 11:19 PM   #11
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

Progress is good. Waiting for that V8 build for sure.
turotufas is offline   Reply With Quote
Old 05-13-2010, 01:57 AM   #12
Senior Member
iTrader: (18)

Join Date: May 2008
Location: Big Bear Ca
Posts: 990
Total Cats: 8
Default

Do you guys work out of Mountain View or SLO? Or both?
dstn2bdoa is offline   Reply With Quote
Old 05-13-2010, 01:58 AM   #13
Senior Member
iTrader: (18)

Join Date: May 2008
Location: Big Bear Ca
Posts: 990
Total Cats: 8
Default

Oh, very nice BTW.
dstn2bdoa is offline   Reply With Quote
Old 05-13-2010, 04:15 AM   #14
Newb

Join Date: Mar 2009
Location: Oakland, CA
Posts: 13
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
Iíll let the proud owner introduce himself.
I just took care of that. My intro thread is here:

https://www.miataturbo.net/showthrea...077#post572077

- Jason
jballance is offline   Reply With Quote
Old 05-13-2010, 01:22 PM   #15
Newb

Join Date: Mar 2009
Location: Oakland, CA
Posts: 13
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
Not sure what Jason has planned for the interior, it has a seat/harness on the driver's side so it may be nothing.
The only other interior mod I have planned is to add a seat and harness for the passenger. I may eventually add door bars but I haven't quite made up my mind on that.

-Jason
jballance is offline   Reply With Quote
Old 05-13-2010, 04:31 PM   #16
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

is that oil leak common?

My 92 is leaking from somewhere back there and i didnt think the head gasket could be my issue.
shlammed is offline   Reply With Quote
Old 05-13-2010, 04:46 PM   #17
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Looks very nice. Now come build mine
Oscar is offline   Reply With Quote
