Old 11-03-2013, 06:18 PM   #61
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

cranking angle, CAS setting, etc, all are to be adjusted once it's idling on 4 cylinders. I wouldn't bother chasing those kinds of issues until then.

Try swapping coil plugs to make sure you can transfer the problem from 1&3 to 2&4.

What's your "codebase and outputs function" menu look like under "basic settings"?
curly is offline   Reply With Quote
Old 11-03-2013, 08:10 PM   #62
Junior Member
Thread Starter
iTrader: (3)

Join Date: Oct 2011
Posts: 87
Total Cats: 9
Default

*Update: I'm now getting spark on all 4. But 2/4 sparks bright white at first but subsequent sparks dim to like a yellow. 1/3 sparks are consistently bright white.

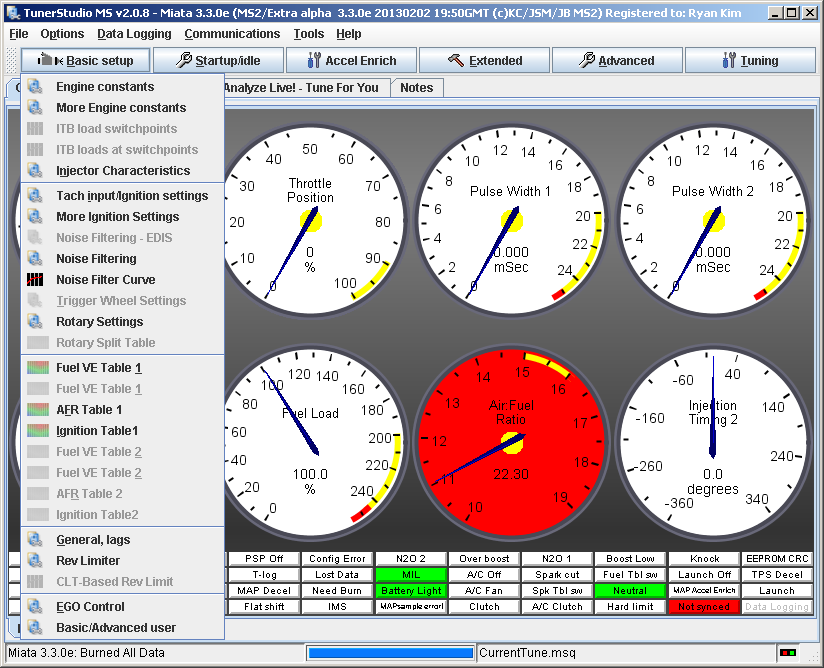

curly, check out the screenshot for basic setup, i looked around in all the menu's and can't seem to find your codebase and outputs function menu?

Attached Thumbnails
Churboner Build (not really...)-basic_zps4b706368.png
rkim is offline   Reply With Quote
Old 11-03-2013, 09:36 PM   #63
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Well **** you and your MS2.

No idea but if you're getting any spark from the other coils, it wasn't the far fetched setting I was thinking.
curly is offline   Reply With Quote
Old 11-03-2013, 10:19 PM   #64
Junior Member
Thread Starter
iTrader: (3)

Join Date: Oct 2011
Posts: 87
Total Cats: 9
Default

Haha yeah I realized after searching through manuals that you were referring to ms1 menu. Thanks for the help though, appreciate it.

Anyway, stupid noob mistake #1. Engine ground harness to body on rear driver side wasn't hooked up. It almost started up after I attached it but it was during cranking with like 40% throttle.

Still at a lose but painfully a little step closer.
rkim is offline   Reply With Quote
Old 11-04-2013, 12:56 AM   #65
Junior Member
Thread Starter
iTrader: (3)

Join Date: Oct 2011
Posts: 87
Total Cats: 9
Default

Will try to get some logs tomorrow after work, have a 2nd person cranking so I can actually confirm and set base timing also.

Just a thought but is there a chance I could be having starting issues because it's basically like 5*C outside already? Tonight overnight temps are basically in the -ves. I can also post cranking & priming PW curves though I'm not so sure at this moment how I should adjust.
rkim is offline   Reply With Quote
Old 11-05-2013, 12:32 AM   #66
Junior Member
Thread Starter
iTrader: (3)

Join Date: Oct 2011
Posts: 87
Total Cats: 9
Default

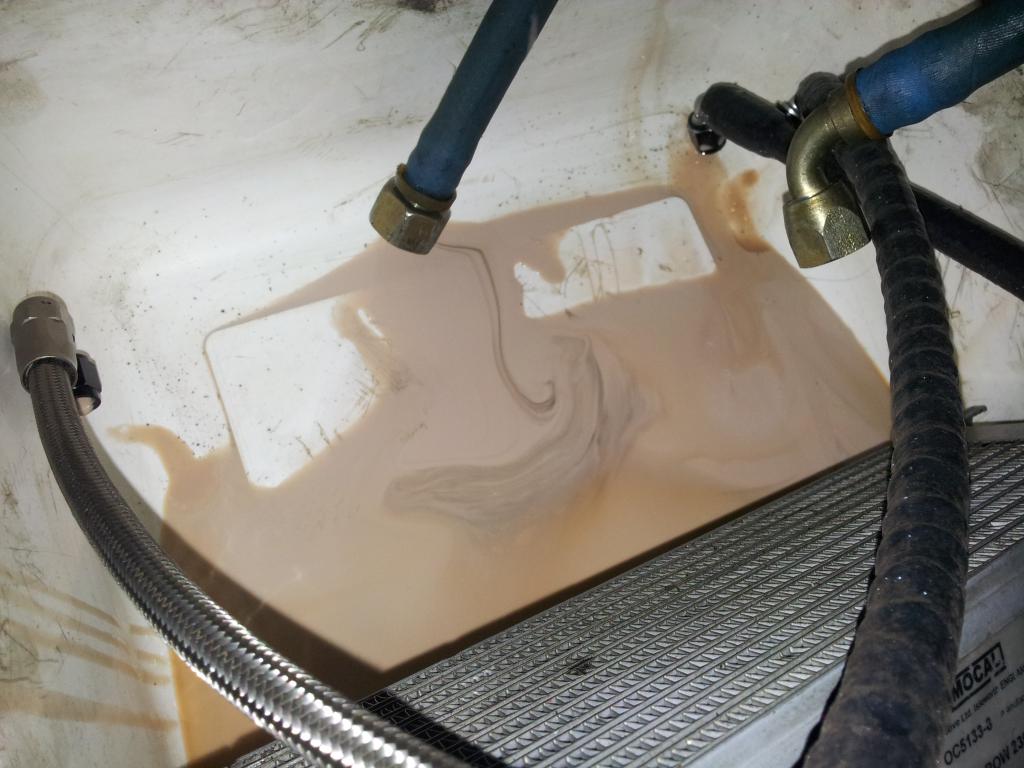

Ok so got it up and running. Hilarious story ahead and I'll never forgive myself for this one but basically at the end, I find out my coolant and oil feeds are swapped and I guess I'll have to measure and see just how much coolant drained back into the pan. Still draining.



So for all the other details:
- Checked for spark again and it was still weird to see the spark dim after 1 or more events
- CAS timing at cold I could only max out and get ~6* advanced but will re-check once warmed up
- IAT cal seemed to be off even after I used a couple of settings but coolant temp made sense
- I can get cranking rpms ~240
- Engine basically needs ~70-80% TP input to get it started and keep it going
- It dies otherwise and even after adjusting skunk2 TB idle screw and even opening up the stop more, it couldn't hold idle
- During some idling, picked up on a coolant leak from the turbo drain!? Then I looked back at the block and realized feeds were swapped! LOL FUUUUuuu
- Pretty sure it happened when I redid the 2 lines and didn't re-check that...SMH. Time to look for oil sales and start flushing unless you guys know of a good bang for the buck additive to pick up too?
Attached Thumbnails
Churboner Build (not really...)-20131104_224538_zps64ee070c.jpg
rkim is offline   Reply With Quote
Old 11-05-2013, 01:30 AM   #67
Junior Member
Thread Starter
iTrader: (3)

Join Date: Oct 2011
Posts: 87
Total Cats: 9
Default

- will flush out and add some diesel fuel, pray to god bearings are ok, and get back to dial in enrichments.

- stay tuned. will get video eventually once this is sorted out but have to travel for work for a bit so i'll plan to report back in early dec
rkim is offline   Reply With Quote
Old 11-05-2013, 01:34 AM   #68
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

Holy crap dude. Hopefully didn't mess anything up too much.

Way to not give up though.
turbofan is offline   Reply With Quote
Old 11-05-2013, 12:19 PM   #69
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

This would be a good time to change the diameter and/or fitting type/sex on the oil and coolant lines so you will never, ever do something like that again.
hornetball is offline   Reply With Quote
Old 11-05-2013, 01:16 PM   #70
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

color code them.

makes sense when a black fitting is on a red fitting.
shlammed is offline   Reply With Quote
Old 11-07-2013, 12:48 AM   #71
Junior Member
Thread Starter
iTrader: (3)

Join Date: Oct 2011
Posts: 87
Total Cats: 9
Default

Situation contained for now after 6 oil changes. Still not 100% but I have hopes it'll come out eventually. Going to pull the valve cover after my trip and manually clean out all the baffles.

In hindsight, I'm with hornetball, should've fail safe'd the fittings by using a male and female on the block. Anyway, colour for now and I'm sure this experience is enough for it not to happen again.

Tweaked prime and crank pw's and it starts up much better now btw. Was running too rich.
rkim is offline   Reply With Quote
Old 11-07-2013, 09:54 AM   #72
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

What was the issue with the spark intensity after the first spark event?

Sending u a pm on facebooks.
shlammed is offline   Reply With Quote
Old 11-08-2013, 12:07 AM   #73
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Stumbled on this randomly. Awesome build! Where are you now, Ottawa? And what are you doing for etesting?
dgmorr is offline   Reply With Quote
Old 11-08-2013, 09:59 AM   #74
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Hes on your side of the province.

PS, nice to see your still alive. Still have the Miata?
shlammed is offline   Reply With Quote
Old 11-08-2013, 10:46 AM   #75
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Yeah, but it hasn't been touched all year. I moved earlier this year and it has been sitting since. I was trying to sell it, but I think I may just get back into it.
dgmorr is offline   Reply With Quote
Old 11-08-2013, 08:51 PM   #76
Junior Member
Thread Starter
iTrader: (3)

Join Date: Oct 2011
Posts: 87
Total Cats: 9
Default

Don't sell it! Keep at it. Oh and yeah I haven't forgot about that inconel wire. Will have to get back to you over the winter. I'm still in Waterloo btw.

Matt, I never looked into the spark difference (at least not yet). I wasn't 100% sure about ground consistency also so I moved on for now and got it started. If I have an ignition problem I'll keep it in mind but there's bigger fish to fry right now...
rkim is offline   Reply With Quote
Old 11-08-2013, 08:52 PM   #77
Junior Member
Thread Starter
iTrader: (3)

Join Date: Oct 2011
Posts: 87
Total Cats: 9
Default

Oh and for etesting...I got the sticker renewed this summer so I have 2 more years on it. So I guess Jul '15 is my deadline to figure something out for that lol. Maybe it'll be on a trailer at that point. We'll see.
rkim is offline   Reply With Quote
Old 11-14-2013, 12:39 AM   #78
Junior Member
Thread Starter
iTrader: (3)

Join Date: Oct 2011
Posts: 87
Total Cats: 9
Default

Started her up again. So yeah not really the first start but the beginning to a long road ahead all winter...

Definitely not running right still. Realized my grounds are janky. Then I started reading about analog grounds and now decided to pull apart and delete/redo parts of the main engine harness so I can directly ground sensors to the MS.

Will continue on in a couple of weeks with some more flushes and getting the idle right. But for now here's a little (weak) video:

rkim is offline   Reply With Quote
Old 11-14-2013, 10:40 AM   #79
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

DUDE, that oil/coolant swap hurts me inside. Glad to see it running (kinda) for now, hopefully with no knocking anytime soon.
Fireindc is offline   Reply With Quote
Old 06-06-2015, 02:19 AM   #80
Junior Member

Join Date: Dec 2013
Location: Ontario, Canada
Posts: 110
Total Cats: 0
Default

Hey Ryan its Sinisa from Guelph, came by last year for the door sills. Just came across this thread and thought it looked familiar. Any chance you still have the waste gate actuator from your turbo. I need a new one.
cruisin is offline   Reply With Quote
