Old 05-13-2013, 12:38 AM   #21
Junior Member
Thread Starter
iTrader: (3)

Join Date: Oct 2011
Posts: 87
Total Cats: 9
Default

^Thanks Ed. Patience is running out though!

So I'm alive...Just been super busy with work. Got sent to Japan for a bit and had some time on weekends to do some car spotting and also checked out the Ferrari Asia event @ Suzuka.

Build momentum has picked up again:

- All plumbing ordered (thanks to Hustler's Mocal preaching, I went with them in the end. Great customer service!)
- Piston ring filer on its way
- Painting almost done
- Oil cooler kit rec'd
- LS coils are rec'd
- MS2 enhanced rec'd
- I've started to machine all Bungs/adapters/misc pieces for welding
***Pics to come later this week.

But for now, here's a few pics for you guys from the trip:




^Good **** time snack we found at a store - didn't try. Maybe next time...


^Got hooked on ramen




^Was on top tokyo tower and spotted this interesting looking lot


^Turns out it was a Japan Ferrari club meet or something. Too bad owners weren't around





[img]https://fbcdn-sphotos-f-a.akamaihd.net/hphotos-ak-prn1/71465_10151598303546070_1681485427_n.jpg/[img]
^Never seen this before. Gave off a sort of bosozuku kind of feel












^Raw horse anyone? (ba sashi)


^Spotted this in Nagoya. Super clean. Coincidentally owner came out and we talked a bit. Didn't even know about these special edition M2 Corp built versions!


^that is all stock. Owner only changed headers and wheel/tire setup

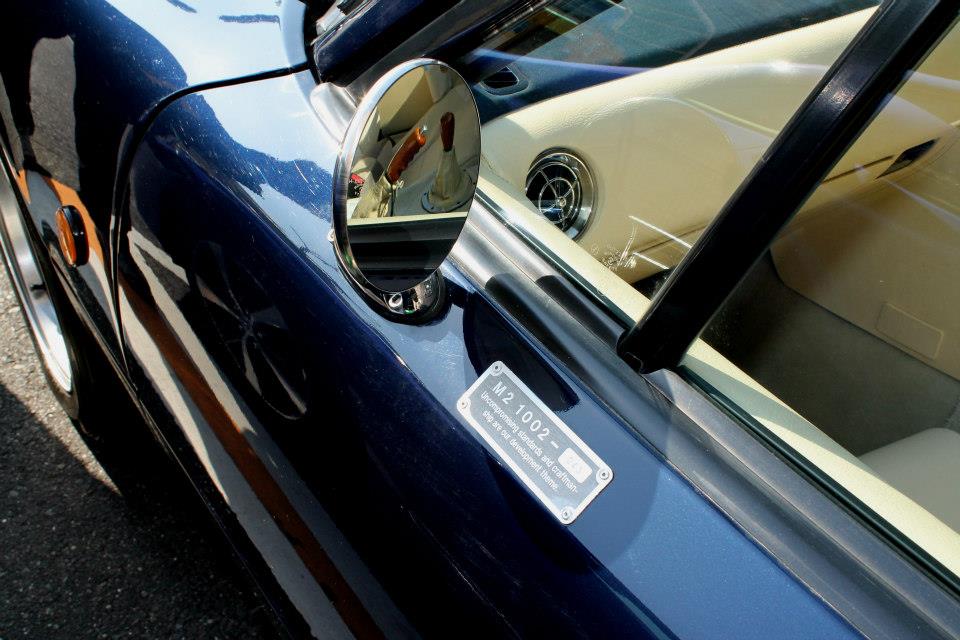

^"M2-1002 Uncompromising standards and craftsmanship are our development theme"

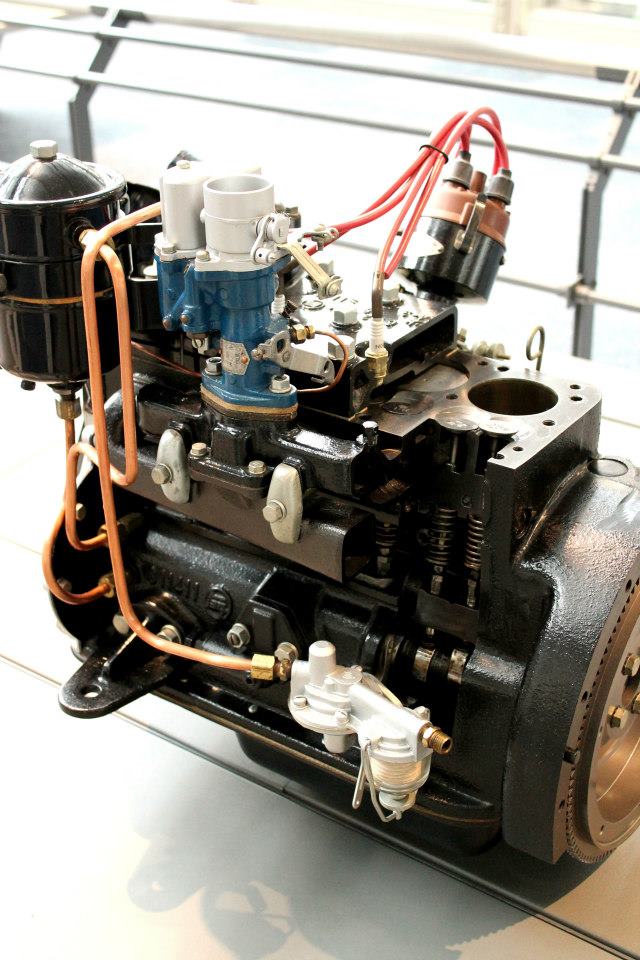

^Never seen a flathead before. This was part of the engine line up in Toyota's Tech Museum

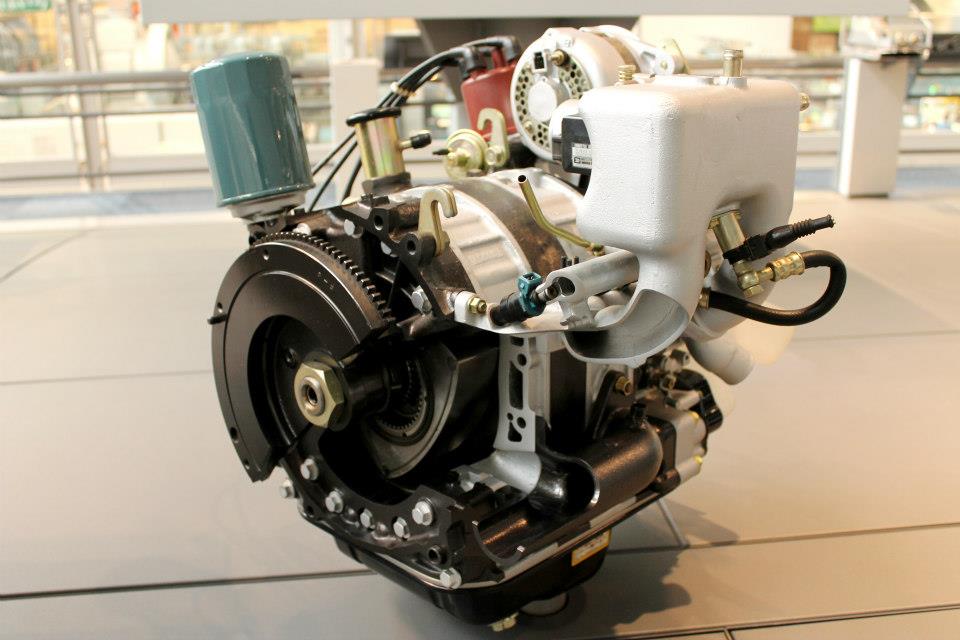

^Ditched Toyota rotary motor back from 1971


^Nice Seven in a used car dealer


^Autobacs service bays


^This was in the Autobacs store




^9.5k redline!


^Cruised down to Suzuka in a friend's ride. Would've taken so much longer by train. You can find much better pics than mine from Dino on Speedhunters. Didn't realize until after they were at this even too.


^Session for owners was running when we got there


^Main paddock area








^Believe it or not, even a riced out one! To each his own though...




^Sat on its own in far corner of the lot




^Around the corner from the main paddock area (aka heaven)

































Attached Thumbnails
Churboner Build (not really...)-394159_10151598296621070_1642084259_n.jpg   Churboner Build (not really...)-399829_10151598300721070_1297789424_n.jpg   Churboner Build (not really...)-408593_10151598297111070_1489069985_n.jpg   Churboner Build (not really...)-298069_10151598302111070_1430895029_n.jpg   Churboner Build (not really...)-935213_10151598302766070_536629932_n.jpg

Churboner Build (not really...)-733975_10151598303281070_1324798896_n.jpg   Churboner Build (not really...)-12344_10151598303571070_1608870787_n.jpg   Churboner Build (not really...)-936395_10151598303991070_346200330_n.jpg   Churboner Build (not really...)-601762_10151598303401070_291991135_n.jpg   Churboner Build (not really...)-934712_10151598303346070_247813482_n.jpg

Churboner Build (not really...)-424398_10151598303646070_1954716451_n.jpg   Churboner Build (not really...)-485610_10151598304156070_1006229820_n.jpg   Churboner Build (not really...)-379827_10151598304251070_1006542965_n.jpg   Churboner Build (not really...)-524744_10151598298061070_805711106_n.jpg   Churboner Build (not really...)-554859_10151598304601070_1960005512_n.jpg

Churboner Build (not really...)-935395_10151598304646070_1259066789_n.jpg   Churboner Build (not really...)-317384_10151598304696070_1238429575_n.jpg   Churboner Build (not really...)-575602_10151598299151070_641499571_n.jpg   Churboner Build (not really...)-922734_10151598306556070_760616433_n.jpg   Churboner Build (not really...)-301944_10151598307521070_244906046_n.jpg

Churboner Build (not really...)-298047_10151598299516070_1423905712_n.jpg   Churboner Build (not really...)-392424_10151598299921070_649374646_n.jpg   Churboner Build (not really...)-601678_10151598300001070_1320118294_n.jpg   Churboner Build (not really...)-936337_10151598300031070_1349133700_n.jpg   Churboner Build (not really...)-15233_10151598299971070_207678525_n.jpg

Churboner Build (not really...)-935385_10151602881391070_209695131_n.jpg   Churboner Build (not really...)-936912_10151602881871070_2090806531_n.jpg   Churboner Build (not really...)-264487_10151602880641070_270162397_n.jpg   Churboner Build (not really...)-936874_10151602883691070_1551321781_n.jpg   Churboner Build (not really...)-923373_10151602883096070_766460210_n.jpg

Churboner Build (not really...)-528328_10151602884901070_913508908_n.jpg   Churboner Build (not really...)-303434_10151602883596070_494795458_n.jpg   Churboner Build (not really...)-478121_10151590827381070_449457846_o.jpg   Churboner Build (not really...)-923305_10151602892151070_1848171787_n.jpg   Churboner Build (not really...)-903910_10151590822121070_858151905_o.jpg

Churboner Build (not really...)-941482_10151602891331070_884426923_n.jpg   Churboner Build (not really...)-943470_10151602885521070_632041128_n.jpg   Churboner Build (not really...)-298132_10151602886151070_458649617_n.jpg   Churboner Build (not really...)-215257_10151602887816070_474345821_n.jpg   Churboner Build (not really...)-253293_10151602888336070_1692074803_n.jpg

Churboner Build (not really...)-942137_10151602890181070_1107264482_n.jpg   Churboner Build (not really...)-943509_10151602886456070_1887848520_n.jpg   Churboner Build (not really...)-935749_10151602891816070_1322551353_n.jpg   Churboner Build (not really...)-428679_10151602888416070_881127232_n.jpg   Churboner Build (not really...)-901641_10151590824106070_172856842_o.jpg

Churboner Build (not really...)-197734_10151602891096070_806476505_n.jpg   Churboner Build (not really...)-397944_10151602890776070_1087953853_n.jpg   Churboner Build (not really...)-21233_10151602890451070_581661702_n.jpg   Churboner Build (not really...)-920848_10151590825131070_1123017909_o.jpg   Churboner Build (not really...)-644648_10151602889296070_1582099336_n.jpg

Churboner Build (not really...)-577675_10151602888581070_1886860326_n.jpg   Churboner Build (not really...)-922822_10151602889486070_1026974088_n.jpg   Churboner Build (not really...)-944685_10151602880071070_288399767_n.jpg
rkim is offline   Reply With Quote
Old 05-13-2013, 02:25 AM   #22
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Well I wasn't planning on fapping tonight...
thenuge26 is offline   Reply With Quote
Old 05-13-2013, 12:13 PM   #23
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

ITT: car ****. Seriously awesome build and great pictures to spice things up. Subbed.
Fireindc is offline   Reply With Quote
Old 05-13-2013, 01:17 PM   #24
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

Quote:
Originally Posted by rkim View Post


^"M2-1002 Uncompromising standards and craftsmanship are our development theme"
what you meant was:

"Uncompromising standards and craftsman-
ship are our development theme"
Braineack is offline   Reply With Quote
Old 05-14-2013, 11:47 PM   #25
Junior Member
Thread Starter
iTrader: (3)

Join Date: Oct 2011
Posts: 87
Total Cats: 9
Default

:P What I meant was:
M2 1002 - 043
Uncompromising standards and craftsman-
ship are our development theme

Ok so a quick paint pic update, followed by my Mocal order as reference for anyone wanting plumbing details.

Went with cummins beige for the block (can cap colour wasn't reliable but thankfully it didn't turn out too pale), cast iron for pumps, and still have to finish off head in cast iron too and send out VC (after bung welding / coil mounting fab) for hydrographics:



So for the lower water neck, what I'm going to move ahead with is as follows:

- Use stock HC return pipe but grind off o-ring seat beads, lathe up right sized register on backside of -10AN bung and weld it on for a push on hose connector

- Completely grind off lower water neck port for stock pipe mating section and block it off with some flat bar

- Grind off stock oil cooler water port, fab up 1" tube to mate to neck bend by flange and machine tube ID to mate with -10AN weld on bung register. Install another push on hose connector and run a slight 'S' in the hose to mate up to stock HC return pipe

EWG cooling:
-> -4 feed from block
-> -4 return back into side of water neck (convenient flat available to tap)

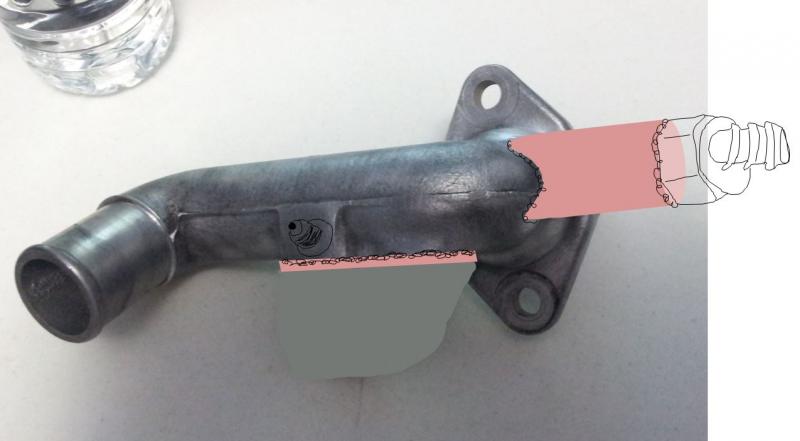

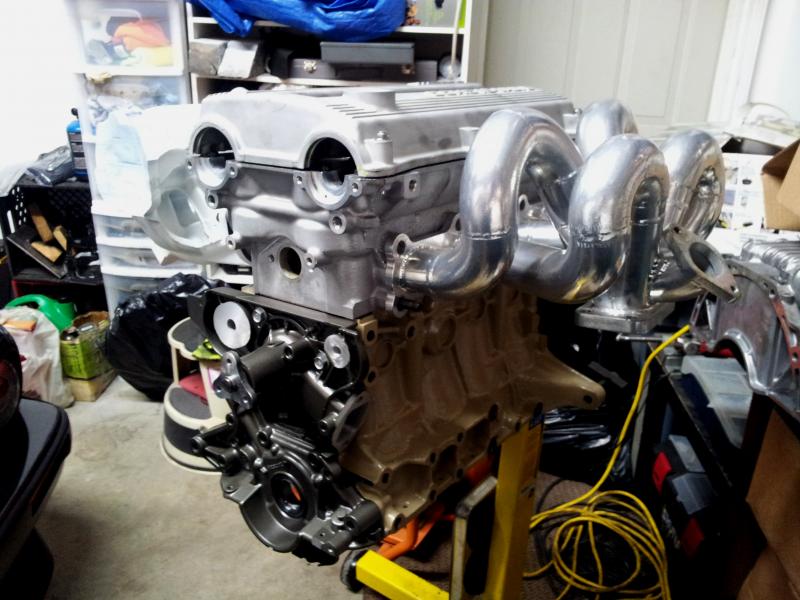

In the end, water neck will look something like this:

Attached Thumbnails
Churboner Build (not really...)-20130514_214250_zps081daf9b.jpg   Churboner Build (not really...)-diagram_zps6f9e397e.jpg
rkim is offline   Reply With Quote
Old 05-15-2013, 12:10 AM   #26
Junior Member
Thread Starter
iTrader: (3)

Join Date: Oct 2011
Posts: 87
Total Cats: 9
Default

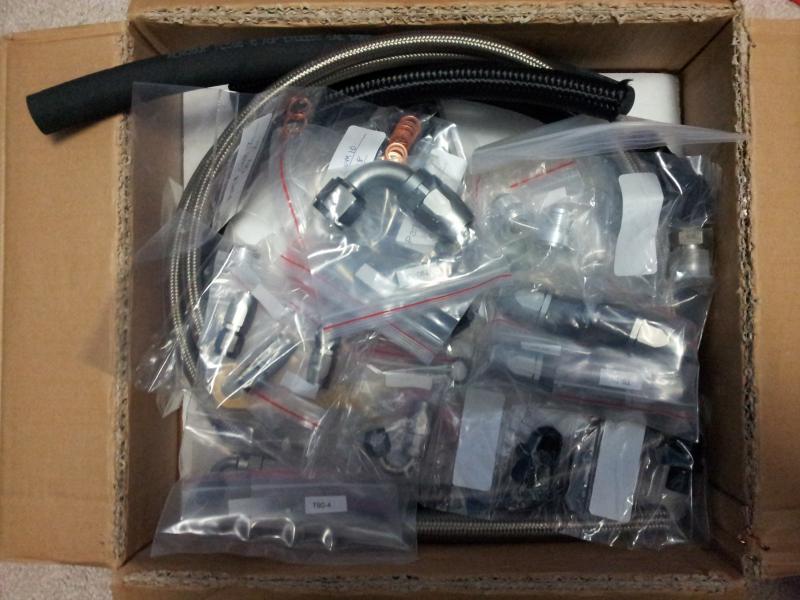

Mocal order came in today. Awesome quality. Looking forward to the bling.



And for those interested in a similar setup, I've attached my order summary, which outlines every piece in sequence for each line, as well as an order sum total at the bottom of the txt.

Now time to start filing some rings and start short block assy! Will try to finish up machining by early next week and report back soon.
Attached Thumbnails
Churboner Build (not really...)-20130514_230218_zps4486c62d.jpg
Attached Files
File Type: txt Mocal Order.txt (2.8 KB, 203 views)
rkim is offline   Reply With Quote
Old 05-15-2013, 01:44 PM   #27
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,069
Total Cats: 253
Default

Built motor. Baller manifold. Shitty turbo? Come on, man.
viperormiata is offline   Reply With Quote
Old 05-15-2013, 02:23 PM   #28
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

You can run a shitty churbo on the track.

You can't run a shitty motor or manifold on the track.
thenuge26 is offline   Reply With Quote
Old 05-22-2013, 12:36 AM   #29
Junior Member
Thread Starter
iTrader: (3)

Join Date: Oct 2011
Posts: 87
Total Cats: 9
Default

^What Steve said. Hope to upgrade turbo down the road when/if I feel like it. For now, churbo shall do. Seen enough evidence here to convince me it'll be reliable enough in the short term.

Quick update:

Ran into some hurdles over the weekend. Went into paranoid mode again and decided to wait and find/rent a bolt stretch gauge for the rods. Hope to assemble short block by this weekend (time running out). Worst case I'll rig up some end pieces and mic it. Oh and I'm waiting to get some more ARP lube.

On the plus side...

- Rings have been gapped. Went 0.020 top, 0.025 bottom (wanted 24 but 2 were already at 25)
- Oil pan bung machined (milled in a 30 deg angle)
- Oil pan temp sensor bung plate machined
- Coolant spacer machined (just need to get tstat, oring, and barbs...more on this later)

- Block was on hold so decided to do some footwork and get coils in and attach lip. Fuuuu the RR driver side shock bolt appears to have stripped and stuck in the arm now (basically happened as I cracked it loose). It was pretty rusty to begin with. Sucks since it was the last corner to be done. Also, WTFBBQ someone clearly rounded the driver side top hat nuts for the shock. Luckily bolt extractor came through. So yeah, waiting on another RR LH LCA...

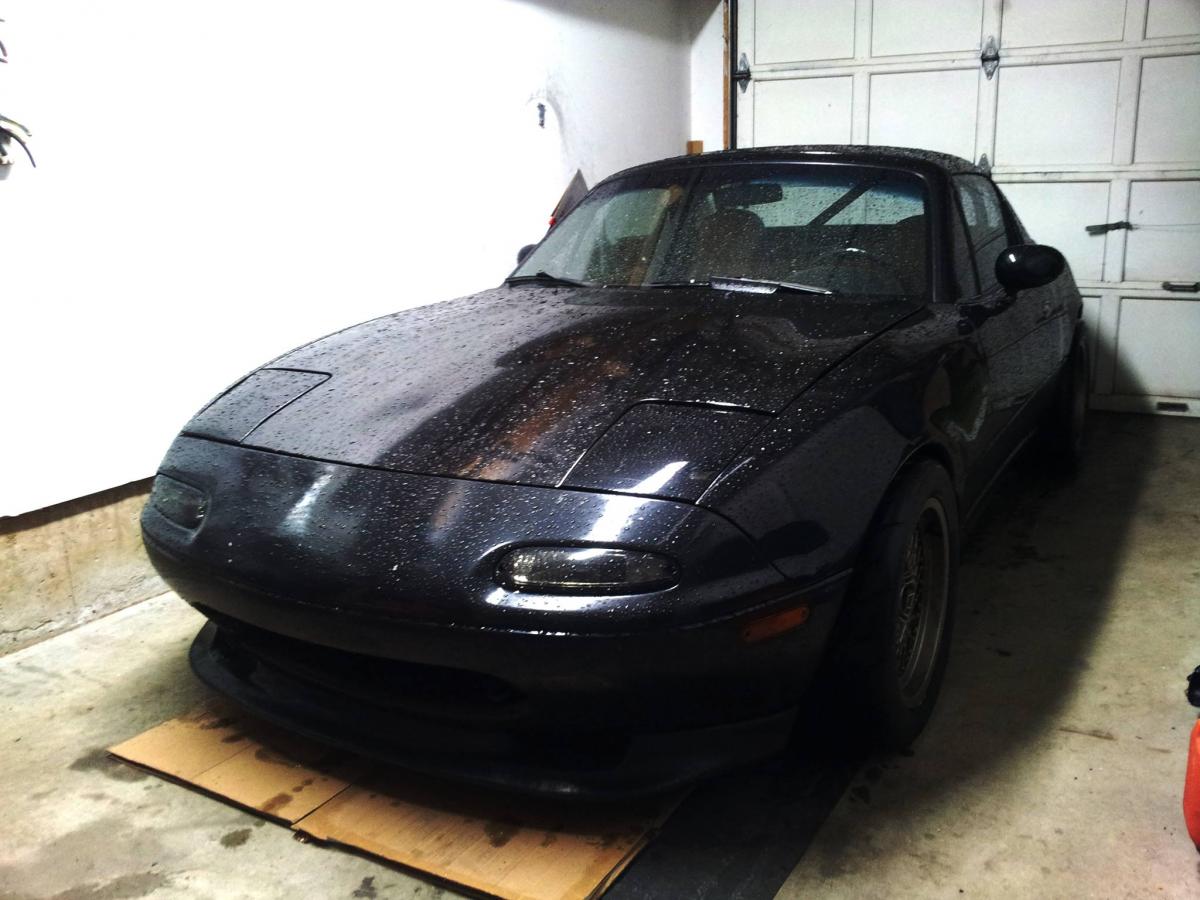

For now, this is how she sits. May need to lower a bit more and for sure pull fenders a bit. Buddy can hook me up with a roller so will plan for that near end of June-ish:

Attached Thumbnails
Churboner Build (not really...)-980209_10151637296351070_1523389476_o.jpg
rkim is offline   Reply With Quote
Old 07-04-2013, 12:46 AM   #30
Junior Member
Thread Starter
iTrader: (3)

Join Date: Oct 2011
Posts: 87
Total Cats: 9
Default

So this is becoming the slowest build everrrr...

But fear not, I have been working as much as I can, which means unfortunately I had to sacrifice updates. I have to go back to Japan for a bit but this time it's short and I get a week off afterwards so time to kick things into high gear!

Here's my next steps when I get back mid July:

- Tidy up long block, set timing
- Fab up LS coil assy bracket and order wiring
- Order seals/gasket for tranny
- Drive to Buffalo and pick up exhaust from Abe
- Hoist is acquired, fab up ghetto leveler or buy one at HF down in buffalo
- Pull motor, weld up steering for PS delete
- Throw in motor, mock up intercooler piping, swap everything else in

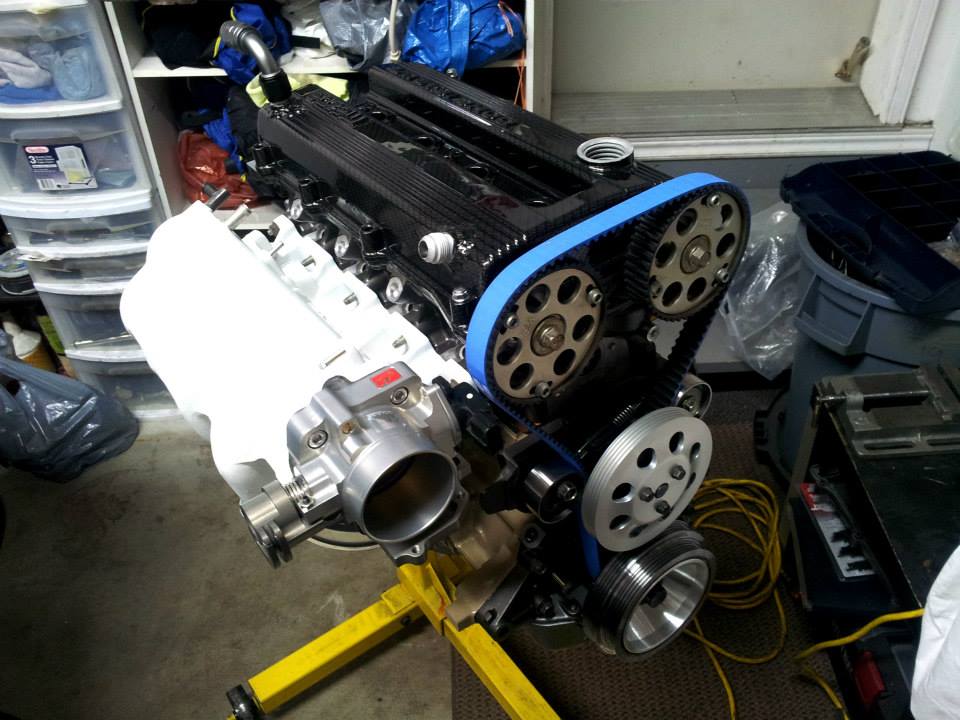

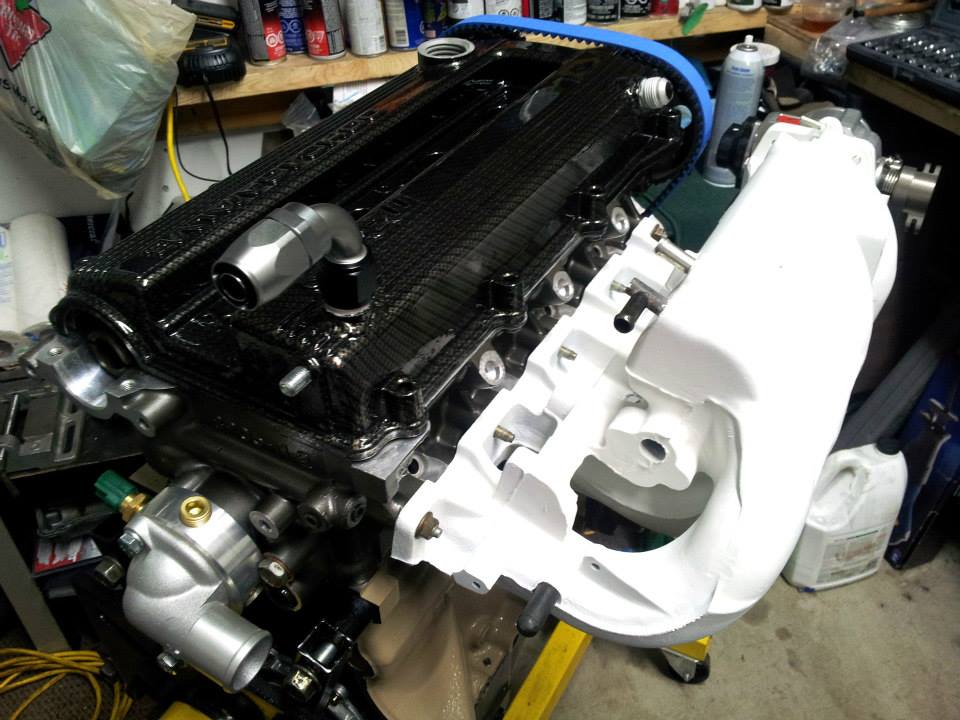

Here's an update of where I'm at right now basically. Almost there. I'll post a more detailed update when I get back in a couple of weeks:





Recently just got back from my Euro trip vacation. Will post some more later when I get more time:

















Attached Thumbnails
Churboner Build (not really...)-1000150_10151719166741070_482234297_n.jpg   Churboner Build (not really...)-1004051_10151719166696070_910814785_n.jpg   Churboner Build (not really...)-976862_10151671431806070_293266426_o.jpg   Churboner Build (not really...)-1044796_10151698370491070_1547546382_n.jpg   Churboner Build (not really...)-1045245_10151698373626070_939860367_n.jpg

Churboner Build (not really...)-994782_10151698375591070_1681037539_n.jpg   Churboner Build (not really...)-21349_10151711500131070_1043665918_n.jpg   Churboner Build (not really...)-1002444_10151711500811070_357528962_n.jpg   Churboner Build (not really...)-1009884_10151711501651070_891191470_n.jpg   Churboner Build (not really...)-1045065_10151711504376070_757175372_n.jpg

Churboner Build (not really...)-1044996_10151711499506070_1485413539_n.jpg
rkim is offline   Reply With Quote
Old 07-04-2013, 02:01 AM   #31
Junior Member

Join Date: Oct 2009
Location: Anderson, SC
Posts: 321
Total Cats: -2
Default

Great build going man. I wish I took as good pictures when building mine. Loving the museum pics! Props, keep them coming!
cowboys647 is offline   Reply With Quote
Old 07-04-2013, 02:44 AM   #32
Elite Member
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

Nice build and pics!
IcantDo55 is offline   Reply With Quote
Old 07-14-2013, 09:07 PM   #33
Junior Member
Thread Starter
iTrader: (3)

Join Date: Oct 2011
Posts: 87
Total Cats: 9
Default

Ok back again and this time I'm hoping someone can help confirm a few things for me. I referenced a lot of other threads and I believe everything looks to be ok but it'd be great to get some confirmation (because I'm a noob and paranoid like that).

1) Spark plug gap

- All measured @ 0.035". For LS coils and ~1 bar, I'm thinking this should be no problem?

2) Engine mount nut

- I'm used to keeping everything slack when dropping in the motor
- For the mount nut that hides behind the mount brackets that bolt to the engine, do you guys typically torque that down and have no issues with the body side studs dropping into place?
- Would you recommend leaving the bolts that hold bracket to block slightly loose and torque them down once I drop the motor in and get the other mount nut on from body side?

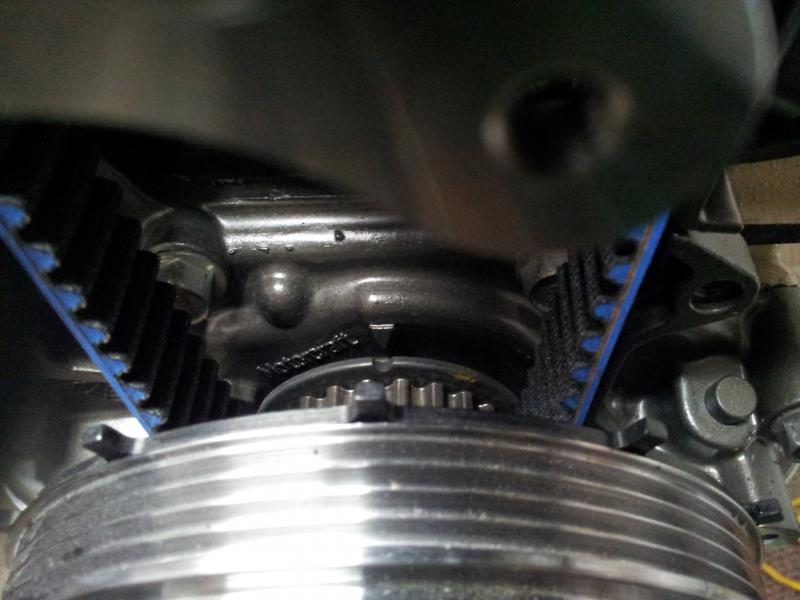

3) Timing (here we go again) - Would like to know if anyone sees anything weird?
- Initial setting below:

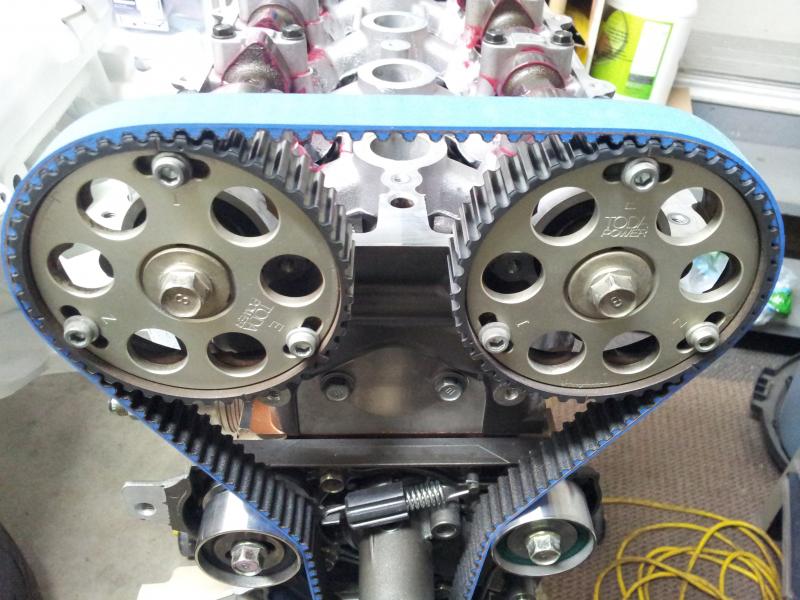

- Crank at TDC (also confirmed through spark plug #1 hole) -> check


- 19 teeth -> check

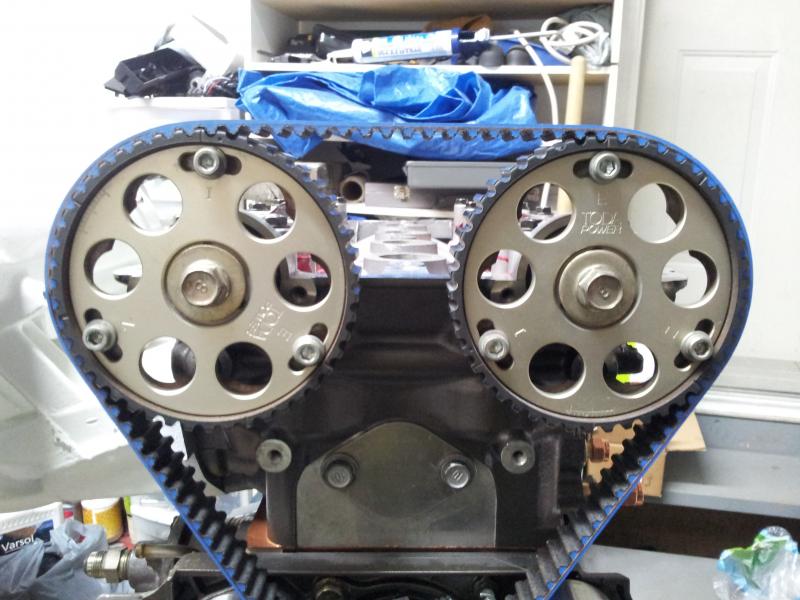

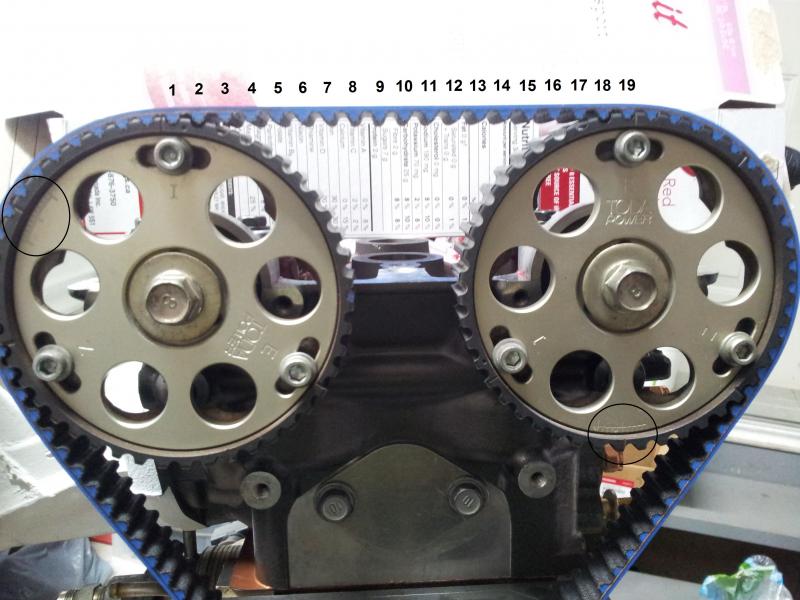

- Cam gear marks centered (circled areas) -> check (exhaust side may look off but it's just perspective)

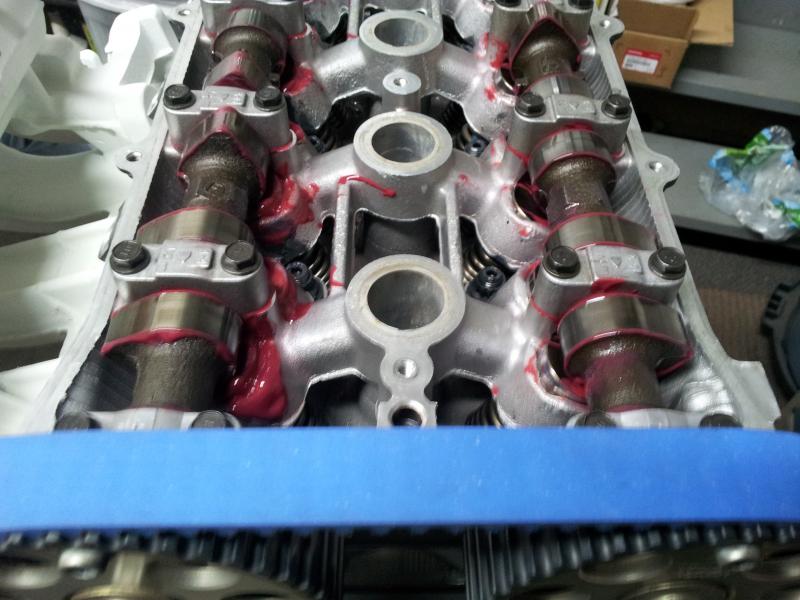

- After rotating crank at least 2 times:





Attached Thumbnails
Churboner Build (not really...)-20130714_181233_zps1543bd1d.jpg   Churboner Build (not really...)-20130714_181330_zps4dd41d9c.jpg   Churboner Build (not really...)-20130714_182008_zps7ce21f43.jpg   Churboner Build (not really...)-20130714_181954_zpsbe0f566e.jpg   Churboner Build (not really...)-20130714_182017_zpsb20dae0a.jpg

rkim is offline   Reply With Quote
Old 07-14-2013, 09:21 PM   #34
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

this thread got 200% more awesome since I last opened it.

couple notes:
-did I miss the part about why you're using a churbo when the rest of the setup is ultra baller?
-those trip pics are awesome
-that M2 miata is awesome
-shoulda tried the GST bro. you ALWAYS try that kinda stuff
18psi is offline   Reply With Quote
Old 07-14-2013, 10:01 PM   #35
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,662
Total Cats: 1,560
Default

Churbo is capable of 300+whp. Get over it everybody.
sixshooter is offline   Reply With Quote
Old 07-14-2013, 10:03 PM   #36
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

Quote:
Originally Posted by sixshooter View Post
Churbo is capable of 350+whp. Get over it everybody.
yeah...so?
I put down 3xx with one and just tuned Ryans car to 358 with one, doesn't mean it makes any sense whatsoever to run one with about 10k worth of baller parts making up the rest of the system

if the rest of the setup is cheap-o then I "get it", but OP's setup looks expensive
18psi is offline   Reply With Quote
Old 07-14-2013, 10:15 PM   #37
Junior Member
Thread Starter
iTrader: (3)

Join Date: Oct 2011
Posts: 87
Total Cats: 9
Default

Build is expensive no doubt but I did have some target for budget (which is now obviously over haha) so the plan was to cheap out on the turbo for now, play with ~240ish whp, and start saving up for something more legit down the road. I also didn't bother investing in piping/intercooler since the CXR stuff should be good enough too.

If this was maybe 3-5 years ago, I wouldn't bother considering going the churbo route but I've read enough about other people having some decent reliability out of these that I feel the built motor will be protected as long as I keep a close eye on the cold side of things.
rkim is offline   Reply With Quote
Old 07-14-2013, 10:17 PM   #38
Junior Member
Thread Starter
iTrader: (3)

Join Date: Oct 2011
Posts: 87
Total Cats: 9
Default

^^Actually, I forgot to add. Originally I was looking for a legit 2560 but found out from Sav that the T3 .48 housings no longer exist.

So yes, I did plan on investing but couldn't find what I wanted so I went with plan B. I was restricted to T3 because of the mani I picked up and I wanted something similar to the 2560 so I got something similar to what Brain is running.
rkim is offline   Reply With Quote
Old 07-14-2013, 10:25 PM   #39
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

I see.
makes sense

oh and the T3 footprint is a blessing, not a curse.
18psi is offline   Reply With Quote
Old 07-15-2013, 10:37 AM   #40
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Well I think you can get journal bearing T28s from the RB25 I think that are a T3 flange?
thenuge26 is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
LucaCarMods's Boosted Dutch Miata Build! LucaCarMods Build Threads 11 02-14-2016 07:13 AM
WTB MP62 (Hotside) (NB2) Rick02R WTB 3 01-03-2016 08:18 PM
Is my swirl pot design okay? FrankB Race Prep 10 10-02-2015 10:00 PM
Bad head gasket or ? shooterschmidty Engine Performance 8 09-30-2015 11:28 PM
Image resizer concealer404 Front Desk 3 09-29-2015 01:41 PM


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 05:12 AM.
