Old 06-27-2014, 07:57 PM   #1001
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

So true...
GeneSplicer is offline   Reply With Quote
Old 06-28-2014, 03:14 AM   #1002
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by GeneSplicer View Post
So true...
I just saw that gay thread and wow...just, wow. The worst part about owning a Miata is now NOT having to tell dad you're gay, but that you might get a package from Genesplicer.
cordycord is offline   Reply With Quote
Old 06-30-2014, 09:08 AM   #1003
Senior Member

Join Date: Aug 2008
Location: Baton Rouge
Posts: 700
Total Cats: 17
Default

Quote:
Originally Posted by GeneSplicer View Post
lol, the only thing I contribute to MT is gayness
"uphold the reputation of MT.net"
golftdibrad is offline   Reply With Quote
Old 07-01-2014, 12:11 AM   #1004
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default We has trubo

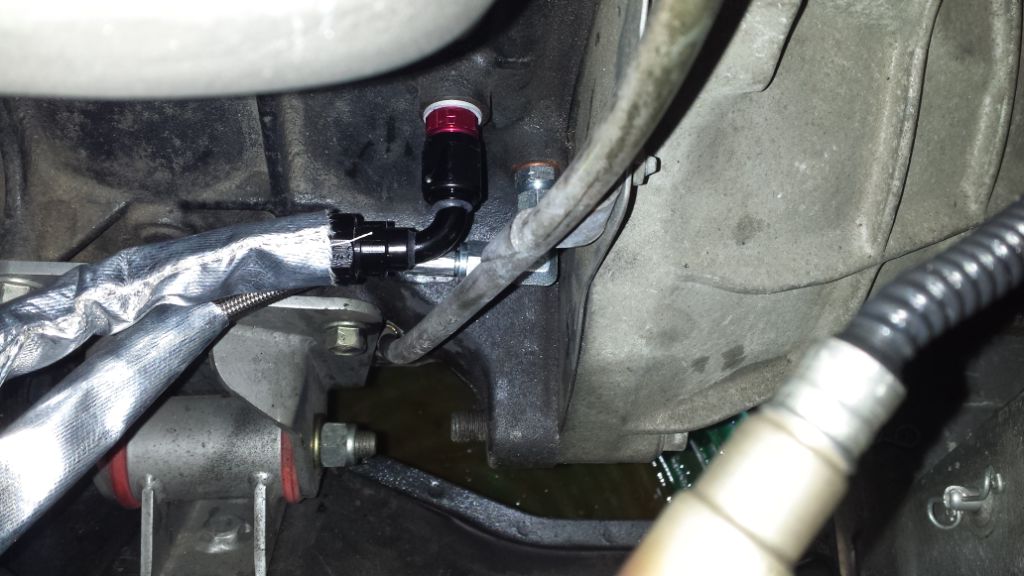

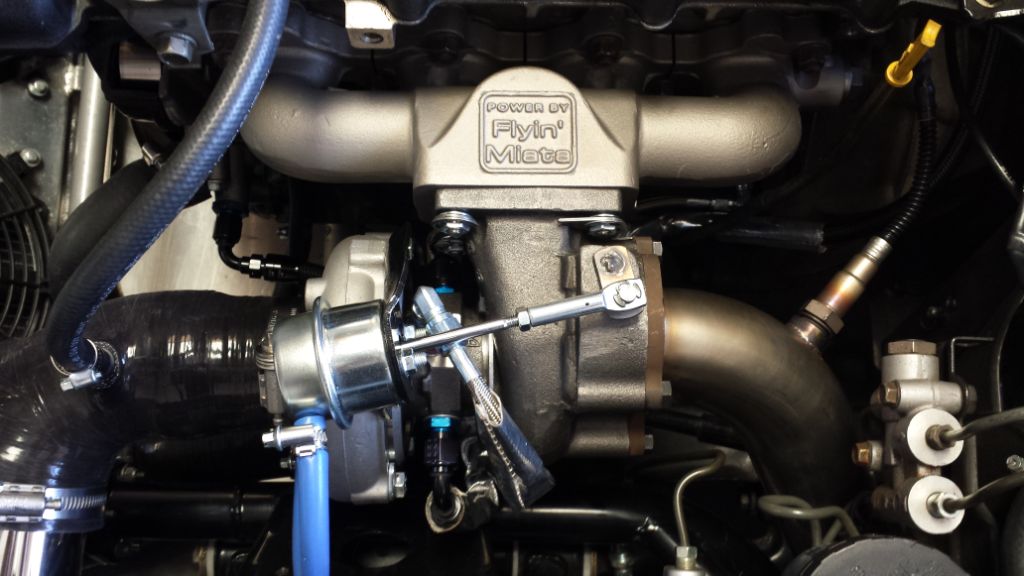

Oaky here's the deal; I spoke with "He with the knowledge of Miata" about my turbo coolant lines, and he essentially said that I have a labeling problem. Call "in" "out" and "out" "in" and there's no problem. I pretty much agreed, except for what Bruce alluded to: is the water pick-up before or after the thermostat?

With the current setup at the front and back of the block, the water wouldn't really flow until the thermostat opened up, even though I've opened up the weep holes in the thermostat a bit. So I decided that since Mazda was kind enough to leave an oil and water galley open for use, we'd use it. So standard setup, no problems.

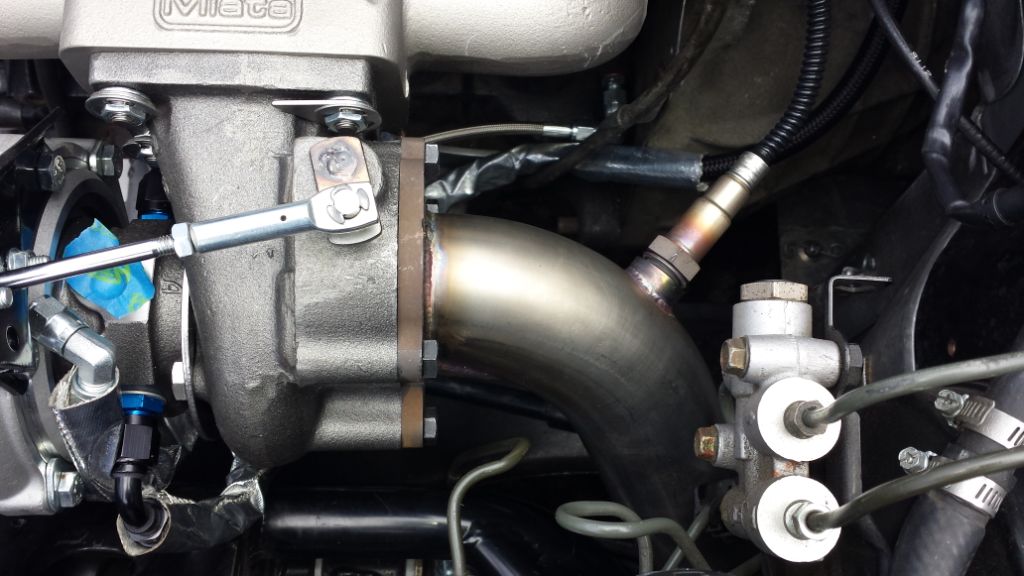

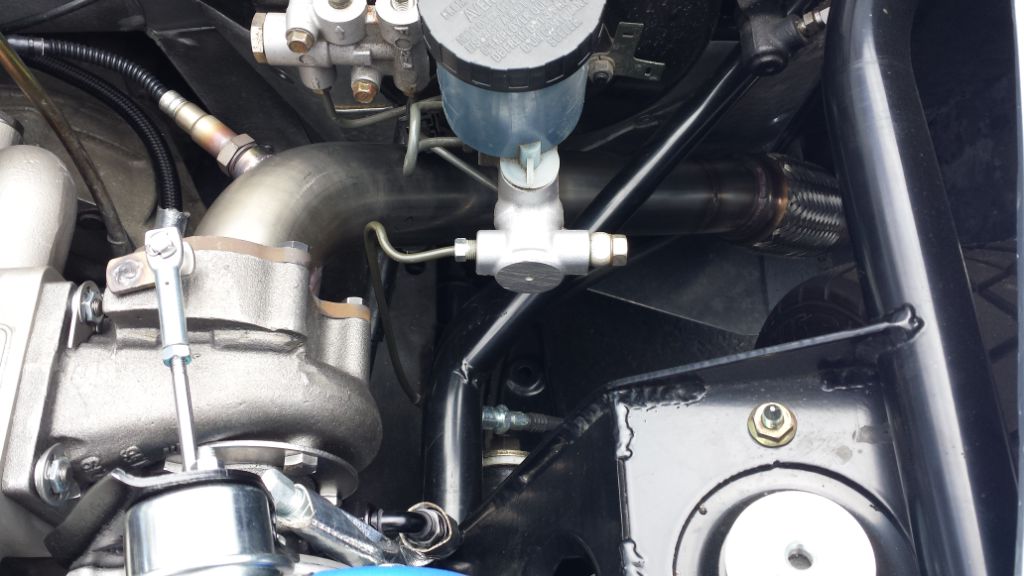

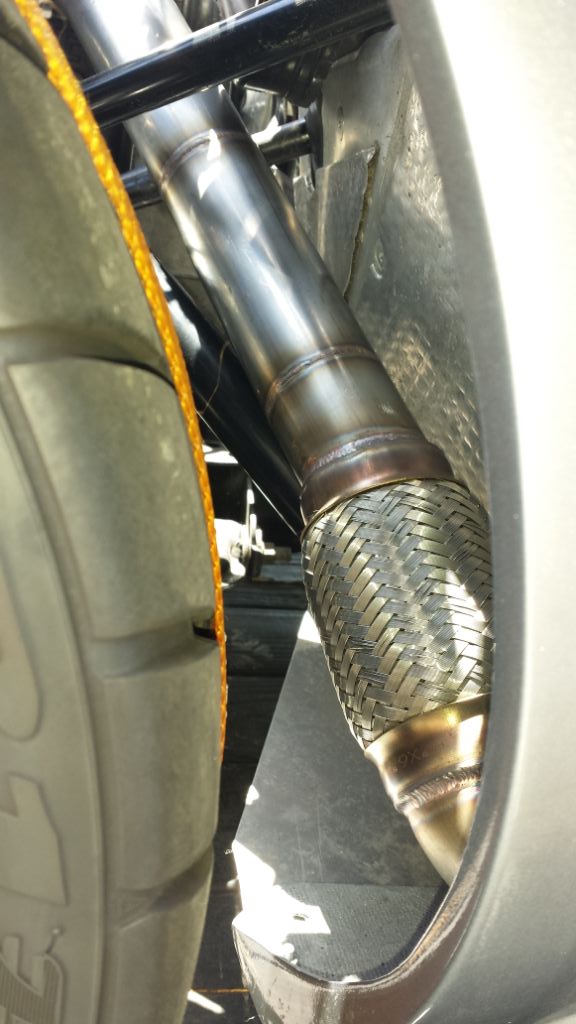

Richard's Performance Muffler in Oceanside fabricated the dump-pipe beautifully. The TIG welds are top quality--really nice--and really improved over the last pipe. It's made from 2.5" stainless, and makes a 40 degree and 80 degree bend to get to the muffler. Heat shielding is still needed, but the basics are there.
Attached Thumbnails
Cordycord's epic tube frame build-20140630_125611.jpg   Cordycord's epic tube frame build-20140630_125712.jpg   Cordycord's epic tube frame build-20140630_140715.jpg   Cordycord's epic tube frame build-20140630_172110.jpg   Cordycord's epic tube frame build-20140630_144039.jpg

cordycord is offline   Reply With Quote
Old 07-01-2014, 12:46 AM   #1005
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

That wideband wont live there for long. Way too hot. You want it somewhere by the tranny.
triple88a is offline   Reply With Quote
Old 07-01-2014, 02:43 AM   #1006
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by triple88a View Post
That wideband wont live there for long. Way too hot. You want it somewhere by the tranny.
I saw it, and thought, "Naw, they know what they're doing."
cordycord is offline   Reply With Quote
Old 07-01-2014, 04:50 AM   #1007
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

If you fit a large copper heatsink then it'll live fine in that location - assuming it's a road car.

On track it'll still overheat and cook.
richyvrlimited is offline   Reply With Quote
Old 07-01-2014, 07:57 AM   #1008
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,662
Total Cats: 1,560
Default

What are you going to use for insulation between the downpipe and the brake system?

I agree with tripple88a, the wideband should probably be 18 to 36 inches away from the turbine according to most manufacturers. But shielding it should help it to last as a street car. If you plan to track it or otherwise drive it in anger you will not have good life out of it.

You will be much happier with the water system with the way you have it now. That is the best possible arrangement.
sixshooter is online now   Reply With Quote
Old 07-01-2014, 09:41 AM   #1009
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

Quote:
Originally Posted by triple88a View Post
That wideband wont live there for long. Way too hot. You want it somewhere by the tranny.
I was told the same thing. It's even in the instructions that we overlooked.
GeneSplicer is offline   Reply With Quote
Old 07-01-2014, 10:17 PM   #1010
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default I listen....I just don't read (instructions)

The changes happened quickly, and that's mainly due to my partners in crime, Bent Motorsports. These guys not only weld and fabricate, they cnc and play with SolidWorks. Their specialty is actually suspension fabrication and setup. Go figure. Our little business park has some really talented people.

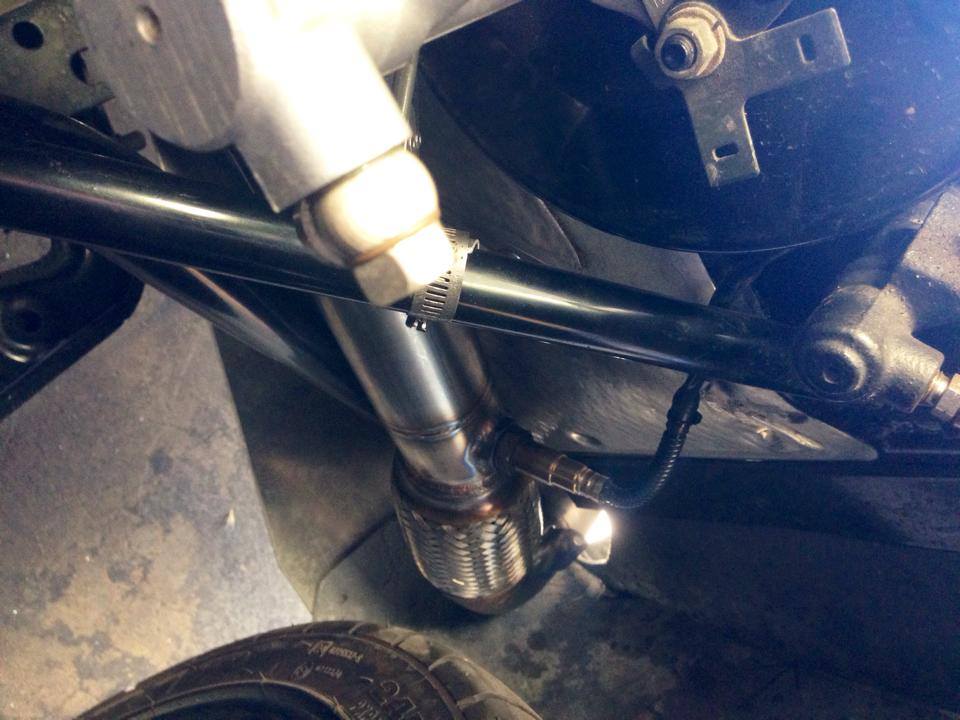

The wideband sensor was moved about 36" away from the turbo and situated so that moisture doesn't pool when it's not on.

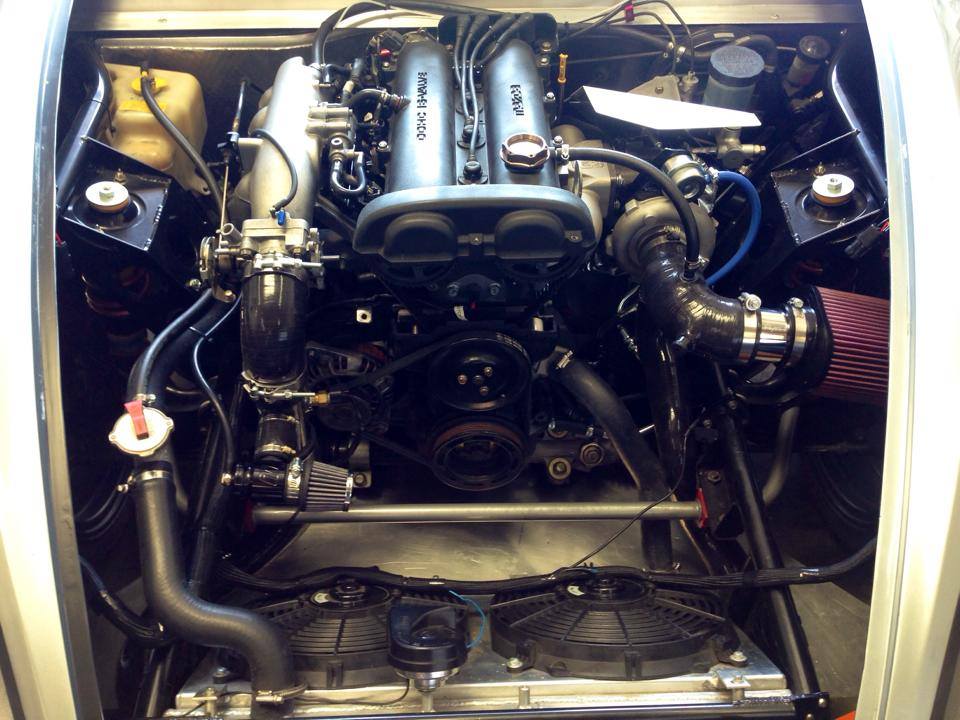

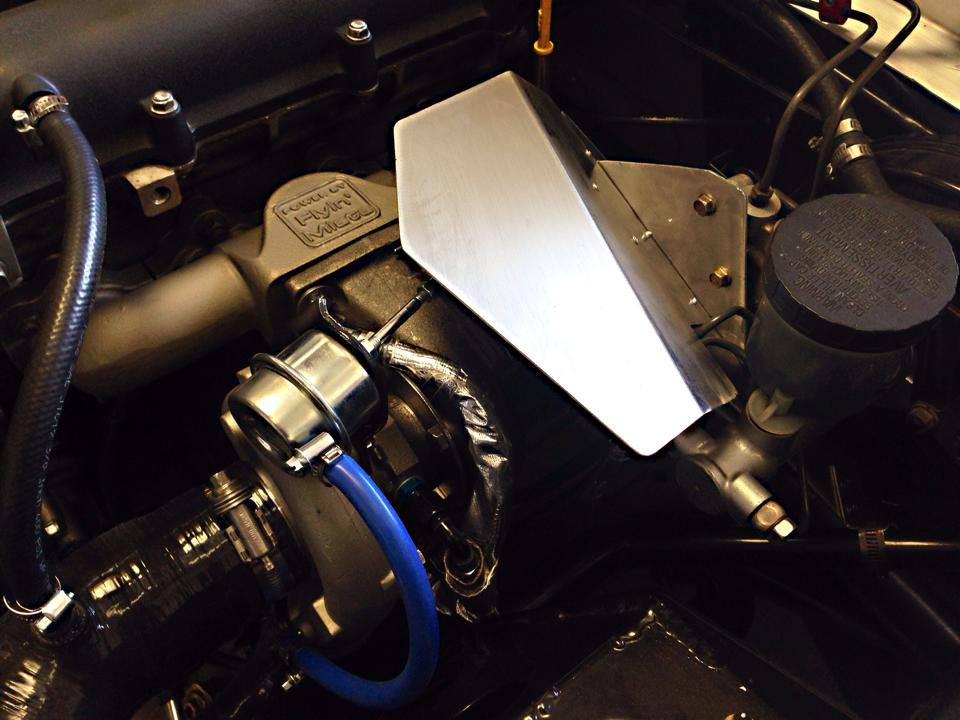

A heat shield was made for the brake bits, and I'm sure we'll probably be adding more as we move along. It's a good (looking) start for now. Hell, I should call it a "sweet shield".

The MSPNP2 now reads for 700cc injectors and will be on the dyno very soon.
Attached Thumbnails
Cordycord's epic tube frame build-o2-move.jpg   Cordycord's epic tube frame build-new-heat-shield.jpg   Cordycord's epic tube frame build-sweet-shield.jpg
cordycord is offline   Reply With Quote
Old 07-03-2014, 12:18 AM   #1011
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default getting ready for dyno day

I drove the Catfish over to Delicous Tuning this afternoon in anticipation of tomorrow's dyno session. The car had a high idle and there was a definite stumble/surge when gas was applied, but overall everything seemed to be working.

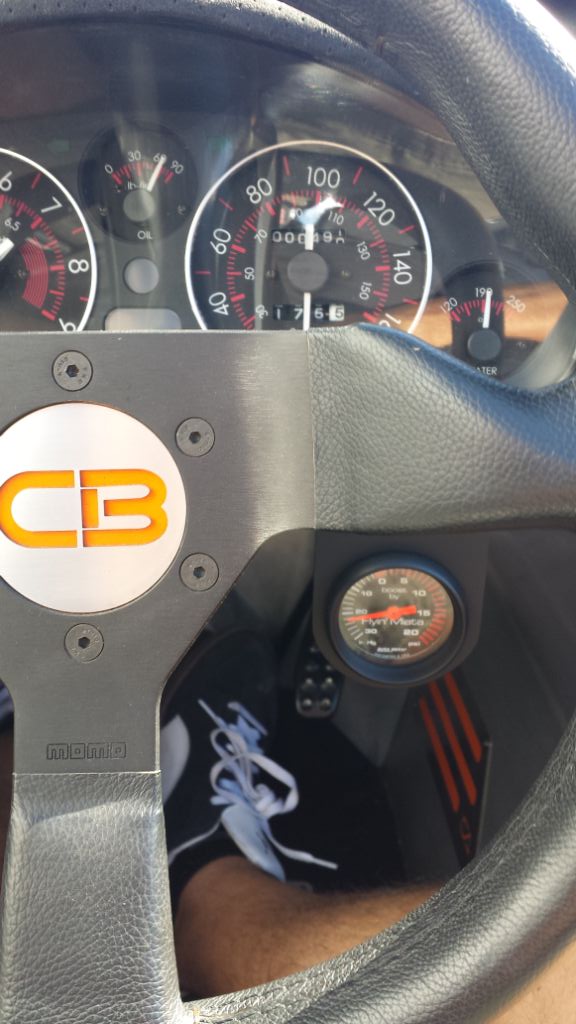

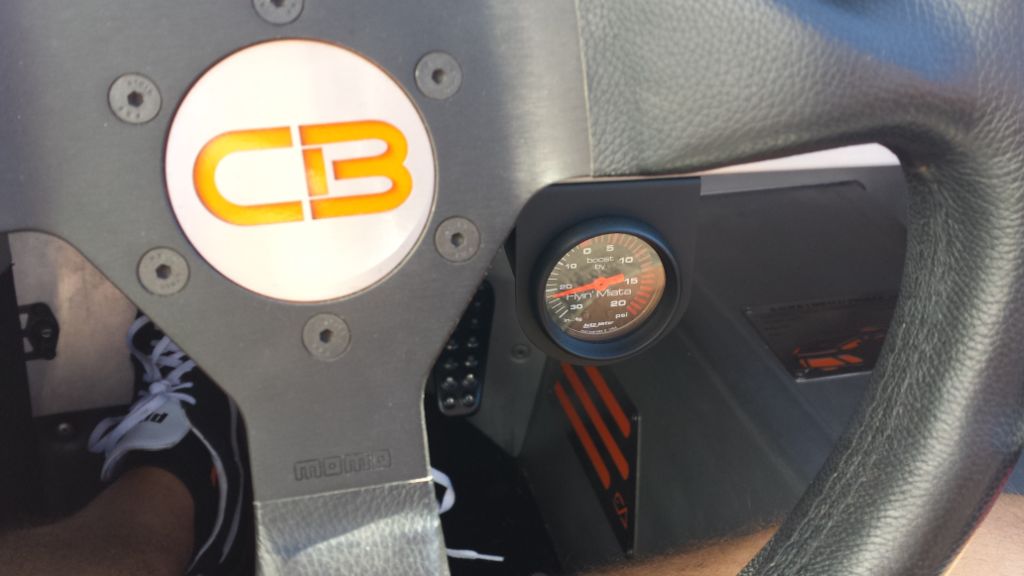

A FM boost gauge barely made it past zero on the way over as I had no intention of testing the turbo prior to the dyno. Hopefully I'll have a dyno sheet and a little video to show tomorrow, and not oil and case particles littering the floor.
Attached Thumbnails
Cordycord's epic tube frame build-20140702_164607.jpg   Cordycord's epic tube frame build-20140702_164602.jpg
cordycord is offline   Reply With Quote
Old 07-04-2014, 12:58 AM   #1012
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default better than I expected

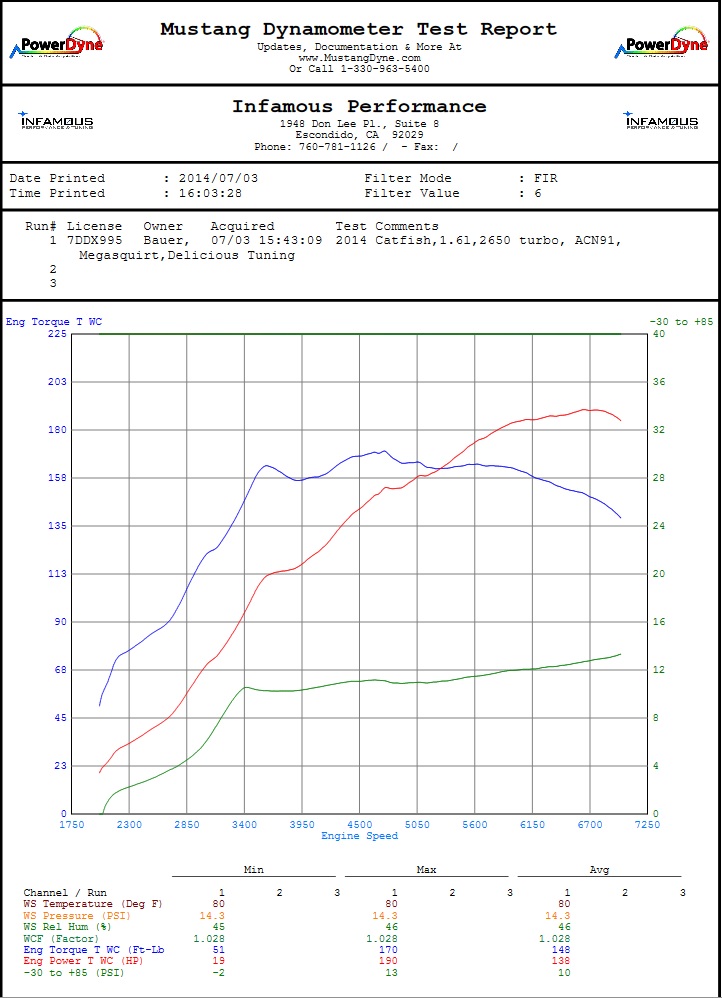

I spent the entire day in Escondido today, dynoing the Catfish. It was hot, muggy and the car seemed to do well anyway. The dyno is owned by Mike at Infamous Performance in Escondido and the tuner is William Knose of "Delicious Tuning".

Bill wasn't that familiar with the MSPNP software, but seemed to pick it up fairly quick. He also spends most of his time tuning Subies, GTRs and Porsches. He also tuned Ken Block's car for Gymkhana 1 & 2, so he knows what he's doing.

The dyno is a Mustang eddy current 4wd unit, and it works well. Mike said that they've done "back to back" dynos with the DSport Dynojet dyno, and the Dynojet reads about 17-20% higher. That said, these are some pretty impressive numbers for a 22 year old 1.6 on pump gas.

The number and AF ratios all lined up on the dyno, but on a little test run on the street with Martin Wilson (Monster Miata), Martin said he heard a little detonation. NOT GOOD. Bill backed off the timing and a second street drive produced no knock. The dyno is so damn loud with the fans that it just wasn't noticeable.

Okay experts, what do you think?
Attached Thumbnails
Cordycord's epic tube frame build-cat.jpg
cordycord is offline   Reply With Quote
Old 07-04-2014, 02:47 AM   #1013
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default Delicious Tuning

cordycord is offline   Reply With Quote
Old 07-04-2014, 02:58 AM   #1014
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

Am I reading correctly that at 14 psi it made 190 whp and 170 wtq?
turbofan is offline   Reply With Quote
Old 07-04-2014, 03:06 AM   #1015
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by turbofan View Post
Am I reading correctly that at 14 psi it made 190 whp and 170 wtq?
Boost kinda crept up there....

It's a Mustang eddy current dyno, so those numbers are low compared to dynojet.

edit...the tune has been backed off from these numbers. They were getting a bit out of my "comfort zone".
cordycord is offline   Reply With Quote
Old 07-04-2014, 02:11 PM   #1016
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Yeah an extra 20% would put it at 230whp on a dynojet which is pretty impressive for a 1.6. And good spool for a churbo.
thenuge26 is offline   Reply With Quote
Old 07-04-2014, 02:39 PM   #1017
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

not bad at all for a low reading mustang dyno.
I bet its a hoot, and I bet it woulda put down like 90 when it was n/a
18psi is offline   Reply With Quote
Old 07-04-2014, 02:54 PM   #1018
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Quote:
Originally Posted by cordycord View Post
It's a Mustang eddy current dyno, so those numbers are accurate, unlike dynojet.
Fixed.

Nice numbers for churbo B6
Full_Tilt_Boogie is offline   Reply With Quote
Old 07-04-2014, 10:05 PM   #1019
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Fixed.

Nice numbers for churbo B6
Nope. Dynojets are all the same numbers, normal mustangs are ~5-10% lower than a dynojet. This mustang is even low for a mustang at 17-20% lower. If you want to compare between different locations you have to use a dynojet nothing else is a real number.
Leafy is offline   Reply With Quote
Old 07-04-2014, 10:23 PM   #1020
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

There is a difference between consistency and accuracy.
Full_Tilt_Boogie is offline   Reply With Quote
