I can get any and all of that....but I am building a street car and want to be able to drive it across the country and want to be able to run on 93 pump gas. That said, I do plan to make everything E85 compatible just for ***** and grins.....
Amellrotts is offline   Reply With Quote
Old 11-17-2013, 01:12 AM   #22
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

map switching is very simple now that we have ms3

in fact, I'm running req fuel switching with the flick of a switch in mine
18psi is offline   Reply With Quote
Old 11-17-2013, 01:31 AM   #23
Senior Member
Thread Starter
iTrader: (2)

Join Date: Oct 2011
Location: Hickory, NC
Posts: 683
Total Cats: 3
Default

I am working on my intake manifold now....might have it welded up tomorrow if I can decide the runner length. I think if I get it right it will be a game changer....I hope to post pics of that soon. My plan is to flow bench it with a clear end plate so I can see how the plenum feeds each cylinder through the use of smoke. I plan to video that test and will post it here, should be pretty cool!
Amellrotts is offline   Reply With Quote
Old 11-19-2013, 01:47 PM   #24
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Only problem I can see (and you might have thought of this) is the flow bench (if fed at a constant rate) might not show reverberations like it would recieve in situ. The valve closing events and pulsations will drastically change flow patterns (to observe the smoke)
shlammed is offline   Reply With Quote
Old 11-19-2013, 01:52 PM   #25
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by shlammed View Post
Only problem I can see (and you might have thought of this) is the flow bench (if fed at a constant rate) might not show reverberations like it would recieve in situ. The valve closing events and pulsations will drastically change flow patterns (to observe the smoke)
It'll at least tell him if the plenum is not horribly designed if the flow bench gives him even flow across the runner. That doesnt mean that with valve activities that the flow will be even. But if its not even in steady state then...
Leafy is offline   Reply With Quote
Old 11-19-2013, 02:05 PM   #26
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by 18psi View Post
map switching is very simple now that we have ms3

in fact, I'm running req fuel switching with the flick of a switch in mine
have you used it? it work well?
Braineack is offline   Reply With Quote
Old 11-19-2013, 02:19 PM   #27
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Quote:
Originally Posted by Leafy View Post
It'll at least tell him if the plenum is not horribly designed if the flow bench gives him even flow across the runner. That doesnt mean that with valve activities that the flow will be even. But if its not even in steady state then...
Im going to pretend you didnt say that.

The valve events will make one that flows even change completely. all that it will do is show some neat smoke patterns on a flow bench without being able to stop flow the distance away from the flange that your valves are.

Even going OS valves will change the design and how it balances.


Though we are now splitting hairs... you can build a good IM without doing all of this... but if you want to do it to show something-do it the way worth doing.

OP, what design parameters are you using for your IM build? plenum volume, runner length, velocity stack, velocity stack to plenum top distance, throttle body....
shlammed is offline   Reply With Quote
Old 11-19-2013, 02:23 PM   #28
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by shlammed View Post
Im going to pretend you didnt say that.

The valve events will make one that flows even change completely. all that it will do is show some neat smoke patterns on a flow bench without being able to stop flow the distance away from the flange that your valves are.

Even going OS valves will change the design and how it balances.


Though we are now splitting hairs... you can build a good IM without doing all of this... but if you want to do it to show something-do it the way worth doing.

OP, what design parameters are you using for your IM build? plenum volume, runner length, velocity stack, velocity stack to plenum top distance, throttle body....
What I'm saying is, the steady state flow bench will make flaws obvious. If cylinder 1 is flowing less than the other 3 you have a problem that is only going to get worse once you put it on an engine.
Leafy is offline   Reply With Quote
Old 11-19-2013, 03:07 PM   #29
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

sure.


who is to say the backing up of the air from the other 3 cylinders from valve events doesnt even it out for cylinder #1.
(hint: this actually happens)
shlammed is offline   Reply With Quote
Old 11-19-2013, 03:18 PM   #30
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by shlammed View Post
sure.


who is to say the backing up of the air from the other 3 cylinders from valve events doesnt even it out for cylinder #1.
(hint: this actually happens)
I've never had an already poor intake manifold in cfd get significantly better in transient flow if it already sucked in steady state. The amount of air that flows back into the plenum from the runner is insignificant compared to the the flow into the plenum from the throttle body. Now the fact that not all cylinders are pulling at once can certainly help a manifold that shows already acceptable variation between runners when all are flowing in stead state. That sentence was confusing. I guess I have to explain that there are two stead state tests, pulling vacuum on all 4 runners at once while leaving the throttle body open or pulling vac on only one runner at a time. The confusing sentence I'm referring to the all at once setup. What I've noticed is that if you can put all 4 runners in cfd within a few percent of each other on both tests then you have a fairly good chance of the manifold doing well once you step up to the transient tests. But if you've got a runner that sucks (or is too good) in both or really sucks badly in 1 of the steady state tests its probably going to be a waste of time to run in through the transient tests.
Leafy is offline   Reply With Quote
Old 11-19-2013, 09:34 PM   #31
Senior Member
Thread Starter
iTrader: (2)

Join Date: Oct 2011
Location: Hickory, NC
Posts: 683
Total Cats: 3
Default

Wow, lots of great thoughts, thanks guys! We should move this over to my intake manifold thread though....lol

I don't have all the answers to the questions asked. My current plan involves a rather large plenum. Skunks 64mm TB. I have read that if you don't have a good design the plenum will cause the air to flow over the first cylinder and not feed all the cylinders equally. I don't have the ability to do CFD, but I do have the ability to pull vacuum on all cylinders equally and see if the smoke seems to feed into all of them or dramatically flow over one....not really sure what I will learn, and I am certainly open to new ideas! If someone can CFD my design I will be happy to share details, in fact I would love that before I get to welding....
can anyone help with that?
Amellrotts is offline   Reply With Quote
Old 11-19-2013, 09:47 PM   #32
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

If you already have a cad model of it I'll see if I can run it at some point this week, at least on the basic tests the transient tests take hours to just setup in the cfd software and then more hours to run.
Leafy is offline   Reply With Quote
Old 03-22-2014, 04:21 AM   #33
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,927
Total Cats: 526
Default

Why does this thread not have a single picture of a sweet looking heavily boosted 10AE?

Post pics of the whole car!
turbofan is offline   Reply With Quote
Old 03-22-2014, 10:20 AM   #34
Senior Member
Thread Starter
iTrader: (2)

Join Date: Oct 2011
Location: Hickory, NC
Posts: 683
Total Cats: 3
Default



Attached Thumbnails
EFR6258 on a VVT W PS/AC-img_3332.jpg   EFR6258 on a VVT W PS/AC-img_3318.jpg
Amellrotts is offline   Reply With Quote
Old 04-14-2014, 01:36 PM   #35
Senior Member
Thread Starter
iTrader: (2)

Join Date: Oct 2011
Location: Hickory, NC
Posts: 683
Total Cats: 3
Default

Time for an update.....
Tired of turbo nuts backing off I have pulled the car into the shop for some work. Will show details of my solution for keeping my nuts where I want them later in the week when I get it back from the water jets......
For now, here is what I did to my valve cover. I read somewhere on Mnet a couple years ago that people were filling the chambers with steel wool to help remove the oil vapors from the air being pulled through the PCV system. I felt like plastic was a better foreign material to have in my engine than steel wool. I DID clean off the old RTV and used Hondabond to seal the cover plates.

I will be using a catch can with AN-10 lines. I am also installing a flat top manifold/Skunks TB/D585 LS2 truck coils and working OP gauge at this time.

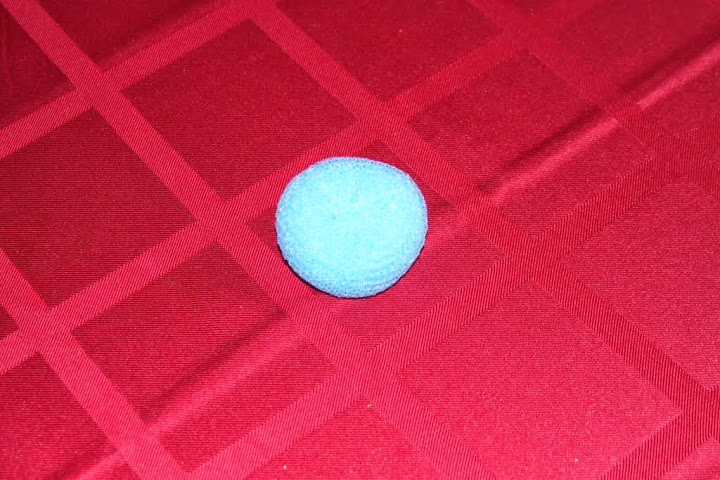

So I took one of these (plastic dish scrubbers)


Cut it to allow it to open up. Then I removed all the loose pieces that came from cutting it.....

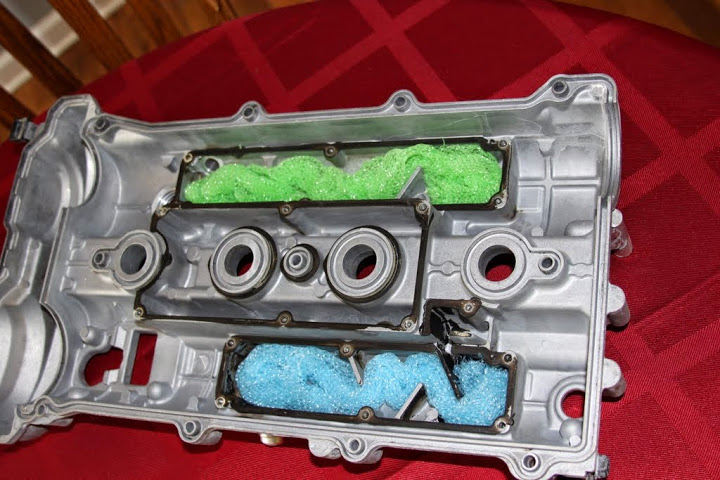

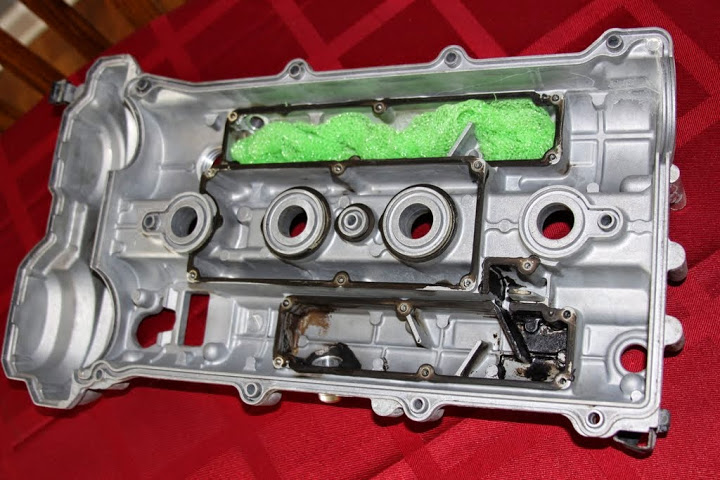

Then I spread it out in the baffle chamber


And
Attached Thumbnails
EFR6258 on a VVT W PS/AC-img_9057.jpg   EFR6258 on a VVT W PS/AC-img_9060.jpg   EFR6258 on a VVT W PS/AC-img_9061.jpg   EFR6258 on a VVT W PS/AC-img_9058.jpg   EFR6258 on a VVT W PS/AC-img_9059.jpg

Amellrotts is offline   Reply With Quote
Old 04-14-2014, 02:27 PM   #36
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,927
Total Cats: 526
Default

Melty, anyone? Doesn't seem like a great idea to me.
turbofan is offline   Reply With Quote
Old 04-14-2014, 02:28 PM   #37
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Didn't jasonSSBSSBSBSBS do like the exact same thing with the exact same colors of plastic bits?
Leafy is offline   Reply With Quote
Old 04-14-2014, 02:44 PM   #38
Senior Member
Thread Starter
iTrader: (2)

Join Date: Oct 2011
Location: Hickory, NC
Posts: 683
Total Cats: 3
Default

If so, did his **** melt?
I didn't even think about that. I figured they survive a dishwasher but that is only about 190. I will test the melting point of these before install. Thanks for looking out for me!
Amellrotts is offline   Reply With Quote
Old 04-14-2014, 02:45 PM   #39
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

I forget. I'm not sure the thread got updated.
Leafy is offline   Reply With Quote
Old 04-14-2014, 03:43 PM   #40
Senior Member
Thread Starter
iTrader: (2)

Join Date: Oct 2011
Location: Hickory, NC
Posts: 683
Total Cats: 3
Default

Oven is warming up now. Figured I would start at 250, then go to 275, and finally 300. I figure if it will take 250-275 it should be fine. What are your thoughts?
Amellrotts is offline   Reply With Quote
