Build Threads Building a motor? Post the progress here.

The Eppic Offroadster

Thread Tools

Search this Thread

Old 02-27-2018, 07:10 PM
  #201
Junior Member
Thread Starter

Eppic's Avatar

Join Date: Nov 2016
Location: Steinbach, Manitoba
Posts: 116
Total Cats: 52
Default

First Batch of HD pictures done!

Starting with my favorite

Name:  Y0lHZik.jpg
Views: 21
Size:  1.49 MB

and then the other good ones.

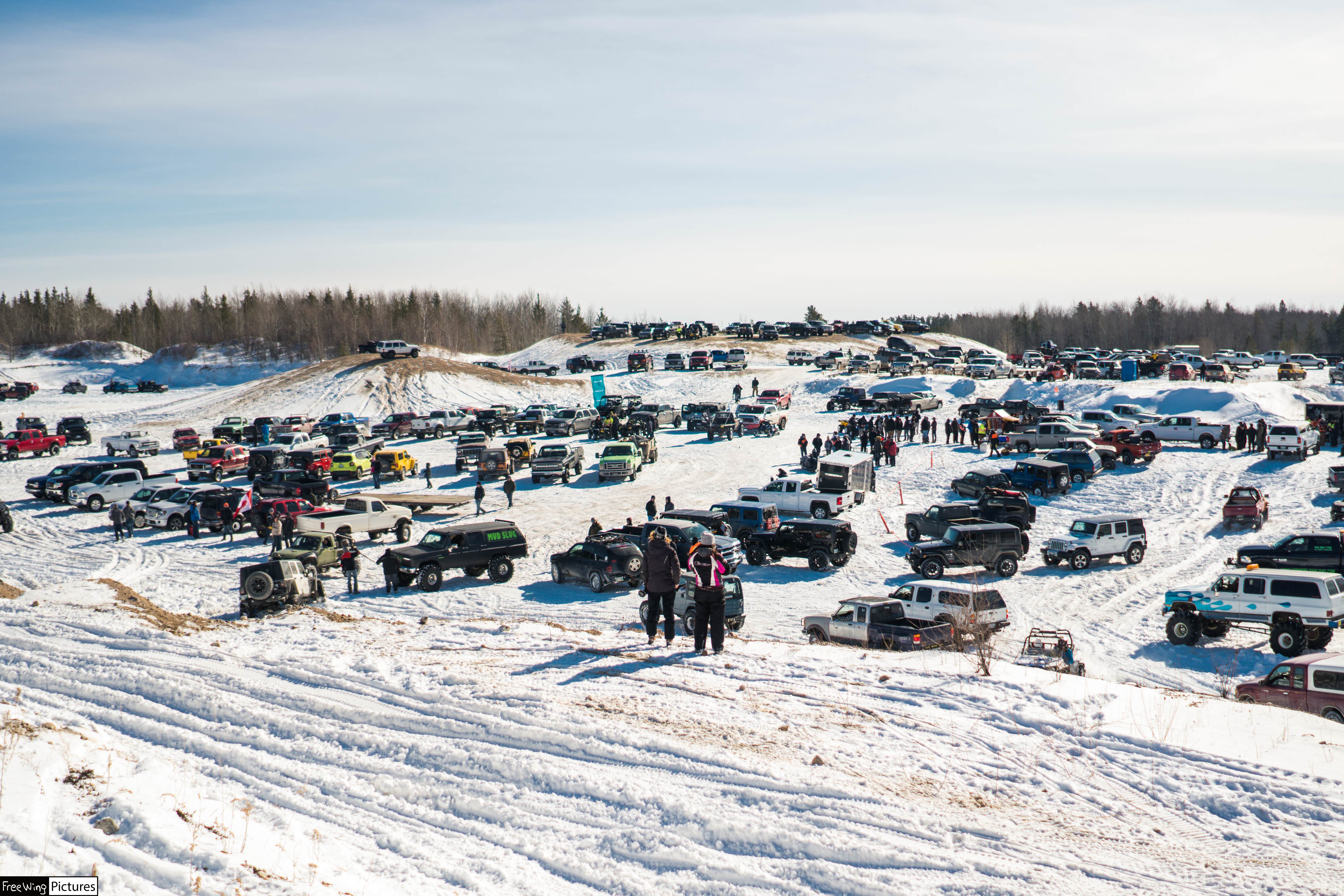

Name:  uVrjFX2.jpg
Views: 22
Size:  2.04 MB

Name:  jqCLCgV.jpg
Views: 22
Size:  1.79 MB

Name:  bHMBUtv.jpg
Views: 22
Size:  2.08 MB

Name:  8bOneEQ.jpg
Views: 21
Size:  1.96 MB

Name:  gt1VSX0.jpg
Views: 22
Size:  2.05 MB

Name:  DGLqZSj.jpg
Views: 22
Size:  1.71 MB

Father and Son centerfold?

Name:  rS3nGHc.jpg
Views: 23
Size:  1.48 MB

Name:  6tn5oSI.jpg
Views: 22
Size:  2.02 MB

Name:  ygK1NVG.jpg
Views: 23
Size:  1.84 MB

Had to give dad a go in my car. Where do you think i get all my skillz from? He's the real OG.

Name:  9jv1wNG.jpg
Views: 21
Size:  2.68 MB

Nothing better than hanging with your mates at a big ol party full of rednecks.

Name:  VPMIxQh.jpg
Views: 21
Size:  1.54 MB

Name:  V7GAbQ2.jpg
Views: 24
Size:  2.24 MB

A good time was had by all. Such a great time. Next year will be even crazier. My brain is turning already.

Name:  MKSUj6g.jpg
Views: 23
Size:  2.58 MB
Eppic is offline
Old 03-13-2018, 09:29 PM
  #202
Junior Member
Thread Starter

Eppic's Avatar

Join Date: Nov 2016
Location: Steinbach, Manitoba
Posts: 116
Total Cats: 52
Default

Eppic is offline
Old 03-31-2018, 04:31 PM
  #203
Junior Member
Thread Starter

Eppic's Avatar

Join Date: Nov 2016
Location: Steinbach, Manitoba
Posts: 116
Total Cats: 52
Default

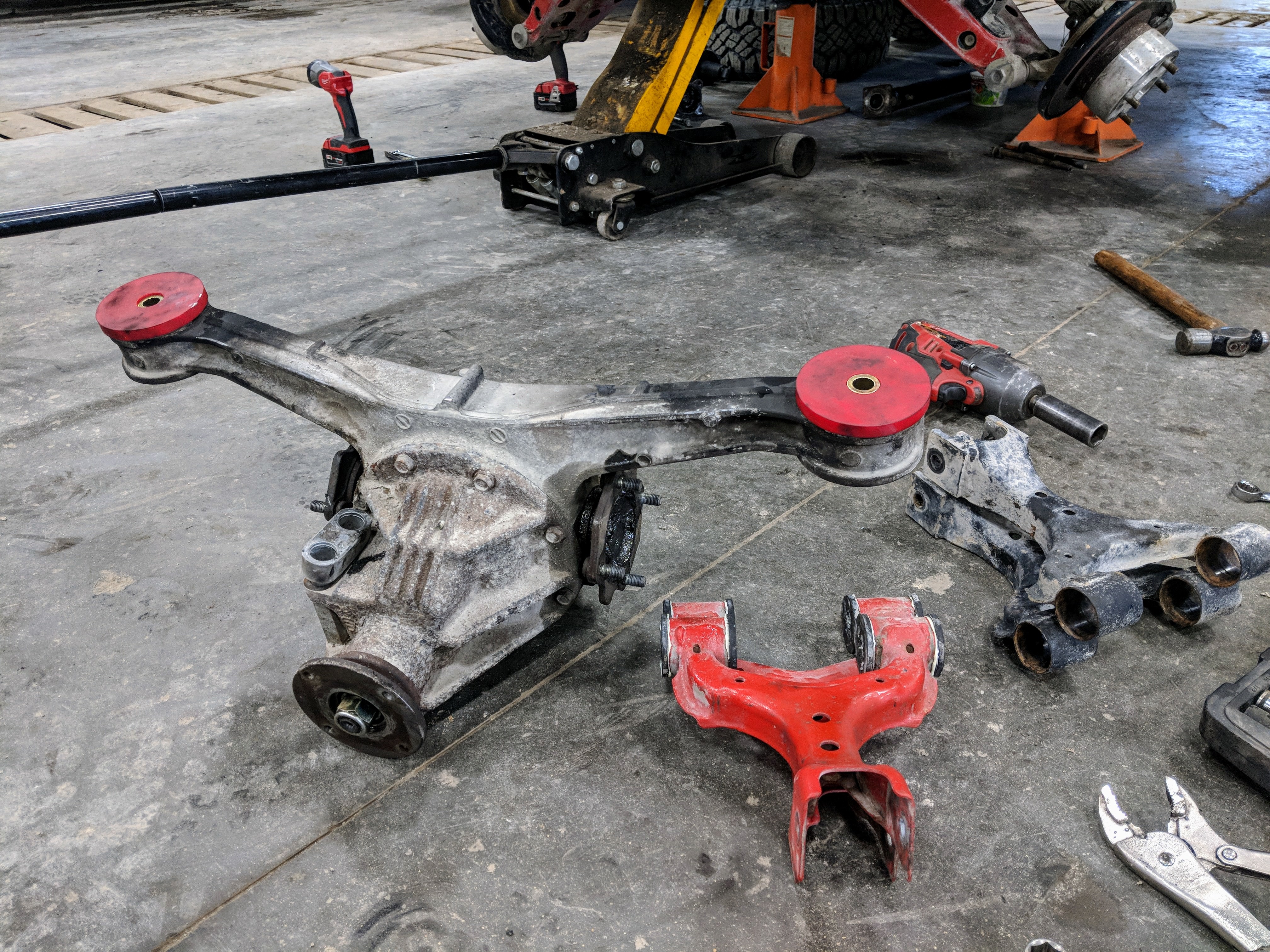

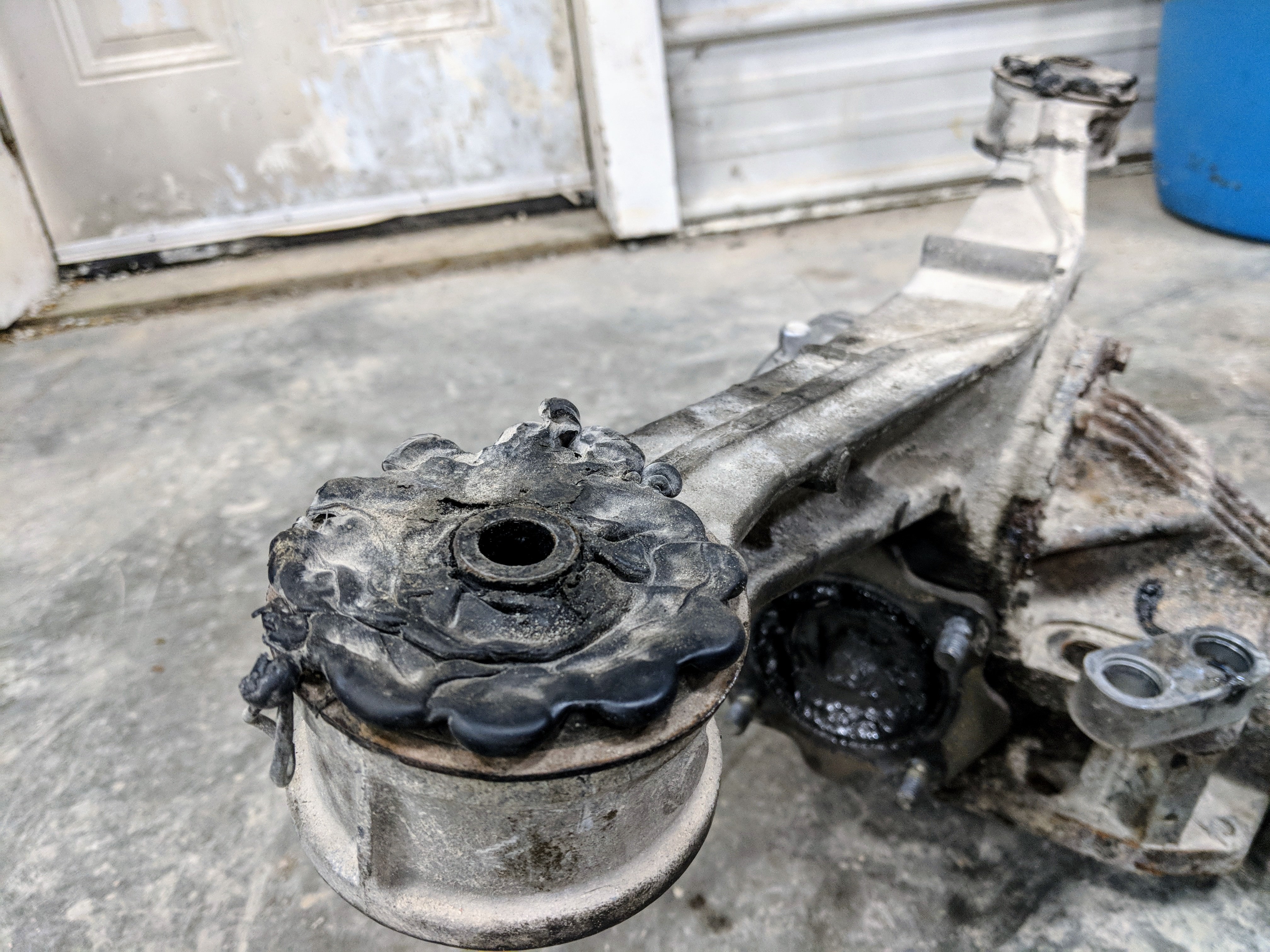

Got some more work done this weekend. Back when I swapped the diff's I didn't have another set of poly bushings, so using the old racers trick I filled the rubber with urathane. It helps but the real deal is better. Got around to putting that together finally.

Name:  AhYerBm.jpg
Views: 19
Size:  2.03 MB

Name:  xAN9lNA.jpg
Views: 23
Size:  1.51 MB

Name:  TqiKyJX.jpg
Views: 21
Size:  2.78 MB

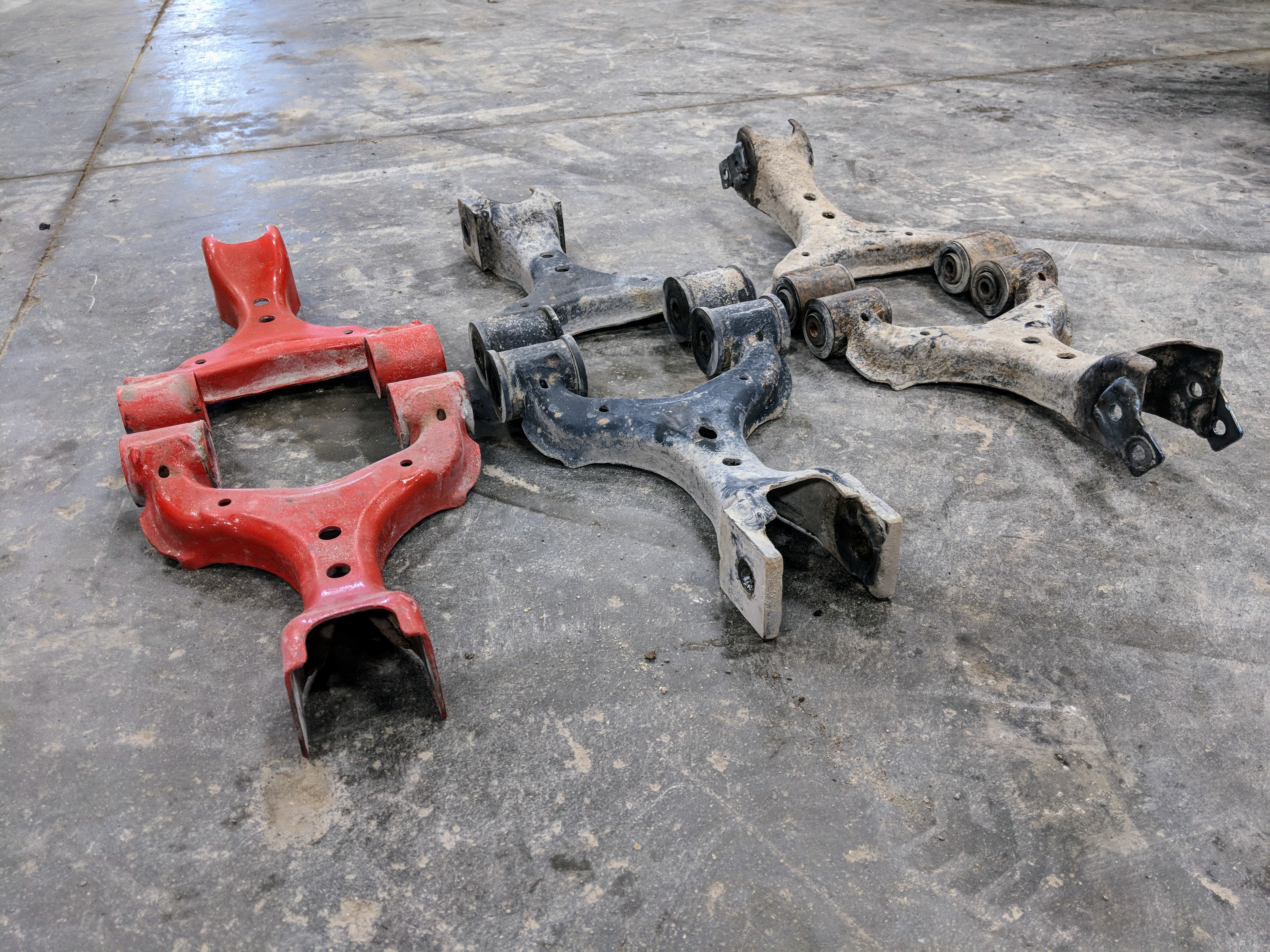

Since I dropped my subframe down and put new alignment bolts in, My modified ctrl arms to correct that negative camber now went the other direction. So I put the stockers back in. (Red ones)

Name:  BRGwwPP.jpg
Views: 21
Size:  2.63 MB

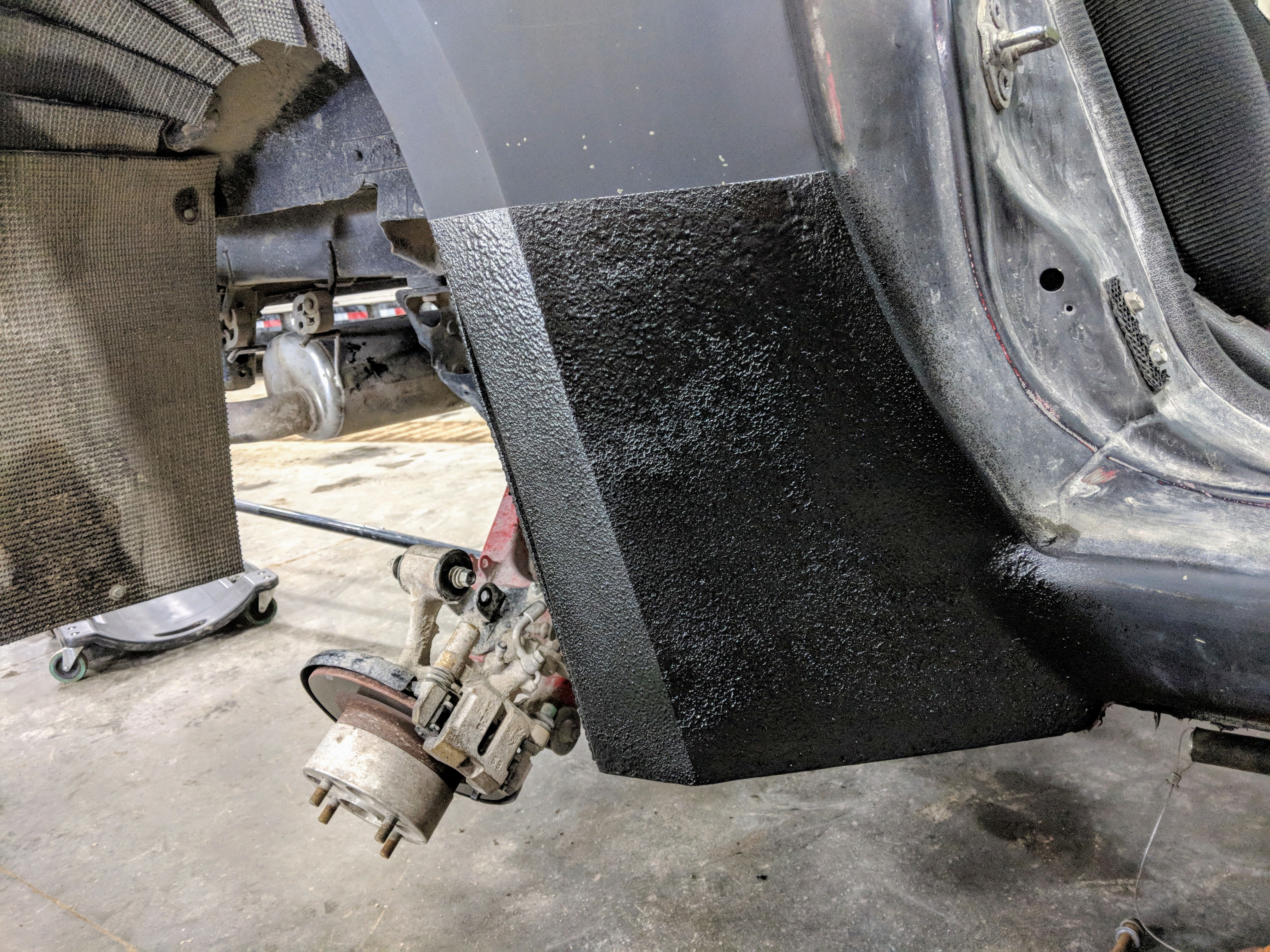

Flat facing surfaces right behind a tire... that didn't go over super well with my paint. So a quick toughening up job was applied too. We shall see how this hold up.

Name:  0Buj0ND.jpg
Views: 20
Size:  2.86 MB

And then a couple low quality pictures from the other night as we were leaving church.

Name:  RVKHtDt.jpg
Views: 20
Size:  2.34 MB

Name:  HwCS8Qa.jpg
Views: 21
Size:  2.45 MB

Last edited by Eppic; 04-01-2018 at 12:53 PM.
Eppic is offline
Old 03-31-2018, 06:32 PM
  #204
Retired Mech Design Engr
iTrader: (3)

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 5,009
Total Cats: 857
Default

Pics don't work on last post.
DNMakinson is offline
Old 04-01-2018, 12:54 PM
  #205
Junior Member
Thread Starter

Eppic's Avatar

Join Date: Nov 2016
Location: Steinbach, Manitoba
Posts: 116
Total Cats: 52
Default

links fixed
Eppic is offline
Old 04-01-2018, 04:58 PM
  #206
Retired Mech Design Engr
iTrader: (3)

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 5,009
Total Cats: 857
Default

And tongue is back. Good deal!
DNMakinson is offline
Old 04-15-2018, 09:34 PM
  #207
Junior Member
Thread Starter

Eppic's Avatar

Join Date: Nov 2016
Location: Steinbach, Manitoba
Posts: 116
Total Cats: 52
Default

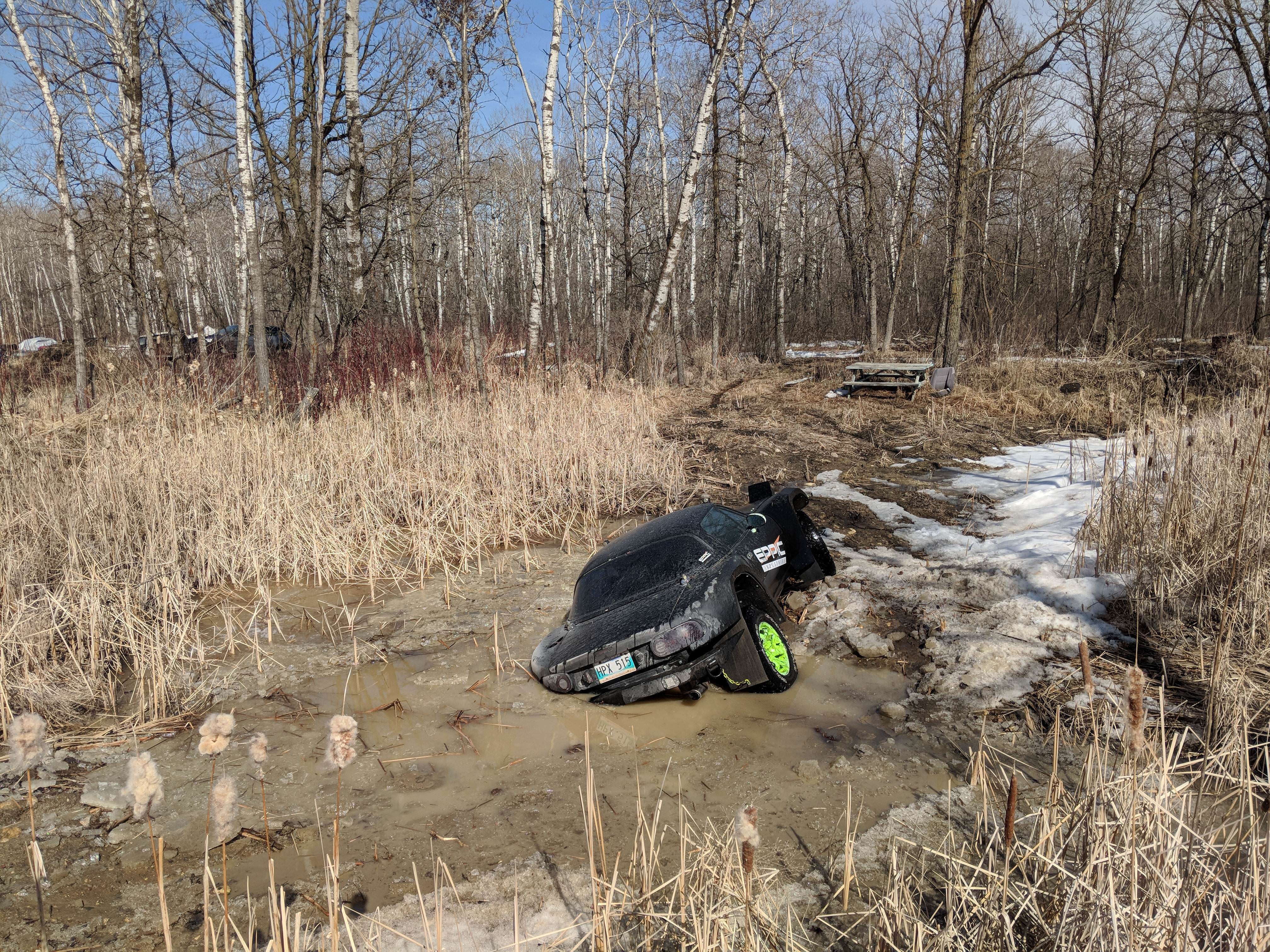

Went for a boot in the back yard this weekend. The snow is starting to melt. I was itching to get muddy. Big wall of ice under the surface that I couldn't get over before the ecu got wet and dropped two cylinders.


Name:  b7RZYJd.jpg
Views: 20
Size:  2.81 MB

Name:  btANZFo.jpg
Views: 20
Size:  278.2 KB

Name:  bDDg97n.jpg
Views: 20
Size:  262.6 KB

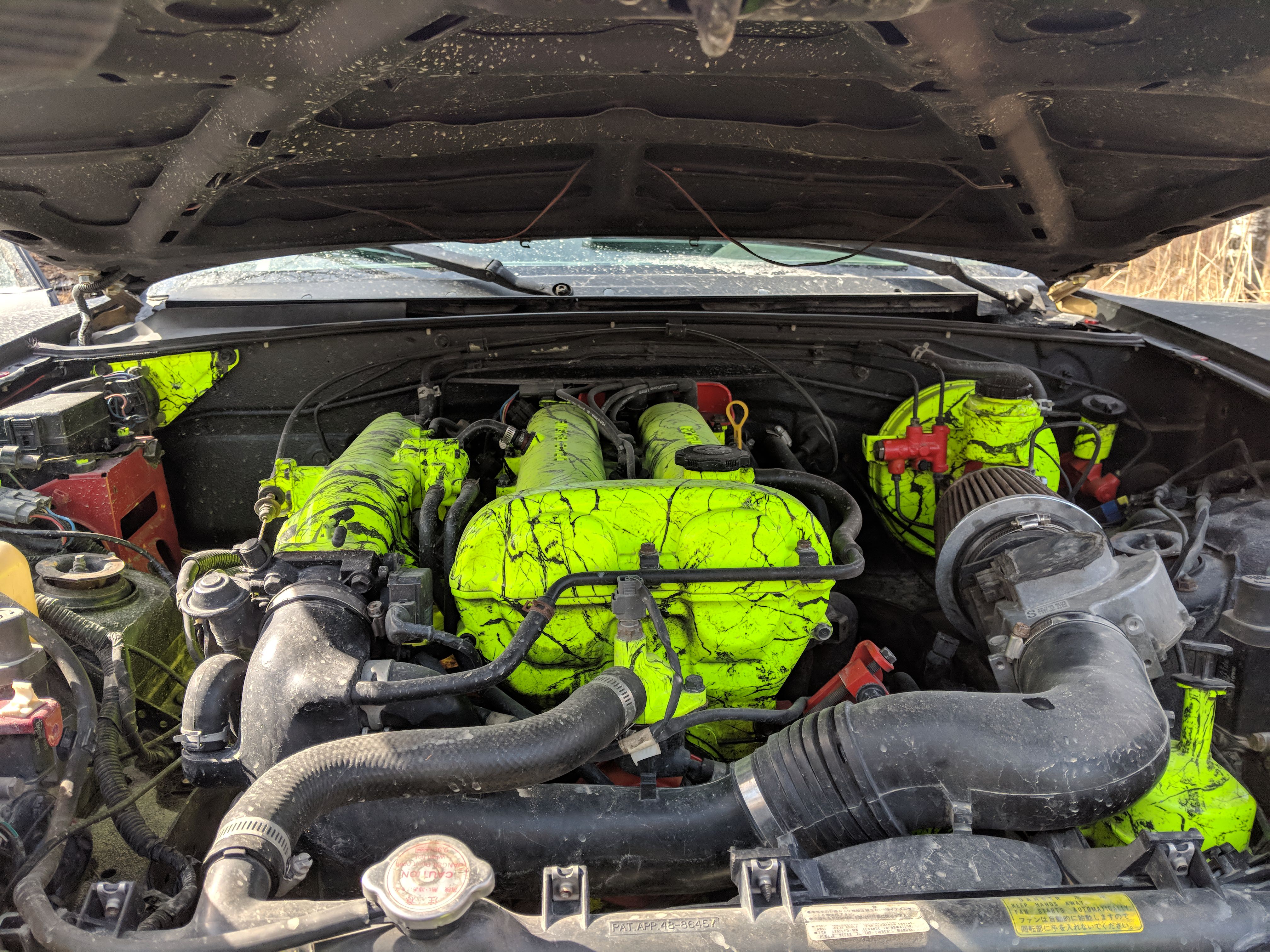

All that water and the engine still looks awesome.

Name:  6tc3mP4.jpg
Views: 20
Size:  2.01 MB

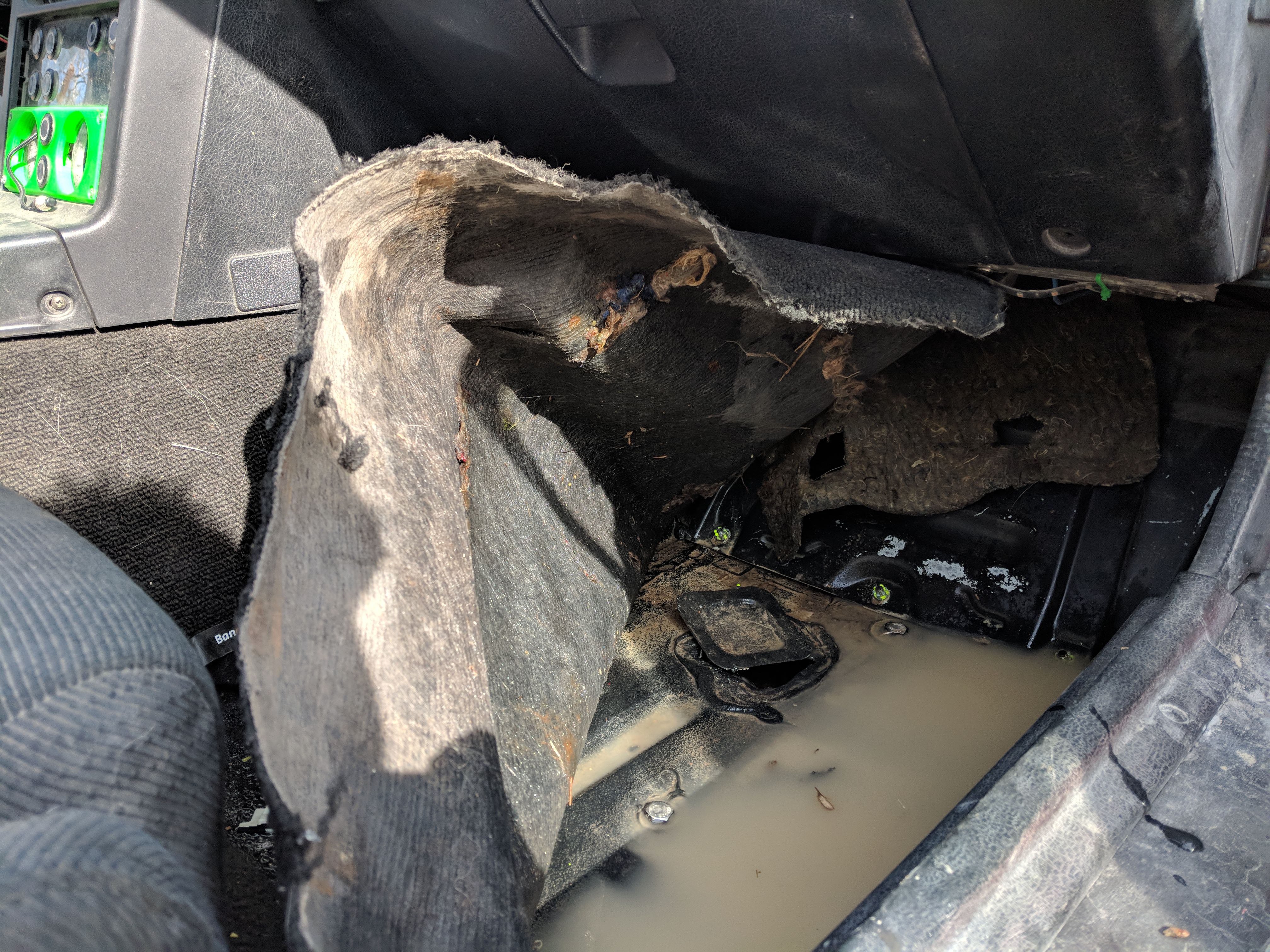

However going deep without being prepared causes issues.

Name:  WCk0hoa.jpg
Views: 20
Size:  1.99 MB

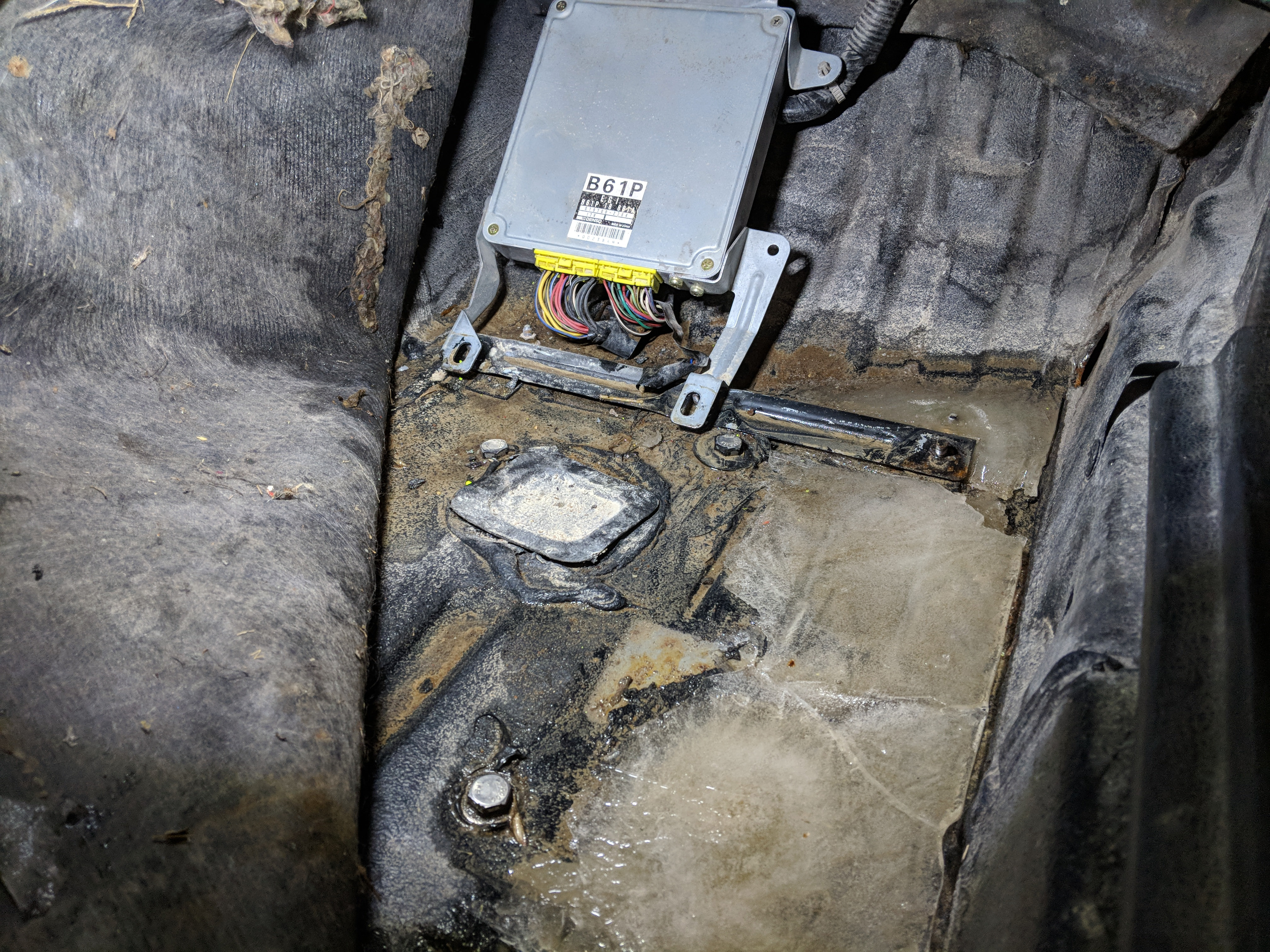

Left it over night. Water froze. Had me an unhappy ecu this morning with all that ice. Good thing I got spares. This one has gone into a bag of rice.

Name:  EmKkhFQ.jpg
Views: 20
Size:  2.88 MB

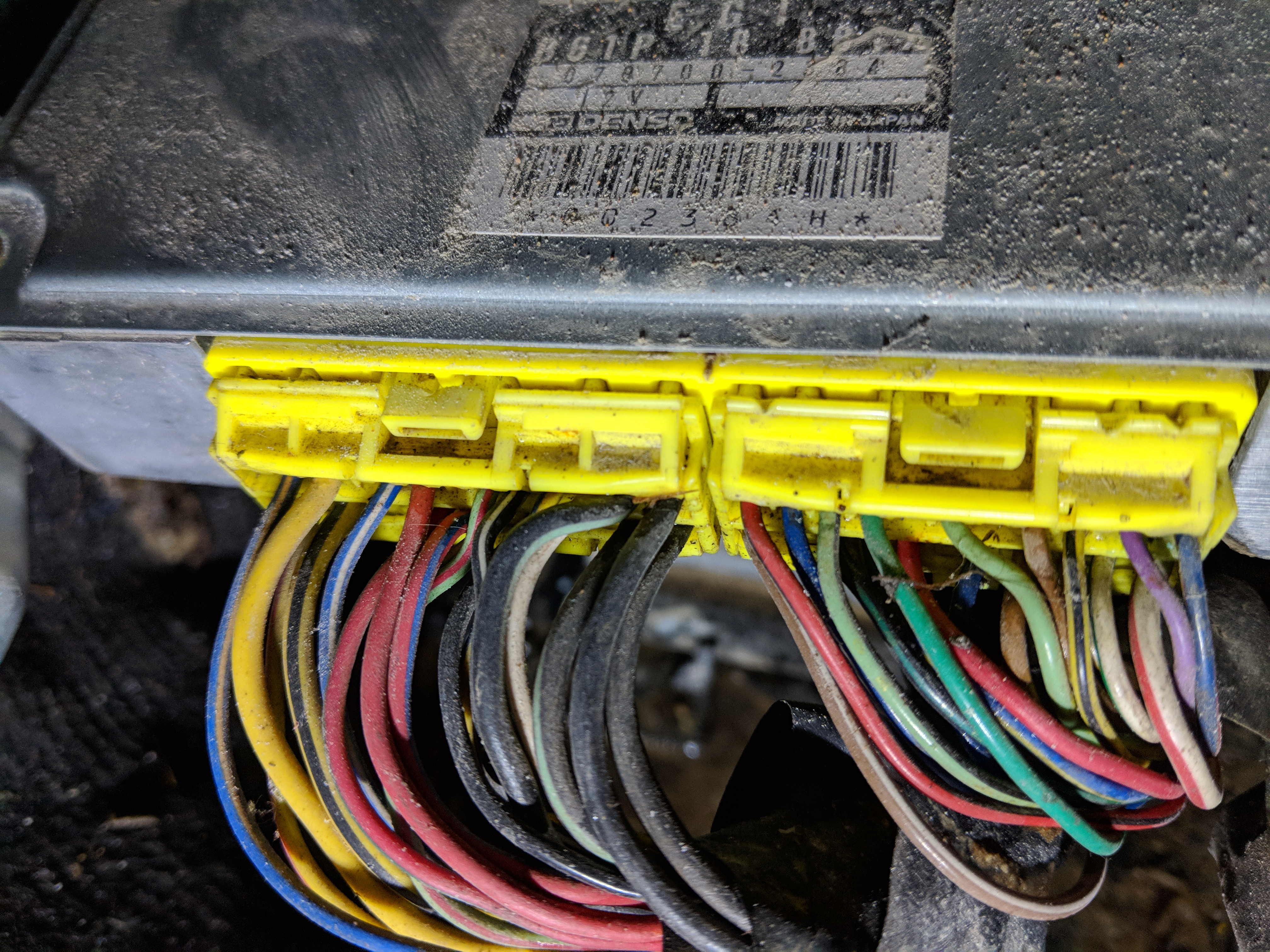

Name:  CDRPD29.jpg
Views: 20
Size:  3.05 MB

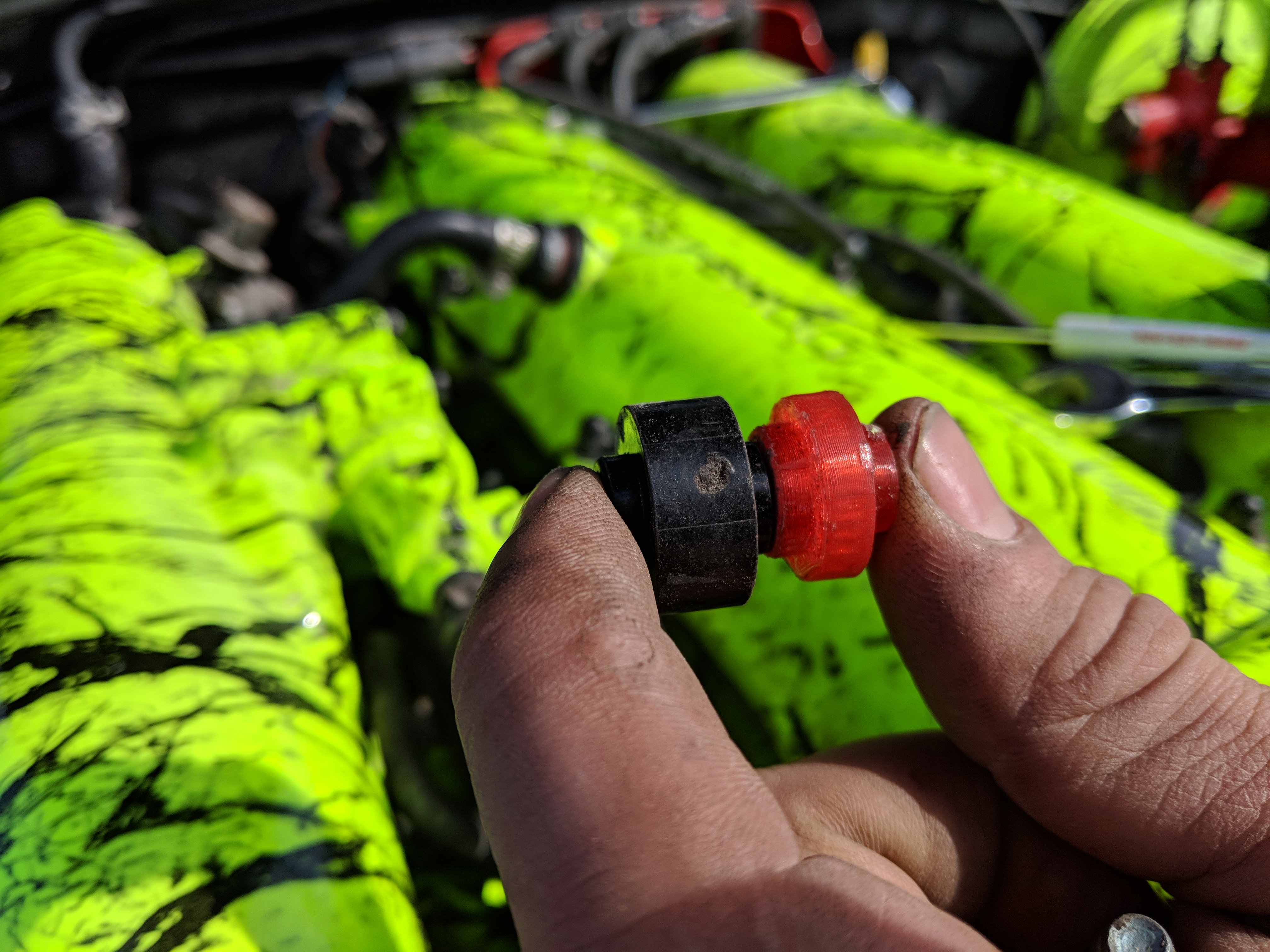

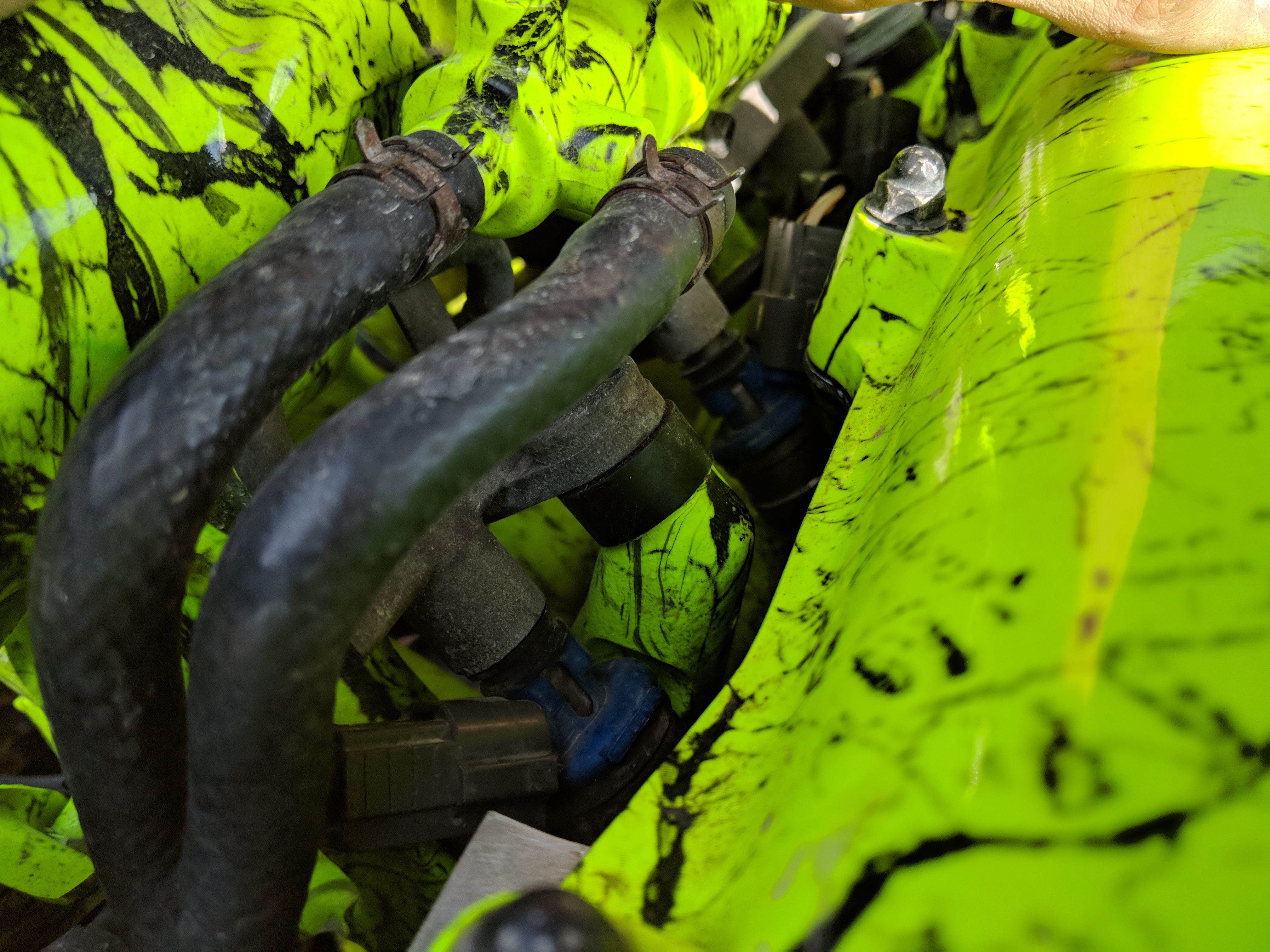

In the process of determining my running issues, I remembered that I put the wrong fuel rail spacers in. I couldn't find the right ones at the time. So... thanks to my 3d printer, 18 minutes later I had the correct spacers.

Name:  A2yKIyH.jpg
Views: 20
Size:  1.59 MB

Name:  tbCB54s.jpg
Views: 23
Size:  1.32 MB

Name:  9opfedl.jpg
Views: 20
Size:  1.47 MB
Eppic is offline
