Default fail baboon goin for redemption in '012 - will just end up failing again






after 4 1/2 years of fail, fail baboon is looking for redemption in '012.


a brief history of fail

in a move to assure baking in as much fail as possible, car was an abandoned project which was then acquired through a lien sale. naturally we (codriver=papasmurf on ncr) missed the 7 day grace period with dmv to sort the paperwork and had to pay back fees to be able to register it. that 3 units of fail and the car isnt even home yet.

car is rough but it does run sort of. little bit rusty, little bit crashed 92 with a s13 sr20det. motor itself seems solid but the wiring is sketchy and it runs super lean even though all the hardware is stock. an old piggy fuel computer was offered up as a solution and we were able to finally drive it.

in quick succession, a fatcat suspension, 1.8 brakes, a tc design spec miata cage, nice seats (spg xl recaros)/harnesses were all added. after some deliberation a AIM mxl strada dash was ordered. first 6 mo of ownership were good. -1 unit of fail.

it turns out a working gas gauge can be a handy thing.



so after some reading, it turns out the fuel level sender in the miata is a pot which gives 5ohms on a full tank and 114ohms on an empty. fine, except that the AIM wants voltages. ok, i get it, that means a pullup resistor. so I read some more and there are freaks out there with like 100ohm pullup resistors. i guess they never ran the numbers to see what kind of current they are pulling through their gas tank.

I opt for a 12k resistor.

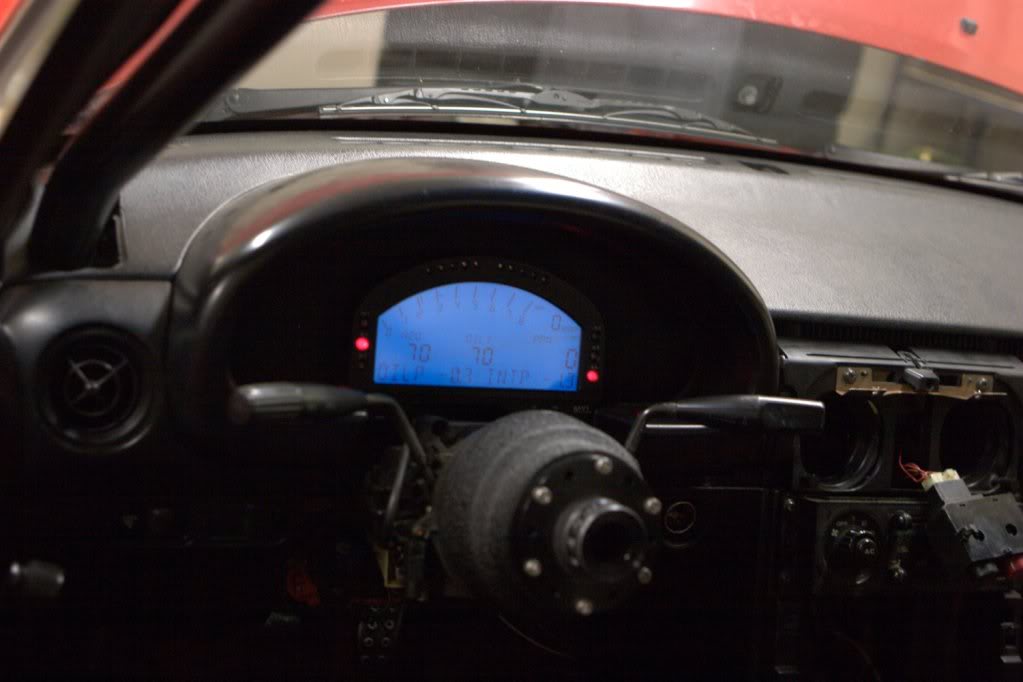

so now i have to figure out what voltages to feed the AIM setup software.

after some *** scratching and poo flinging i come up with these (in millivolt):

(12/(12000+114)*114)*1000 = 112.92

(12/(12000+114)*5)*1000 = 4.95

ok, seems to work. jumps around like crazy, but it works.


a 3.9 torsen is acquired but then progress grinds to a halt for basically the entire rest of the year.

another 6 months go by and diff got installed and and also managed to get the speedo to work, for no apparent reason than because we can. we had asked for abs axles when purchasing the diff and were able to put those to use with a hall effect sensor to feed the AIM

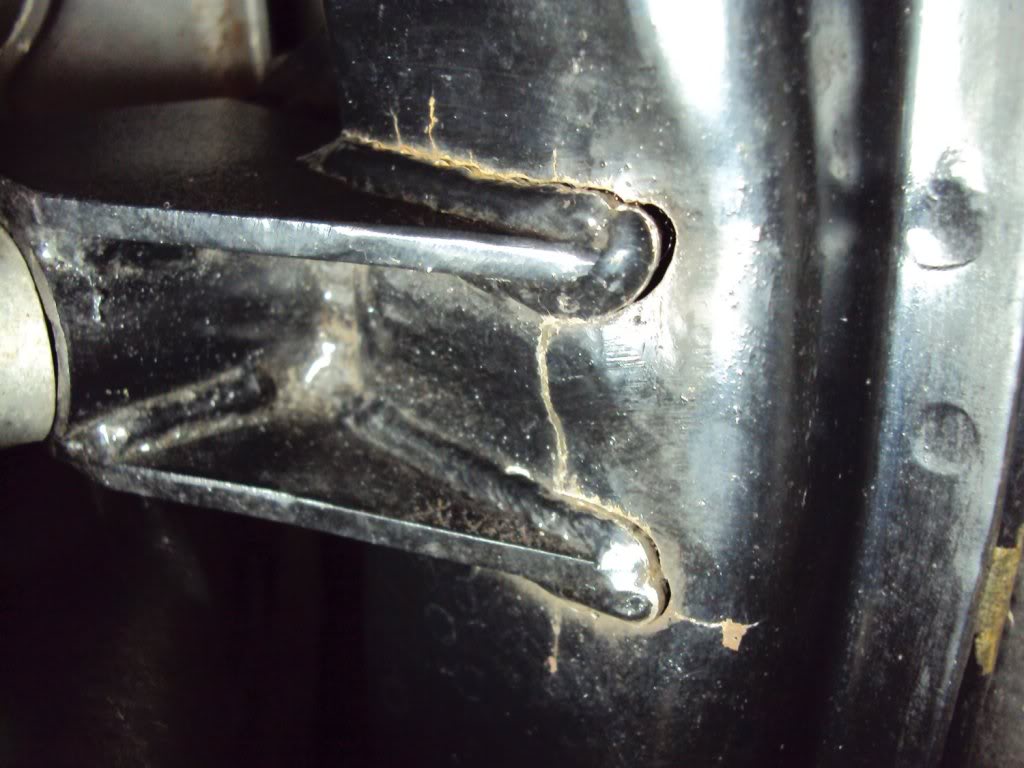

Sometime in '010 I managed to do a 3-2 misshift on the front straight at laguna. I've never misshifted before so I sat down and did some figgering. I guessed that the shifter placement was causing my arm to hit the seat and that was the reason I found 2nd when i was going for 4th

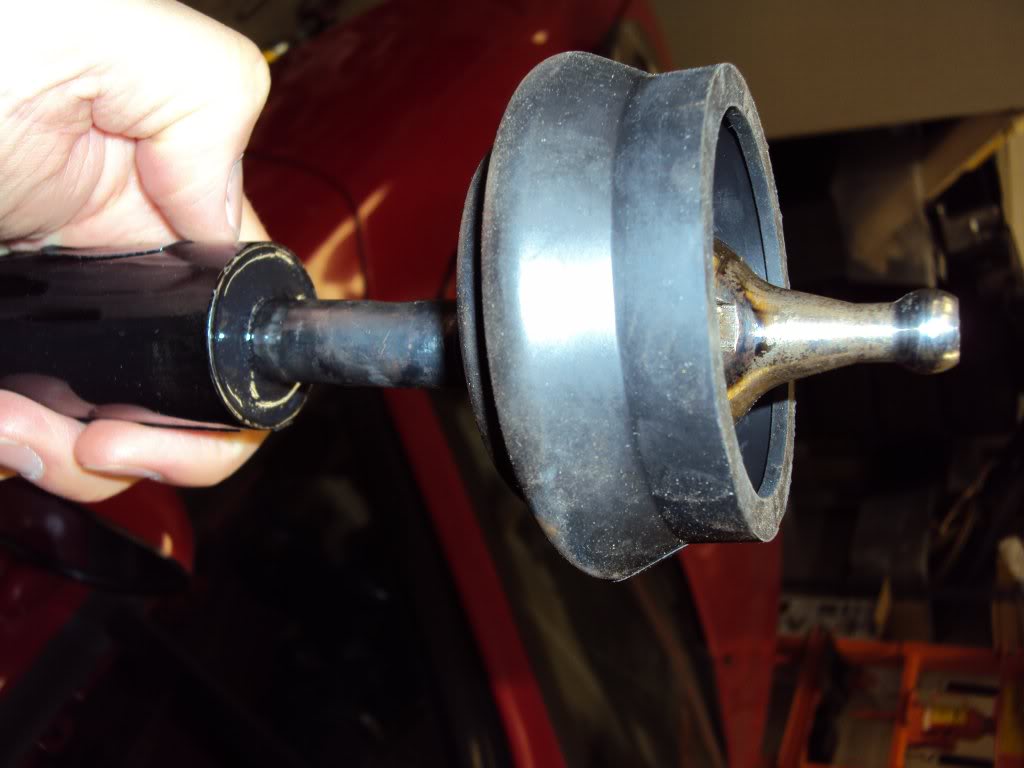

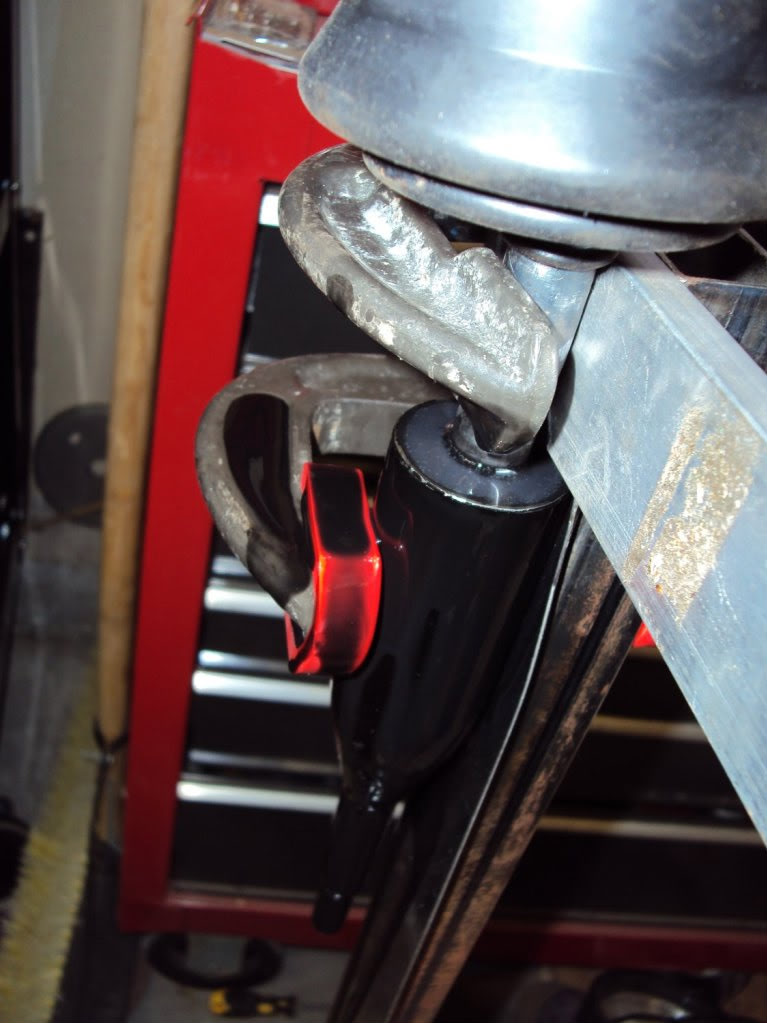

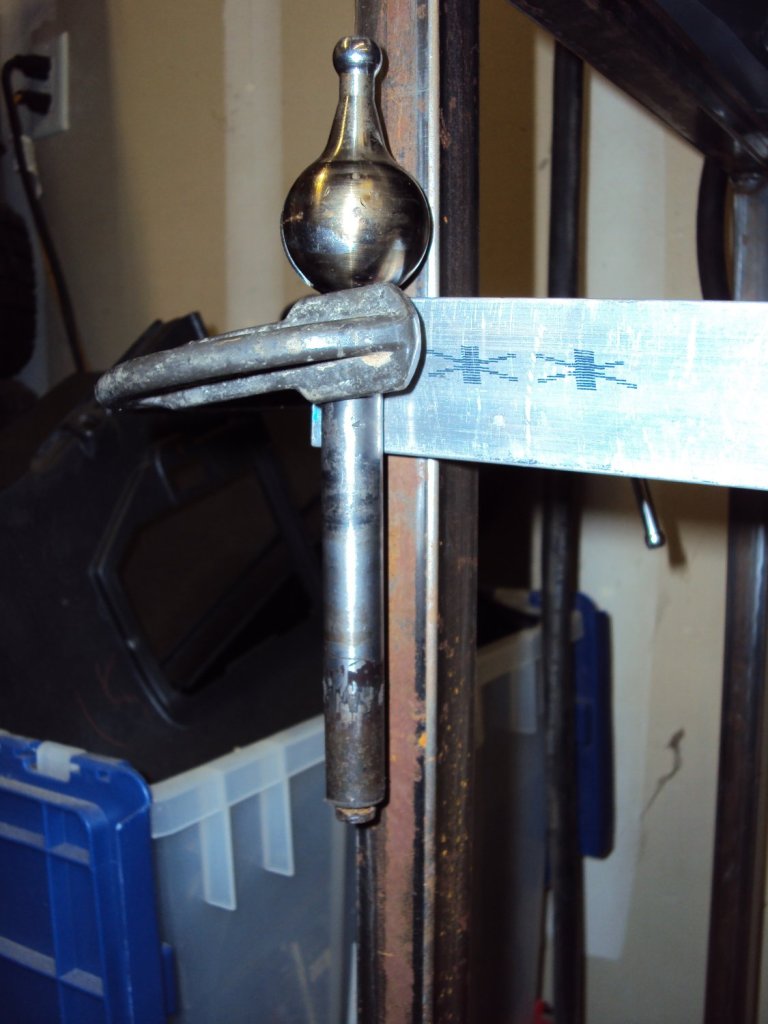

The trouble with the sr shifter is that it has a rubber bushing between the outer shell and the shaft. This means that if you heat up the thing to bend it the way you want you destroy the bushing. It had to be bent so i scraped out what was left of the rubber and poured a urethane bushing in its place. its a shore a 75 hardness and seems to be just about right. shifter position is perfect now, i was even able to shorten up the throw a little bit.



Attached Thumbnails
fail baboon goin for redemption in '012 - will just end up failing again-thumb_fs_jr1n2165.jpg   fail baboon goin for redemption in '012 - will just end up failing again-shittymotor1.jpg   fail baboon goin for redemption in '012 - will just end up failing again-aimmxl.jpg   fail baboon goin for redemption in '012 - will just end up failing again-thumb_m_dsc01553.jpg   fail baboon goin for redemption in '012 - will just end up failing again-thumb_m_dsc01514rl.jpg

fail baboon goin for redemption in '012 - will just end up failing again-shifterwet1.jpg   fail baboon goin for redemption in '012 - will just end up failing again-shifterdry1.jpg

Last edited by jasonb; 02-28-2012 at 05:33 PM. Reason: 3-2 misshift not 4-2 duh
jasonb is offline   Reply With Quote
Old 02-27-2012, 04:42 AM   #2
Elite Member
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -32
Default

in for sick nasty bro ownage
pusha is offline   Reply With Quote
Old 02-27-2012, 01:09 PM   #3
Junior Member
Thread Starter

Join Date: Mar 2010
Location: onion city,ca
Posts: 428
Total Cats: 1
Default

Quote:
Originally Posted by pusha View Post
in for sick nasty bro ownage

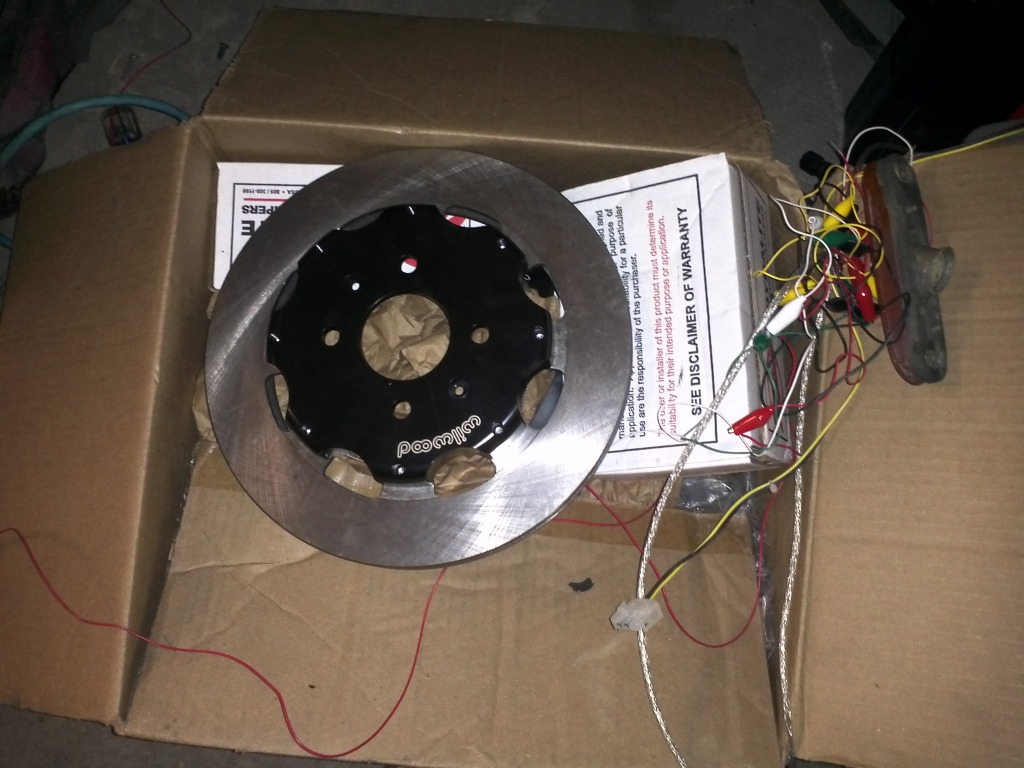

ima have the reacharound wonder twins coming online here in a bit. i see a line forming at the rear.

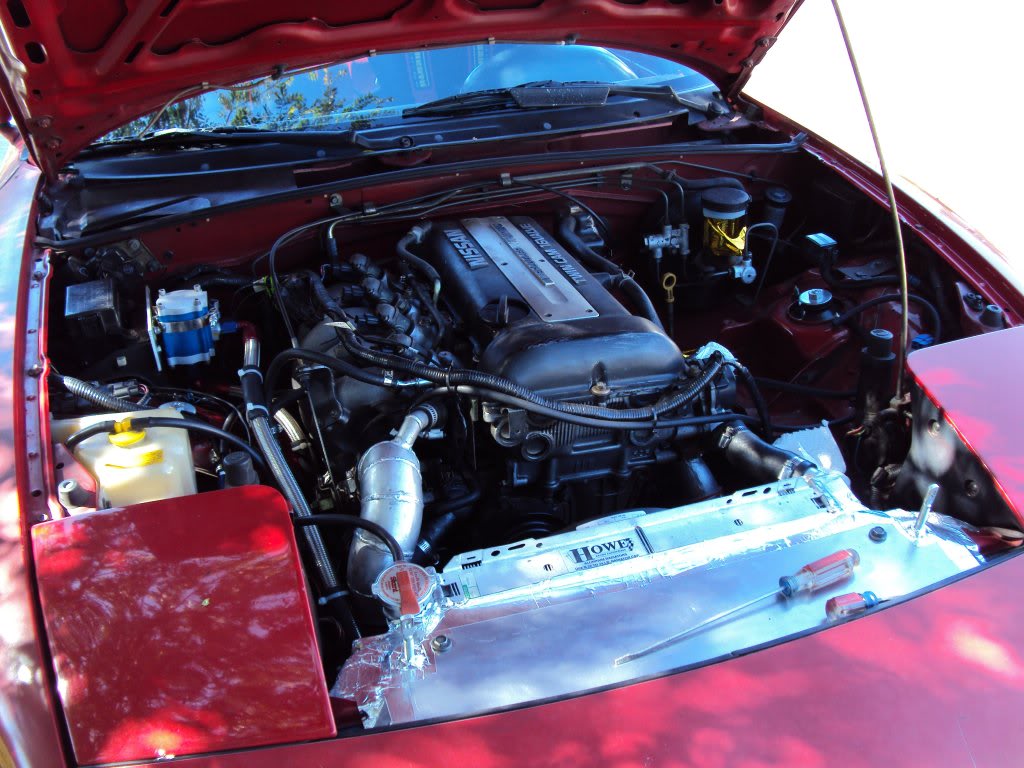

one more item of fail: a sharp eye will notice the turbo to ic piping is missing. car would run but cut out when the turbo spooled. pulled off track and discovered the BOV had blown off the pipe. the weld between pipe and flange failed. this ended my 1st day of the weekend. loaded up and hightailed it back to bay area and got to the shop at 5:55 (close at 6pm) and got it welded back up. .5 fail
Attached Thumbnails
fail baboon goin for redemption in '012 - will just end up failing again-img_20120227_085416.jpg
jasonb is offline   Reply With Quote
Old 02-27-2012, 02:10 PM   #4
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

I like this thread already...
vehicular is offline   Reply With Quote
Old 02-27-2012, 08:16 PM   #5
Junior Member
Thread Starter

Join Date: Mar 2010
Location: onion city,ca
Posts: 428
Total Cats: 1
Default

ms3 + ms3x groks sr20det CAS as of feb 18. woohoo. ms3 isn't completely hooked up yet (its piggy on the stock ecu) but the big deal was CAS support, and thats working.

james murray for president

jasonb is offline   Reply With Quote
Old 02-27-2012, 08:22 PM   #6
Junior Member
Thread Starter

Join Date: Mar 2010
Location: onion city,ca
Posts: 428
Total Cats: 1
Default

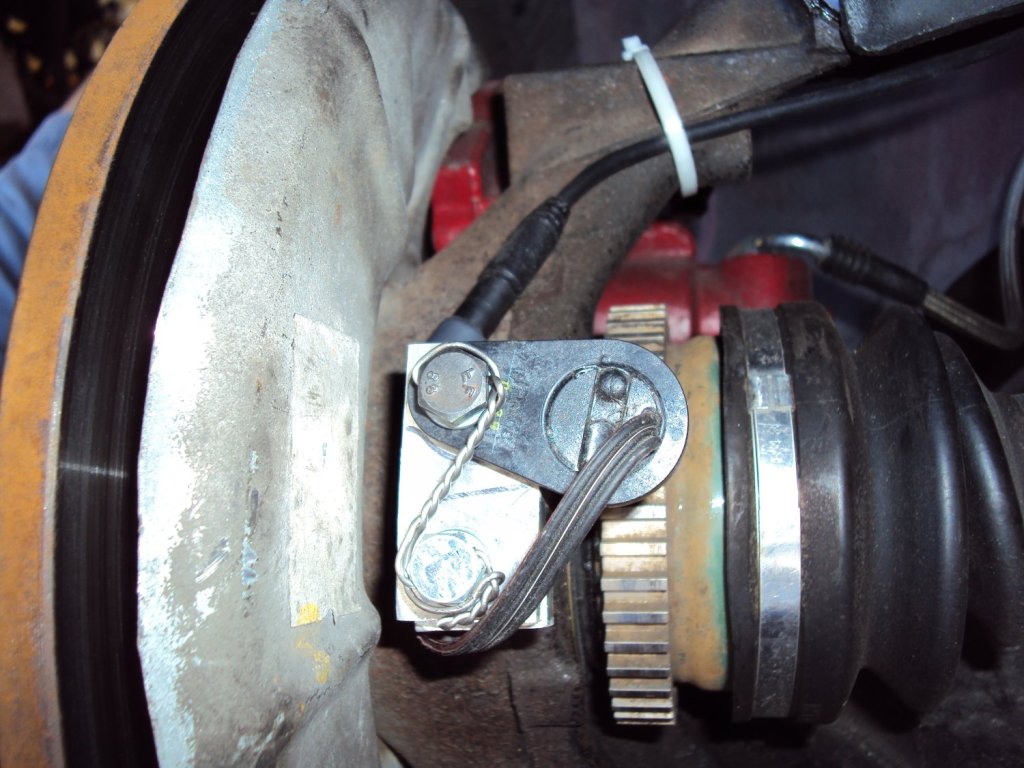

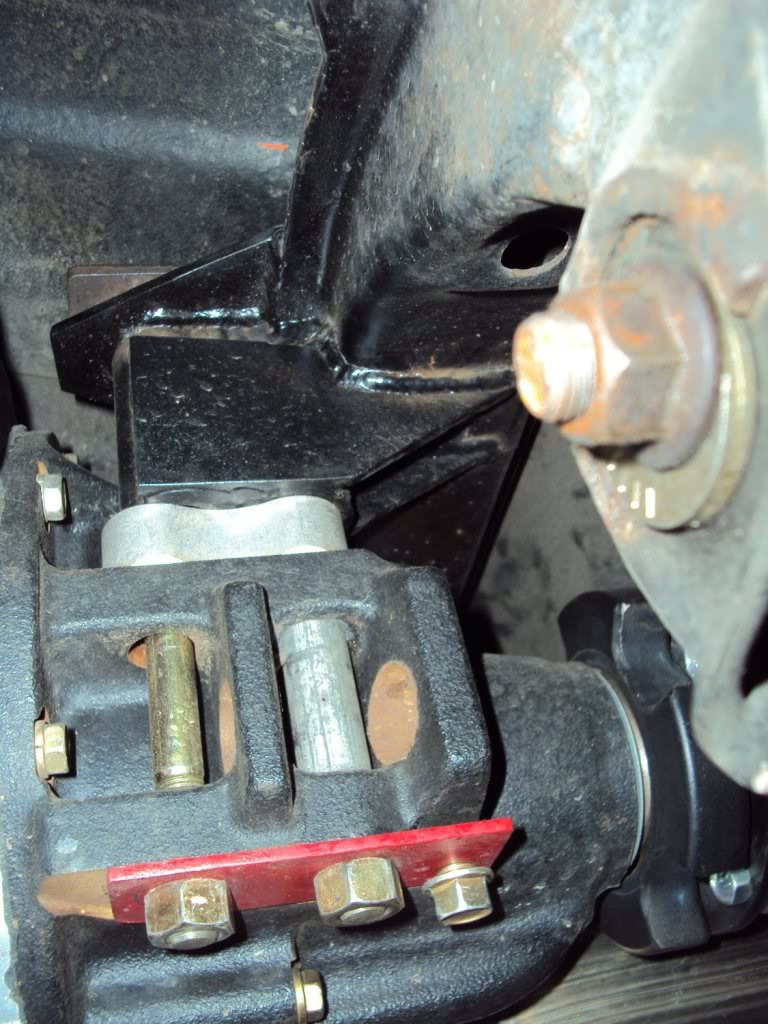

still todo on the fail list. i'm still working on design, but it will be a beefier version of hingstonwm's.




Attached Thumbnails
fail baboon goin for redemption in '012 - will just end up failing again-thumb_m_dsc02207r90.jpg   fail baboon goin for redemption in '012 - will just end up failing again-thumb_m_dsc02219.jpg
jasonb is offline   Reply With Quote
Old 02-27-2012, 09:17 PM   #7
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,176
Total Cats: 261
Default

I like this thread. 1) it's cool 2) glad to see that someone else keeps a personal fail counter, too.
Mobius is offline   Reply With Quote
Old 02-27-2012, 09:59 PM   #8
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

Great stuff,
Seefo is offline   Reply With Quote
Old 02-27-2012, 10:47 PM   #9
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

Need a plate welded to the subframe to increase the loaded surface area.

Really impressed with the swap though. Looks fairly well thought out.

Last edited by chpmnsws6; 02-27-2012 at 11:03 PM.
chpmnsws6 is offline   Reply With Quote
Old 02-27-2012, 11:42 PM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,164
Total Cats: 2,573
Default

Perhaps I'm blind, but I'm not seeing the fail in this thread
Looks like WIN to me
18psi is offline   Reply With Quote
Old 02-28-2012, 01:30 AM   #11
Junior Member
Thread Starter

Join Date: Mar 2010
Location: onion city,ca
Posts: 428
Total Cats: 1
Default

Quote:
Originally Posted by chpmnsws6 View Post
Need a plate welded to the subframe to increase the loaded surface area.

Really impressed with the swap though. Looks fairly well thought out.
i'm still looking for ways to spread the load out. the front of the diff wants to tilte down so first thing i was going to try is weld a section of U stock traverse along the subframe. then take the stub the diff is mounted to and stick it inside the U and do a butt weld to keep it in place. hoping the downward force of the diff will spread out and to the subframe mounts on either side.

i'll mock up something and post a pic as soon as i get some wires back in the car lol.


18psi, ok i see i haz to convince u i haz lots of fail lol.

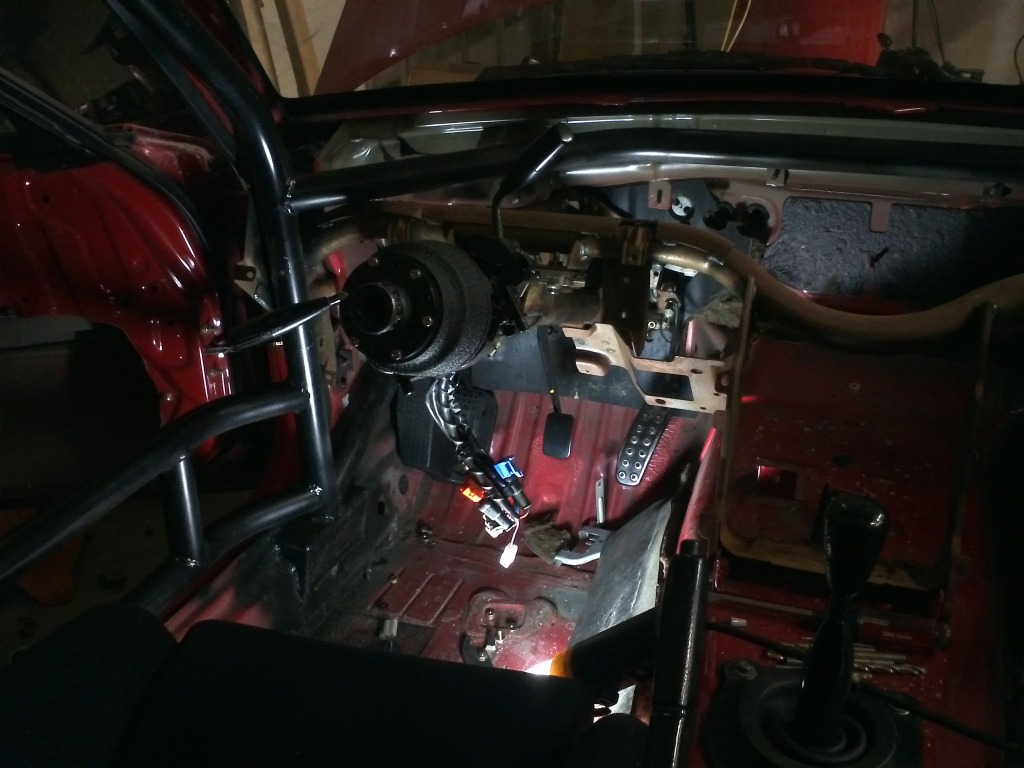

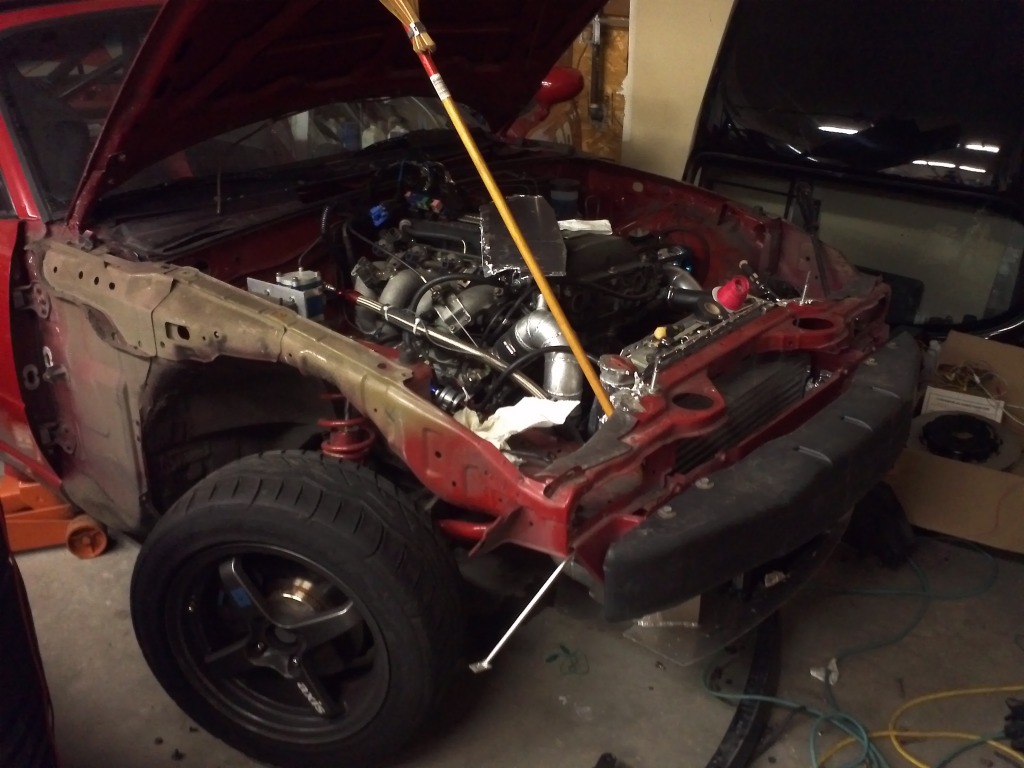

I bought the megasquirt the end of november '010. Just this month got it built. fail.

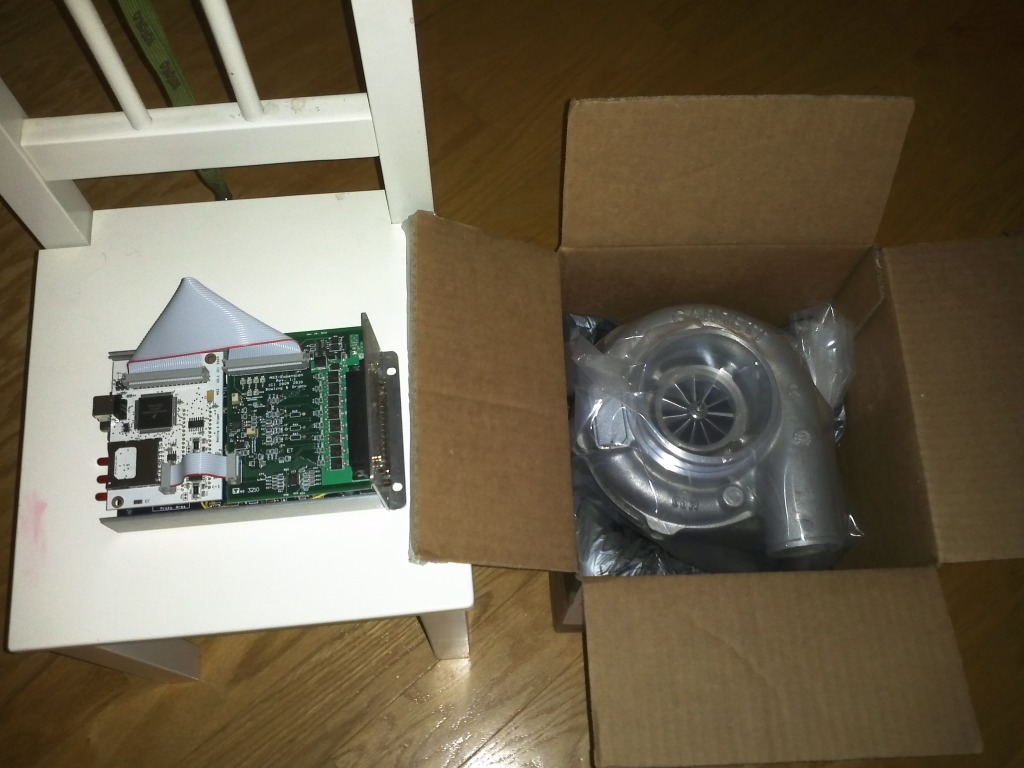

I received this nice box of goodies just about a year ago iirc. win. its still in the box. fail. so sad. my company moved to san diego just about this time last year and so I ended up spending 50% time down there. combine that with a few household disasters and that was it. I didn't touch the car in '011 at all.

Attached Thumbnails
fail baboon goin for redemption in '012 - will just end up failing again-img_20120227_203445.jpg
jasonb is offline   Reply With Quote
Old 02-28-2012, 01:47 AM   #12
Junior Member
Thread Starter

Join Date: Mar 2010
Location: onion city,ca
Posts: 428
Total Cats: 1
Default

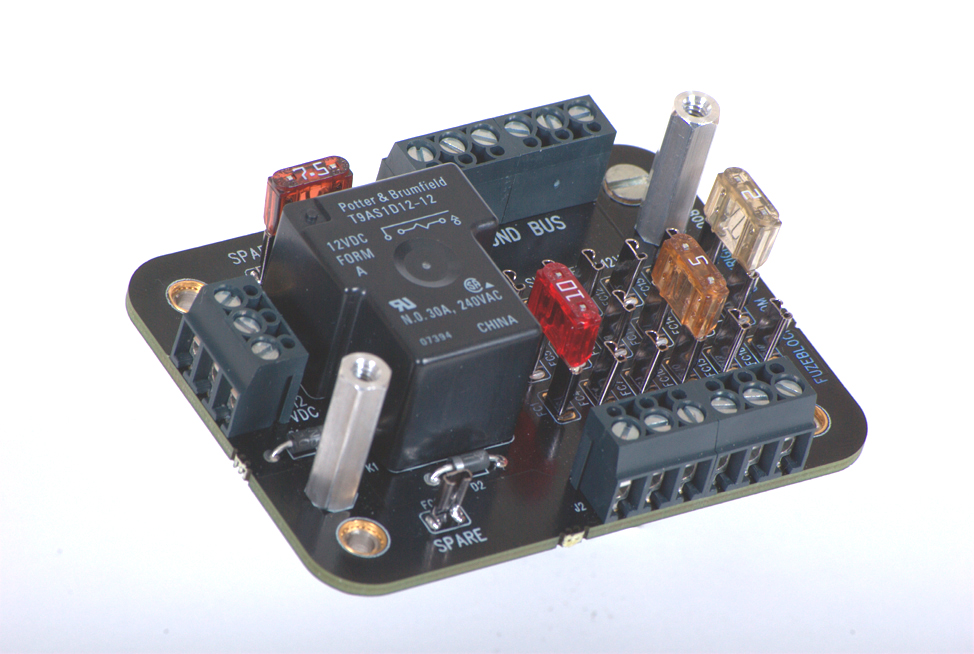

So here's to redemption in 012. The plan is to wire in the megasquirt with the minimal amount of body wiring to run the hazards, brakes, turns, brake master idiot, etc. ordered a fz-1 (fuzeblocks.com) today. its for bikes, but i think can fit everything on it except for the main fan.

tomorrow i'm on the hunt for source for raychem 55 wire and shielding, adhesive heat shrink and deutsch AS connectors (http://www.deutsch.net/deutsch-produ...&s=1&market=10). ok i know, i'm smoking crack on the deutsch connectors, but damn.






Attached Thumbnails
fail baboon goin for redemption in '012 - will just end up failing again-img_20120227_205412.jpg   fail baboon goin for redemption in '012 - will just end up failing again-img_20120227_203629.jpg   fail baboon goin for redemption in '012 - will just end up failing again-015_fs.jpg
jasonb is offline   Reply With Quote
Old 02-28-2012, 09:31 AM   #13
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

Well isn't that just the cutest thing you ever saw?


What will your circuits be? ECU power, blinker relay, high beams, low beams, brake light, interior lights? With fans on a separate fuse?
vehicular is offline   Reply With Quote
Old 02-28-2012, 05:56 PM   #14
Junior Member
Thread Starter

Join Date: Mar 2010
Location: onion city,ca
Posts: 428
Total Cats: 1
Default

first cut on the circuits. i'm sure i'm forgetting something....

i'm thinking 1 fuel pump ok. 2 may need to be a relay with a fuse. suck.


6 terminals of always on (30A total):
brake lights
turn lights and the blinker box
hazards and its blinker box
brake master idiot light
video camera


6 terminals of switched 12v (30A total)
main fan relay
aim dash
ecu/cops 12v/cas 12v
igniter 12v
fuel pumps
o2 sensor
jasonb is offline   Reply With Quote
Old 02-28-2012, 06:58 PM   #15
lub
Newb

Join Date: Dec 2011
Posts: 14
Total Cats: -1
Default

Quote:
Originally Posted by pusha View Post
in for sick nasty brownage
ftfy.

op...you're the man. #truestory.
lub is offline   Reply With Quote
Old 02-28-2012, 09:54 PM   #16
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,008
Total Cats: 583
Default

Got your wiring diagram drawn yet? That will save you a bunch of time in the long run.

SPEC 55 is just a variation on milspec Tefzel wire. Aircraft Spruce is a great place to go for that. http://www.aircraftspruce.com/menus/el/wire.html
hornetball is offline   Reply With Quote
Old 02-29-2012, 01:54 AM   #17
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 65
Default

If you could post your wiring diagram when you draw one that would be awesome. I want to go the same route with my wiring, the less the better.
RyanRaduechel is offline   Reply With Quote
Old 03-01-2012, 02:02 AM   #18
Junior Member
Thread Starter

Join Date: Mar 2010
Location: onion city,ca
Posts: 428
Total Cats: 1
Default

hornet thank u sir. aircraftspruce kicks ***. everything is by the foot and they have the shielded wire i was looking for for the crank and cam signals.

I will certainly document the wiring scheme i end up with but i'm not sure how useful it will be. since mine is a motor swap i'm getting rid of the engine harness and supporting wiring. the under-car harness (battery to alternator) is still in the car, but i may end up pruning that too. this is probably a lot more scorched earth than most folks would want.

Ryan, maybe check tsb'ers wiring thread, he did a nice job: https://www.miataturbo.net/showthrea...ht=tuck&page=3

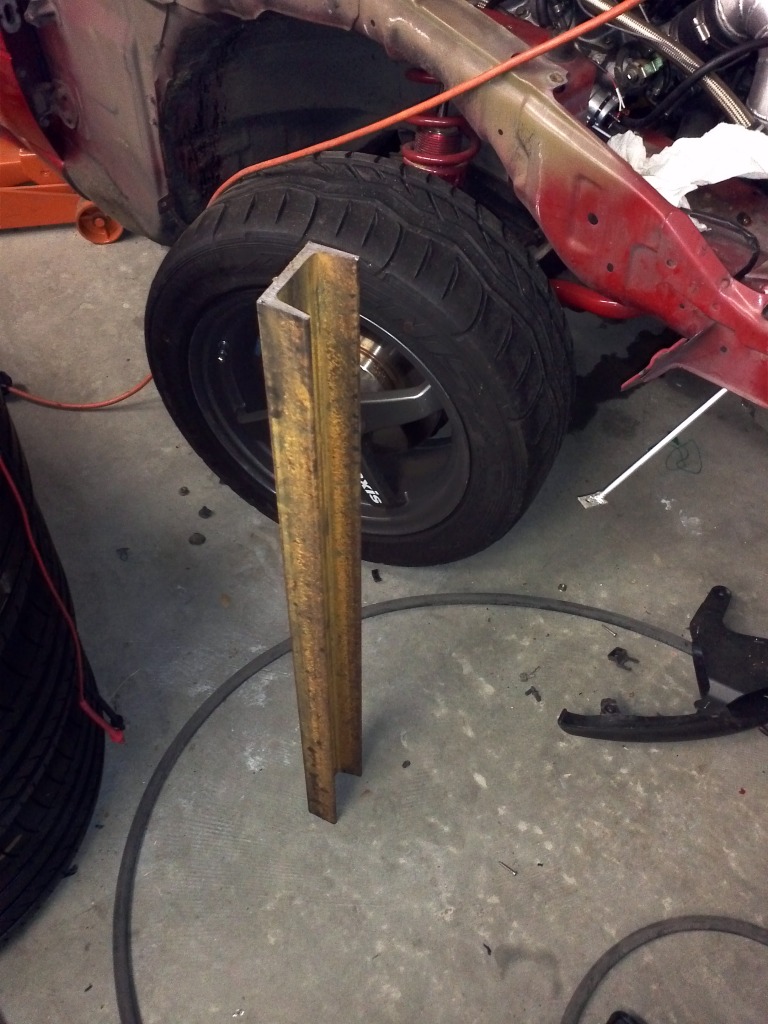

bought some metal to reinforce subframe. it weighs 16lbs. little bit buyers remorse since i just spent a couple days removing weight.

Attached Thumbnails
fail baboon goin for redemption in '012 - will just end up failing again-img_20120229_212300.jpg
jasonb is offline   Reply With Quote
Old 03-01-2012, 11:09 AM   #19
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

Quote:
Originally Posted by jasonb View Post
first cut on the circuits. i'm sure i'm forgetting something....

i'm thinking 1 fuel pump ok. 2 may need to be a relay with a fuse. suck.


6 terminals of always on (30A total):
brake lights
turn lights and the blinker box
hazards and its blinker box
brake master idiot light
video camera


6 terminals of switched 12v (30A total)
main fan relay
aim dash
ecu/cops 12v/cas 12v
igniter 12v
fuel pumps
o2 sensor
I must have misunderstood the circuit diagram. I thought you had 6 total circuits, with a choice of switched or constant.
vehicular is offline   Reply With Quote
Old 03-01-2012, 05:02 PM   #20
Junior Member
Thread Starter

Join Date: Mar 2010
Location: onion city,ca
Posts: 428
Total Cats: 1
Default

Quote:
Originally Posted by vehicular View Post
I must have misunderstood the circuit diagram. I thought you had 6 total circuits, with a choice of switched or constant.
You are totally correct sir.


2nd cut:


6 terminals total

always on (30A total):
1 brake lights/turn lights and blinker box/hazards and its blinker box/brake master idiot light/video camera
2 main fan

switched 12v (30A total)
3 fuel pump
4 aim dash/ecu/cops 12v/cas 12v
5 igniter 12v/o2 sensor/main fan relay
6 switched 2nd fuel pump (if its small) or convert to always on if there is more current available there

i'm going to need some fancy connectors to deal with all the 1:n connections.
jasonb is offline   Reply With Quote
