Default FastColt's official build thread

Bout that time kids.... been a busy busy winter, whole lotta work has gone on. My goal is to be as close to 500whp as possible. Please enjoy!

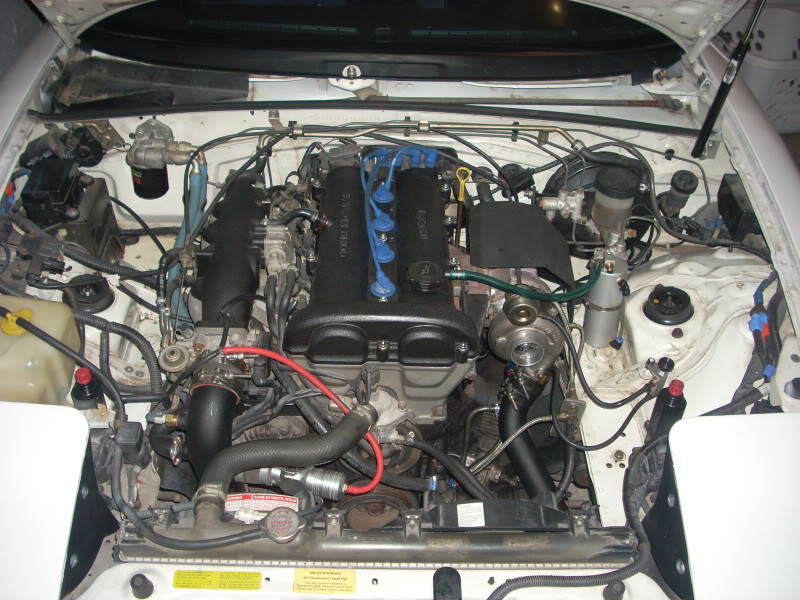

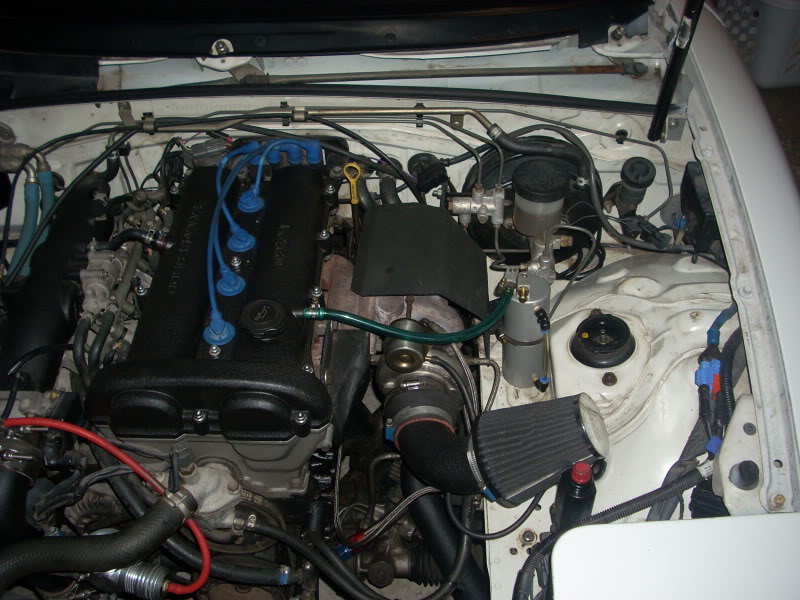

Old BEGI S3 GT2854 set up
Name:  DSCN0019-1.jpg
Views: 8
Size:  137.5 KB
Name:  DSCN0015.jpg
Views: 4
Size:  148.0 KB

Now the fun stuff

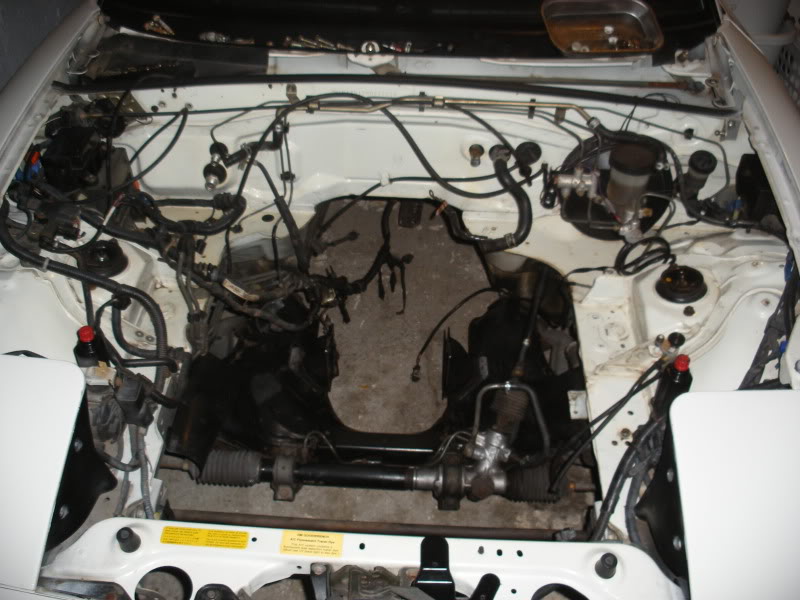

Name:  DSCF0928.jpg
Views: 4
Size:  95.9 KB

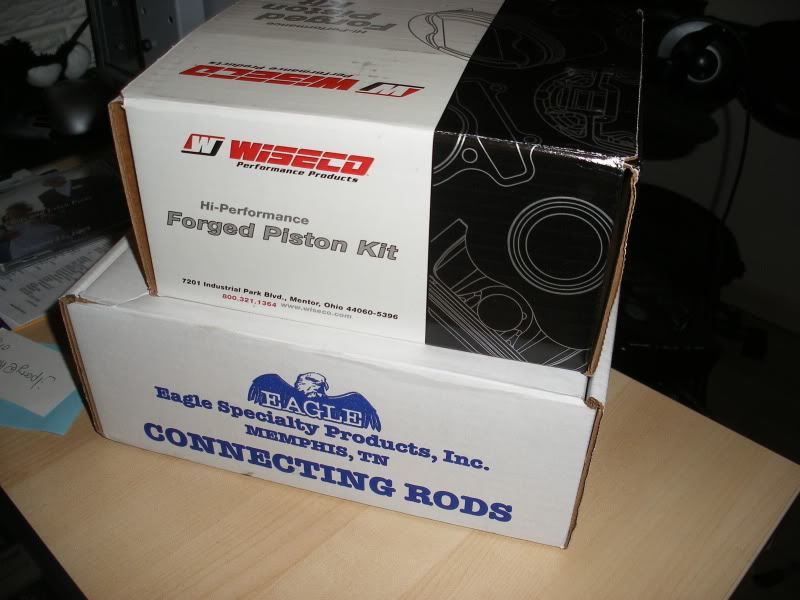

Name:  DSCF0898.jpg
Views: 4
Size:  83.8 KB

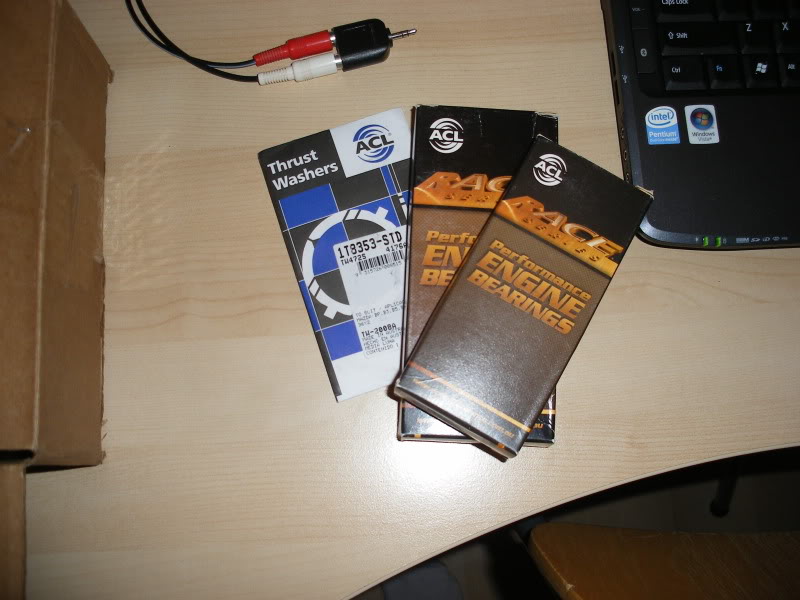

Name:  DSCF0899.jpg
Views: 4
Size:  84.5 KB

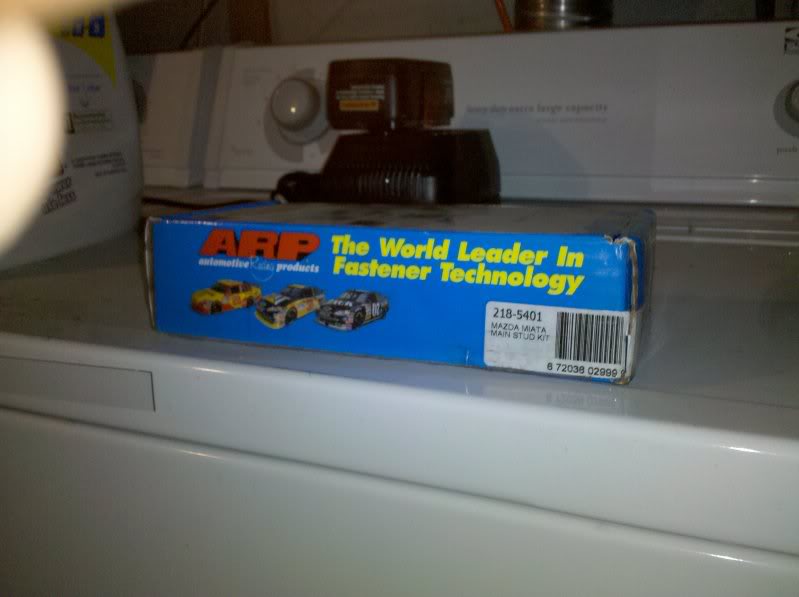

Name:  FriFeb12193517AmericaNew_York2010.jpg
Views: 4
Size:  50.6 KB

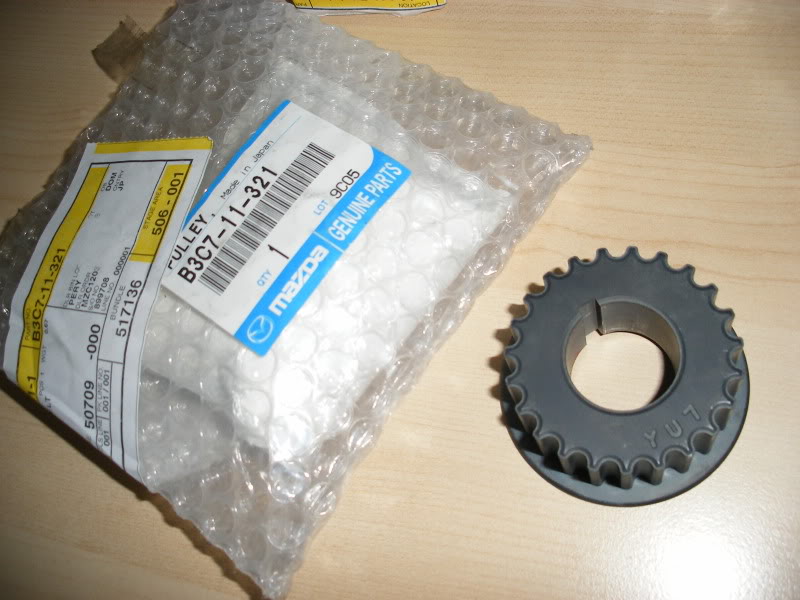

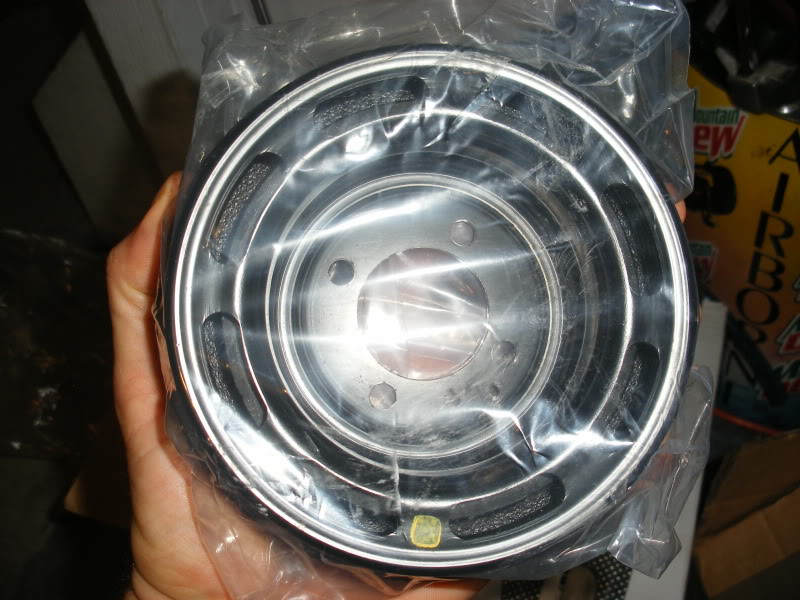

OEM Mazda Pully

Name:  DSCF0912.jpg
Views: 4
Size:  104.1 KB
Name:  DSCF0931.jpg
Views: 4
Size:  89.4 KB

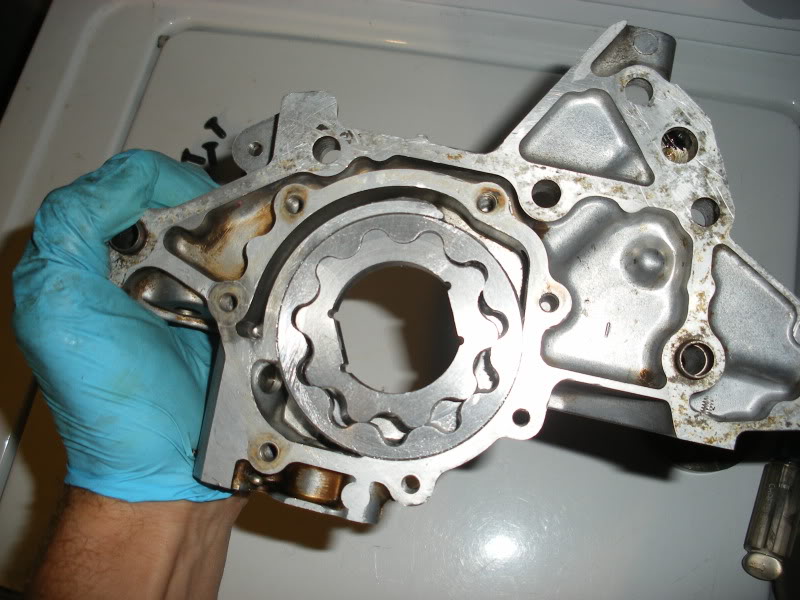

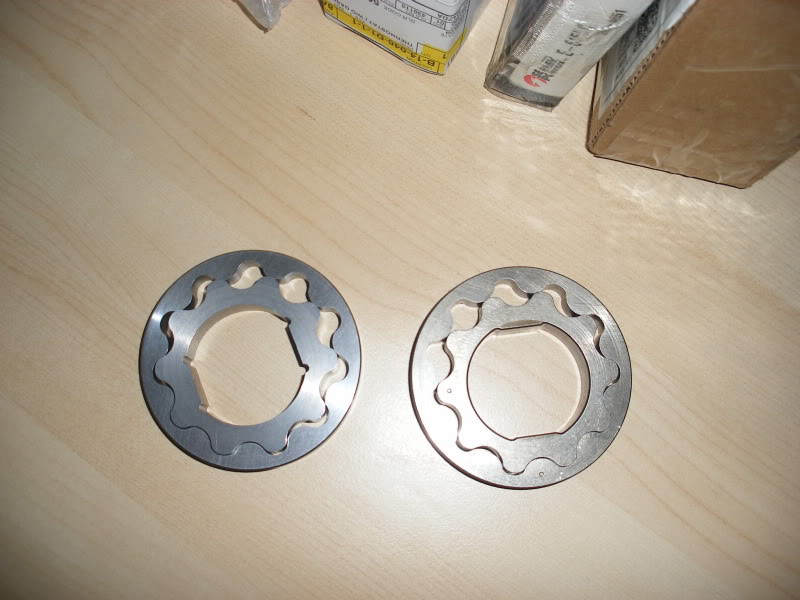

Boundary oil gears next to stock

Name:  DSCF0932.jpg
Views: 4
Size:  78.9 KB
Name:  DSCF0935.jpg
Views: 4
Size:  99.4 KB

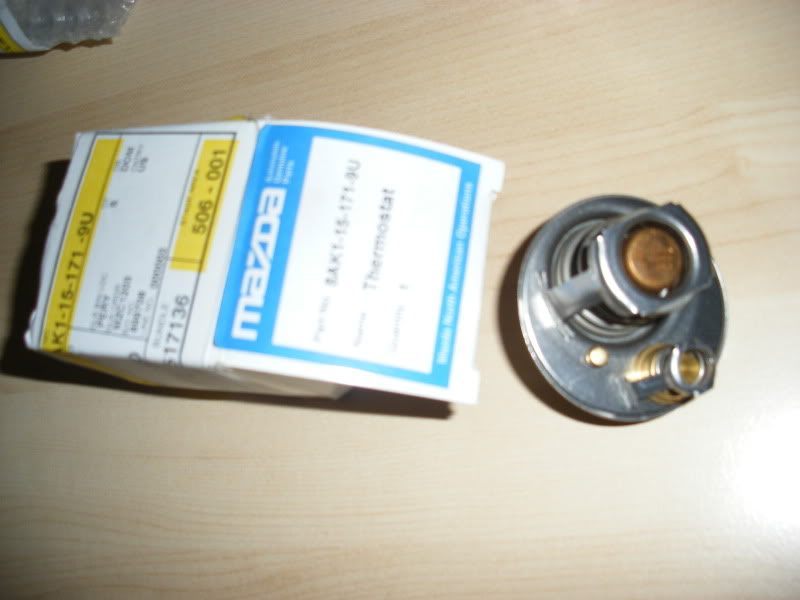

Name:  DSCF0930.jpg
Views: 4
Size:  56.5 KB

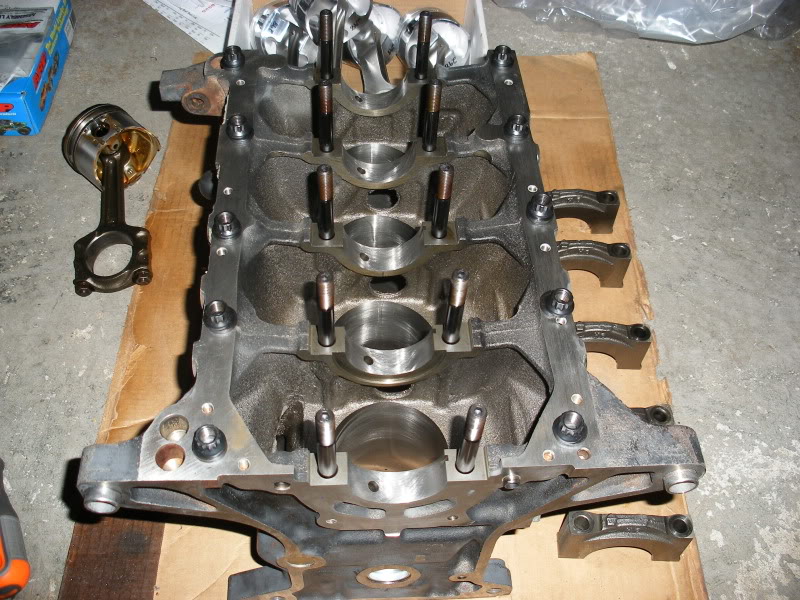

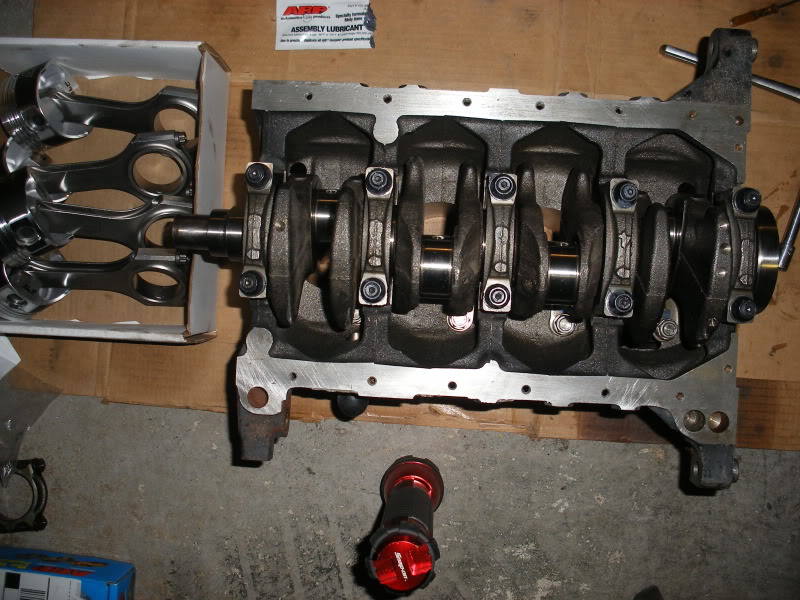

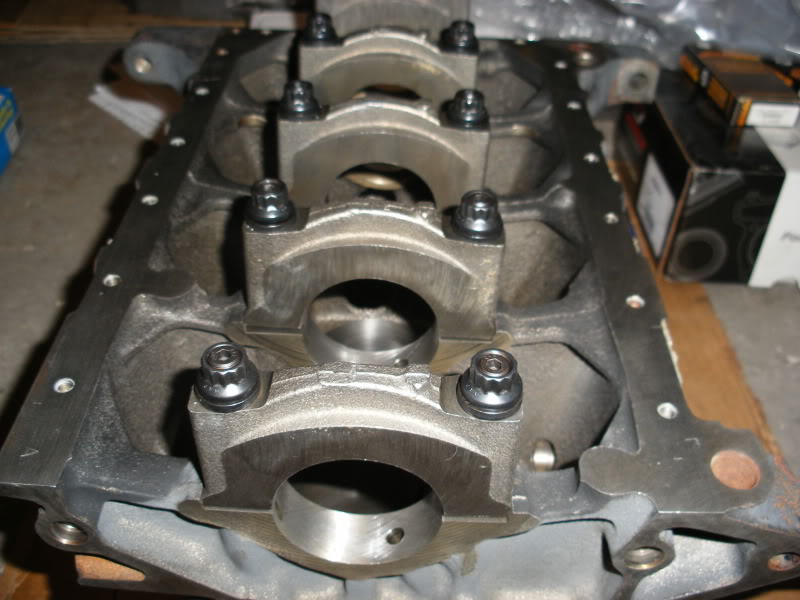

Got the block bored and machined. Crank reground, put all the crap together...

Name:  DSCF0922.jpg
Views: 4
Size:  147.0 KB
Name:  DSCF0916.jpg
Views: 4
Size:  83.3 KB

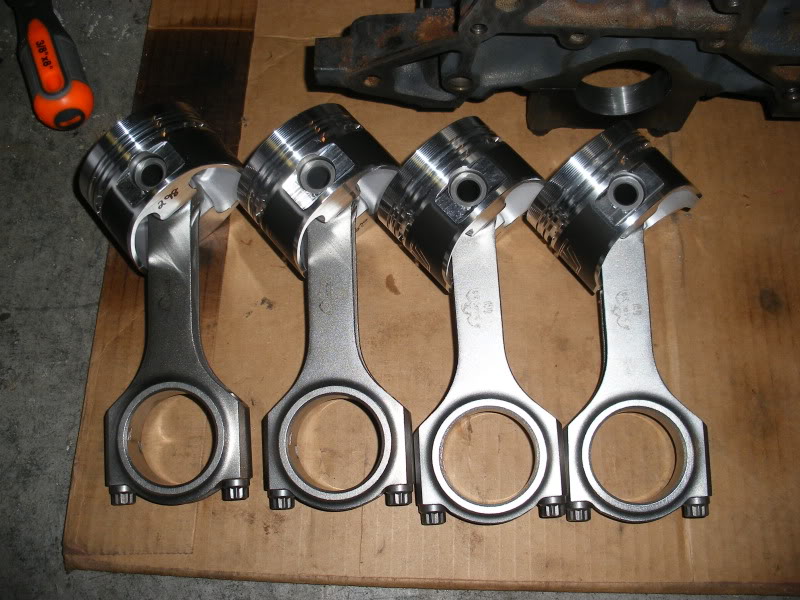

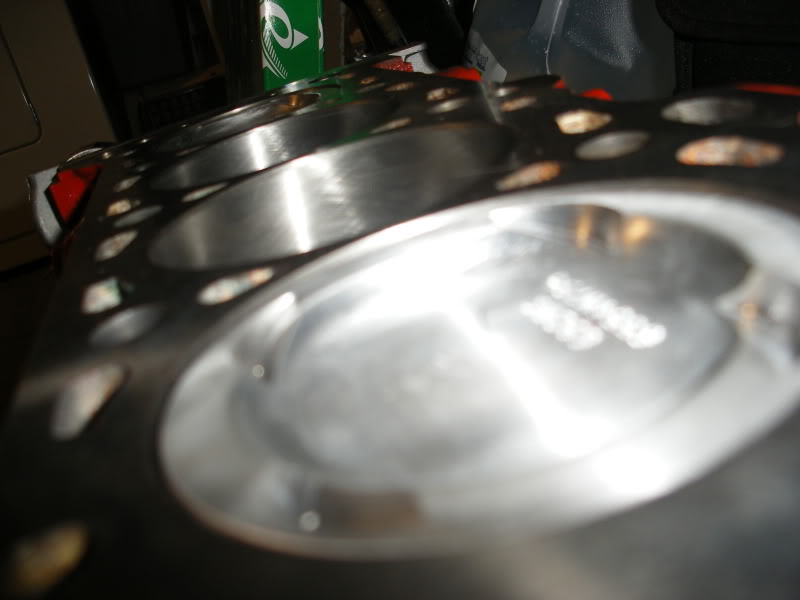

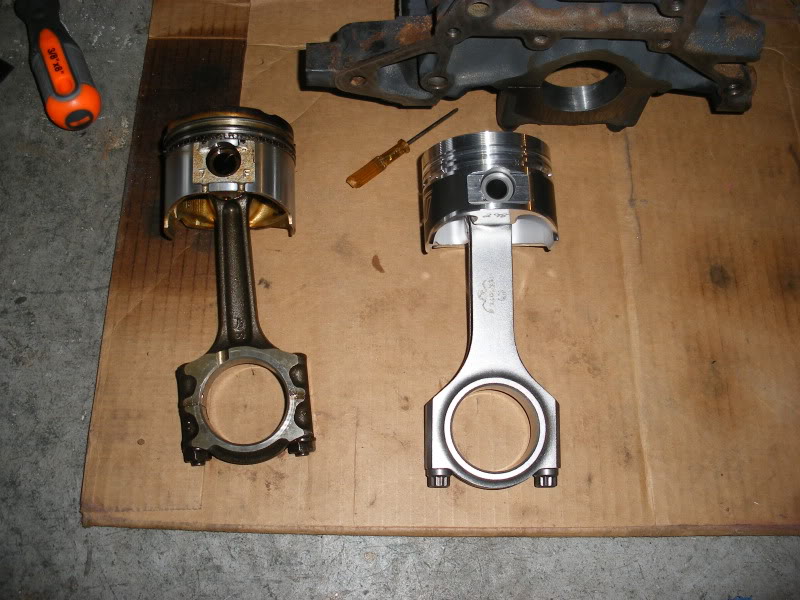

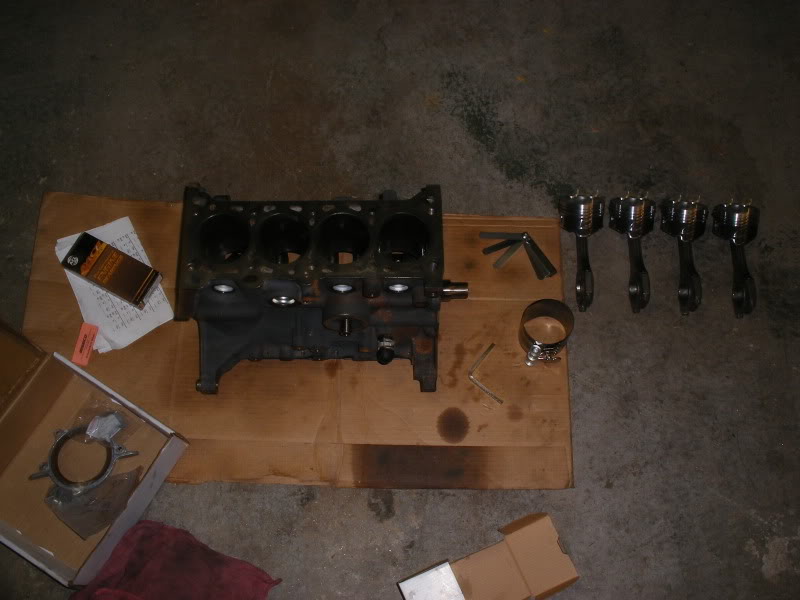

Eagle Wiseco next to stock crap

Name:  DSCF0920.jpg
Views: 4
Size:  108.3 KB
Name:  DSCF0921.jpg
Views: 4
Size:  115.4 KB
Name:  DSCF0924.jpg
Views: 4
Size:  70.0 KB
Name:  DSCF0923.jpg
Views: 4
Size:  126.2 KB
Name:  DSCF0946.jpg
Views: 4
Size:  50.2 KB

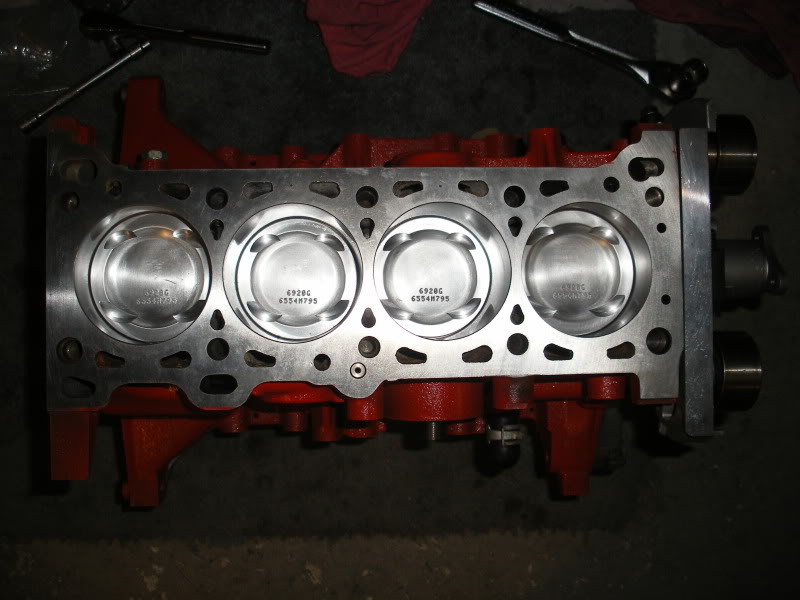

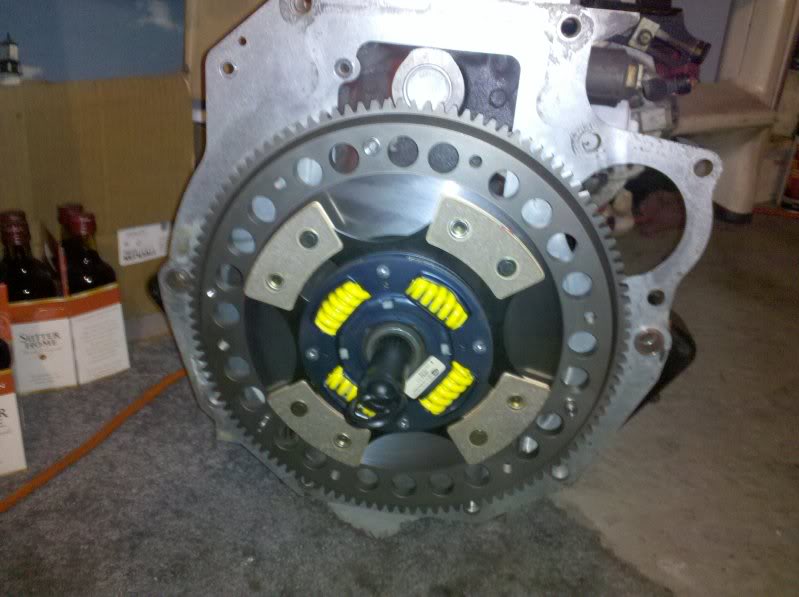

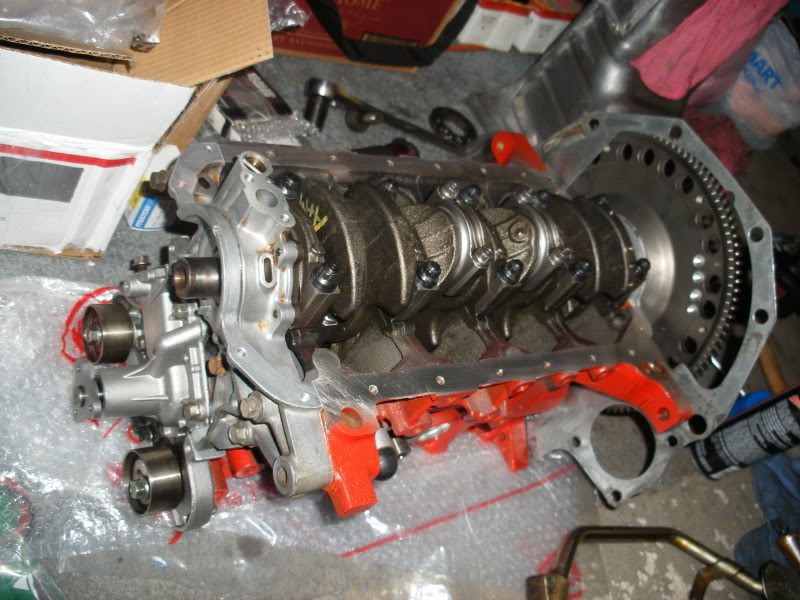

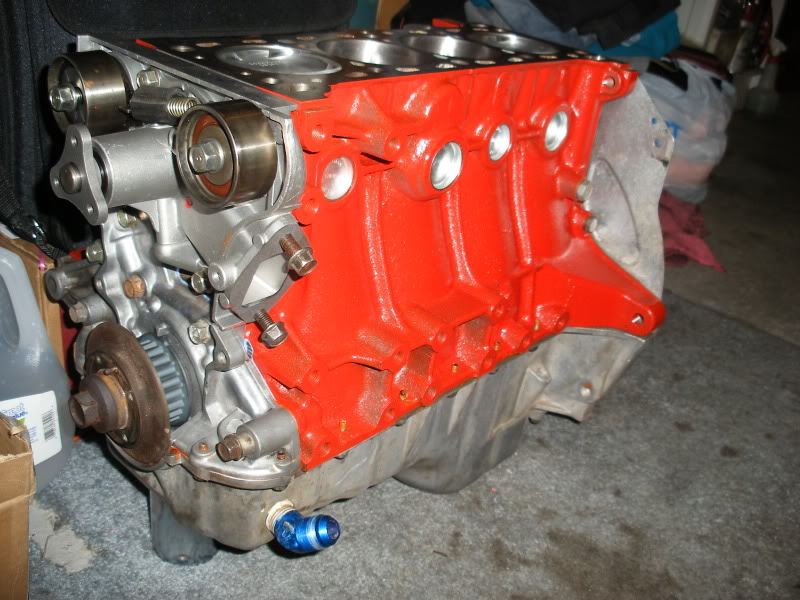

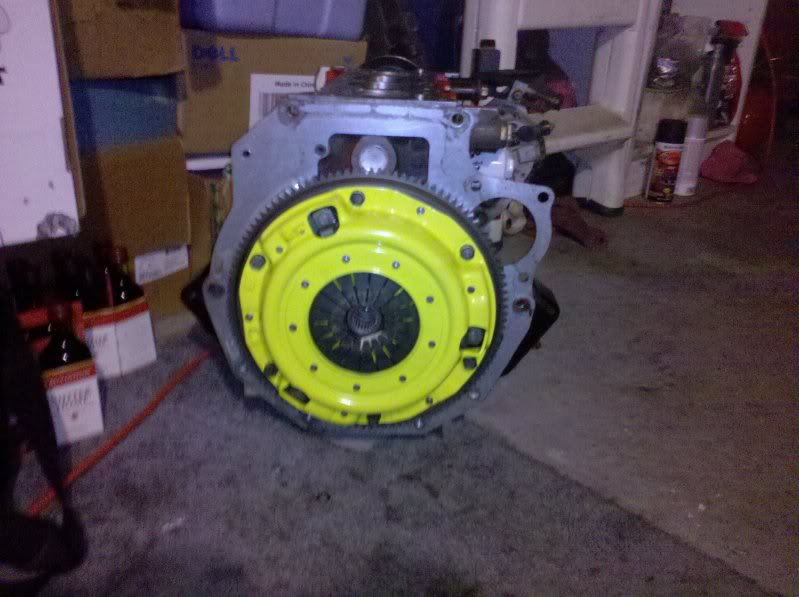

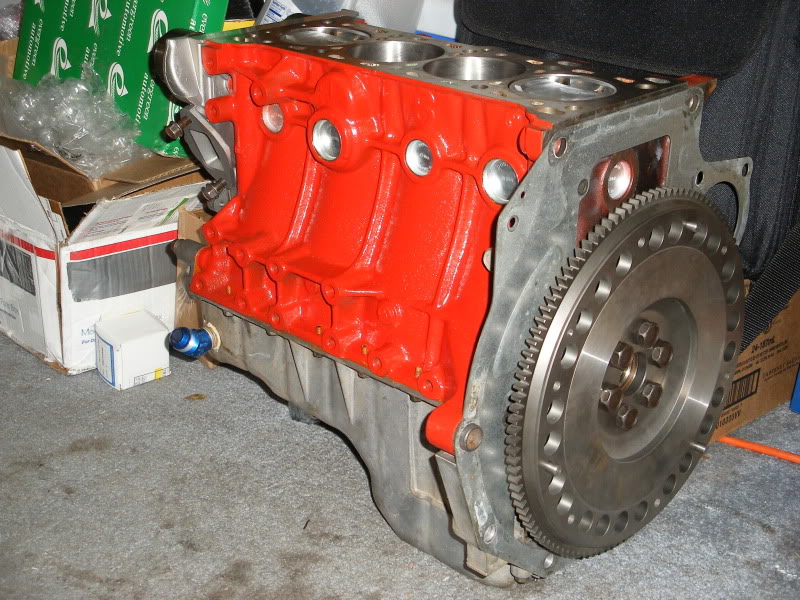

Painted and put together

Name:  DSCF0942.jpg
Views: 4
Size:  109.7 KB
Name:  DSCF0940.jpg
Views: 4
Size:  79.9 KB
Name:  DSCF0948.jpg
Views: 4
Size:  116.4 KB

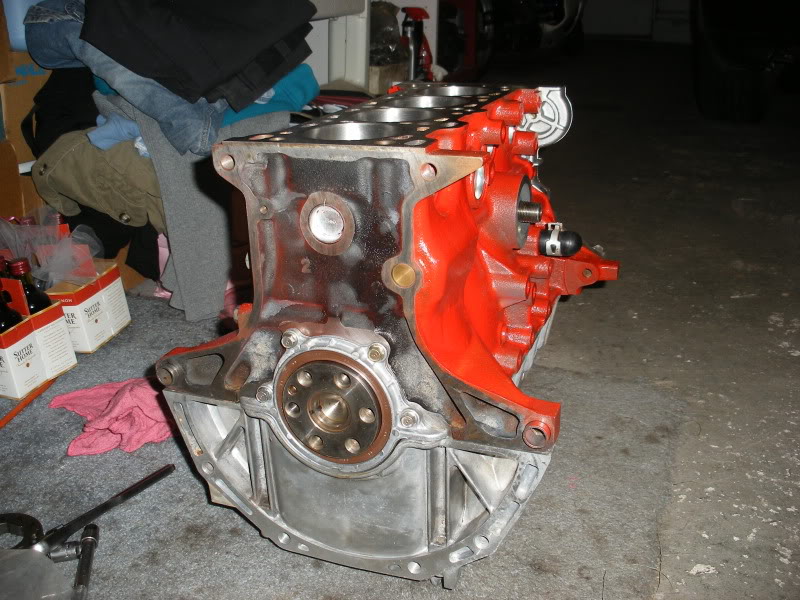

Name:  DSCF0939.jpg
Views: 4
Size:  127.0 KB
Name:  DSCF0945.jpg
Views: 4
Size:  153.5 KB

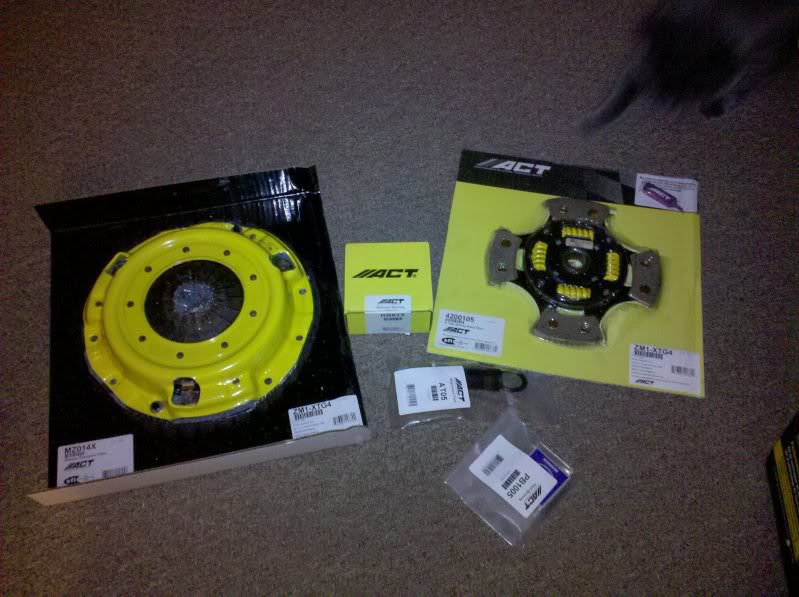

Name:  FriJan22204550AmericaNew_York2010.jpg
Views: 4
Size:  100.1 KB
Name:  FriJan22204554AmericaNew_York2010.jpg
Views: 4
Size:  80.4 KB
Name:  FriJan22204557AmericaNew_York2010.jpg
Views: 4
Size:  83.2 KB

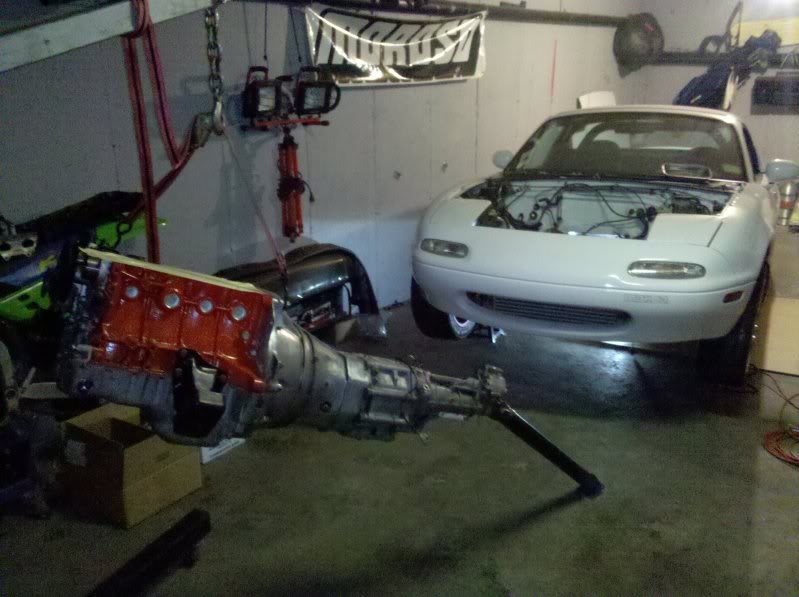

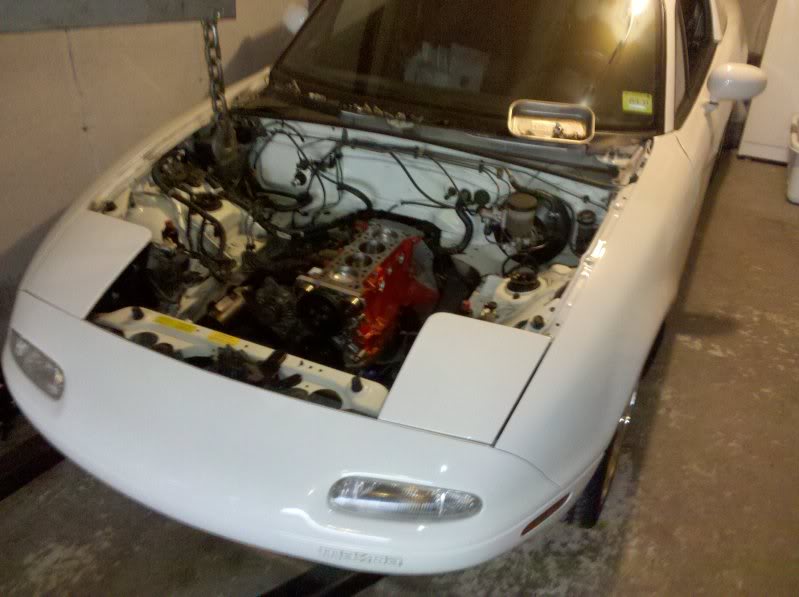

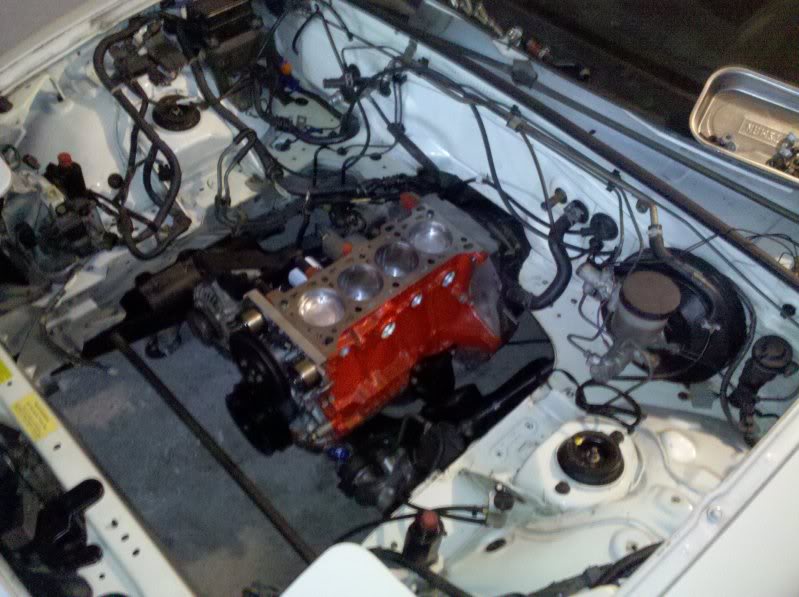

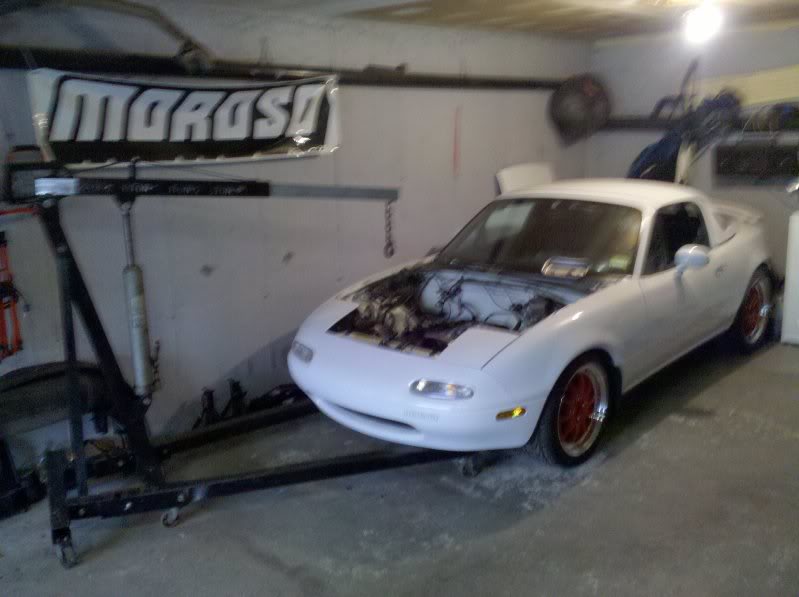

K ready to go back in, didnt have anywhere to drain tranny so the drive shaft stayed on for the install. Dont ask lol....

Name:  SunJan24160759AmericaNew_York2010.jpg
Views: 4
Size:  85.7 KB
Name:  SunJan24160802AmericaNew_York2010.jpg
Views: 4
Size:  105.3 KB
Name:  SunJan24160805AmericaNew_York2010.jpg
Views: 4
Size:  74.2 KB
Name:  SunJan24160808AmericaNew_York2010.jpg
Views: 4
Size:  64.9 KB

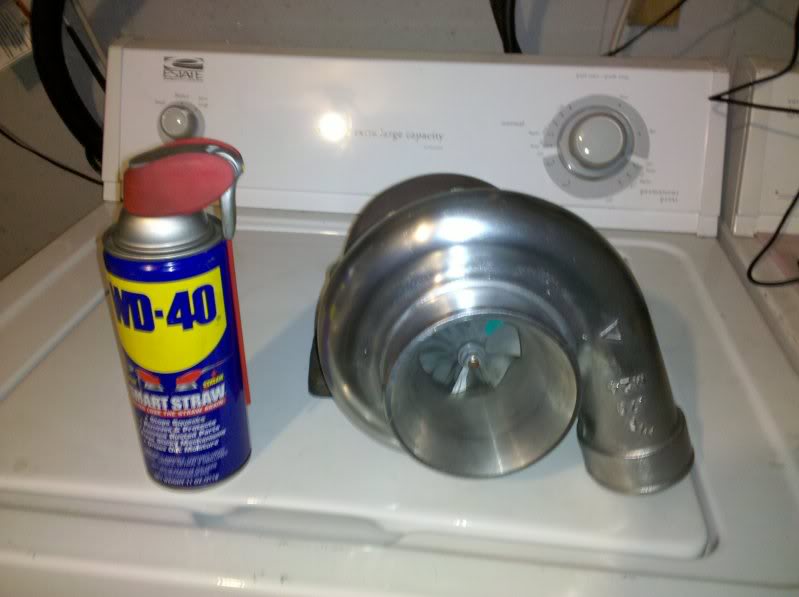

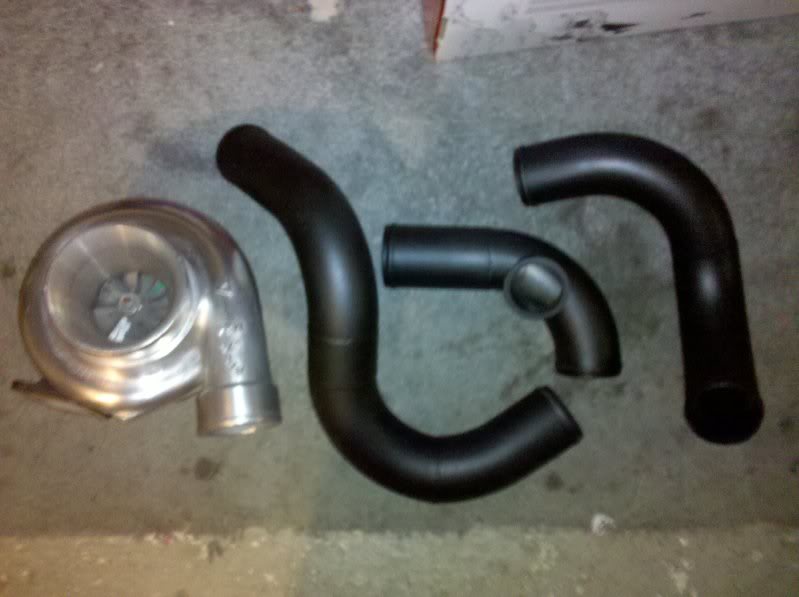

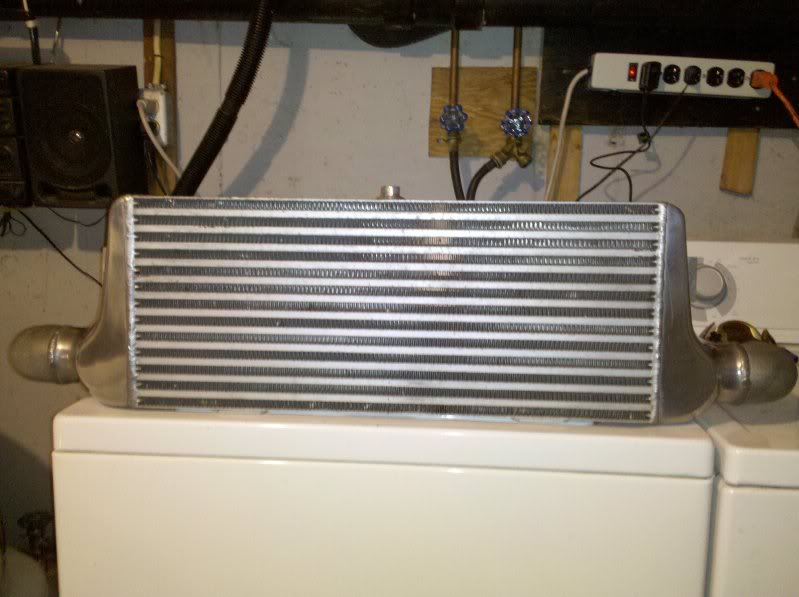

Now for the turbo goodies, Garrett 60-1 and EDT mani care of Jtothawhat...Sorry bud, had to spruce up the parts.

Name:  TueJan19080208AmericaNew_York2010.jpg
Views: 4
Size:  57.8 KB
Name:  TueJan19080326AmericaNew_York2010.jpg
Views: 4
Size:  79.4 KB
Name:  TueJan19080306AmericaNew_York2010.jpg
Views: 4
Size:  59.6 KB

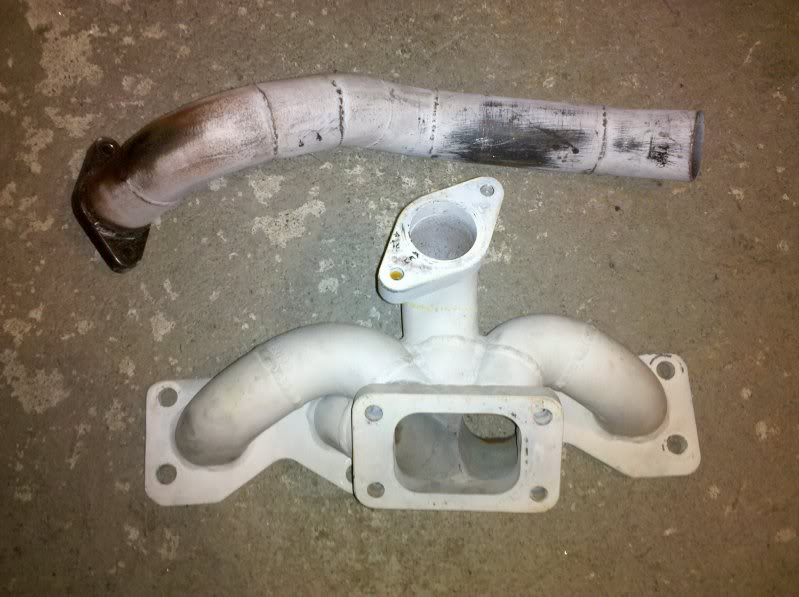

White? Seriously?????? lol

Name:  TueJan19080334AmericaNew_York2010.jpg
Views: 4
Size:  86.2 KB

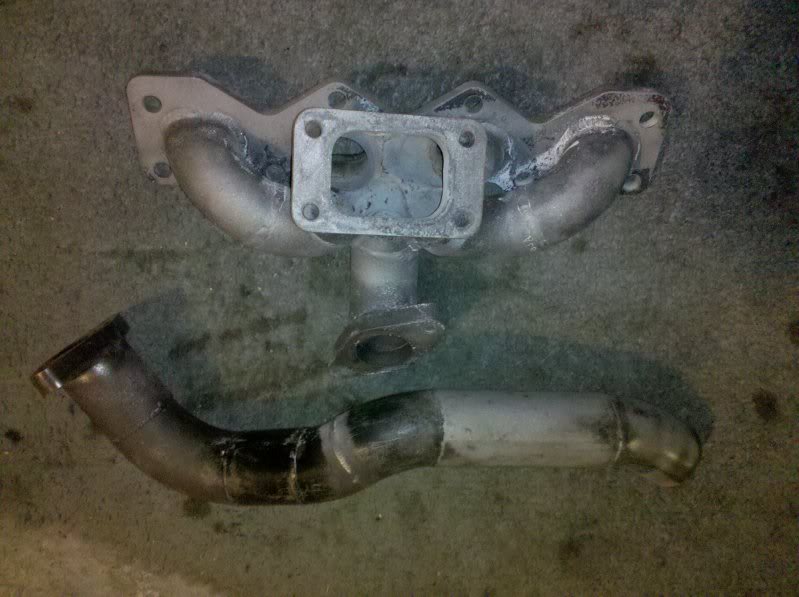

Sandblasted

Name:  TueJan19080339AmericaNew_York2010.jpg
Views: 4
Size:  85.7 KB

Primed

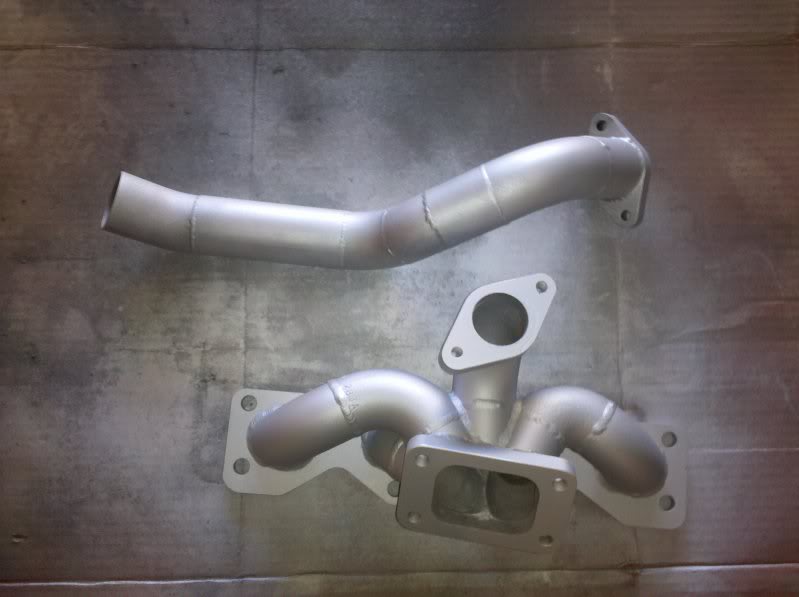

Name:  TueJan19080343AmericaNew_York2010.jpg
Views: 4
Size:  54.1 KB

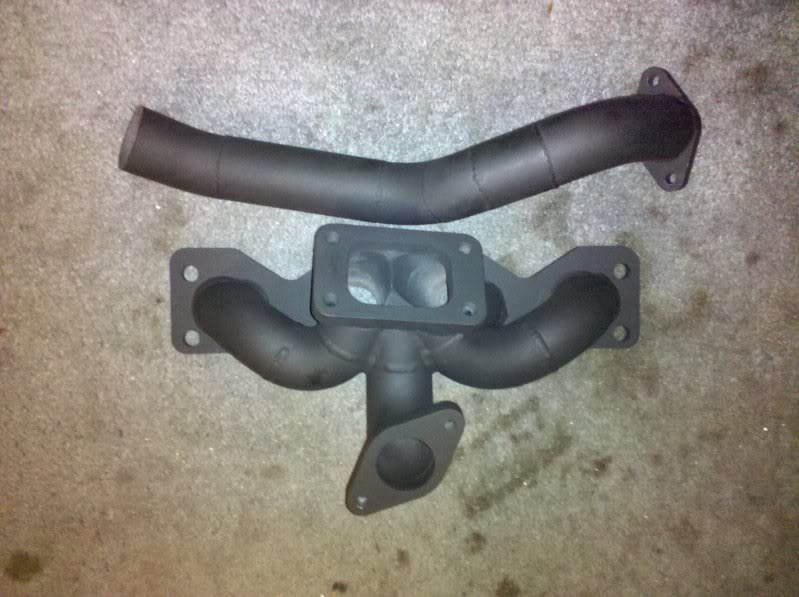

Final product ceramic rattle can 2500 degree

Name:  TueJan19141316AmericaNew_York2010.jpg
Views: 5
Size:  89.8 KB

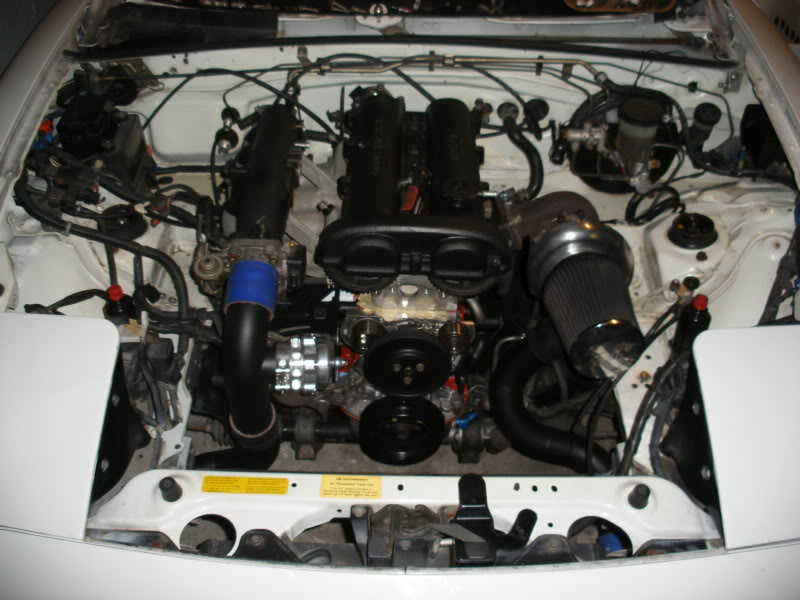

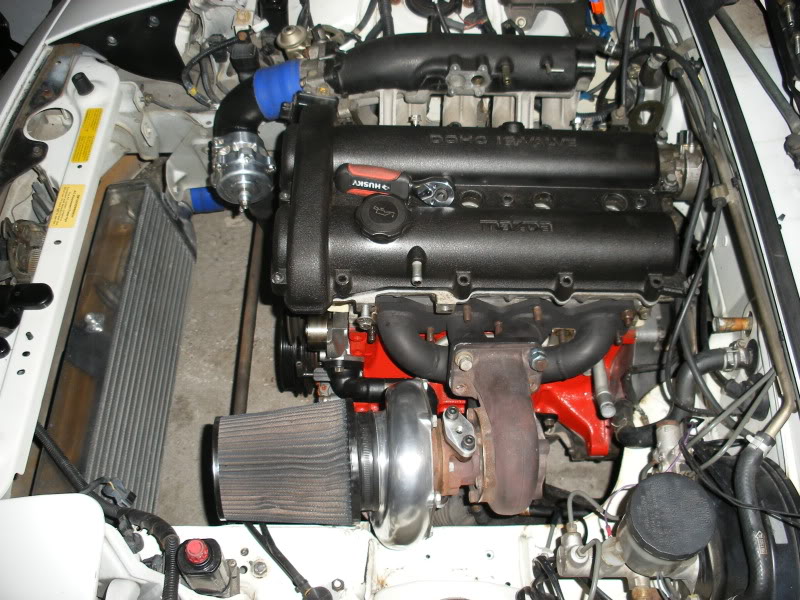

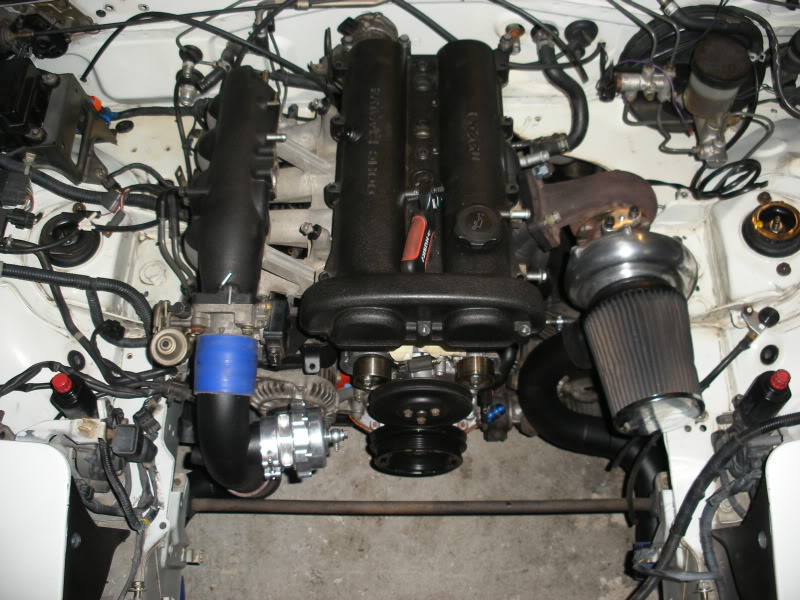

Just wanted to do a quick mock up to make sure everything fit good...It did!

Name:  DSCF0957.jpg
Views: 4
Size:  118.0 KB
Name:  DSCF0956.jpg
Views: 4
Size:  92.1 KB
Name:  DSCF0955.jpg
Views: 4
Size:  134.4 KB

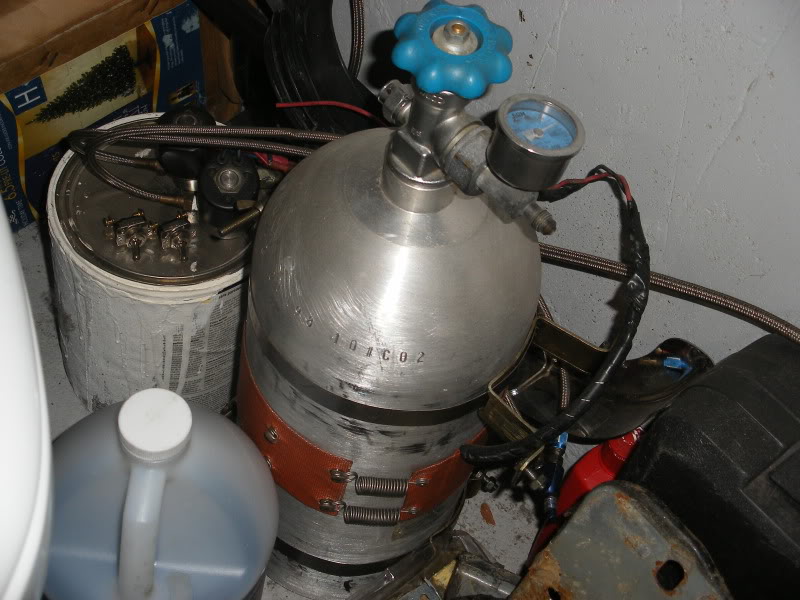

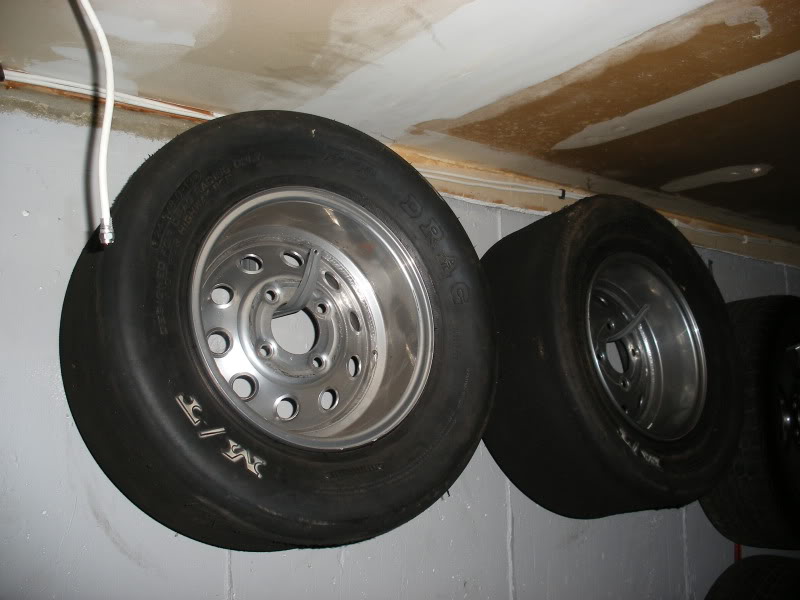

And to add insult to injury.....

Name:  DSCF0905-1.jpg
Views: 4
Size:  70.9 KB
Name:  DSCF0913.jpg
Views: 4
Size:  98.4 KB

Couple more parts are on there way...ill keep you guys posted.
FastColt is offline   Reply With Quote
Old 02-12-2010, 09:36 PM   #2
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

Been waiting for this.....bout time! We really got to get together sometime, it'd be cool to finally hang out with someone else that is into miata's. Let me know if you ever need a hand with something...
Cspence is offline   Reply With Quote
Old 02-13-2010, 08:29 AM   #3
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2009
Location: CT
Posts: 271
Total Cats: 0
Default

I may need a hand putting in my torsen next weekend, having an extra set of hands always helps!
FastColt is offline   Reply With Quote
Old 02-13-2010, 09:26 AM   #4
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

Quote:
Originally Posted by FastColt View Post
I may need a hand putting in my torsen next weekend, having an extra set of hands always helps!
I was just wondering what you had planned for a rear end.....Did you get a 6spd to put in as well or are you going to see how long the 5spd lasts? I pm'd you my contact info so you can get ahold of me.
Cspence is offline   Reply With Quote
Old 02-13-2010, 03:05 PM   #5
Elite Member
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -32
Default

500 hp out of 1.6?
pusha is offline   Reply With Quote
Old 02-13-2010, 03:17 PM   #6
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2009
Location: CT
Posts: 271
Total Cats: 0
Default

I may need a hand putting in my torsen next weekend, having an extra set of hands always helps!
FastColt is offline   Reply With Quote
Old 02-13-2010, 03:45 PM   #7
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

A quick word of advice. Unless you started with a brand new/rebuilt oil pump housing, definitely check the pressure relief valve piston and bore on the oil pump. At least a couple of us here have had failures after installing new pump gears in a used housing, myself included. It sucks having to pull the engine out again after an epic and expensive engine build for something as simple and as cheap as a stuck oil pump pressure relief valve.

My pressure relief valve stuck open resulting in no oil pressure and cam bearing damage. I ended up buying a new oil pump and swapping out the stock gears with the same Boundary Engineering set you have. I wish now I had just done that in the first place. I have a thread about it somewhere around here.

I have a set of new stock gears if anyone needs them.
ZX-Tex is offline   Reply With Quote
Old 02-13-2010, 05:09 PM   #8
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2009
Location: CT
Posts: 271
Total Cats: 0
Default

Yeah i already did that. I would never just slap gears in and go. The housing was in good shape, relief valve and spring were perfect, cleaned it lubed it and rebuilt it. Should be good to go. Good looking out though, i read about that happening before on here, that would suck, but im 100% sure mine is ok.
FastColt is offline   Reply With Quote
Old 02-13-2010, 05:18 PM   #9
Senior Member
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

500hp on a torsen..... I know I couldn't do that lol
dc2696 is offline   Reply With Quote
Old 02-13-2010, 07:02 PM   #10
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2009
Location: CT
Posts: 271
Total Cats: 0
Default

I'm doing the torsen for now cause I got a good deal on it. Once it goes, which will probably will in 2 seconds, ill get a quaf or something a little more beefy. Maybe an rx clutch type like Jay. He rocks that thing with 450 all day long. And yes......500 on a 1.6....lets see what happens....
FastColt is offline   Reply With Quote
Old 02-13-2010, 07:17 PM   #11
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

Quote:
Originally Posted by FastColt View Post
Maybe an rx clutch type
Thats whats in my car....
Cspence is offline   Reply With Quote
Old 02-13-2010, 07:20 PM   #12
Senior Member
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

Quote:
Originally Posted by Cspence View Post
Thats whats in my car....
Mine aswell, I've been rocking the rx for a few years, it just keeps coming back for more.
dc2696 is offline   Reply With Quote
Old 02-14-2010, 12:01 AM   #13
Elite Member
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Quote:
Originally Posted by FastColt View Post
And yes......500 on a 1.6....lets see what happens....
Do it......
JayL is offline   Reply With Quote
Old 02-14-2010, 09:20 AM   #14
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Considered upgrading that intake manifold?
gospeed81 is offline   Reply With Quote
Old 02-14-2010, 09:25 AM   #15
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2009
Location: CT
Posts: 271
Total Cats: 0
Default

Already spoke to Steph at begi this week about the 1.6 intake group buy, just waiting on her....
FastColt is offline   Reply With Quote
Old 02-27-2010, 11:02 AM   #16
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2009
Location: CT
Posts: 271
Total Cats: 0
Default

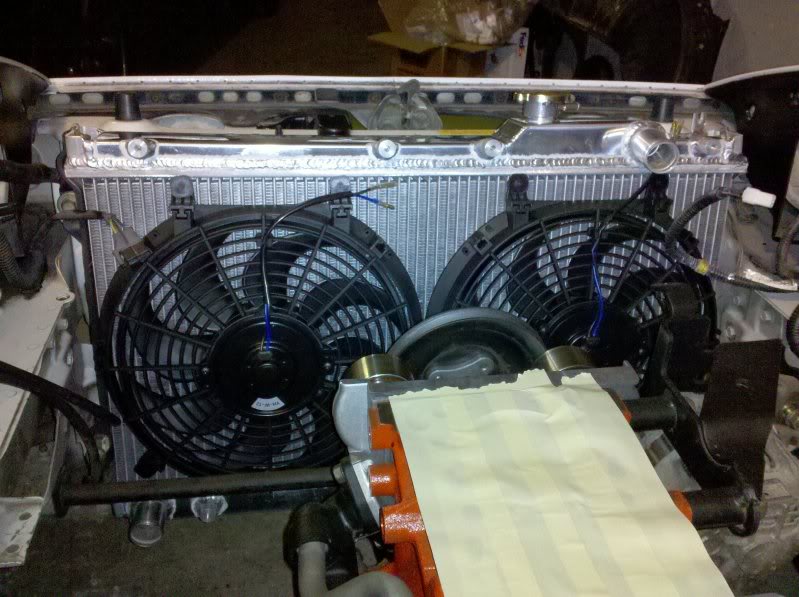

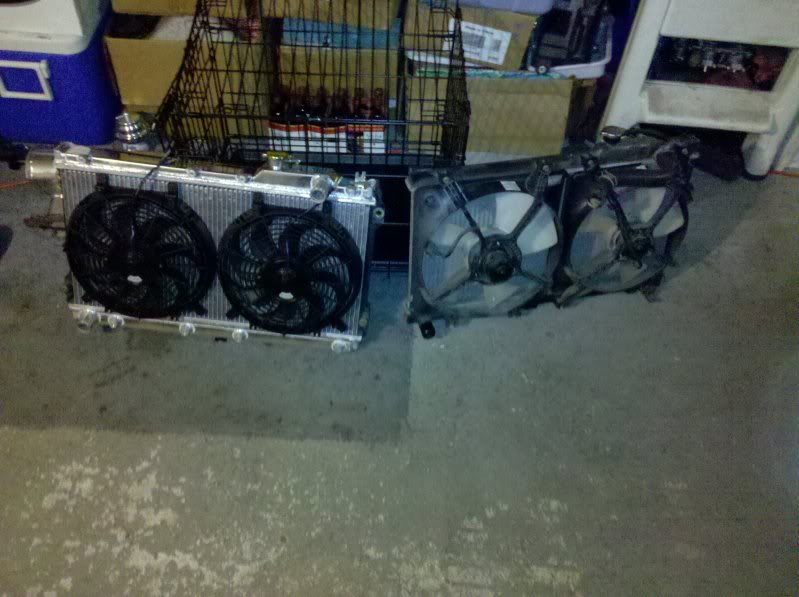

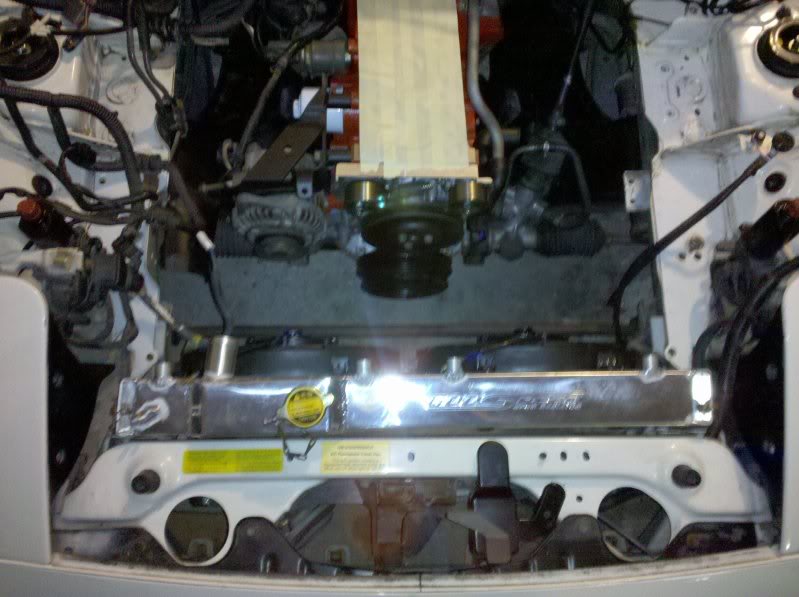

Made some prgress this week! not much but some lol. Radiator and fans came in along with my corksport gears, gates racing tbelt, and headstuds.

I was a little worried that a godspeed radiator and fans were going to require some fabrication of brackets to get it to fit right....much to my surprise, 100% easy bolt in!

Name:  SatFeb27095123AmericaNew_York2010.jpg
Views: 4
Size:  88.8 KB
Name:  SatFeb27095116AmericaNew_York2010.jpg
Views: 4
Size:  91.1 KB
Name:  SatFeb27095111AmericaNew_York2010.jpg
Views: 4
Size:  113.8 KB

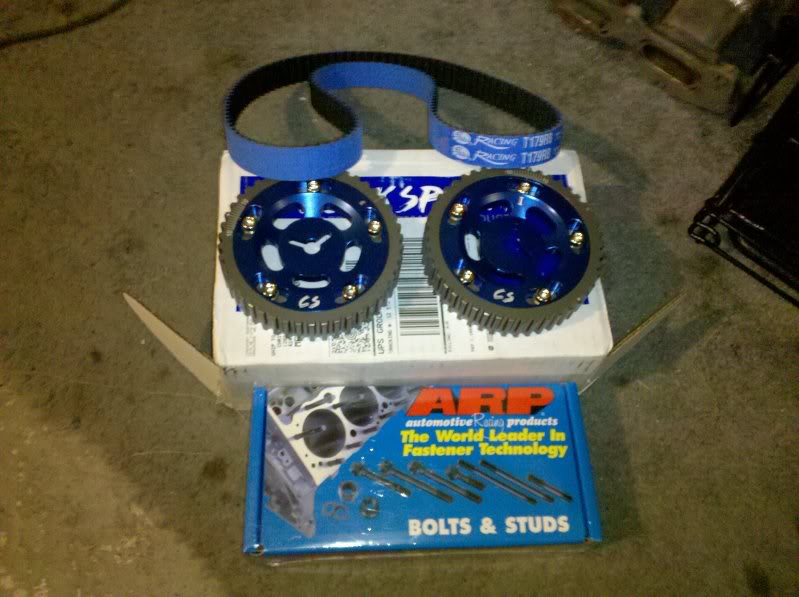

Name:  SatFeb27095119AmericaNew_York2010.jpg
Views: 4
Size:  92.4 KB

Im still waiting for my supertech springs and retainers, my cams and for my head to be finished.....Hopefully ill have some confirmation on the cams this week since i shelled out a butt load of cash for something thats not even made yet lol.
FastColt is offline   Reply With Quote
Old 02-27-2010, 11:14 AM   #17
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

awwwwwwe, we have the same catch-can.
hustler is offline   Reply With Quote
Old 02-27-2010, 12:56 PM   #18
Senior Member
iTrader: (5)

Join Date: Apr 2008
Location: VA
Posts: 828
Total Cats: -2
Default

You may want to add a ATI damper at those HP levels.
thymer is offline   Reply With Quote
Old 02-27-2010, 01:11 PM   #19
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

hot damn. coming along quite nicely man. that compressor gives me dirty thoughts
18psi is offline   Reply With Quote
Old 02-27-2010, 01:24 PM   #20
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2009
Location: CT
Posts: 271
Total Cats: 0
Default

Quote:
Originally Posted by thymer View Post
You may want to add a ATI damper at those HP levels.
Thought about that....Im gonna see how the car is at first then go from there. I mean i wish it was this easy but its not like im going to turn the car on and instantly make that kind of power. Its gonna take some serious dyno time and some serious patience.
FastColt is offline   Reply With Quote
