Old 07-28-2015, 11:49 AM   #181
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by m2cupcar View Post
I plan to use the exhaust expander for my tubes also, but will go with some aluminum brazing rod for the seal. After working with the rod (alumiweld) some more, and finding some others that have brazed intercooler tubes with it successfully, I inspired to try it.

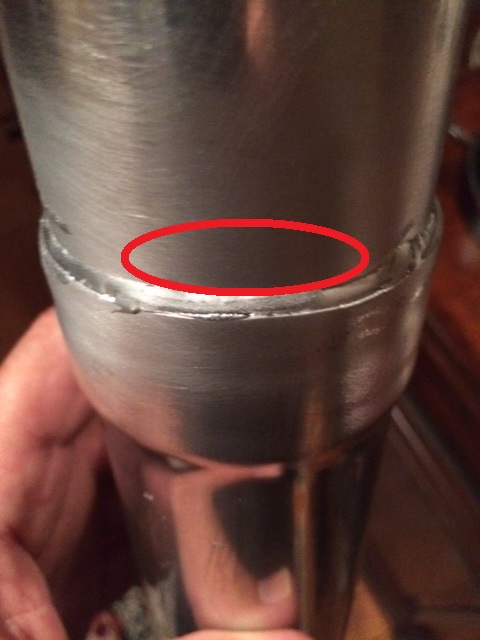

I did a test braze last night on some scrap 2.5" tubing. Came out really well. Used a MAPP gas torch and HTS 2000 rods. I found applying heat in the circled area worked best. Based upon these results, I think I'll use the brazing method too. Not nearly the PITA that I remembered it being.



Quote:
Originally Posted by DNMakinson View Post
Also, how will you prep the charge pipes for painting, and what paint will you use?
Last time around, I lightly bead blasted the pipes and then used gloss black VHT high temperature enamel. Held up extremely well (couldn't chip the paint no matter what I did). Planning to do the same this time, although I may have to find a larger blasting cabinet.
Attached Thumbnails
Hornetball's Build-img_0676.jpg

Last edited by hornetball; 07-28-2015 at 12:51 PM.
hornetball is offline   Reply With Quote
Old 07-29-2015, 12:13 AM   #182
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

Quote:
Originally Posted by hornetball View Post
I did a test braze last night on some scrap 2.5" tubing. Came out really well. Used a MAPP gas torch and HTS 2000 rods. I found applying heat in the circled area worked best. Based upon these results, I think I'll use the brazing method too. Not nearly the PITA that I remembered it being.





Last time around, I lightly bead blasted the pipes and then used gloss black VHT high temperature enamel. Held up extremely well (couldn't chip the paint no matter what I did). Planning to do the same this time, although I may have to find a larger blasting cabinet.
Is that the same rod one would use to repair a radiator? As in seal a pin hole in a tube in the core.

Edit: answered my own question, it is! I can only find the stuff in packs of at least 10 sticks iirc, for too much money. Where did you get it, how much?
hi_im_sean is offline   Reply With Quote
Old 07-29-2015, 09:21 AM   #183
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

That looks perfect. I've used alumiweld from HF for AC lines and radiator repair. Don't know the difference between it and HTS, but it's
m2cupcar is offline   Reply With Quote
Old 07-29-2015, 10:49 AM   #184
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

I got the HTS 2000 rods off E-bay. I've had them lying around for years and use them here and there.

Alumiweld rods from HF are similar if you have one of those near you.
hornetball is offline   Reply With Quote
Old 07-29-2015, 02:26 PM   #185
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default Hotside

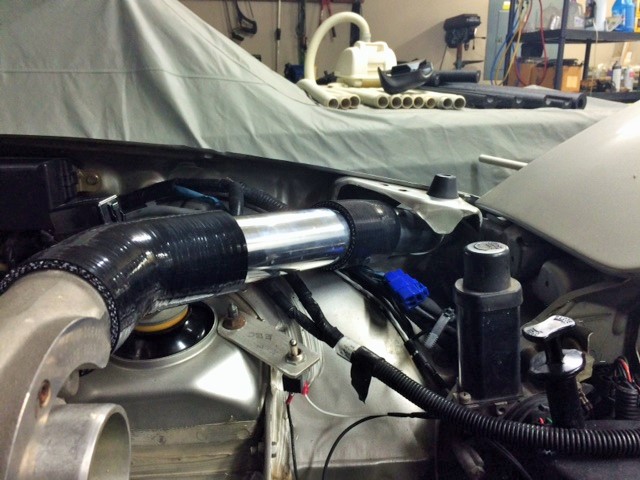

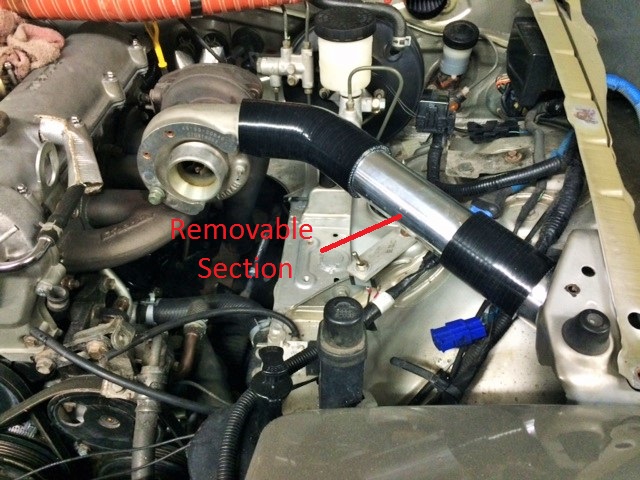

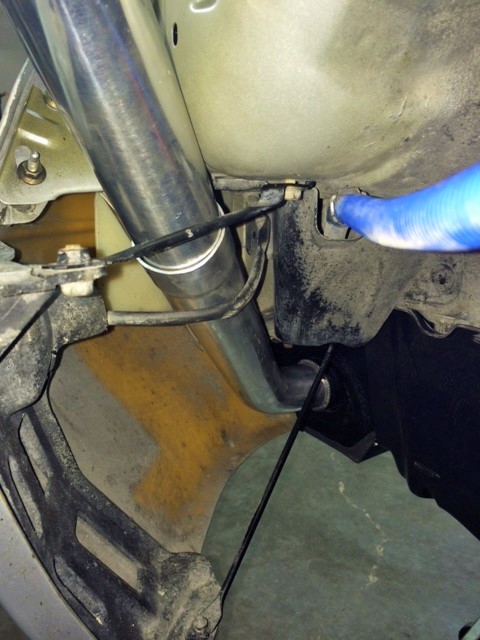

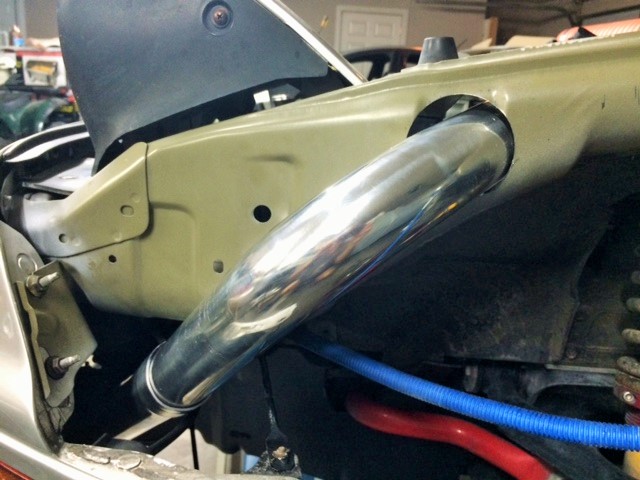

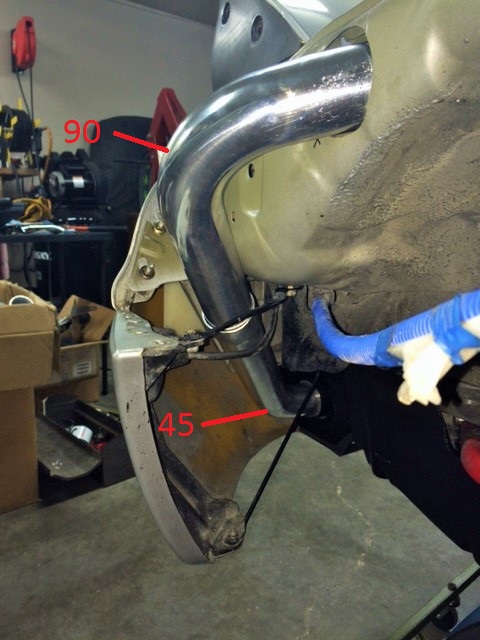

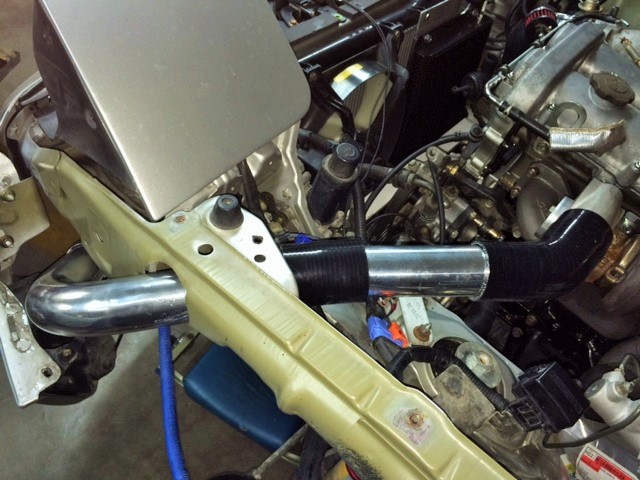

With thanks to TurboTim, I present the hotside routing mocked up. It uses a single 45 and a single 90 with one slip joint. 2" tubing. The fender hole is 2.5" and will be finished with some paint and edge molding. I made the section in the engine compartment removable for maintenance. A big 45 silicone elbow at the turbo and a silicone joiner at the fender should provide plenty of slack for engine movement. Without further ado, pics:











Attached Thumbnails
Hornetball's Build-img_0688.jpg   Hornetball's Build-img_0689.jpg   Hornetball's Build-img_0690.jpg   Hornetball's Build-img_0691.jpg   Hornetball's Build-img_0692.jpg

Hornetball's Build-img_0693.jpg

Last edited by hornetball; 07-29-2015 at 03:54 PM.
hornetball is offline   Reply With Quote
Old 07-29-2015, 02:38 PM   #186
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,684
Total Cats: 1,562
Default

I originally looked at that as a route on my car and dismissed it. Too soon apparently.
sixshooter is online now   Reply With Quote
Old 07-29-2015, 04:56 PM   #187
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

Oh my god, I'm going to have to copy this routing. Thanks for sharing
psyber_0ptix is offline   Reply With Quote
Old 07-29-2015, 05:28 PM   #188
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

hornetball is offline   Reply With Quote
Old 07-30-2015, 09:15 AM   #189
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Thanks for the step-by-step (photos saved). Are u doing the same on the cold side?

Last edited by m2cupcar; 08-10-2015 at 09:25 AM.
m2cupcar is offline   Reply With Quote
Old 07-30-2015, 09:25 AM   #190
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

My cold side is here:

https://www.miataturbo.net/build-thr...9/#post1251966

Basically, I'm doing the Mazdaspeed Miata routing (adapted to an NA) for both sides. Hot side in 2" and cold side in 2.5". I considered going through the fender on the cold side too, but it looked like the angle to get into the throttle body would be too severe. TurboTim went through the fender on the cold side, but he also built himself a custom intake manifold . . . so . . . .
hornetball is offline   Reply With Quote
Old 08-09-2015, 11:26 PM   #191
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

<p>
Quote:
Originally Posted by hornetball View Post
I could make a copy of my templates if it would be useful to anyone. Works with the FAB9 Stage 1 installed on an NA. Might work on an NB with minor adjustments. Being heavy into the track game, easy maintenance is a big deal for me. I really, really wanted to retain the OEM undertray for that reason.
</p><p>Can I has copy of template? Maybe you could even scan it?</p>
aidandj is offline   Reply With Quote
Old 08-10-2015, 05:11 AM   #192
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

I sent them to G already. G?
hornetball is offline   Reply With Quote
Old 08-10-2015, 10:37 PM   #193
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

<p>EO2K?</p>
aidandj is offline   Reply With Quote
Old 08-11-2015, 01:06 PM   #194
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Sorry, I've been prepping for Vegas and then in Vegas for the majority of the last 2 weeks. I just got back last night, zero progress
EO2K is offline   Reply With Quote
Old 08-19-2015, 01:56 PM   #195
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Back from vacation. Big family trip with lots of cat fights.

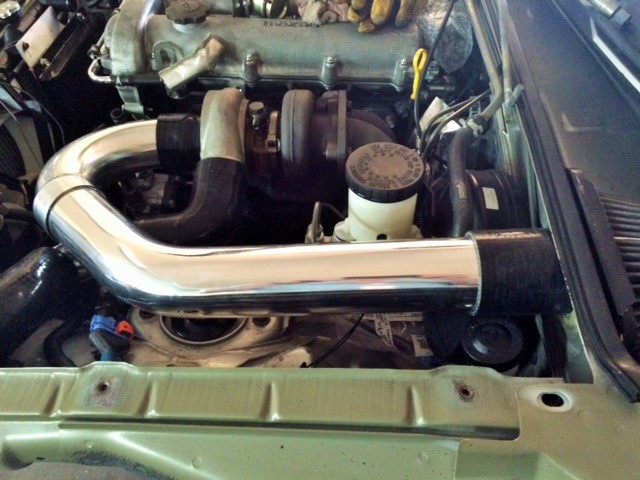

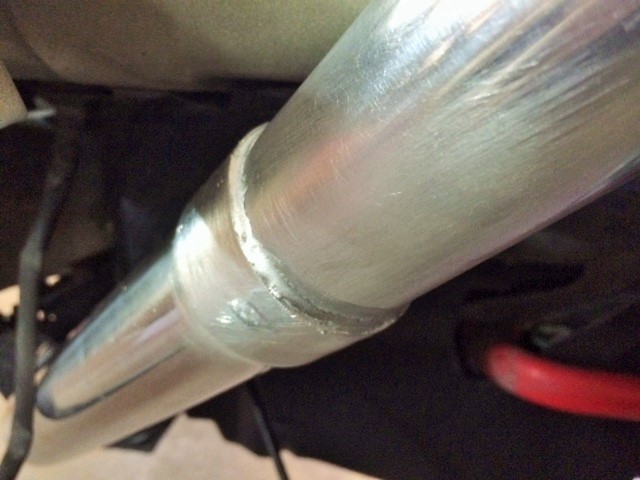

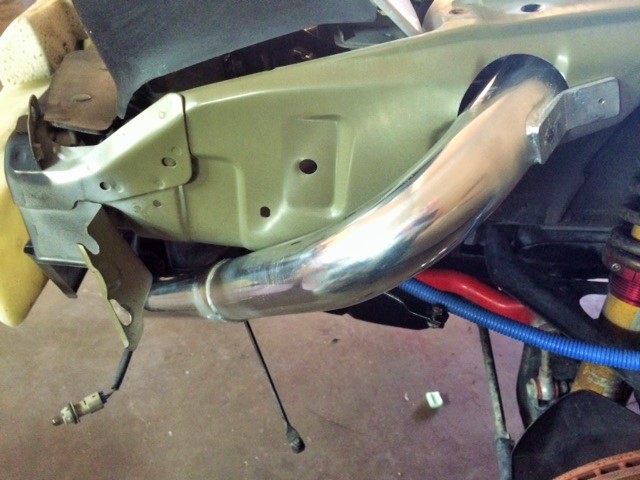

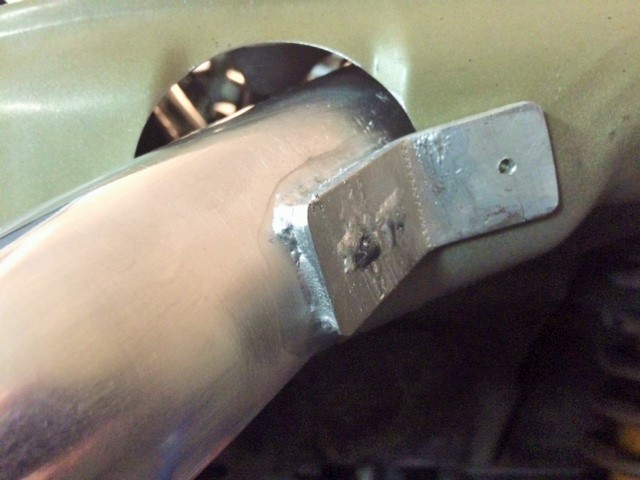

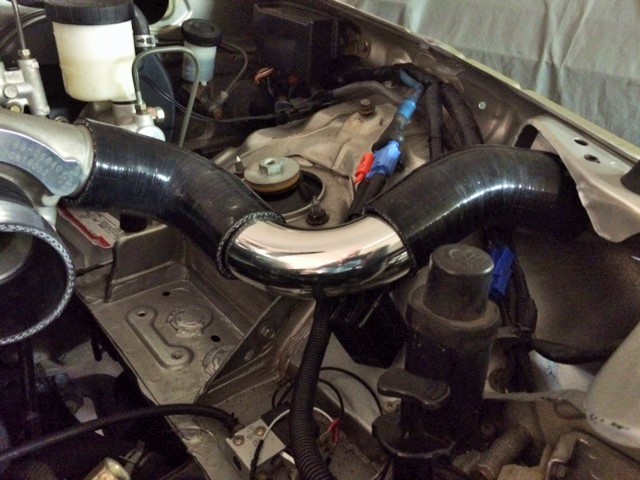

Anyway, resumed evening piddling. Working on the pipes. The aluminum brazing method is working well. Here's some pics of the hotside.

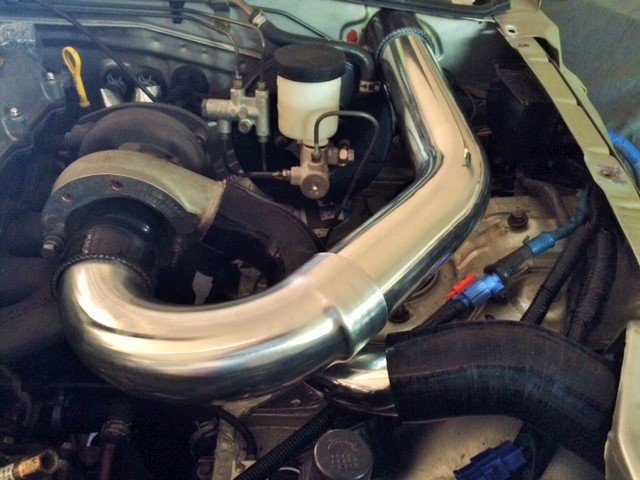

Added a little curly-Q to the turbo outlet pipe to make room for the existing cowl induction CAI.







This will be the perfect setup for back-to-back dyno data to fan the fires of this discussion: https://www.miataturbo.net/diy-turbo...oed-car-83408/
Attached Thumbnails
Hornetball's Build-img_0696.jpg   Hornetball's Build-img_0697.jpg   Hornetball's Build-img_0698.jpg   Hornetball's Build-img_0699.jpg   Hornetball's Build-img_0700.jpg

Hornetball's Build-img_0702.jpg
hornetball is offline   Reply With Quote
Old 08-19-2015, 02:07 PM   #196
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

<p>I think you need a tig welder.</p>
aidandj is offline   Reply With Quote
Old 08-19-2015, 02:09 PM   #197
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by aidandj View Post
<p>I think you need a tig welder.</p>
Lend me yours.
hornetball is offline   Reply With Quote
Old 08-19-2015, 02:11 PM   #198
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

<p>Come pick me up in a fighter jet and I'll weld it all for you.</p><p>Realtalk: Is there any chance at all you can get me a ride in a fighter jet at some point in my life?</p>
aidandj is offline   Reply With Quote
Old 08-19-2015, 02:12 PM   #199
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

Intake looks awesome Rick. I look forward to back-back dyno.

Edit- Hey! I think I asked for jet ride first......
hi_im_sean is offline   Reply With Quote
Old 08-19-2015, 02:14 PM   #200
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

<p>Realtalk: What is the chance I actually would get to fly one.</p>
