Default how to turbo a miata in 10 days with zero experience

some of you may remember my "miata noob" thread asking a couple questions about a build i was starting in a few days...well i started it.
ive never been 3 feet in front of a miata before, but i got a phone call from a buddy in montreal for some help so i figured id lend it.
mods include:
begi ssm crew
torsen 430/axles/shaft
all custom plumbing
mega squirt pnp
aem wideband
aem tru boost-deff running megatune
somemore **** you will see

i didnt start taking pics till about 25% into the build and they are in no particular order...sorry im not good at this aha

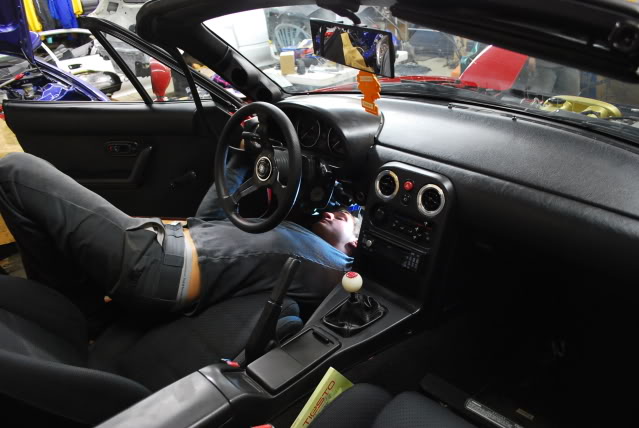

wring starts
Name:  048jpg.jpg
Views: 3
Size:  79.0 KB
Name:  042jpg.jpg
Views: 3
Size:  83.2 KB

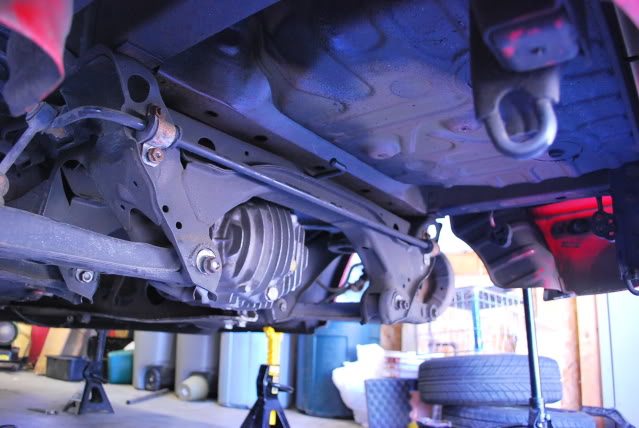

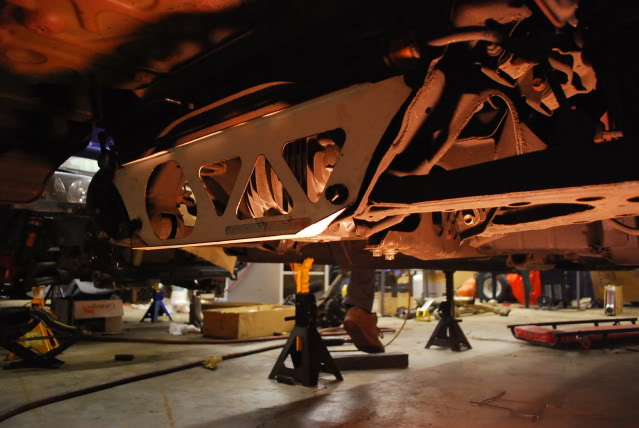

little rear end work
Name:  043jpg.jpg
Views: 3
Size:  77.2 KB


Name:  035jpg.jpg
Views: 4
Size:  64.9 KB

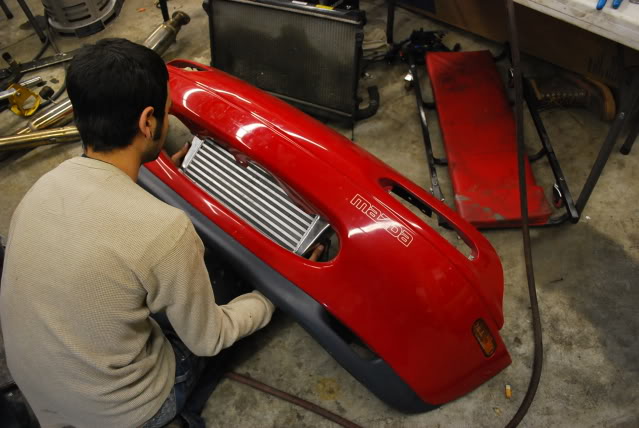

Name:  037jpg.jpg
Views: 3
Size:  77.6 KB
Name:  034jpg.jpg
Views: 3
Size:  84.7 KB
Name:  041jpg.jpg
Views: 3
Size:  87.5 KB
Name:  033jpg.jpg
Views: 3
Size:  84.2 KB

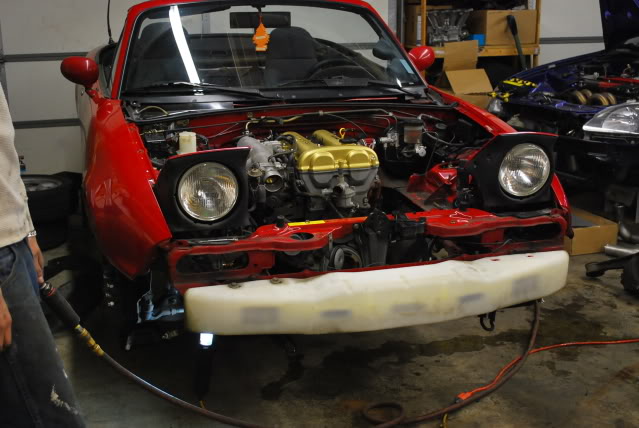

Name:  029jpg.jpg
Views: 3
Size:  81.8 KB

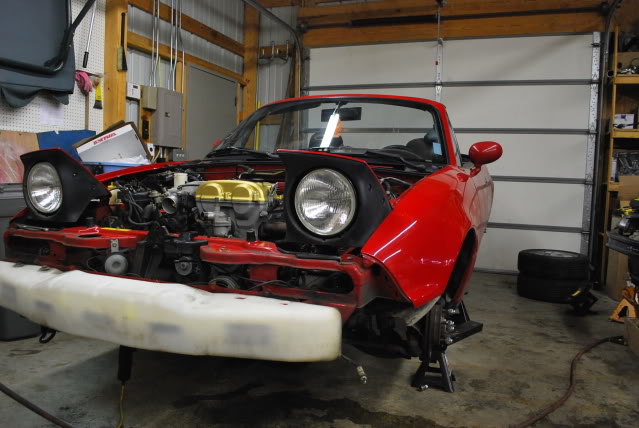

Name:  030jpg.jpg
Views: 3
Size:  81.2 KB

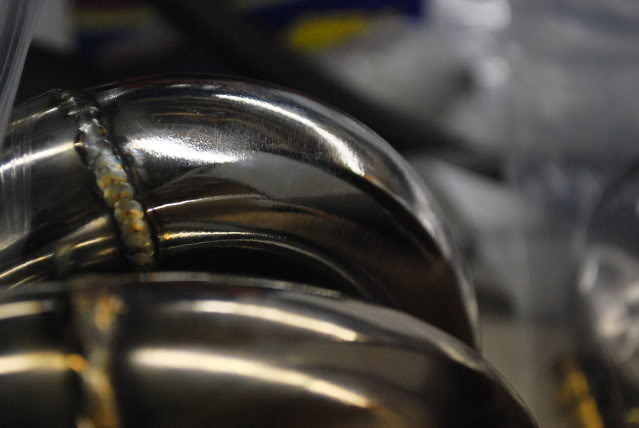

begi mani...looks ok...welds are kinda cheesy but **** it..it will do
Name:  010jpg.jpg
Views: 4
Size:  54.9 KB
Name:  011jpg.jpg
Views: 3
Size:  59.6 KB
Name:  011jpg.jpg
Views: 3
Size:  59.6 KB
Name:  013jpg.jpg
Views: 3
Size:  73.6 KB
Name:  025jpg.jpg
Views: 3
Size:  68.7 KB

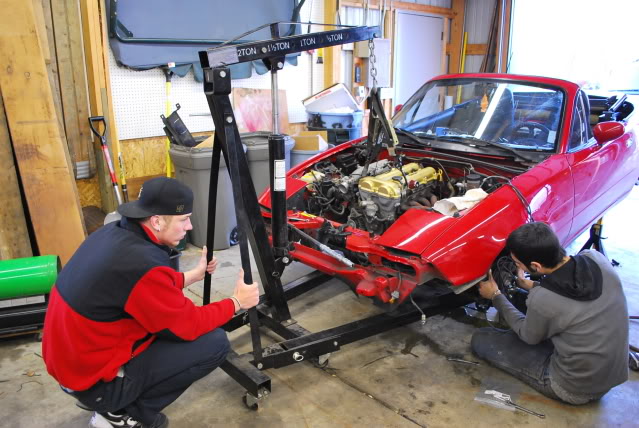

Name:  092jpg.jpg
Views: 4
Size:  99.4 KB
Name:  094jpg.jpg
Views: 3
Size:  102.8 KB

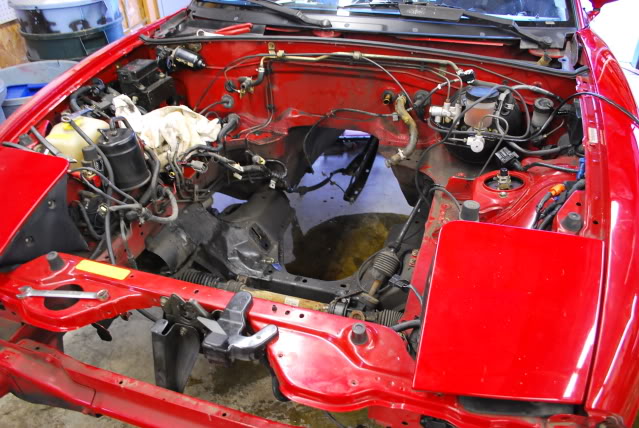

Name:  095jpg.jpg
Views: 3
Size:  105.9 KB

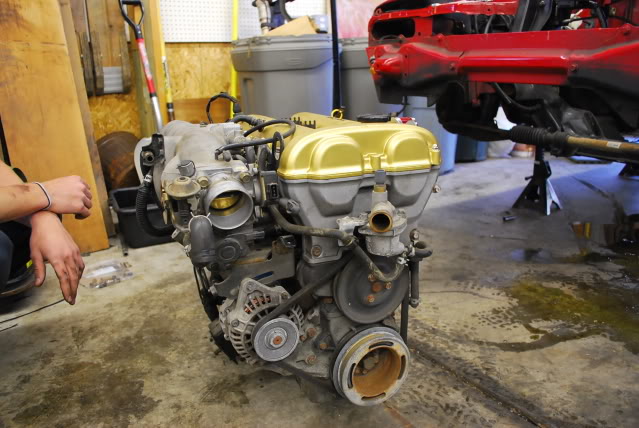

Name:  097jpg.jpg
Views: 3
Size:  90.3 KB
Name:  098jpg.jpg
Views: 3
Size:  95.9 KB

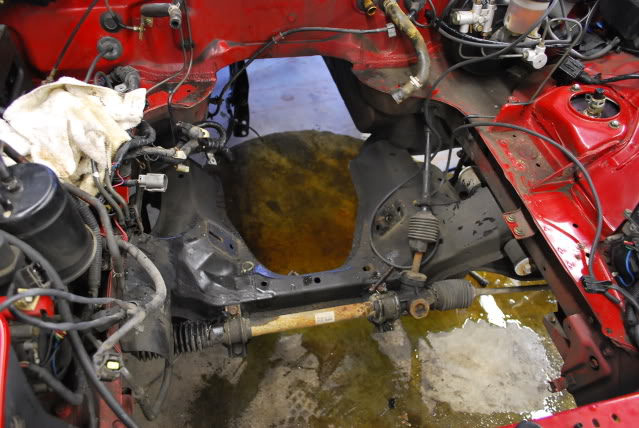

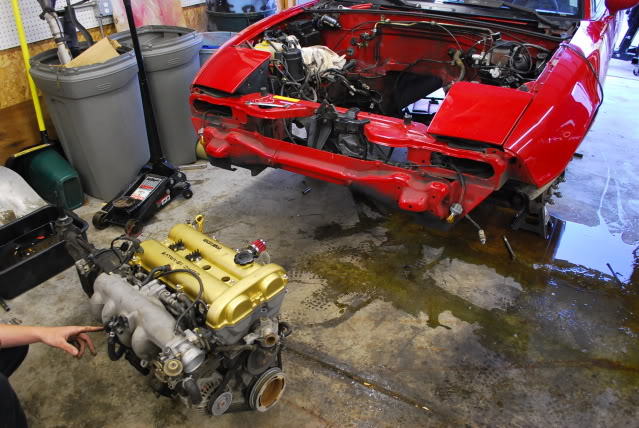

god this k member is crying for an f20
Name:  100jpg.jpg
Views: 3
Size:  94.0 KB
Name:  006jpg.jpg
Views: 3
Size:  84.9 KB
Name:  089jpg.jpg
Views: 3
Size:  78.3 KB
Name:  087jpg.jpg
Views: 3
Size:  65.1 KB
Name:  086jpg.jpg
Views: 3
Size:  69.5 KB

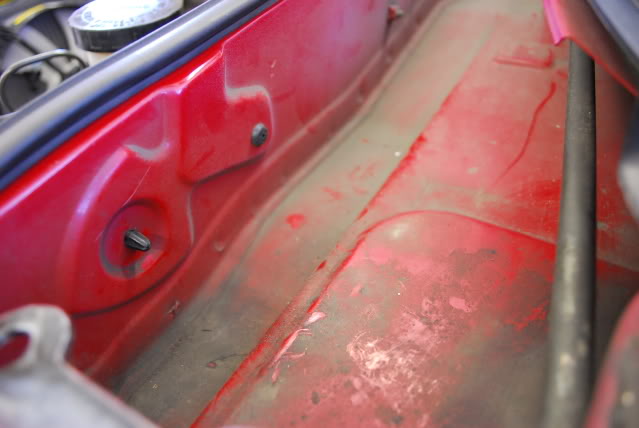

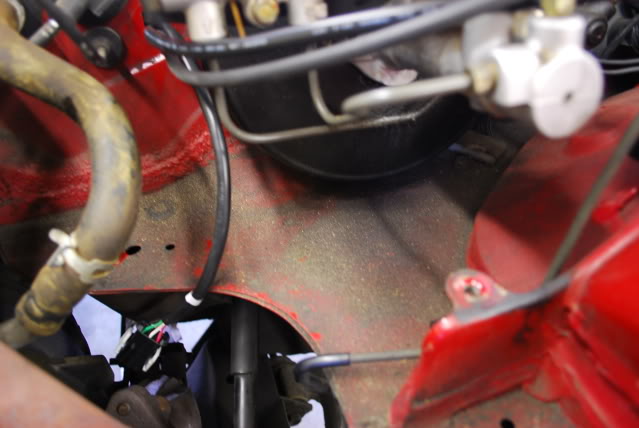

being a 19 year old car with only 50k on it the bay is filthy
Name:  083jpg.jpg
Views: 3
Size:  61.2 KB
Name:  081jpg.jpg
Views: 2
Size:  64.9 KB
Name:  079jpg.jpg
Views: 3
Size:  66.8 KB
Name:  077jpg.jpg
Views: 2
Size:  72.5 KB
Name:  076jpg.jpg
Views: 3
Size:  59.8 KB
Name:  072jpg.jpg
Views: 2
Size:  85.3 KB
Name:  071jpg.jpg
Views: 3
Size:  89.3 KB
Name:  070jpg.jpg
Views: 2
Size:  68.2 KB
Name:  117jpg.jpg
Views: 2
Size:  85.2 KB
Name:  118jpg.jpg
Views: 2
Size:  104.4 KB
Name:  119jpg.jpg
Views: 2
Size:  91.1 KB

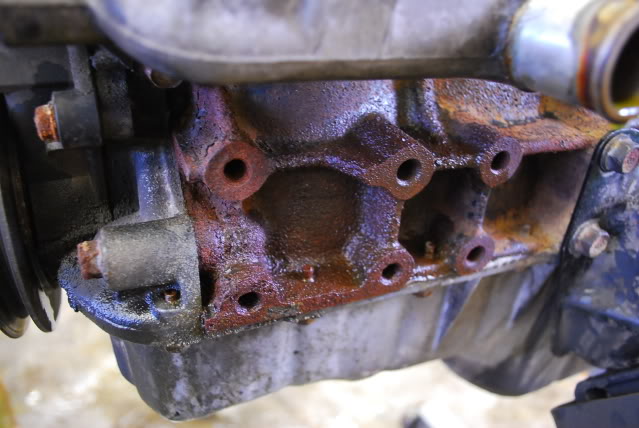

Name:  120jpg.jpg
Views: 3
Size:  79.6 KB
Name:  120jpg.jpg
Views: 3
Size:  79.6 KB

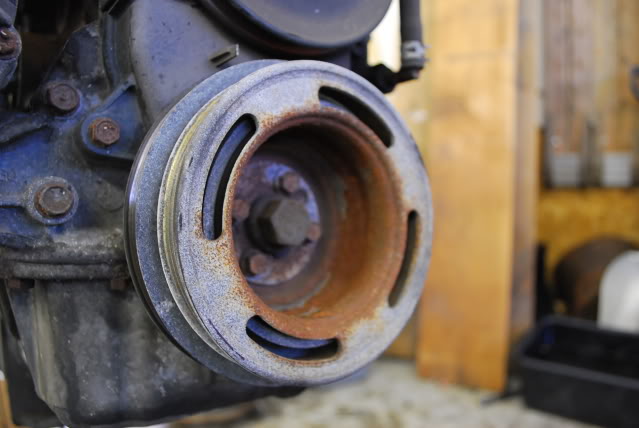

Name:  123jpg.jpg
Views: 3
Size:  69.4 KB
Name:  125jpg.jpg
Views: 3
Size:  51.5 KB
Name:  127jpg.jpg
Views: 3
Size:  98.4 KB
Name:  130jpg.jpg
Views: 3
Size:  90.2 KB
Name:  131jpg.jpg
Views: 2
Size:  54.1 KB
Name:  132jpg.jpg
Views: 3
Size:  74.5 KB

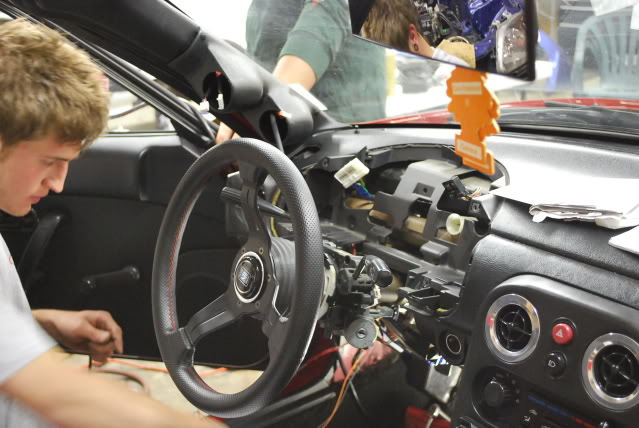

Name:  135jpg.jpg
Views: 3
Size:  87.1 KB
Name:  115jpg.jpg
Views: 3
Size:  102.2 KB

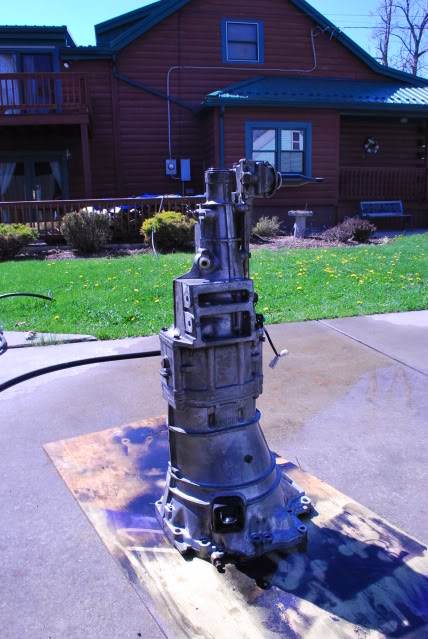

Name:  112jpg.jpg
Views: 2
Size:  97.5 KB

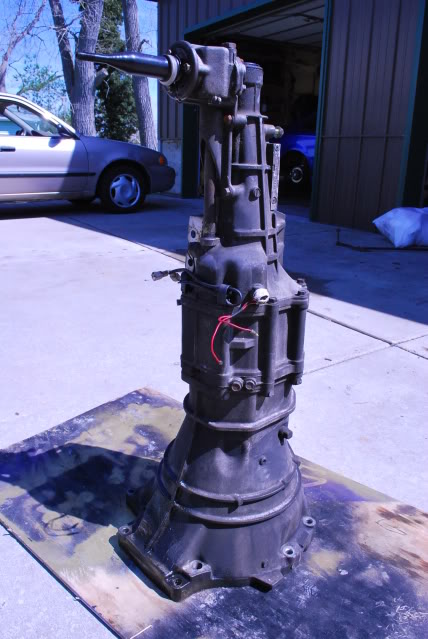

Name:  111jpg.jpg
Views: 3
Size:  84.6 KB

thats it for now...did i mention i only have 10 days for this ****!!
im already about 24 hours into it.thanks for looking
Attached Images
File Type: jpg 120jpg.jpg (79.6 KB, 2 views)
breetime is offline   Reply With Quote
Old 05-05-2009, 03:59 PM   #2
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

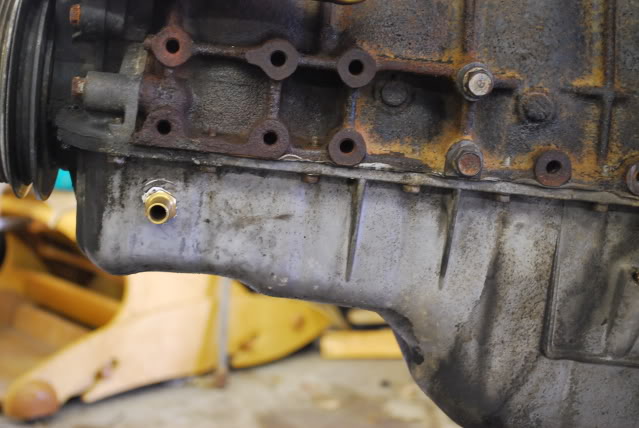

Most people JB Weld the drain fitting into the oil pan.

Looks like fun.
sixshooter is offline   Reply With Quote
Old 05-05-2009, 04:01 PM   #3
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,326
Default

Why'd they pull the motor? (also, lol at dumping the tranny oil out the back of it while pulling it)
Savington is offline   Reply With Quote
Old 05-05-2009, 04:02 PM   #4
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

levnubhin is offline   Reply With Quote
Old 05-05-2009, 04:07 PM   #5
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

P 'n P 'n pizza.

i like the gold valve cover.
y8s is offline   Reply With Quote
Old 05-05-2009, 04:08 PM   #6
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

also, do we have a trophy we can give out to noobs who turbo their car before 10 posts? or should we make people with over 1000 posts and no turbo pay for their subscription.
y8s is offline   Reply With Quote
Old 05-05-2009, 04:19 PM   #7
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by y8s View Post
also, do we have a trophy we can give out to noobs who turbo their car before 10 posts? or should we make people with over 1000 posts and no turbo pay for their subscription.


hmmm I like both ideas, how about both? lol
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 05-05-2009, 04:19 PM   #8
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

good idea on pulling the motor, too bad you didn't put the oil drain further back.

If I were doing a turbo install and pulling the trans, I'd yank the motor.
hustler is offline   Reply With Quote
Old 05-05-2009, 04:20 PM   #9
Newb
Thread Starter

Join Date: Apr 2009
Posts: 22
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
Why'd they pull the motor? (also, lol at dumping the tranny oil out the back of it while pulling it)
o eat me ime hearing it all over the place haha..i forgot to seal the tailshaft..im used to honda trannys.
i figured pulling the motor would free up alot of room while putting the turbo parts on..plus the block looks like its from the movie saw so it will see a good cleaning and paint.
breetime is offline   Reply With Quote
Old 05-05-2009, 04:34 PM   #10
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

If I were doing it again from scratch and putting in a clutch at the same time, damn straight the motor/trans would be coming out.
Stein is offline   Reply With Quote
Old 05-05-2009, 04:42 PM   #11
Newb
Thread Starter

Join Date: Apr 2009
Posts: 22
Total Cats: 0
Default

Quote:
Originally Posted by Stein View Post
If I were doing it again from scratch and putting in a clutch at the same time, damn straight the motor/trans would be coming out.
my thoughts exactly...ive done a couple rwd clutches and i hate lifting a 150 pound tranny 2 feet in the air.. and trying to align splines
breetime is offline   Reply With Quote
Old 05-05-2009, 04:50 PM   #12
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Quote:
Originally Posted by Savington View Post
Why'd they pull the motor?
I was wondering the same thing...
thagr81 us is offline   Reply With Quote
Old 05-05-2009, 04:54 PM   #13
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Awesome progress with awesome pictures to match! Nice work.
Vashthestampede is offline   Reply With Quote
Old 05-05-2009, 05:08 PM   #14
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

Nice pics, looks like you're making good progress so far. At this rate 10 days should be no problem.

Let me know how you like the tru-boost, I bought mine used and it's complete garbage. Not sure if it's just got some issues or if they're all crap. I'm just using mine as a boost gauge now, and it's still pretty much useless (reading +18psi when I'm logging 13psi )
pdexta is offline   Reply With Quote
Old 05-05-2009, 05:22 PM   #15
Newb
Thread Starter

Join Date: Apr 2009
Posts: 22
Total Cats: 0
Default

Quote:
Originally Posted by pdexta View Post
Nice pics, looks like you're making good progress so far. At this rate 10 days should be no problem.

Let me know how you like the tru-boost, I bought mine used and it's complete garbage. Not sure if it's just got some issues or if they're all crap. I'm just using mine as a boost gauge now, and it's still pretty much useless (reading +18psi when I'm logging 13psi )

ive seen tru boost a number of times and everyone was spot on and very accurate....ill let ya know
breetime is offline   Reply With Quote
Old 05-05-2009, 06:47 PM
oldgrayfrog
This message has been deleted by y8s. Reason: spamming jerk
Old 05-11-2009, 04:17 AM   #16
Newb
Thread Starter

Join Date: Apr 2009
Posts: 22
Total Cats: 0
Default

well car is all done as of 2:55 in the morning...
well sorta.
all the pnp fuctions worked great..except for the datalogging wich made tuning a nightmare...

aem wideband setting were uploaded to use with pnp and it ran great using a write up i found on the boards..(thanks guy)

took a quick lunch break before tuning..go in the garage and the megasquirt wont reconize the aem gauge and started reading in volts again...****!
so i wasted about 3 hours wiring and rewiring the 0-5v analog wire for pnp and nothing...
so i said whatev and desided to go tune a little without datalogging...******* nightmare.
than the afr gauge on the megatune started working..yes!
outa nowhere its good..so i did a couple more pulls and tuned for about 30 more mins.

just cleaning everything up and bang..no afr readings..****!
so i gotta call diyautotune and see whats going on...but the car is very fun..11.5 all through the charts at WOT.
it was a little colder out tonight so it was spiking from 8(preset) to about 10 psi once and a while.
the butt dyno is seeing around 210-220 whp...
i could be off, im used to 2500 pound cars not 1500.
throttle response is a little iffy due to the stock tps and not having time for the bimmer swap..
the coolant guauge on the cluster isnt registering for some reason also..gotta check the t-stat housing sensor in the morning.
o yea...the alternator belt flew off too for some reason.


so yes i enjoyed building and tuning this miata in 10 days..was it frustrating at times yes.
i expecting normal hang ups thats what i got...normal automotive problems so no biggie.
i can say my happy factor with the begi kit is about a 5-10.
heres my reasons. flame on h-mos

good:
very very nice instruction manual (didnt use it tho)
very very good customer service..stephanie was kick *** on the phone and shipped me parts asap
kit made good power and seems to work well
came with everything....if i needed something it was in a begi bag
easy to install

bad:
kinda expensive for what it is
manifold:
had to grind down a head stud due to rubbing with runner 2 and making it impossible to thread on a bolt.
looks like thin wall ss...
welds are about a 3-10

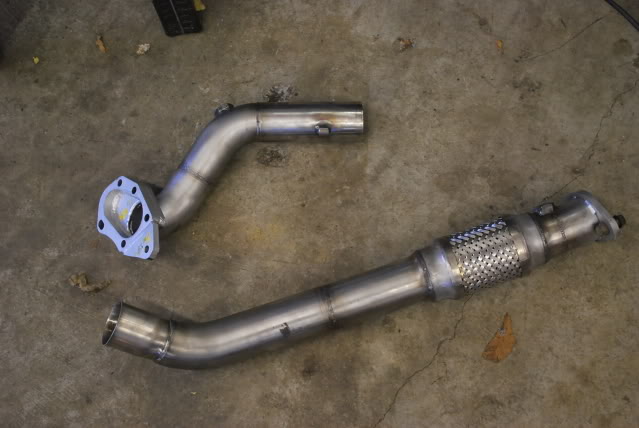

downpipe:
was well made but the design was so so
the connection bolt to keep the top and bottom half together is welded so that the head of the bolt and the head of the nut are facing the tranny making it impossible to looses from underneath.
oil line was a hair short and kind sits on runner 3...no biggie



was it fun to kinda dive into something i know nothing about and have it come out as great as it did, yes.
breetime is offline   Reply With Quote
Old 05-11-2009, 10:22 AM   #17
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

I think you need to reinstall one of the bolts from the AC Bracket. I read on here before if you dont it leads to oil pump failure.
Saml01 is offline   Reply With Quote
Old 05-11-2009, 03:14 PM   #18
Newb
Thread Starter

Join Date: Apr 2009
Posts: 22
Total Cats: 0
Default

Quote:
Originally Posted by Saml01 View Post
I think you need to reinstall one of the bolts from the AC Bracket. I read on here before if you dont it leads to oil pump failure.
car never had ac.......
breetime is offline   Reply With Quote
Old 05-11-2009, 03:56 PM   #19
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Good to see you got it done. From zero to turbo in 20 posts. Must be a record.
Stein is offline   Reply With Quote
Old 05-11-2009, 04:13 PM   #20
Senior Member
iTrader: (1)

Join Date: Jul 2008
Location: Granbury, TX.
Posts: 1,278
Total Cats: 1
Default

Very nice....but I'd be surprised if that car was really 1500 lbs. You'd be hardpressed to be below 2K with all the OEM crap still in it.
Machismo is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
elesjuan's mediocre 95 Miata adventure (google fiber edition) elesjuan Build Threads 8 02-16-2016 09:36 PM
MS PNP requires reading and following directions??? satisfied MEGAsquirt 141 10-06-2015 11:44 AM
Overheating Turbo'd 96M Bruce MacKay General Miata Chat 8 09-05-2015 08:05 PM
Noob here, turbo NC project starts now. turboLuigi Meet and Greet 2 09-04-2015 02:29 PM


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 12:57 AM.
