Old 02-07-2014, 09:58 AM   #1
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default Italian project

hi, i start it with (never) finished work...



more details to follow...

Last edited by Pepino; 01-18-2017 at 05:42 AM.
Pepino is offline   Reply With Quote
Old 02-07-2014, 04:50 PM   #2
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

Here we are, components: Subaru TD04L Sturovo manifold & downpipe Reverant EMS2 Supra injectors Variable TPS PLX DM-6 with WB and Boost modules Intercooler Rec BOV Carbon air filter DIY coolant reroute Mocal oil radiator wiht thermo-sandwich 1.8 flywheel & Exedy Stage1 (to be installed)
EBC (tbi)

Last edited by Pepino; 02-07-2014 at 06:10 PM.
Pepino is offline   Reply With Quote
Old 02-07-2014, 05:44 PM   #3
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Sounds pretty good man! Congrats. I'm digging the setup, any more details on the mani/downpipe? IIRC i saw sturovo's thread at one point, is he making setups now?
Fireindc is offline   Reply With Quote
Old 02-07-2014, 06:08 PM   #4
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

Yes he's doing now, ask him for info...
Pepino is offline   Reply With Quote
Old 02-08-2014, 07:56 AM   #5
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

random pictures

parts

Attached Thumbnails
Italian project-th_cc6f44c7-7196-456e-814b-422a3dee4207_zpsj2emty4g.jpg   Italian project-th_b4a6f722-8806-4fbc-99c1-032b7ab96028_zpsqwfhjhah.jpg   Italian project-th_ce5adc3e-341b-4fe6-a36c-f0280d7d7d32_zpsggicve8c.jpg   Italian project-th_b05689e9-3e3f-4959-84be-a9f0783e119b_zpswfniguo4.jpg   Italian project-th_158e3663-3440-46b4-9a1c-6a65c9b3602f_zpsd4eqgzog.jpg

Italian project-th_c3dbb57d-9387-44ce-9a66-e4457d3335d9_zps1lbl5ial.jpg   Italian project-th_bad4f4b8-e088-4ea9-8286-c35a43cc9574_zpsbr0xwupq.jpg   Italian project-th_91aec7b0-70aa-46c0-b204-8c0c01b6fe4a_zpsb1wuwuuh.jpg
Pepino is offline   Reply With Quote
Old 02-08-2014, 07:59 AM   #6
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

install pics

Attached Thumbnails
Italian project-th_fe69ce80-7707-4175-9183-edd542c632cd_zps0xetm74h.jpg   Italian project-th_6278c86a-0fa6-4ea2-b5d2-b2fb998fe55e_zps4qfb1ibq.jpg   Italian project-th_434feeb8-6ae9-471b-8d83-a5714102aa3b_zpstky9rdsl.jpg   Italian project-th_367ac07e-9be3-4ae2-9dcc-e3db2e6a2be8_zpslb47vfhh.jpg   Italian project-th_94fb29a9-2da4-4dc6-b74b-3a165c562260_zpsrqxctta1.jpg

Italian project-th_267d736e-6e43-48c5-8d52-f3a0e801d0d7_zpsrgguf0np.jpg   Italian project-th_1d4132cb-75f4-4d72-8791-05000785597d_zpsqbzgqspf.jpg   Italian project-th_bc1d555d-b2e6-48f2-a08b-2b3c3da923d1_zpswqsniedc.jpg
Pepino is offline   Reply With Quote
Old 02-08-2014, 08:09 AM   #7
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

more

Attached Thumbnails
Italian project-th_fa92d5b5-c930-4b31-b5fb-9c87d36180f8_zpskr9usako.jpg   Italian project-th_52686718-b6ed-4678-99a8-dcb77cb0a48f_zpstjme5jlh.jpg   Italian project-th_8d5f8ec2-5142-4c78-9cdf-ba9627ff4960_zps8kink2gt.jpg   Italian project-th_af13cc53-ce7d-4a56-9f58-eb1fb2fa7083_zpsvhc0lns4.jpg   Italian project-th_389e762e-9168-43ea-b82d-3b67eb8a505c_zpsnkpaixyp.jpg

Italian project-th_99edbe99-e4cb-4c64-b09c-1d89961bb166_zpsqt0vtgsl.jpg

Last edited by Pepino; 02-08-2014 at 02:37 PM.
Pepino is offline   Reply With Quote
Old 02-08-2014, 08:09 AM   #8
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

Attached Thumbnails
Italian project-th_b05871e6-74e8-42ba-91a0-aaa10381d121_zpso5npzvni.jpg   Italian project-th_60a9177f-3202-4681-bc75-56218939ca02_zpsczbuqsl1.jpg   Italian project-th_f7f601b1-3846-4395-8a6e-663980bddbab_zpsgph6m7kr.jpg   Italian project-th_0c9675c1-2f7b-4e7d-ac51-6e7fead0085b_zpsb66dfa1c.jpg   Italian project-th_b5ed9410-5e7d-4780-b7bf-0c08d1018e24_zpsi9hpvjtn.jpg

Italian project-th_69b259b4-9434-448b-b387-a61a6764a346_zpsc4rsed0h.jpg   Italian project-th_ef72586b-3e34-48f7-80f0-777405b498a7_zpsguzqzz1l.jpg
Pepino is offline   Reply With Quote
Old 02-15-2014, 03:44 AM   #9
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

any comments?
Pepino is offline   Reply With Quote
Old 02-15-2014, 10:41 AM   #10
Junior Member

Join Date: Feb 2012
Location: Atlanta, Ga
Posts: 265
Total Cats: 36
Default

Looks great! I'll be making a similar heat shield for my setup.
carnut169 is offline   Reply With Quote
Old 02-15-2014, 03:33 PM   #11
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

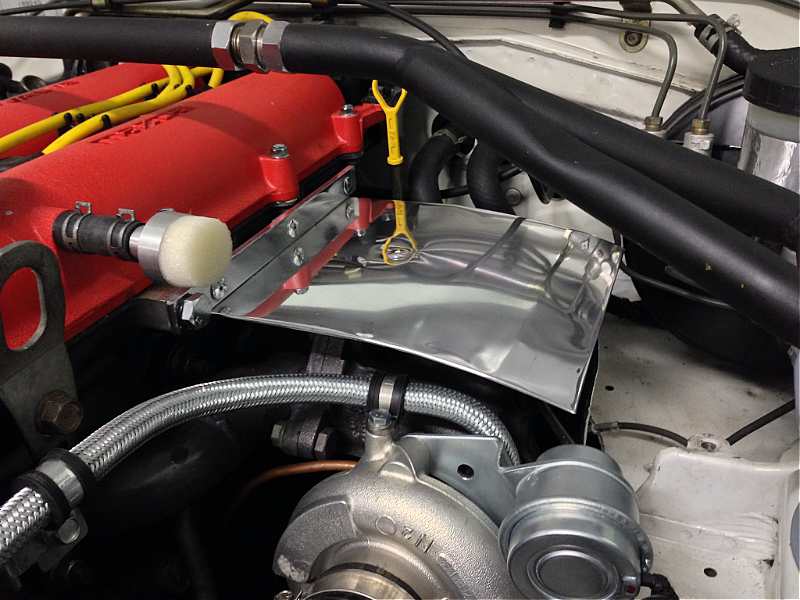

Wow Giuseppe, that looks fantastic! You have a great eye for details, well done

I particularly like shiny heat shields and in this shot we also get see how clean and tidy the engine bay is.
It is hard to imagine this car is more than 20 years old.

Attached Thumbnails
Italian project-69b259b4-9434-448b-b387-a61a6764a346_zpsc4rsed0h.jpg
sturovo is offline   Reply With Quote
Old 02-17-2014, 08:00 AM   #12
Newb

Join Date: Jan 2014
Location: Barcelona, Spain
Posts: 29
Total Cats: -54
Default

Nice pics dude, we are neighbours, I'm from Spain.

Have you taken it to the dyno? HP?
Kramer is offline   Reply With Quote
Old 02-18-2014, 09:35 AM   #13
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

nope, it's still in progress, 1.8 fly wheel with exedy s1, EBC with hi/low switch and some fine tuning...

Last edited by Pepino; 02-20-2014 at 04:56 AM.
Pepino is offline   Reply With Quote
Old 04-21-2014, 03:20 PM   #14
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

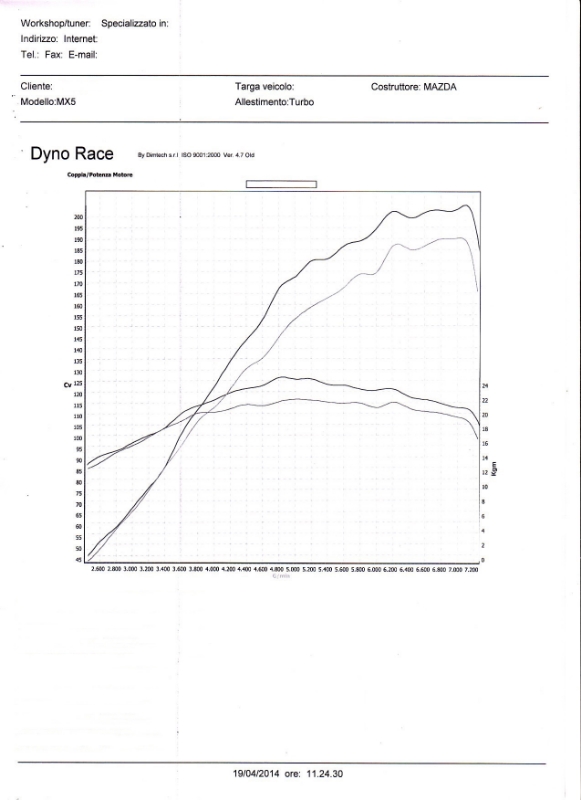

lower at 7psi, higher at 12psi, bumps are from an interference on ms2 now resolved...
at hi boost the limit is the stock 1,75" exhaust

Attached Thumbnails
Italian project-confronto_zpsa138c562.jpg
Pepino is offline   Reply With Quote
Old 04-21-2014, 03:38 PM   #15
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Good lord man, get a bigger exhaust! That is some seriously late spool from a td04
Fireindc is offline   Reply With Quote
Old 04-22-2014, 05:57 AM   #16
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

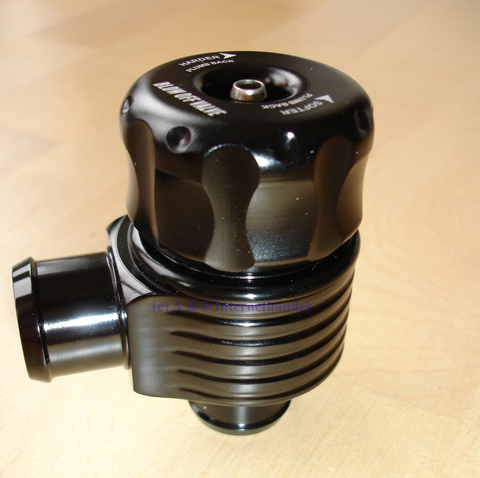

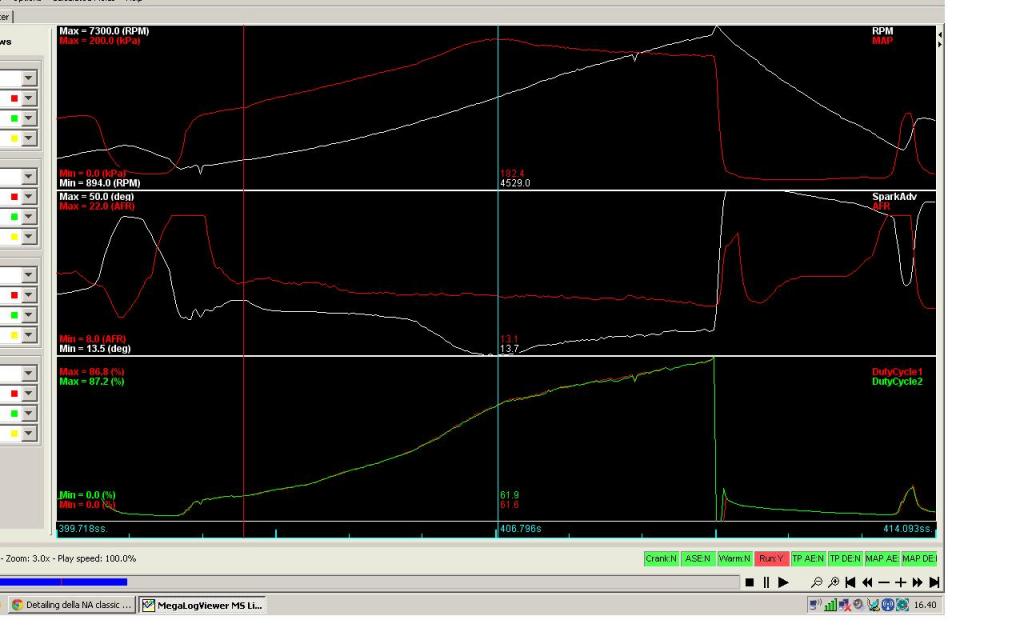

maybe also a leaking bov? i got this one wornkig on recirculating config

Attached Thumbnails
Italian project-loghi_zpsd9f2c5a3.jpg   Italian project-schub1.jpg
Pepino is offline   Reply With Quote
Old 07-01-2014, 08:46 AM   #17
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

back with a little trouble, i am using a recirc bov like that one above,

but even at lower spring rate and setting, when over 8/9 psi turbo goes surge (or maybe flutter?) on off-throttle...

solution? get a sequential bov? hks or some cheaper (!) but good copy?
Pepino is offline   Reply With Quote
Old 07-01-2014, 01:13 PM   #18
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,679
Total Cats: 1,561
Default

That's not unusual.

Where is the signal line connected? And is the bov before or after the intercooler?
sixshooter is online now   Reply With Quote
Old 07-01-2014, 01:45 PM   #19
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

Signal line is just after the TB and the BOV is after the IC

here the sound


Last edited by Pepino; 07-01-2014 at 02:16 PM.
Pepino is offline   Reply With Quote
Old 07-01-2014, 03:01 PM   #20
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,679
Total Cats: 1,561
Default

Yes that is more prominent than I would have expected at your low boost levels. Could you take a picture of the blow off valve as it is mounted currently? Where are you recirculating to?
sixshooter is online now   Reply With Quote
