Old 07-01-2014, 03:16 PM   #21
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

you can see it in the vid on first message up here...

just now i did some mods: cut spring by 1/3 and disconnect recirculating plumbing (was to inlet hose pre-turbo) and the result is quite fine, just a low and short fluttering at low rev/boost...

Pepino is offline   Reply With Quote
Old 07-01-2014, 03:34 PM   #22
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,624
Total Cats: 1,559
Default

The blow off valve was probably waiting for you to hit a manly pressure like 20 or 25 psi.
sixshooter is offline   Reply With Quote
Old 07-02-2014, 05:21 AM   #23
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

LOL, anyway a quick question: are sequential bov quicker than recirculating ones?
Pepino is offline   Reply With Quote
Old 07-02-2014, 09:44 AM   #24
Junior Member
iTrader: (2)

Join Date: Feb 2010
Location: Niagara Falls, NY
Posts: 94
Total Cats: 0
Default

Ciao Giuseppe,

Che bella machinna, la mia e bianco pure con il 1.6! De quale parte en Italia sei? Noi siamo de Calabria.

-Gennaro
GV1390 is offline   Reply With Quote
Old 07-02-2014, 02:05 PM   #25
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

ciao Gennaro, io Sicilia!
Pepino is offline   Reply With Quote
Old 11-26-2014, 12:53 PM   #26
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

winter project thoughts:

k1 rods
wiseco 8.5
cometic + arp HB
gt2560
larger inj than yellow rx8 (?)

all things to rebuild (w-pump/cam-belt etc)

1.8 stage1 clutch and torsen already in

target 260/270 rwhp

suggestions/comments?
Pepino is offline   Reply With Quote
Old 11-26-2014, 01:03 PM   #27
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,624
Total Cats: 1,559
Default

Consider a billet oil pump from Boundary Engineering.
sixshooter is offline   Reply With Quote
Old 11-26-2014, 01:09 PM   #28
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

oh, i was just thinking to check the status of mine with about 40.000 miles of life...
Pepino is offline   Reply With Quote
Old 11-30-2014, 02:11 AM   #29
Senior Member
iTrader: (1)

Join Date: Oct 2008
Location: Trailer County
Posts: 530
Total Cats: -9
Default

Sounds sweet, very clean powerband.

Good job!
mazpr is offline   Reply With Quote
Old 12-05-2014, 08:00 AM   #30
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

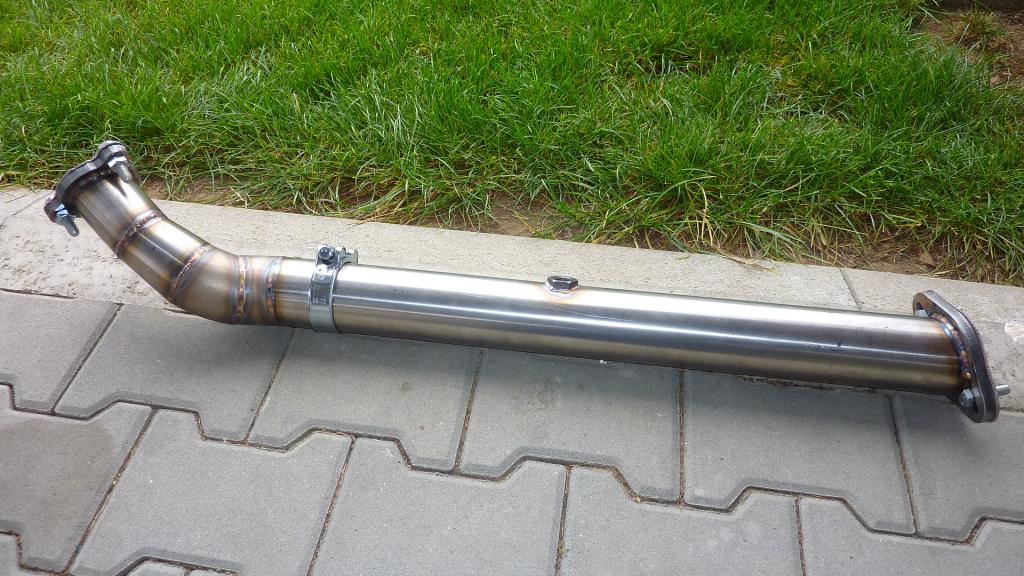

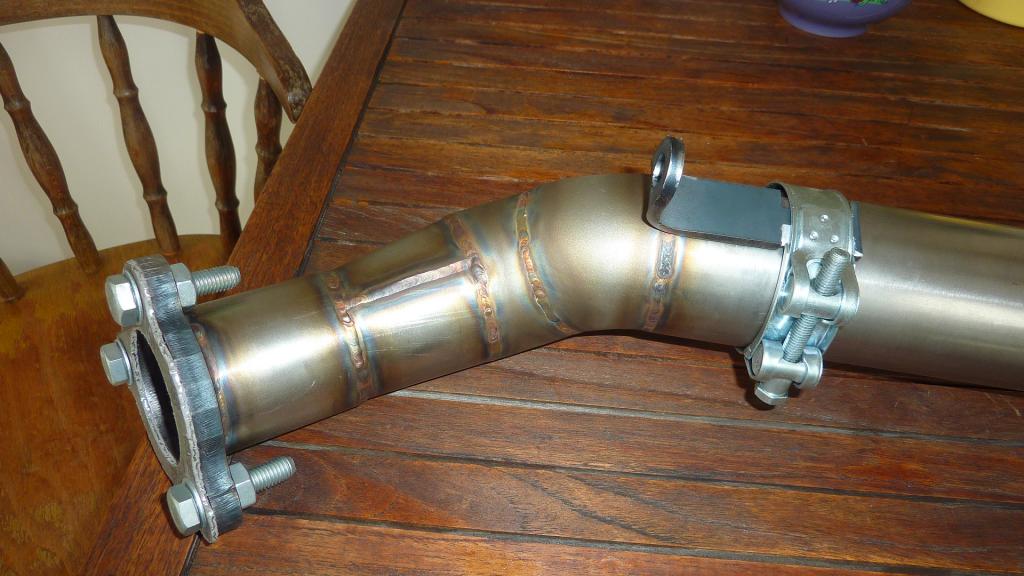

Giuseppe, your downpipe is on the way



Attached Thumbnails
Italian project-p1090624_zpsfdd72231.jpg   Italian project-p1090619_zps5394ec2e.jpg
sturovo is offline   Reply With Quote
Old 12-05-2014, 08:19 AM   #31
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

Pepino is offline   Reply With Quote
Old 01-19-2016, 06:47 AM   #32
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

Quote:
Originally Posted by Pepino View Post
winter project thoughts:

k1 rods
wiseco 8.5
cometic + arp HB
gt2560
larger inj than yellow rx8 (?)

all things to rebuild (w-pump/cam-belt etc)

1.8 stage1 clutch and torsen already in

target 260/270 rwhp

suggestions/comments?
Well, time has come, starting to put things together, done/bougth since now:

- FM mani + down'p
- Garrett Discopotato
- 8.5 78,5 wisecos w/ rings
- H ebay rods w/ ACL bear's
- Denso subaru 565cc inje'rs
- Cometic hg w/ ARP
- Rev Ems2 w/ ebc and egt
- PLX wb/boost gauge
- 22" intercooler 'nice fins'
- ebay alu/silicone intercooler tubing
- alu rec bov
- alu rad 42mm w/ reroute
- oil rad w/ thermo
- homemade cold air box
- Stage 1 1.8 clutch
- 2.5 exhaust with magnaflow
- 1.8 torsen w/ 6M and 4.1
- 1.8 brakes w/ dtc30
- RB big sway bars
- Ohlins R&T


Till now honed/bored cilinders, head mild ported and unshrouded valves, waiting to measure/install rod bearings and so on...

Last edited by Pepino; 01-20-2016 at 06:39 AM.
Pepino is offline   Reply With Quote
Old 01-20-2016, 02:25 AM   #33
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

Sample picture

Attached Thumbnails
Italian project-th_5bbc93d7-8176-4b3d-8338-6fbea794a06c_zpszq1wxs51.jpg

Last edited by Pepino; 01-20-2016 at 03:54 AM.
Pepino is offline   Reply With Quote
Old 01-20-2016, 04:02 AM   #34
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

and some light head works...



Attached Thumbnails
Italian project-th_1a866fd2-19d3-408a-8908-1b87b92d9b88_zpsbvl962rg.jpg   Italian project-th_b0665271-5ce6-401b-a5e3-495c2b34b103_zpslgp9t5nu.jpg
Pepino is offline   Reply With Quote
Old 01-20-2016, 11:50 AM   #35
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

talking about EGT, ho that probe will work in you experience?



i was scared about drilling/tapping/welding a cast manifold so i used egr plug but it looks to me that would be too close to exhaust port...
Attached Thumbnails
Italian project-th_54068e34-b035-4cbc-b875-d84fbef7fac2_zpsmycg2gnf.jpg
Pepino is offline   Reply With Quote
Old 01-23-2016, 12:59 PM   #36
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

intercooler installing...





leaving a couple inches gap to give air flow to rad...
Attached Thumbnails
Italian project-th_ccafde65-53ba-47fc-97e0-9b82797b8218_zpsicwc1urw.jpg   Italian project-th_dffa7969-e7ad-4d78-8ec9-75e6f19c173f_zpslytnk7yi.jpg
Pepino is offline   Reply With Quote
Old 01-23-2016, 04:07 PM   #37
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,624
Total Cats: 1,559
Default

Quote:
Originally Posted by Pepino View Post
leaving a couple inches gap to give air flow to rad...
Good. It would overheat if you didn't.
sixshooter is offline   Reply With Quote
Old 02-08-2016, 02:31 AM   #38
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

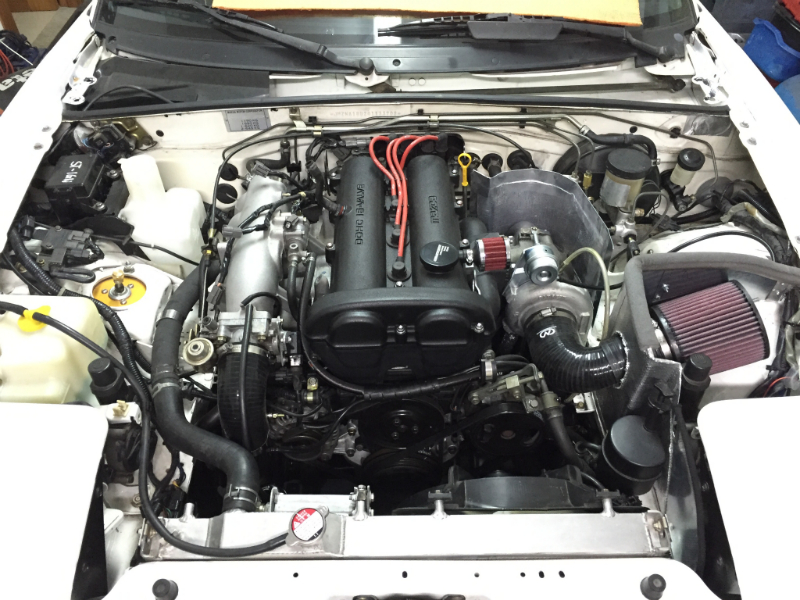

All is back together and idle running waiting for ID 725 injectors to come...

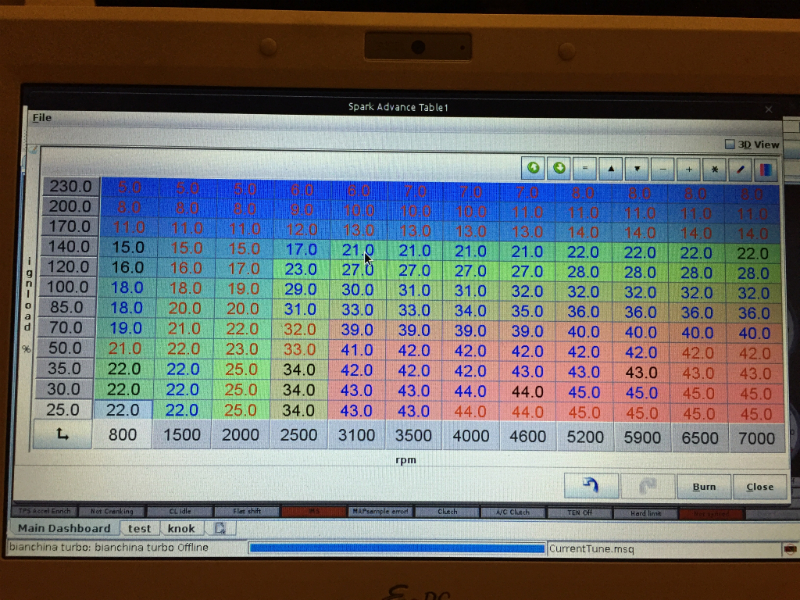

Edited my spark map, what do you think (93 pump gas)

Attached Thumbnails
Italian project-1b58e801-00ff-4c6e-ae97-8c39a2b827e7_zps2if2bsg0.jpg   Italian project-fa606098-3839-4c36-ab41-102b739e056f_zpsclwjcg34.jpg

Last edited by Pepino; 02-08-2016 at 09:37 AM.
Pepino is offline   Reply With Quote
Old 02-08-2016, 06:37 AM   #39
Junior Member

Join Date: Sep 2012
Location: New Zealand Christchurch
Posts: 207
Total Cats: -5
Default

Why so much timing at idle? Curious as isn't the consensus 10-14* is preferable for a stable idle?
jimmyneutron is offline   Reply With Quote
Old 02-08-2016, 09:36 AM   #40
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

Quote:
Originally Posted by jimmyneutron View Post
Why so much timing at idle? Curious as isn't the consensus 10-14* is preferable for a stable idle?
my 1.6 likes that, i can idle at 16 afr but not under 20/22 advance...
Pepino is offline   Reply With Quote
