Old 10-28-2011, 01:36 PM   #161
Junior Member
Thread Starter

Join Date: Dec 2010
Location: UK, in Cambridgeshire or wherever work takes me.
Posts: 376
Total Cats: 19
Default

Yep. I think hingston was just illustrating how important it is to not have stuff hanging below the frame rails. As I said, the only thing that's below frame rail level is the sump/ guard/front subframe. Richy, do you have a build thread? Anyone who puts a 2001 motor in a '96 either got lucky on ebay, or knows what they're doing!
owenwilliams is offline   Reply With Quote
Old 10-28-2011, 06:34 PM   #162
Senior Member
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

Quote:
Originally Posted by owenwilliams View Post
Yep. I think hingston was just illustrating how important it is to not have stuff hanging below the frame rails. As I said, the only thing that's below frame rail level is the sump/ guard/front subframe. Richy, do you have a build thread? Anyone who puts a 2001 motor in a '96 either got lucky on ebay, or knows what they're doing!
And the transmission crossmember.
hingstonwm is offline   Reply With Quote
Old 10-29-2011, 12:59 PM   #163
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by owenwilliams View Post
Yep. I think hingston was just illustrating how important it is to not have stuff hanging below the frame rails. As I said, the only thing that's below frame rail level is the sump/ guard/front subframe. Richy, do you have a build thread? Anyone who puts a 2001 motor in a '96 either got lucky on ebay, or knows what they're doing!
Some, but I'm really awful at taking pictures, as in I don't. Your pictures are awful but at least they exist

No eBay luck here All work is done myself.

I'm 'Mr Slow' on Nutz if you're that interested
richyvrlimited is offline   Reply With Quote
Old 11-03-2011, 05:01 PM   #164
Junior Member
Thread Starter

Join Date: Dec 2010
Location: UK, in Cambridgeshire or wherever work takes me.
Posts: 376
Total Cats: 19
Default

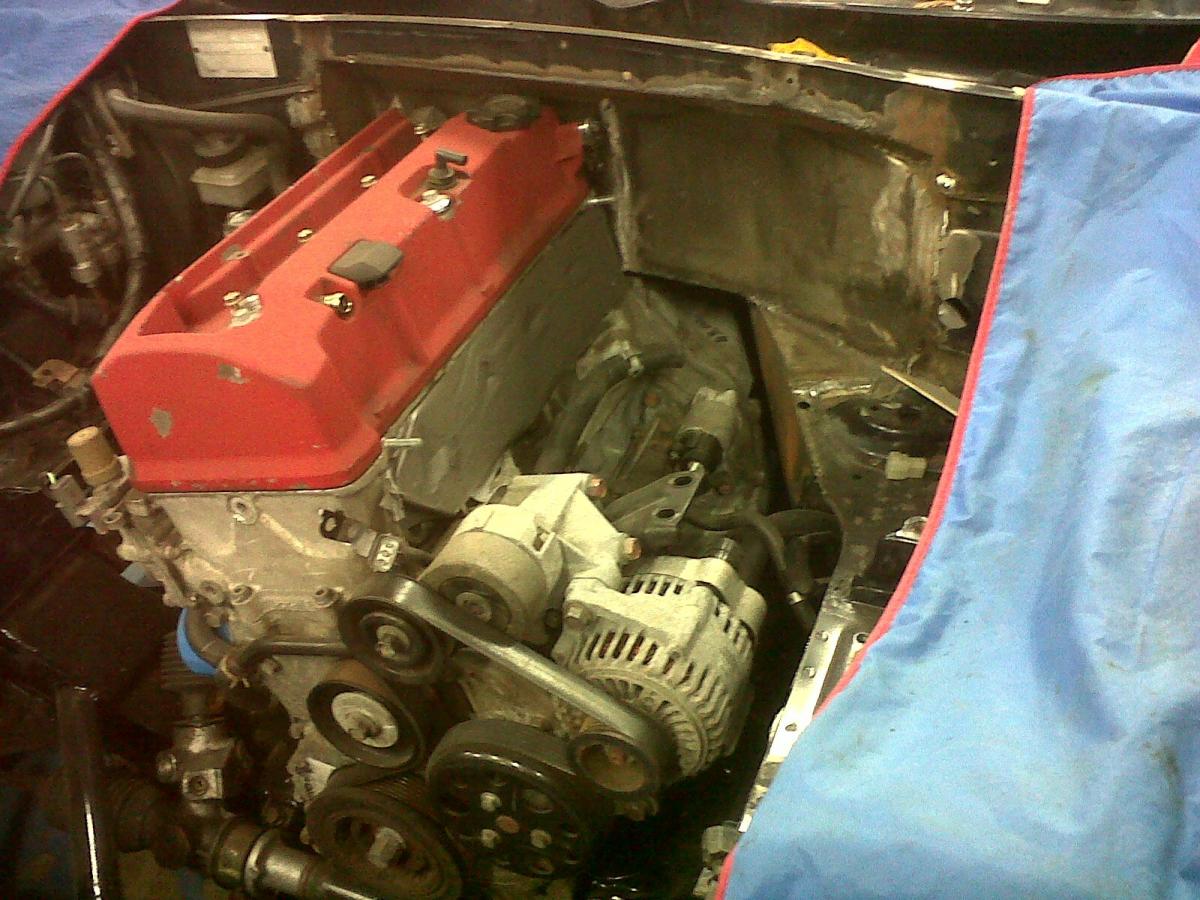

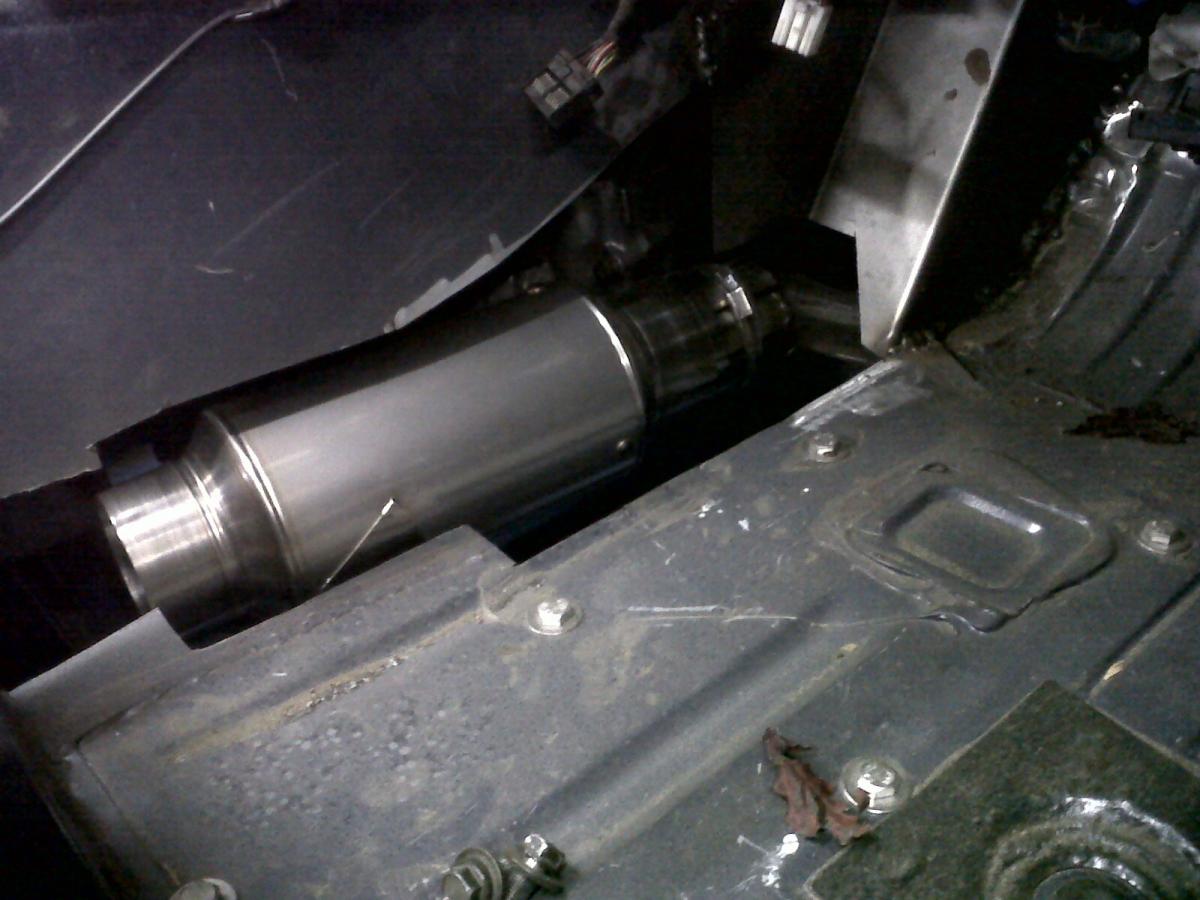

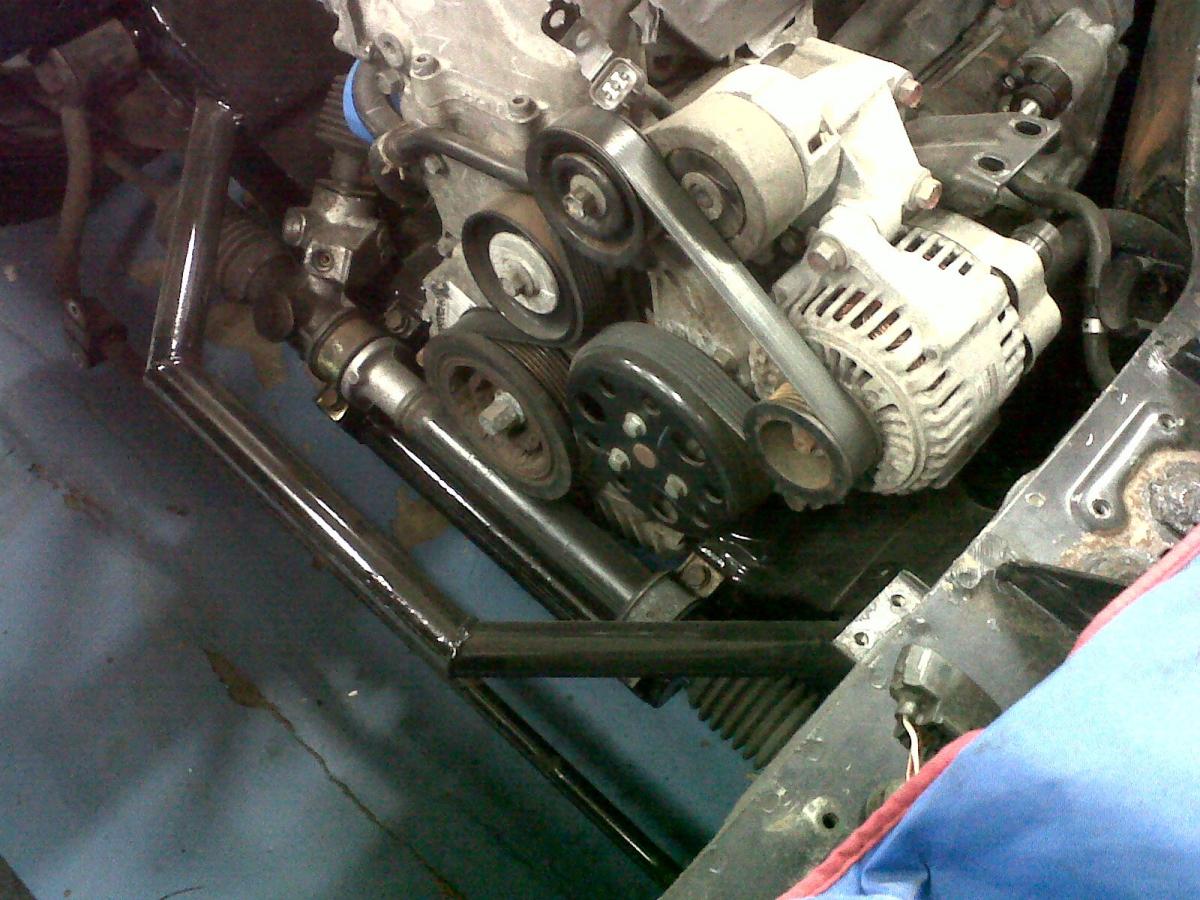

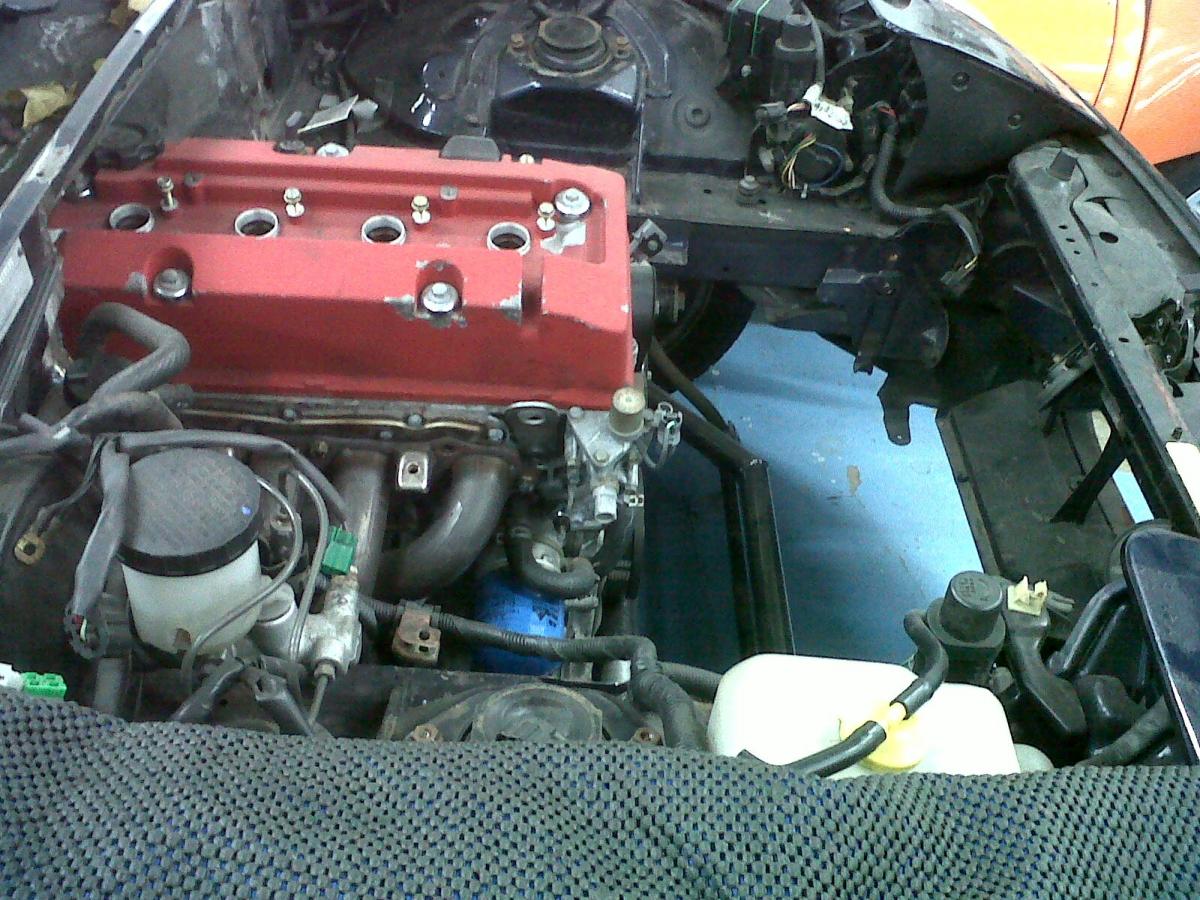

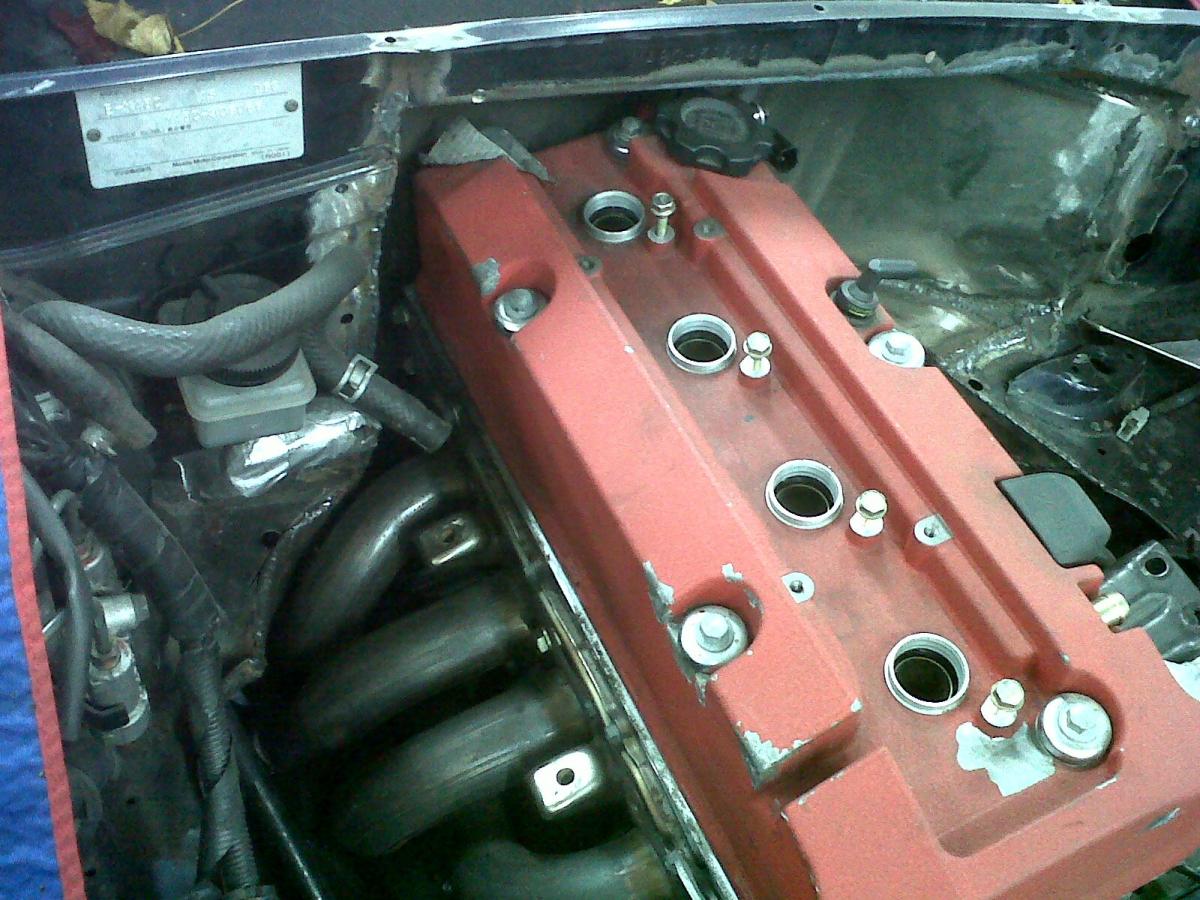

Not much to report, just some fractionally less blurry photos:









Attached Thumbnails
Just Another F20C build... &lt;Preview&gt;-tyzim.jpg   Just Another F20C build... &lt;Preview&gt;-ojv1m.jpg   Just Another F20C build... &lt;Preview&gt;-240nd.jpg   Just Another F20C build... &lt;Preview&gt;-gjxyc.jpg   Just Another F20C build... &lt;Preview&gt;-1ps8s.jpg

owenwilliams is offline   Reply With Quote
Old 11-06-2011, 10:14 AM   #165
Junior Member

Join Date: May 2011
Location: Columbia, SC
Posts: 115
Total Cats: -1
Default

I hate to see that you're doing a side exit. but everything else looks awesome. Do you know if the f20c conversion has been done in an NB? I was thinking about doing it in one of those.
AredMiata is offline   Reply With Quote
Old 11-06-2011, 10:37 AM   #166
Junior Member
Thread Starter

Join Date: Dec 2010
Location: UK, in Cambridgeshire or wherever work takes me.
Posts: 376
Total Cats: 19
Default

Re. side exit, each to their own I suppose. I will probably continue to love it until I go deaf as a result of having a 3" exhaust exit located by my head.

Re. NB, I reckon it must have been done to quite a few. Here's one:

And here's the same car sounding pretty good on the track:
owenwilliams is offline   Reply With Quote
Old 11-06-2011, 10:56 AM   #167
Junior Member

Join Date: May 2011
Location: Columbia, SC
Posts: 115
Total Cats: -1
Default

I love me some f20 swapped NB. Okay, so maybe I should clarify on what I was trying to post. It should sound nice. The piping and muffler you're going with looks top quality. I'm just curious on how that's going to be for highway driving and other dd'ing.
AredMiata is offline   Reply With Quote
Old 11-06-2011, 11:28 AM   #168
Junior Member
Thread Starter

Join Date: Dec 2010
Location: UK, in Cambridgeshire or wherever work takes me.
Posts: 376
Total Cats: 19
Default

It'll probably be rather "involving" :P
owenwilliams is offline   Reply With Quote
Old 11-06-2011, 01:26 PM   #169
Junior Member

Join Date: May 2011
Location: Columbia, SC
Posts: 115
Total Cats: -1
Default

I like the choice of words! Haha
AredMiata is offline   Reply With Quote
Old 11-06-2011, 08:42 PM   #170
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

ON your vid of the track run.. u hear the knocking?
triple88a is offline   Reply With Quote
Old 11-07-2011, 09:47 AM   #171
Junior Member
Thread Starter

Join Date: Dec 2010
Location: UK, in Cambridgeshire or wherever work takes me.
Posts: 376
Total Cats: 19
Default

The knocking noise that starts around 18 seconds in? According to another of his vids, that's his aftermarket differential.
owenwilliams is offline   Reply With Quote
Old 11-07-2011, 03:25 PM   #172
Junior Member
Thread Starter

Join Date: Dec 2010
Location: UK, in Cambridgeshire or wherever work takes me.
Posts: 376
Total Cats: 19
Default

Ordered a Dastek Unichip from tdi-plc.com. Will be getting it tuned on their hub dyno. I've liked the idea of hub dynos ever since a magazine recorded around a 15hp increase on a Ferrari 550 just by changing to new tyres using a conventional Dyno Dynamics. Presumably the pressures, ambient temps etc were the same. And no, the mag weren't sponsored by this tyre manufacturer :P

After many, many hours on s2ki.com, I've asked for the air:fuel to be set at 13:1, and the VTEC crossover to be set at 5000rpm. Of course, if they want to set the air:fuel to something either side of this I'm not going to say no, but 13:1 seems like a good starting point on this engine with intake/exhaust mods. Apparently the Dastek can do this. I won't be touching the timing.
It'll be full throttle tuned only, not least because the Honda ECU 'learns' and eventually (apparently over two or three weeks) writes over part-throttle piggyback maps.

Also, cage should be arriving this week.

Last edited by owenwilliams; 11-07-2011 at 03:30 PM. Reason: Kept forgetting stuff.
owenwilliams is offline   Reply With Quote
Old 11-15-2011, 02:22 PM   #173
Junior Member
Thread Starter

Join Date: Dec 2010
Location: UK, in Cambridgeshire or wherever work takes me.
Posts: 376
Total Cats: 19
Default

Latest purchase = things which will either send me to sleep, or keep me awake at night:

Attached Thumbnails
Just Another F20C build... &lt;Preview&gt;-txuaa.jpg
owenwilliams is offline   Reply With Quote
Old 11-15-2011, 02:30 PM   #174
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

Like most things I read like this I would imagine it will keep you awake for days.lol
Sean is offline   Reply With Quote
Old 11-16-2011, 05:00 AM   #175
Senior Member
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

vtec crossover on my car is set at 5300. If you plan on putting the car on a dyno then set crossover at the point that gives you the smoothest transition.
hingstonwm is offline   Reply With Quote
Old 11-16-2011, 05:15 AM   #176
Junior Member
Thread Starter

Join Date: Dec 2010
Location: UK, in Cambridgeshire or wherever work takes me.
Posts: 376
Total Cats: 19
Default

I have the short gearing of this car to consider though Bill. Much lower than 5000rpm (and plenty have found the optimum crossover point to be lower than 5000) and I'll be snagging vtec at motorway speeds. I believe the latest Unichip has scope for setting the load at which vtec engages, so in theory I could have it set to engage at, say, 75% throttle between 4k and 5krpm, but somehow making it load dependent seems even less predictable than having it engage at a certain rpm point irrespective of load. I need to think about that more though.
owenwilliams is offline   Reply With Quote
Old 11-16-2011, 11:01 AM   #177
Senior Member
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

Trust me, keep it simple, no need to over think it. The smoother your power curve, the more predictable and easier the car will be to drive. furthermore, getting on the big lobes while in cruising mode will be a huge waste of fuel. Need more power, then drop it down a gear, it's one of the nice things about a manual gearbox.
hingstonwm is offline   Reply With Quote
Old 11-16-2011, 11:44 AM   #178
Junior Member
Thread Starter

Join Date: Dec 2010
Location: UK, in Cambridgeshire or wherever work takes me.
Posts: 376
Total Cats: 19
Default

That's what I mean - I definitely >don't< want to be in vtec at motorway speeds in 6th gear. To avoid that, I'll either have to set vtec to engage at 5000rpm or above, or, if I set it lower, make it load dependent between, say, 4k and 5k. That way, if the vtec point was optimally set at 4300rpm for example, when I'm on the motorway at 75mph at 4800 (for eg) rpm at 50% throttle, I'll be on the low cam. That make sense?
owenwilliams is offline   Reply With Quote
Old 11-16-2011, 01:48 PM   #179
Senior Member
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

makes sense, no need to make it load variable. Just downshift when you need the extra power. KISS is always best.
hingstonwm is offline   Reply With Quote
Old 11-16-2011, 02:19 PM   #180
Junior Member
Thread Starter

Join Date: Dec 2010
Location: UK, in Cambridgeshire or wherever work takes me.
Posts: 376
Total Cats: 19
Default

That's what I'm leaning towards. If circa 5000rpm turns out to be above the optimal engagement point, it'll just result in a bit of a vtec-kicked-in-yo feel at 5krpm on full throttle. No big deal, and certainly less of a dramatic kick than the standard 6200rpm engagement point. I think we're on different pages re. my reasons for wanting load dependent vtec engagement - it's not so that I don't have to change down a gear or two (or three) on the motorway, it's so that when I'm playing on back roads or at the track, and find myself for whatever reason down at 4krpm coming out of a corner at full throttle, vtec will kick in yo at the optimal point instead of a post-optimal motorway-friendly point.
owenwilliams is offline   Reply With Quote
