Default Just another low budget build I guess...

Nothing too fancy...

1.9L with VVT, JE pistons, Pauter rods, BE oil pump
Garrett 3076, 29psi
Tial EWG and BOV
Custom 80mm exhaust
Individual port WI with Snow Performance S3 controller and SafeInjection module
MS2 standalone ECU, 3bar MAP, EBC, VVT Controller
Fuel Injector Clinic 1150cc injectors, Mtuned fuel rail, AEM FPR
RX-7 FD gearbox

I will be doing the tuning.

Should be somewhat pleasant to drive I guess.

Name:  2011-07-05172243.jpg
Views: 3
Size:  7.0 KB
Reverant is offline   Reply With Quote
Old 07-05-2011, 12:25 PM   #2
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

I would say this is far from low budget but will be super sweet no matter what.
Sean is offline   Reply With Quote
Old 07-05-2011, 12:32 PM   #3
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,207
Total Cats: 2,587
Default

29psi? You guys take the term "RUN ALL OF IT" really seriously don't you?
Good stuff
18psi is offline   Reply With Quote
Old 07-05-2011, 12:36 PM   #4
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 200
Default

Quote:
Originally Posted by Sean View Post
I would say this is far from low budget but will be super sweet no matter what.
But it has a low budget, sub-par ECU and all?!?!

Reverant is offline   Reply With Quote
Old 07-05-2011, 12:37 PM   #5
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 200
Default

Quote:
Originally Posted by 18psi View Post
29psi? You guys take the term "RUN ALL OF IT" really seriously don't you?
Good stuff
Yeah, 29psi, we are definately not turning up the boost more than that before we break in the engine.
Reverant is offline   Reply With Quote
Old 07-05-2011, 12:51 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,207
Total Cats: 2,587
Default

I don't think a 3076 will even go much higher than mid 30's...could be wrong
18psi is offline   Reply With Quote
Old 07-05-2011, 02:11 PM   #7
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

More info on the gearbox pls!. I have one sitting in my garage from my old FD days and I was always thinking about fitting it into the NA. Once I get to the 300whp mark, I know my 5spd will not be up to par.
falcon is offline   Reply With Quote
Old 07-05-2011, 03:22 PM   #8
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

I would not trust expect the 3076 to get you much past 29 at the most. At that point they just blow hot air nothing more. Ask Faeflora he will tell you. On his motor it fell on its face at 26 lbs. so you may want a little bigger turbo.
Sean is offline   Reply With Quote
Old 07-05-2011, 03:26 PM   #9
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 200
Default

I was just kidding when I said more than 29psi. We will probably stick at 26psi for daily use and only turn it up to 29psi on the dyno just for kicks. We got 400rwhp at 26psi from a 1.6 with the same turbo, so it should be ok at 28-29.
Reverant is offline   Reply With Quote
Old 07-05-2011, 03:31 PM   #10
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

Ok that is better I thought you were really gonna push it past 29 psi. Not saying it can't be done but its like running the stock turbo on my girlfriends jetta at 24 psi. Why? just get a bigger one.lol
Sean is offline   Reply With Quote
Old 07-05-2011, 03:43 PM   #11
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Now that is some nice news from Greece finally.... 29 PSI
Zaphod is offline   Reply With Quote
Old 07-05-2011, 04:44 PM   #12
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

The GTX 3076R would love life above 29psi.

Still should make some legit power!


More detailed pics of the transmission to PPF connection?
shlammed is offline   Reply With Quote
Old 07-06-2011, 03:11 AM   #13
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 200
Default

Quote:
Originally Posted by shlammed View Post

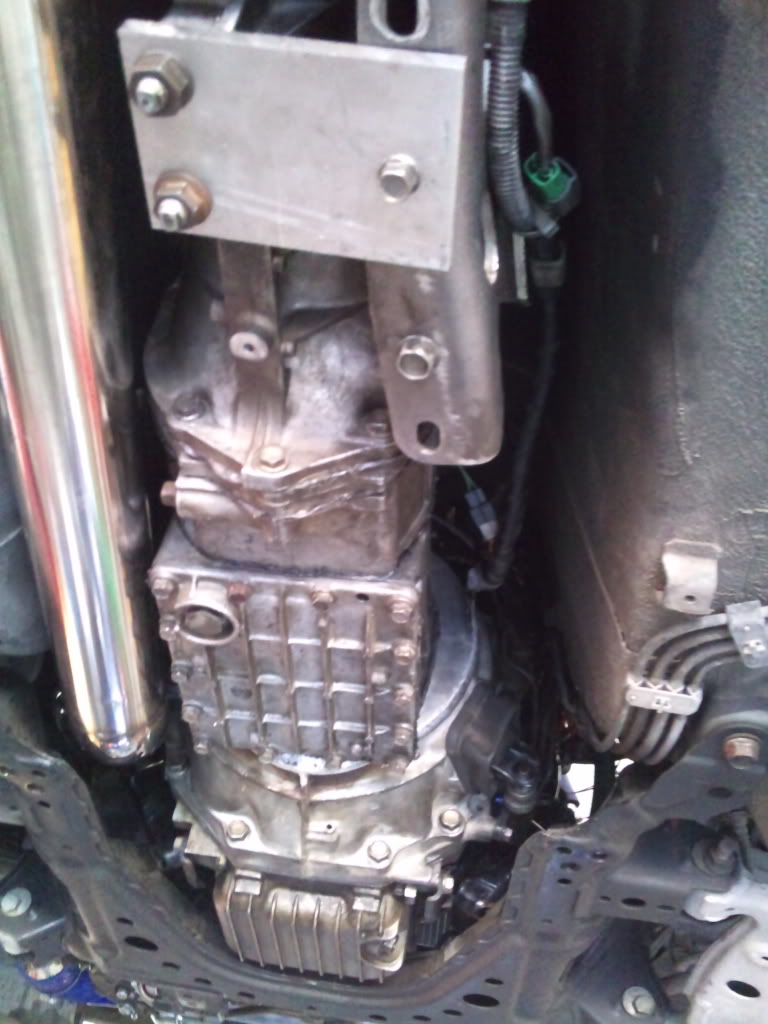

More detailed pics of the transmission to PPF connection?
I have this one:

Name:  2011-07-05173225.jpg
Views: 2
Size:  91.6 KB
Reverant is offline   Reply With Quote
Old 07-06-2011, 07:50 AM   #14
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 200
Default

Reverant is offline   Reply With Quote
Old 07-07-2011, 06:42 PM   #15
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Nice idle. What injectors?
falcon is offline   Reply With Quote
Old 07-07-2011, 11:24 PM   #16
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,012
Total Cats: 584
Default

Sick. Like it. More pics please.
hornetball is online now   Reply With Quote
Old 07-08-2011, 03:15 AM   #17
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 200
Default

265cc to fire her up and do the first few miles, then Fuel Injector Clinic 1150cc at 46psi fuel pressure.
Reverant is offline   Reply With Quote
Old 07-08-2011, 09:20 PM   #18
Junior Member

Join Date: Mar 2010
Location: Norway
Posts: 186
Total Cats: 0
Default

Quote:
Originally Posted by Reverant View Post
Yeah, 29psi, we are definately not turning up the boost more than that before we break in the engine.
All or nothing

Please post pictures one the engine
inglar is offline   Reply With Quote
Old 01-13-2012, 05:05 PM   #19
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 200
Default

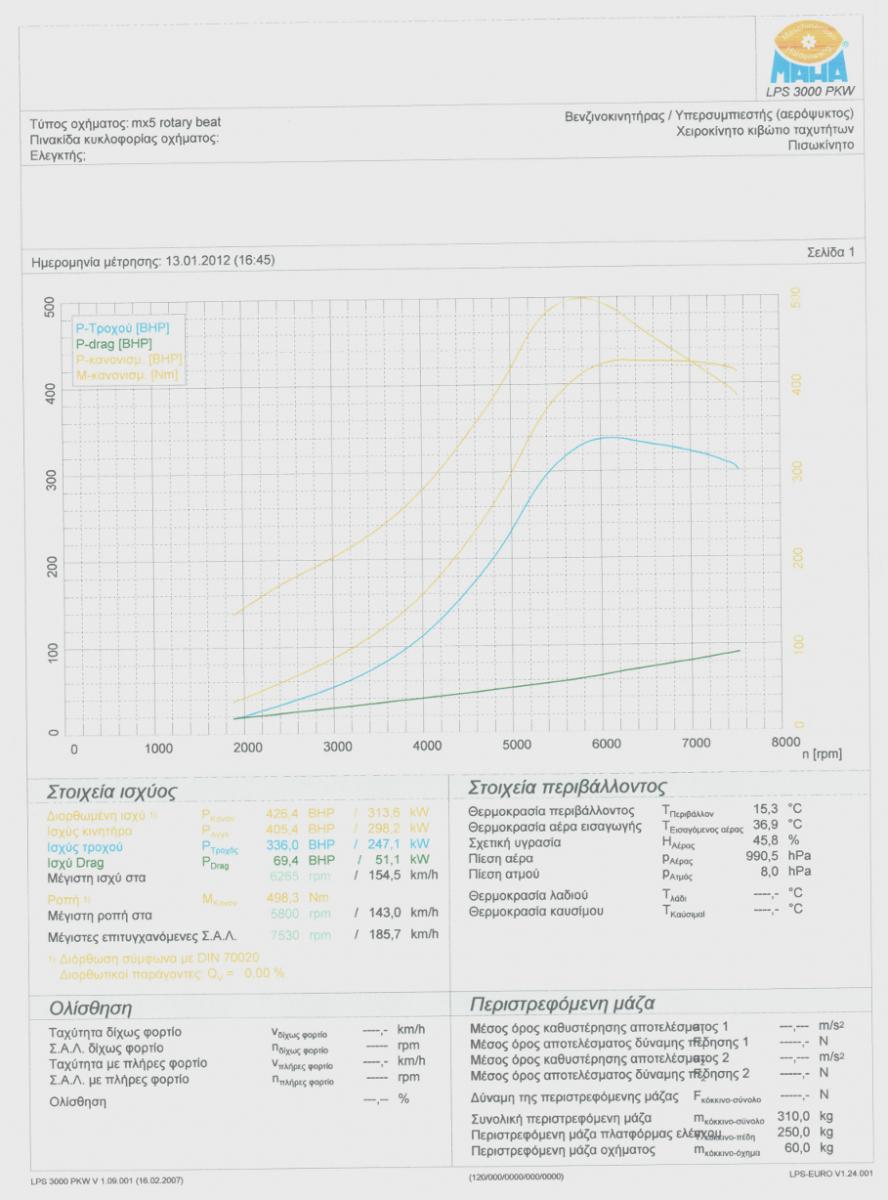

Got this to the dyno today. Got 425hp, 370tq (omg the torque).

Then once back in the shop, I realized that the system was out of water for the WI, and the ECU had retarded the ignition 5* once in boost because of it (FUUUUUUUUU). It would have made another 30-60hp and 20-30tq with the ignition figures in the right place.

Attached Thumbnails
Just another low budget build I guess...-scan_0001.jpg
Reverant is offline   Reply With Quote
Old 01-16-2012, 03:34 PM   #20
Junior Member

Join Date: Jan 2010
Location: Helsinki, Finland
Posts: 153
Total Cats: 9
Default

Quote:
Originally Posted by Reverant View Post
Got this to the dyno today. Got 425hp, 370tq (omg the torque).

Then once back in the shop, I realized that the system was out of water for the WI, and the ECU had retarded the ignition 5* once in boost because of it (FUUUUUUUUU). It would have made another 30-60hp and 20-30tq with the ignition figures in the right place.
Oh poor you :lol:
samulis is offline   Reply With Quote
