Old 11-16-2009, 02:19 PM   #21
Senior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2005
Location: Granbury, TX
Posts: 567
Total Cats: 1
Default

Quote:
Originally Posted by mazpr View Post
I would bought a turbo without the internal or built in WG as you have an external one.

Just FYI, the weld where the wastegate is attached to will give up at some point, trust me I have seen it happened. I would have welded a longer tube and attach brackets to it so it can hold under heat and vibration.
The turbo I bought came with an internal wg, I then took it off and sold it when I decided to go external, It's now as if there was never one there.

Also, why do u say the weld is going to give? I did a double pass on it and it made great penetration, I even preheated the cast manifold and then cooled it slowly in the oven. Not saying it wont, just wanna know what's wrong with it.

Quote:
Originally Posted by mazpr View Post
Another thing, you have to watch out when porting the cylinder head, especially on the intake side. The texture roughness usually found on the intake runners is control the speed of the fuel and not just spit it out the exhaust side. I have seen it happened before where people go crazy smoothing and widening the ports and at the end what they did was kill the CH.
With the porting, I read several books on head porting and whatnot, and didn't take off as much as it probably looks, I mainly focused on smoothing the casting flaws and mixing bowl and deshrouding the valves, the intake side does not have a polished look in the end. Hopefully it doesn't give my negative gains, that would suck, but I guess I have no way of knowing as I never ran this setup on a stock head.

Quote:
Originally Posted by mazpr View Post
I bet the car must be super rich at idle or low rpms, What is your WB readings?

What I do not understand is you have MS so you are suppose to control the fuel at the bottom end if it is too rich.
You're right I do have a MS, but when I first started driving the car on base tune it obviously was not right, I've since then tuned it and it runs great.

Thanks for all the input man, i appreciate it.
greenday3437 is offline   Reply With Quote
Old 11-16-2009, 02:33 PM   #22
Junior Member

Join Date: Jul 2008
Posts: 96
Total Cats: 0
Default

Welding to cast iron is just notoriously an iffy proposition, regardless of who welds it. It's alsways a good idea to avoid it if possible. Add on a weight support if possible.
GIGAPUNK is offline   Reply With Quote
Old 11-17-2009, 02:24 AM   #23
Senior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2005
Location: Granbury, TX
Posts: 567
Total Cats: 1
Default

Quote:
Originally Posted by GIGAPUNK View Post
Welding to cast iron is just notoriously an iffy proposition, regardless of who welds it. It's alsways a good idea to avoid it if possible. Add on a weight support if possible.
Yeah I knew that but I had no choice, not really sure a weight support would help though. I'll probably just leave it how it is and if it cracks then I'll try some support or something.
greenday3437 is offline   Reply With Quote
Old 12-18-2009, 11:00 AM   #24
Junior Member

Join Date: Dec 2009
Posts: 65
Total Cats: 0
Default

my friend bought one of those 150$ ebay turbos

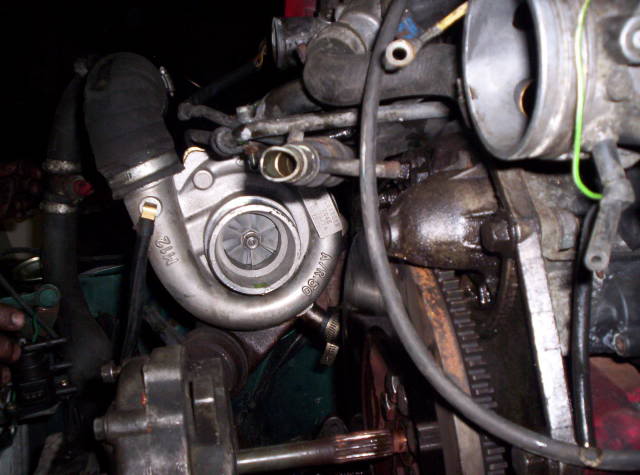

This turbo...
Name:  100_1235.jpg
Views: 0
Size:  44.1 KB

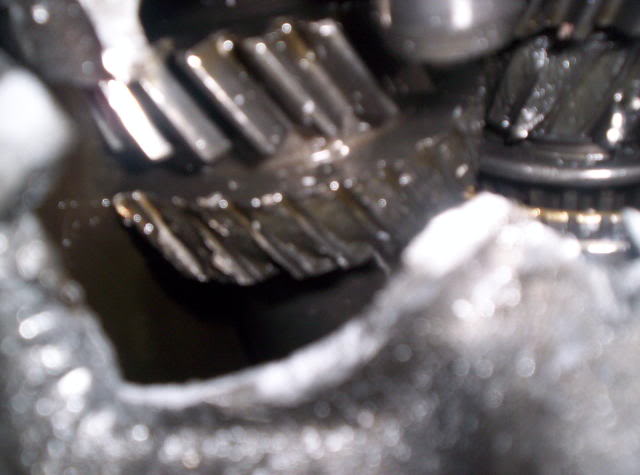

was spinning tires in 3rd gear... which caused third gear to do this.....
Name:  100_1251.jpg
Views: 0
Size:  32.8 KB

and then he bought a miata!

This is a cool build thread, i think mine will be slightly milder but on the same theme! Congrats on getting it done!
JP
Aero91 is offline   Reply With Quote
Old 12-29-2009, 11:08 PM   #25
Senior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2005
Location: Granbury, TX
Posts: 567
Total Cats: 1
Default

Well a small and pointless update, got a cheap MBC online and tomorrow will be finishing the 1.8 diff swap.

Ordered the rest of the meth parts I need so soon I will be able to make det cans and start tuning.

As a side note, I've had this urge to pull my system apart and make an Absurdflow-style manifold and new downpipe. But I should resist the urge until at least next winter, no matter how badass it would be.

Also needing new tires soon, does anyone know what the widest size tire you can safely put on a 15X6.5 stock NB wheel?

Should have some logs to post spoolups by this weekend.
greenday3437 is offline   Reply With Quote
Old 12-30-2009, 01:06 AM   #26
Junior Member

Join Date: Jul 2008
Posts: 96
Total Cats: 0
Default

Toyo says the 225/50/15 is all good, but seems to reccomend against the 225/45/15.

http://marktg.toyotires.com/file/18968.pdf

Looking forward to the logs. Def. hold off on the Absurdflow style goodies until the car has broken something next year, and is already out of commision. There's something to be said for stopping the building, and starting the driving.
GIGAPUNK is offline   Reply With Quote
Old 12-30-2009, 05:32 PM   #27
Senior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2005
Location: Granbury, TX
Posts: 567
Total Cats: 1
Default

Quote:
Originally Posted by GIGAPUNK View Post
Toyo says the 225/50/15 is all good, but seems to reccomend against the 225/45/15.

http://marktg.toyotires.com/file/18968.pdf
225's are what I was hoping I could fit, this will save me money on having to get wheels right now if I can get a tire shop to mount 225/50's on my wheels, thanks man.
greenday3437 is offline   Reply With Quote
Old 12-30-2009, 07:55 PM   #28
Junior Member

Join Date: Jul 2008
Posts: 96
Total Cats: 0
Default

On toyo's own site they are listed as fitting, so I don't see why it would be a problem at a good tire shop.
GIGAPUNK is offline   Reply With Quote
Old 12-30-2009, 10:08 PM   #29
Senior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2005
Location: Granbury, TX
Posts: 567
Total Cats: 1
Default

Quote:
Originally Posted by GIGAPUNK View Post
On toyo's own site they are listed as fitting, so I don't see why it would be a problem at a good tire shop.
True, I need to worry more about getting this dang thing running correctly first though haha
greenday3437 is offline   Reply With Quote
Old 12-30-2009, 11:05 PM   #30
Senior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2005
Location: Granbury, TX
Posts: 567
Total Cats: 1
Default

Well I ordered the remainder of my meth injection parts, I have everything I need except the actual meth itself.

I couldn't find anywhere local that sells it, does anyone know of any cheap places to buy it online?
greenday3437 is offline   Reply With Quote
Old 12-31-2009, 03:55 PM   #31
Junior Member

Join Date: Jul 2008
Posts: 96
Total Cats: 0
Default

most people use windshield wiper fluid that is specifically rated to (I think its) -41 degrees. Those formulations almost always have the perfect 50% blend of meth and water.
GIGAPUNK is offline   Reply With Quote
Old 12-31-2009, 04:15 PM   #32
Junior Member
iTrader: (1)

Join Date: Aug 2008
Location: Granada, Spain
Posts: 336
Total Cats: 2
Default

in for spool logs.
ismael_pt is offline   Reply With Quote
Old 12-31-2009, 05:34 PM   #33
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,790
Total Cats: 128
Default

Looks awesome man. Wish I had the tools/abilities to make everything myself. Can't wait to see the final results.
pdexta is offline   Reply With Quote
Old 01-01-2010, 02:52 AM   #34
Senior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2005
Location: Granbury, TX
Posts: 567
Total Cats: 1
Default

Quote:
Originally Posted by GIGAPUNK View Post
most people use windshield wiper fluid that is specifically rated to (I think its) -41 degrees. Those formulations almost always have the perfect 50% blend of meth and water.
I've seen this discussed before, and although I'm not sure if I can even get -41 degree fluid in my area, I can't help but think that it's gotta be cheaper just to buy straight meth and mix it with water.

I could however easily be wrong.
greenday3437 is offline   Reply With Quote
Old 01-01-2010, 02:53 AM   #35
Senior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2005
Location: Granbury, TX
Posts: 567
Total Cats: 1
Default

Quote:
Originally Posted by ismael_pt View Post
in for spool logs.
Soon, I just finished up my diff swap tonight, so should be running 12ish psi by the end of the weekend.

Thanks for the kind words everyone
greenday3437 is offline   Reply With Quote
Old 01-01-2010, 01:19 PM   #36
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

I use peak -20 windshield wiper fluid. It has 30% meth in it and is $1.99/gal.
SKMetalworks is offline   Reply With Quote
Old 01-01-2010, 05:01 PM   #37
Senior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2005
Location: Granbury, TX
Posts: 567
Total Cats: 1
Default

Quote:
Originally Posted by sbkcocker499 View Post
I use peak -20 windshield wiper fluid. It has 30% meth in it and is $1.99/gal.
Well I suppose that's not too bad, if I can find wiper fluid in my area with enough meth content then I'll try it, but I have my doubts that I'll be able to find it.
greenday3437 is offline   Reply With Quote
Old 01-03-2010, 02:55 PM   #38
Senior Member
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

In for results as well! I got the exact same turbo and i'm doing a full diy setup as well, just using the internal wg and no engine work.
wittyworks is offline   Reply With Quote
Old 01-03-2010, 04:37 PM   #39
Senior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2005
Location: Granbury, TX
Posts: 567
Total Cats: 1
Default

Ok well I finally got to take it for another drive yesterday. I did take some logs but I have two issues.

First one is, after the diff swap, I was getting a vibration or knocking noise that was coming from the rear somewhere, not exactly sure what's up with that yet.

Other issue is that my map readings are very shaky.

I've had this problem before the diff swap, and I cleaned all my grounds and ran some extras. It made the issue way better, but it's still there any pretty bad, so I was thinking it's gotta be:

-Still grounds are bad, but I think I ran enough that it should be good.
-Power input is not steady, throwing off all the readings, I'm going to try an inline power conditioner and see if it helps, I remember seeing someone say it helped them in the past.
-The MAP actually is that shaky, I'm taking it from port on the back of the IM, I've seen people say that's a bad place to get it from but idk, I'll try another one and see if it helps.

Let me know what you think though, it's hard to really get any for sure info about my spooling off of this. I'll try to resolve the shakyness issue but first of course I'd like to figure out what the noise is in my rear.

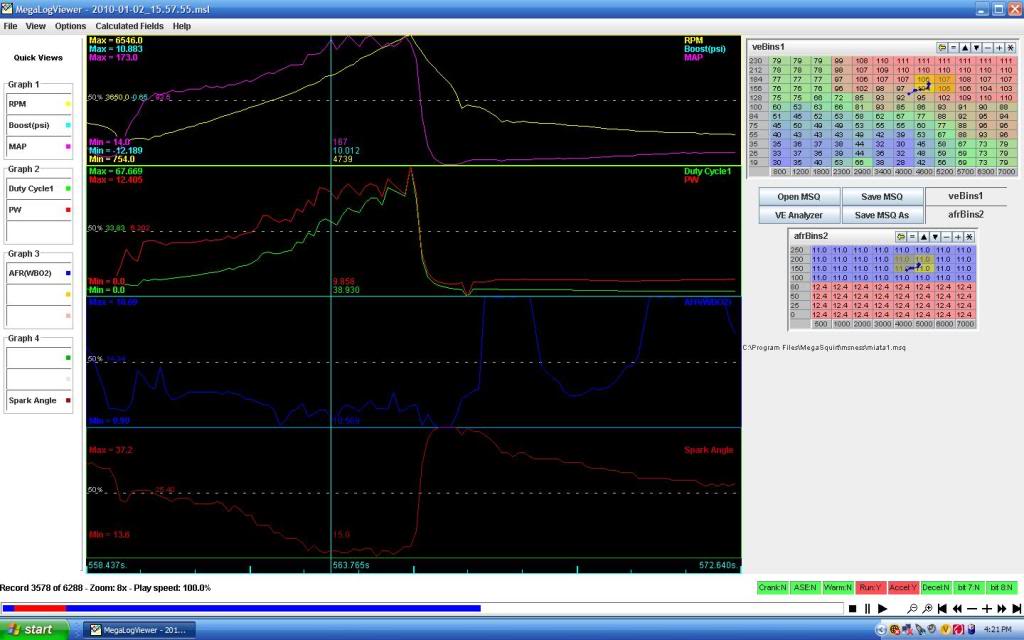

This is a 2nd gear pull.
Name:  s1.jpg
Views: 0
Size:  80.2 KB

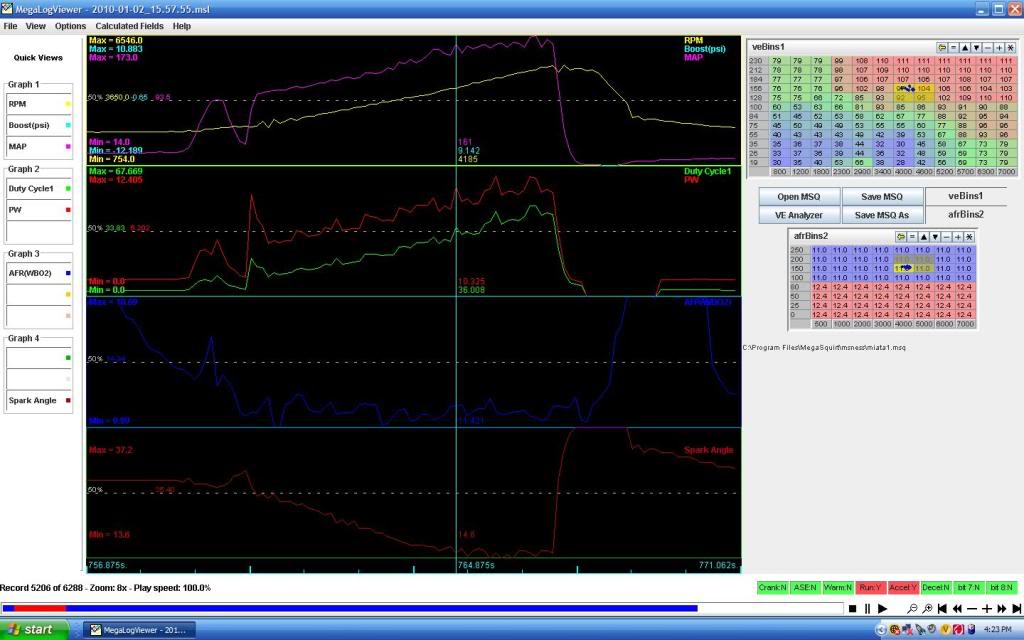

And here's a 3rd gear pull, only to 5k rpm though.

Name:  s2.jpg
Views: 1
Size:  81.4 KB

Also, the afr map on the screenshot is obviously not the one I use to do VE ----. it just was the default that popped up when I opened MLV

Again, thanks for the comments and suggestions.
greenday3437 is offline   Reply With Quote
Old 01-11-2010, 12:16 AM   #40
Junior Member

Join Date: Dec 2009
Location: Shelbina, MO (North East)
Posts: 335
Total Cats: 0
Default

Do you have a boost gauge? Perhaps you are getting waste gate flutter or surge on the compressor. That's a pretty big compressor on a small engine and you are running a lower pressure ratio on the compressor side with what I would consider a large turbine AR on a 1.6L.

Just an idea from a newb. Experts can chime in and tell me how it is. ;^)
rweatherford is offline   Reply With Quote
