Default My Rx7 Rally Car, 1.6L, MS2, etc.

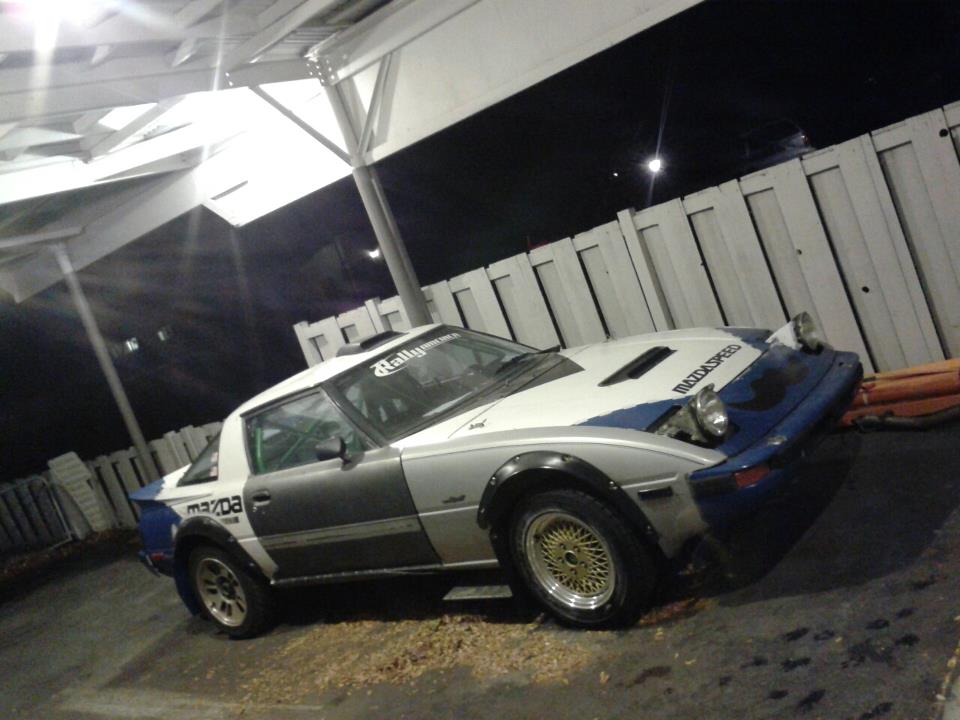

Well, the story begins with my purchase of a 1982 Mazda Rx7, SCCA pro-rally car. At the time it had a 12a streetported engine, very well tuned Weber carb and many years of rally duty. This came to an end at a rallycross where a bolt back out and proceeded to fall into the engine.

Thus began my overzealous build to get the car on stage again. I may have gotten a bit out of hand, but she is getting there. As opposed to running another rotary engine, which is pricey, i opted for a 1.6 miata engine and transmisison that popped up on Craiglist locally for 1000. Came with an old Cartech turbo kit which ive since sold. I may turbo, but at this point, i have not met the requirements for rally america events to run a turbo car.

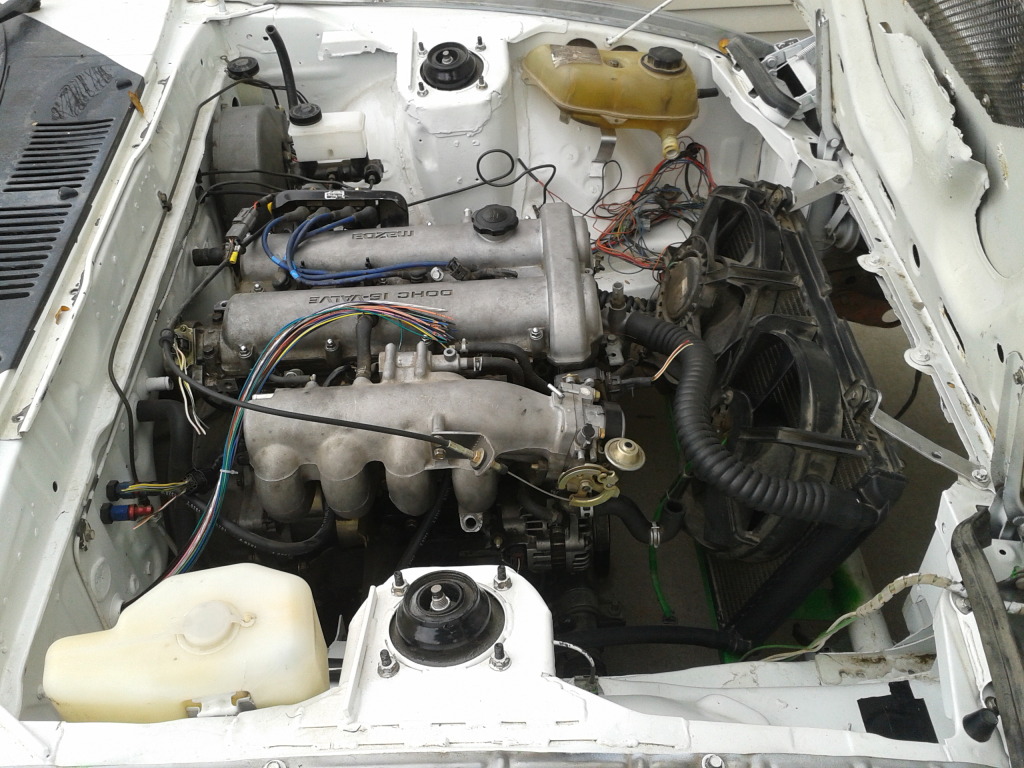

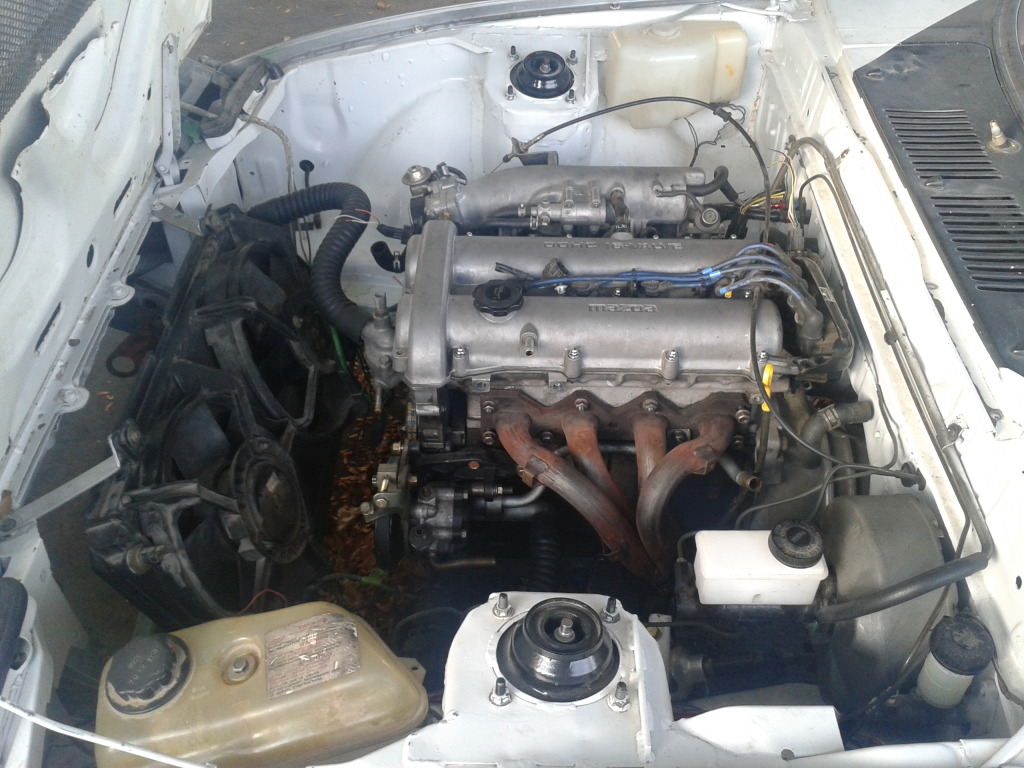

I am coming to the point where the car will start. I still need to finish some of the fueling, and wiring to get make that possible. I just ordered the IAT bung, Bip373 and the IAC mod for the megasquirt 2. Which i have had to modify from another Rx7 i used to own.

Lots of other bits so ill just bombard this area with pictures.


















Name:  IMG_9582.jpg
Views: 31
Size:  85.6 KB

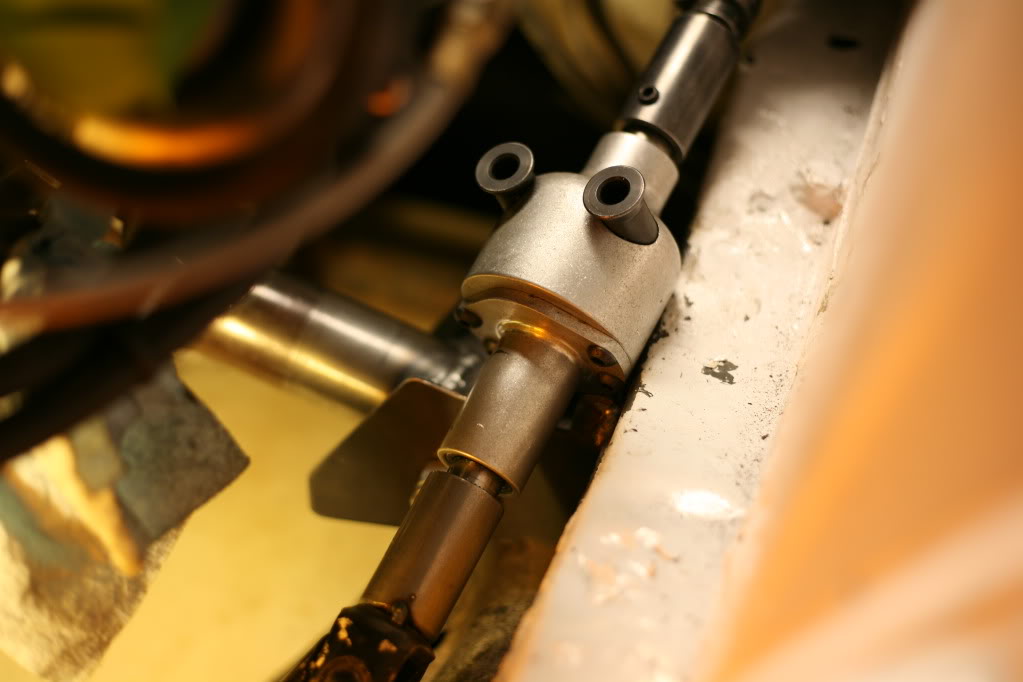

Name:  IMG_9573.jpg
Views: 31
Size:  61.7 KB
Attached Thumbnails

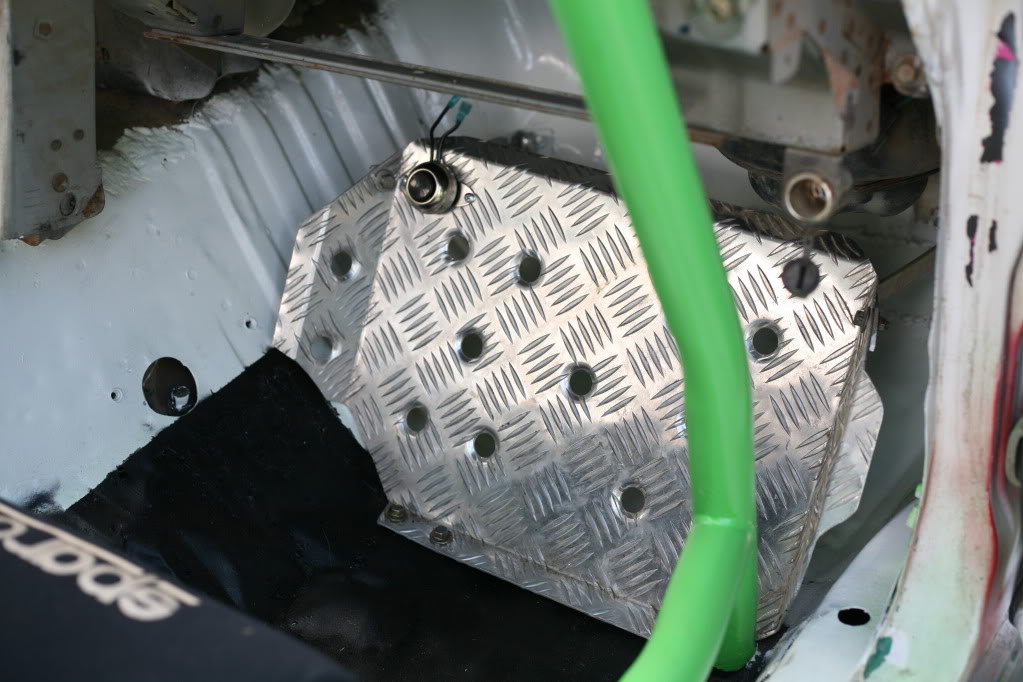

My Rx7 Rally Car, 1.6L, MS2, etc.-rallyx7.jpg   My Rx7 Rally Car, 1.6L, MS2, etc.-interior.jpg   My Rx7 Rally Car, 1.6L, MS2, etc.-20121109_112351.jpg   My Rx7 Rally Car, 1.6L, MS2, etc.-20121126_153802.jpg   My Rx7 Rally Car, 1.6L, MS2, etc.-img_0373.jpg

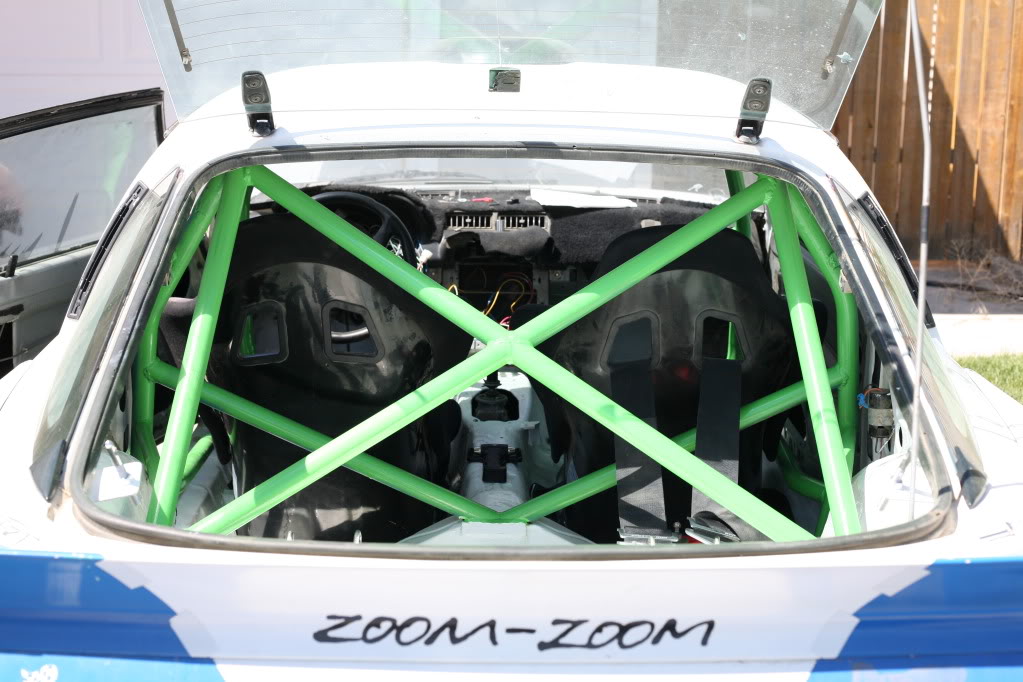

My Rx7 Rally Car, 1.6L, MS2, etc.-img_0371.jpg   My Rx7 Rally Car, 1.6L, MS2, etc.-img_0203.jpg   My Rx7 Rally Car, 1.6L, MS2, etc.-img_9873.jpg   My Rx7 Rally Car, 1.6L, MS2, etc.-img_9727.jpg   My Rx7 Rally Car, 1.6L, MS2, etc.-img_9692.jpg

Whizbang is offline   Reply With Quote
Old 12-04-2012, 11:42 AM   #2
Junior Member
iTrader: (11)

Join Date: Oct 2011
Location: Bellingham, WA
Posts: 285
Total Cats: 7
Default

This is awesome, I look forward to seeing more!
iantboyd is offline   Reply With Quote
Old 12-04-2012, 12:20 PM   #3
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,704
Total Cats: 237
Default

Sick. What kind of suspension is that?
Fireindc is offline   Reply With Quote
Old 12-04-2012, 12:26 PM   #4
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Boise, ID
Posts: 56
Total Cats: 0
Default

Quote:
Originally Posted by Fireindc View Post
Sick. What kind of suspension is that?
its 40mm inverted Bilsteins. The tubes are custom. Approx. 8" stroke, but limited by the ball joints to about 7". Im using FC suspension in the front of the car to boot.
Whizbang is offline   Reply With Quote
Old 12-04-2012, 12:34 PM   #5
Newb

Join Date: Oct 2011
Location: The 253
Posts: 32
Total Cats: -3
Default

In for vids and awesomness. Do want!
trackslut is offline   Reply With Quote
Old 12-04-2012, 12:57 PM   #6
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Nice, another RX-7 with the B engine in it!
bcrx7 is offline   Reply With Quote
Old 12-05-2012, 10:11 AM   #7
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Boise, ID
Posts: 56
Total Cats: 0
Default

Quote:
Originally Posted by bcrx7 View Post
Nice, another RX-7 with the B engine in it!
seems like your running the FC front subframe as well. Any issues with the 1.8 clearance? I looked through your build and you have the engine sitting slightly higher than mine. Also, was it located with the rear stud from the FB subframe or located to center on the wheel well?
Whizbang is offline   Reply With Quote
Old 12-05-2012, 01:47 PM   #8
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Quote:
Originally Posted by Whizbang View Post
seems like your running the FC front subframe as well. Any issues with the 1.8 clearance? I looked through your build and you have the engine sitting slightly higher than mine. Also, was it located with the rear stud from the FB subframe or located to center on the wheel well?
Yes, I was the guy that wrote the write-up 10 years ago or so. Since then the car has basically become a tube-chassis. I ended up aligning it so the wheels are centered in the fenders more or less.
The engine sits as low as it can leaving enough clearance above the steering rack (which is not much. I can barely get my finger in there.
bcrx7 is offline   Reply With Quote
Old 12-05-2012, 01:55 PM   #9
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Boise, ID
Posts: 56
Total Cats: 0
Default

I like to run the 1.8 as an option, granted the 1.6 popped up for a great price. But i was able to put the engine behind the steering rack so its about 3/4 to an 1" lower than it would be otherwise. That is primary since i have my subframe forward til, which worked well since the added caster makes the car pretty stable on dirt at high speeds
Whizbang is offline   Reply With Quote
Old 12-05-2012, 03:23 PM   #10
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Well since I was planning to run a 4" exhaust behind the engine as well as the coolant re-route (kind of needed for 550-600hp), I couldn't move the engine too far back!
bcrx7 is offline   Reply With Quote
Old 12-05-2012, 03:30 PM   #11
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Very nice looking build. Subscribed for further win.
gospeed81 is offline   Reply With Quote
Old 12-17-2012, 01:06 PM   #12
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Boise, ID
Posts: 56
Total Cats: 0
Default

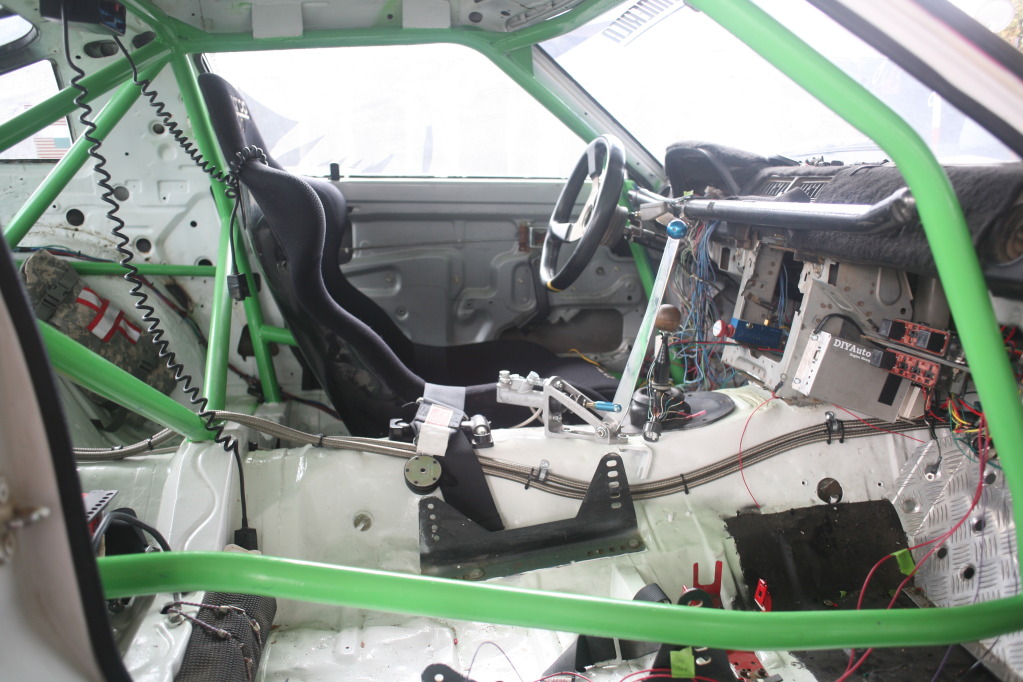

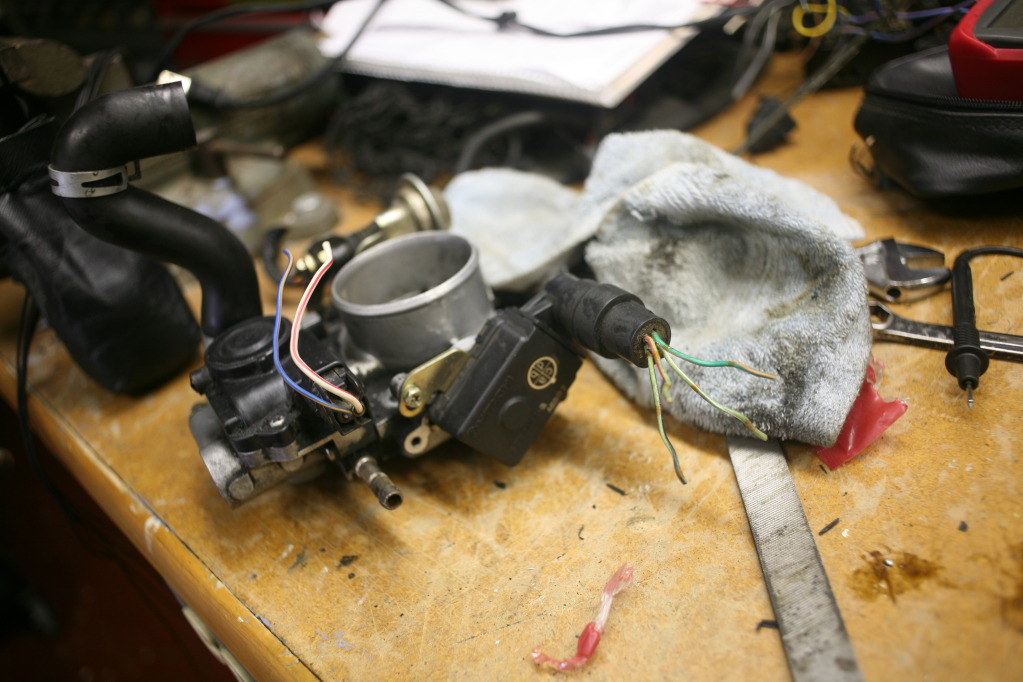

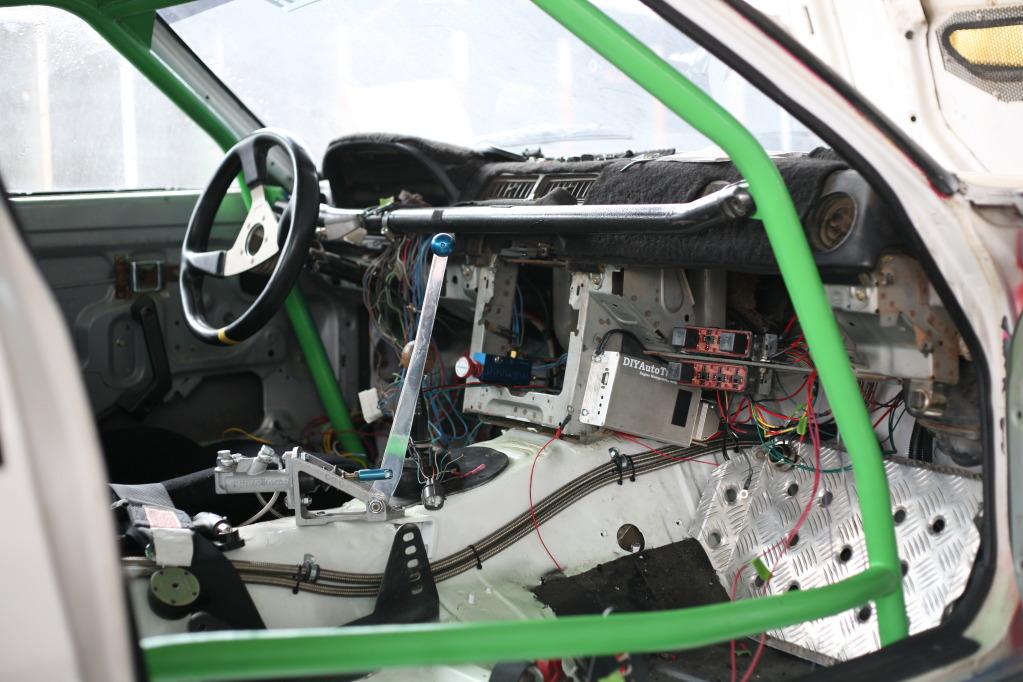

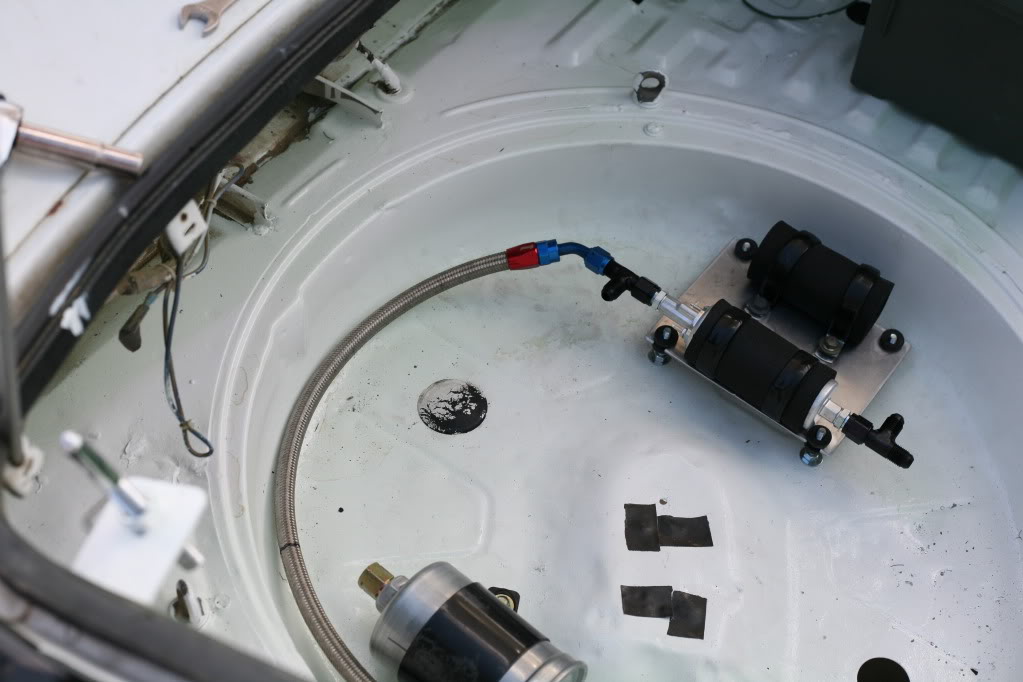

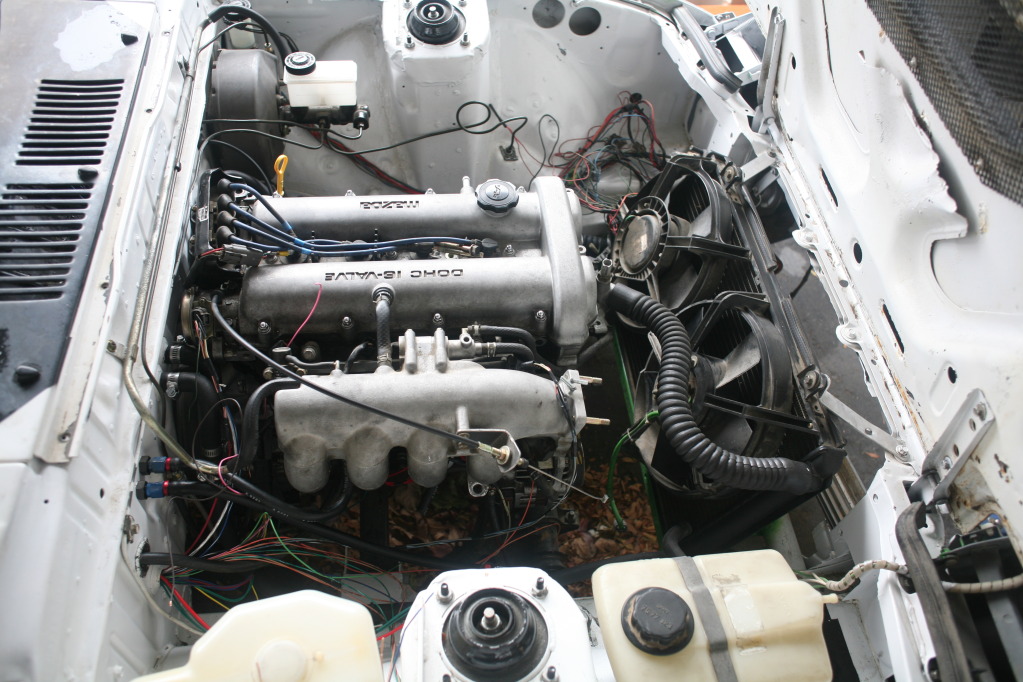

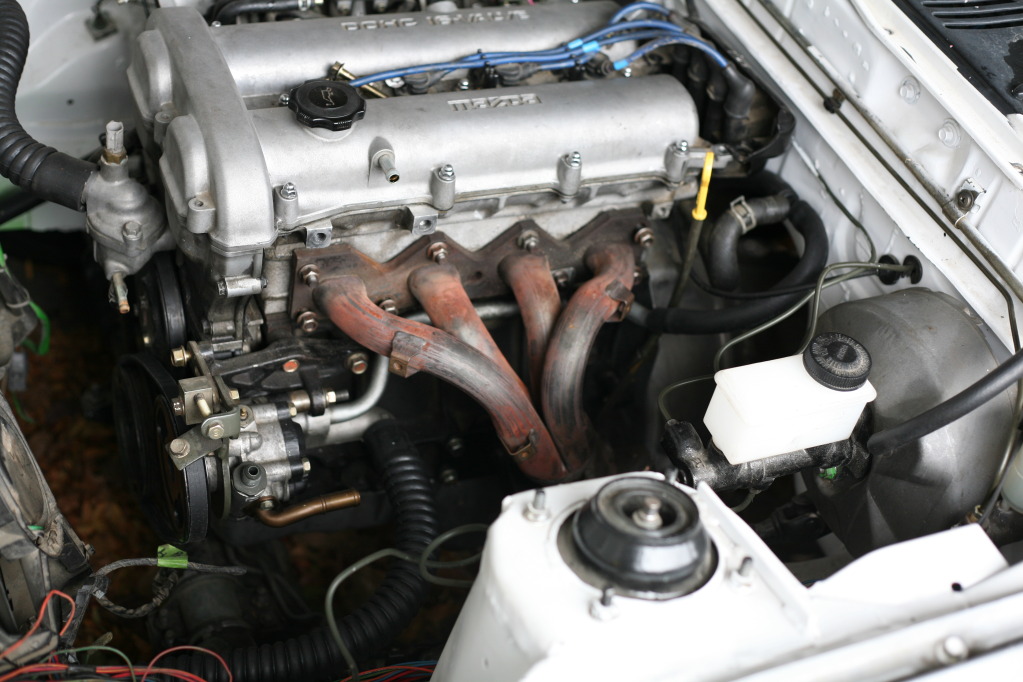

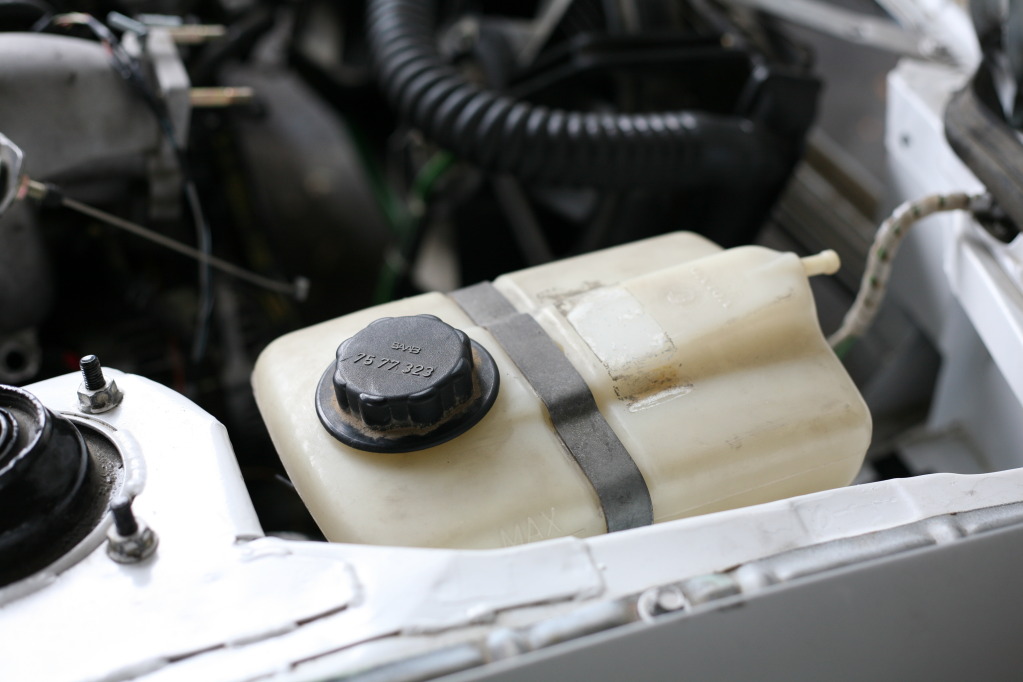

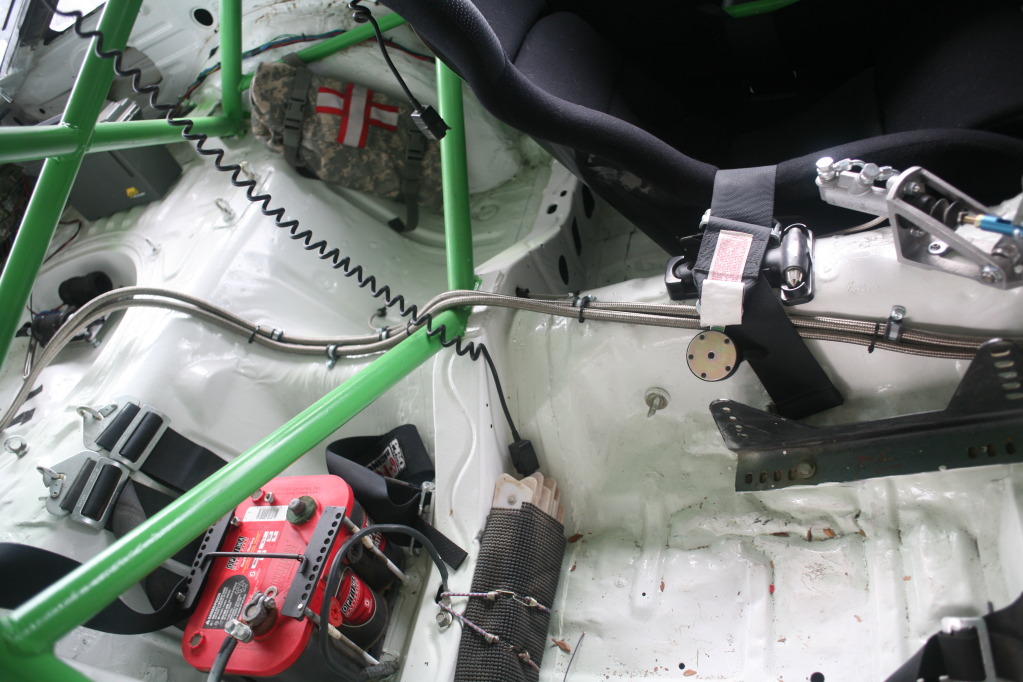

couple progress pics! Fuel lines are getting there, megasquirt is in the car, just need to run the TPS, IAT, and ignition outs. Have to weld a bung to the intake manifold for the IAT though. Coolant stuff is almost finished! Might start here soon!








Attached Thumbnails

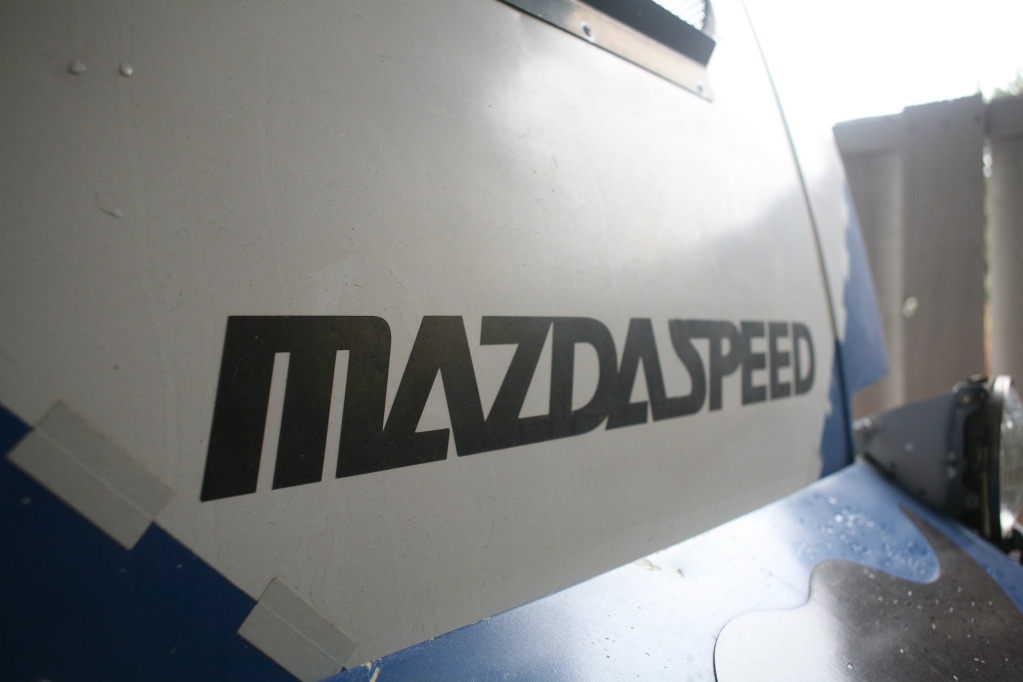

My Rx7 Rally Car, 1.6L, MS2, etc.-img_0449.jpg   My Rx7 Rally Car, 1.6L, MS2, etc.-img_0450.jpg   My Rx7 Rally Car, 1.6L, MS2, etc.-img_0441.jpg   My Rx7 Rally Car, 1.6L, MS2, etc.-img_0442.jpg   My Rx7 Rally Car, 1.6L, MS2, etc.-img_0443.jpg

My Rx7 Rally Car, 1.6L, MS2, etc.-img_0445.jpg   My Rx7 Rally Car, 1.6L, MS2, etc.-img_0446.jpg   My Rx7 Rally Car, 1.6L, MS2, etc.-img_0447.jpg
Whizbang is offline   Reply With Quote
Old 12-17-2012, 01:09 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,904
Total Cats: 1,793
Default

all those wires...................
Braineack is online now   Reply With Quote
Old 12-17-2012, 01:15 PM   #14
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

God wire loom is your friend.
Leafy is offline   Reply With Quote
Old 12-17-2012, 04:07 PM   #15
Junior Member
Thread Starter

Join Date: Feb 2012
Location: Boise, ID
Posts: 56
Total Cats: 0
Default

Quote:
Originally Posted by Leafy View Post
God wire loom is your friend.
its not at a point where anything can be loomed. what is done and organized is so, but the chassis wiring is still apart. working to finsih the megasquirt wiring so that can be organzied and tucked.
Whizbang is offline   Reply With Quote
Old 12-17-2012, 04:36 PM   #16
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Badass car.
hustler is offline   Reply With Quote
