Old 12-28-2018, 05:04 AM
  #61
Junior Member

Join Date: Mar 2011
Location: Melbourne, Australia
Posts: 183
Total Cats: 53
Default

Originally Posted by nigelt View Post
Most definitely. I'll be set up to do rides
Ooh, can I come too. Might be an expensive trip but worth it!
BEAVIS is offline
Old 12-28-2018, 11:36 AM
  #62
Senior Member

Scaxx's Avatar

Join Date: Sep 2015
Location: Seattle, WA
Posts: 1,028
Total Cats: 327
Default

Dooo eeeeet!
Scaxx is offline
Old 12-28-2018, 12:22 PM
  #63
Supporting Vendor
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Aug 2014
Location: Carmel Valley, CA
Posts: 1,138
Total Cats: 175
Default

Originally Posted by BEAVIS View Post
Ooh, can I come too. Might be an expensive trip but worth it!
I live 10 minutes from Laguna Seca. Stay with me and all you'll need is a plane ticket. Bring a couple R&Ps in your luggage on the way up, and some injectors on your way back, and you've paid for the trip!
__________________
FlowForce 380 |640| 960 Injectors
LS Coil PNP harnesses
and complete kits
Free shipping on everything,
including MS3Pro PNP
Bring your own boost - goflowforce.com
nigelt is offline
Old 01-09-2019, 02:23 AM
  #64
Supporting Vendor
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Aug 2014
Location: Carmel Valley, CA
Posts: 1,138
Total Cats: 175
Default

I've made some more progress over the last few days. I had a driveshaft made, and with that and some additional wiring I ordered, I've got everything I need to complete the build.

One problem I ran into was the DDM flywheel Sits a little closer to the oil pan than the stock one, and the ecotec miata oil pan isn't what you might call precise in its dimensions. A set of round head allen bolts were hitting the oil pan. I clearanced them with a dremel and now the flywheel spins freely.

Also, the ecotec miata oil pan doesn't have a cover or bolts that mate up to the transmission on the bottom the way the stock LE5 oil pan does. It leaves the flywheel completely open and exposed to flying rocks, oil drips, or things hanging down in the engine bay. I whipped up a little bracket to add some strength on the bottom side engine-transmission mating, and made up some covers for the other open spots. This should really be part of the ecotec miata AR5 kit. I got an early version, so hopefully they add something to solve this problem in the production ready version.




I've took off 17 years of grease and grime in the engine bay, trimmed back and welded the tabs on either side of the trans tunnel, and painted over the bare spots.


And I cut the PPF to make space for the AR5 PPF adapter that comes with the kit.


I plan to drop the engine and trans back in tomorrow or the next day and bolt it down properly. After that:
- bolt up to the PPF via the adapter, adjust the angle, install the driveshaft
- find a place to mount the ECU and connect up the harness to the engine
- run new cables from the battery to the starter, ECU, and new relay box
- connect up the miscelanious wires like tach, reverse light etc.
- reinstall the radiator and connect up all the cooling hoses

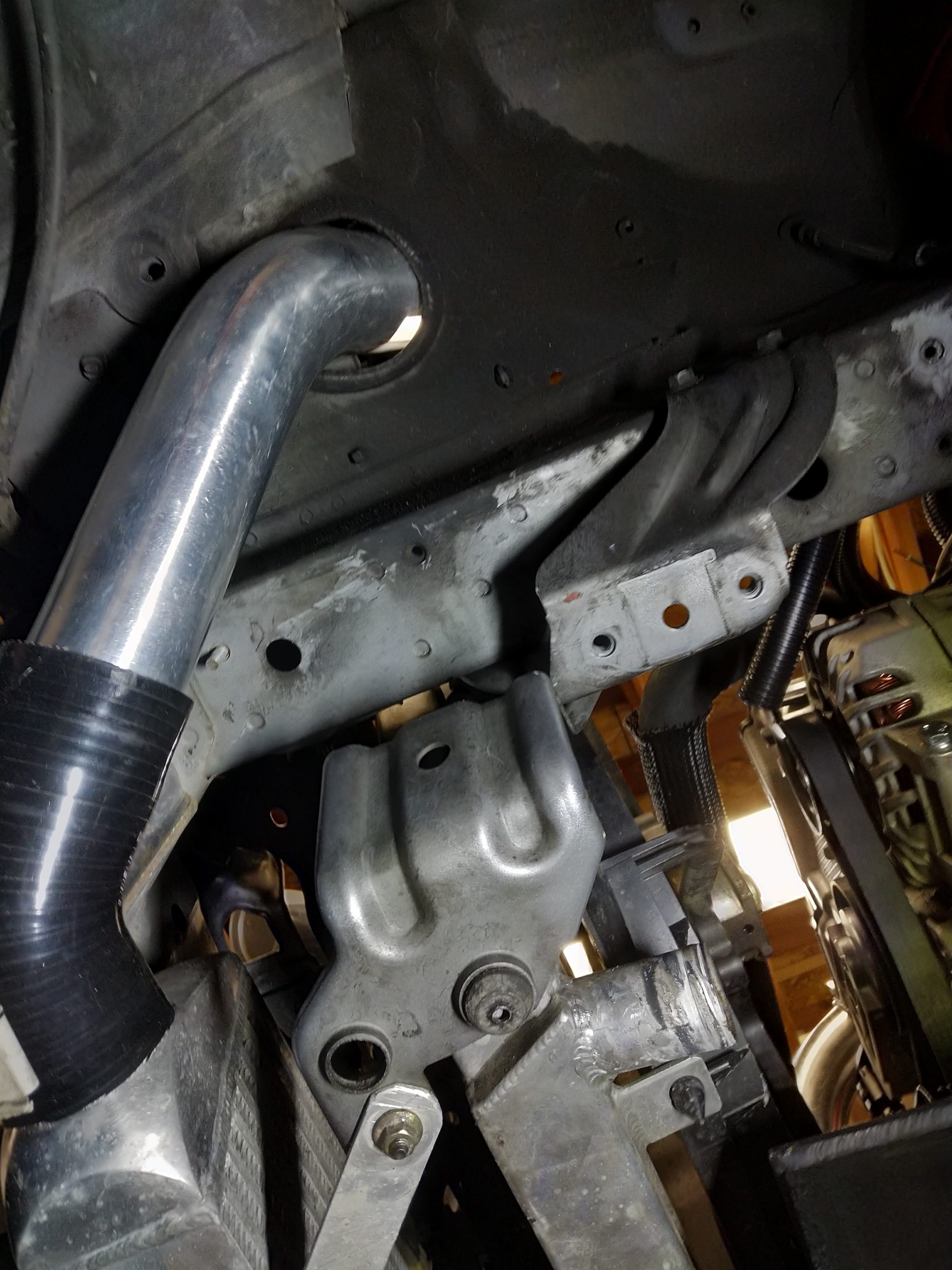

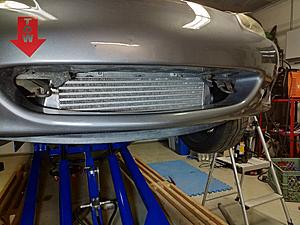

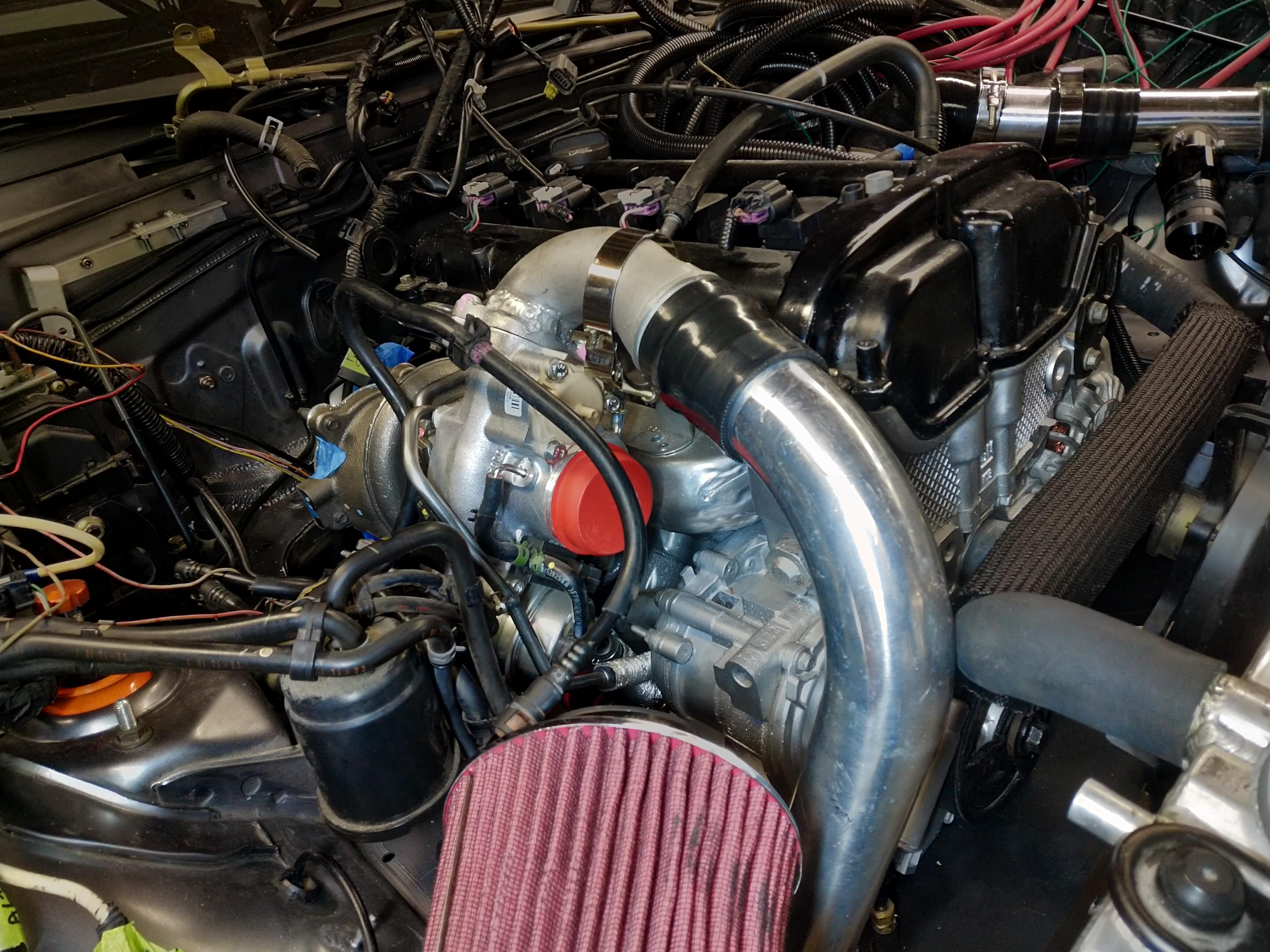

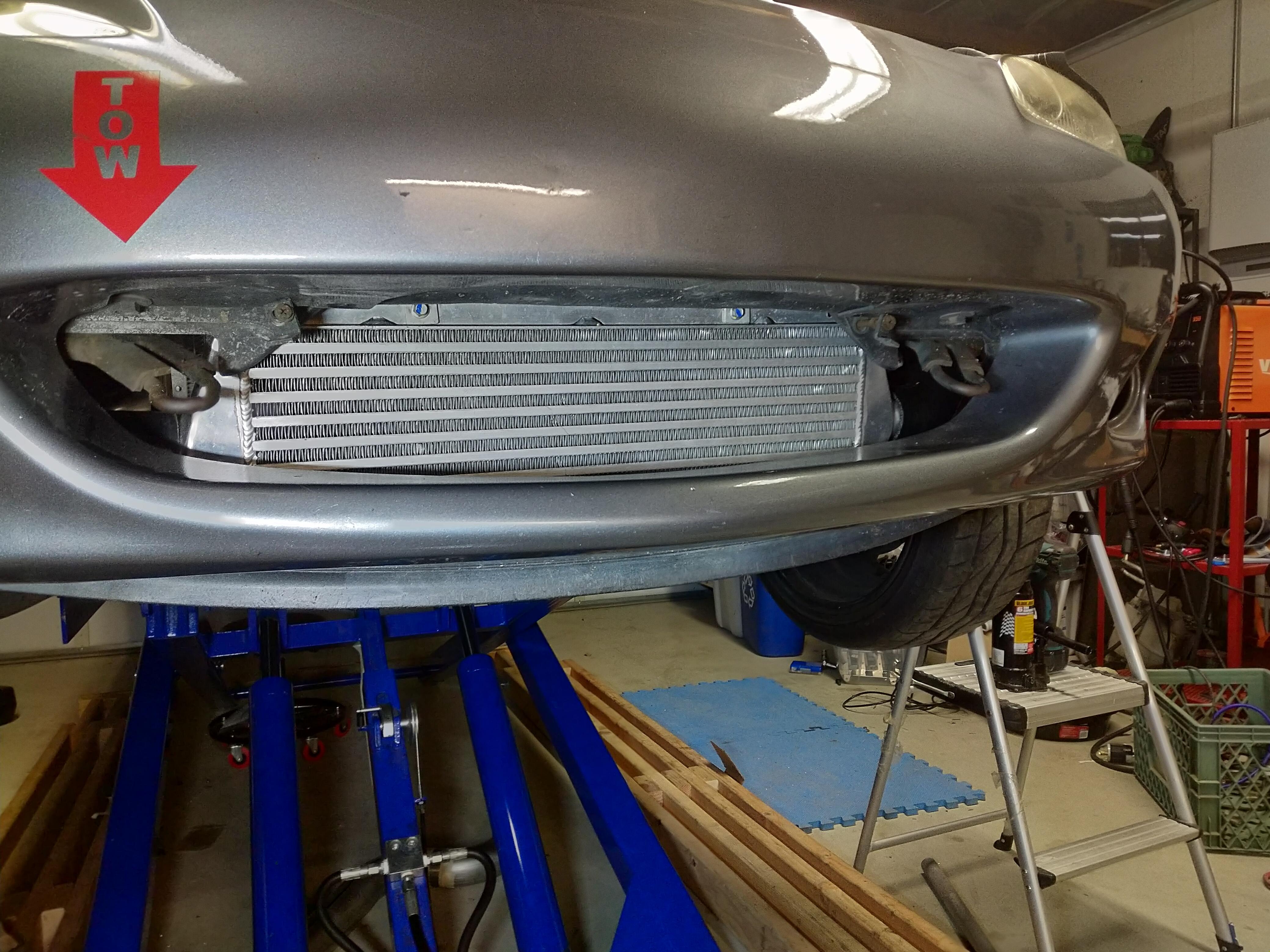

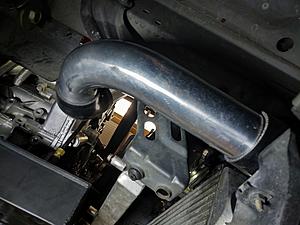

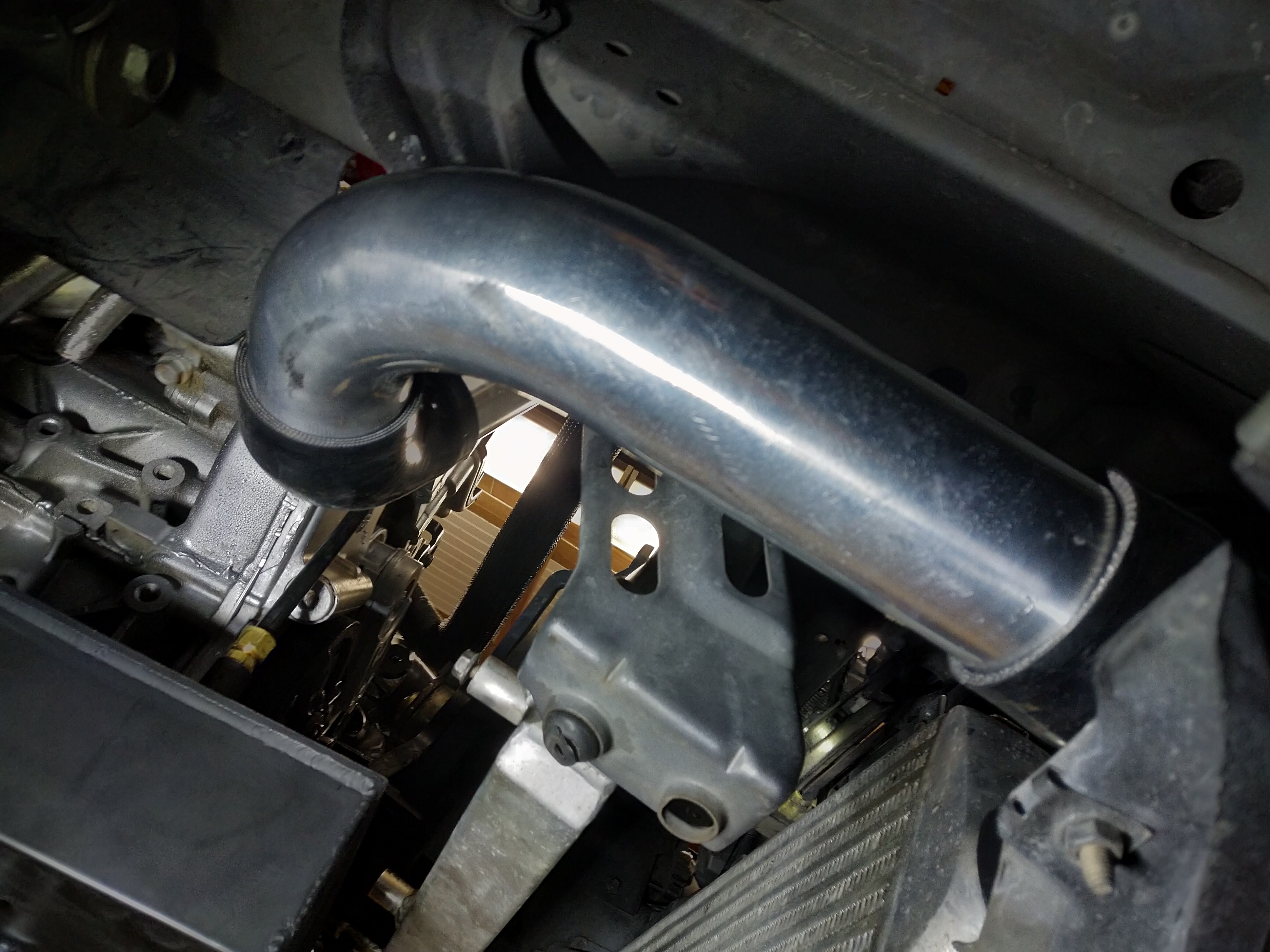

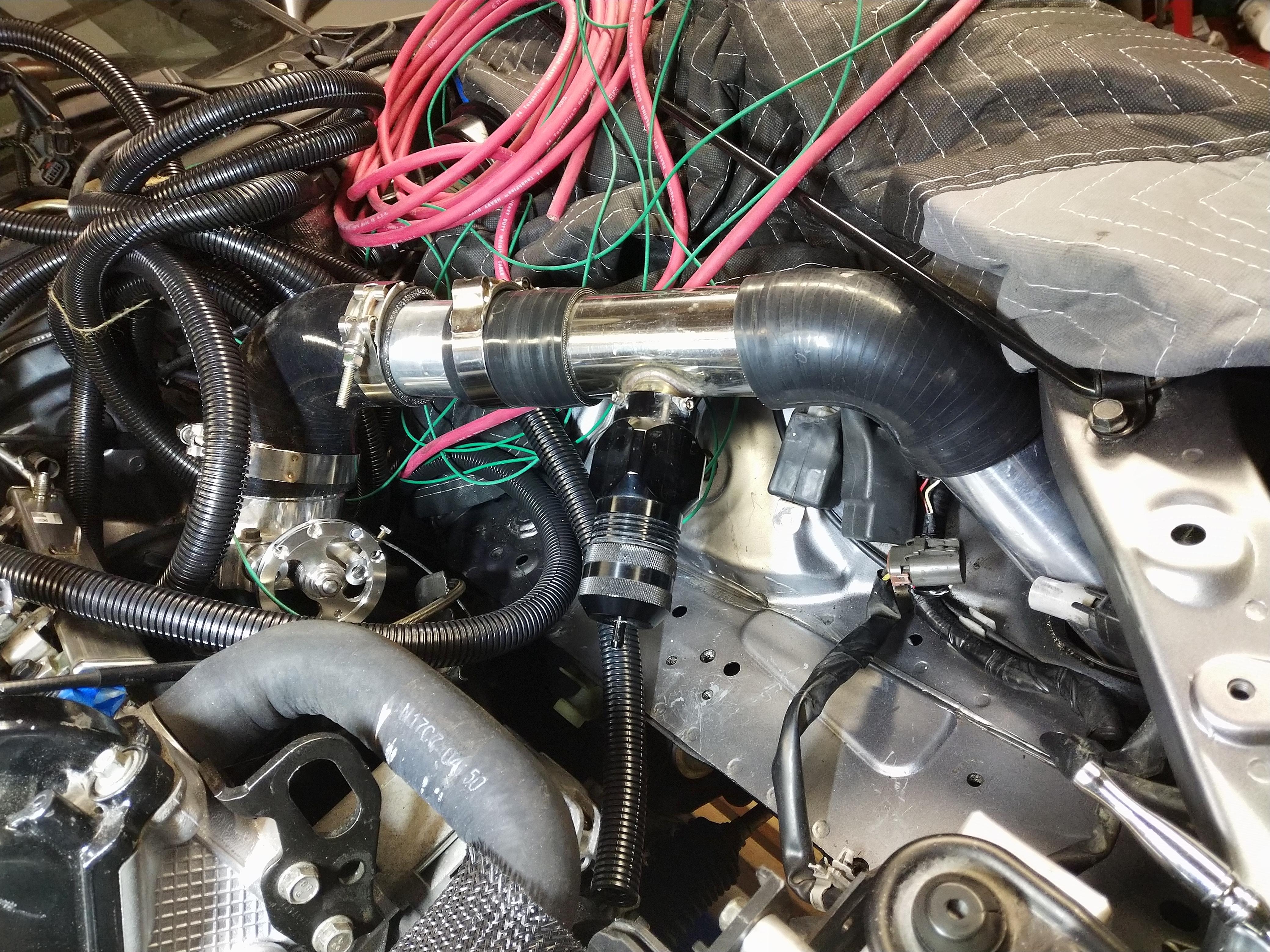

- reinstall the intercooler and figure out intake plumbing
- figure out how I'm going to get the spedo to work

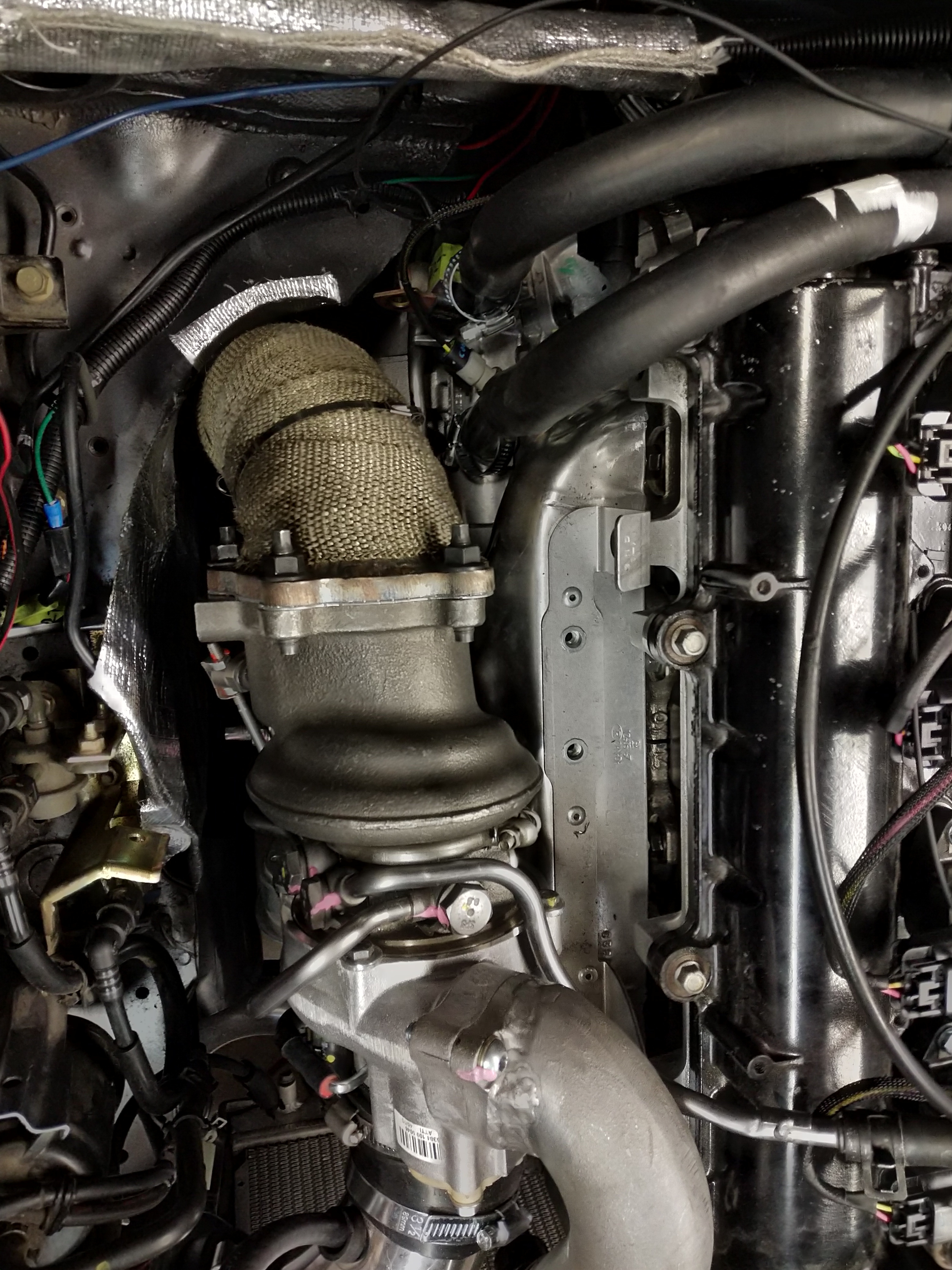

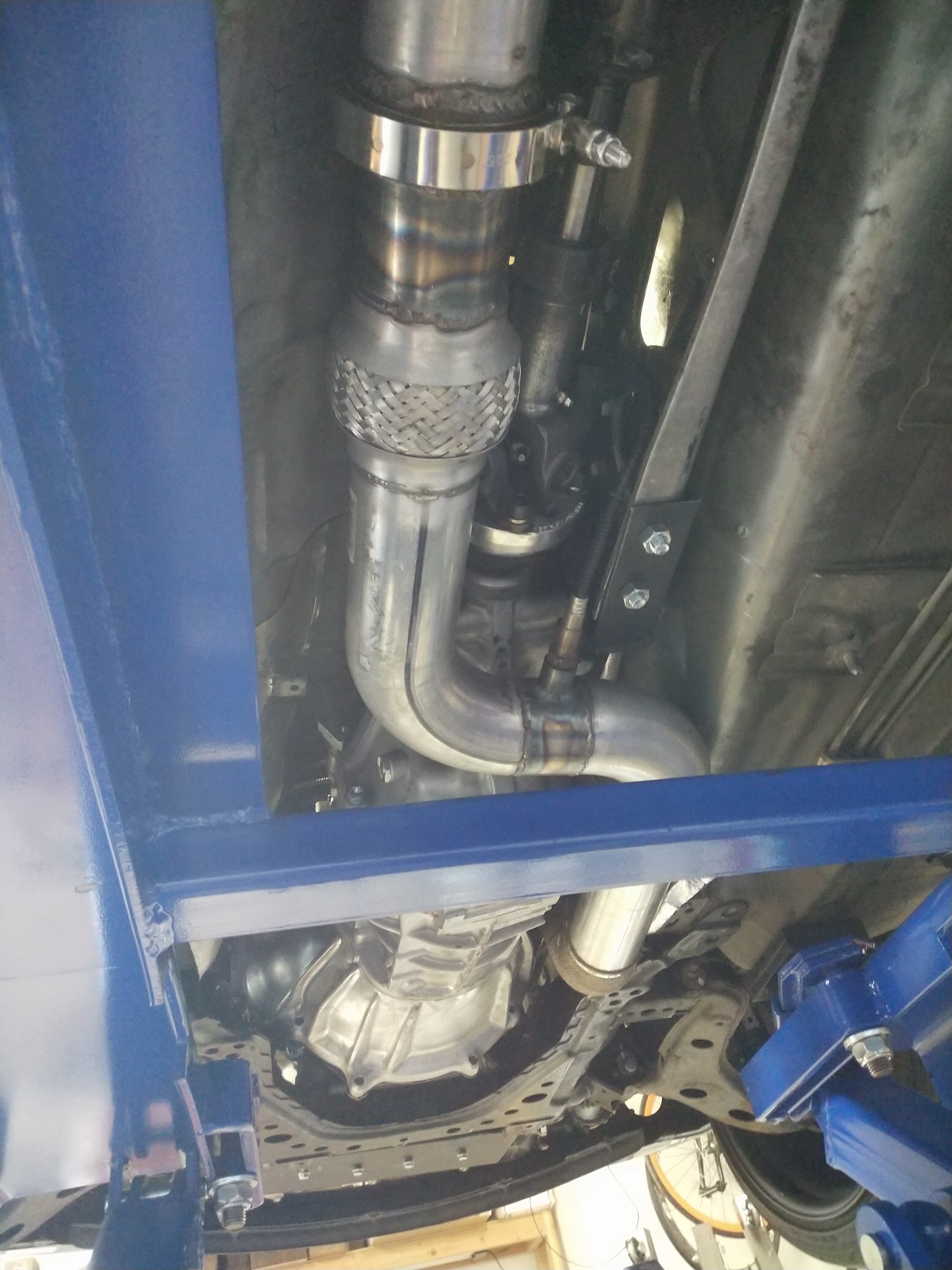

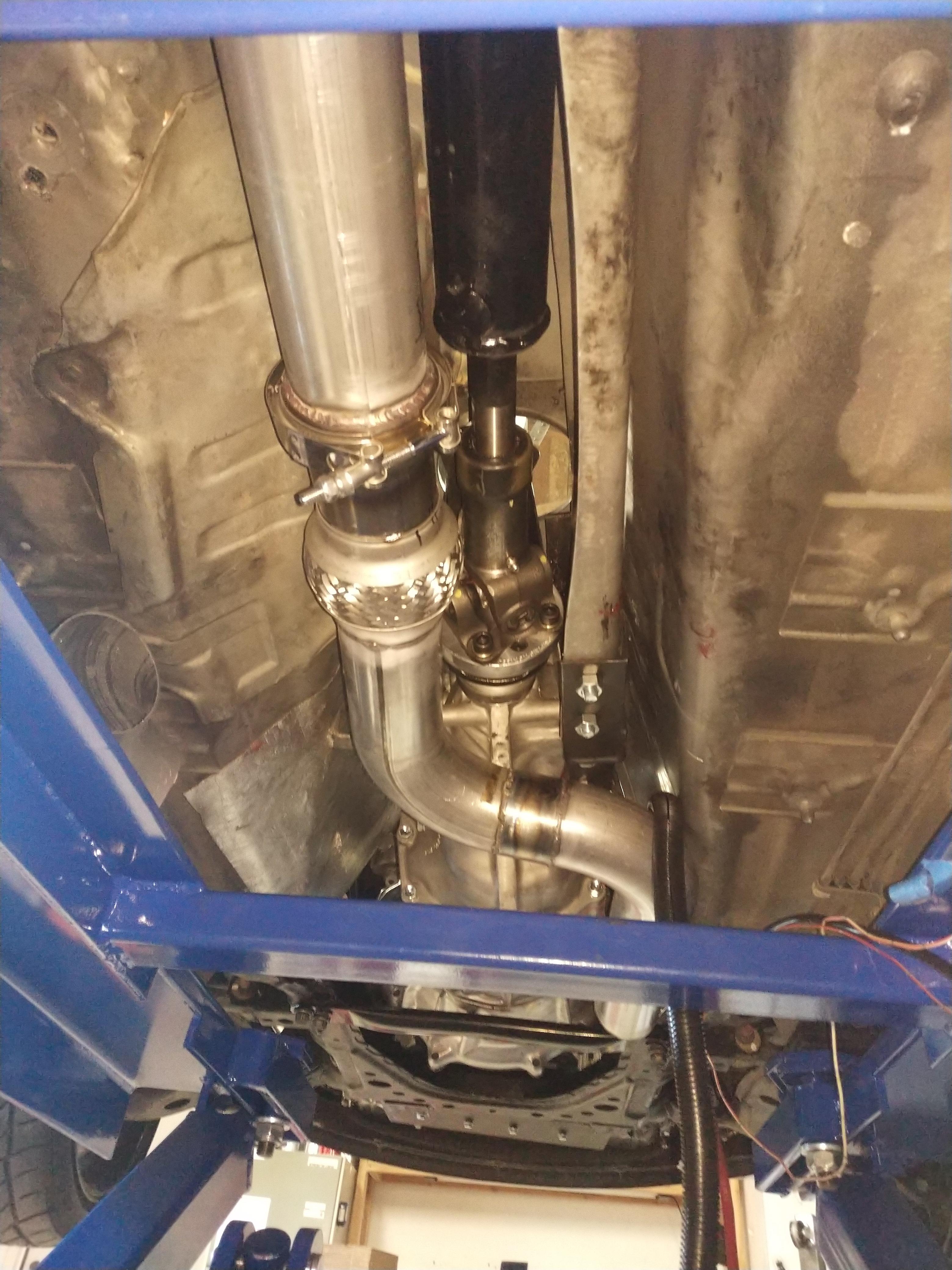

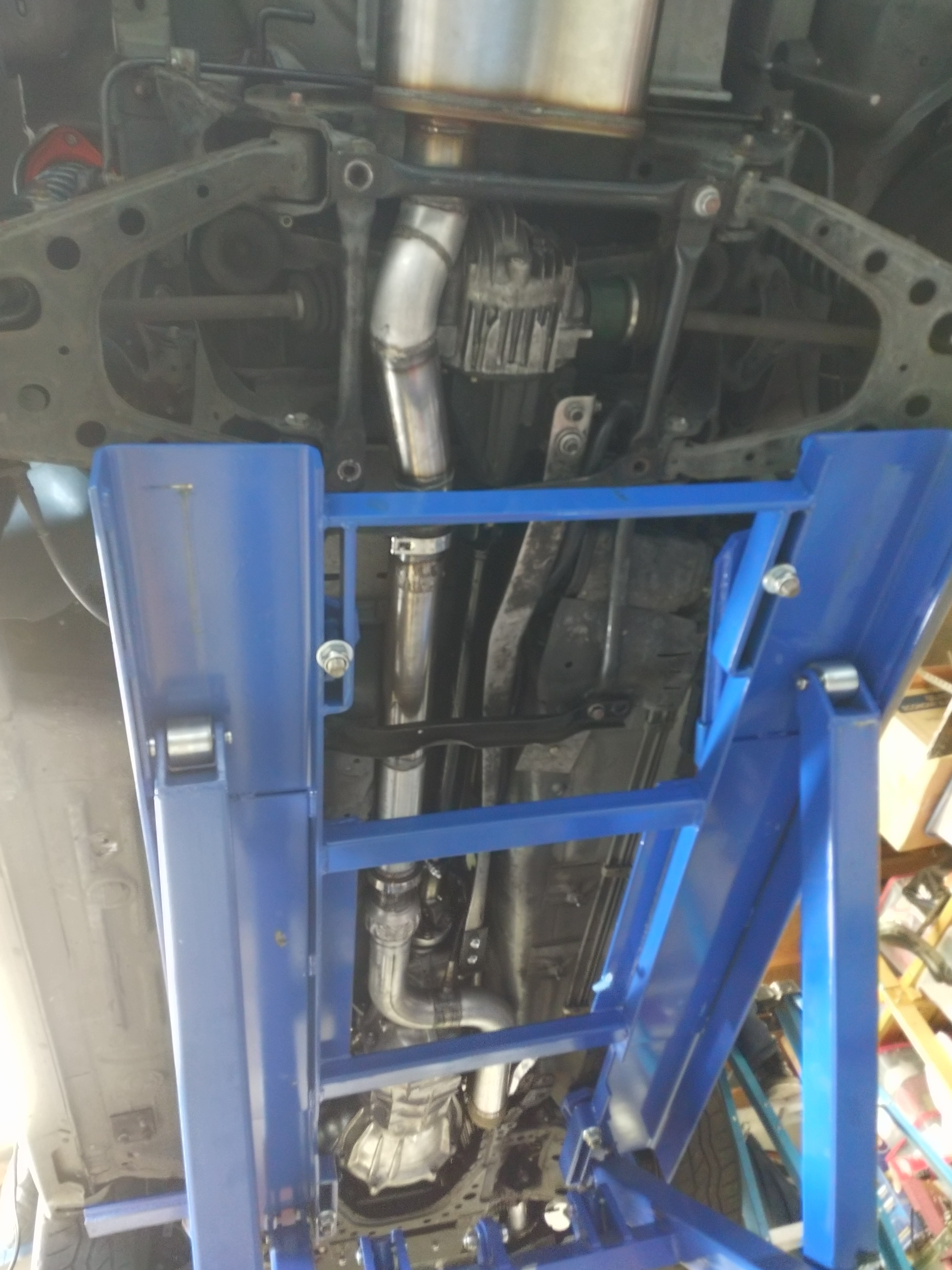

- fab up a downpipe and exhaust
- anything else I have forgotten
- do burnouts
__________________
FlowForce 380 |640| 960 Injectors
LS Coil PNP harnesses
and complete kits
Free shipping on everything,
including MS3Pro PNP
Bring your own boost - goflowforce.com
nigelt is offline
Old 01-09-2019, 12:02 PM
  #65
Senior Member

Join Date: Jul 2014
Location: The Plentiful Land of Beer and Cheese
Posts: 525
Total Cats: 97
Default

Having owned and tuned my old LNF Cobalt SS/TC, your going to love the turbo response on that twinscroll K04. I was running ~320whp/380wtq on OEM everything with E47 fuel at ~23 psi. Clutch was just starting to show signs of slipping so I ramped boost in a little slower and all was well until the day I sold the car. That same powerband in a car that weights 6-700 lbs less and is RWD? Yes yes yes.

Edit: I have my old LNF HPT tune maps if interested in reference material.
Padlock is offline
Old 01-09-2019, 12:10 PM
  #66
Supporting Vendor
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Aug 2014
Location: Carmel Valley, CA
Posts: 1,138
Total Cats: 175
Default

Originally Posted by Padlock View Post
Having owned and tuned my old LNF Cobalt SS/TC, your going to love the turbo response on that twinscroll K04. I was running ~320whp/380wtq on OEM everything with E47 fuel at ~23 psi. Clutch was just starting to show signs of slipping so I ramped boost in a little slower and all was well until the day I sold the car. That same powerband in a car that weights 6-700 lbs less and is RWD? Yes yes yes.

Edit: I have my old LNF HPT tune maps if interested in reference material.
Thanks! I'm stoked. I'm using megasquirt for this, so I wouldn't know what to do with the HPT files. I think in terms of tuning I'll probably find the most difficulty dialing in timing and vvt, both of which would be different than the LNF. I'm finding disappointingly little on people who have tuned the LE5 well with turbo. I think the MO of most solstice boosters is to give their credit card to someone and have them do it.
__________________
FlowForce 380 |640| 960 Injectors
LS Coil PNP harnesses
and complete kits
Free shipping on everything,
including MS3Pro PNP
Bring your own boost - goflowforce.com
nigelt is offline
Old 01-09-2019, 12:17 PM
  #67
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,124
Total Cats: 3,133
Default

Unless you already have a solid base map, using his files will be extremely useful, even for referencing timing/vvt. (and looking at his logs wlil also prove very useful)
How do you plan to control DI timing?
18psi is offline
Reply
Leave a poscat -1 Leave a negcat
Old 01-09-2019, 02:39 PM
  #68
Supporting Vendor
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Aug 2014
Location: Carmel Valley, CA
Posts: 1,138
Total Cats: 175
Default

Originally Posted by 18psi View Post
Unless you already have a solid base map, using his files will be extremely useful, even for referencing timing/vvt. (and looking at his logs wlil also prove very useful)
How do you plan to control DI timing?
The LNF is DI, the LE5 that I'm using is port injection and I'll be using some frankly amazing 960cc injectors at 4 bar (so 1110cc in my application). The LNF and LE5 both have VVT, but I'm not sure if they are similar or not. I've got a base map from someone running a similar setup in a Miata (LE5+K04+MS3) that leaves a lot on the table for a good tuner to figure out. I wonder where I could find a good tuner...

All that said, I'm pretty out of my depth here, so if maps from a DI engine are useful, then I'd love to take a look, Padlock.
__________________
FlowForce 380 |640| 960 Injectors
LS Coil PNP harnesses
and complete kits
Free shipping on everything,
including MS3Pro PNP
Bring your own boost - goflowforce.com
nigelt is offline
Old 01-09-2019, 02:46 PM
  #69
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,124
Total Cats: 3,133
Default

ahhhhh ok I keep forgetting that you're PI
18psi is offline
Reply
Leave a poscat -1 Leave a negcat
Old 01-09-2019, 03:04 PM
  #70
Senior Member

Join Date: Jul 2014
Location: The Plentiful Land of Beer and Cheese
Posts: 525
Total Cats: 97
Default

Ahh, didn't know you were going MS. If it helps I can pull a factory LE5 and factory LNF file from the HPT database and then at least you have a base map to know where GM sets them from factory. You can only access this database if you are a paid HPT user, which I am. I believe the VCM suite software to open up the files is free to download and use, but you'd have to double check via this link. https://www.hptuners.com/downloads/

If you cannot get the software to open up for you after download, then let me know and I can shoot you over screenshots of timing maps and fueling targets set up in the OEM tunes. PM me in that case, and I'd be glad to help. Nothing is more frustrating then getting base maps set up with no reference material.

The LNF likes a LOTT leaner AFR targets during WOT so I know you wont wanna follow that on your LE5. I was running 12.8-13.0 AFR at 23 psi WOT and the car loved it. DI is an amazing thing.

Based on my recollection of the ecotec forums I was on a few years back, a majority of ecotec owners are scared of tuning "witchcraft" so your credit card statement holds true.



Edit: Just looked in the HPT tune repository and found a turbo LE5 solstice file which may be valuable to you. It has the following detail notes on it.

2007 Saturn Sky- 2.4L LE5 engine
Engine – All factory internals and throttle body
TURBO- T3/T4 57 trim with .63 exhaust housing, 2.5” V-band outlet
Wastegate- Internal with 8psi spring
Manifold- Stainless Log
Intercooler- 3” thick core V-mounted in the nose with 2.5” diameter aluminum IC piping
MAF- Factory MAF used as blow through in a 2.5” diameter tube in the same location as stock. (welded on the GM aluminum MAF pad from Summit)
Downpipe- Catless 2.5” 304 stainless going into a full 3” magnaflow stainless exhaust
O2 sensors- Upstream narrow band O2 sensor only (no post cat sensor being used) plus NGK AFX wideband controller for tuning
Fuel- Premium (93 octane with 10% ethanol)
Injectors- ZZP Siemens 60 # for 2.4L LE5
MAP- ZZP GM 2-bar for LE5
Filter- The turbo has cone filter on the compressor housing, no intake
BOV- Located in a 2.5” SS tube and vented to atmosphere and is located pre-MAF (just after turbo outlet)
PCV system- The PCV hole in plastic intake manifold has been filled to eliminate oil in the Manifold from the cylinder head

Last edited by Padlock; 01-09-2019 at 03:15 PM.
Padlock is offline
Old 01-09-2019, 06:43 PM
  #71
Supporting Vendor
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Aug 2014
Location: Carmel Valley, CA
Posts: 1,138
Total Cats: 175
Default

Originally Posted by Padlock View Post
Edit: Just looked in the HPT tune repository and found a turbo LE5 solstice file which may be valuable to you. It has the following detail notes on it.

2007 Saturn Sky- 2.4L LE5 engine
Engine All factory internals and throttle body
TURBO- T3/T4 57 trim with .63 exhaust housing, 2.5 V-band outlet
Wastegate- Internal with 8psi spring
Manifold- Stainless Log
Intercooler- 3 thick core V-mounted in the nose with 2.5 diameter aluminum IC piping
MAF- Factory MAF used as blow through in a 2.5 diameter tube in the same location as stock. (welded on the GM aluminum MAF pad from Summit)
Downpipe- Catless 2.5 304 stainless going into a full 3 magnaflow stainless exhaust
O2 sensors- Upstream narrow band O2 sensor only (no post cat sensor being used) plus NGK AFX wideband controller for tuning
Fuel- Premium (93 octane with 10% ethanol)
Injectors- ZZP Siemens 60 # for 2.4L LE5
MAP- ZZP GM 2-bar for LE5
Filter- The turbo has cone filter on the compressor housing, no intake
BOV- Located in a 2.5 SS tube and vented to atmosphere and is located pre-MAF (just after turbo outlet)
PCV system- The PCV hole in plastic intake manifold has been filled to eliminate oil in the Manifold from the cylinder head
If it's not too much trouble - if you posted screenshots of as much of the above tune as seems useful, it could be really helpful. I'm figuring other people after me will attempt this, so posting here could help others too. Figuring out what to tweak or not on VVT control, as well as timing and AFR in boost are areas that there isn't much general knowledge on it seems.
__________________
FlowForce 380 |640| 960 Injectors
LS Coil PNP harnesses
and complete kits
Free shipping on everything,
including MS3Pro PNP
Bring your own boost - goflowforce.com
nigelt is offline
Old 01-12-2019, 02:28 AM
  #72
Supporting Vendor
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Aug 2014
Location: Carmel Valley, CA
Posts: 1,138
Total Cats: 175
Default

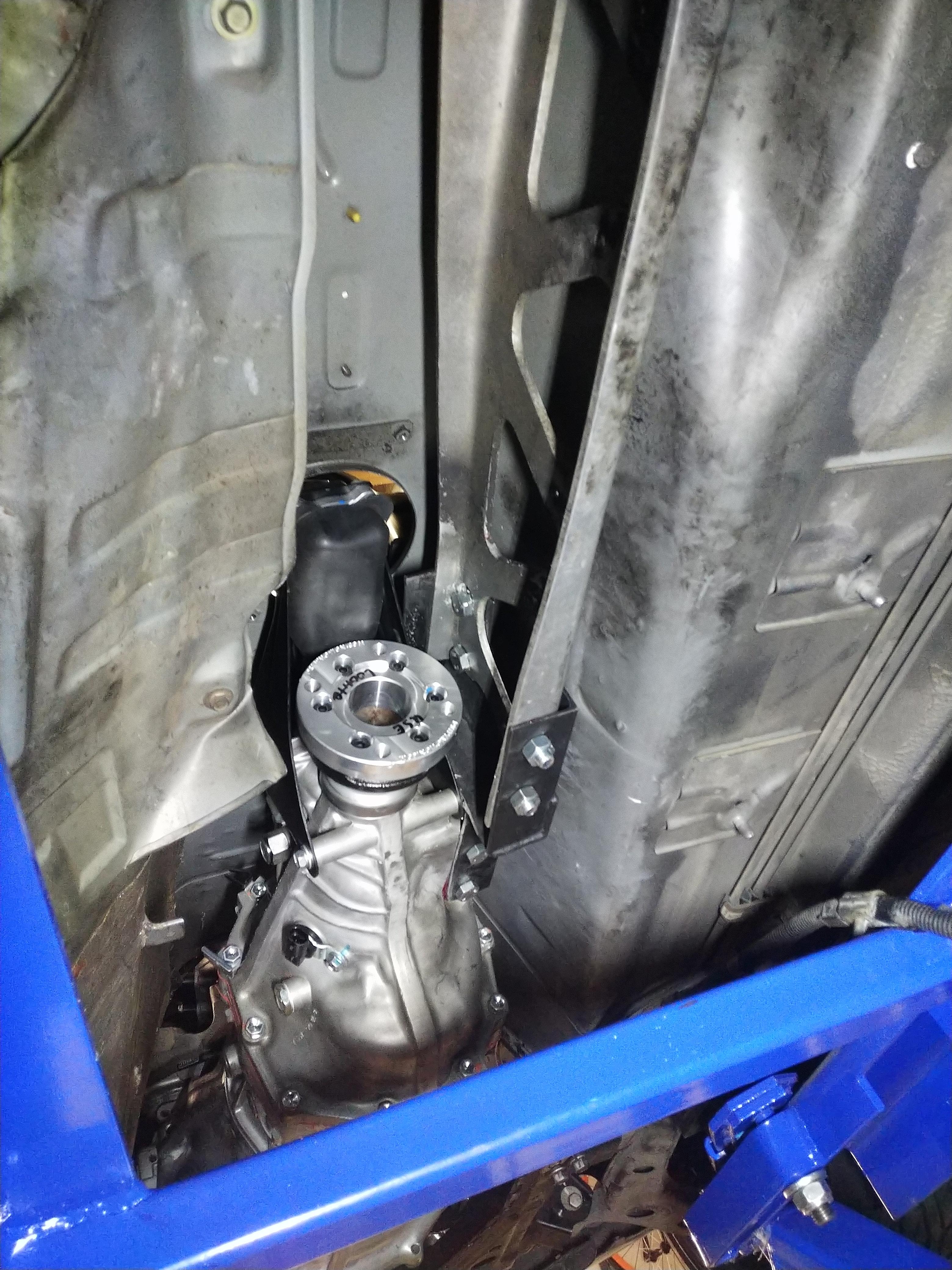

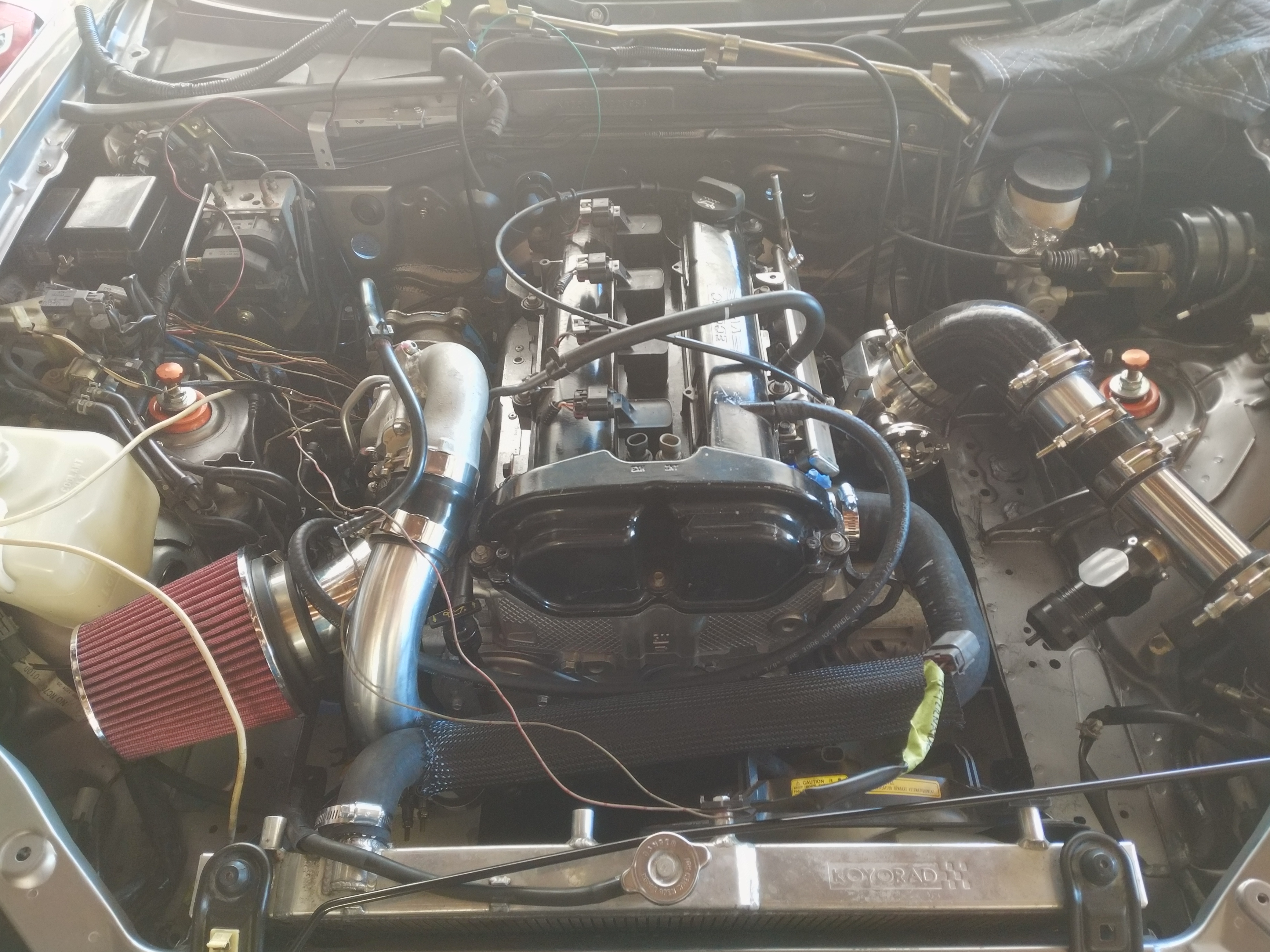

The engine and transmission is in. The big struggle over the last couple of nights was getting the PPF mounted to the trans. I've got an early version if what's intended to be an install kit, but the fitment is very poor. It took several hours of frustrating before I realized there was some contact between the adapter and transmission that's not visible when the trans is in. I should have test fit with the trans on the garage floor. About half of the surfaces facing the trans had to be cut back 3-5mm. Now it's in. Onwards!
Attached Thumbnails nigelt gets bored and adds displacement (ecotec turbo build)-img_20190111_221515.jpg
