Old 04-06-2015, 04:57 PM   #1041
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,262
Total Cats: 870
Default

Speaking of -10...

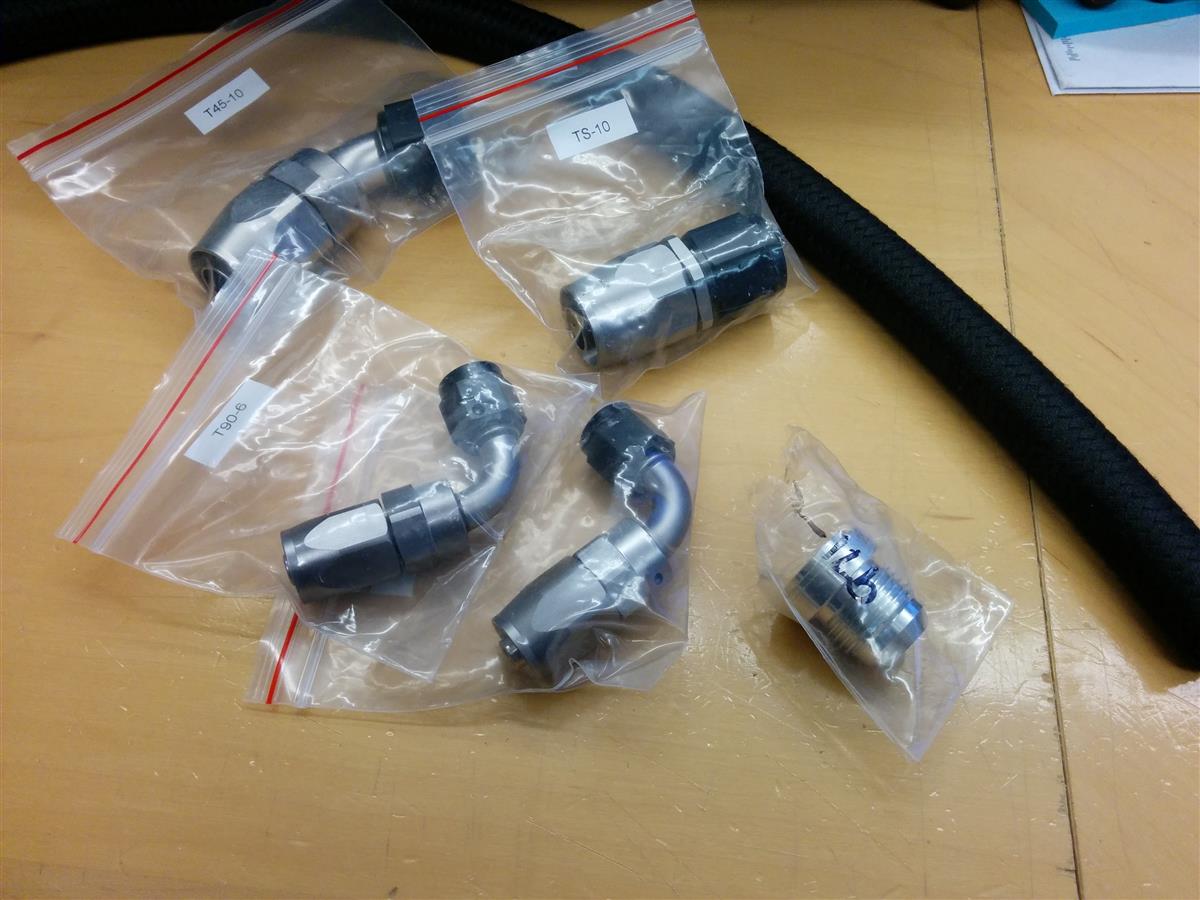

Mocal -10 45 and straight fittings are here, along with the last couple -6 fittings I need for my fuel system. Or maybe they were for the turbo coolant? Can't remember. The -10 hose was supposed to be Mocal but RPW substituted in Aeroquip Startlite on me because they apparently ran out. Same temperature rating so it shouldn't be an issue. Fire sleeve got drop shipped from the manufacturer so it'll be here later this week.

Also shown is the -10 weld bung I won't be using
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-phone-stuff-023.jpg
EO2K is offline   Reply With Quote
Old 04-08-2015, 12:11 AM   #1042
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,262
Total Cats: 870
Default

Stupid Russel -10 drain adapter pictured earlier is not the correct part. I'll have to look around and see what actually fits and send this one back.

I also discovered that plumbing the coolant for this thing is going to be a nightmare. Due to the position of the WGA bracket I have almost zero room on that side to work. I need to go scope out some other peoples builds and see how they routed their plumbing
EO2K is offline   Reply With Quote
Old 04-08-2015, 12:41 AM   #1043
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,416
Total Cats: 186
Default

Quote:
Originally Posted by 18psi View Post
it's just so......wasteful
Agreed. My new setup doesn't even have a wastegate! Limit boost, nonsense!!!!
patsmx5 is offline   Reply With Quote
Old 04-08-2015, 12:43 AM   #1044
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,416
Total Cats: 186
Default

Quote:
Originally Posted by EO2K View Post
...I need to go scope out some other peoples builds and see how they routed their plumbing
Find my build thread on here, it's old but I did -10AN drain. It's been on the car for 7 or 8 years, never leaked. Might be an option for you I dunno.
patsmx5 is offline   Reply With Quote
Old 04-08-2015, 01:23 AM   #1045
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

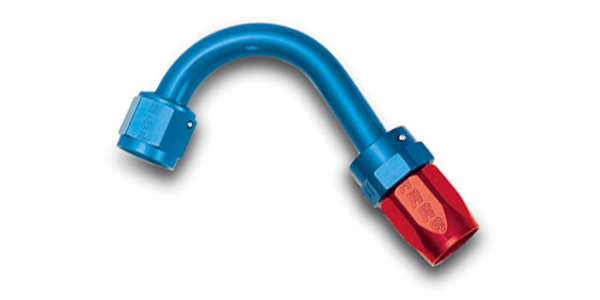

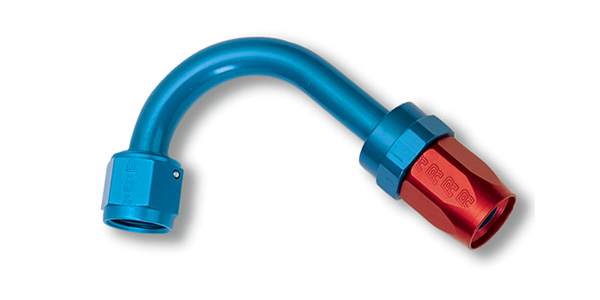

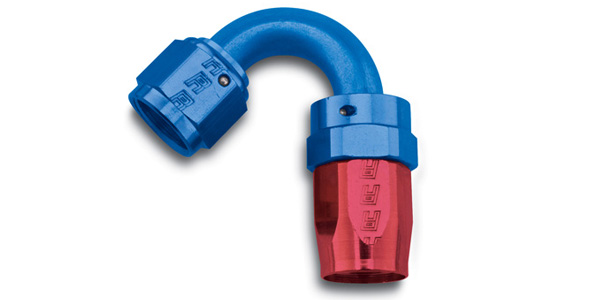

120* degree -6an coolant fitting either tight bend or normal will make clearance a breeze on the manifold side of the turbo.





Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-613220.jpg   Nothing to see here, just project Sisyphus, move along-613400.jpg   Nothing to see here, just project Sisyphus, move along-613350.jpg
Jeffbucc is offline   Reply With Quote
Old 04-08-2015, 02:04 AM   #1046
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,262
Total Cats: 870
Default

Quote:
Originally Posted by patsmx5 View Post
Find my build thread on here, it's old but I did -10AN drain. It's been on the car for 7 or 8 years, never leaked. Might be an option for you I dunno.
Drain is figured out, I still need to figure out how to plumb the coolant.

Quote:
Originally Posted by Jeffbucc View Post
120* degree -6an coolant fitting either tight bend or normal will make clearance a breeze on the manifold side of the turbo.
Humm. Mocal makes a 120 but I'm not sure its going to help. I've got a couple clearance pics I'll post tomorrow.

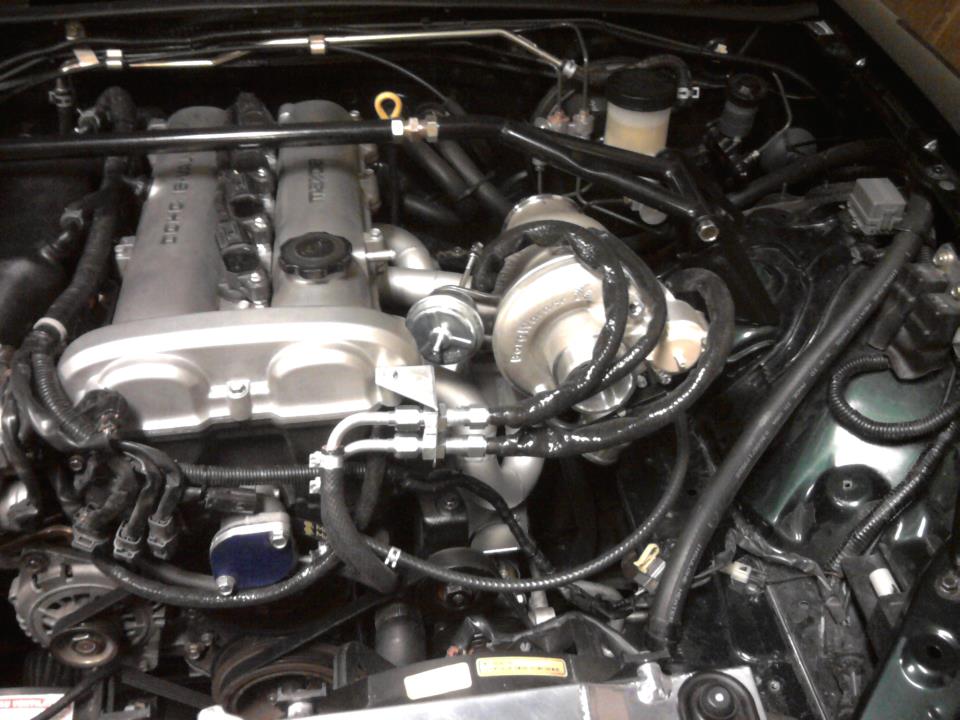

99mx5 did this:


I can setup something similar with some bulkhead fittings, and I believe he has 90 coming off both of the CHRA coolant ports. I should be able to mock that up pretty easily, but I was also going to eliminate my entire front water neck and source coolant from the back of the head. In fact, I was going to eliminate that entire back of the head -> oil warmer -> throttle body -> front water neck loop.

Now I'm toying with the idea of chopping off the neck, welding a plate on the end and tapping it for NPT then converting it to -6. I've got like 3 extra necks in the garage so parts is not an issue. Coolant source from the front of the head, return to the mixing manifold.

Lots of ideas and things to try. I'm not doing any heavy lifting at the moment so plenty of time to screw around with this stuff and get it exactly how I want it.
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-34247d1329154453-99mx5-efr-build-395258_256459084431356_100002017996906_599433_113323213_n.jpg
EO2K is offline   Reply With Quote
Old 04-08-2015, 10:23 AM   #1047
Junior Member
iTrader: (1)

Join Date: May 2013
Location: Sandia Park, NM
Posts: 369
Total Cats: 32
Default

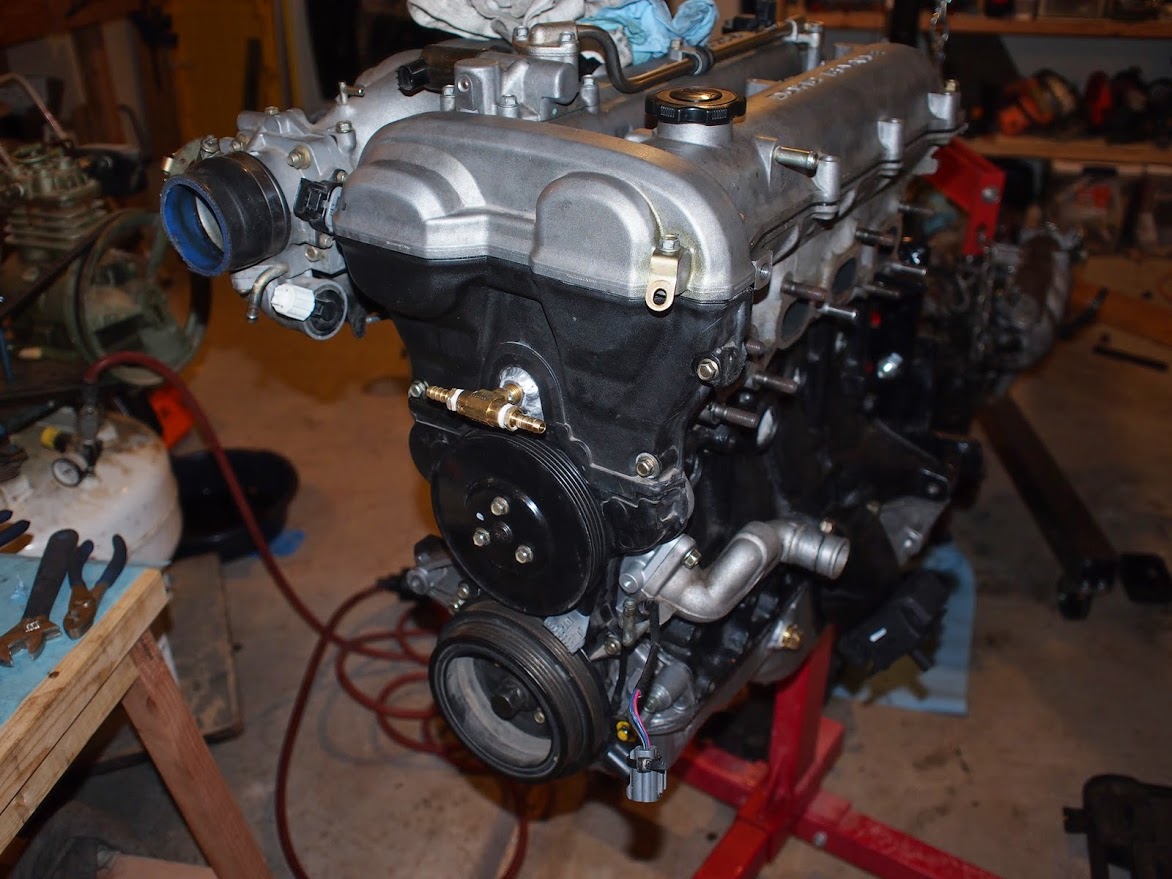

I welded an npt bung into the water neck. It has been working great! You could possibly get a 3/8" in there; mine is a 1/4" (which is ~5/16 ID).

Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-p3080715.jpg
leboeuf is offline   Reply With Quote
Old 04-08-2015, 10:49 AM   #1048
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,416
Total Cats: 186
Default

If you have a reroute spacer on the rear of the head, you can drill/tap that before the thermostat and source water from there, then just install a freeze plug in the front. I did this, works great.
patsmx5 is offline   Reply With Quote
Old 04-08-2015, 11:13 AM   #1049
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,488
Total Cats: 289
Default

I made a blockoff plate for the front out of 3/8" aluminum, drilled/tapped an NPT hole in it, and used it to source the coolant for the turbo. Functionally the same as leboeuf's, but easier to reverse later.



--Ian
codrus is offline   Reply With Quote
Old 04-08-2015, 11:48 AM   #1050
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,445
Total Cats: 2,264
Default

for all you guys that are threading in like that, are you not concerned about vibrations causing leaks in the future?

I mean the stocker is giant, o-ringed, and with 2 big bolts just to keep it from leaking
18psi is offline   Reply With Quote
Old 04-08-2015, 11:56 AM   #1051
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,488
Total Cats: 289
Default

Quote:
Originally Posted by 18psi View Post
for all you guys that are threading in like that, are you not concerned about vibrations causing leaks in the future?

I mean the stocker is giant, o-ringed, and with 2 big bolts just to keep it from leaking
I put 10K miles on mine, including a half-dozen track days, no leaks.

The stocker is significantly heavier than the simple pipe/elbow/barb I have, so vibration is going to introduce a lot more force onto it.

--Ian
codrus is offline   Reply With Quote
Old 04-08-2015, 11:59 AM   #1052
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,874
Total Cats: 1,266
Default

Water neck is ugly, take coolant from the throttle body area, route the hose behind the timing covers and profit. Return line to mixing manifold.
aidandj is offline   Reply With Quote
Old 04-08-2015, 12:01 PM   #1053
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,488
Total Cats: 289
Default

Quote:
Originally Posted by aidandj View Post
Water neck is ugly, take coolant from the throttle body area, route the hose behind the timing covers and profit. Return line to mixing manifold.
If you're using a skunk2 there are no coolant ports on the throttle body. With those gone and a proper oil cooler, there's no reason to run that cold-side coolant loop at all.

--Ian
codrus is offline   Reply With Quote
Old 04-08-2015, 12:10 PM   #1054
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,874
Total Cats: 1,266
Default

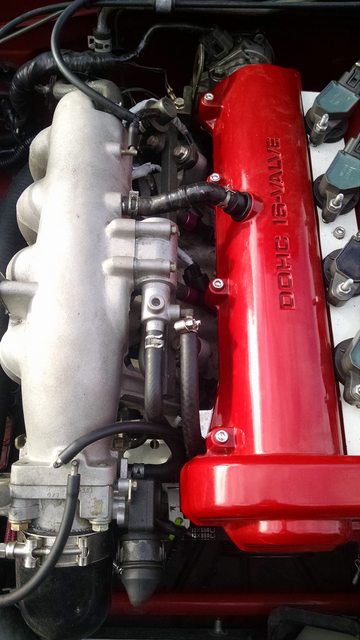

Food for thought:



aidandj is offline   Reply With Quote
Old 04-08-2015, 12:38 PM   #1055
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,262
Total Cats: 870
Default

Quote:
Originally Posted by 18psi View Post
for all you guys that are threading in like that, are you not concerned about vibrations causing leaks in the future?

I mean the stocker is giant, o-ringed, and with 2 big bolts just to keep it from leaking
That was my concern as well, I'd want to keep it as short as possible and make sure the lines are supported by something other than the fitting, like a padded adel clamp. This was also why I wanted to mod the factory neck, its beefy for what it is and designed to support the thermostat and upper rad hose.

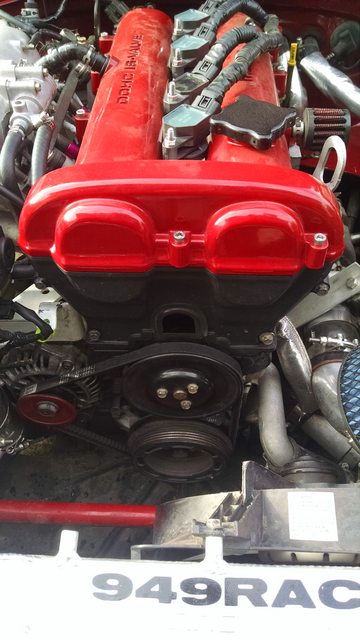

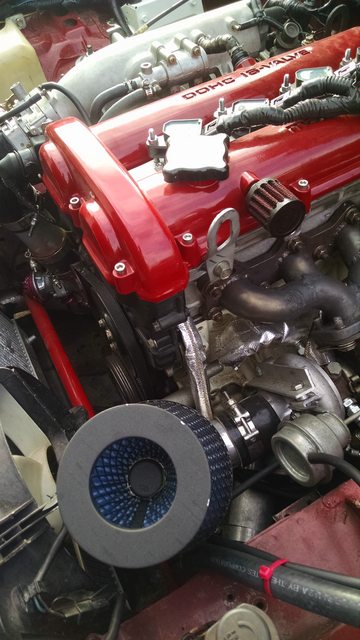

Props guys, I appreciate the pics. Leboeuf, you did pretty much exactly what I was talking about, but I'd be using a 90 instead of a T. That would also make for a convenient mounting location for a low pressure sender as well, so I can put a big obnoxious alarm in the car somewhere.

Quote:
Originally Posted by codrus View Post
If you're using a skunk2 there are no coolant ports on the throttle body. With those gone and a proper oil cooler, there's no reason to run that cold-side coolant loop at all.

--Ian
Exactly. Skunk2 TB crew checking in.
EO2K is offline   Reply With Quote
Old 04-08-2015, 12:39 PM   #1056
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,874
Total Cats: 1,266
Default

There is still a water port over there.
aidandj is offline   Reply With Quote
Old 04-08-2015, 12:41 PM   #1057
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,262
Total Cats: 870
Default

I also refuse to flip my mixing manifold. I feel like it causes more problems than it solves.

Quote:
Originally Posted by aidandj View Post
There is still a water port over there.
lolwut? This may be a 1.6 vs 1.8 thing. You 1.6 guys have some goofy coolant through the manifold thing IIRC, the 1.8 has the loop I described earlier.
EO2K is offline   Reply With Quote
Old 04-08-2015, 09:53 PM   #1058
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,271
Total Cats: 32
Default

Dunno if this helps, but my engine is an MSM engine but I've added a -6 fitting for the coolant return and use the feed on the block:

timk is offline   Reply With Quote
Old 04-08-2015, 09:55 PM   #1059
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,874
Total Cats: 1,266
Default

Is there really no water port on the 1.8? How does the oil cooler/warmer get water and the throttle body.

I have literally never touched a (running) 1.8 so spoon feed me.
aidandj is offline   Reply With Quote
Old 04-08-2015, 11:38 PM   #1060
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,488
Total Cats: 289
Default

Quote:
Originally Posted by aidandj View Post
Is there really no water port on the 1.8? How does the oil cooler/warmer get water and the throttle body.

I have literally never touched a (running) 1.8 so spoon feed me.
There is a coolant port on the back of the head. Coolant goes from the thermostat neck to the throttle body, from there to the oil warmer, and from there to the port on the head.

After losing one of those stupid little hoses at Laguna a few years ago (which precipitated my original engine build) I left them off. Don't need no oil warmer, don't need no throttle body warmer.

I like feeding the turbo through between the thermostat neck area and the mixing manifold because that seems like the way to get the most pressure/flow through the turbo, going pretty much straight from the outlet of the water pump to the inlet.

--Ian
codrus is offline   Reply With Quote
