Only time will tell....Turbo II 6266 getrag etc. etc....TIME HAS TOLD: FAILURE

Build Threads Building a motor? Post the progress here.

Only time will tell....Turbo II 6266 getrag etc. etc....TIME HAS TOLD: FAILURE

Old 02-28-2017, 06:52 PM
  #1
Newb
Thread Starter

Join Date: Sep 2015
Posts: 27
Total Cats: -12
Default Only time will tell....Turbo II 6266 getrag etc. etc....TIME HAS TOLD: FAILURE

Whats up guys... long time lurker short time owner, shorter time builder.... I tore the car apart early January 2017 and so far this is what has happened... time for a picture dump... this is just what I have on my computer as I get bored from time to time I will add more....

Basics are, 10.5:1 Wisecos, Manley Rods, stock MSM head, B18 intake manifold, briggsmotorsports custom manifold, MSPNPPro, PTE 6266, ID1700x's, VP X98 fuel, TurboII trans, getrag rear end...


Let me know if you have any questions I guess haha

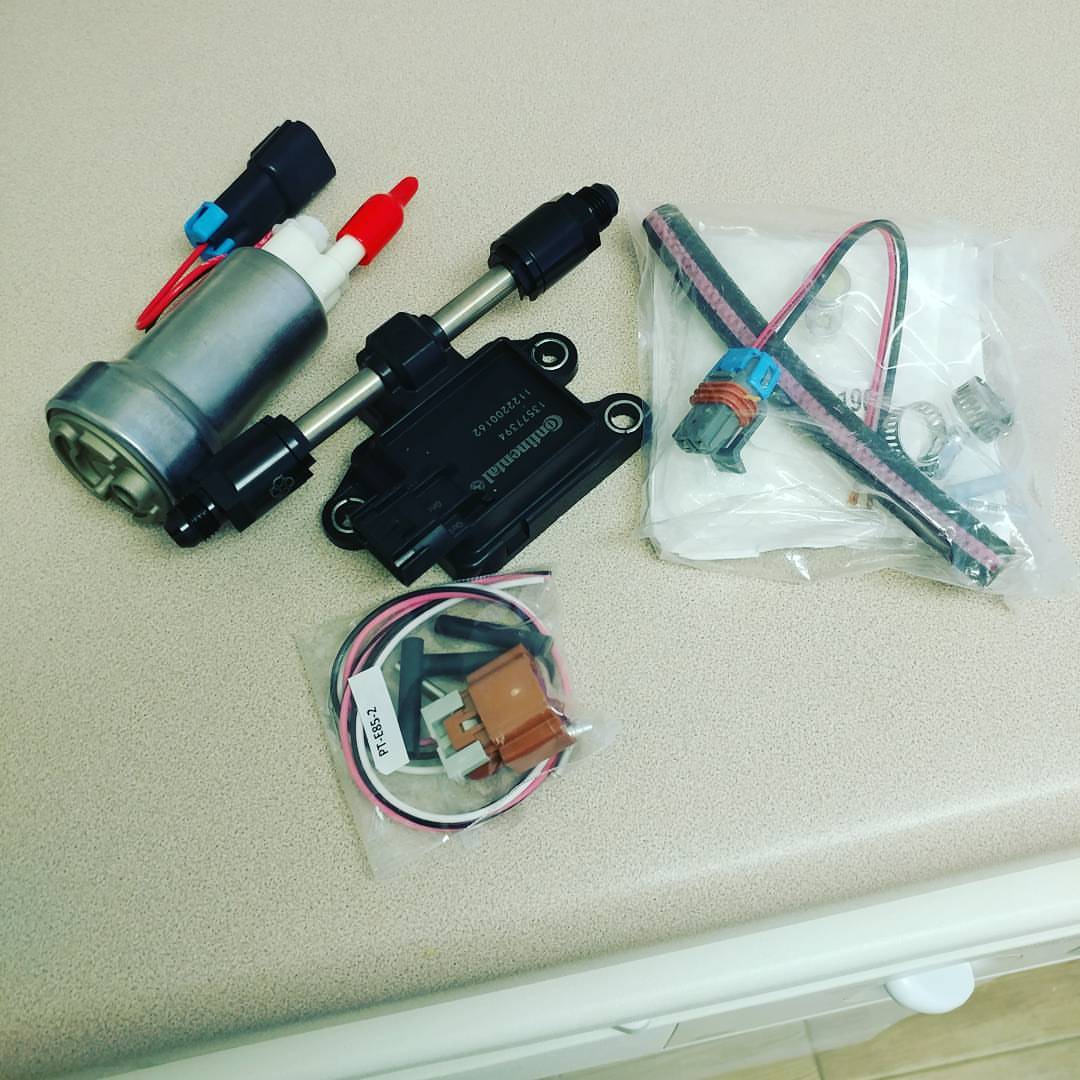

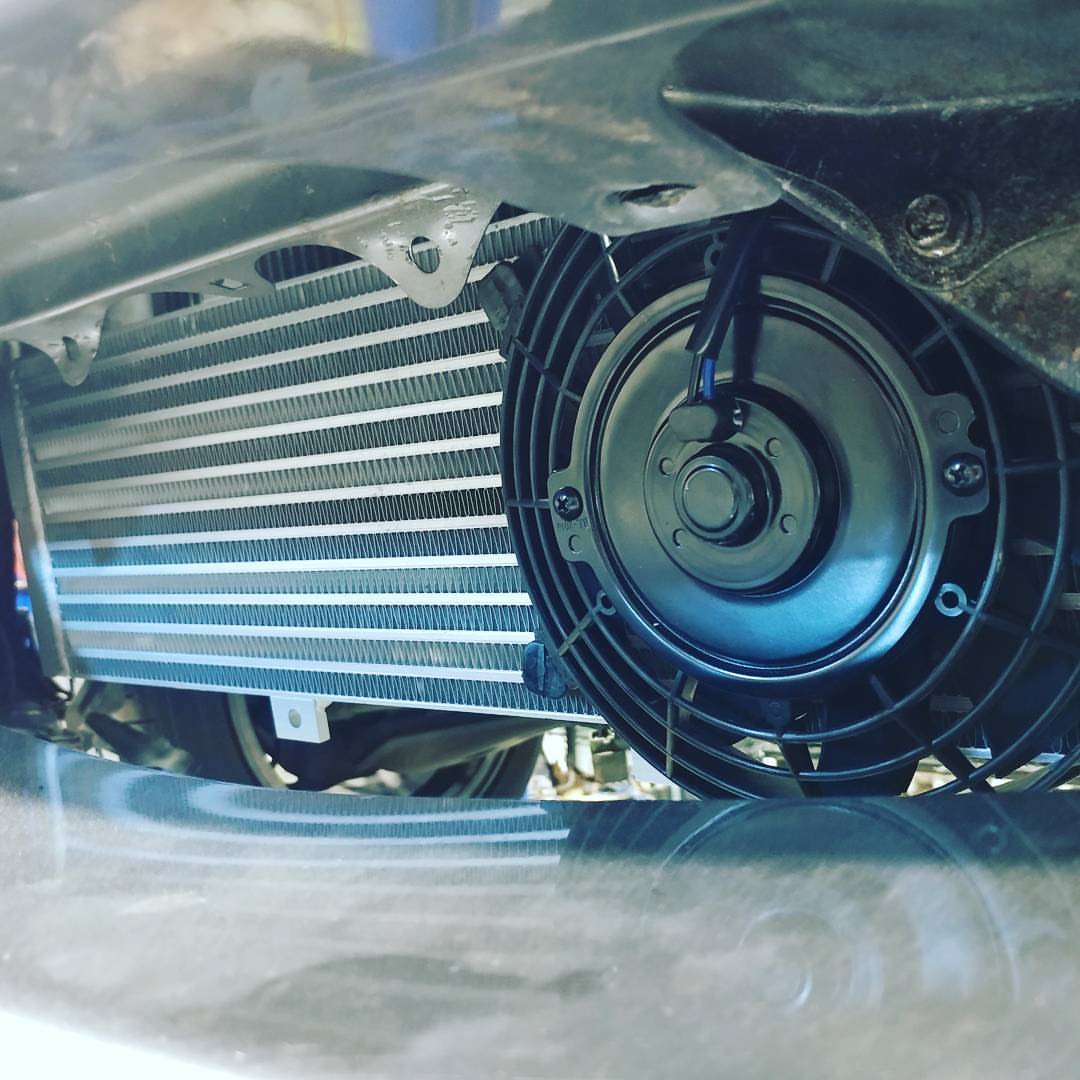

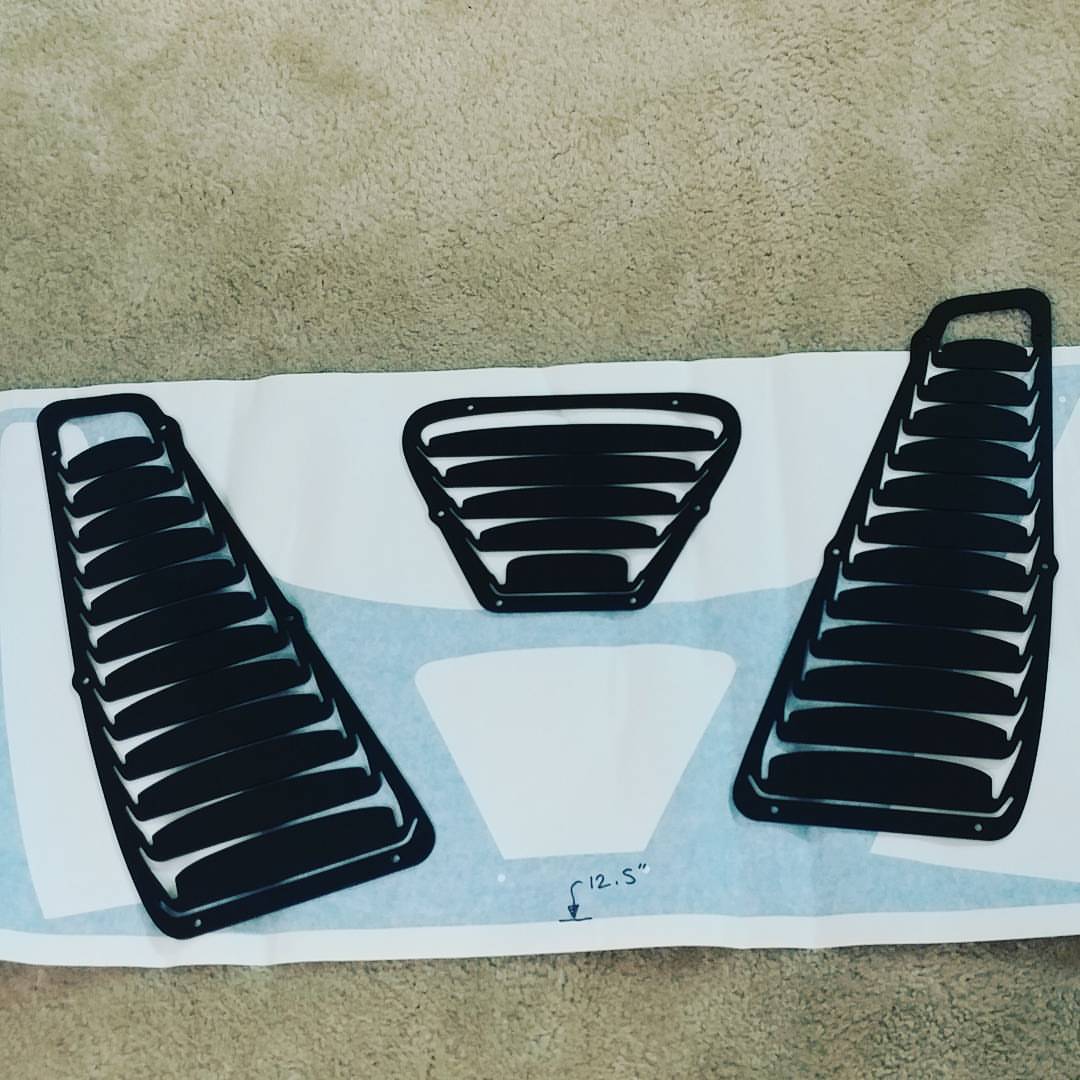

Attached Thumbnails Only time will tell....Turbo II 6266 getrag etc. etc....TIME HAS TOLD: FAILURE-frozen-boost.jpg   Only time will tell....Turbo II 6266 getrag etc. etc....TIME HAS TOLD: FAILURE-heat-exchanger.jpg   Only time will tell....Turbo II 6266 getrag etc. etc....TIME HAS TOLD: FAILURE-hood-vents.jpg   Only time will tell....Turbo II 6266 getrag etc. etc....TIME HAS TOLD: FAILURE-id1700x.jpg   Only time will tell....Turbo II 6266 getrag etc. etc....TIME HAS TOLD: FAILURE-pump-ethanol-sensor.jpg

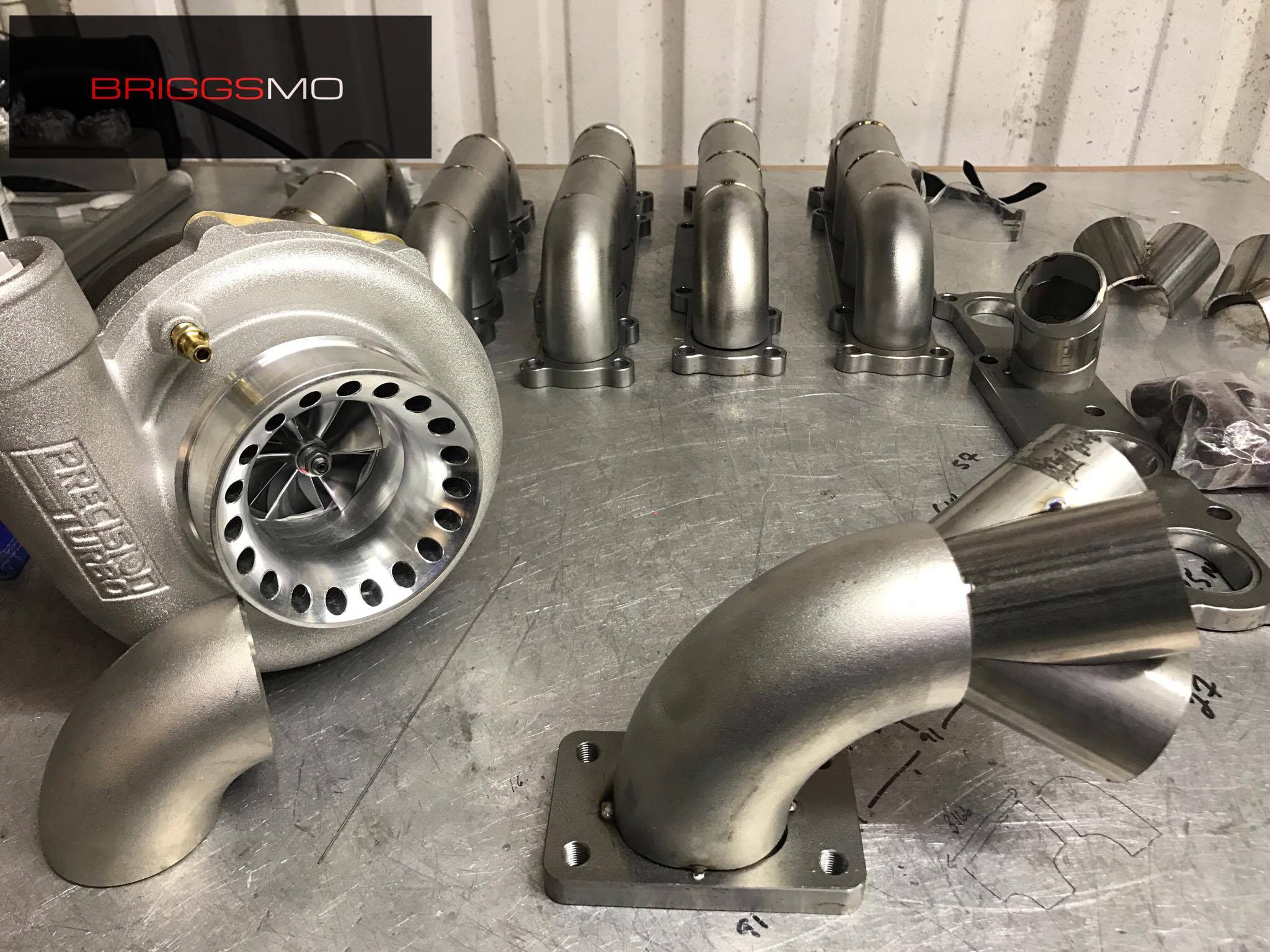

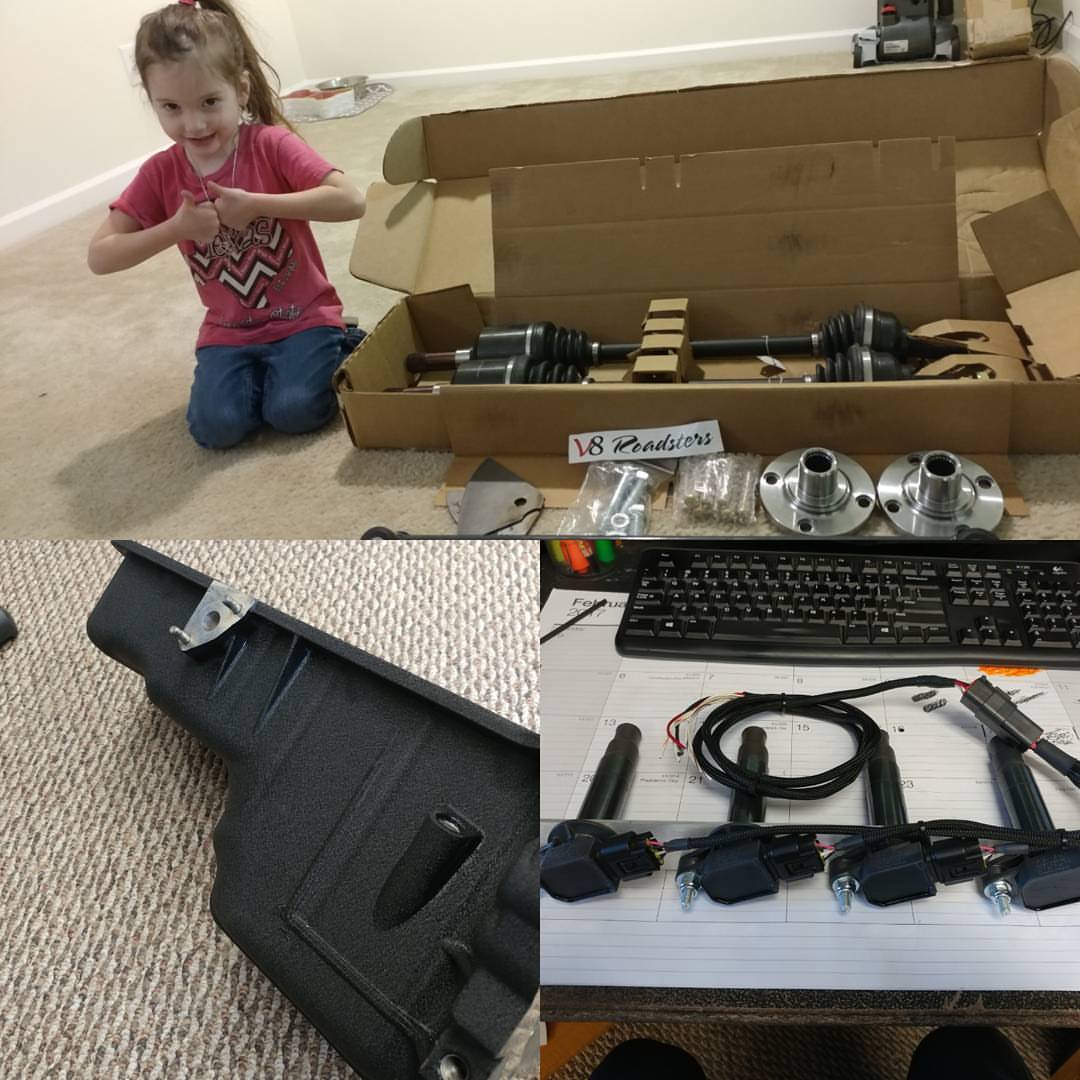

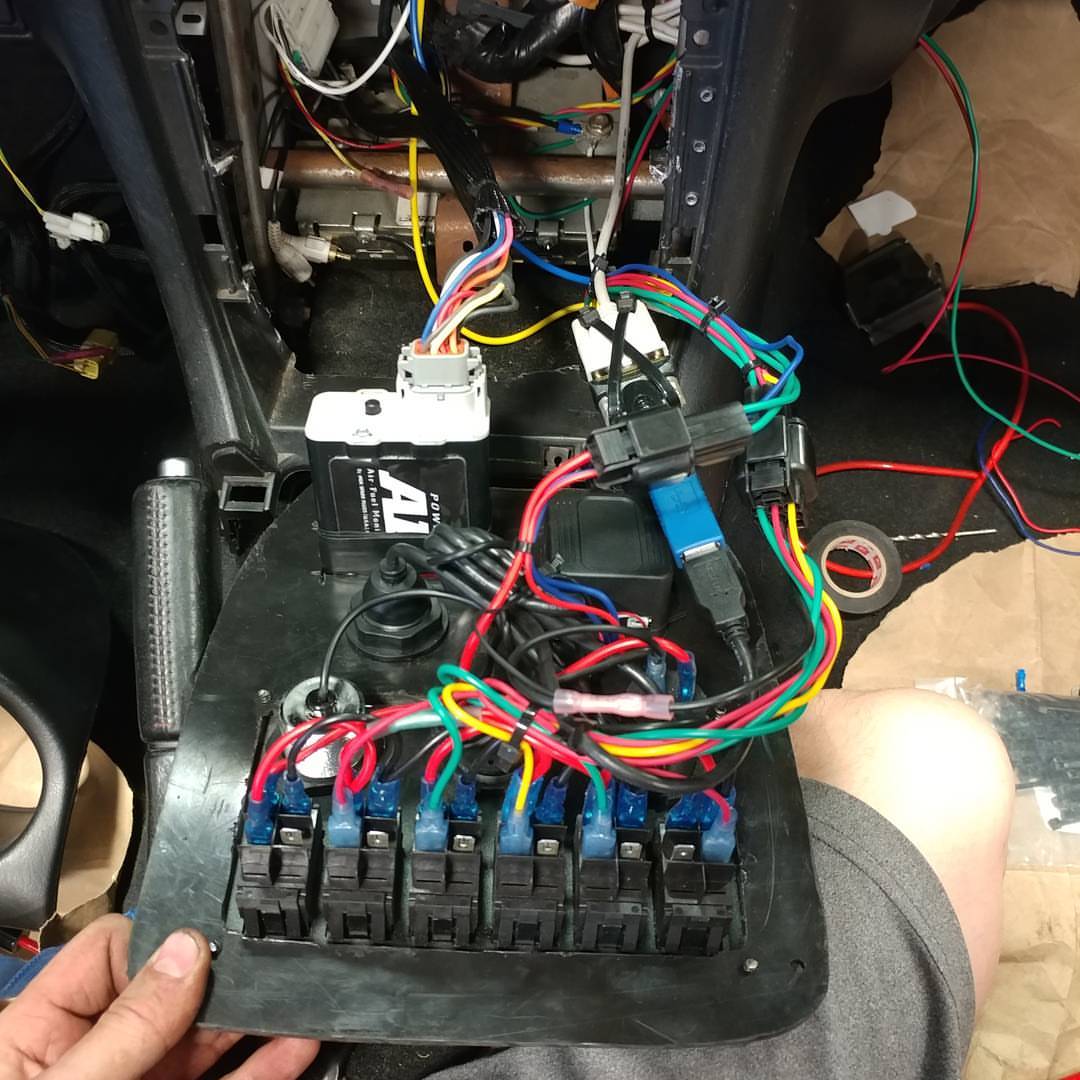

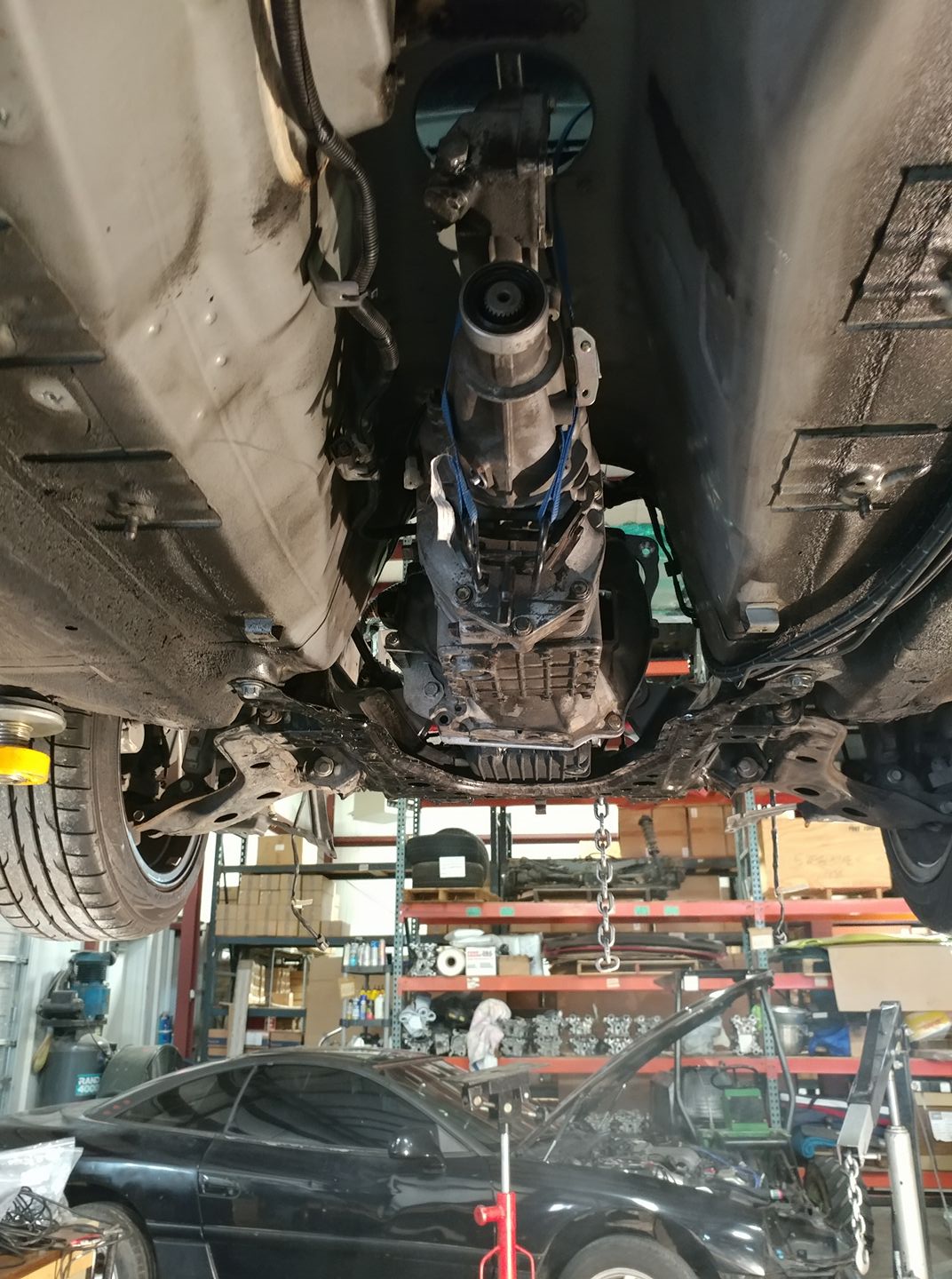

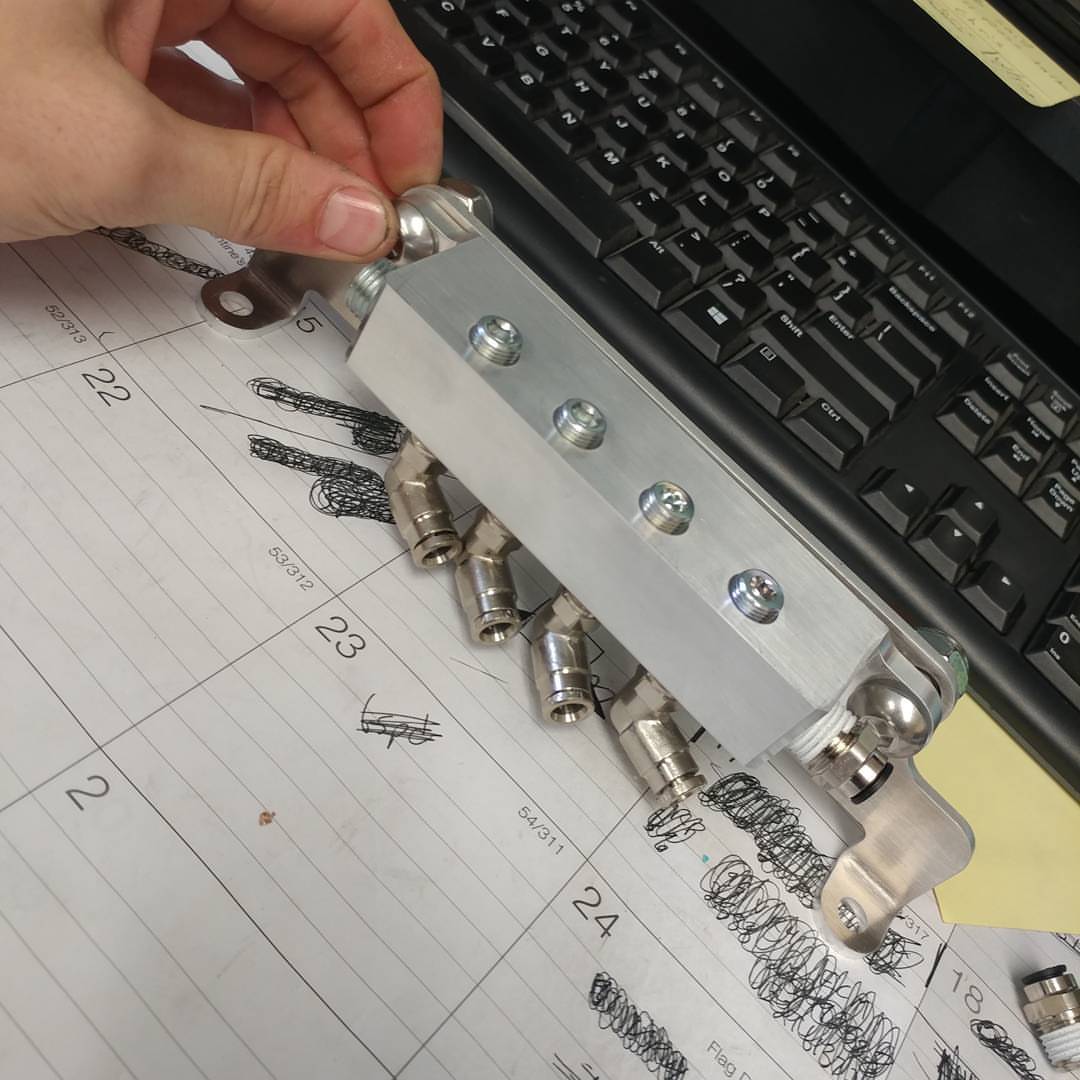

Only time will tell....Turbo II 6266 getrag etc. etc....TIME HAS TOLD: FAILURE-rear-end-kit-oil-pan-cop.jpg   Only time will tell....Turbo II 6266 getrag etc. etc....TIME HAS TOLD: FAILURE-switch-panel-back.jpg   Only time will tell....Turbo II 6266 getrag etc. etc....TIME HAS TOLD: FAILURE-trans-bolted-up.jpg   Only time will tell....Turbo II 6266 getrag etc. etc....TIME HAS TOLD: FAILURE-vacuum-block.jpg   Only time will tell....Turbo II 6266 getrag etc. etc....TIME HAS TOLD: FAILURE-briggsmo.jpg

Derek Gingerich is offline
Old 02-28-2017, 07:25 PM
  #2
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,407
Total Cats: 1,604
Default

Sub'd. Looks epic.
aidandj is offline
Old 03-01-2017, 01:22 PM
  #3
Senior Member
iTrader: (2)

Join Date: Nov 2013
Location: Redlands, CA
Posts: 954
Total Cats: 37
Default

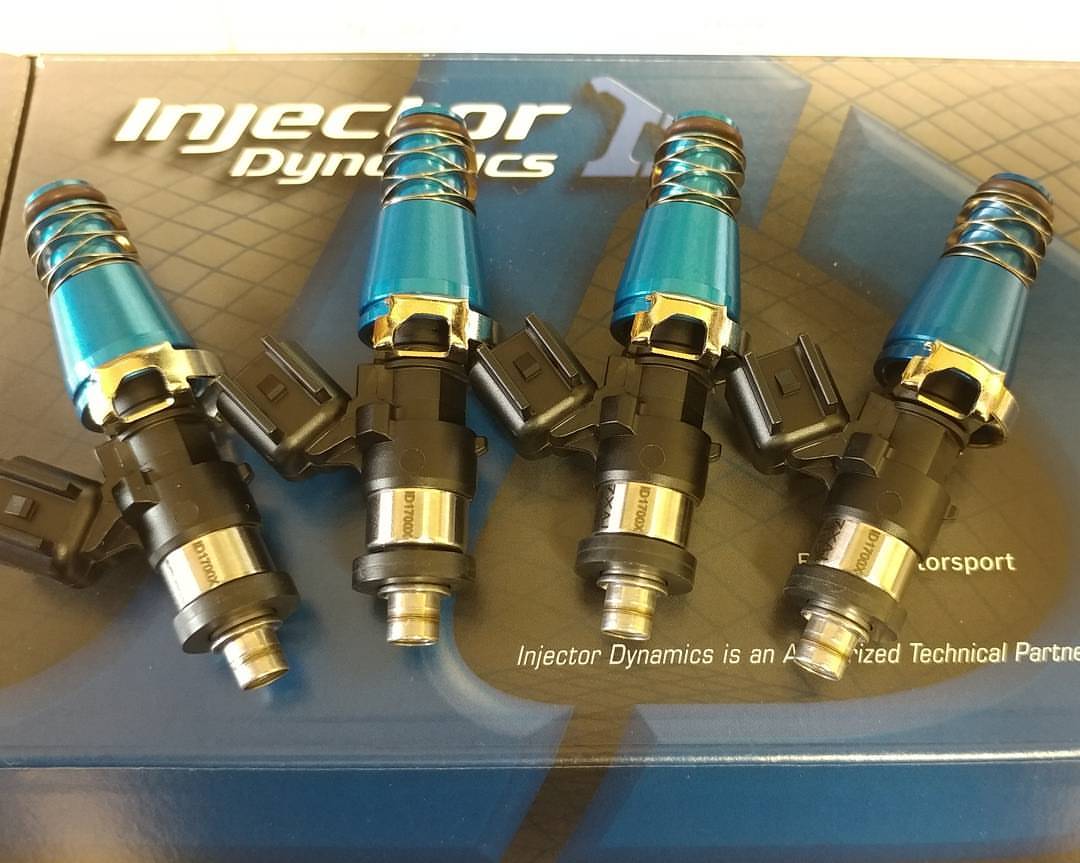

Those ID1700x
Lexzar is offline
Old 03-01-2017, 01:52 PM
  #4
Newb
Thread Starter

Join Date: Sep 2015
Posts: 27
Total Cats: -12
Default

Originally Posted by Lexzar View Post
Those ID1700x
They are, planning to push some X98 through them
Derek Gingerich is offline
Old 03-01-2017, 05:10 PM
  #5
Junior Member

Join Date: Jan 2017
Location: Charlotte, NC
Posts: 138
Total Cats: 15
Default

Only something like this could come from an area surrounded by NASCAR...
black bandit is offline
Old 03-02-2017, 04:04 PM
  #6
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,524
Total Cats: 220
Default

Get rid of the Turbo II transmission as soon as you can. It won't hold up long above 500whp or so.
__________________
Originally Posted by ninerwfo View Post
The “into to megasquirt thread” mentions that the MS3 basic has 5 inputs with built in pull up resistors - and I was just wondering why it would have so many, while the MS3Pro PnP has just 2 (with no pull ups?)
MS Labs: Plug and Play Megasquirt ECUs for ANY 90-05 Miata (NA, NB1, NB2 w/VVT, MSM), including basemaps to get you started ASAP. PM me or email or details.
For support on MS Labs ECUs: Please email, be sure to include the unit's serial number and include a datalog and your current map.
Reverant is offline
Old 03-02-2017, 06:08 PM
  #7
Newb
Thread Starter

Join Date: Sep 2015
Posts: 27
Total Cats: -12
Default

Originally Posted by Reverant View Post
Get rid of the Turbo II transmission as soon as you can. It won't hold up long above 500whp or so.
speaking from experience or have any proof by chance?
Derek Gingerich is offline
Old 03-03-2017, 03:15 PM
  #8
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,524
Total Cats: 220
Default

Both actually.
Reverant is offline
Old 03-03-2017, 09:45 PM
  #9
Newb
Thread Starter

Join Date: Sep 2015
Posts: 27
Total Cats: -12
Default

Care to share? what would you recommend in place of the Turbo II... there are RX's making more than 550 on the stock trans lol
Derek Gingerich is offline
Old 03-04-2017, 07:54 AM
  #10
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,524
Total Cats: 220
Default

An RX-7 at 550whp will probably have around 330tq or something like that. A Miata will make 420-440tq at the same power level, and will snap the input shaft.

Ps. I've seen the same failure on RX-7s at ~450whp, when driven hard.
__________________
Originally Posted by ninerwfo View Post
The “into to megasquirt thread” mentions that the MS3 basic has 5 inputs with built in pull up resistors - and I was just wondering why it would have so many, while the MS3Pro PnP has just 2 (with no pull ups?)
MS Labs: Plug and Play Megasquirt ECUs for ANY 90-05 Miata (NA, NB1, NB2 w/VVT, MSM), including basemaps to get you started ASAP. PM me or email or details.
For support on MS Labs ECUs: Please email, be sure to include the unit's serial number and include a datalog and your current map.
Reverant is offline
Old 03-04-2017, 10:15 AM
  #11
Junior Member

Join Date: May 2007
Location: Toronto Area, Ontario
Posts: 162
Total Cats: 41
Default

looks like the start of an awesome build.

Do you anticipate a packaging issue which is forcing you to go water-air on the intercooler?
oreo is offline
Old 03-04-2017, 12:27 PM
  #12
Newb
Thread Starter

Join Date: Sep 2015
Posts: 27
Total Cats: -12
Default

Originally Posted by oreo View Post
looks like the start of an awesome build.

Do you anticipate a packaging issue which is forcing you to go water-air on the intercooler?

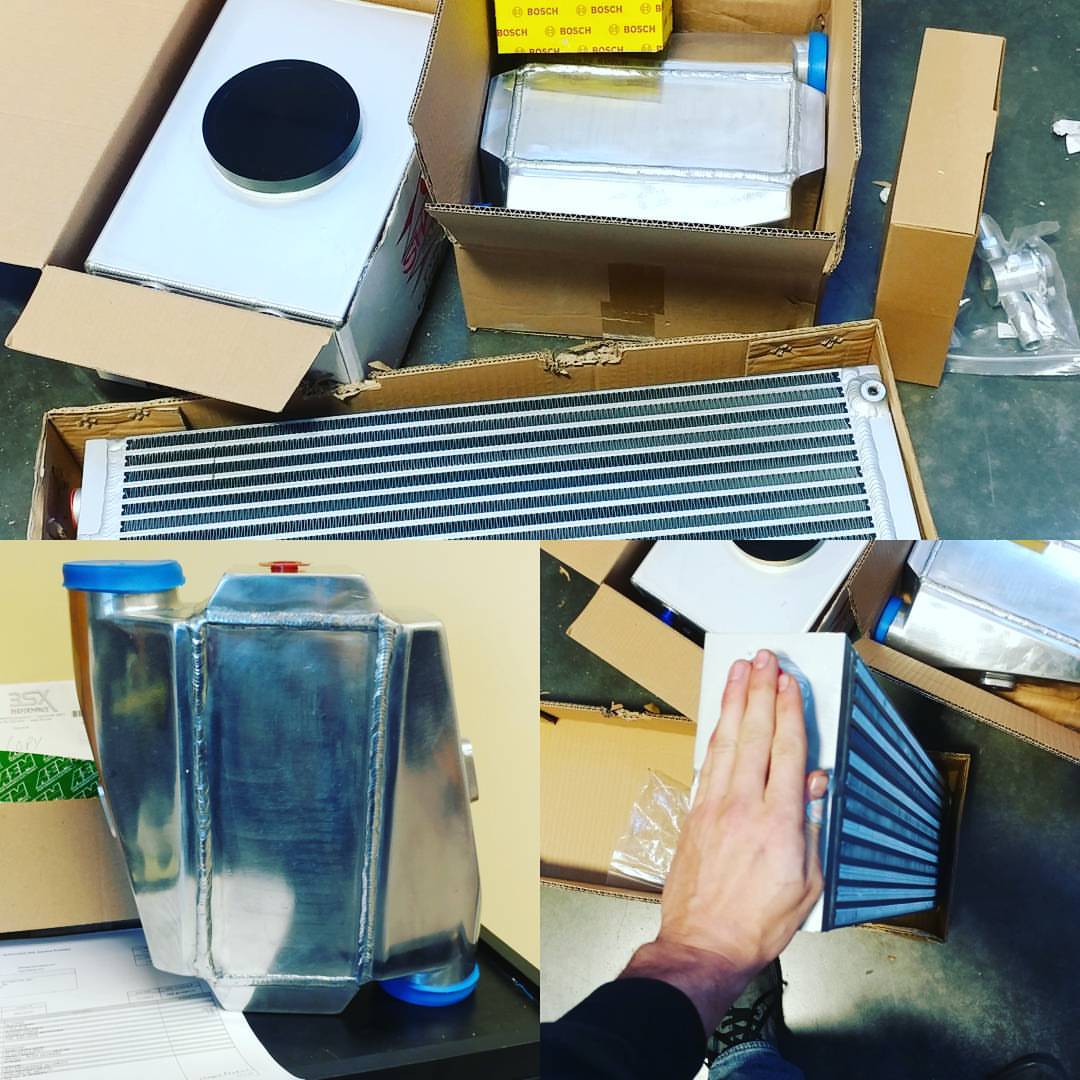

Almost the opposite haha, I am running into packaging issues because of the water-air intercooler, I did it to help the high compression as well as help with the long pulls the car will be doing

I plan to hit a few 1/2 mile events this year
Derek Gingerich is offline
Old 03-04-2017, 10:59 PM
  #13
Junior Member

Join Date: Aug 2015
Location: Mass
Posts: 380
Total Cats: 20
Default

Nice,, this is exactly what i wanted to see someone doing - What are your power goals?

If the TII won't hold up - what's the solution for that? All reasons why i didnt want to do this.
Colipto is offline
Old 03-05-2017, 01:52 AM
  #14
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,792
Total Cats: 43
Default

Your compression is much lower than I would have gone for your fuel and head. You will have no need for anything more than a FMIC.

Dann
nitrodann is offline
Old 03-05-2017, 09:34 PM
  #15
Newb
Thread Starter

Join Date: Sep 2015
Posts: 27
Total Cats: -12
Default

Originally Posted by Colipto View Post
Nice,, this is exactly what i wanted to see someone doing - What are your power goals?

If the TII won't hold up - what's the solution for that? All reasons why i didnt want to do this.
I don't have a solution, I plan to keep timing low and keep torque as low as possible, maybe it will hold maybe it wont.

Originally Posted by nitrodann View Post
Your compression is much lower than I would have gone for your fuel and head. You will have no need for anything more than a FMIC.

Dann
The engine was built a year ago in Colorado and built for E85, X98 is more readily available to me than E85 right now so that is why that fuel is being used. As for the A/W that may be so but 35-40 lbs of boost for long pulls, I will do all I can to keep temps down
Derek Gingerich is offline
Old 03-17-2017, 03:16 PM
  #16
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 350
Total Cats: -26
Default Waiting for the outcome.

Really looking forward to seeing this finished.
It's been a long haul, has it not?
Reverend Greg is offline
Old 03-17-2017, 05:09 PM
  #17
Elite Member
iTrader: (2)

Join Date: Aug 2016
Location: Woostuh, MA
Posts: 3,679
Total Cats: 108
Default

I think I saw a thread on facebook about this build. I have a feeling that Forrest (and reverant) scared him away from Miataturbo.
ridethecliche is offline
Old 03-19-2017, 06:48 AM
  #18
Newb

Join Date: Nov 2016
Posts: 18
Total Cats: -1
Default

Originally Posted by Reverant View Post
An RX-7 at 550whp will probably have around 330tq or something like that. A Miata will make 420-440tq at the same power level, and will snap the input shaft.

Ps. I've seen the same failure on RX-7s at ~450whp, when driven hard.
Ill 2nd this, I'm new to the miata scene but I've owned rotary's for the past 11 years my last being capable of 300rwkw but broke 2 gearboxes (s4 turbo I, then s5 turbo II which have a thicker and extra ribbed housing) so i DE-tuned. they are only good for 500hp MAX and 350-400Ftlb but not for long sustained use, Rx3's weigh around 800kg mark and originally used them alot in drag racing but they are just too weak , generally swapped out for w58, R154 or t56 boxes, then the more expensive TKO500/600 then g force or liberty.

Miata's have more torque with having more rotating mass @ similar rpm 8600,@600hp = 380ish torque, anyway looks like an interesting build.
Daniel Maxworthy is offline
Old 03-19-2017, 10:49 AM
  #19
Elite Member
iTrader: (2)

Join Date: Aug 2016
Location: Woostuh, MA
Posts: 3,679
Total Cats: 108
Default

Yeah, I was looking forward to following this build. Bummer the OP stopped posting when folks offered advice and criticism from experience...

The Facebook rant was pretty funny.
ridethecliche is offline
Old 03-19-2017, 03:25 PM
  #20
Newb
Thread Starter

Join Date: Sep 2015
Posts: 27
Total Cats: -12
Default

sorry, guys... I didn't leave because of anything on here, in fact I welcomed the advise... but any who... its a pain in the *** to get pics from my phone to a computer and onto here... want updates? go look at fb
Derek Gingerich is offline
