Default Round 2: Wannabe turbo NB6C

It won't matter at all.
sixshooter is offline   Reply With Quote
Old 08-14-2015, 02:06 AM   #42
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 436
Total Cats: 16
Default

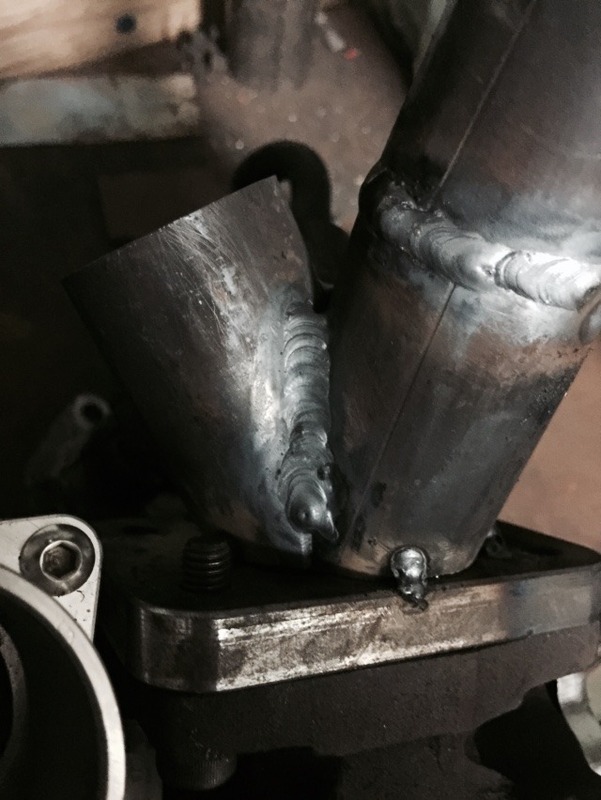

Look's like I'll stop trying to reinvent the wheel and just go with the standard intercooler pipe routing.

Got some more done tonight.








Managed to get a bolt stuck and had to cut it
Attached Thumbnails
Round 2: Wannabe turbo NB6C-645c91a9-bd92-4ae6-847d-45716076bee9_zpsnhfssfh5.jpg   Round 2: Wannabe turbo NB6C-ede171b7-6f9c-4f72-ac68-f0dbb2108da0_zpswy5swuvz.jpg   Round 2: Wannabe turbo NB6C-18d7ce6a-5d2d-4f6a-b769-c67e149d7c09_zpso0ypqrn3.jpg
Sirnixalot is offline   Reply With Quote
Old 08-15-2015, 08:51 PM   #43
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 436
Total Cats: 16
Default

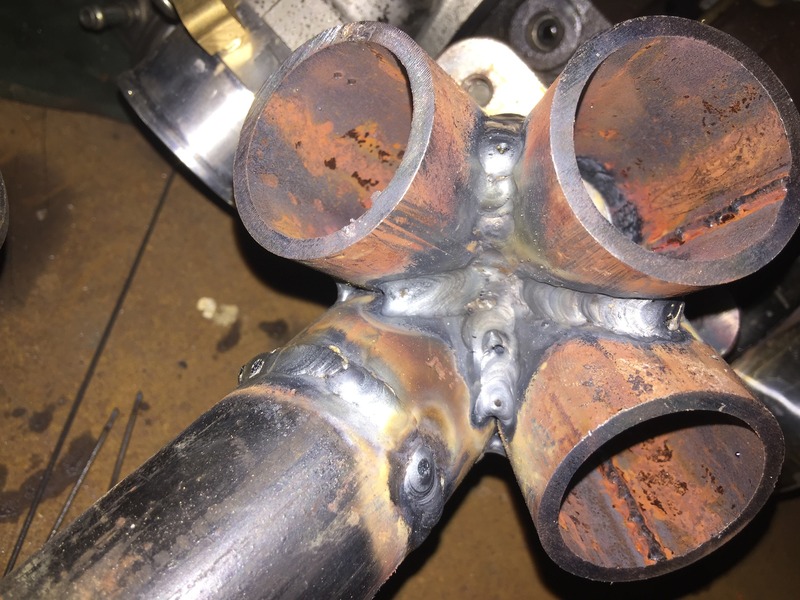

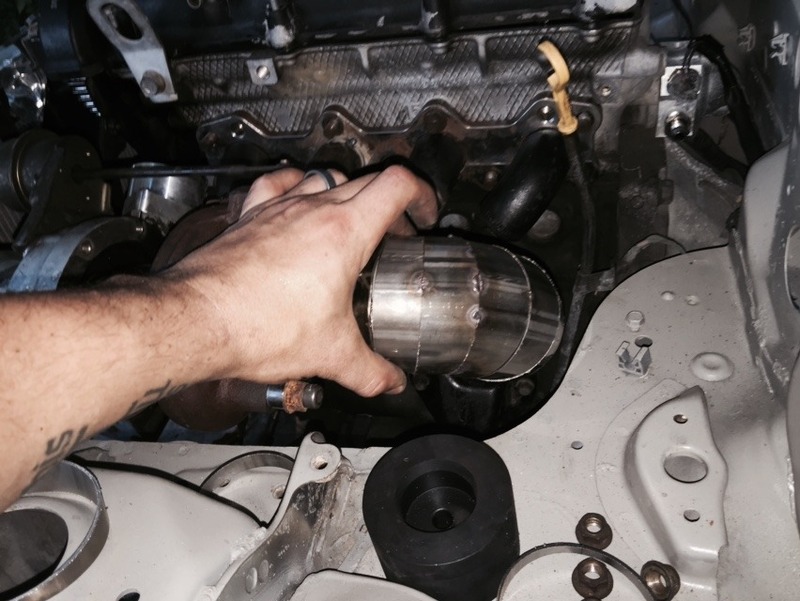

Jumping all over the place. I ran the saw for a bit to make some pizza slices for the down pipe.





While the saw was running I setup the drivers side of the cage to weld on the A pillar tab. Used a step bit to open up an existing hole and welded in a 10x1.5mm nut. The difference is amazing. Before the tab I the front bar would shake separate from the car, now if I try to shake it the whole car moves. I need to do the passenger side and top of the A pillar.

We are having an Autocross meet in 2 weeks. I am hoping we spark enough interest to do them again regularly.
Attached Thumbnails
Round 2: Wannabe turbo NB6C-29531146-70eb-4d19-9074-dc3ab388ec1e_zps7bs0i2b0.jpg   Round 2: Wannabe turbo NB6C-494281a2-682a-4b1b-a768-1f85cd448a7b_zpst9ztgiql.jpg
Sirnixalot is offline   Reply With Quote
Old 08-16-2015, 08:42 PM   #44
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 436
Total Cats: 16
Default

Full day of work until the mig wire ran out

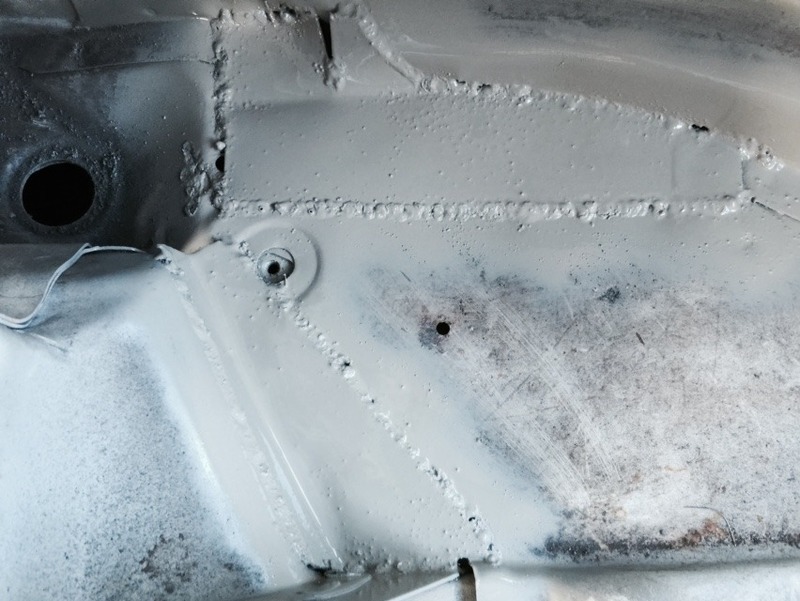

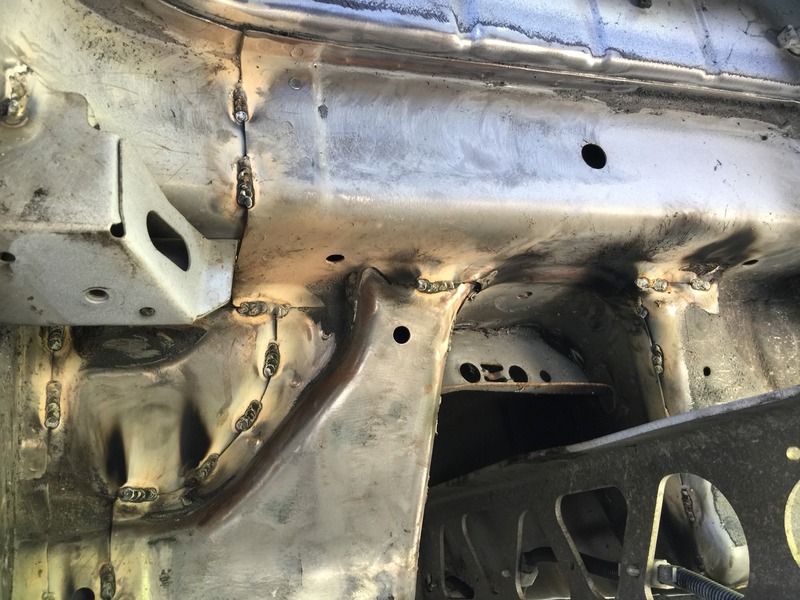

Finally finished the patches for the drivers side seat belt area


Welded on a mounting tab for the intercooler core. Rested the oil cooler above it. I figure if you guys can get results with it by the steering rack horizontal to the ground, I can get results in this location with some ducting.

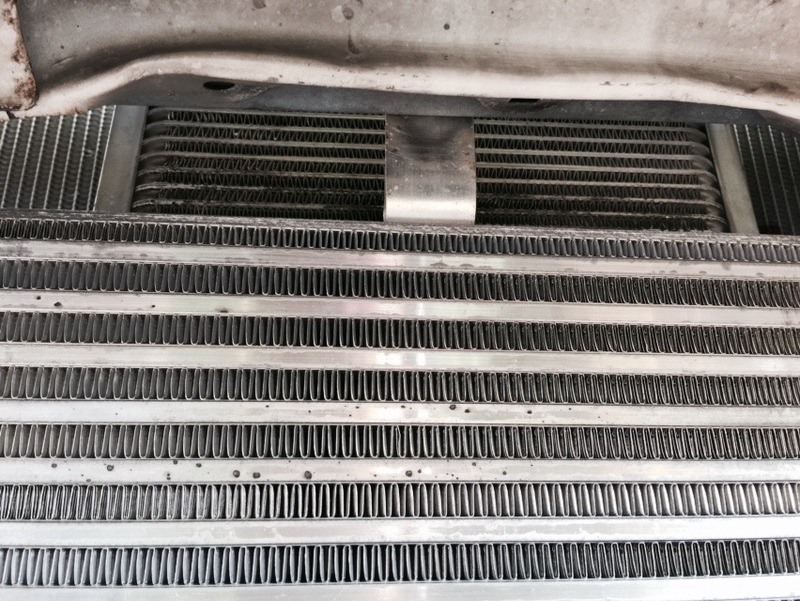

Shot of the core from the front

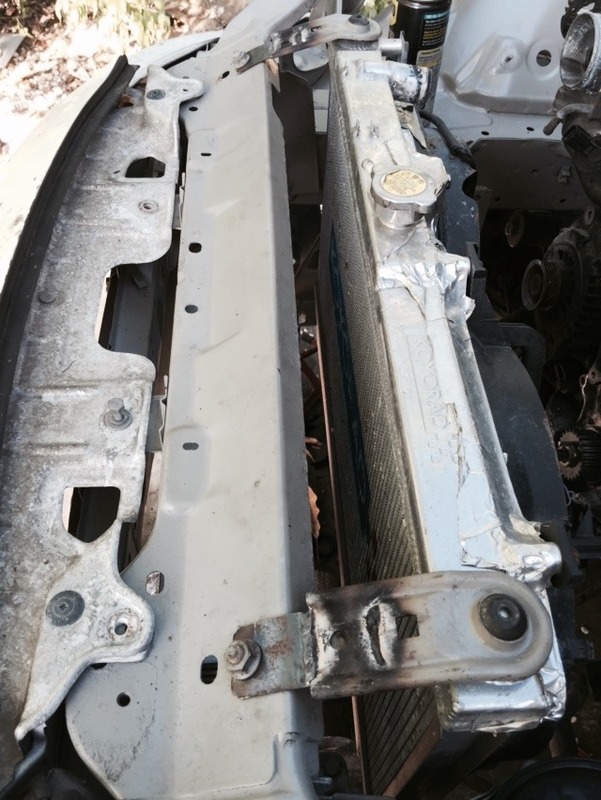

Extended the upper radiator brackets. I am going around the radiator for the intercooler piping but wanted to minimize the cutting of the body

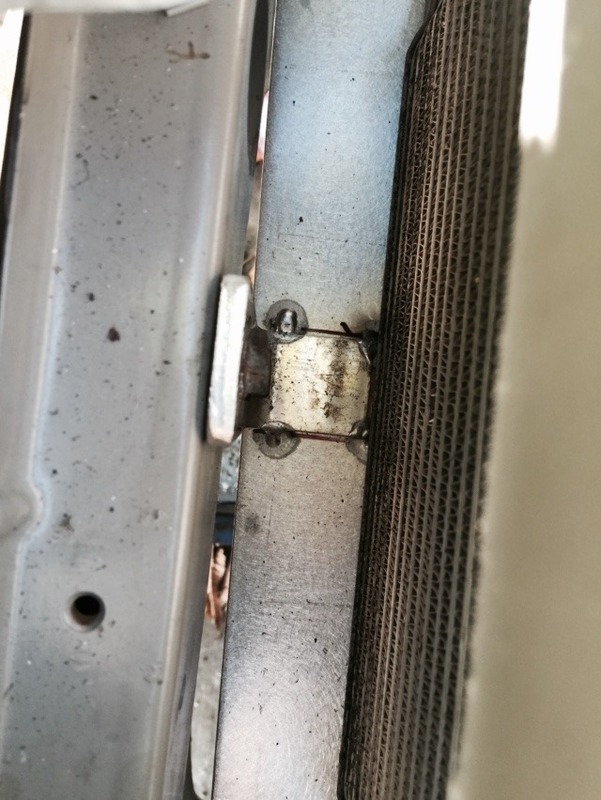

Dem mounting tab tacks

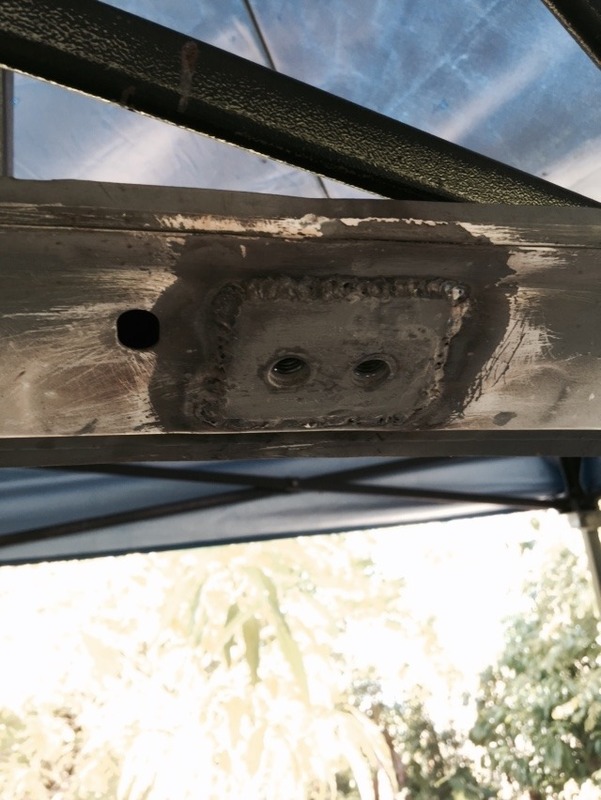

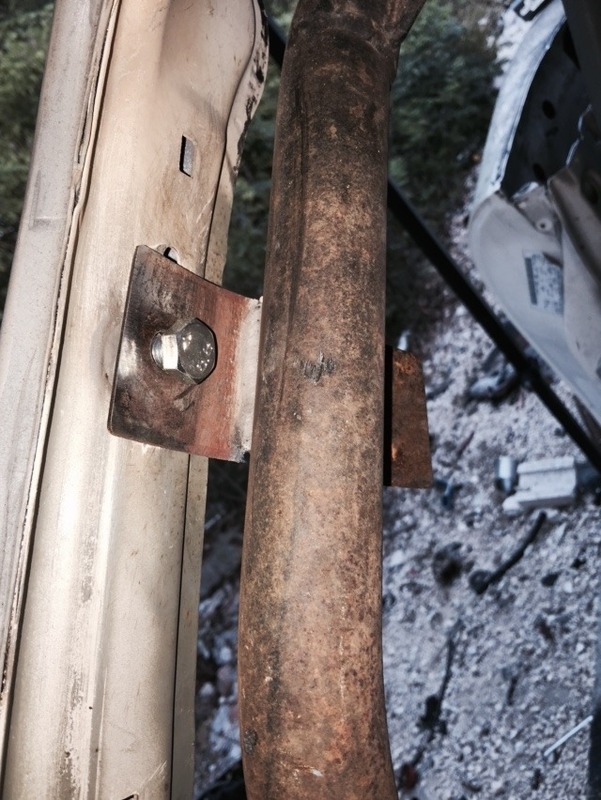

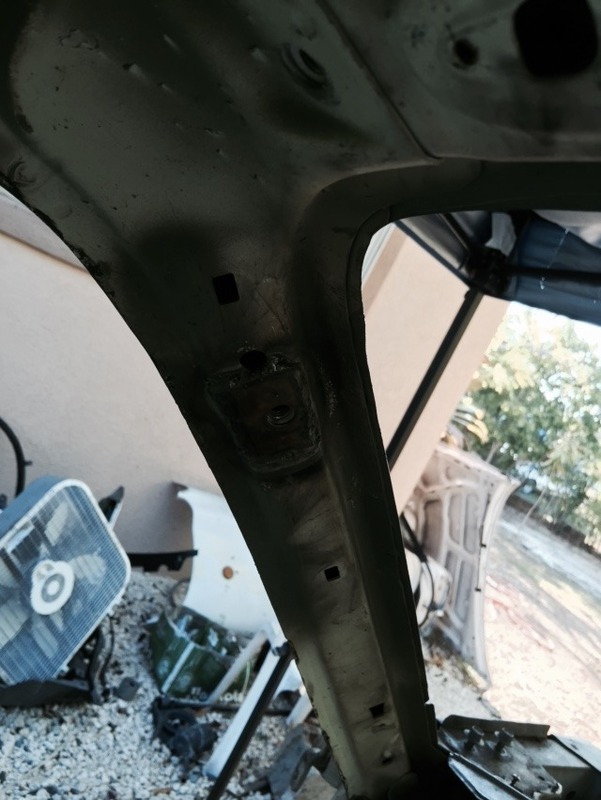

Shot of the captive nut/plate for the cage to bolt to


All of your map light are belong to this. The cage cross bar at the top of the windshield now bolts to this.




-16AN hose/fittings leftover from a different project is the perfect length and the fittings work perfectly. I'll need/want Turbo_tims adapter though


I beg of you be gentle. I ground down the welds because I have little consistency on round thin material so please ignore what I could not reach with the flap wheel. It will be covered in exhaust wrap



I am DONE for the day.
Attached Thumbnails
Round 2: Wannabe turbo NB6C-9bce830f-bb93-4ad7-8680-2ec3fb5e441a_zpsftzqprp7.jpg   Round 2: Wannabe turbo NB6C-4a6ee93d-e952-44d2-99f2-6f8f0866f9f5_zpsbdtrf1h2.jpg   Round 2: Wannabe turbo NB6C-a17b1110-482c-4b6c-96d3-f70be50f6cf9_zpsci0ks61x.jpg   Round 2: Wannabe turbo NB6C-73ed2d88-6db8-4cab-acc7-717c1e03fede_zpsm4ocgktm.jpg   Round 2: Wannabe turbo NB6C-2dd3e0ed-0ad4-47dd-962f-3e5174cf3432_zps5ozgycu6.jpg

Round 2: Wannabe turbo NB6C-87c58359-438f-4c9f-8901-6c4fd6c8d04e_zpse935c2t5.jpg   Round 2: Wannabe turbo NB6C-386fbeac-3e0c-475b-87c6-09a9c48ca350_zpsfw3fkxqp.jpg   Round 2: Wannabe turbo NB6C-4307eba4-6b52-4211-8cd4-1787d3e5fe70_zps5dlv2nhn.jpg   Round 2: Wannabe turbo NB6C-1566f4d6-7dbc-4f53-8b4f-d23aa64d80eb_zpsssaomine.jpg   Round 2: Wannabe turbo NB6C-b7ff5ddc-0c3f-4188-9a87-7c0c7554a394_zpskb5e0uoe.jpg

Sirnixalot is offline   Reply With Quote
Old 08-17-2015, 03:23 PM   #45
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 436
Total Cats: 16
Default



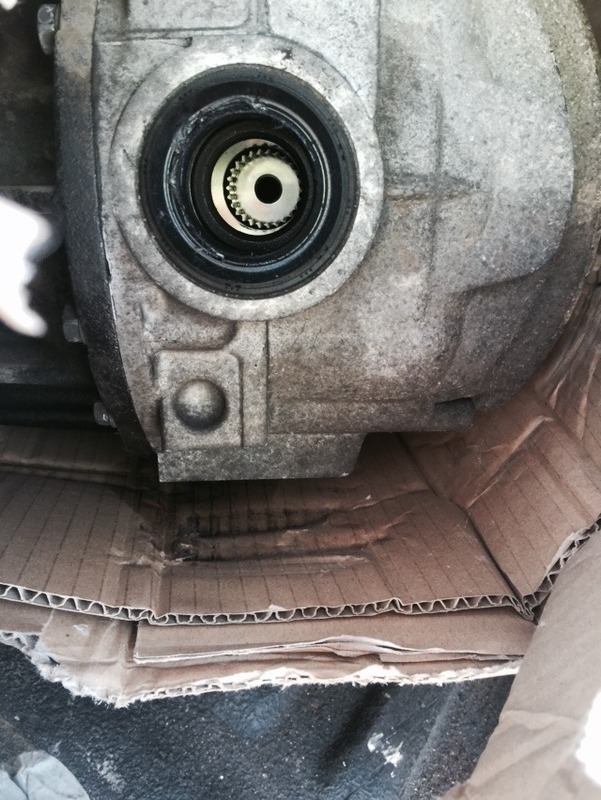

Such JDM packaging tape, many cr.net points wow torsen. Going from a 4.3:1 to the 3.9:1 on this poor 1.6 will need the turbo. Wonder if I should swap the diff onto the 4.3 gears

I have to wait until tomorrow to get the coilovers and clutch :(
Attached Thumbnails
Round 2: Wannabe turbo NB6C-b84ae74e-1f74-4e0d-b2f6-a512a7b4a181_zpsp5zozpia.jpg   Round 2: Wannabe turbo NB6C-605dea0d-28e1-4ce1-abf8-862d23c815f8_zpsz7i8sphx.jpg

Last edited by Sirnixalot; 08-17-2015 at 03:59 PM.
Sirnixalot is offline   Reply With Quote
Old 08-17-2015, 05:51 PM   #46
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 14,405
Total Cats: 1,259
Default Round 2: Wannabe turbo NB6C

Quote:
Originally Posted by Sirnixalot View Post
Wonder if I should swap the diff onto the 4.3 gears?
How big is the island?
sixshooter is offline   Reply With Quote
Old 08-17-2015, 06:14 PM   #47
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 436
Total Cats: 16
Default

70 square miles.....max speed limit is 50mph
Sirnixalot is offline   Reply With Quote
Old 08-19-2015, 06:50 PM   #48
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 436
Total Cats: 16
Default

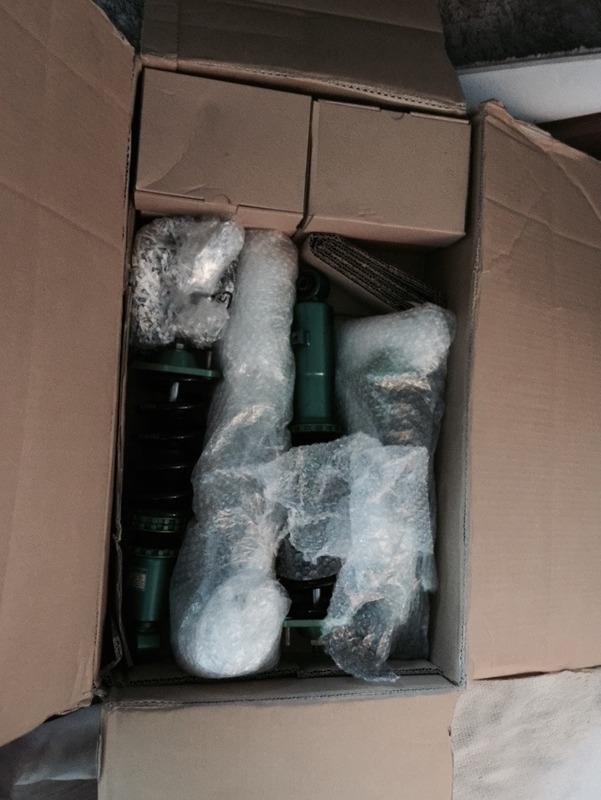

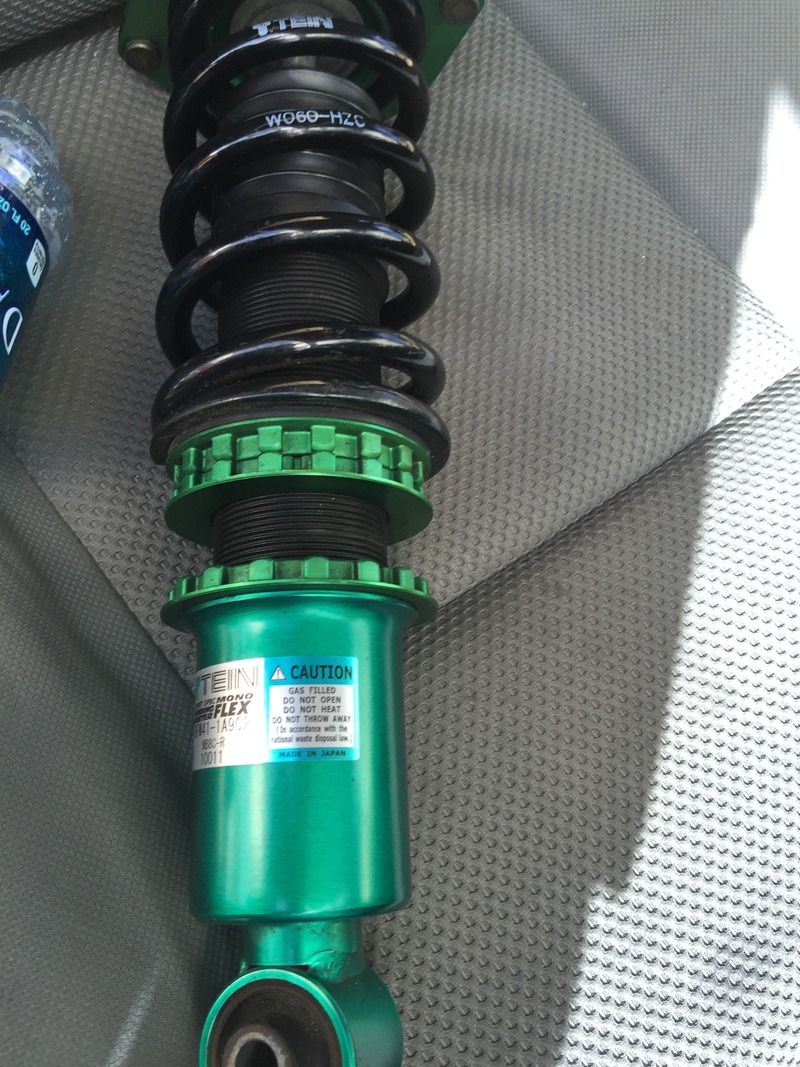

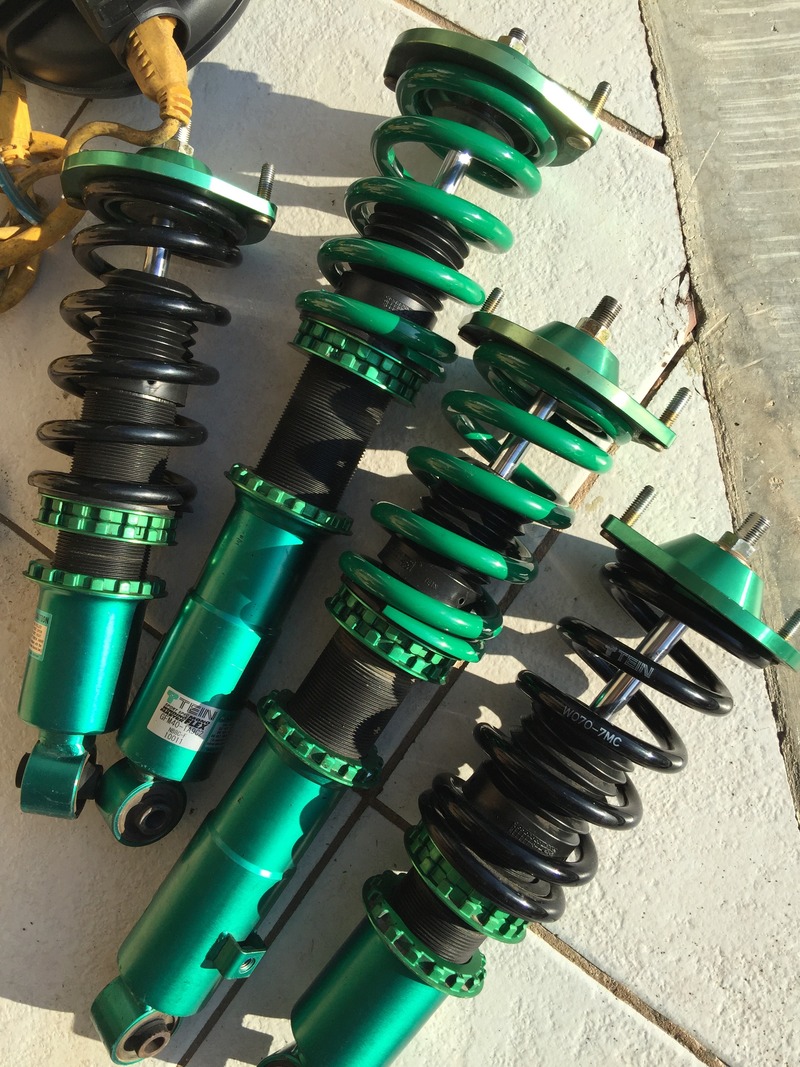

Awwwwww yisssss mothafuckin coilovers. Tomorrow I'm clearing the 12k springs to swap onto the front coilovers and move the 7k springs to the rear. No bump stops are on these so I'll need to get some.


The small boxes hold the edfc stuff. I'm going to have to reset the damping to the middle and spend some time playing with it when it's time.

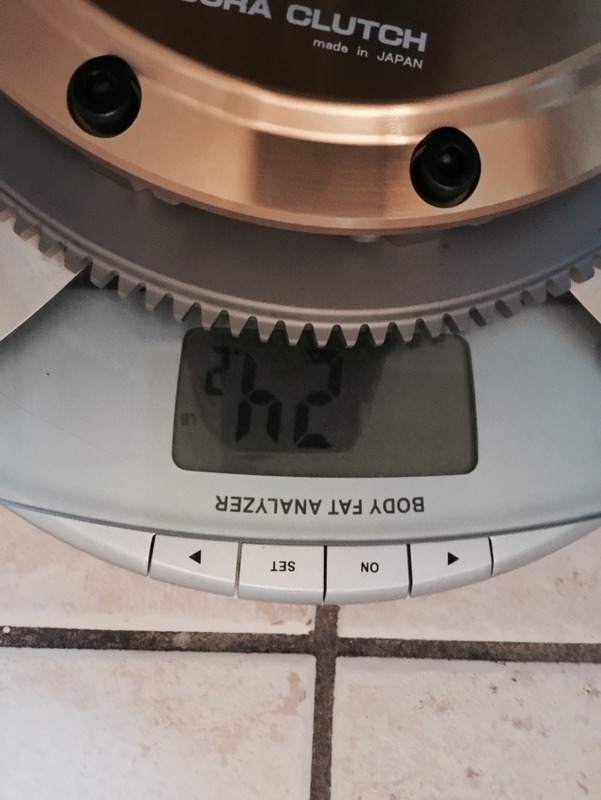

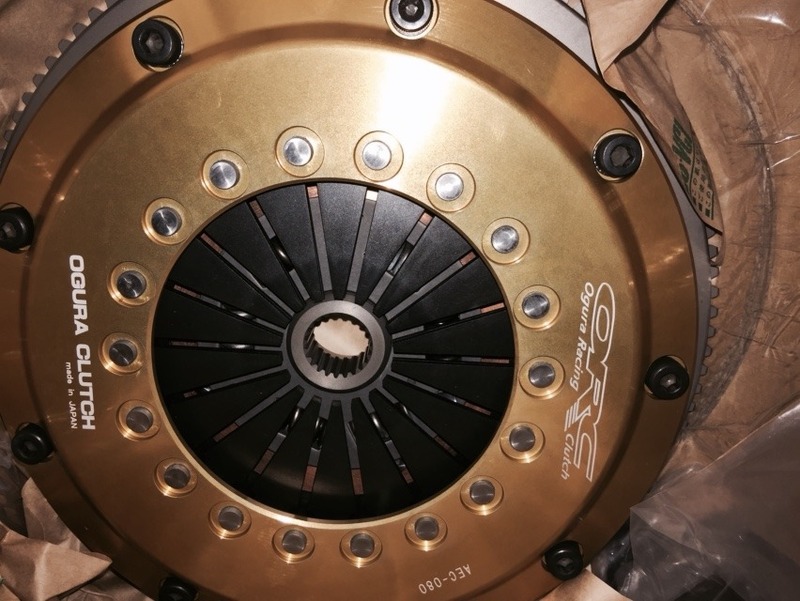

24.2lbs on my bathroom scale for the ORC 309 clutch. Supposedly holds 250lbft so Ill be ok
Attached Thumbnails
Round 2: Wannabe turbo NB6C-90855159-d98e-4ded-8c42-b2c55224cd06_zps9afakx8u.jpg   Round 2: Wannabe turbo NB6C-3380afe3-812a-4bdd-9da5-6c0dd8588721_zpsmbabyvtd.jpg   Round 2: Wannabe turbo NB6C-dc36e8ba-9dcb-42f1-9bec-6ef492f93f7b_zpsmoy5zqti.jpg   Round 2: Wannabe turbo NB6C-dca4b80c-daf2-4228-b855-a7fc7d1c0669_zpsqu8hq3t8.jpg   Round 2: Wannabe turbo NB6C-75debab6-af43-4a47-bf73-bad18f8b8a8d_zpsftst1kod.jpg

Sirnixalot is offline   Reply With Quote
Old 08-20-2015, 11:48 AM   #49
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 14,405
Total Cats: 1,259
Default Round 2: Wannabe turbo NB6C

That's a really pretty clutch. What do those cost?
sixshooter is offline   Reply With Quote
Old 08-20-2015, 12:13 PM   #50
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 436
Total Cats: 16
Default

It was around US$700. It only holds 250ft/lb though.

Last edited by Sirnixalot; 08-20-2015 at 12:35 PM.
Sirnixalot is offline   Reply With Quote
Old 08-20-2015, 05:09 PM   #51
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 436
Total Cats: 16
Default

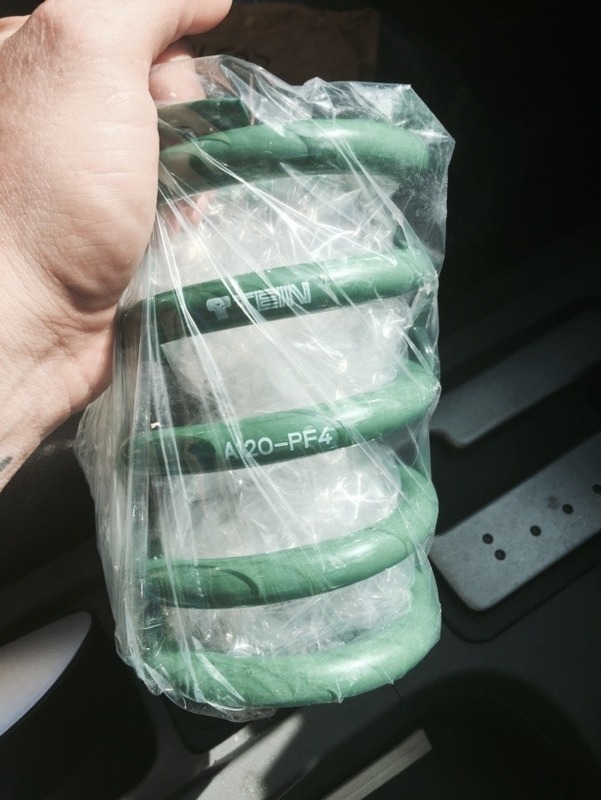

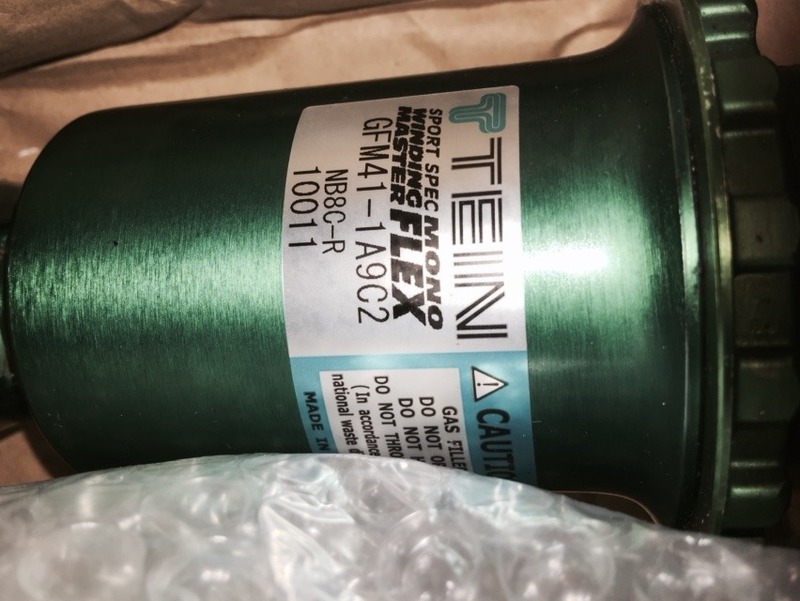

12kg/mm springs.....looks like the springs will be color mismatched, oh bother


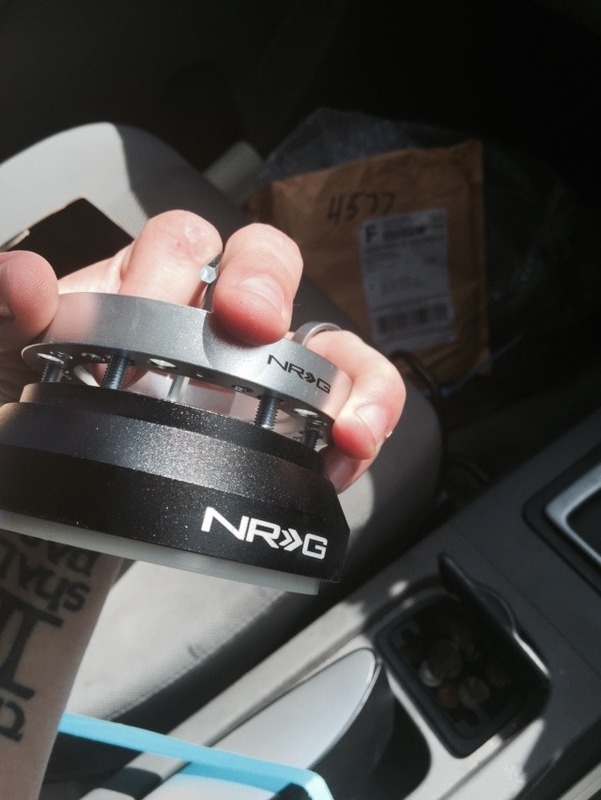

I am seat mounts away now from being able to sit in it while turning the wheel and making car noises

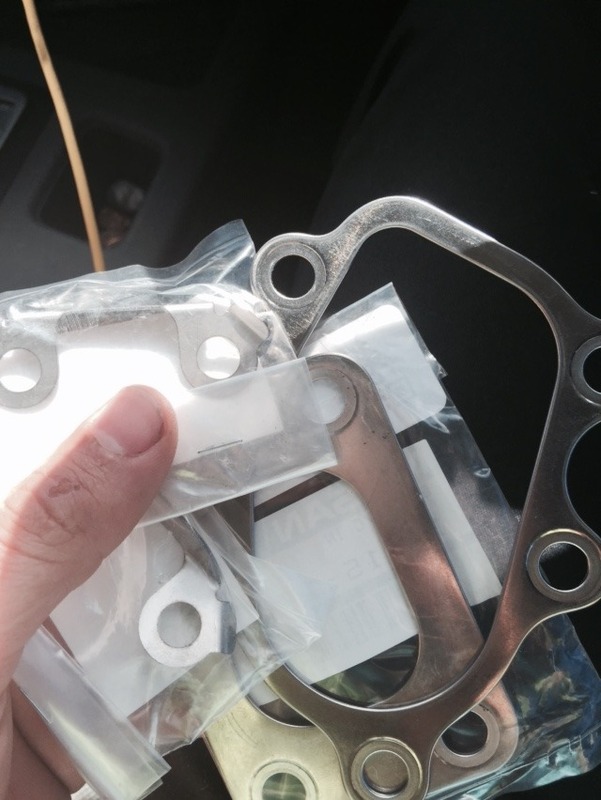

Some OEM nissan turbo gaskets and turbo nut locking things. I am hoping these will tide me over with regular studs and the copper colored lock nuts until I get the FM hardware.

Also traded some tires for all the lines and fittings to plumb the turbo so that's sorted too
Attached Thumbnails
Round 2: Wannabe turbo NB6C-fa4ca8ae-65fa-438b-9fdb-4cd0c76193c5_zpsnffckzar.jpg   Round 2: Wannabe turbo NB6C-fe979af5-d445-4f41-a89a-fecbead16f96_zpstsiqpa0n.jpg   Round 2: Wannabe turbo NB6C-069dbf8e-43b9-4182-b385-449714135192_zpsiyukq0zc.jpg
Sirnixalot is offline   Reply With Quote
Old 08-23-2015, 07:25 PM   #52
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 436
Total Cats: 16
Default

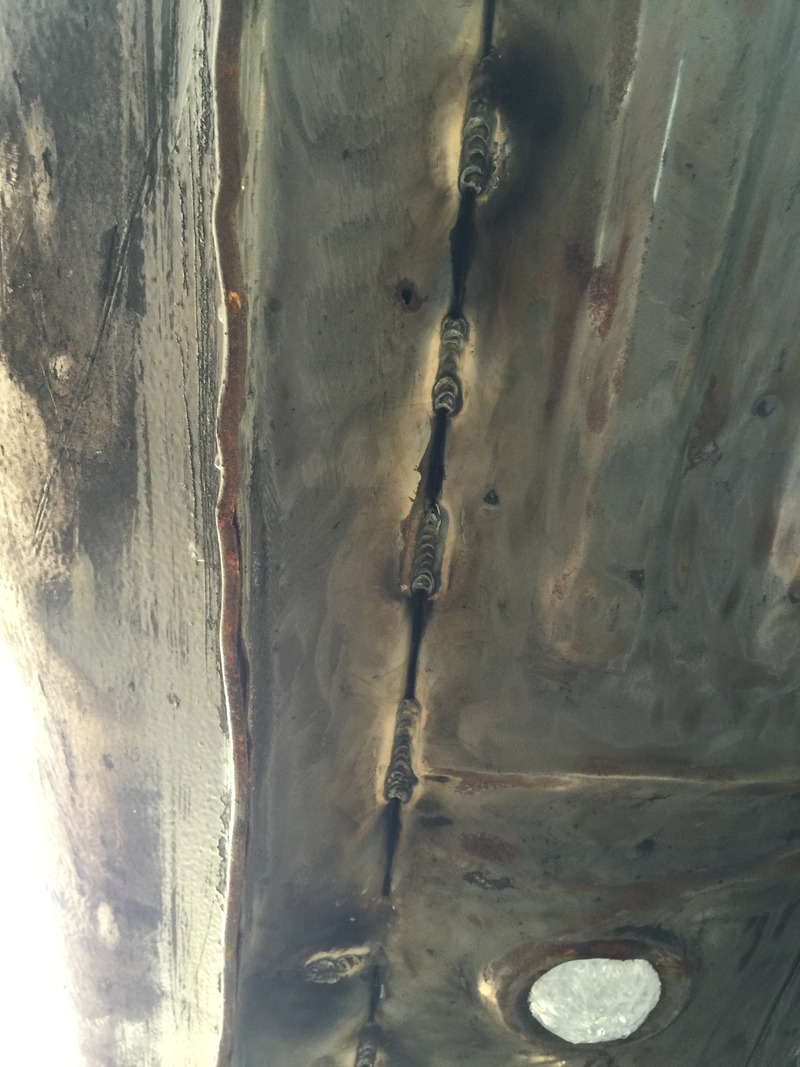

Passenger side rocker seam


Passenger rear firewall/fuel tank area


Lower part of the rear firewall/floor


Front part of the cage coated in Rustoleum Ford gloss grey

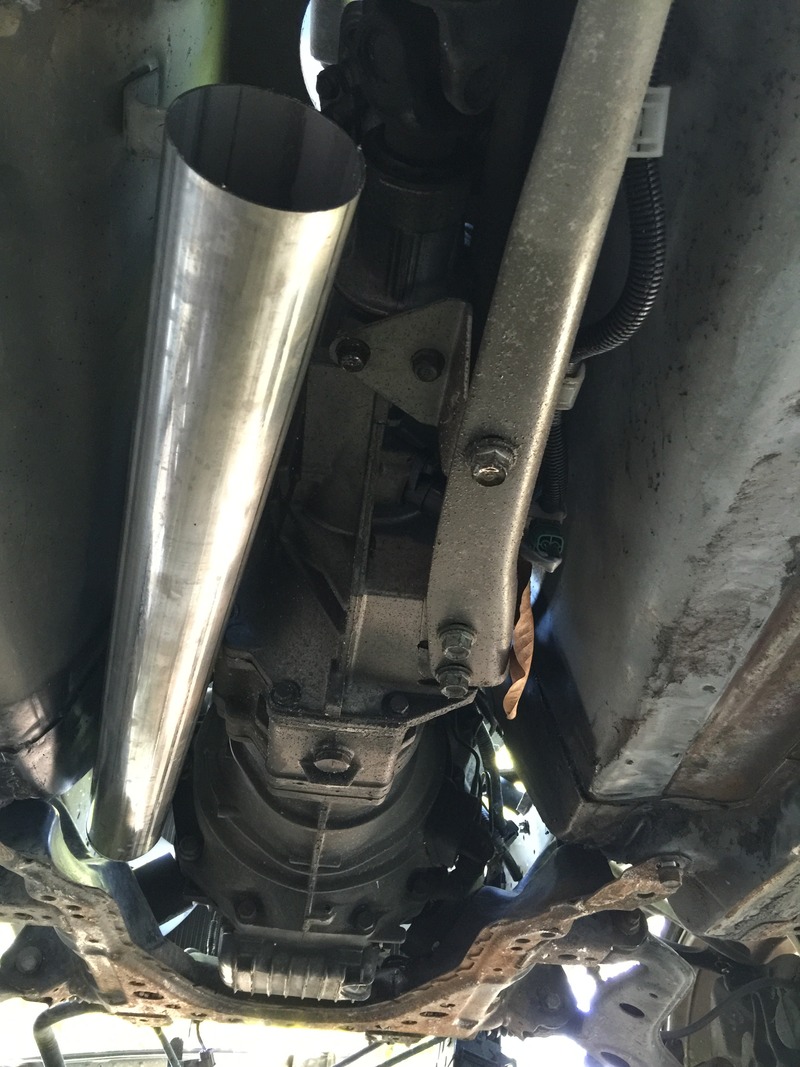

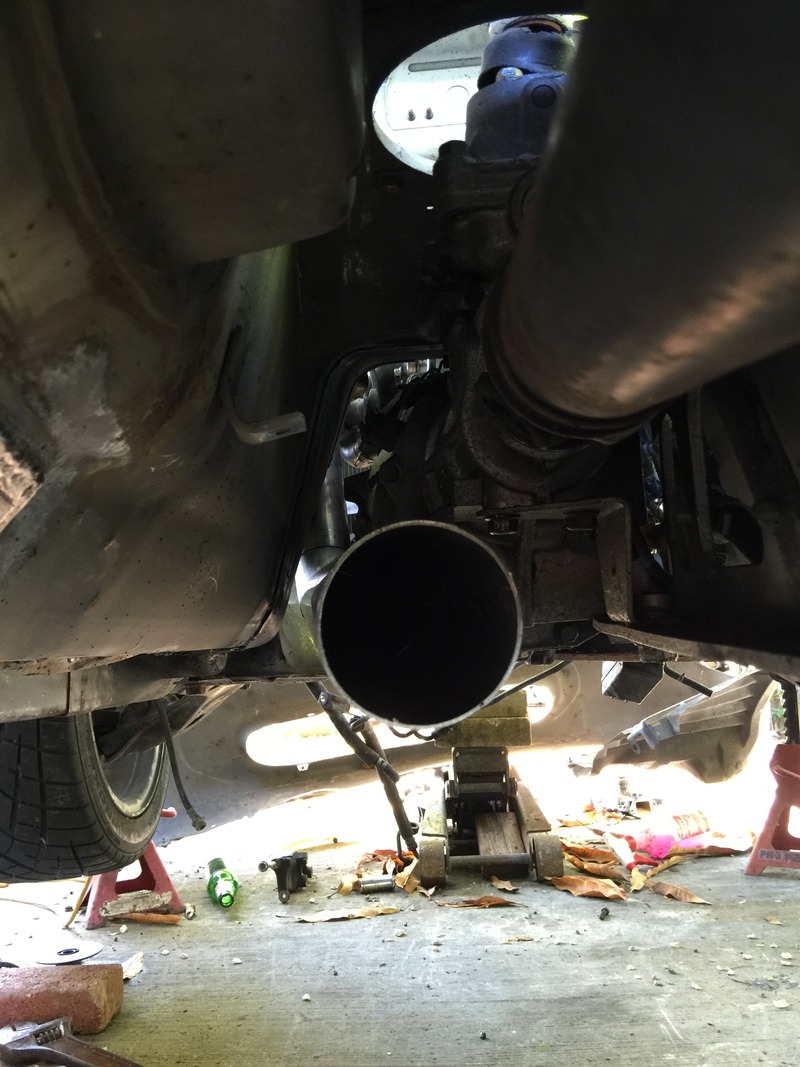

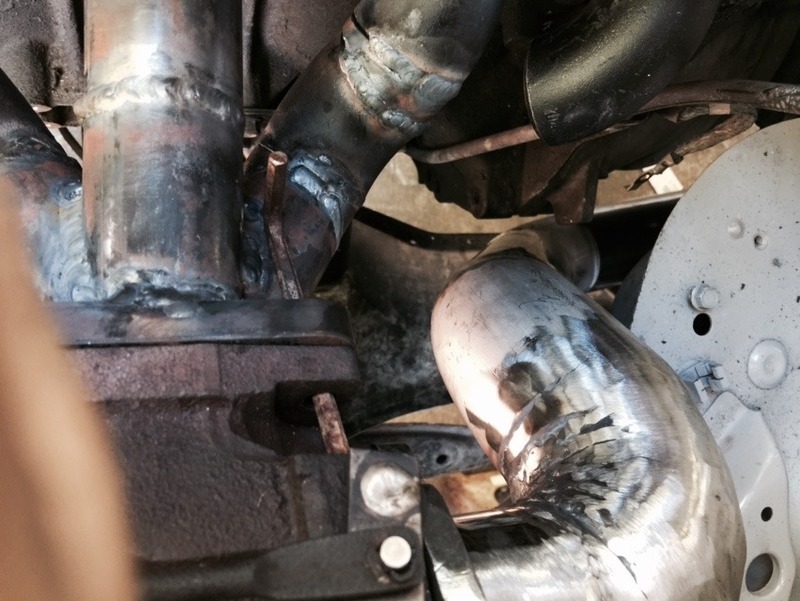

Shot of the down pipe. I may add one small pizza slice near the front to bring it a little to the left. I still need to add a flex section


Another downpipe shot

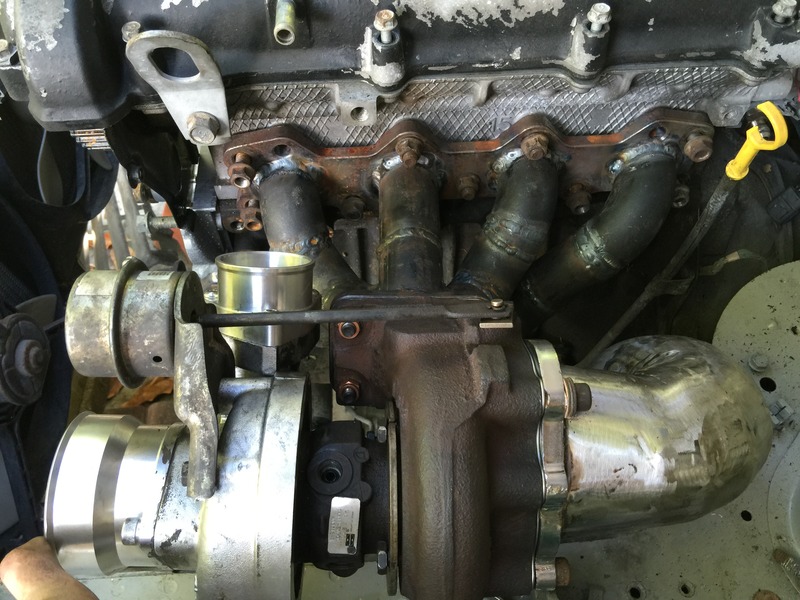

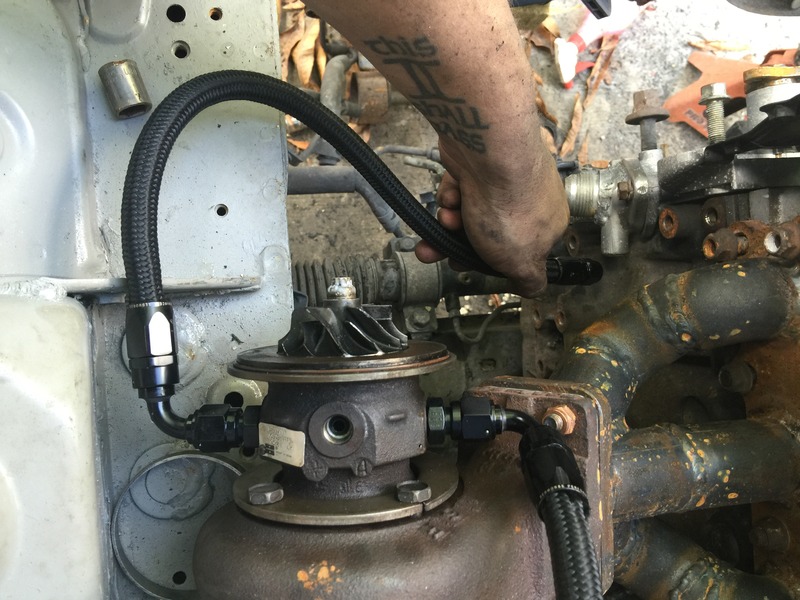

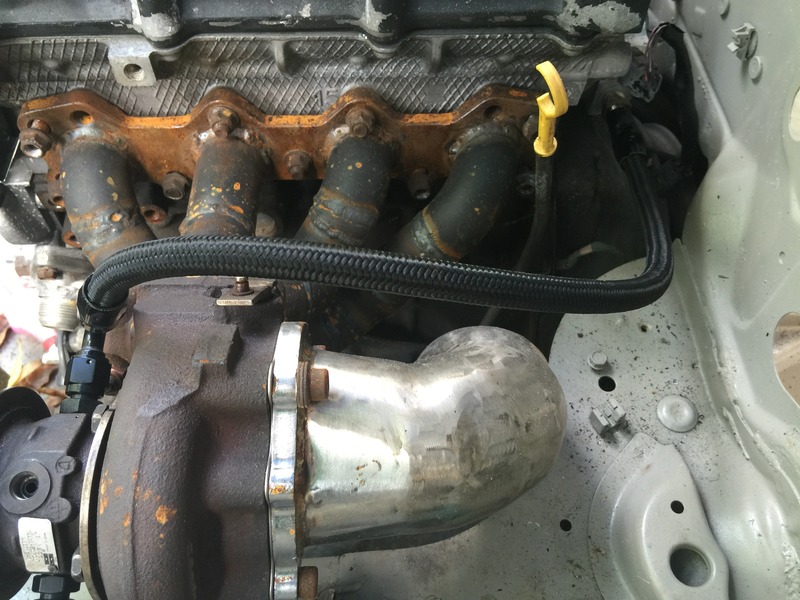

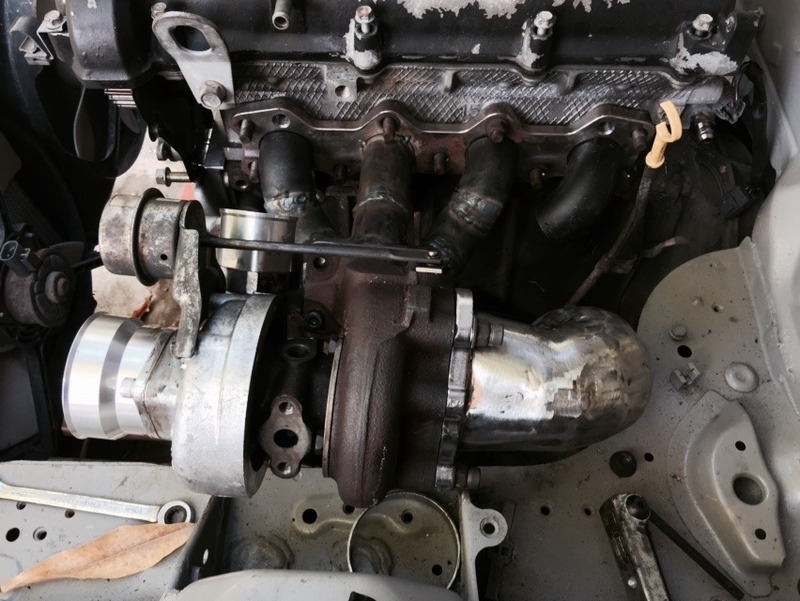

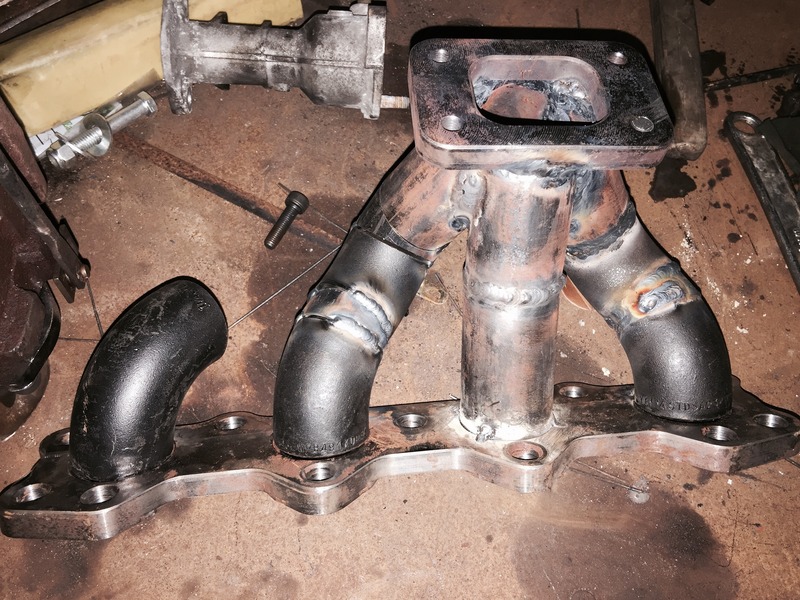

Finished welding up the manifold and reclocked the CHRA

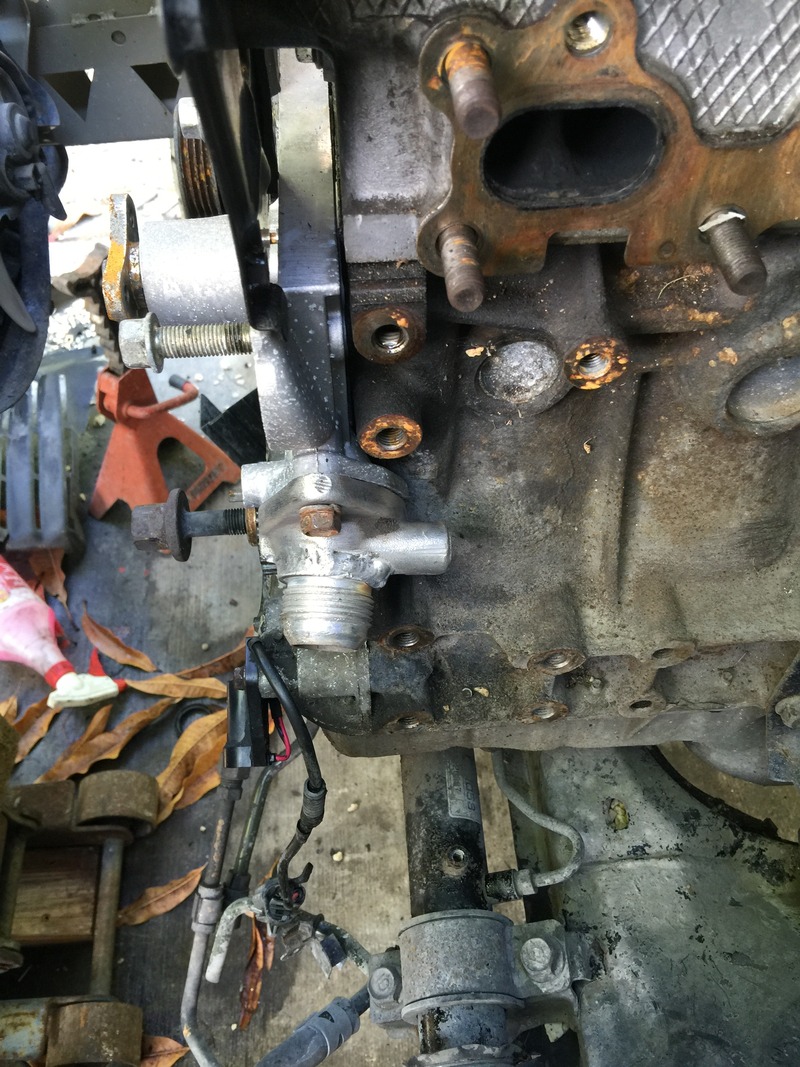

-16AN bung welded to a shortened mixing manifold. Tapped the throttle body coolant port for a 1/8NPT fitting to use for the turbo coolant. Have to weld the next one onto the Kia water neck then order 2 more for the radiator


Swapped the 7kg/mm springs to the rear and installed the new 12kg/mm springs on the front. Tomorrow I'll order some bumpstops from the Honda dealer.

I am off on tuesday so I'll get back on the seams and hopefully have that finished to get the underside painted
Attached Thumbnails
Round 2: Wannabe turbo NB6C-8adde741-69c2-4de1-bdbc-ec9dde176e53_zpsm7dqsa22.jpg   Round 2: Wannabe turbo NB6C-f2294fa0-4a86-472f-ae7c-940e83928cac_zpsivbfzfhw.jpg   Round 2: Wannabe turbo NB6C-6ca81d76-b2b9-4dd9-90d6-eb7e1a8c0b2b_zpsilklk6kh.jpg   Round 2: Wannabe turbo NB6C-b84517ce-3ec9-4b89-8562-6ef22d6d0ec9_zps7jsrur3o.jpg   Round 2: Wannabe turbo NB6C-2d871576-aaf6-459e-9aad-93e0d589f47a_zpsub1owz3k.jpg

Round 2: Wannabe turbo NB6C-8692a2b3-3b80-4812-8d81-be10b76f7c80_zpsrsfz3bl2.jpg   Round 2: Wannabe turbo NB6C-8adde741-69c2-4de1-bdbc-ec9dde176e53_zpsm7dqsa22.jpg   Round 2: Wannabe turbo NB6C-f2294fa0-4a86-472f-ae7c-940e83928cac_zpsivbfzfhw.jpg   Round 2: Wannabe turbo NB6C-6ca81d76-b2b9-4dd9-90d6-eb7e1a8c0b2b_zpsilklk6kh.jpg   Round 2: Wannabe turbo NB6C-b84517ce-3ec9-4b89-8562-6ef22d6d0ec9_zps7jsrur3o.jpg

Round 2: Wannabe turbo NB6C-8321643d-f95c-48e0-873b-dfac09d1d42b_zpsrrfme9xr.jpg   Round 2: Wannabe turbo NB6C-2d871576-aaf6-459e-9aad-93e0d589f47a_zpsub1owz3k.jpg   Round 2: Wannabe turbo NB6C-8692a2b3-3b80-4812-8d81-be10b76f7c80_zpsrsfz3bl2.jpg   Round 2: Wannabe turbo NB6C-8b3cc152-5522-4933-ac47-18f2e5523321_zpsoyl4cb9o.jpg

Last edited by Sirnixalot; 08-24-2015 at 04:23 PM.
Sirnixalot is offline   Reply With Quote
Old 08-23-2015, 09:06 PM   #53
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 14,405
Total Cats: 1,259
Default Round 2: Wannabe turbo NB6C

Please insulate the trans from the exhaust when you are finished. It will live longer.
sixshooter is offline   Reply With Quote
Old 08-23-2015, 09:25 PM   #54
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 436
Total Cats: 16
Default

The downpipe will get wrapped for sure. I need to hack up the stock header brace bracket and integrate a t bolt clamp to it or something.
Sirnixalot is offline   Reply With Quote
Old 08-25-2015, 09:11 PM   #55
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 436
Total Cats: 16
Default

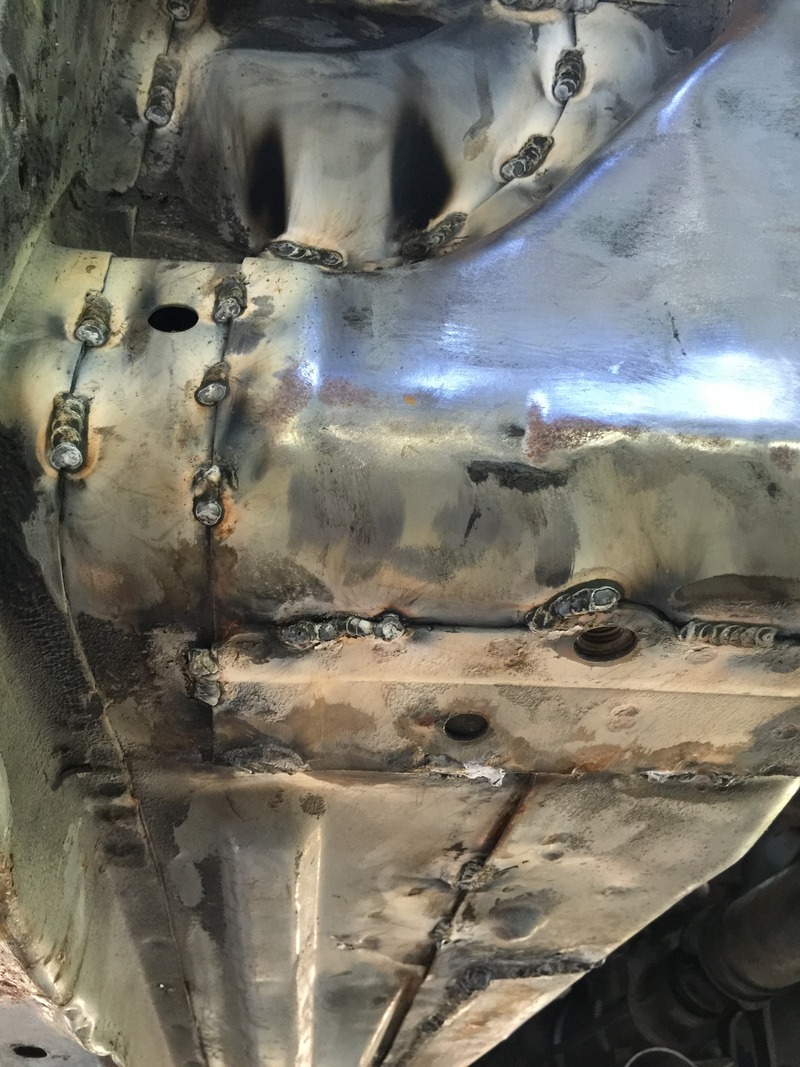

Another full day of action and I am pleased to announce the seam welding is finished

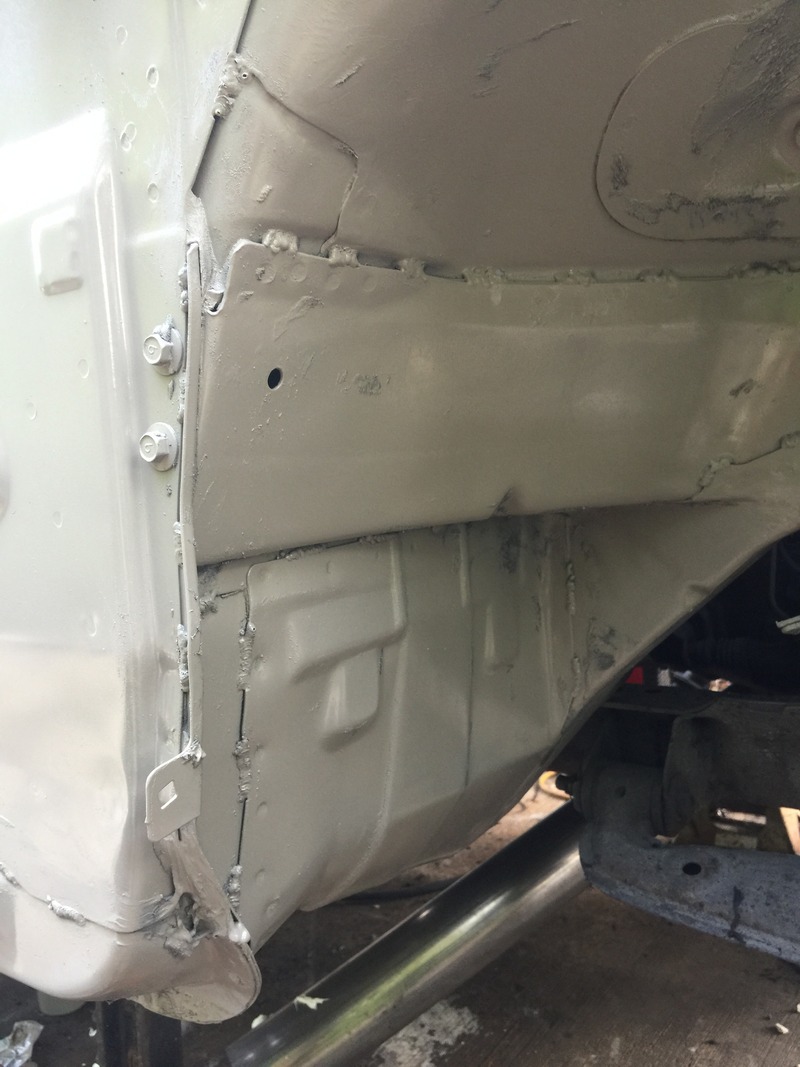

Drivers wheel well


Passenger fender area space

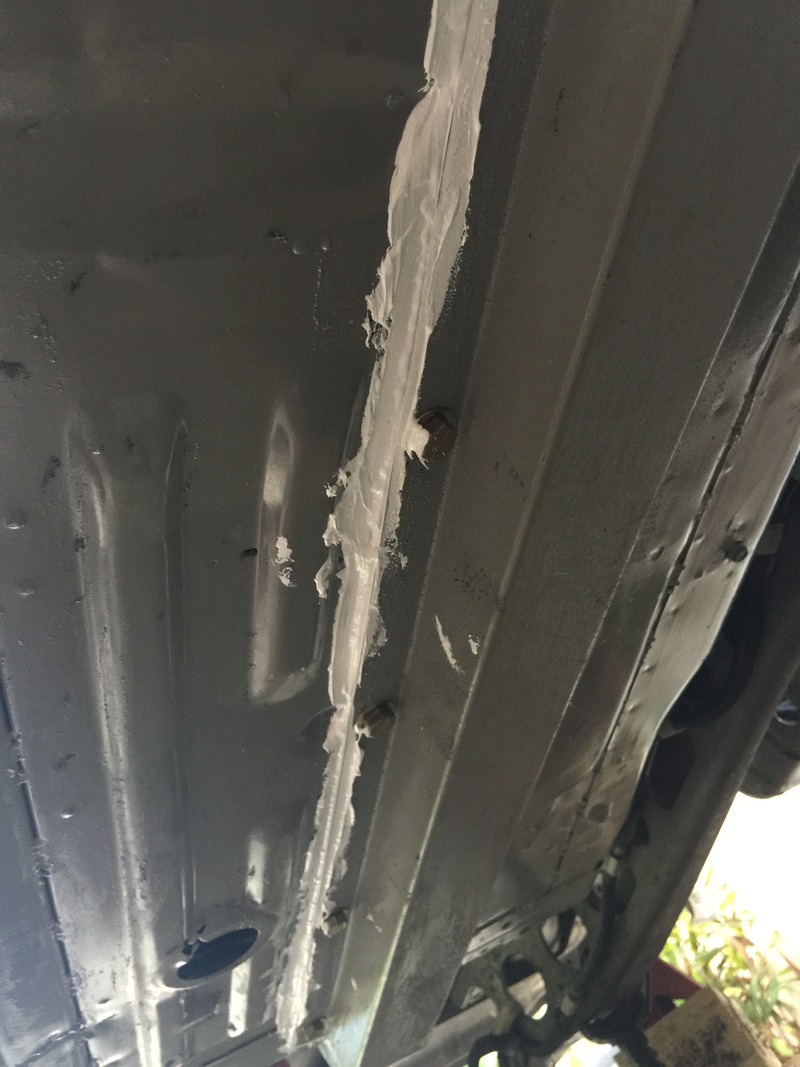

3M 5200 marine adhesive/sealant. It ain't pretty but it will stop rust from getting to the frame rails.

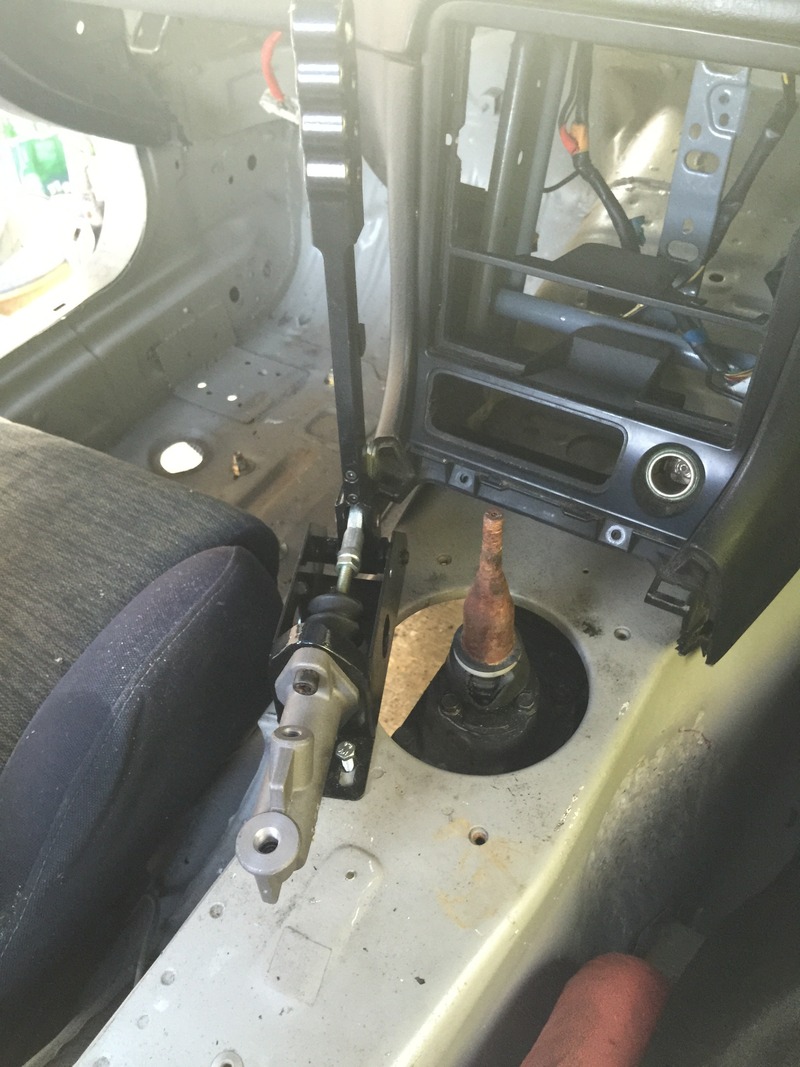

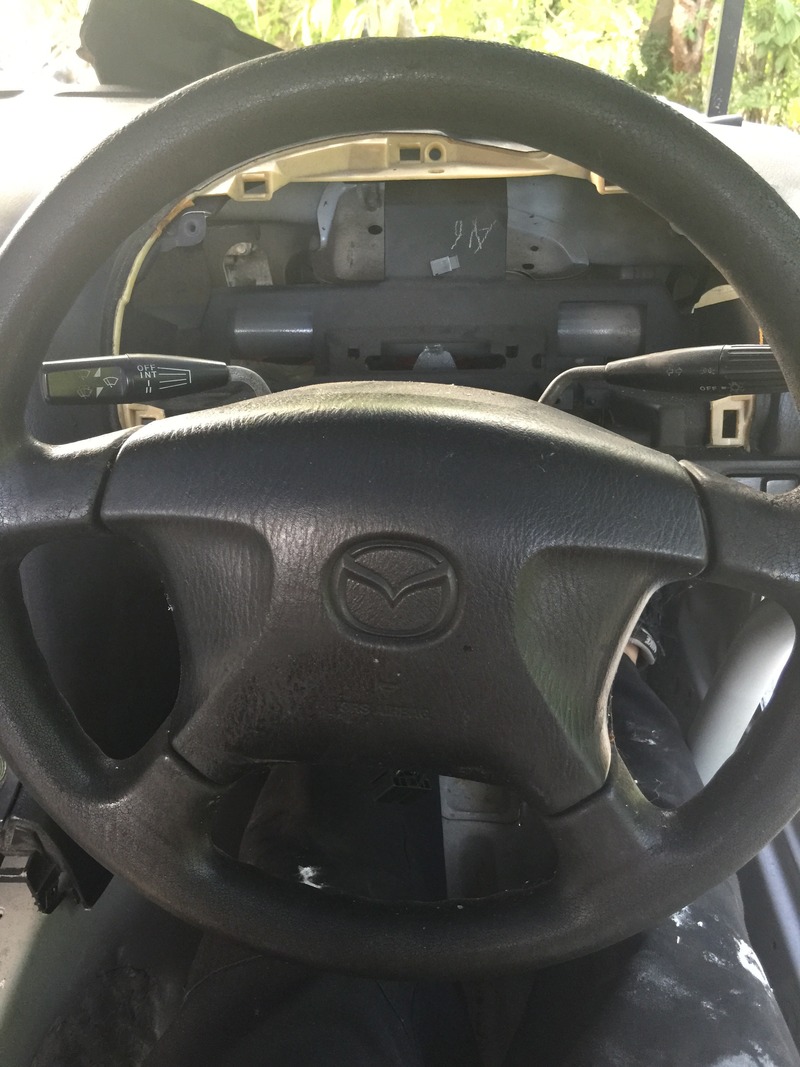

Temporarily put in the dash and steering rack to get an idea about seat placement. The sparco evo 2+ is not feasable. I have another smaller unknown brand seat that I'll use


Before I am tarred and feathered out autocross events are pretty low speed and tight and the handbrake will come in .....handy

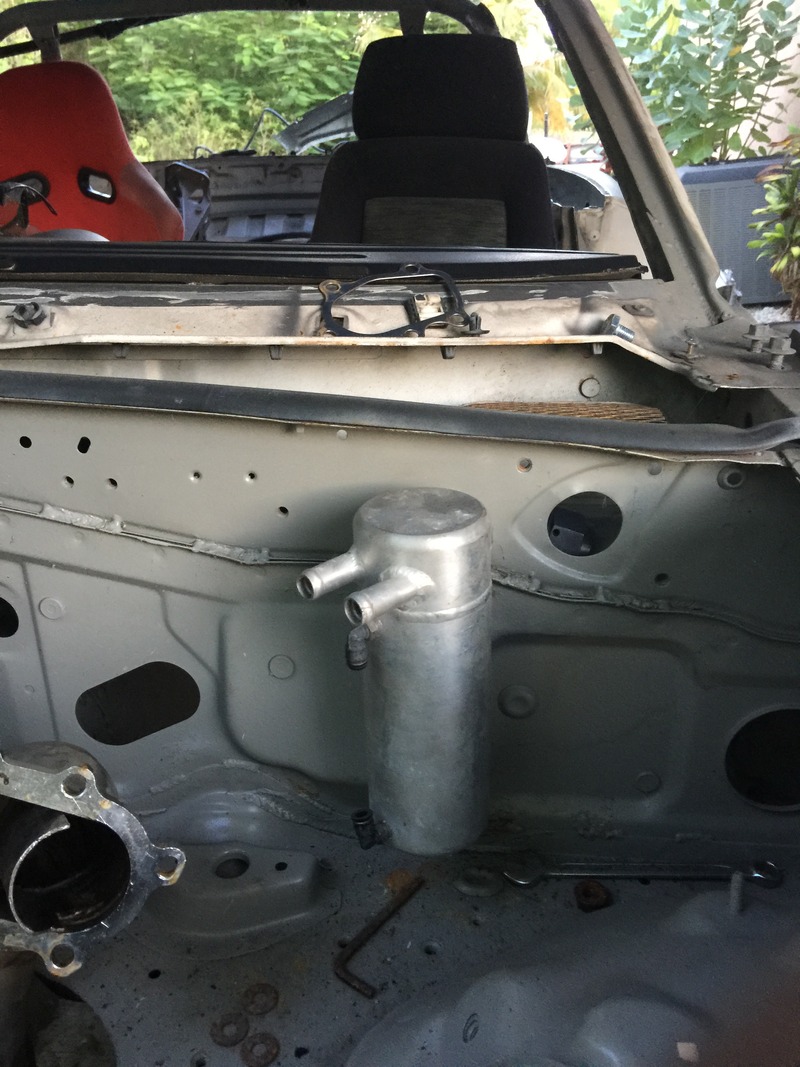

Catch can, no name red seat in background

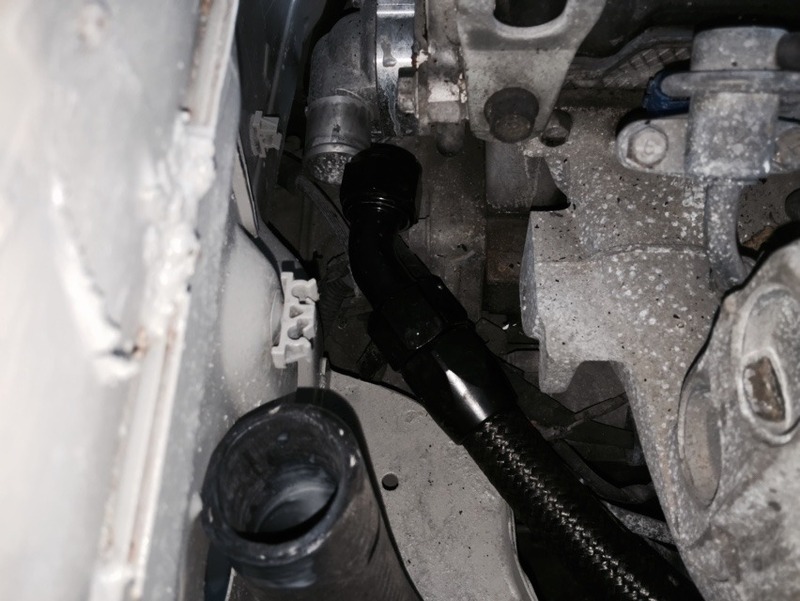

One coolant line


I need a 1/8NPT to -6AN 90* adapter and some fire sleeve and the coolant lines are done

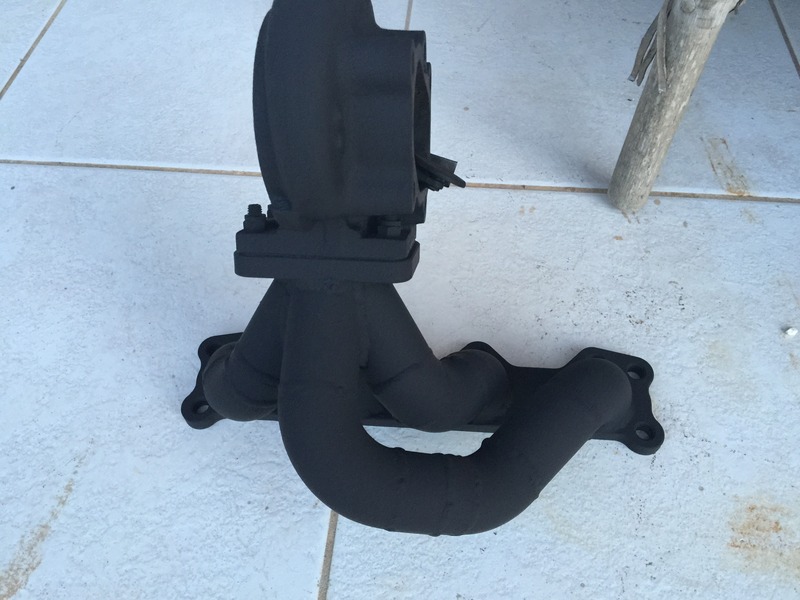

Sprayed manifold with some muratic acid, washed it off with water and wiped it dry then gave the manifold a coat of VHT flame proof. Instructions call for last curing temp to be 600* but my lowly oven can only muster 525*. Will be wrapping it soon

My brother will be tackling all the seams with 3M seam sealant and then taking the car as is to paint. Got a gallon of BMW A30 Interlagos Blue metallic to have him spray on. Letting him choose if it will be gloss or matte.

In the meanwhile my to do list stands as
Drop motor/trans/front subframe
Clean up & paint front subframe & control arms
Clean up & paint front brake calipers
Get all 4 rotors resurfaced
Put motor on stand
Pull oil pan to weld on -10AN oil drain bung
Pull cylinder head to degunk (valvetrain is covered in whats best described as tar)
Reinstall cylinder head with new Cometic gasket
Install timing belt & ****
Install rear main seal
Install new clutch/flywheel

I need to order
Intercooler piping & couplers
Turbo oil feed fitting & drain adapter
Oil cooler lines & fittings
Innovate PSB-1
Attached Thumbnails
Round 2: Wannabe turbo NB6C-b97162c0-02b0-47be-9d90-03780c5ebe96_zps6kgagstl.jpg   Round 2: Wannabe turbo NB6C-e278fd0d-f374-4d01-ade4-d39ce2649cef_zps8c2gm0dl.jpg   Round 2: Wannabe turbo NB6C-b3b804e6-c991-4e0c-b453-07ed57499636_zpslay5rwcv.jpg   Round 2: Wannabe turbo NB6C-0309237c-d8d6-4dd3-8b30-2d4b5a656955_zpsoaqymcll.jpg   Round 2: Wannabe turbo NB6C-87dc8894-0540-4a4c-a157-aed40bc96de7_zpsesmdgjzz.jpg

Round 2: Wannabe turbo NB6C-6d7af7b5-0d55-4d1d-ae67-dd11001120e7_zpssmw8jdzi.jpg   Round 2: Wannabe turbo NB6C-7fe6e21f-84a0-462d-9ea9-aee055d9b4ad_zpsold4t4ta.jpg   Round 2: Wannabe turbo NB6C-5ccc6a60-4ebc-4441-9e10-9e09e43f30aa_zpshcvhk101.jpg   Round 2: Wannabe turbo NB6C-01559fbe-eb5a-477e-ac5b-ea9653619d3a_zpsu7ydcot7.jpg   Round 2: Wannabe turbo NB6C-e81dd87e-c564-4bb9-9b16-721bf30fdc97_zpsrzry2e6e.jpg


Last edited by Sirnixalot; 08-25-2015 at 09:22 PM.
Sirnixalot is offline   Reply With Quote
Old 08-26-2015, 02:13 AM   #56
Junior Member

Join Date: Sep 2012
Location: New Zealand Christchurch
Posts: 199
Total Cats: -5
Default

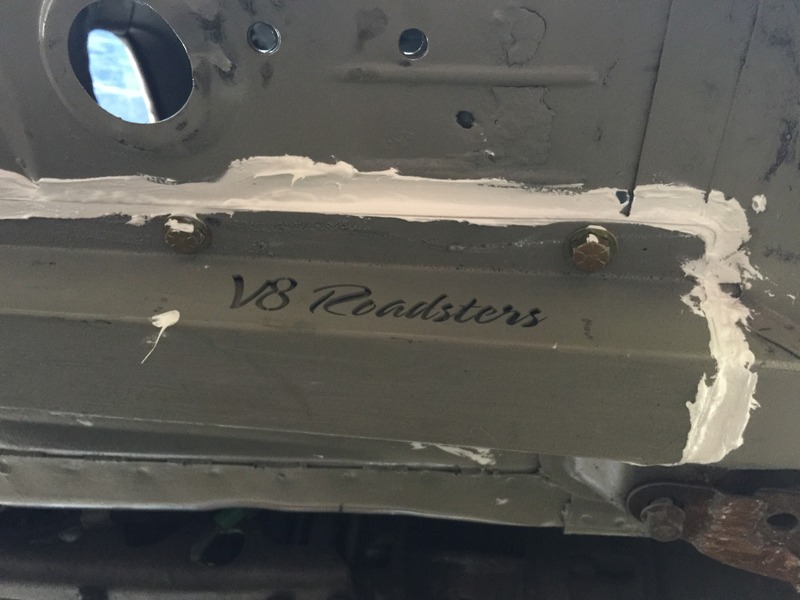

Are you sure the frame rails should be sealed up like that? I thought they were designed to let the water out if it gets in there. Where as now it will sit in there and rust it out. Just my two cents
jimmyneutron is offline   Reply With Quote
Old 08-26-2015, 09:14 AM   #57
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 436
Total Cats: 16
Default

Quote:
Originally Posted by jimmyneutron View Post
Are you sure the frame rails should be sealed up like that? I thought they were designed to let the water out if it gets in there. Where as now it will sit in there and rust it out. Just my two cents
There are no holes on the bottom of the V8R ones so I decided to just seal them up and spray undercoating inside the frame rails. I don't really plan on driving this in the rain so I am hoping I don't encounter any more issues.
Sirnixalot is offline   Reply With Quote
Old 08-27-2015, 07:15 AM   #58
Junior Member

Join Date: Jan 2014
Location: Finland
Posts: 79
Total Cats: -10
Default

You know that changes in temperature leads to water condensation on metal surfaces? You just speeded up your frame rail rusting.
Vuti is offline   Reply With Quote
Old 08-27-2015, 08:23 AM   #59
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 14,405
Total Cats: 1,259
Default

It will be ok. There is a big opening on each end and where it says v8roadsters.
sixshooter is offline   Reply With Quote
Old 08-27-2015, 09:05 AM   #60
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 436
Total Cats: 16
Default

Quote:
Originally Posted by Vuti View Post
You know that changes in temperature leads to water condensation on metal surfaces? You just speeded up your frame rail rusting.
lol @ changes in temperature. It's always hot and humid here for the ambient temps to drop below 75*F it has to be 4:30AM for that one cold day in February and even then humidity never drops below ~80%

I guess I should break down what I have done to both the car frame rails and the V8R pieces

Step 1
Wirebrush wheel and get to bare metal

Step 2
Brush on some Ospho and let sit for 24hrs Ospho Rust Treatment - Since 1947

Step 3
Rustoleum self etching primer

Step 4
ACE rust stop paint

Step 5 is yet to be done. I need to find an applicator nozzle that will reach all the way up and down the inside of the OEM rails for the zeibart type rust proofing.

I was aiming to mitigate water that I would drive through settling in between the frame rails and the braces and coming through the bolt holes. For my climate I think this was the best compromise.

But you guys have given me some food for thought and I'll read up a little more, it's not like I can't remove the front and rear sections of sealant for some more breathing room between them.
Sirnixalot is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Project Gemini - Turbo Civic on the Cheap Full_Tilt_Boogie Build Threads 55 05-06-2017 08:18 PM
WTB MP62 (Hotside) (NB2) Rick02R WTB 3 01-03-2016 07:18 PM
Expected intake temps on the track? tazswing Race Prep 20 10-03-2015 11:04 AM
ISO 1.6 turbo cast iron manifold cale saurage DIY Turbo Discussion 16 10-01-2015 11:25 AM


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 08:28 AM.
