Default shaping aluminum

well im in the middle of a a project, fabbing a intake manifold.

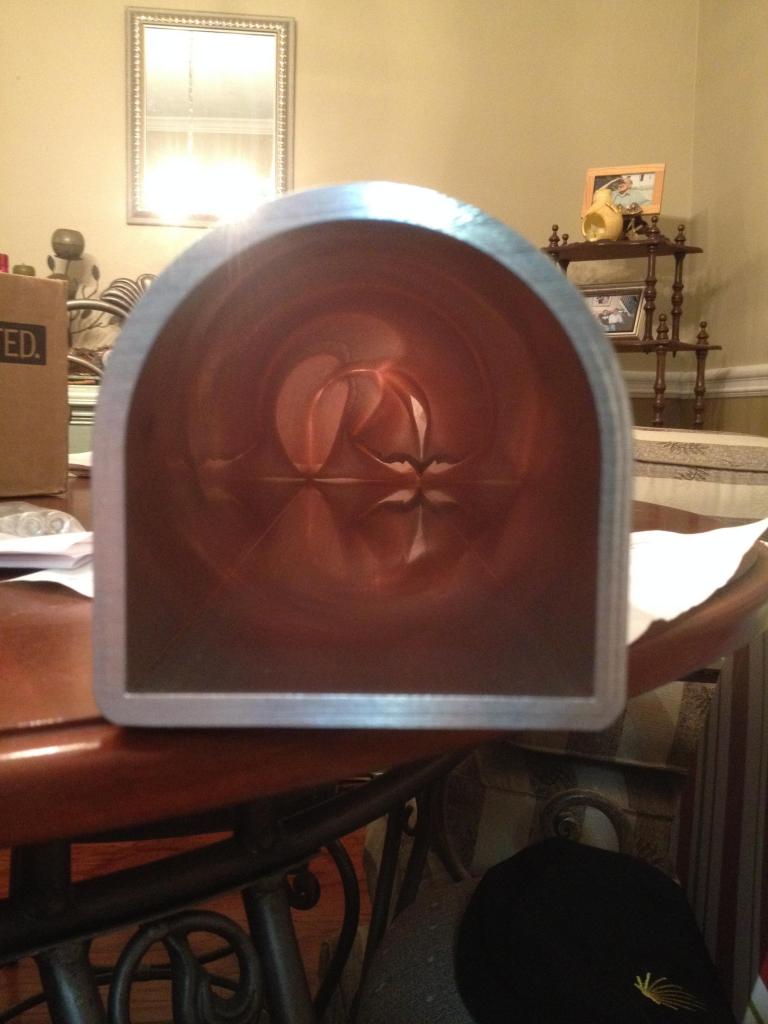

my problem is that i have a piece of aluminum plenum, in a half circle shape.
here is what im talking about:

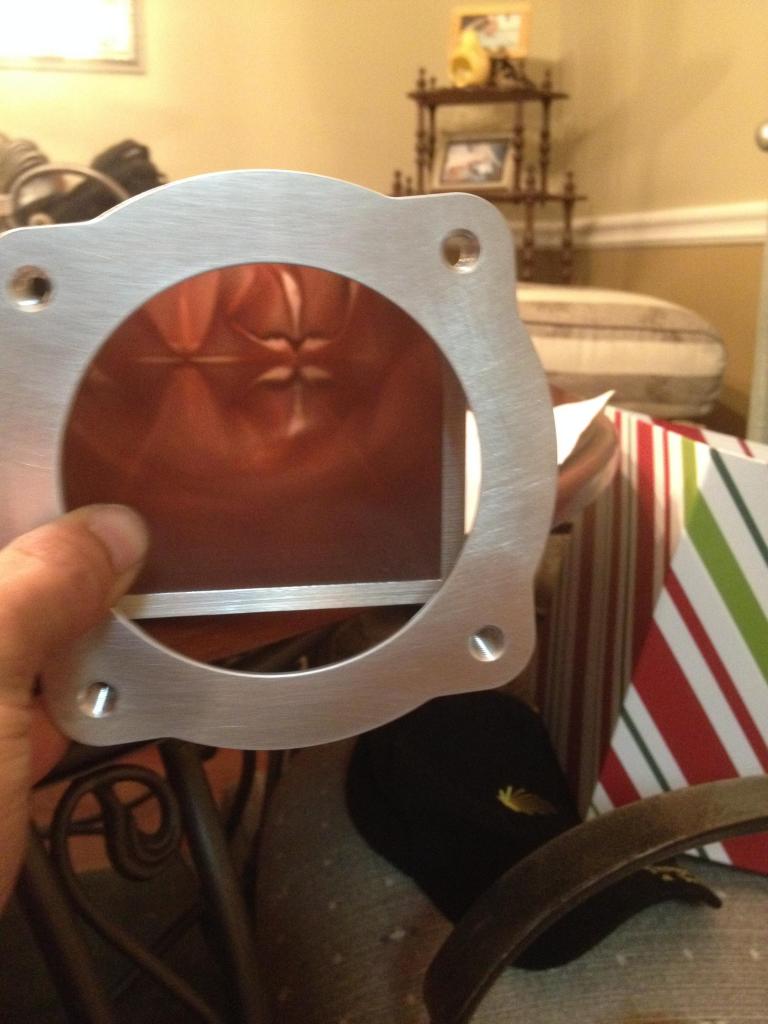

and my throttle body flange is a larger circle:


i was thinking of using a exhaust pipe expander with heat to get the circle shape from the half circle shaped plenum.

what do you think, will it work?

have a better idea to get these two pieces of aluminum to match up for welding???
Attached Thumbnails
shaping aluminum-photo1.jpg   shaping aluminum-photo2.jpg
atl is offline   Reply With Quote
Old 04-14-2014, 10:18 AM   #2
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

Well you can buy a flange with the same bolt pattern made to fit that plenum.

Q45 throttlebody adapter plate

Or you can adapt it to what you need. In witch case the easiest would be something like this.

www.ka-t.org • View topic - intake manifold differences


On the other hand you could use some small pieces and "work" the end of the plenum to fit the flange better.
Sean is offline   Reply With Quote
Old 04-14-2014, 10:27 AM   #3
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

I wouldn't try to reshape the aluminum extrusion, even if it 5052 (if it's 6061, then definitely not).

Aluminum cracks so easily. Even if there are no visible cracks, chances are you'll cause some stress points, which once bolted to a vibrating engine, will result in cracks. You're probably better off cutting/milling the corners down and welding in plates, so that on one side, you'll have a Hexagon profile instead of an arc.


-Zach
thasac is offline   Reply With Quote
Old 04-14-2014, 10:38 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

how large is that TB?


is the hole of the TB flange, the same as the opening of the plenum?
Braineack is offline   Reply With Quote
Old 04-14-2014, 12:41 PM   #5
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

I would ditch the flange, and have one milled to match your throttle body bolt pattern, but have the inside match the rounded/square opening of the manifold. Contact Tim and give him a bunch of money, I'm sure he'd whip it out in a day.
curly is offline   Reply With Quote
Old 04-14-2014, 08:38 PM   #6
atl
Junior Member
Thread Starter

Join Date: Apr 2014
Location: atlanta ga
Posts: 77
Total Cats: -58
Default

Quote:
Originally Posted by thasac View Post
I wouldn't try to reshape the aluminum extrusion, even if it 5052 (if it's 6061, then definitely not).

Aluminum cracks so easily. Even if there are no visible cracks, chances are you'll cause some stress points, which once bolted to a vibrating engine, will result in cracks. You're probably better off cutting/milling the corners down and welding in plates, so that on one side, you'll have a Hexagon profile instead of an arc.


-Zach
yes i believe it is 6061, since the flange is 6061. so ill take ur advise and i will not try appling heat to it and expanding the plenum.
atl is offline   Reply With Quote
Old 04-14-2014, 08:41 PM   #7
atl
Junior Member
Thread Starter

Join Date: Apr 2014
Location: atlanta ga
Posts: 77
Total Cats: -58
Default

i bought a longer length than i needed, just in case i couldnt stretch it, and i had to cut it up and weld it together.

now if i cant stretch it, is it ok to bend it? and how far till i start to comprise the integrity of the piece of aluminum.
atl is offline   Reply With Quote
Old 04-14-2014, 09:17 PM   #8
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

Quote:
Originally Posted by atl View Post
i bought a longer length than i needed, just in case i couldnt stretch it, and i had to cut it up and weld it together.

now if i cant stretch it, is it ok to bend it? and how far till i start to comprise the integrity of the piece of aluminum.
Depends on the alloy. Alloys such as 5052 will bend without much drama. 6061? - not so much.

I advised against reshaping due to the 90deg corners, as that extrusion will likely not tolerate that much reshaping.

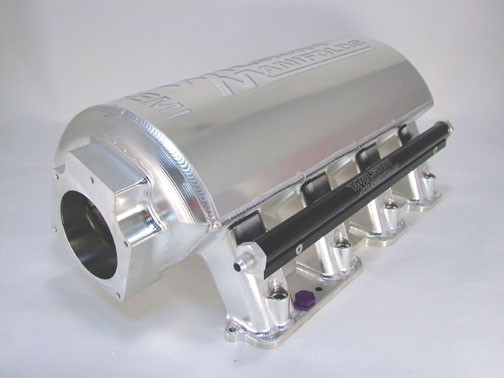

As Curly stated, the nicest/most baller way of going about this is to machine a custom end cap. Such as this:



The cheaper approach would be to either created create a hexagonal profile using some well placed corner cuts, or, just weld an end plate cut from sheet stock.

I'm under the impression that much of the gains with custom intakes are had by tweaking runner length, i.e., a flat plate is probably "fine".

-Zach
Attached Thumbnails
shaping aluminum-26044d1192537875-looking-intake-manifold-pics-hemi-6.1.jpg
thasac is offline   Reply With Quote
Old 04-15-2014, 10:09 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

why do you even need to do that?

Why can't you cut a plate the same shape as the plenum, cut a hole in it that matches the TB hole. Weld the plate to the TB flange, and then weld the plate to the plenum?
Braineack is offline   Reply With Quote
Old 04-15-2014, 11:49 AM   #10
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Quote:
Originally Posted by Braineack View Post
why do you even need to do that?

Why can't you cut a plate the same shape as the plenum, cut a hole in it that matches the TB hole. Weld the plate to the TB flange, and then weld the plate to the plenum?
because the throttle body hole is bigger than the plenum.


OP.

cut the intake plenum to the proper length for the floor ports and if your using them the velocity stacks.

Then your going to need to form some aluminum (3000 series is formable if not heat treated) into a semi truncated cone to fit both the throttle body and the plenum shape.

The way I would do it is to put the throttle body flange at an angle (point it down in a Miata to help with the cold side charge pipe) to help smooth out the transition over a longer period.

Its a lot of work.






Last option would be to run a smaller throttle body that isn't an LS1 throttle body so that its much more reasonable and it will fit better. I think the LS1 TB is way too big for our cars anyways.
shlammed is offline   Reply With Quote
Old 04-15-2014, 11:51 AM   #11
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

in my thinking, I have remembered a reference to what I kind of just described.

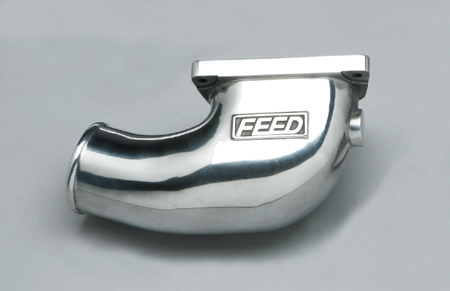

An inlet elbow for an RX7.
