Old 03-15-2014, 11:57 PM   #21
Junior Member
Thread Starter

Join Date: Jul 2009
Location: San Fran
Posts: 94
Total Cats: 6
Default

Big update from last weekend, its up and running now! Wife was gone for a couple of weeks, so took care of business!!! Main task was connecting the exhaust, connecting oil/water lines, boost gauge. Thank goodness for being familiar w/ the Megasquirt previously! Best advice ever!

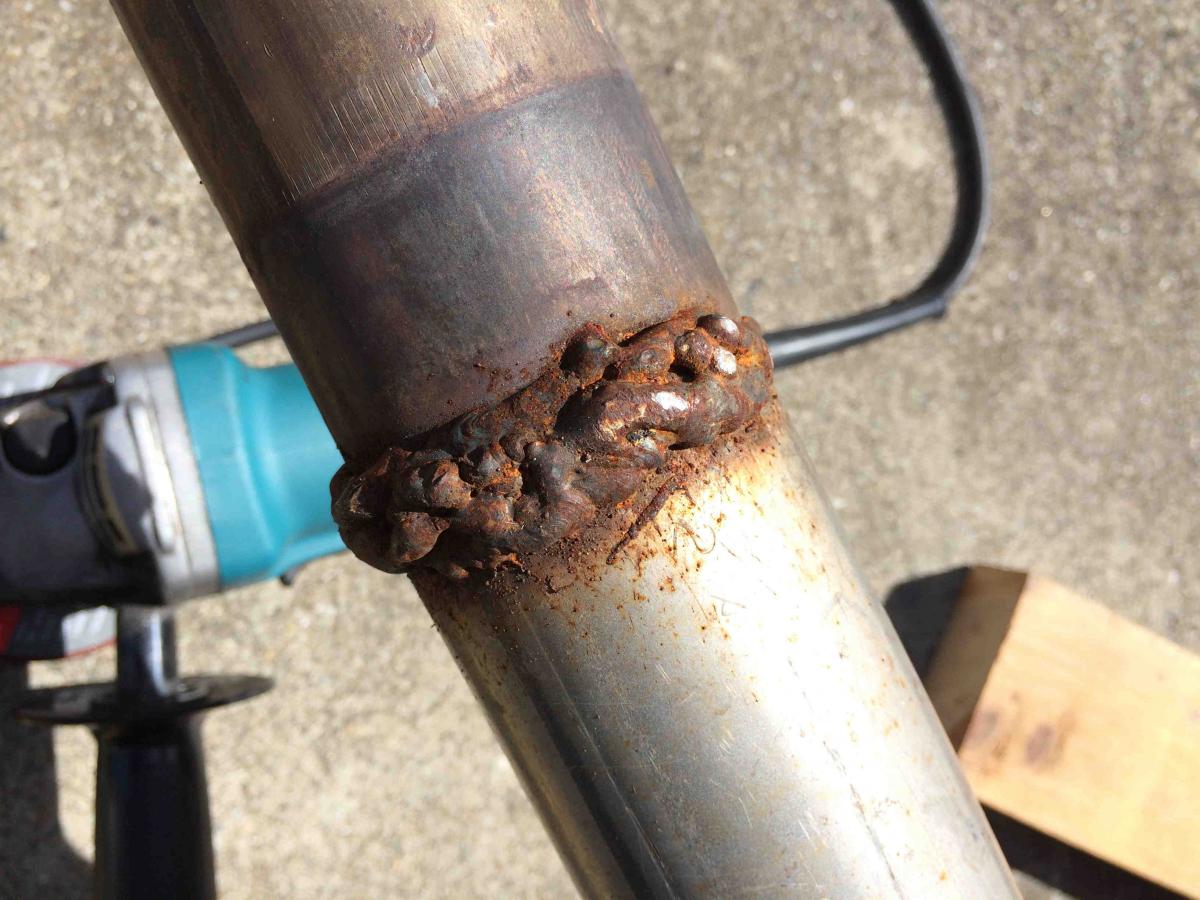

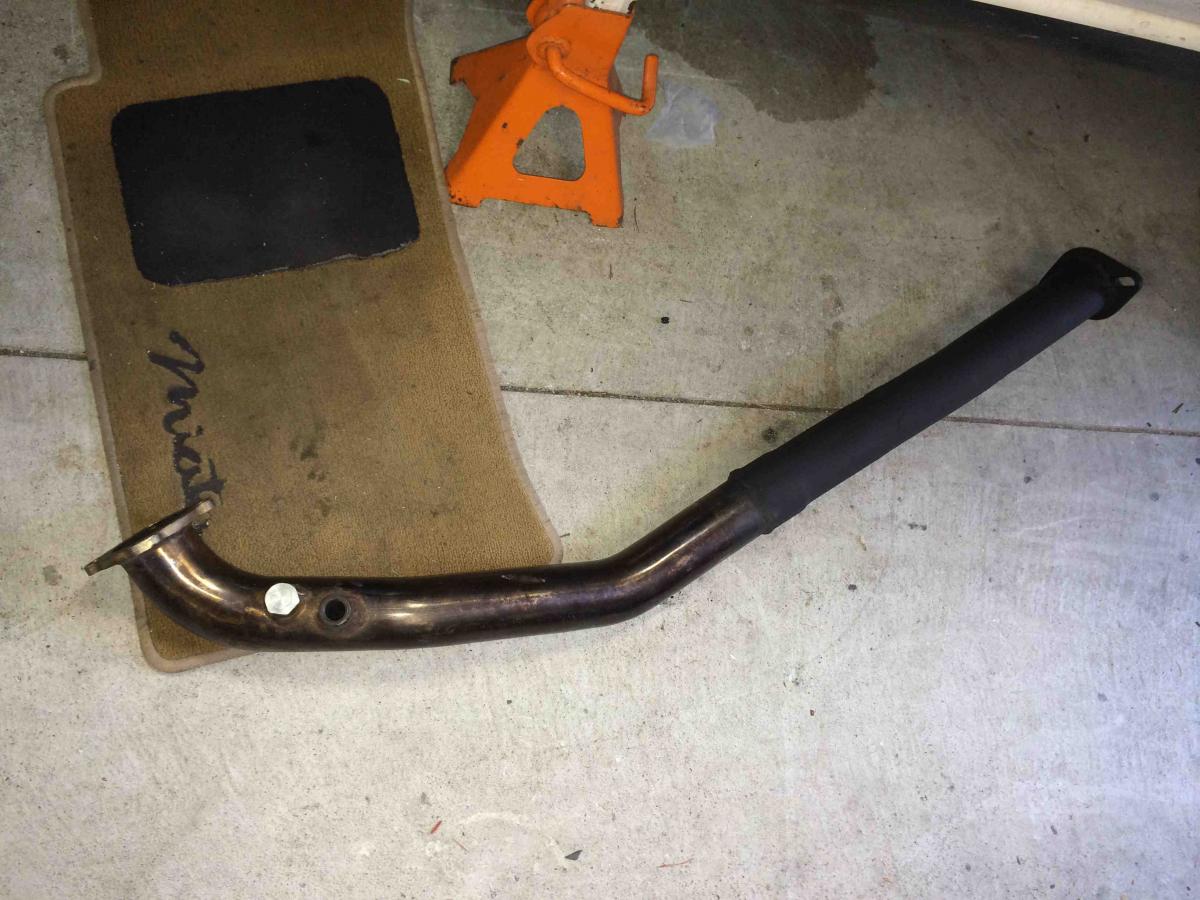

Here's some juicy welds that came with the downpipe to muffler. It was all one piece with these herculean welds. Couldn't imagine putting in a one piece exhaust since I'm not a muffler shop and not easily maintainable. So some flanges were in order...

Here's one of two juicy ones which my grinder was ready for...

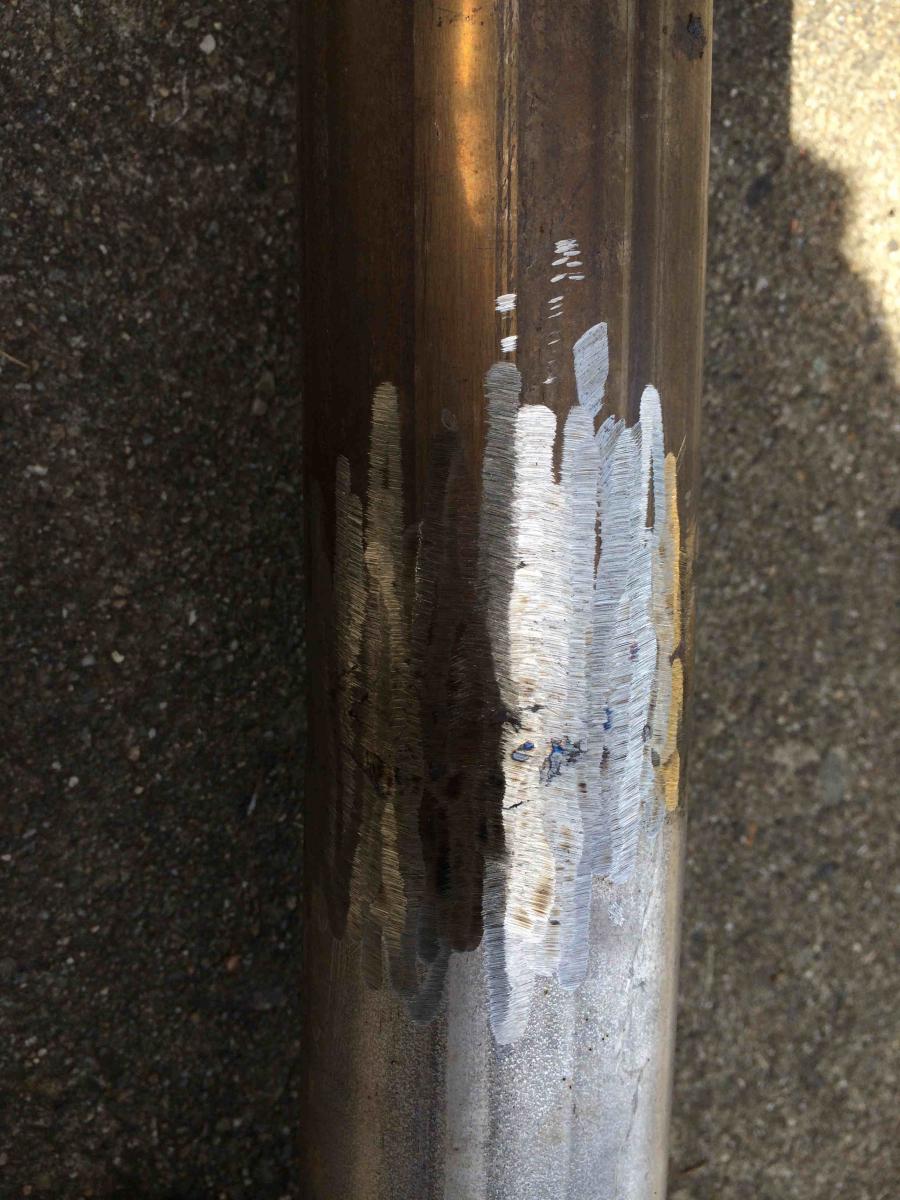

After grinding

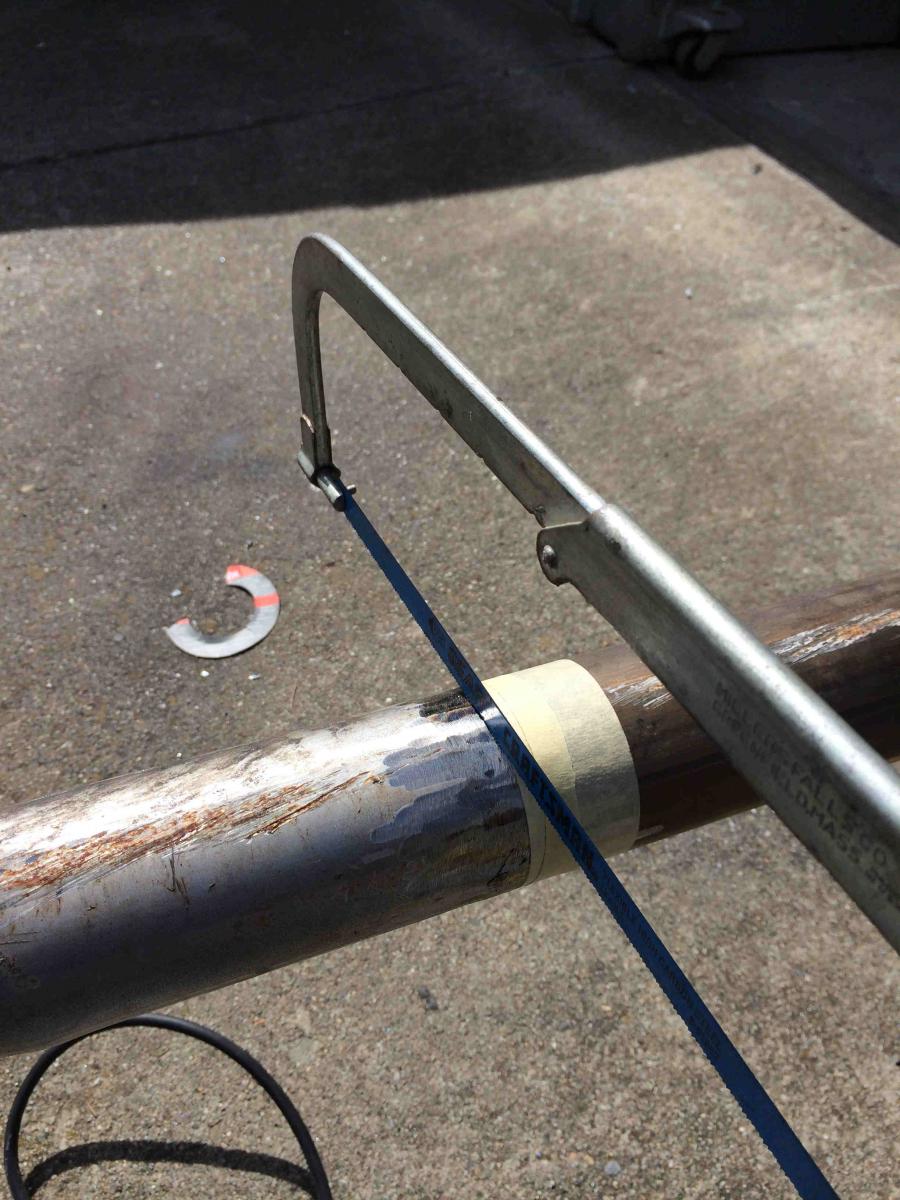

Cutting for flanges

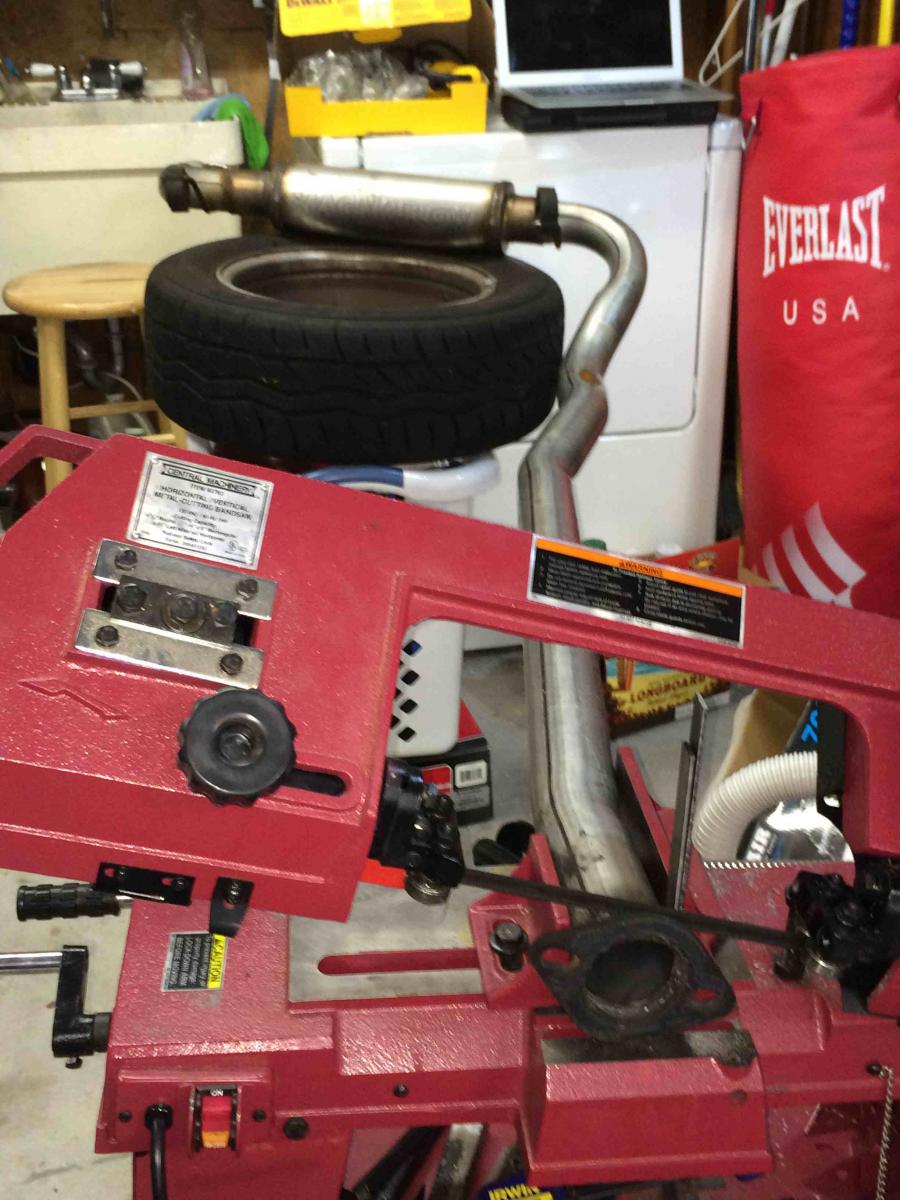

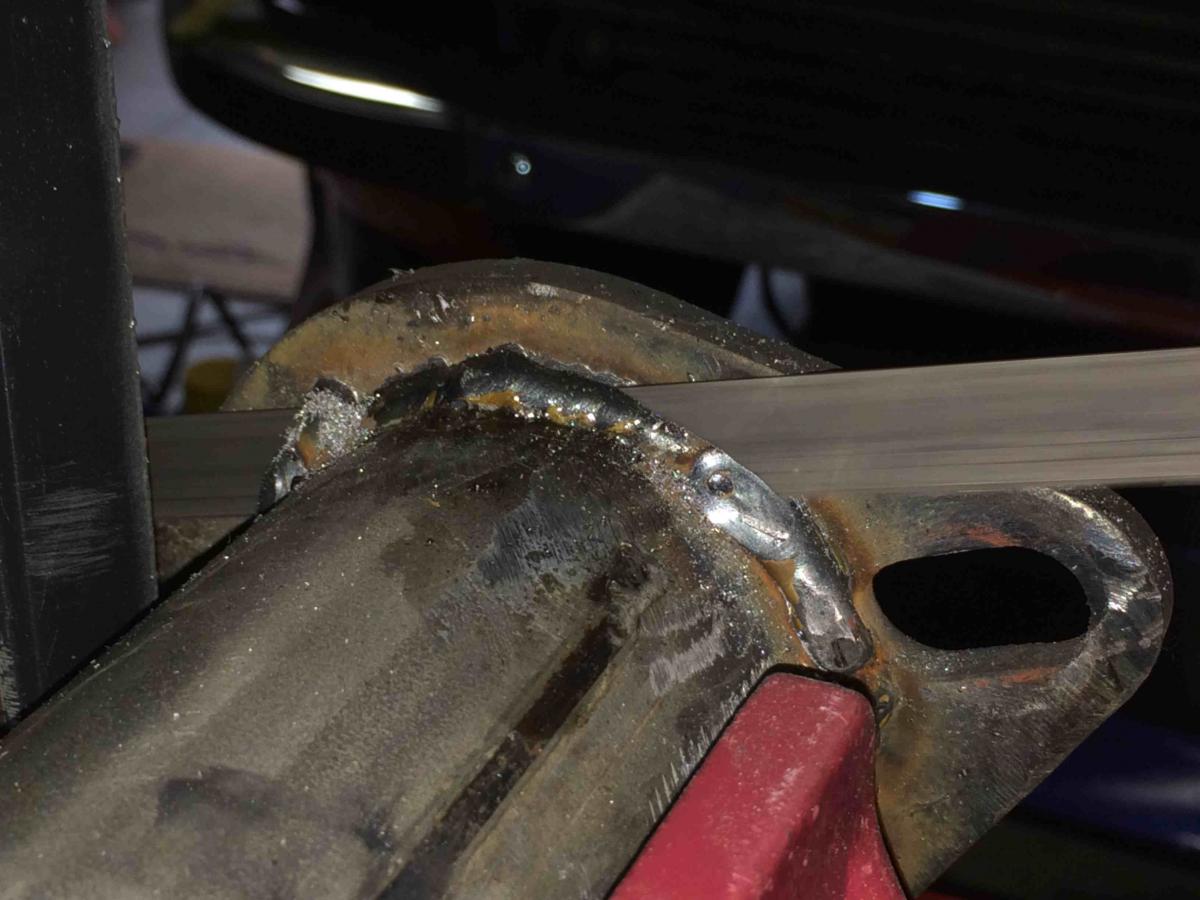

Welded it up w/o tacking on car first was a mistake. Had to cut the weld off via the trusty Harbor Freight Saw. I love this thing! (note, the laundry basket stand... )

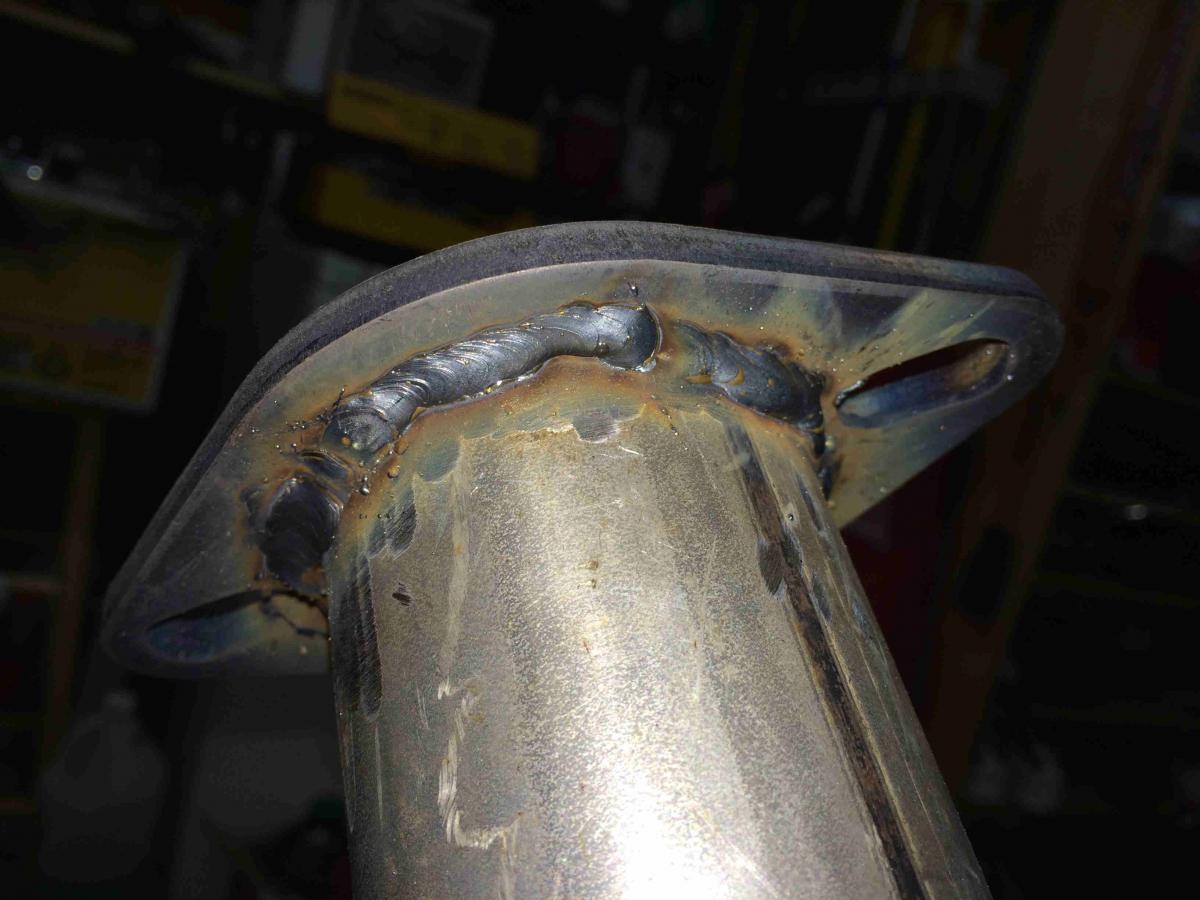

Finally, got to use my Miller 180 220V Mig Welder on something!

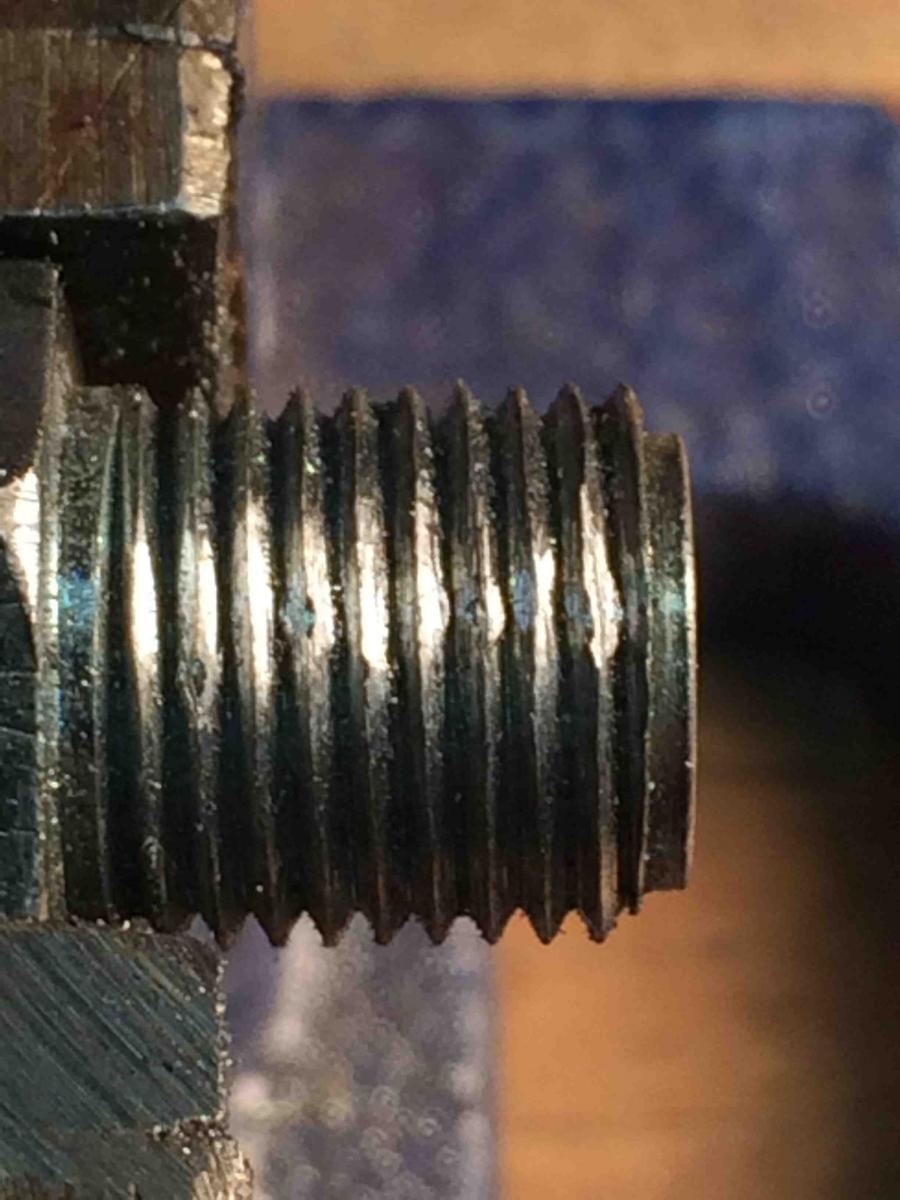

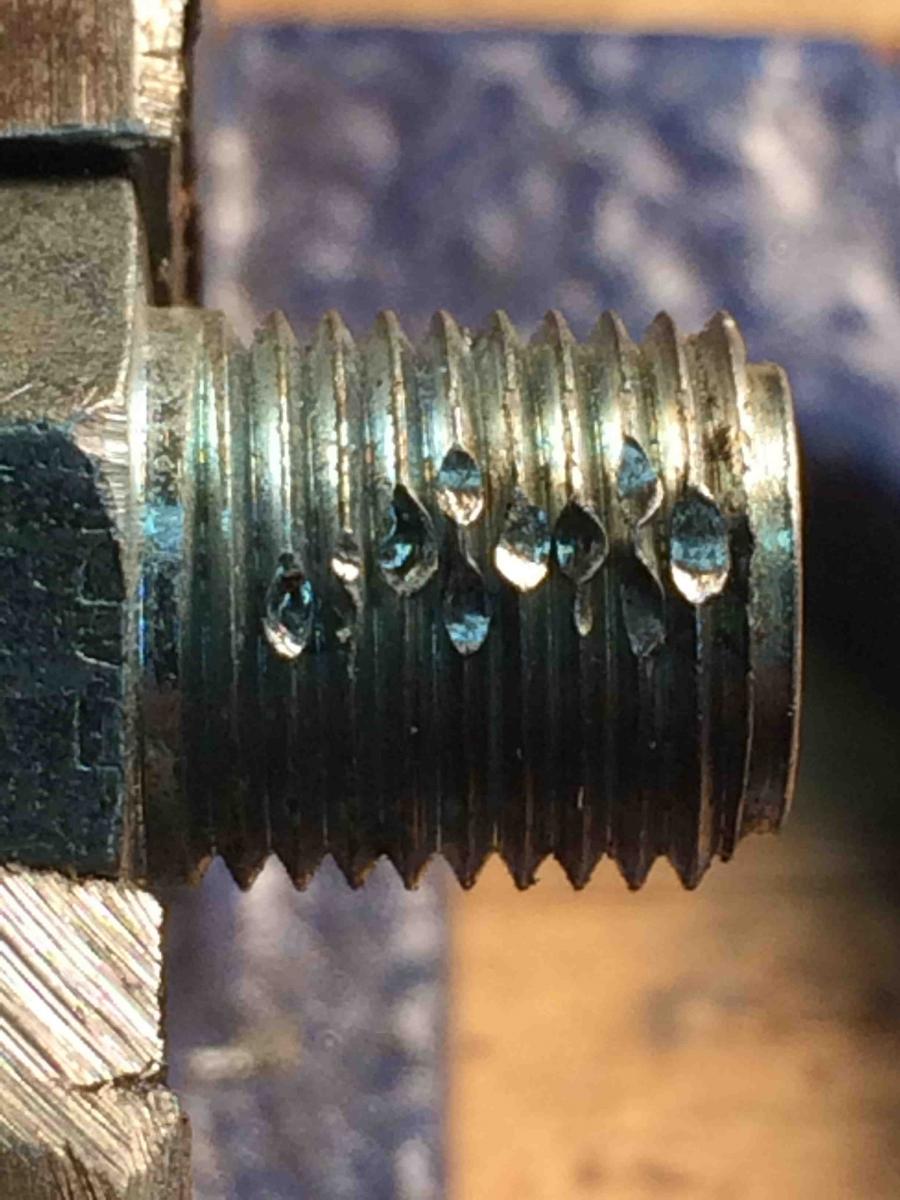

One of the big mistakes was when I removed the oil line threaded fitting I stuck it in a vice, not thinking about how'd the threads would get jacked. I went looking all around for a replacement, but this stuff you can't find but online. I couldn't even fine a die for it either. After hours wasted, decided to use a file to see if that'd do the trick. Otherwise, another part order would set me back days waiting for the part.

Last ditch attempt was a success. It screwed into the block w/o a hitch. The fact that the threads don't really seal but the inverted flare does, that was a big plus!

Before:



After:

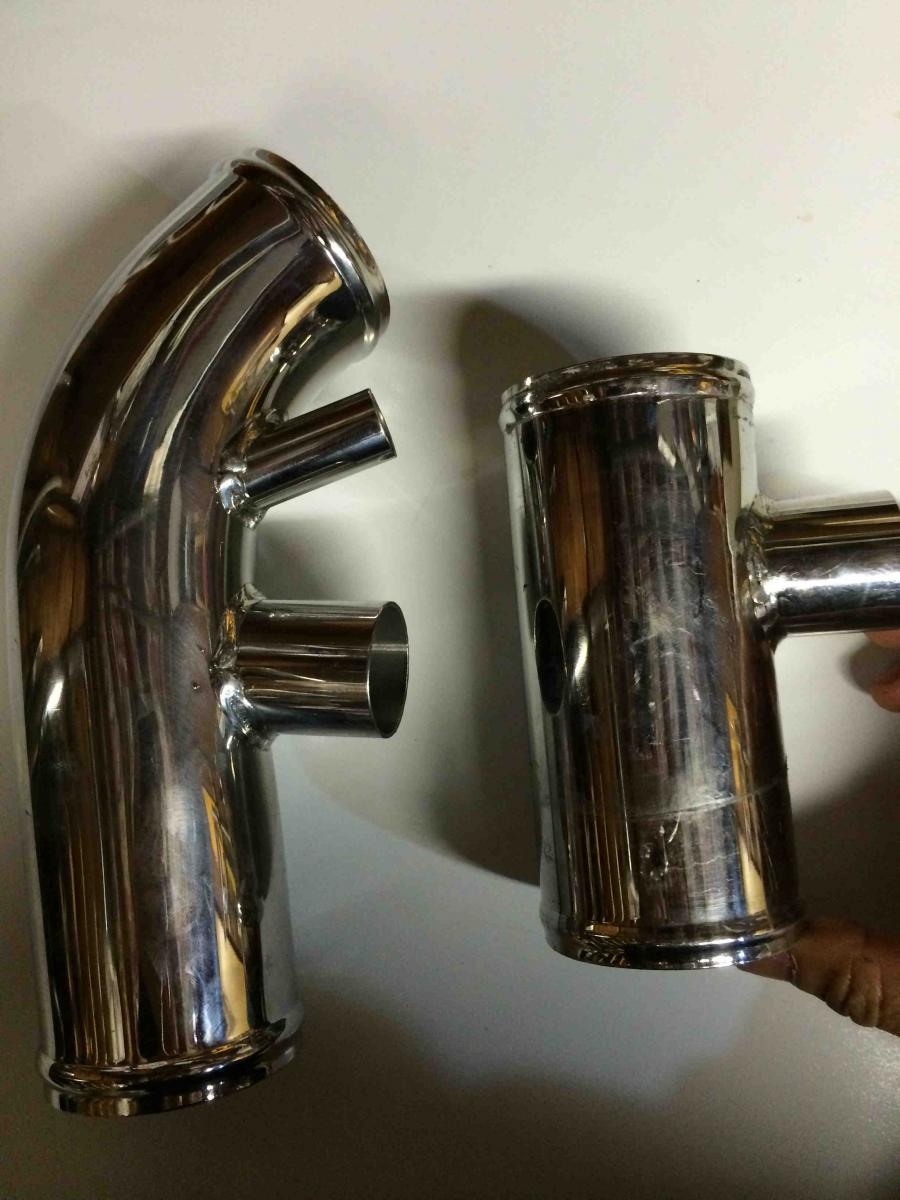

This intake tube on the left had to be ordered as it's specific to the '94. Very slick piece from FM. Worth the $60+ bucks.

Attached Thumbnails
Used Flyin Miata + Megasquirt + 94-byunique-12860-albums-byunique-691-picture-these-juicy-welds-gotta-go-3696.jpg   Used Flyin Miata + Megasquirt + 94-byunique-12860-albums-byunique-691-picture-ground-welds-sm-3701.jpg   Used Flyin Miata + Megasquirt + 94-byunique-12860-albums-byunique-691-picture-after-grinding-welds-down-cut-flange-install-3697.jpg   Used Flyin Miata + Megasquirt + 94-byunique-12860-albums-byunique-691-picture-cutting-damn-flange-off-missaligned-3700.jpg   Used Flyin Miata + Megasquirt + 94-byunique-12860-albums-byunique-691-picture-if-you-dont-get-right-then-cut-off-3698.jpg

Used Flyin Miata + Megasquirt + 94-byunique-12860-albums-byunique-691-picture-welded-flange-sm-3706.jpg   Used Flyin Miata + Megasquirt + 94-byunique-12860-albums-byunique-691-picture-completed-3699.jpg   Used Flyin Miata + Megasquirt + 94-byunique-12860-albums-byunique-691-picture-jacked-up-my-screw-threads-3703.jpg   Used Flyin Miata + Megasquirt + 94-byunique-12860-albums-byunique-691-picture-filed-screw-threads-3702.jpg   Used Flyin Miata + Megasquirt + 94-byunique-12860-albums-byunique-691-picture-specialtube-sm-3705.jpg

byunique is offline   Reply With Quote
Old 03-17-2014, 11:05 AM   #22
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

Good progress Brandon. Keep it up and you should be running (turbo) in a couple days.
Chiburbian is offline   Reply With Quote
Old 03-17-2014, 11:42 AM   #23
Junior Member
iTrader: (3)

Join Date: Mar 2009
Location: Birmingham, AL
Posts: 254
Total Cats: 3
Default

I used to have that same saw it is very useful tool. Looking forward to your results.
kww502 is offline   Reply With Quote
Old 03-17-2014, 02:00 PM   #24
Junior Member
Thread Starter

Join Date: Jul 2009
Location: San Fran
Posts: 94
Total Cats: 6
Default

Thanks. Yeah, its up and running and boosting. Will post some logs soon. Used Al Houno's ve table, and it's been pretty responsive so far, however rich and smelly.
byunique is offline   Reply With Quote
Old 03-25-2014, 01:53 PM   #25
Junior Member
Thread Starter

Join Date: Jul 2009
Location: San Fran
Posts: 94
Total Cats: 6
Default

Making a run the other day and hit some boost, then my exhaust was 100x louder. Pulled over and found where I had welded it, I broke the pipe. All that grinding must have made the walls too thin. I know what it sounds to run a straight pipe now... yuck!

Pulled out the exhaust and welded in a flex pipe along with re-installing the Flyin Miata cat. No emissions, and lots quieter!!! Post some pics in a bit.
byunique is offline   Reply With Quote
Old 03-25-2014, 01:57 PM   #26
Junior Member
Thread Starter

Join Date: Jul 2009
Location: San Fran
Posts: 94
Total Cats: 6
Default

On another note, might be experiencing some spark noise..

https://www.miataturbo.net/megasquir...e-noise-78158/
byunique is offline   Reply With Quote
Old 04-24-2014, 10:06 AM   #27
Senior Member
iTrader: (5)

Join Date: Apr 2007
Location: Atlanta
Posts: 581
Total Cats: 33
Default

Looks like you are making good progress. Subscribed!
nickt93 is offline   Reply With Quote
Old 05-05-2014, 01:20 PM   #28
Junior Member
Thread Starter

Join Date: Jul 2009
Location: San Fran
Posts: 94
Total Cats: 6
Default

Ok, been slacking off on doing updates. I guess enjoying the car too much!! I find that I just like to get my daily spool fix and any excuse to run to the grocery store is a welcome one

I'm running a MBC controller now and running at about 12-14psi. Wow, what a difference from internal wastegate pressure! Car comes on pretty hard, and now just wish I could have more instrumentation than a boost gauge and wideband. Either water temp/oil temp, but would like to limit to 3 gauges in the dash.

I figure I'm at the point to getting it dyno tuned, so want to revisit the cooling system , getting a EBC in place and water temp or oil gauge before taking it to the dyno.

I'll probably get a Mishimoto Alum Radiator with their fan shroud which should suit the kind of driving I do, which is weekend jaunts and 1/2 dozen max trackdays a year. I'll pay special attention to ducting and not wasting airflow to the radiator as others have done here.
byunique is offline   Reply With Quote
Old 07-02-2014, 04:15 AM   #29
Junior Member
Thread Starter

Join Date: Jul 2009
Location: San Fran
Posts: 94
Total Cats: 6
Default

Decided to use the stock fan for now to save a few bucks.

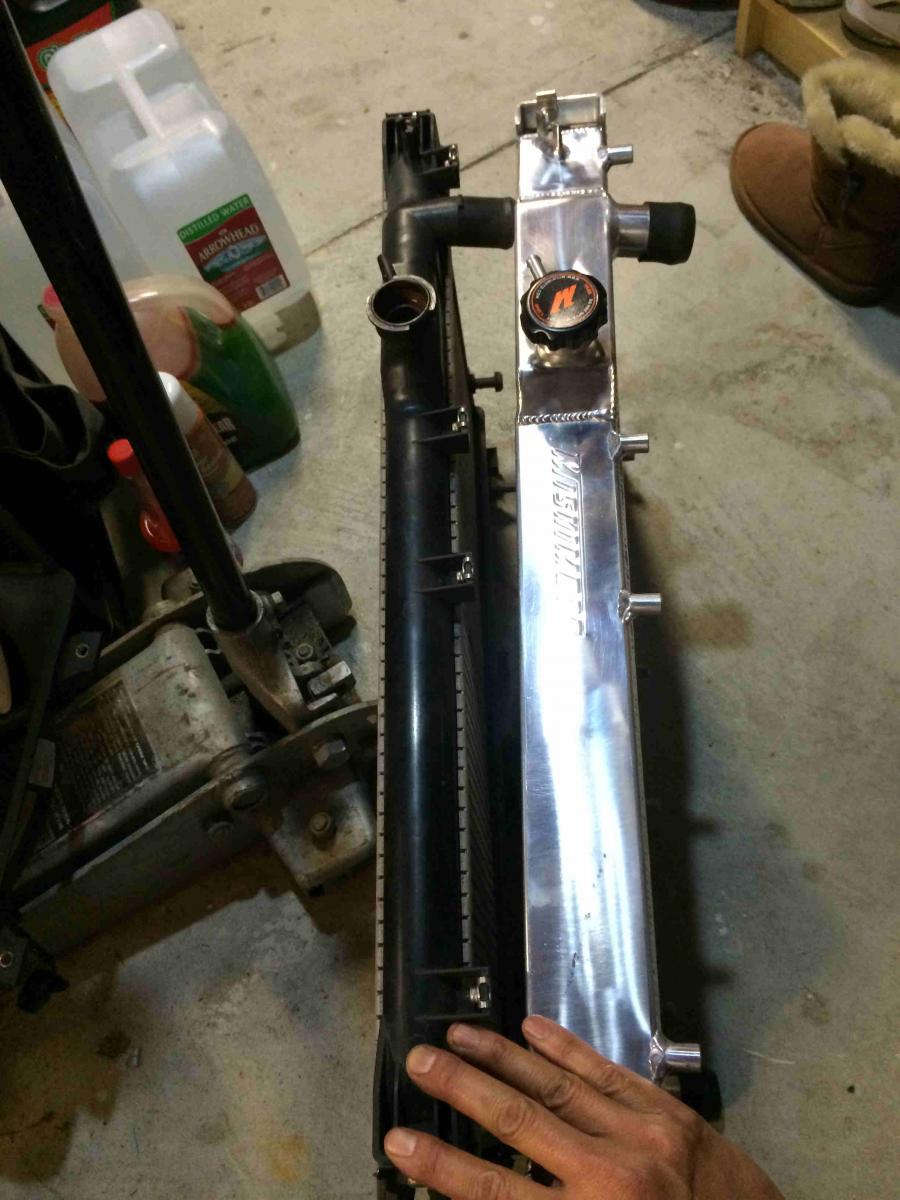

Stock Koyo Vs Mishimoto size

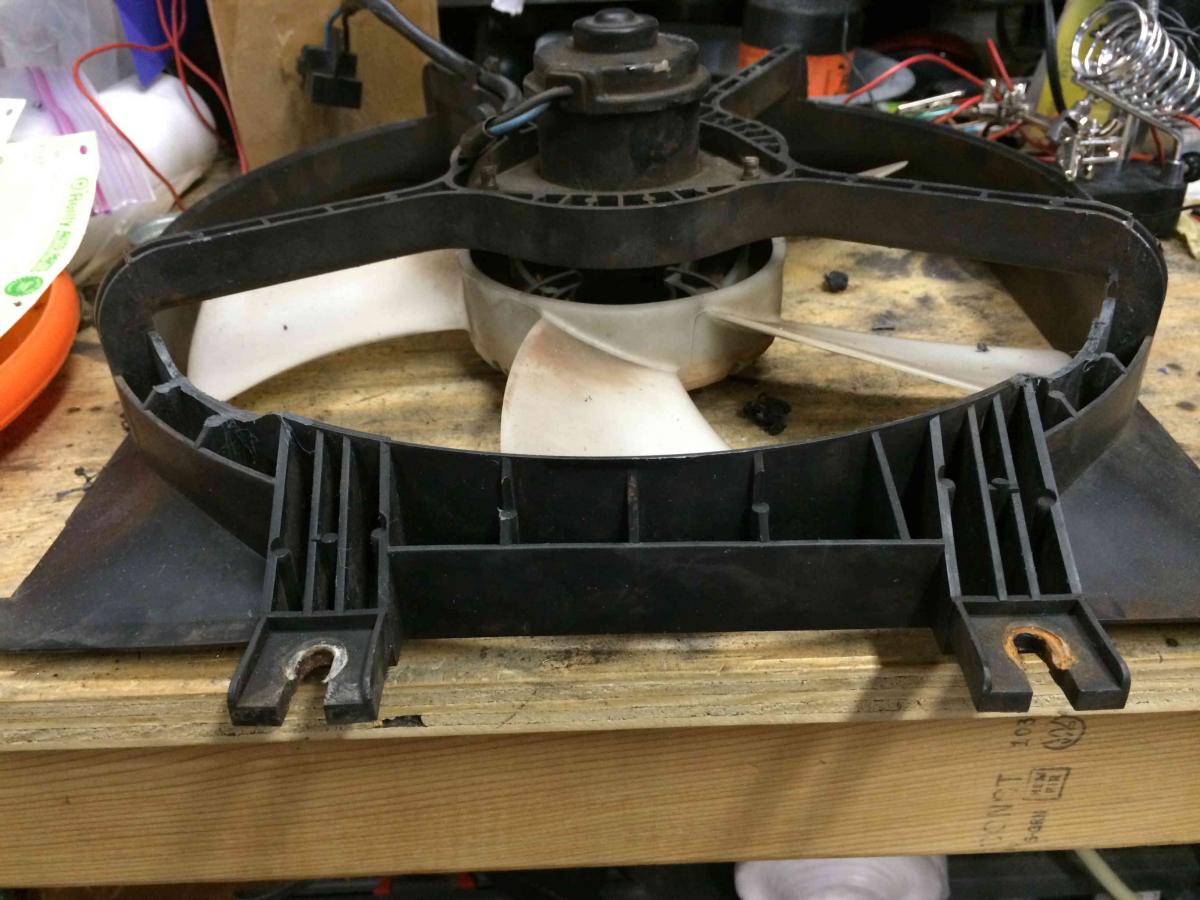

Fan trimming needed to clear the Flyin Miata front swaybar. Use a dremel for this.

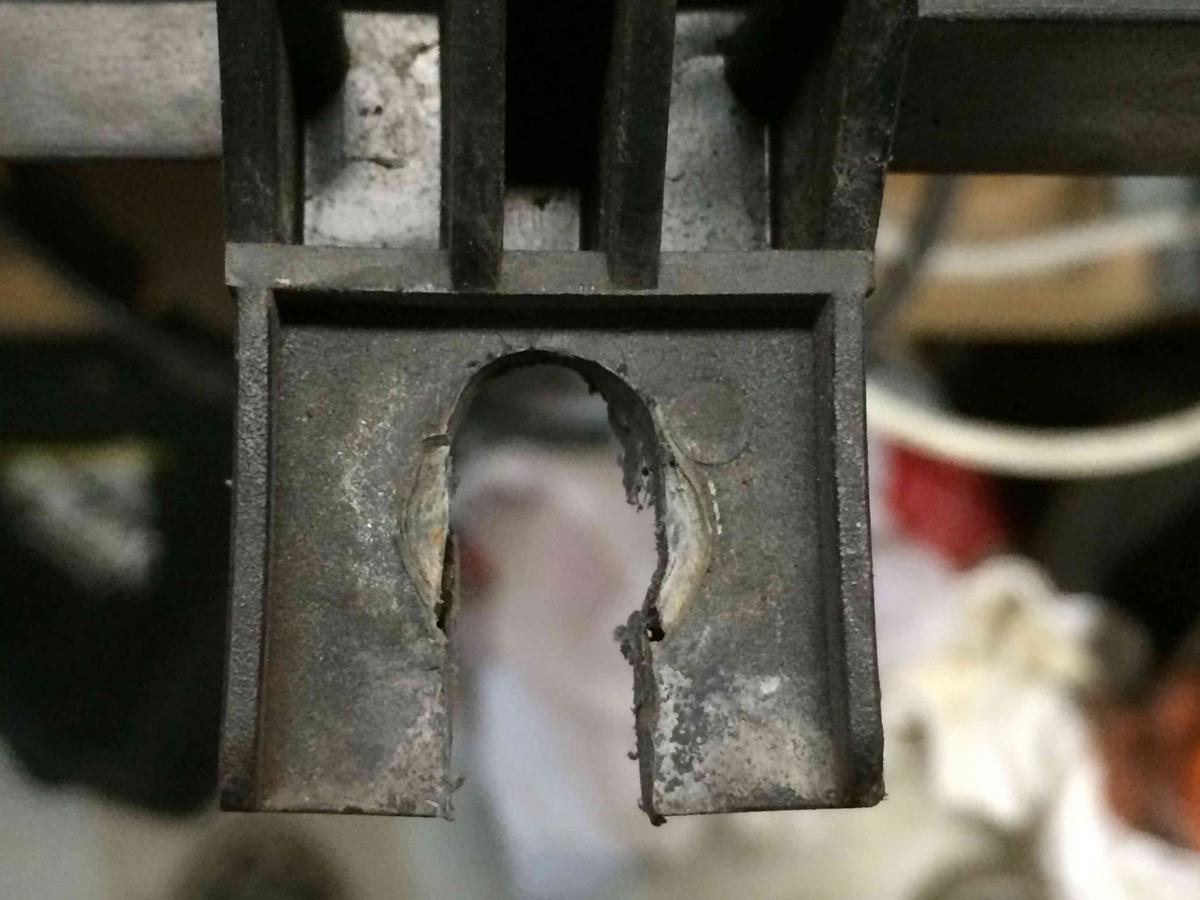

Fan tab trimmed a bit since it didn't fit too well initially

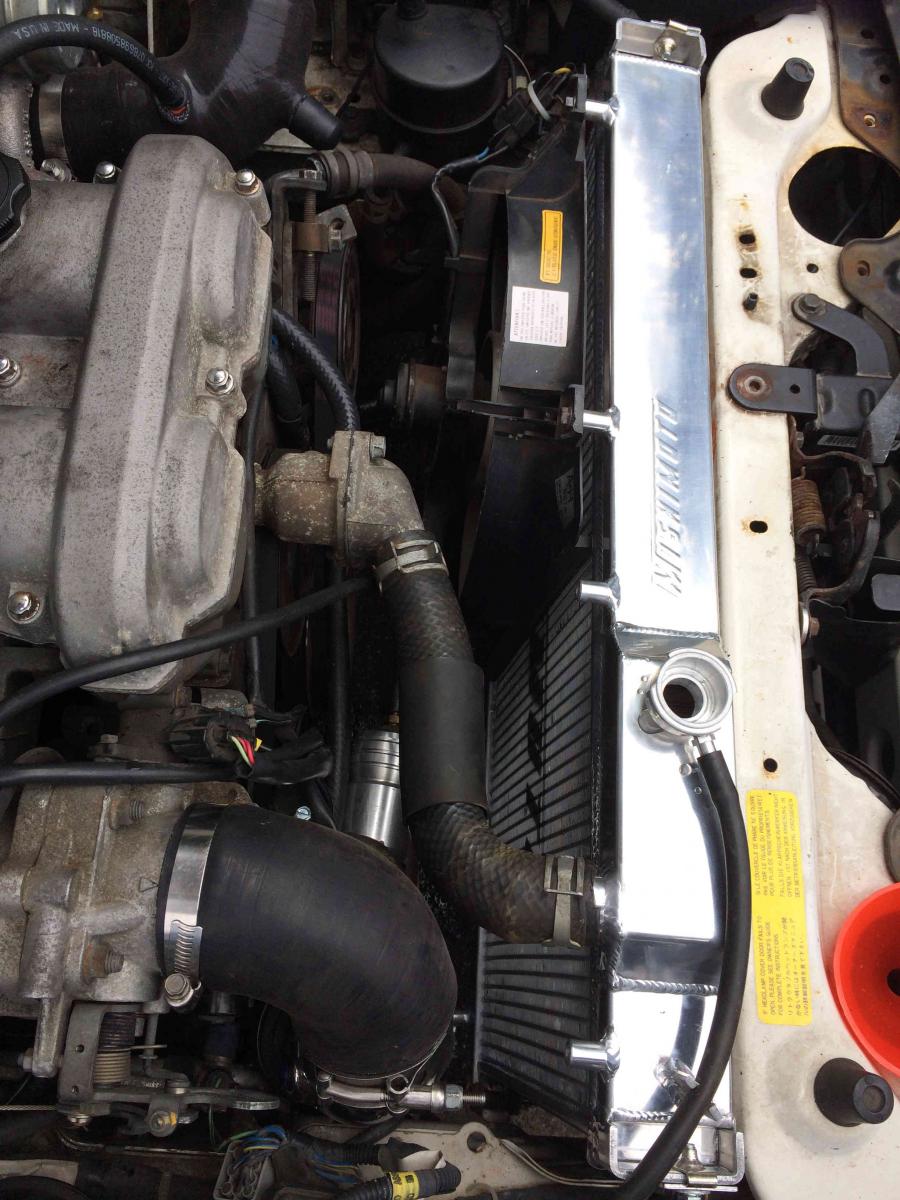

There it is... temp is around 190-195F so far with stock undertray in place. Water Wetter/antifreeze combined.
Will see how it goes with some more longer spirited runs
Attached Thumbnails
Used Flyin Miata + Megasquirt + 94-byunique-12860-albums-byunique-691-picture-size-between-stock-koyo-mishimoto-3906.jpg   Used Flyin Miata + Megasquirt + 94-byunique-12860-albums-byunique-691-picture-modifying-fan-flyin-miata-swaybar-clearance-3907.jpg   Used Flyin Miata + Megasquirt + 94-byunique-12860-albums-byunique-691-picture-modding-fan-bracket-thingy-3908.jpg   Used Flyin Miata + Megasquirt + 94-byunique-12860-albums-byunique-691-picture-all-fits-single-stock-fan-3909.jpg
byunique is offline   Reply With Quote
Old 07-18-2014, 10:33 PM   #30
Junior Member
Thread Starter

Join Date: Jul 2009
Location: San Fran
Posts: 94
Total Cats: 6
Default

bleh, missfiring keeping me at arms length from a dyno tune

https://www.miataturbo.net/megasquir...issfire-80053/
byunique is offline   Reply With Quote
Old 09-15-2014, 03:47 AM   #31
Junior Member
Thread Starter

Join Date: Jul 2009
Location: San Fran
Posts: 94
Total Cats: 6
Default

Got past the missfire issue finally! That was a hell of a rabbit hole!

https://www.miataturbo.net/megasquir...issfire-80053/

Last edited by byunique; 09-15-2014 at 03:59 AM.
byunique is offline   Reply With Quote
Old 01-19-2015, 10:08 PM   #32
Junior Member
Thread Starter

Join Date: Jul 2009
Location: San Fran
Posts: 94
Total Cats: 6
Default

Been a while since I last updated, but when I switched from MS1-->MS2, I couldn't get my ebc working for the longest time. I'd activate it, follow directions step by step and every time I'd just hit overboost. Long story short, I knew that when the circuit activated it would send a ground to the EBC on JS11. Ended up finding out that the FET was activated all the time.... like a short. With no voltage on the gate, source and drain were connected! Learned about FETs anyway, which is not a bad thing. Now onward to some open/closed loop EBC tuning finally.
byunique is offline   Reply With Quote
Old 06-12-2015, 12:39 AM   #33
Junior Member
Thread Starter

Join Date: Jul 2009
Location: San Fran
Posts: 94
Total Cats: 6
Default

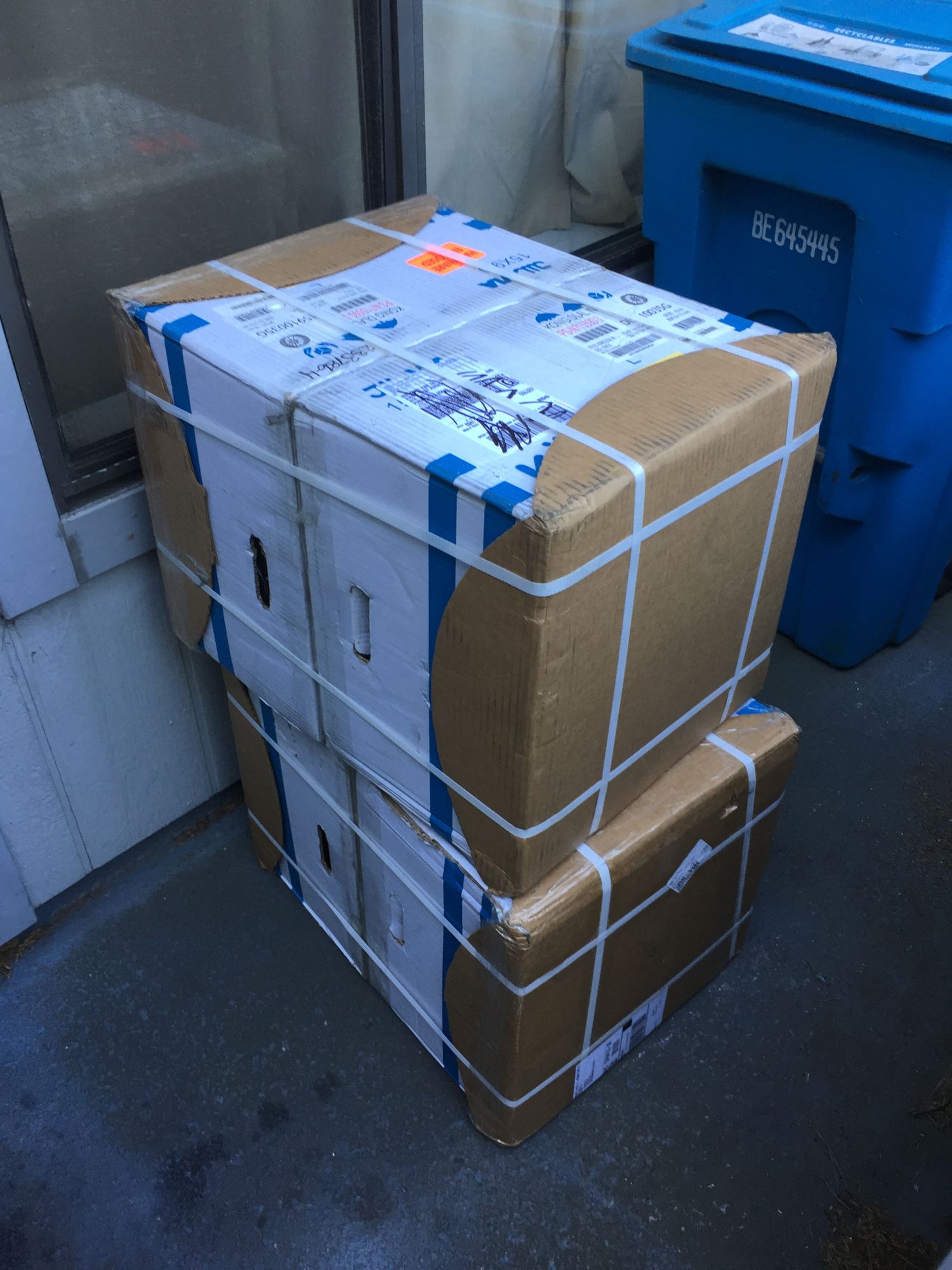

Back in March, bit the bullet and got some wheels. Figured 14 x 6 was not going to help with traction much :/. Picked these up for $404 for the set from Discount Tire Online. Very light 12.8lbs. Considering how the spokes stick out a little bit was concerned about curb rash, but it's close, but hasn't been a issue.

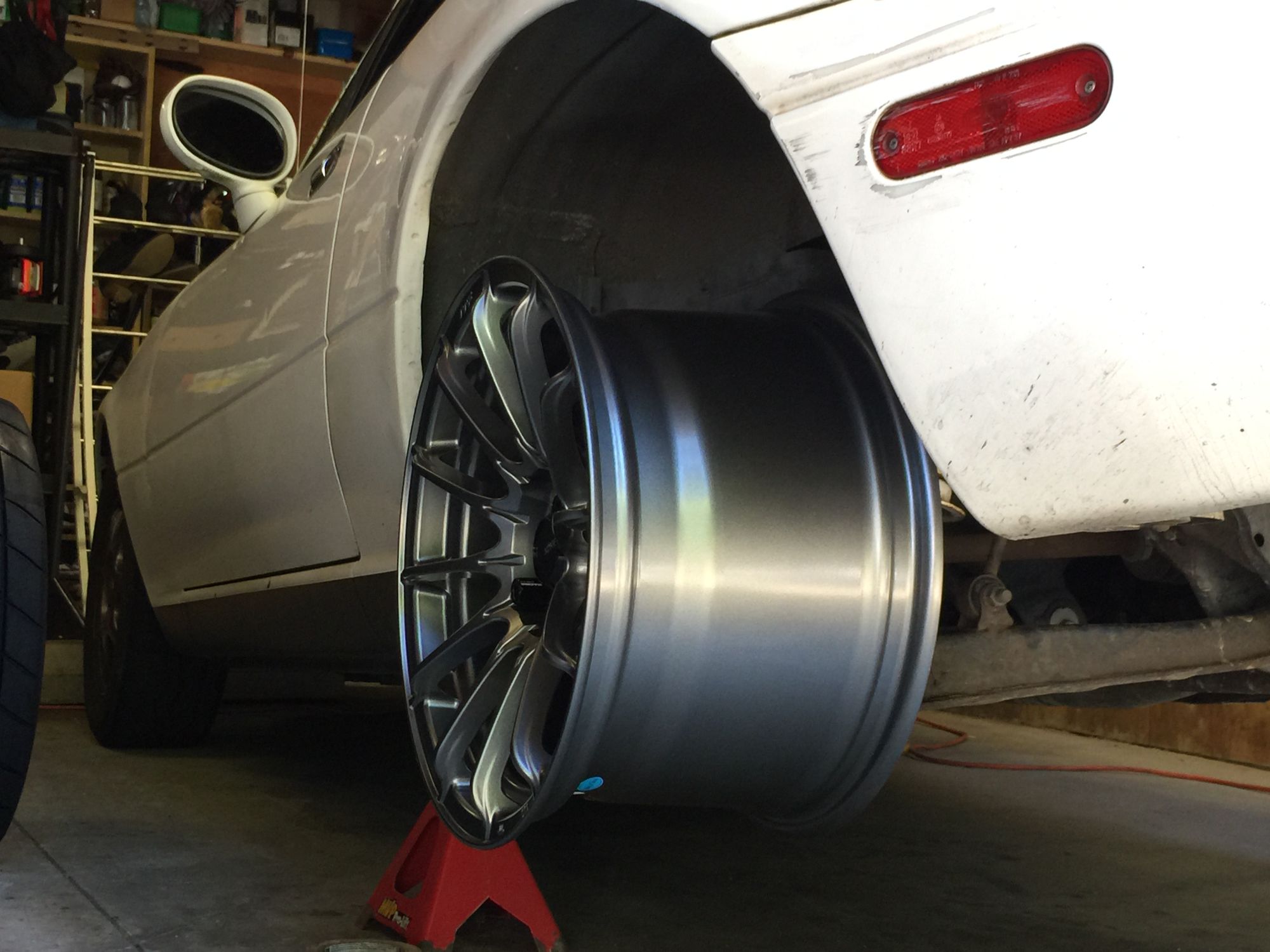

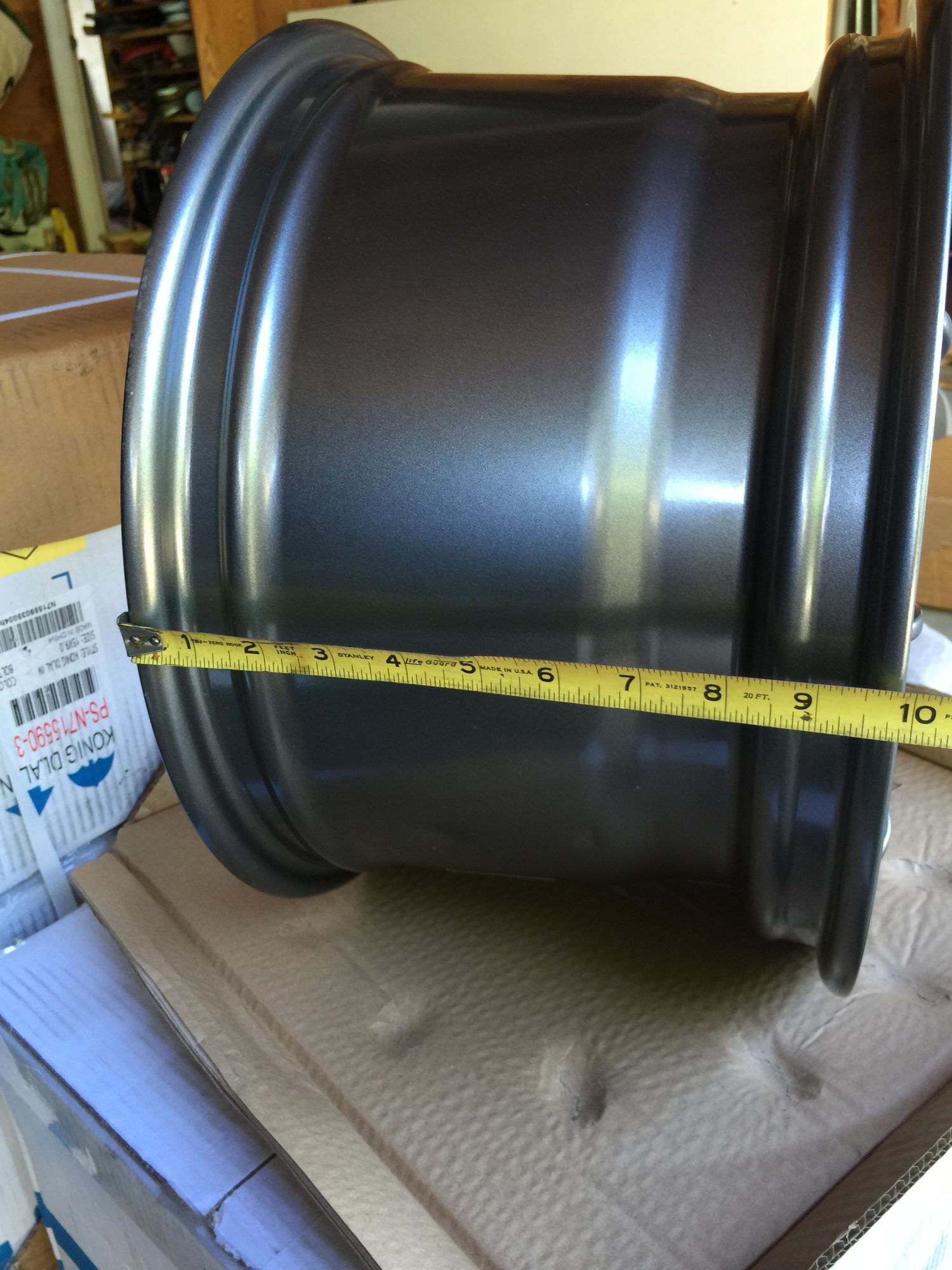

Look a bit big, but it should fit

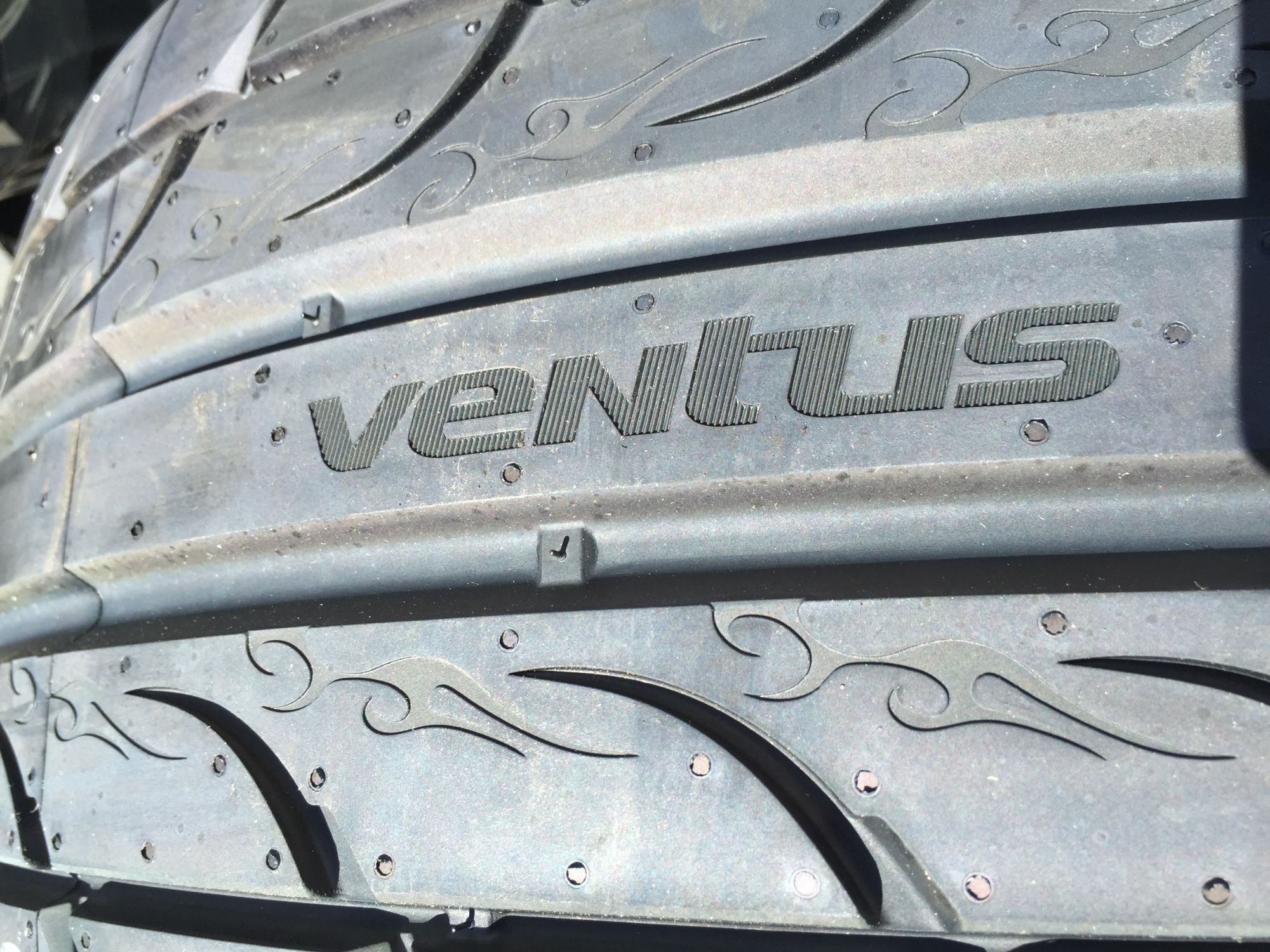

First time for tires with flames

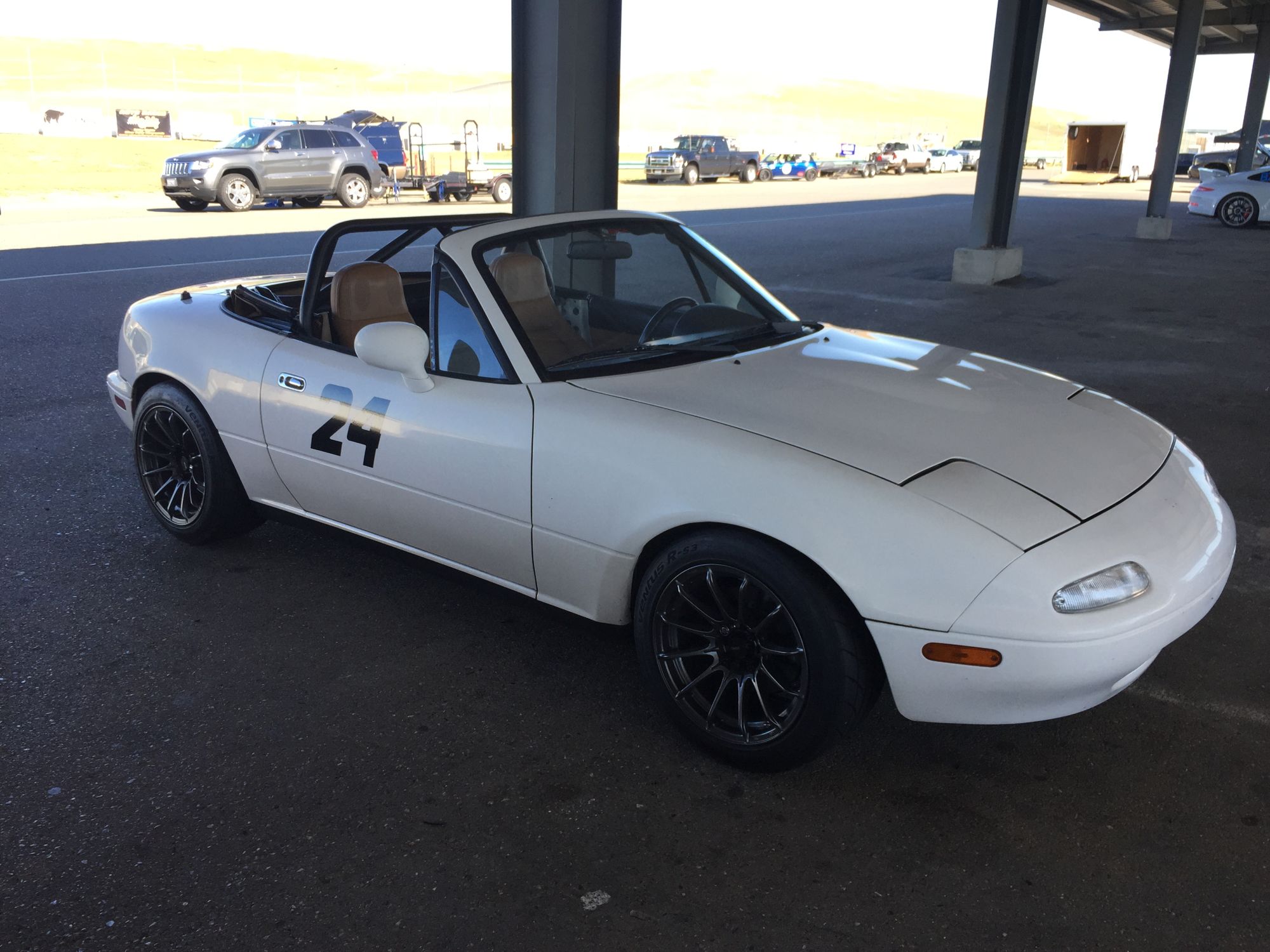

Thunderhill 4-17-15
Attached Thumbnails
Used Flyin Miata + Megasquirt + 94-80-012_da1d5a9b086f7856a7d4dd29791382ef04e6e6b1.jpg   Used Flyin Miata + Megasquirt + 94-80-017_a4992ebae79597fea6c478156a0b92637bb6d743.jpg   Used Flyin Miata + Megasquirt + 94-80-009_6e3cc4528817396931495e91e7fc67cfd054b28f.jpg   Used Flyin Miata + Megasquirt + 94-80-098_614dbda05e948bfa615de983cd7b579e1b02b8a4.jpg   Used Flyin Miata + Megasquirt + 94-80-038_6b2d33dadadf36b2260661eada0bd14359b3ce60.jpg

byunique is offline   Reply With Quote
Old 06-12-2015, 12:55 AM   #34
Junior Member
Thread Starter

Join Date: Jul 2009
Location: San Fran
Posts: 94
Total Cats: 6
Default

So, was getting ready for track day and as it turned out weather was getting pretty hot, and knew it was going to be in the 90's for track day. Decided to bit the bullet and get a oil cooler + m-tuned re-route.

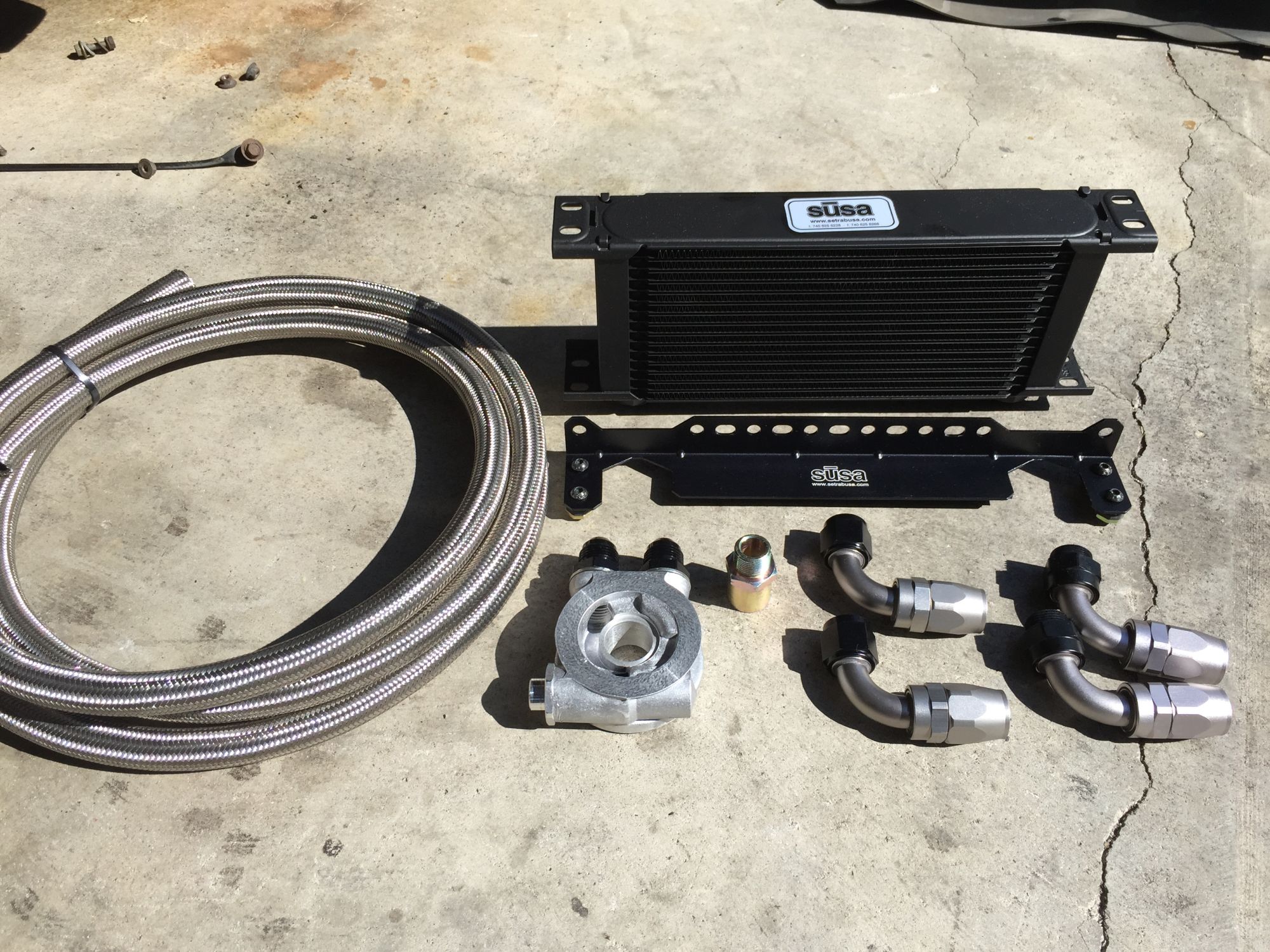

Andrew from Track Speed hooked me up with his kit and glad he was only a hour away

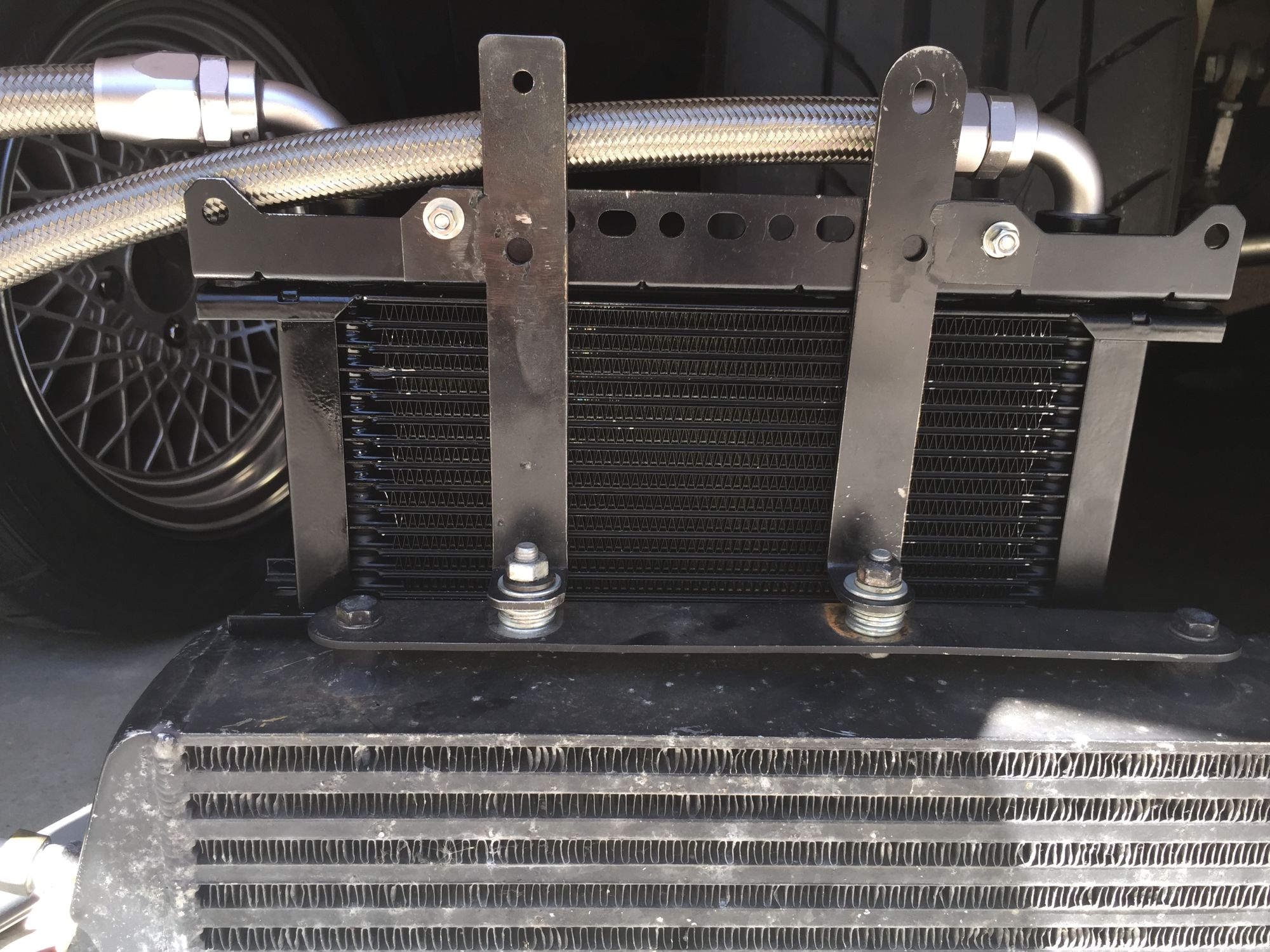

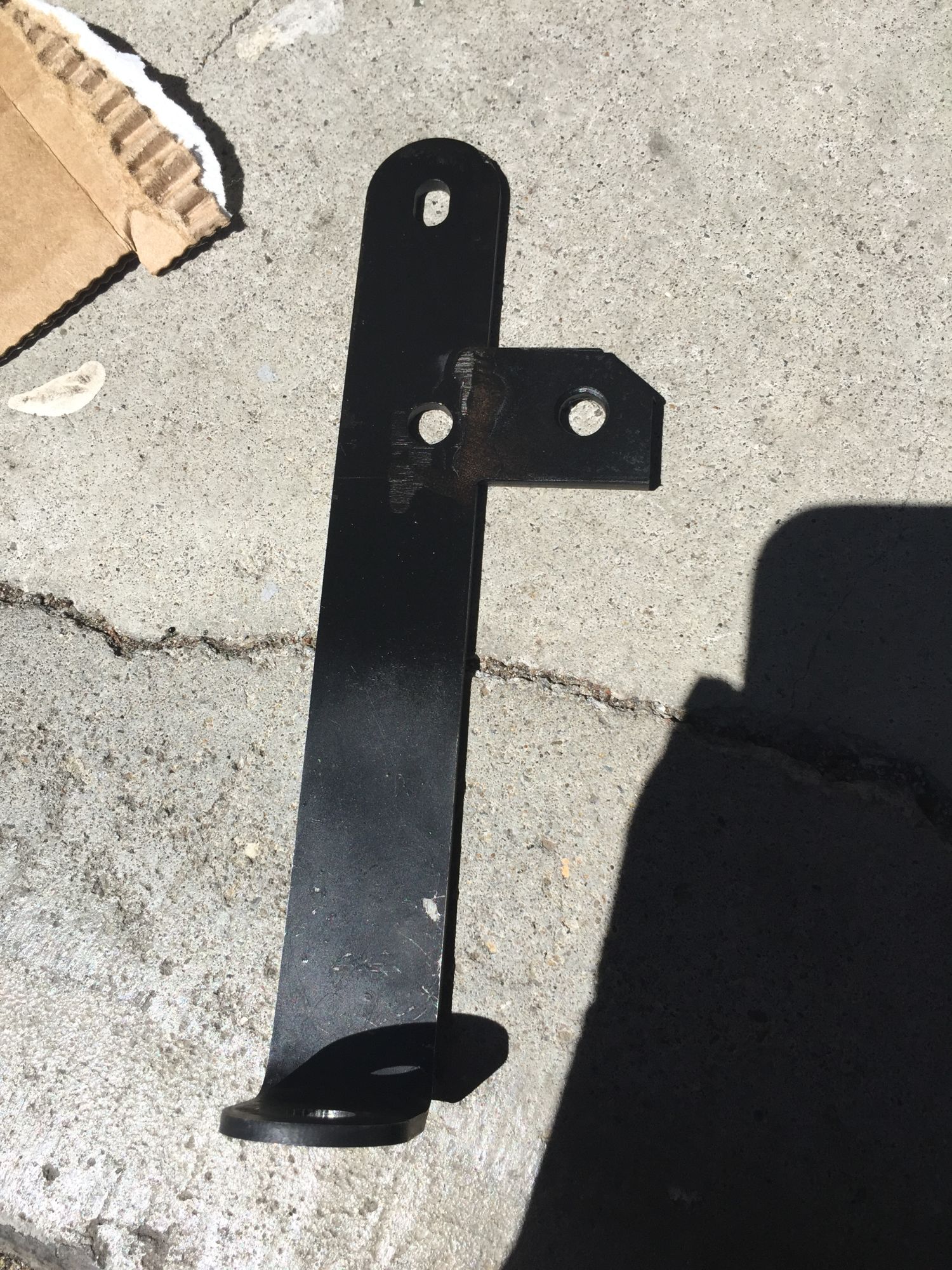

Modified existing FM bracke, added these ears for oil cooler mount





Hardest part was figuring how to find a place and just above the FM IC fit the best/
Attached Thumbnails
Used Flyin Miata + Megasquirt + 94-80-008_2__a5d32d5451c9e7ff7944087955a200c216944450.jpg   Used Flyin Miata + Megasquirt + 94-80-011_918620e6727b74618973ac4136cbc040b0a909ed.jpg   Used Flyin Miata + Megasquirt + 94-80-014_6de9a0285e84e99007e39961feba987cfa63d29e.jpg
byunique is offline   Reply With Quote
Old 08-10-2015, 04:56 AM   #35
Junior Member
Thread Starter

Join Date: Jul 2009
Location: San Fran
Posts: 94
Total Cats: 6
Default

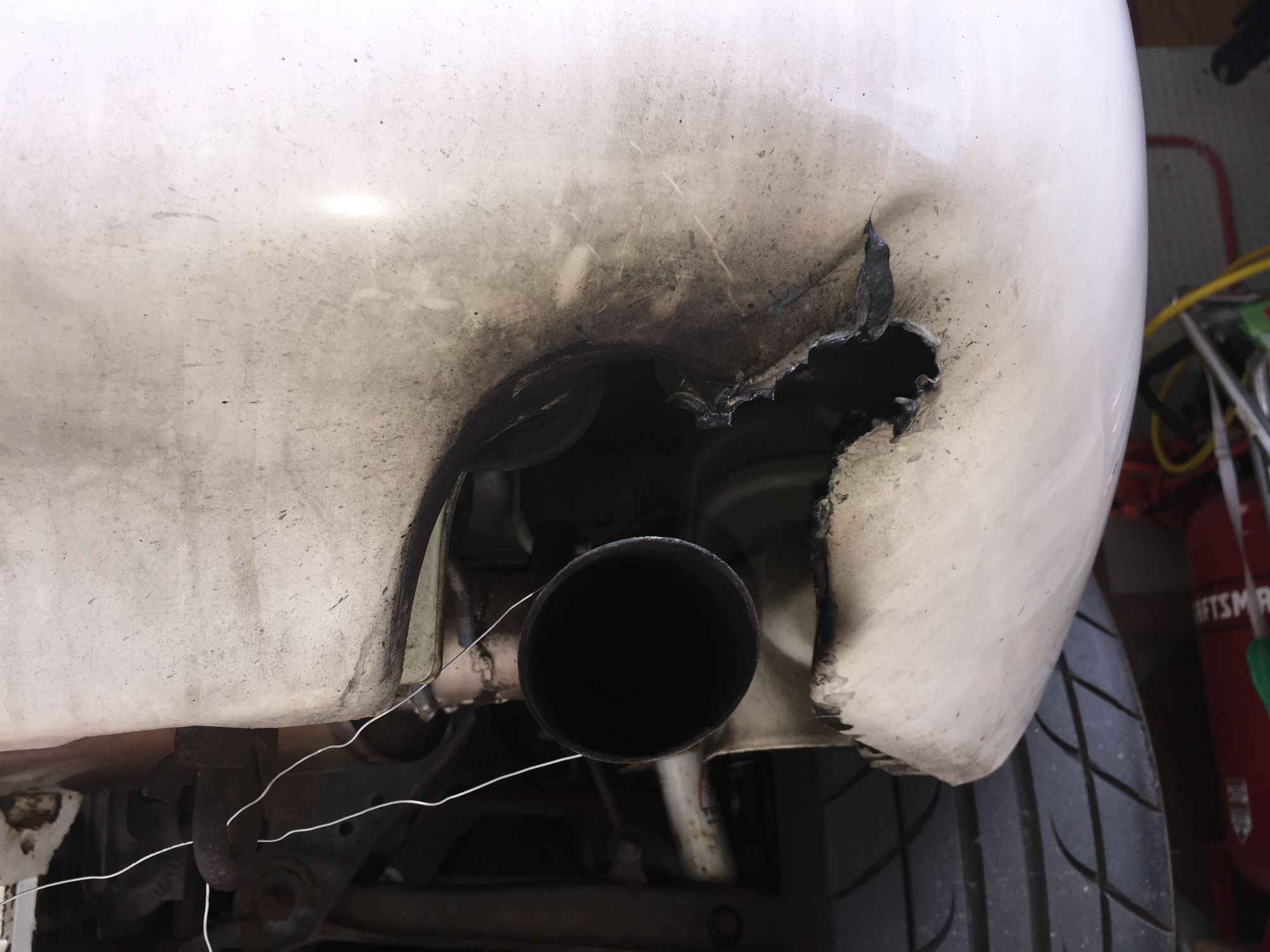

So found out exhaust was rubbing 1/2 shaft axles after track day. Did some welding and re-routing of the piping, but it was sadly out of alignment at the exhaust cutout. I ended up melting the area pretty badly.

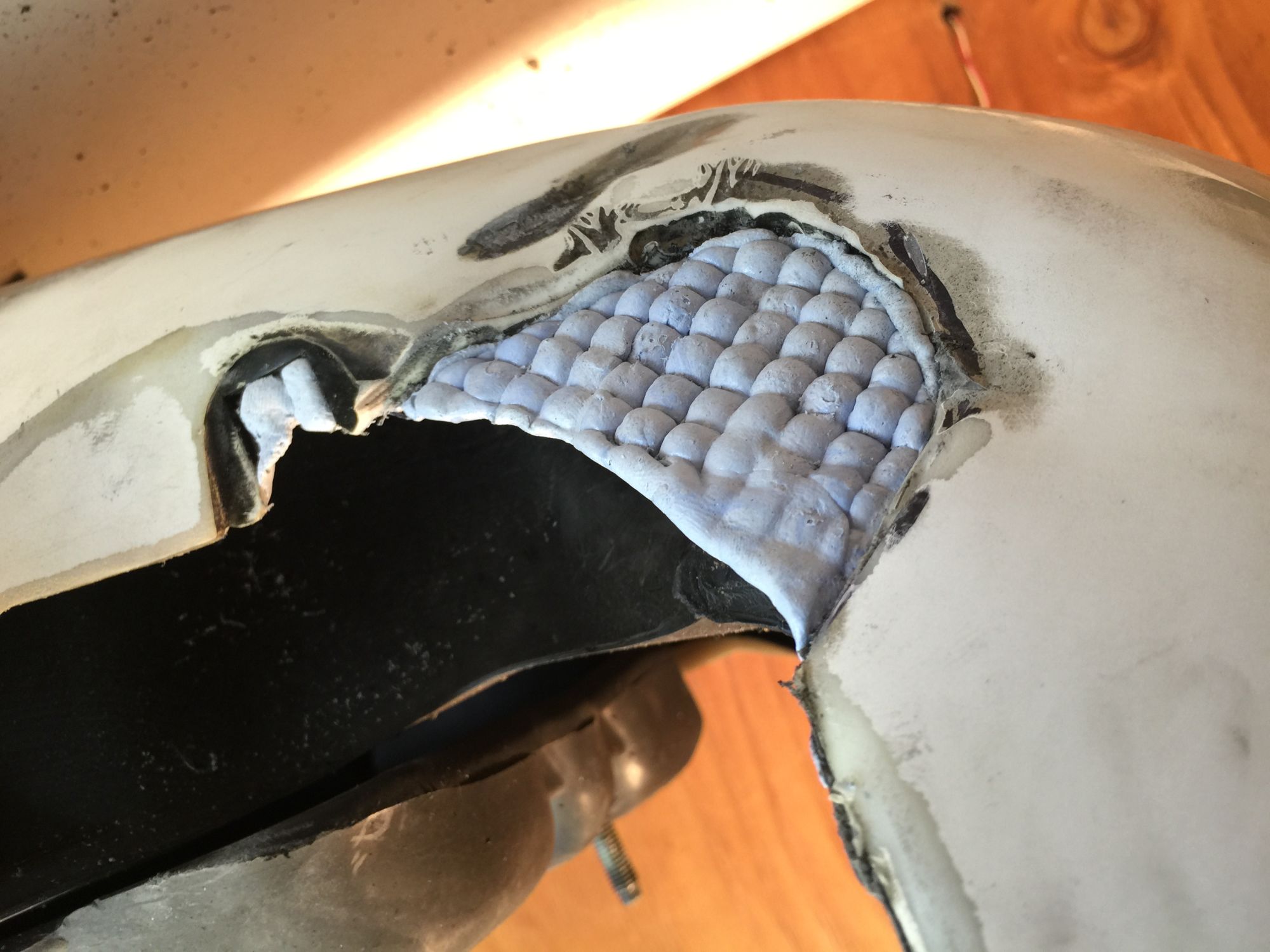

Got a piece of mesh and pressed a patch of jbweld(plastic) through the mesh for extra re-inforcement<br/>

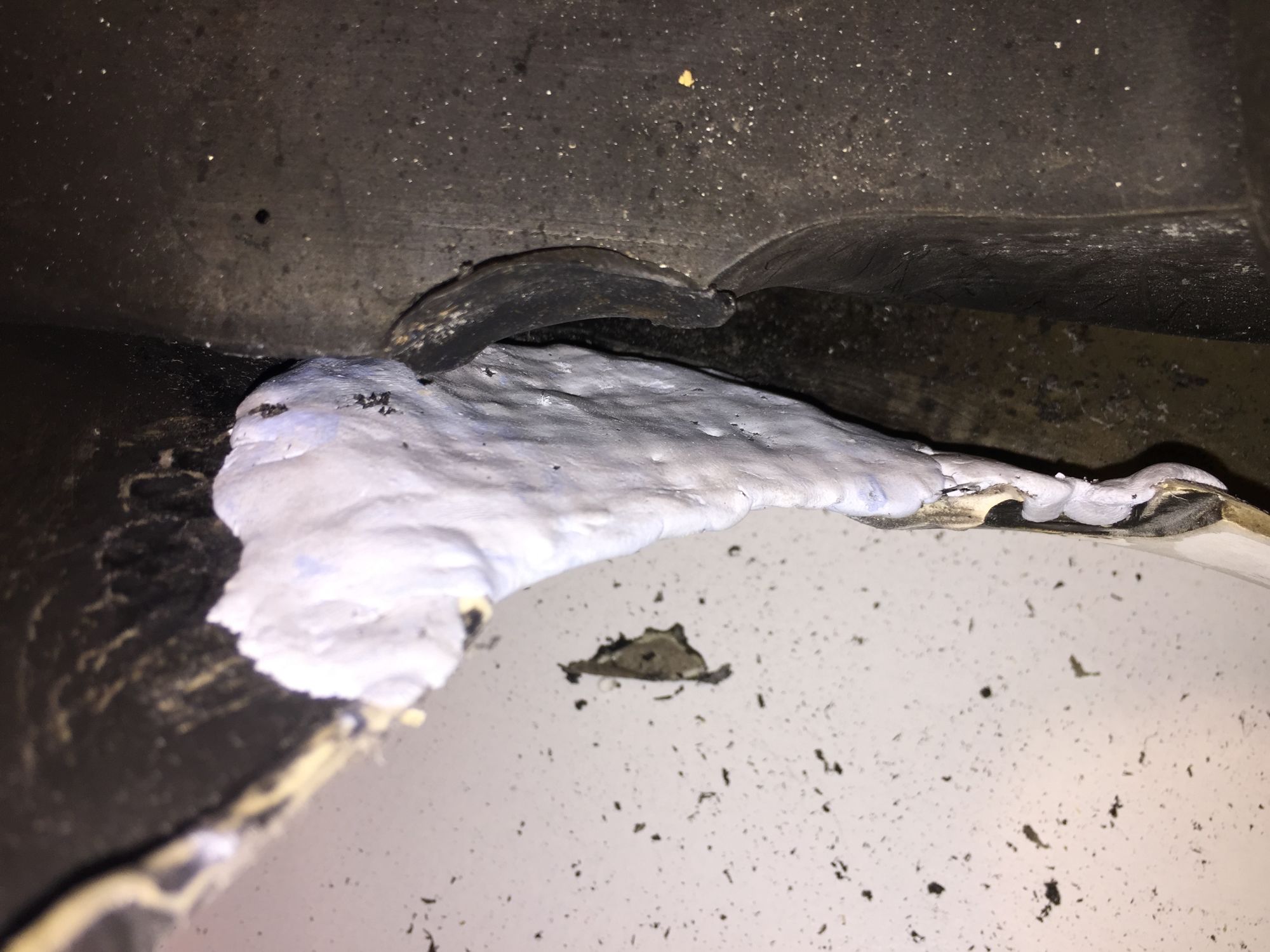

view of the jb weld from the back

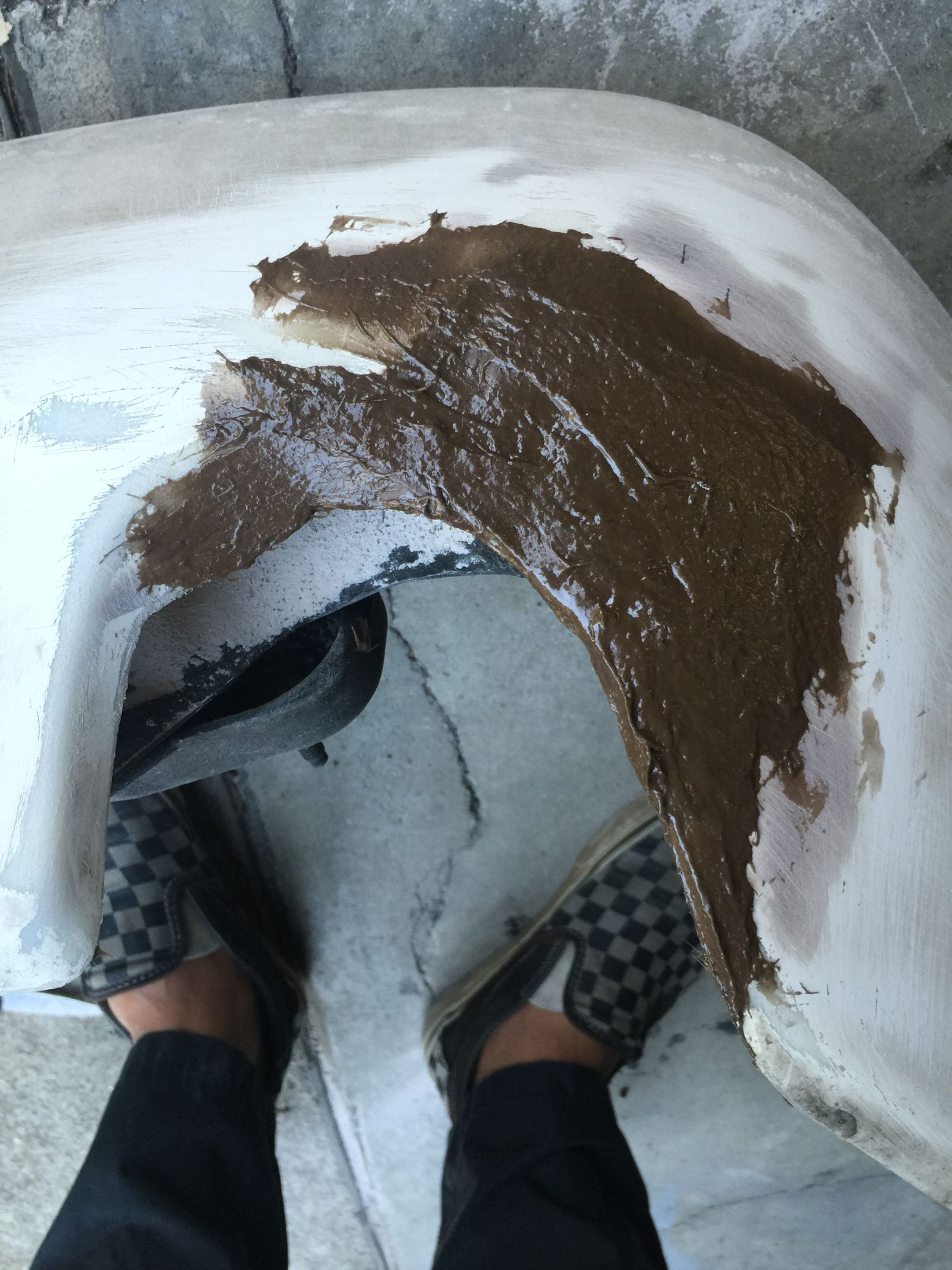

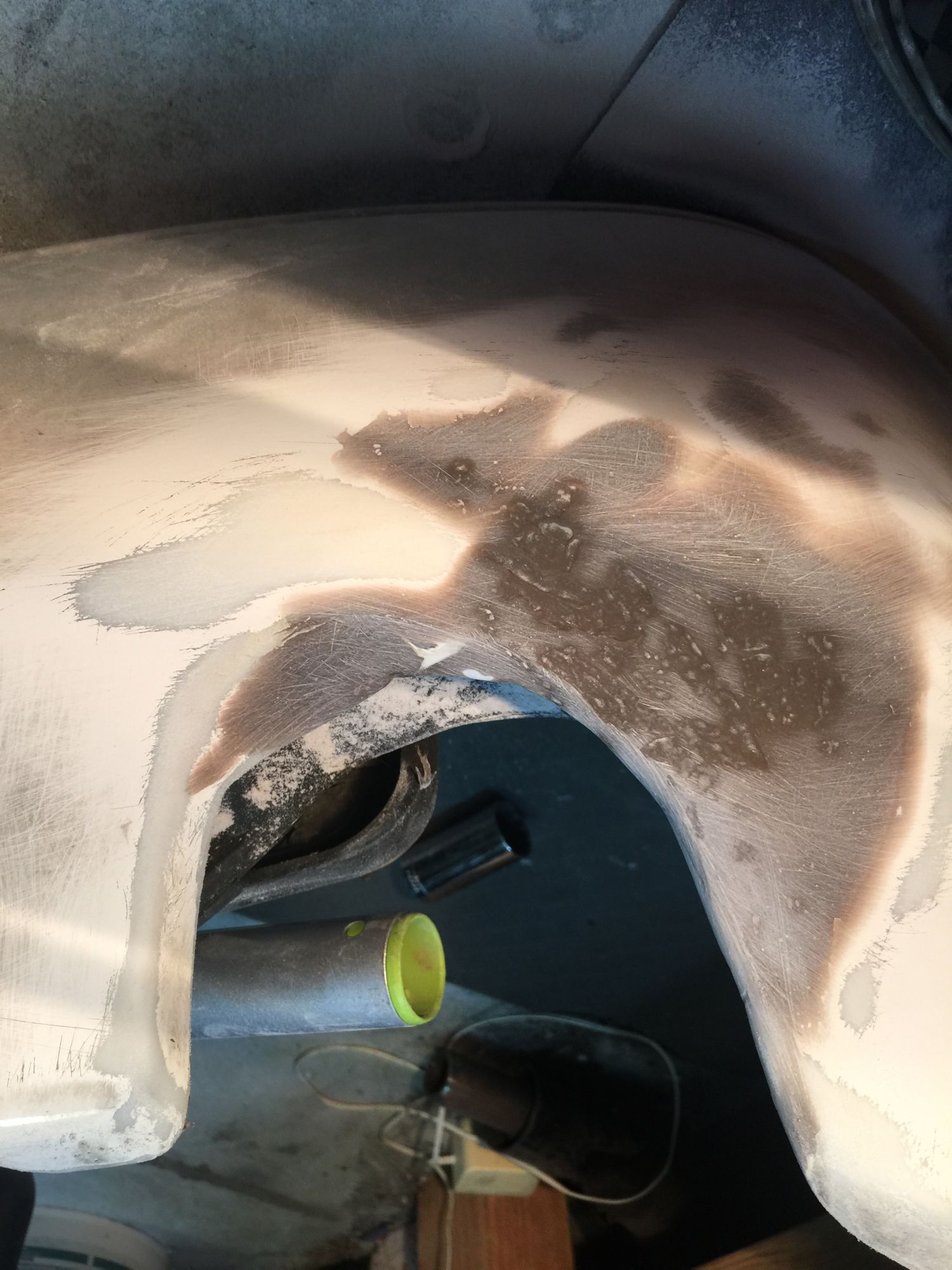

Used fiberglass reinforce bondo for extra strength

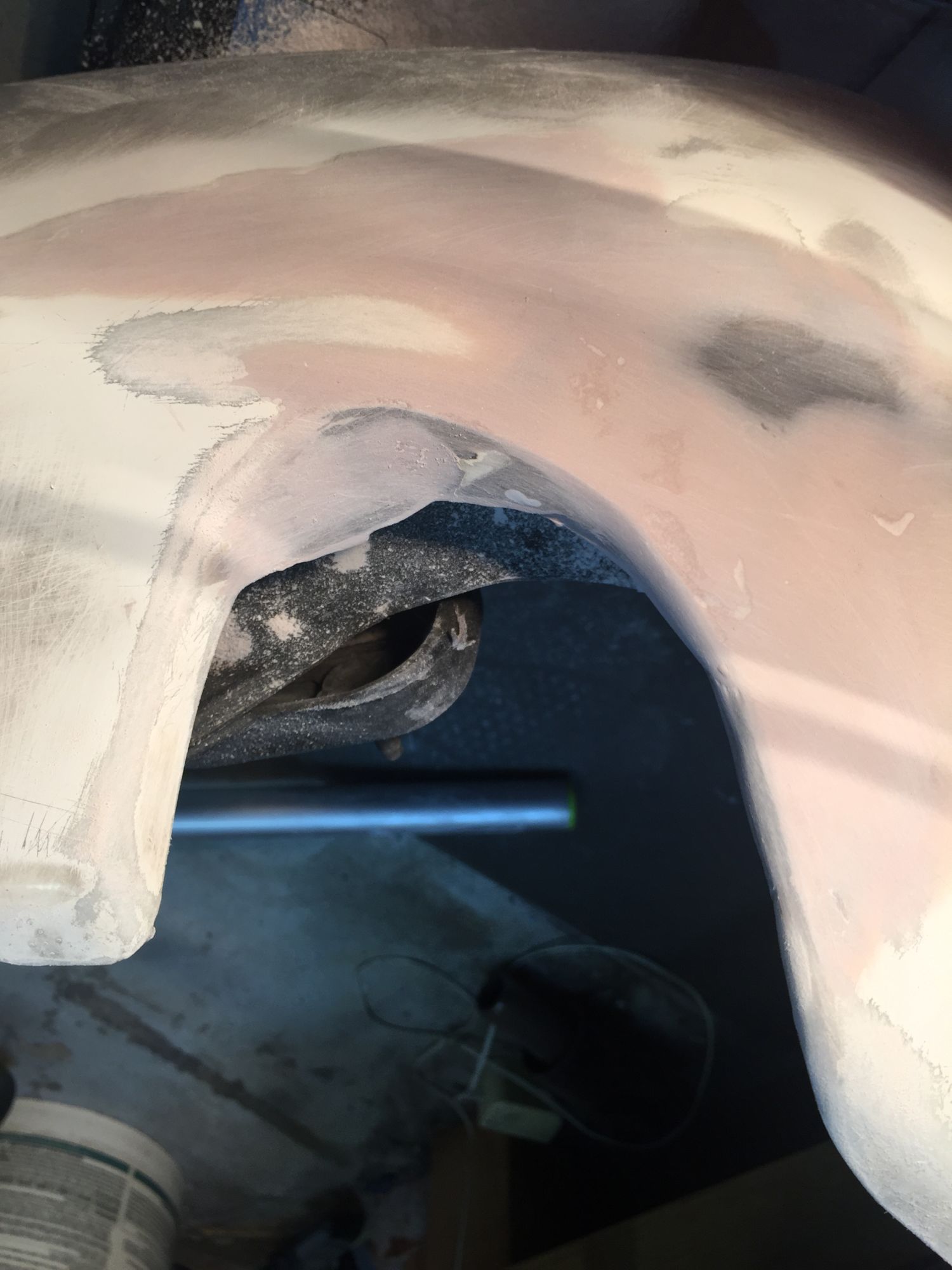

Sanded fiberglass

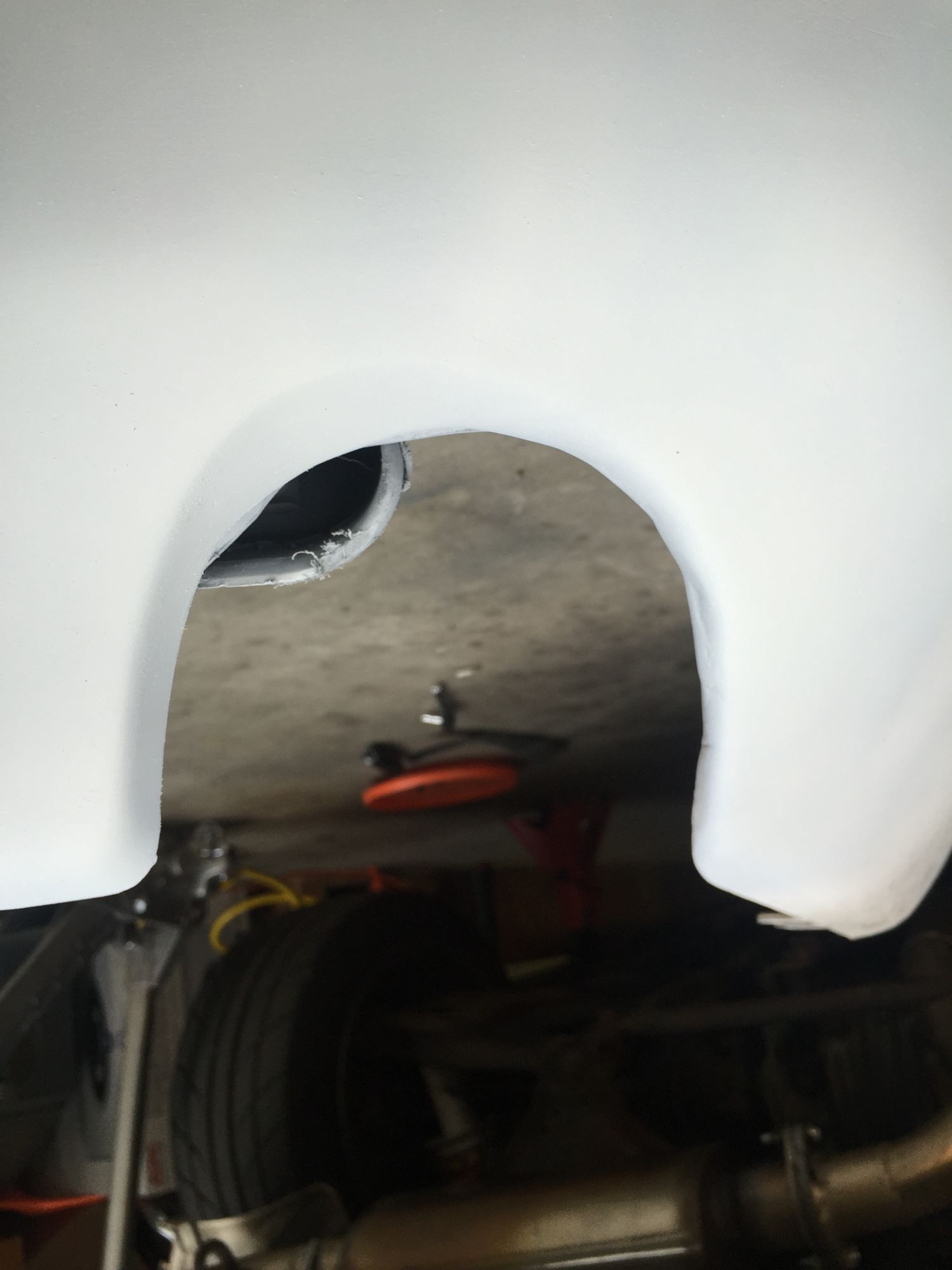

Regular bondo after that

Attached Thumbnails
Used Flyin Miata + Megasquirt + 94-80-101_b9aa4b2dad640f0bdfef84c0659a7cda8d4015f4.jpg   Used Flyin Miata + Megasquirt + 94-80-045_c60991d0777ce4fd8870637d6bb3f600b296b38a.jpg   Used Flyin Miata + Megasquirt + 94-80-046_ec72634cd5771af5dc62a82bba8184457d265e59.jpg   Used Flyin Miata + Megasquirt + 94-80-007_017594be06a36ed4c51ddb373316b135aa5d9a1a.jpg   Used Flyin Miata + Megasquirt + 94-80-009_af50cdb7276ca2ef392fd48ca3c516556f56a12d.jpg

Used Flyin Miata + Megasquirt + 94-80-011_6283ceb7dc497b84dac0c752b1235532be15edc5.jpg   Used Flyin Miata + Megasquirt + 94-80-015_3efa6674b5cd4119a3223e2467a0b93cbe1e0153.jpg
byunique is offline   Reply With Quote
Old 10-28-2015, 01:21 PM   #36
Junior Member
Thread Starter

Join Date: Jul 2009
Location: San Fran
Posts: 94
Total Cats: 6
Default

Attached Thumbnails
Used Flyin Miata + Megasquirt + 94-80-002_668b4e28cc2973edc9869371b3bd763b38d6a8f7.jpg
byunique is offline   Reply With Quote
