I am proud to announce that the car is up and running! It needs a little more tuning/fiddling before i am going to go into boost, but everything is going well so far.

Overall, i like the ms2 over the ms1 once i got it all set up.

The turbo sounds like its ready to go, its starts whistling just above 2000 rpms, so spool numbers look promising.

Ill take more pictures of the entire setup installed soon for everyone, and more pictures as i add more things.

Next on the list is to make a new undertray, and a new cold air box/headlight vent.
wittyworks is offline   Reply With Quote
Old 10-07-2011, 02:19 AM   #22
NB/VVT Connoisseur
iTrader: (24)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,074
Total Cats: 253
Default

Pictures, dammit!!!!!!!!!!!!! Pictures!!!!!!!!!!!
viperormiata is offline   Reply With Quote
Old 10-08-2011, 02:31 AM   #23
Senior Member
Thread Starter
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

You wanted pictures??

Heres a picture post!!

Did a good amount of driving today, hour long freeway drive and back . Everything ran pretty well, veanalyze live was doing its thing. I got a little stumble while cruising every couple minutes where the afrs were dropping for a second, then back up to around 15 like i wanted, don't know what's going on there but i took logs so I'll figure it out later when im working on the tune. I also have to fix my decel and accel settings, I get a pop every once in a while when i let off the gas.

Hit overboost about four times, which is set at 10 psi about (180-200 kpa i forget). I am super excited with how the turbo is working so far. Like i said before, it whistles along at like 2000 rpms, and on the highway whenever i gave it gas from cruising at about 3400, it hit overboost almost immediately. I could hear it sucking A LOT of air, in a good way.

I have to loosen up the wastegate, don't want to blow the motor up yet...

Onto the pictures:

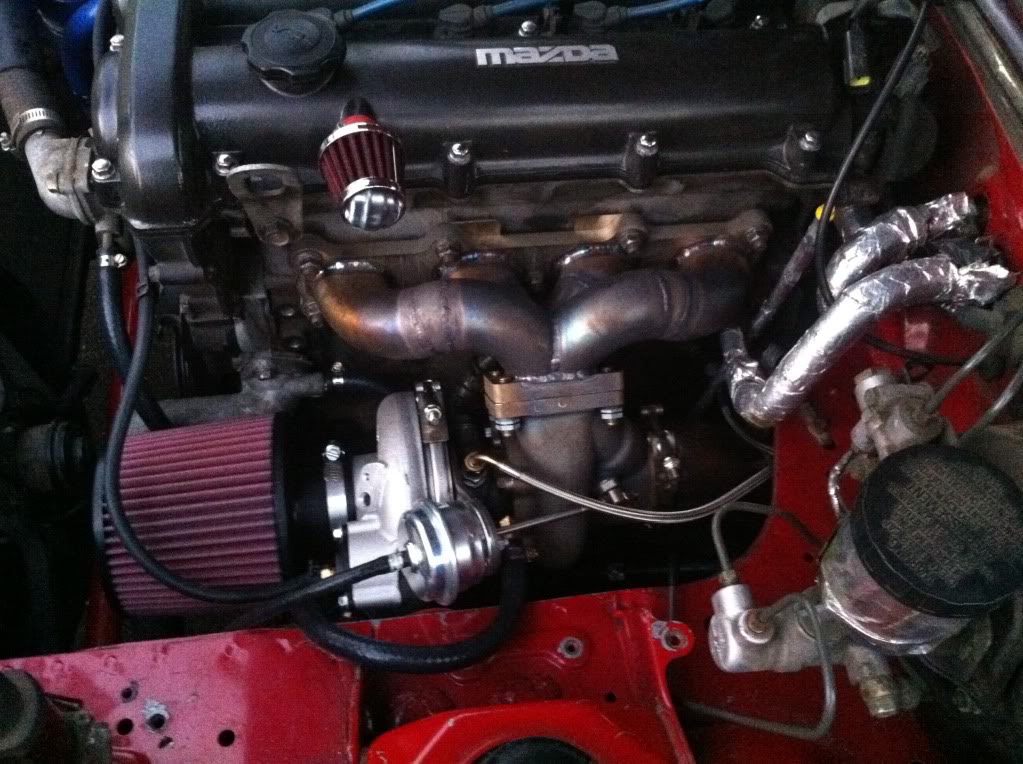

Manifold getting some nice color, also I am going to make either a little bracket with rubber grommet to hold the oil feed, or cover the line with silicone hose. I will probably cover with silicone hose for now.

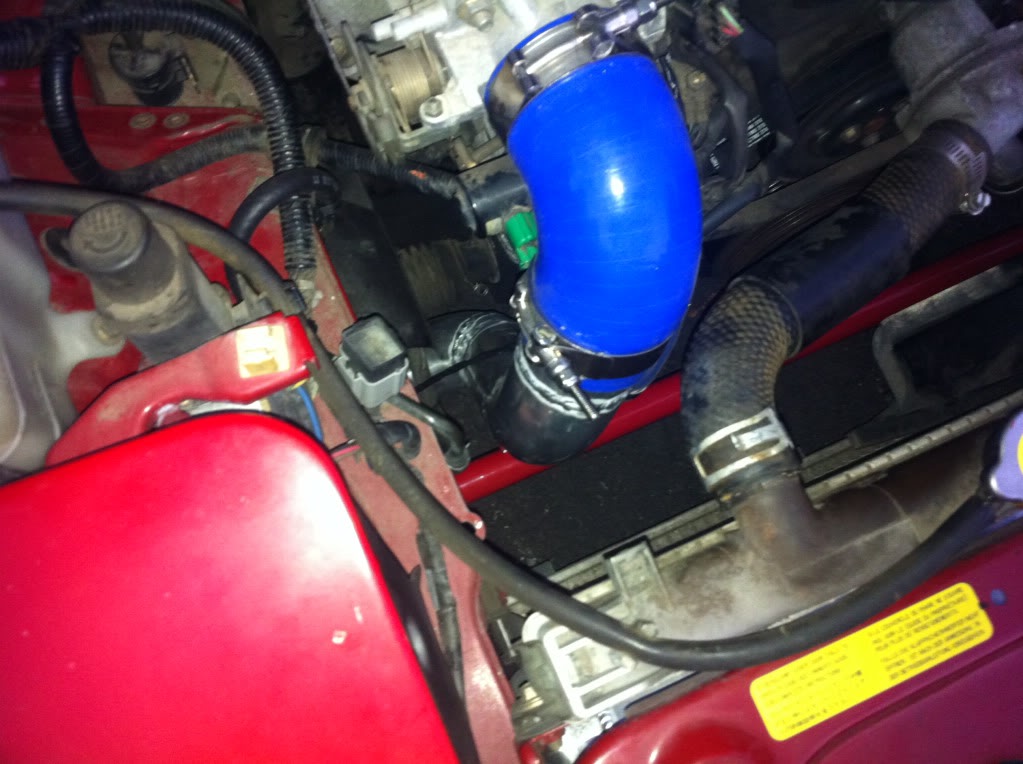

Heres a picture of the cold side ic piping:

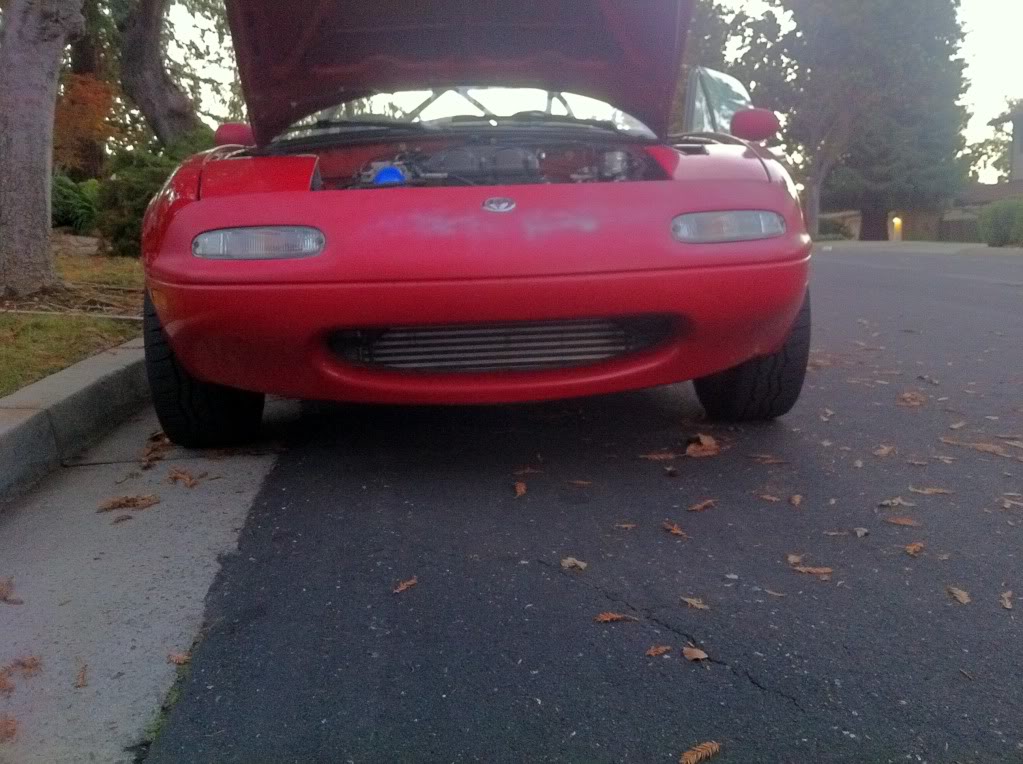

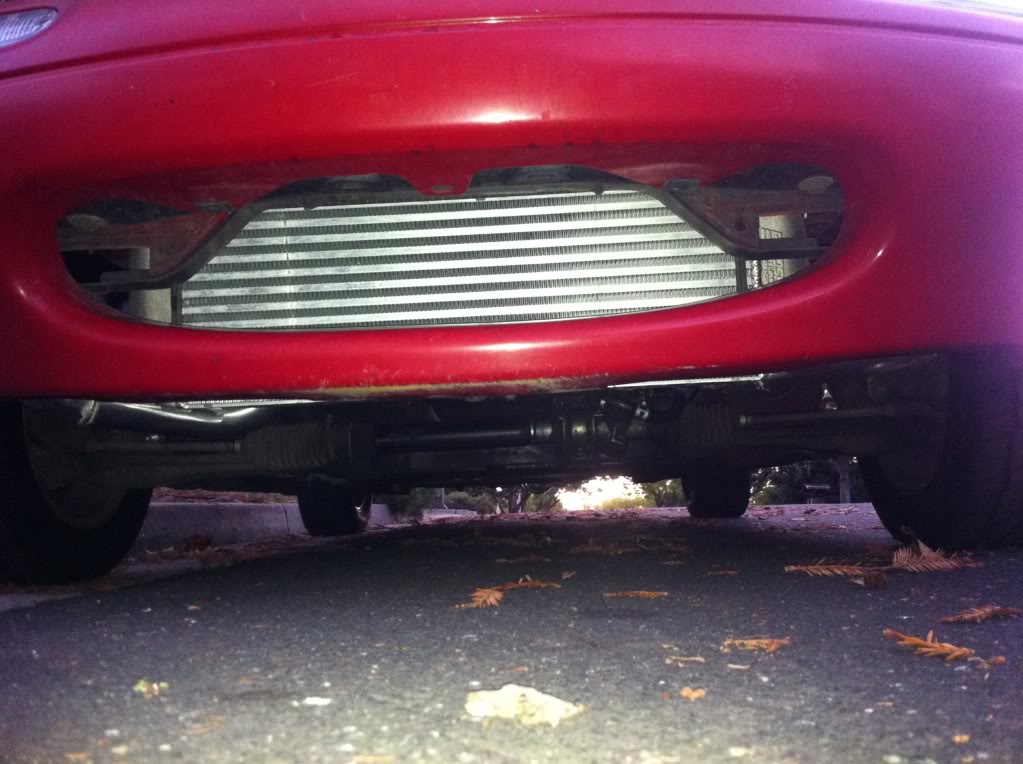

Front intercooler pic:



Picture of bottom of the intercooler/under engine. One of the next things i need to do is make a new undertray. I have some aluminum diamond plate im going to use.

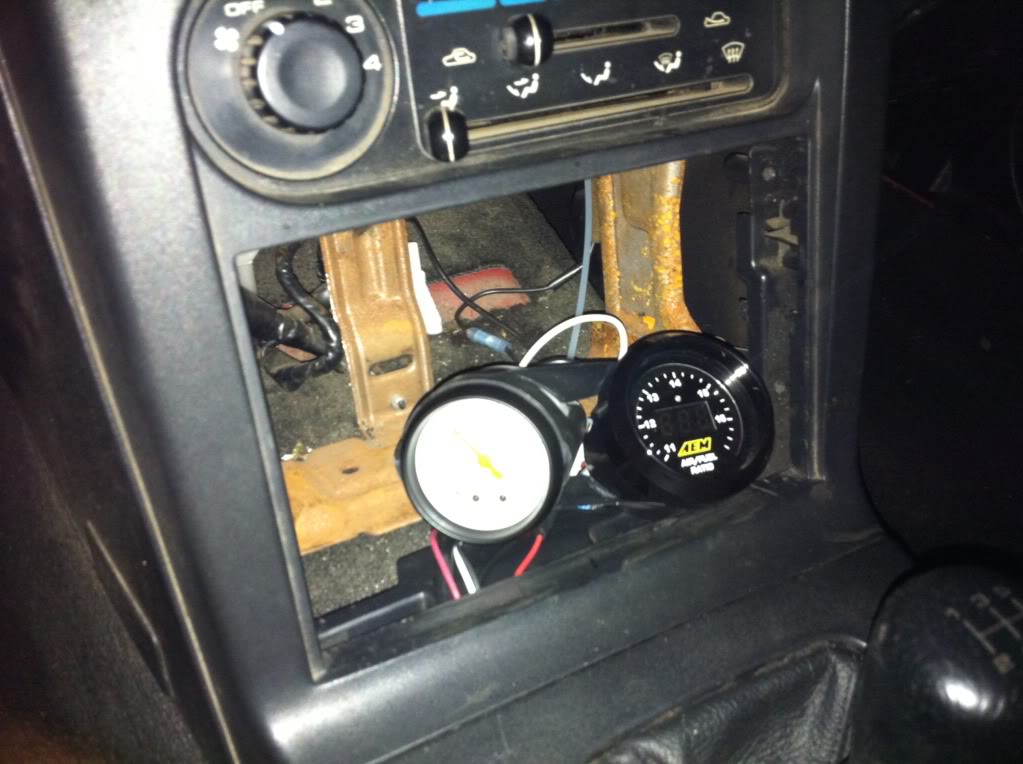

Picture of current gauge setup. Also on the to do list is a new 6-gauge holder to go in this spot. Will get oil temp water temp oil pressure and a clock to go along with afr and boost.

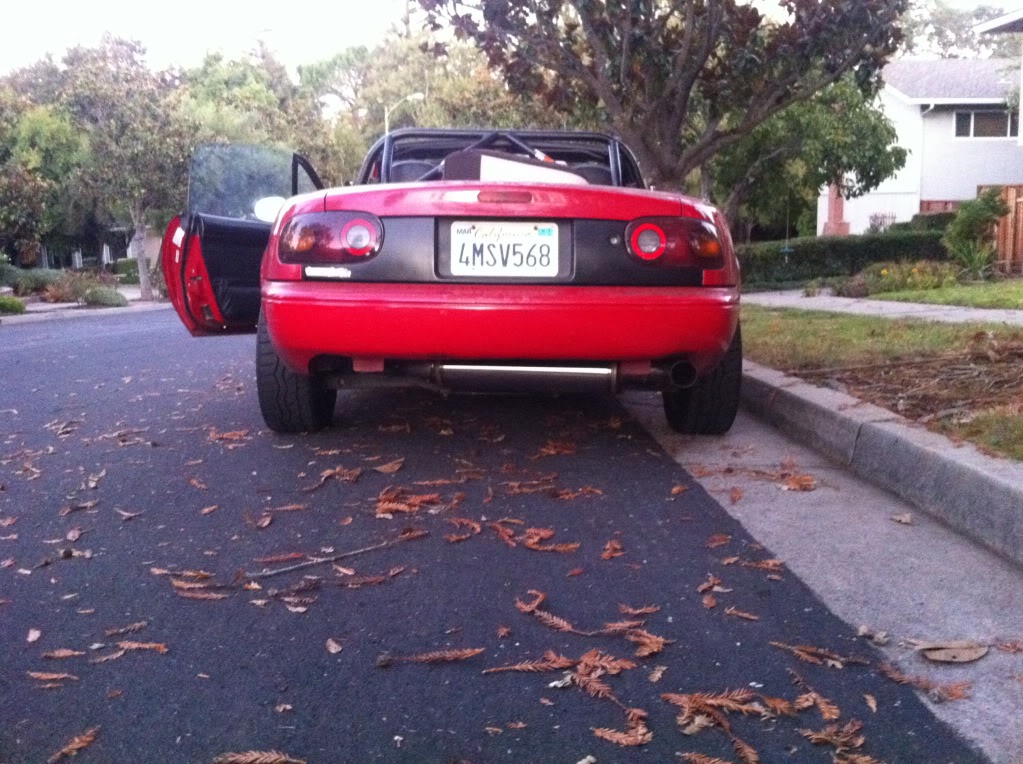

Pic of exhaust from the back:

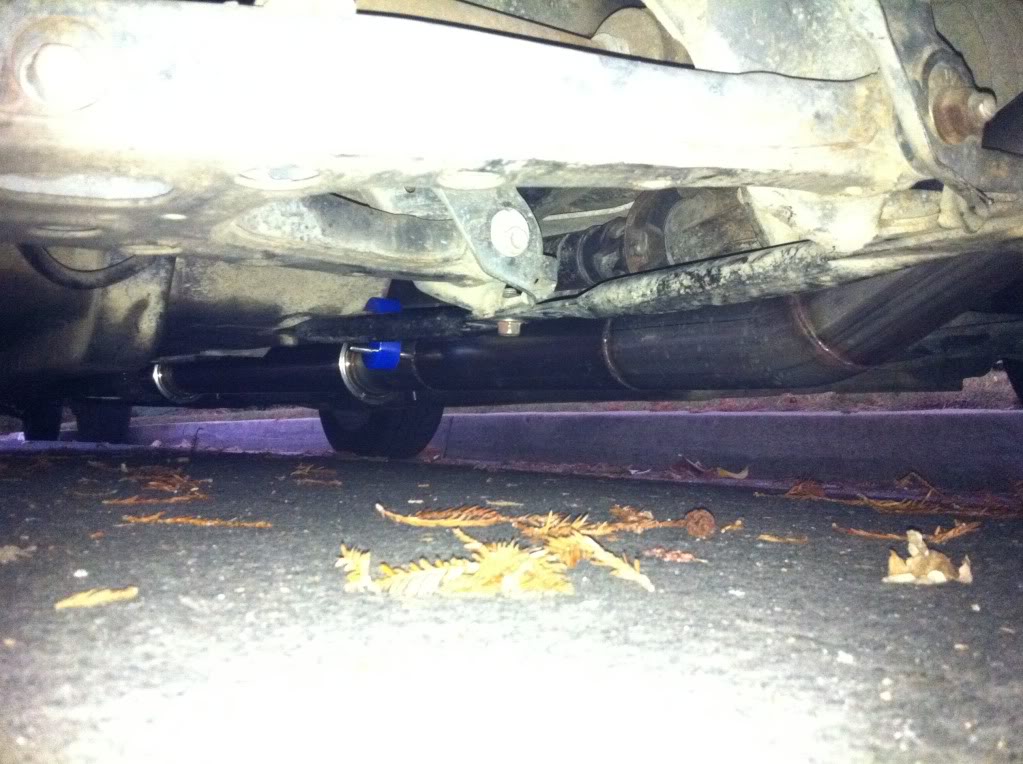

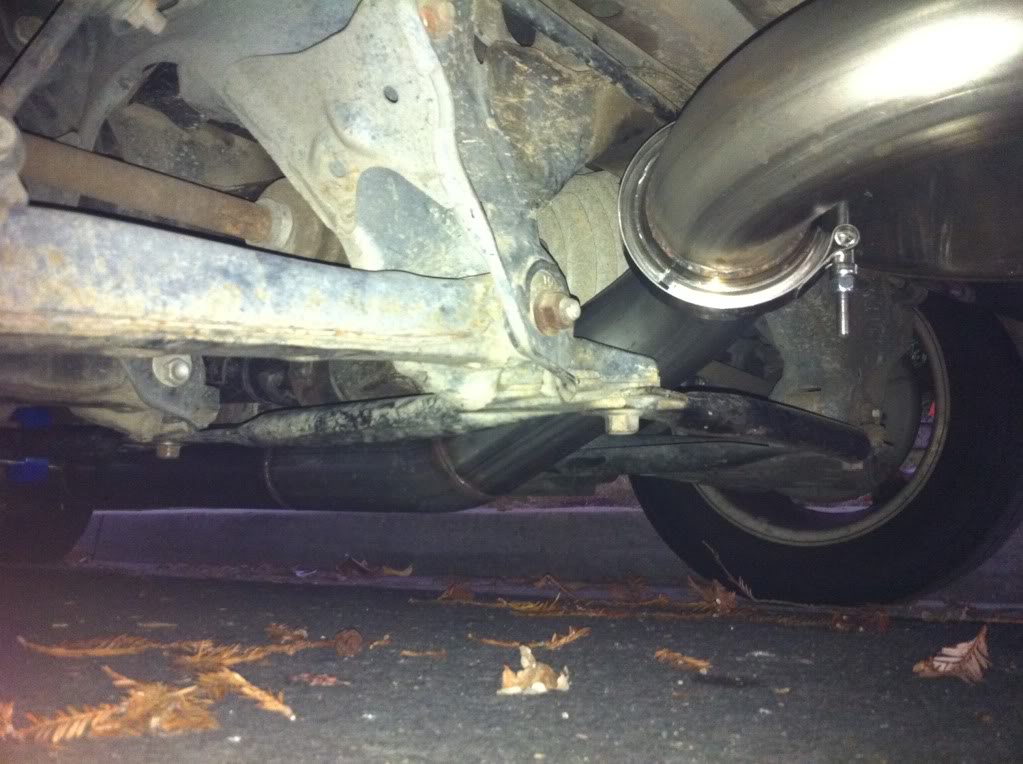

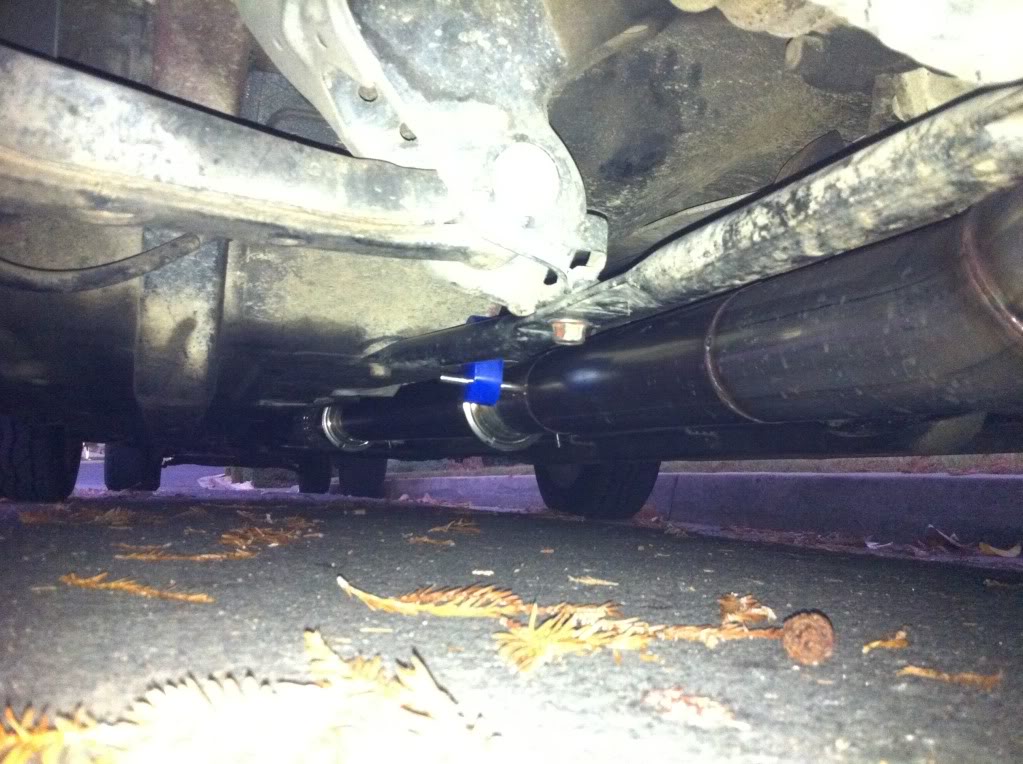

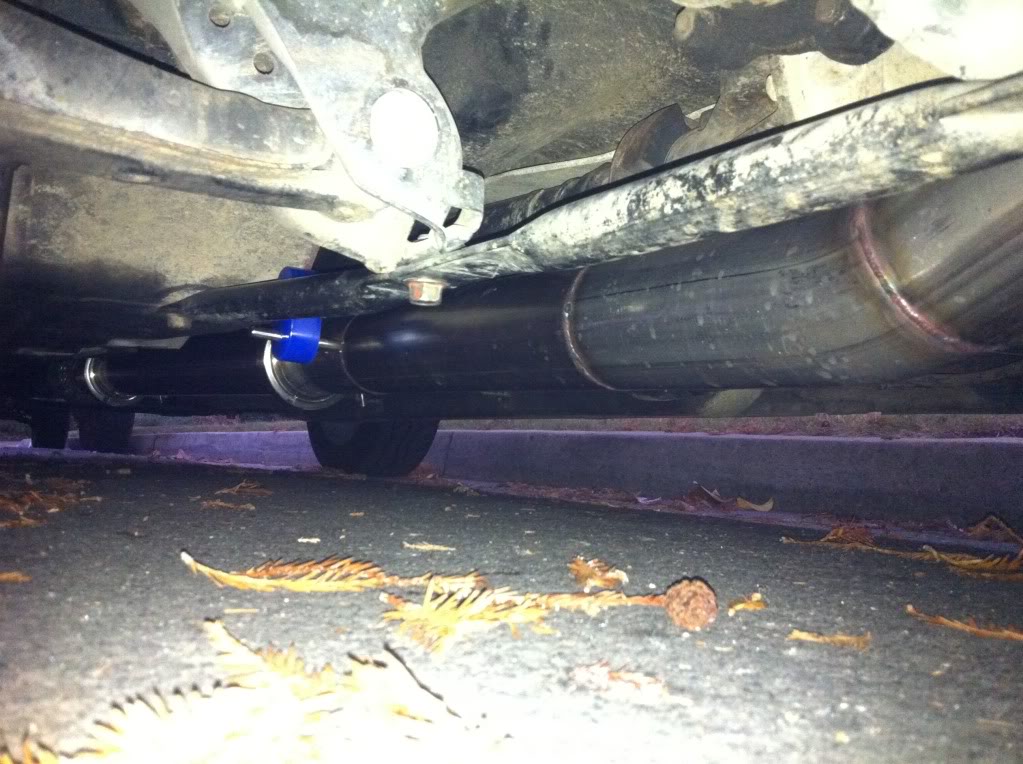

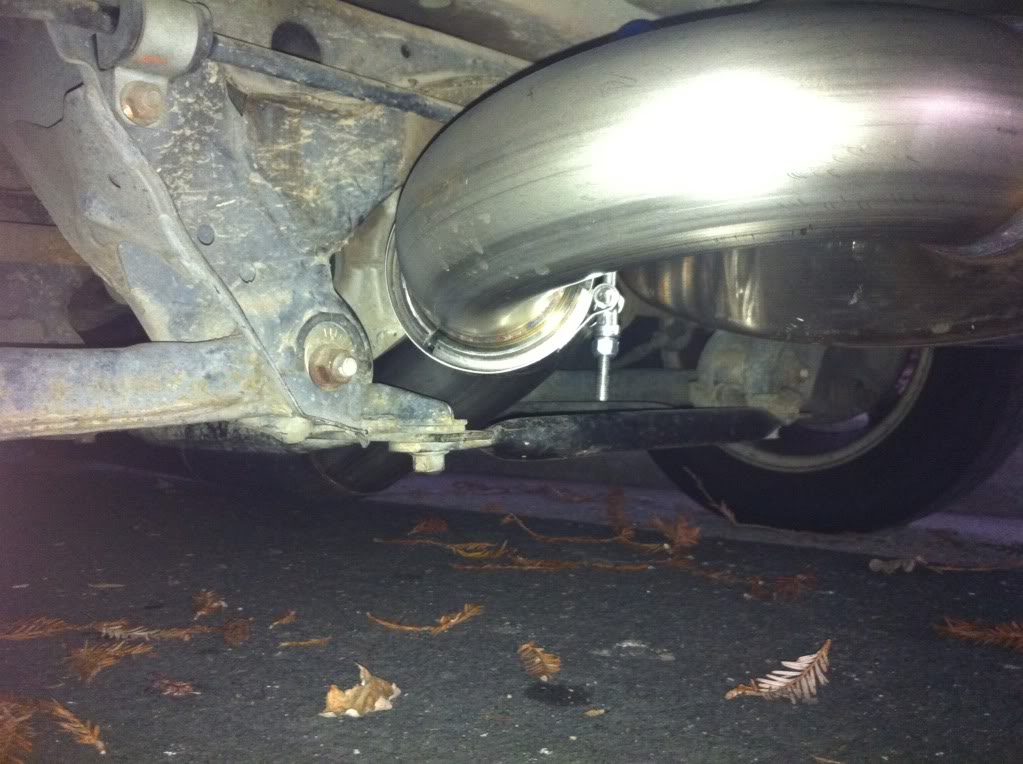

And a couple pictures of the exhaust routing underneath the car:












The short list of things to do:
Undertray
Gauge holder
go-pro roll bar mount
install tein flex-just purchased from da chop

Things to buy next:
trackspeed radiator
gauges
coolant reroute

Enjoy!!! Let me know if you guys want pictures of anything specific.
