Update for you bitches!

i drove up to the my engine builders house today to put the finishing touches on the motor and bring it home. i had to bring him the seal kit and the used timing belt and water-pump kit i picked up for 70 bucks (1k miles on it) i tell you what, i am very impressed with the time that he put into this and am very happy with it. i cant wait to get it in the car!

this is pretty much what was done to this motor:

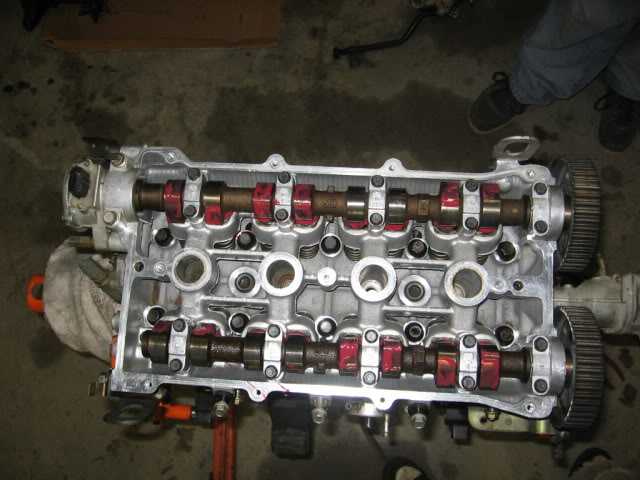

Head:
lightly ported
bowls de-shrouded and slightly polished
viton valve seals
and a nice 5 day soak in a cleaning vat

95 Block:
balanced crank, rods and pistons (all OEM)
honed
slightly snugger piston wrings
new bearings (cant remember what he used)
block was slightly decked (used to be one of his spec blocks)
nice soad in a cleaning vat

he also took the time to walnut blast my protege valve cover

here are some piktars:

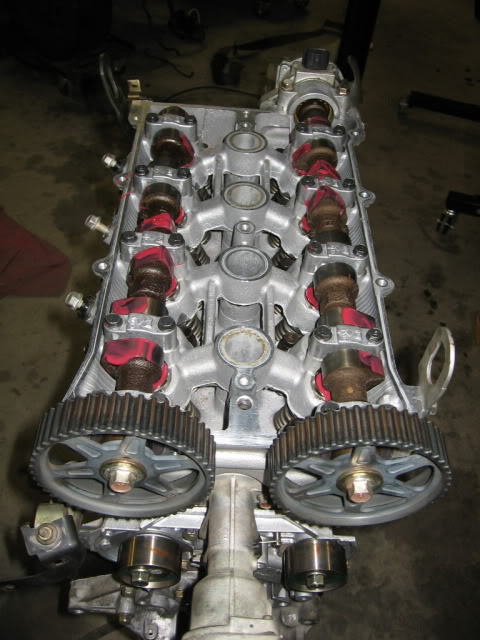

Name:  IMG_0197.jpg
Views: 1
Size:  72.7 KB

Name:  IMG_0198.jpg
Views: 1
Size:  69.2 KB

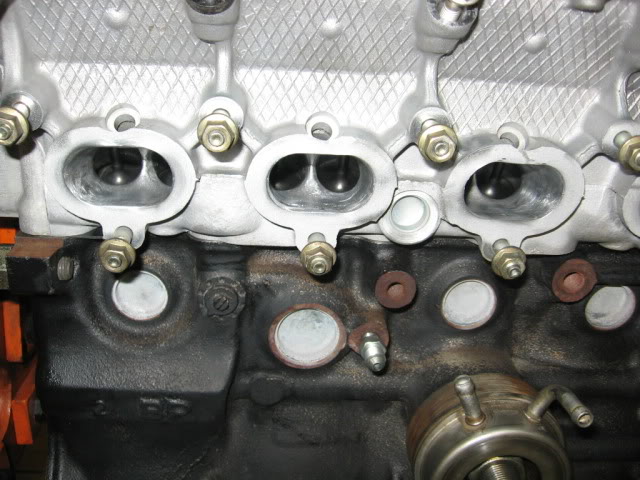

Name:  IMG_0196.jpg
Views: 1
Size:  77.7 KB

Name:  IMG_0196.jpg
Views: 1
Size:  77.7 KB

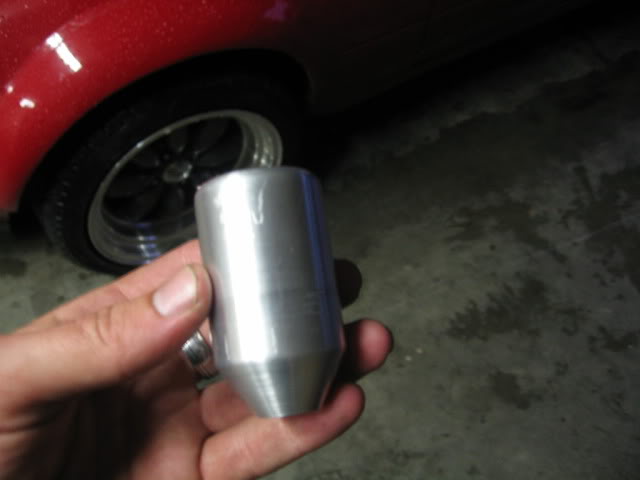

here is what he does when he gets bored, he gave it to me cause it has a couple of nics in it. now all i gotta do is send it to knobmiester to get a 6-speed pattern engraved in it.

Name:  IMG_0204.jpg
Views: 2
Size:  28.0 KB
Attached Images
File Type: jpg IMG_0196.jpg (77.7 KB, 1 views)
WonTon is offline   Reply With Quote
Old 07-12-2010, 03:56 AM   #102
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

i got a couple of dumb ?'s

my previos car was a 96 and i had to use the oil presure port for the oil feed, the block i have now is a 95 with driverside oil and water ports, one hole is bigger and the other is smaller. the small one is the oil feed port and the bigger one is the water supply port right?
WonTon is offline   Reply With Quote
Old 07-12-2010, 09:37 AM   #103
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Quote:
Originally Posted by WonTon View Post
hmm which intercooler...
None of those. Look for a delta or tube/fin - they'll provide good temp drop, minimal pressure drop and allow more air flow than bar/plate to other exchangers behind.
http://cgi.ebay.com/ebaymotors/Unive...ht_2167wt_1167
http://cgi.ebay.com/ebaymotors/UNIVE...#ht_1800wt_941
http://cgi.ebay.com/ebaymotors/Unive...ht_2215wt_1167
m2cupcar is offline   Reply With Quote
Old 07-12-2010, 09:39 AM   #104
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Quote:
Originally Posted by WonTon View Post
i got a couple of dumb ?'s

my previos car was a 96 and i had to use the oil presure port for the oil feed, the block i have now is a 95 with driverside oil and water ports, one hole is bigger and the other is smaller. the small one is the oil feed port and the bigger one is the water supply port right?
Yep. And if you SS want lines like I made for mine, let me know.
RotorNutFD3S is offline   Reply With Quote
Old 07-12-2010, 02:07 PM   #105
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,072
Total Cats: 253
Default

Quote:
Originally Posted by WonTon View Post
rods and pistons (all OEM)
Why use stock rods???? Sorry if you already answered this, I was distracted by the beautiful manifold
viperormiata is offline   Reply With Quote
Old 07-12-2010, 03:18 PM   #106
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

ease of use and money im sure
leatherface24 is offline   Reply With Quote
Old 07-12-2010, 03:52 PM   #107
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

Quote:
Originally Posted by RotorNutFD3S View Post
Yep. And if you SS want lines like I made for mine, let me know.
last night i was thinking about that, but it was 4am at that point when i was in my garage starting at the engine. (didnt want to text ya that late)

Quote:
Originally Posted by viperormiata View Post
Why use stock rods???? Sorry if you already answered this, I was distracted by the beautiful manifold
Quote:
Originally Posted by leatherface24 View Post
ease of use and money im sure
yup! readily available and my cash flow and budget at the time couldn't allow it.

Last edited by WonTon; 07-15-2010 at 12:08 AM.
WonTon is offline   Reply With Quote
Old 07-12-2010, 03:53 PM   #108
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

Quote:
Originally Posted by m2cupcar View Post
None of those. Look for a delta or tube/fin - they'll provide good temp drop, minimal pressure drop and allow more air flow than bar/plate to other exchangers behind.
http://cgi.ebay.com/ebaymotors/Unive...ht_2167wt_1167
http://cgi.ebay.com/ebaymotors/UNIVE...#ht_1800wt_941
http://cgi.ebay.com/ebaymotors/Unive...ht_2215wt_1167

hmmm, i like that second one!
WonTon is offline   Reply With Quote
Old 07-14-2010, 03:54 AM   #109
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

so this is the point where i begin to get excited about all this, ARTech just gave me the word that he will be in go mode for finishing up all the parts he is making for me! god i cant wait to see what he is cookin up!

right now the only thing keeping me from getting the engine and trans into the car is a clutch and pressure-plate and i need to find some motor-mounts. after that assembly will begin!

Last edited by WonTon; 07-15-2010 at 12:08 AM.
WonTon is offline   Reply With Quote
Old 07-14-2010, 06:55 PM   #110
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

Stop bumping your thread until you have pictures of that Artech shiz
Cspence is offline   Reply With Quote
Old 07-15-2010, 12:06 AM   #111
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

shut up! those pics should be coming in the next couple days

im just trying to share my excitement!
WonTon is offline   Reply With Quote
Old 07-15-2010, 01:53 AM   #112
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

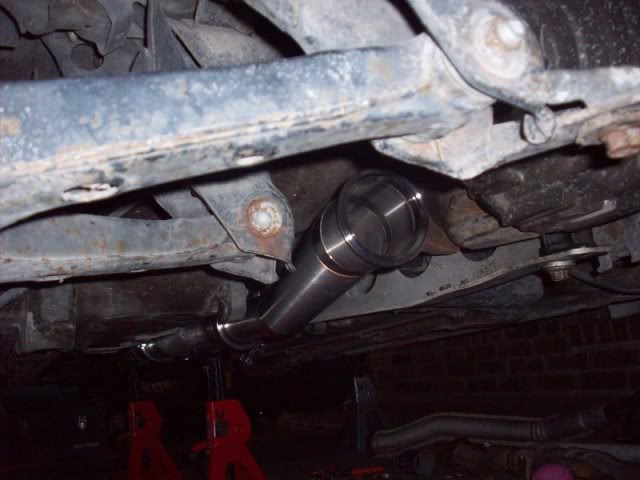

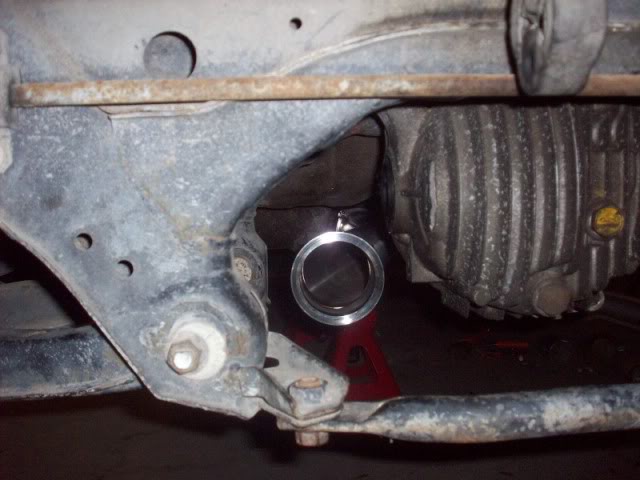

am i allowed to bump now! hehe

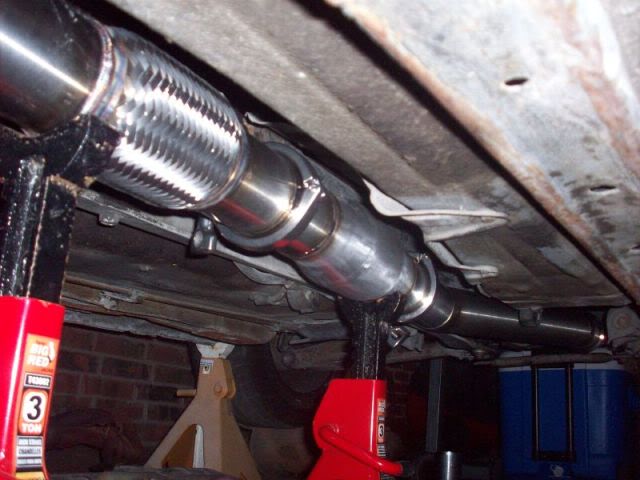

Name:  107_0113.jpg
Views: 1
Size:  65.2 KB

Name:  107_0109.jpg
Views: 2
Size:  55.1 KB

Name:  107_0107.jpg
Views: 1
Size:  61.2 KB
WonTon is offline   Reply With Quote
Old 07-15-2010, 02:06 AM   #113
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,584
Default

Everything is looking **** man.

I'm still amazed at why the hell you'd choose to use stock rods after dumping so much money into everything else, but w/e.

About the manifold/downpipe:
aren't you losing the spool increase from the downpipe being super straight by having a manifold that isn't as smooth/well flowing? I mean that's a log mani replica, and LOOKS (I may be wrong on this) like it will flow similar or at least not as well as a ramhorn or absurdflow design.

Just curious
18psi is offline   Reply With Quote
Old 07-15-2010, 02:14 AM   #114
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

im going back and forth with the whole built engine thing (but more than likely will take the plunge). if i boost the living crap out of a OEM engine and pop it it can be replaced for fairly cheap. if i get a built motor and pop it i gotta spend alot of money to build another one! as to why i didnt go with forged internals on this motor is because i didnt pay a cent for the work the guy did (no money out of my pocket except for the seals and WP/TB)

this is basically my plan. so that i dont have to keep borrowing my fathers truck to get around im taking a shortcut with the engine so i can spend my money in the more important areas. after the car is up and running, ill get another block and stock pile parts for it for a bullet proof engine. once the built motor goes in i will keep the engine i posted pics of tucked away in case i pop the built engine.




as far as the mani and DP. in theory with the manifold the way it is, because of the small volume of exhaust it will take to fill it up should be less than alot of other manifolds and will yield in an increased pressure inside the manifold before the turbo. now with the exhaust being as straight as possible should hopefully increase spool significantly by allowing the increased pressure pre-turbo to escape faster. none of this will be proven until i am able to get numbers.

i think about this like a garden hose. you take a hose with nothing on the end of it and turn the water on, the water comes out but not at a crazy high rate of speed (now take the water and aim it at a small fan to push the blades, the blades will only move so fast) now take and put your thumb over the end of it to increase the pressure build up in the hose (now aim it and the fan again and watch the blades spin faster)

Last edited by WonTon; 07-15-2010 at 02:50 AM.
WonTon is offline   Reply With Quote
Old 07-15-2010, 10:27 AM   #115
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,584
Default

Very interesting. Acura did exactly the same thing on the RDX, using a valve that restricts flow to promote pressure pre-turbo, then opening and spooling the everliving **** out of it.
In fact, there's a valve type thingie we were discussing on here, where it mates between manifold/turbo and half of it opens/closes so you could do something similar on our cars.


All interesting stuff. All not proven (at least on a miata...yet). Can't wait to see results
18psi is offline   Reply With Quote
Old 07-15-2010, 11:08 AM   #116
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Quote:
Originally Posted by WonTon View Post
i think about this like a garden hose. you take a hose with nothing on the end of it and turn the water on, the water comes out but not at a crazy high rate of speed (now take the water and aim it at a small fan to push the blades, the blades will only move so fast) now take and put your thumb over the end of it to increase the pressure build up in the hose (now aim it and the fan again and watch the blades spin faster)
This is also the theory behind using 1.25" pipe weld elbows instead of 1.5". More pressure/velocity pre-turbo. I can see it both working and not working in my head. But 1.5" matches the OEM Exhaust port size almost perfectly (when smooshed oval) so that's what I use and I think most others too.
TurboTim is offline   Reply With Quote
Old 07-15-2010, 11:10 AM   #117
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Quote:
Originally Posted by 18psi View Post
Very interesting. Acura did exactly the same thing on the RDX, using a valve that restricts flow to promote pressure pre-turbo, then opening and spooling the everliving **** out of it.
In fact, there's a valve type thingie we were discussing on here, where it mates between manifold/turbo and half of it opens/closes so you could do something similar on our cars.


All interesting stuff. All not proven (at least on a miata...yet). Can't wait to see results
I think the thing you are thinking of is the coolass valve for twinscroll turbines used on nontwinscroll manifolds. IIRC There's a few T3 & T4 garrett turbines that are twinscroll. Bolt them up to a standard T3 flange with this valve inbetween...valve closes off one of the scrolls and you get kickass spool out of a bigass turbine supposedly. I forget who makes them but I'm considering trying one on my subaru.

EDIT: Sound Performance makes them. $500 though?! Damn I might just make my own. Ouch.

Last edited by TurboTim; 07-15-2010 at 11:30 AM.
TurboTim is offline   Reply With Quote
Old 07-15-2010, 02:08 PM   #118
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

Quote:
Originally Posted by TurboTim View Post
This is also the theory behind using 1.25" pipe weld elbows instead of 1.5". More pressure/velocity pre-turbo. I can see it both working and not working in my head. But 1.5" matches the OEM Exhaust port size almost perfectly (when smooshed oval) so that's what I use and I think most others too.
i also see this working well and not so well at the same time, i just like trying out new things!
WonTon is offline   Reply With Quote
Old 07-21-2010, 12:21 AM   #119
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

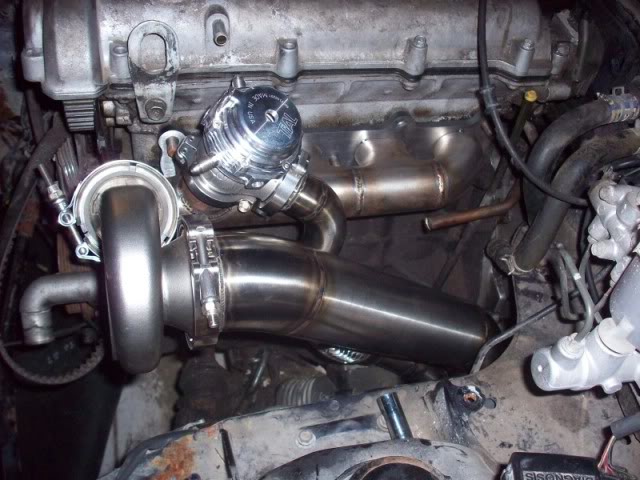

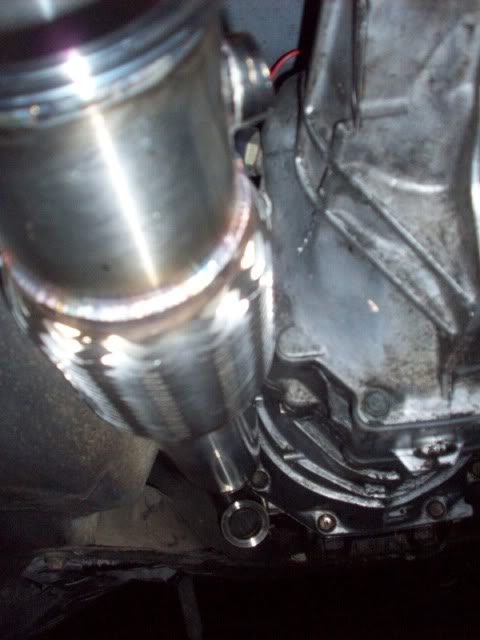

ARTech is my hero!

Name:  107_0124.jpg
Views: 1
Size:  81.1 KB

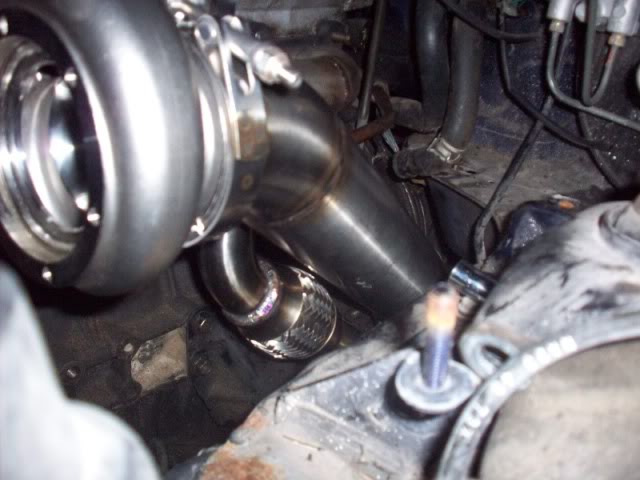

Name:  107_0126.jpg
Views: 1
Size:  60.1 KB

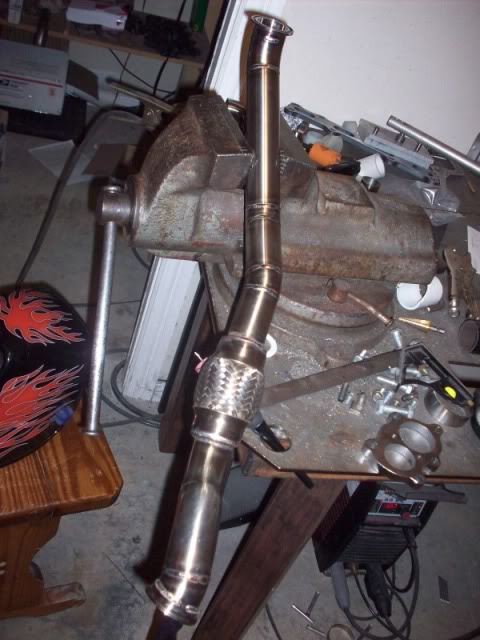

Name:  107_0123.jpg
Views: 1
Size:  73.6 KB

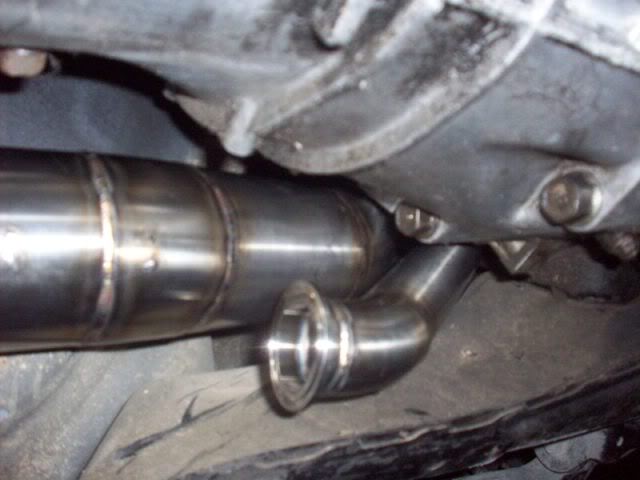

Name:  107_0129.jpg
Views: 1
Size:  49.8 KB

Name:  107_0132.jpg
Views: 1
Size:  51.9 KB

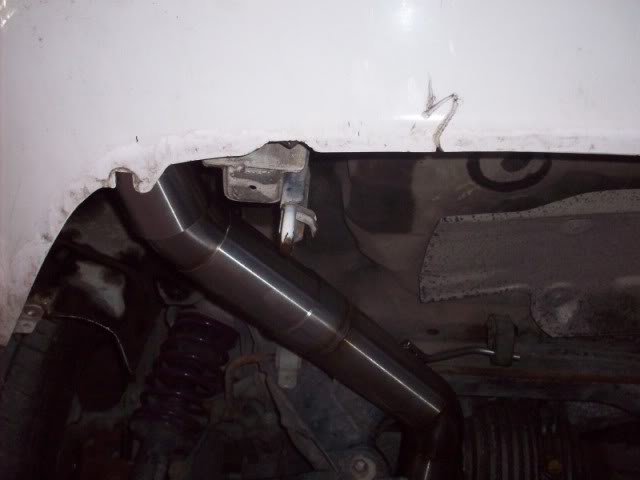

Name:  107_0121.jpg
Views: 1
Size:  39.8 KB

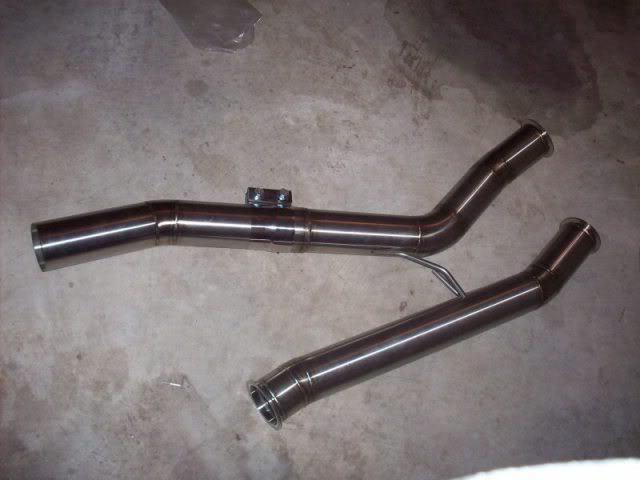

Name:  107_0122.jpg
Views: 1
Size:  48.2 KB
WonTon is offline   Reply With Quote
Old 07-21-2010, 12:43 AM   #120
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,584
Default

welds look the sex
