Default zipstrips turbo build MS GT25 14psi

my home kit was built off a ebay cast manifold, with a t2 flange welded on top of the T3. MSD 550cc's with honda reisitor box wired in. SARD BOV, MS ecu.


manifold test fit.

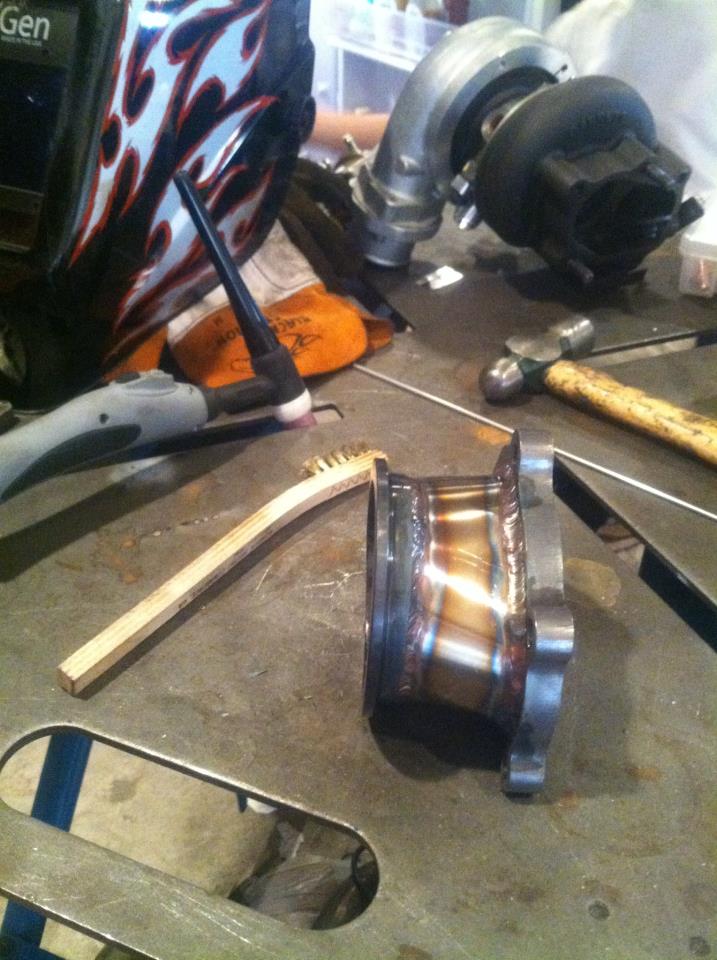

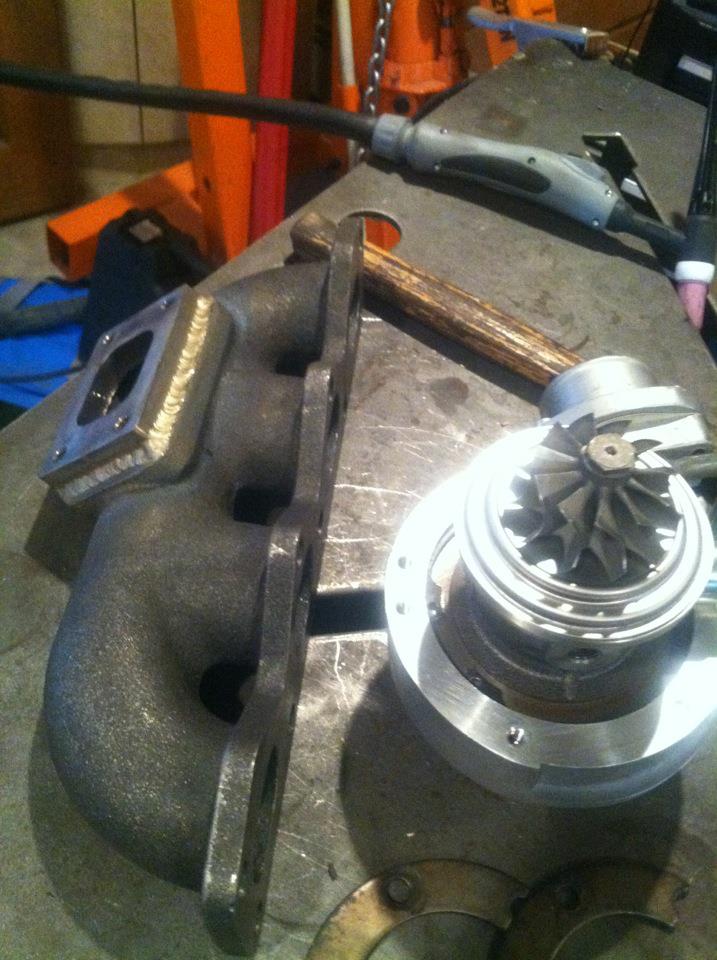

t3 to t3 complete

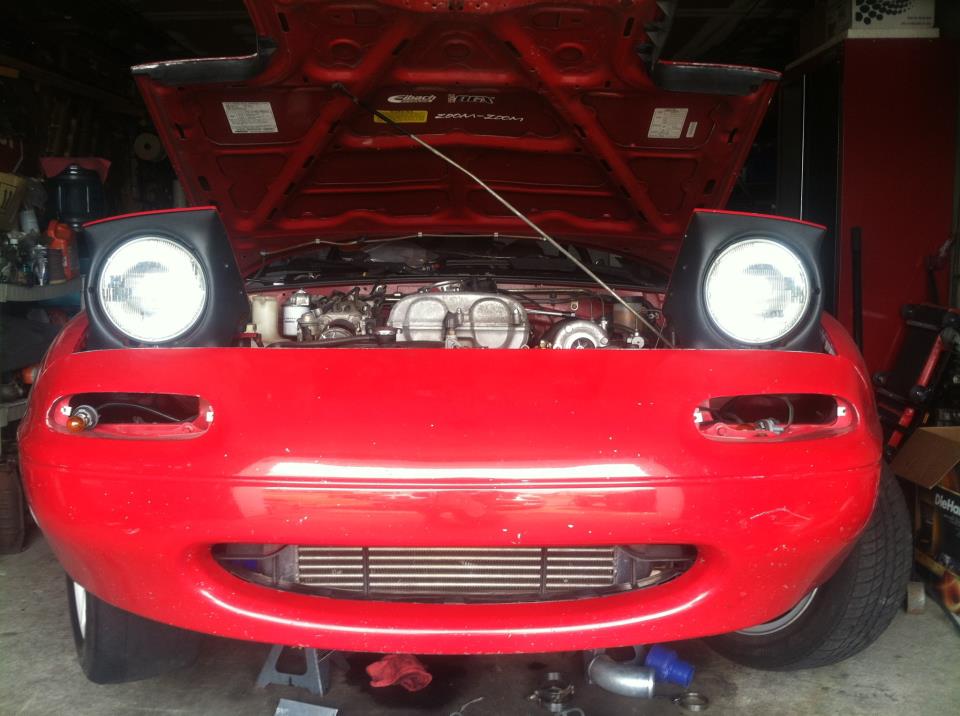

fmic fitment

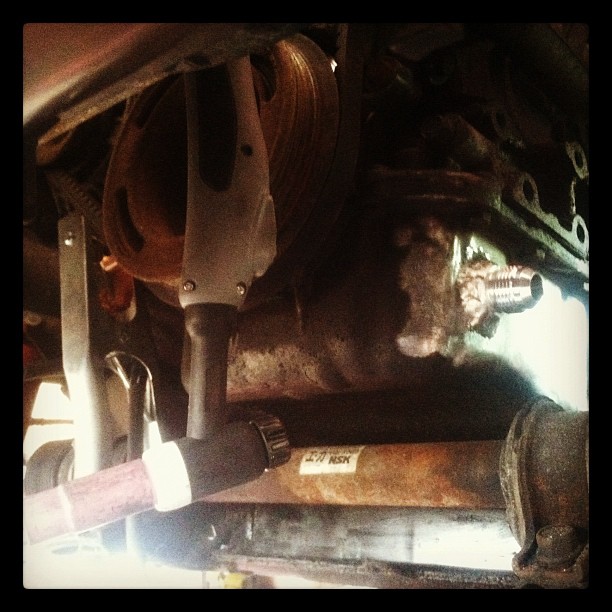

oil return -an welded


5bolt to Vband.. this is the only part i dont like on my build.. will be redoing my downpipe when i can..

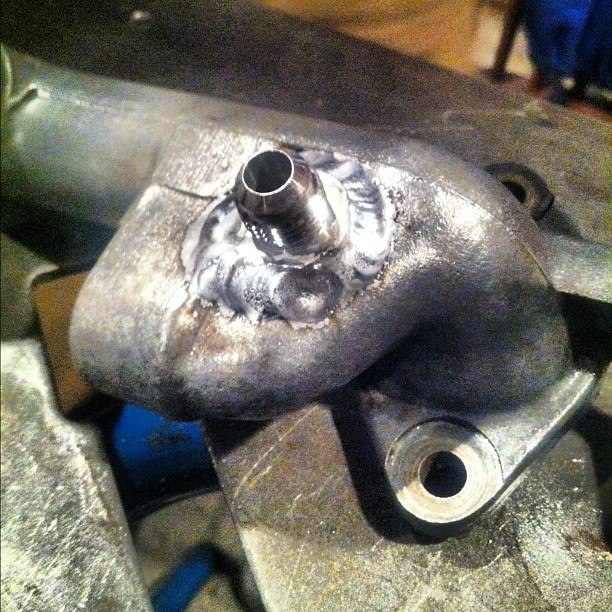

-an welded for turbo water lines

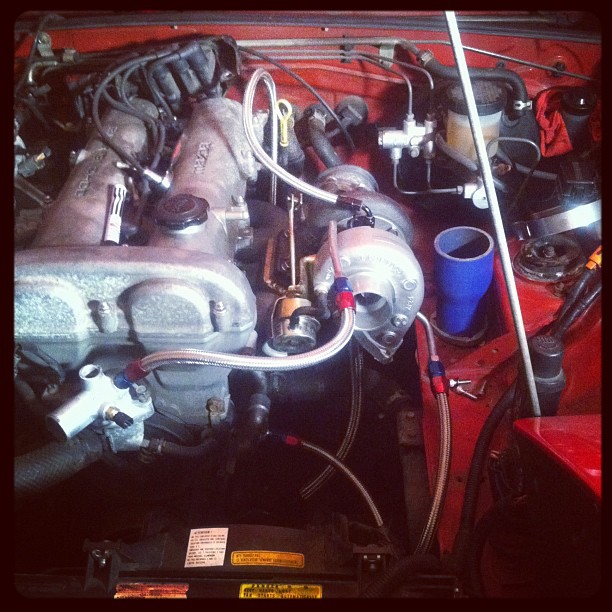

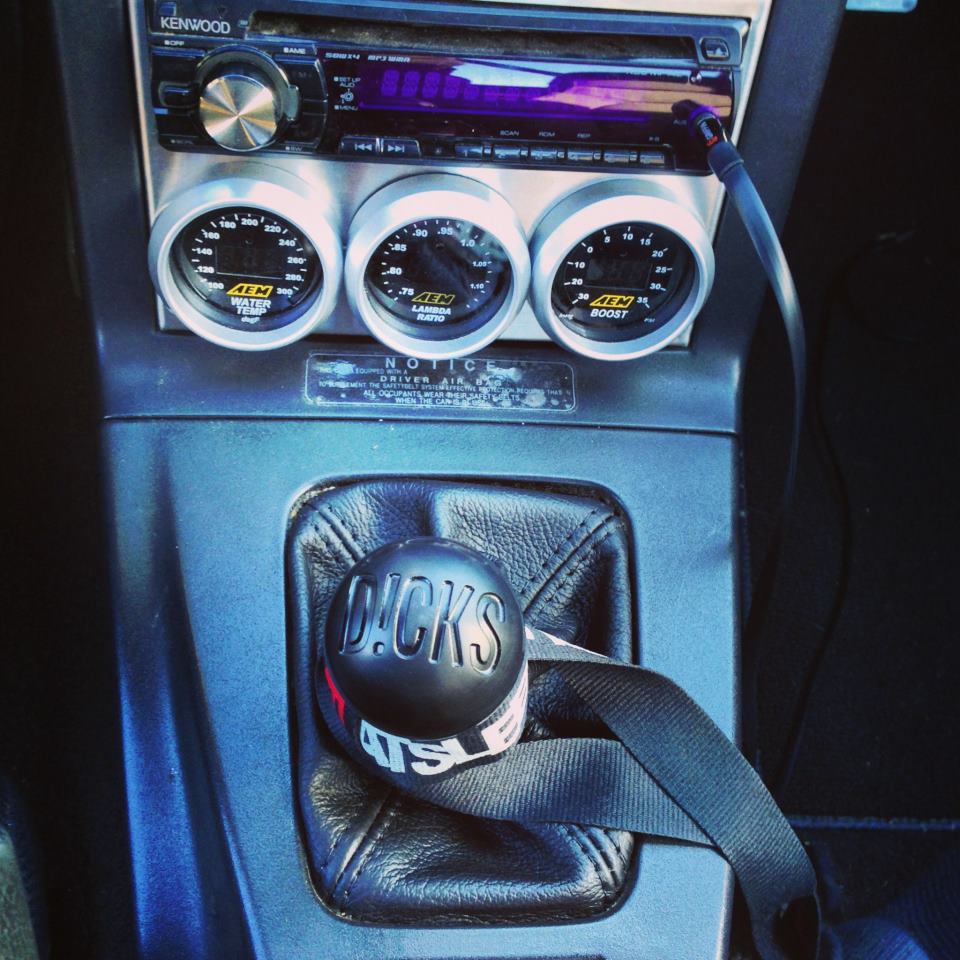

note water lines, sensor bung welded for AEM gauge too, oil feed....

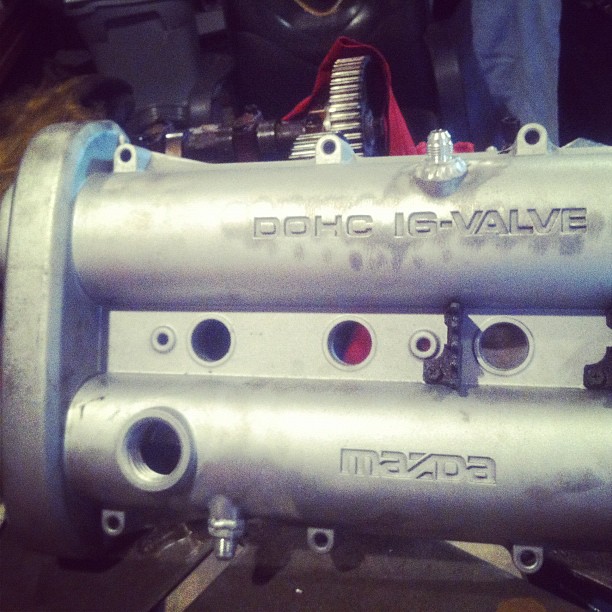

VC -an fittings welded

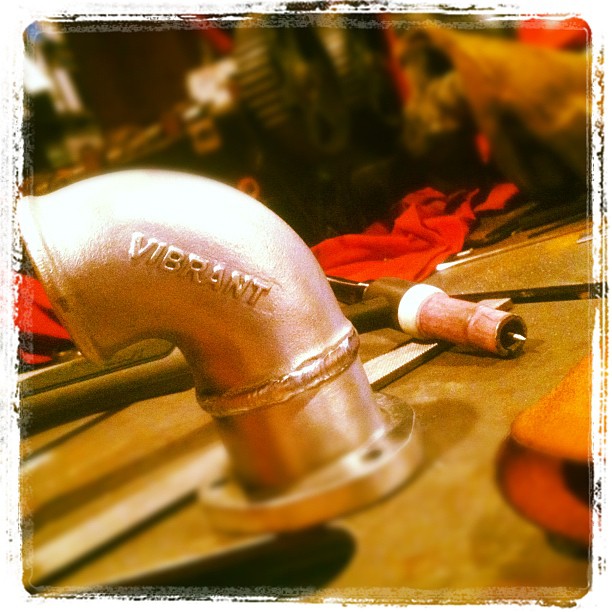

turbo outlet pipe made


almost finished

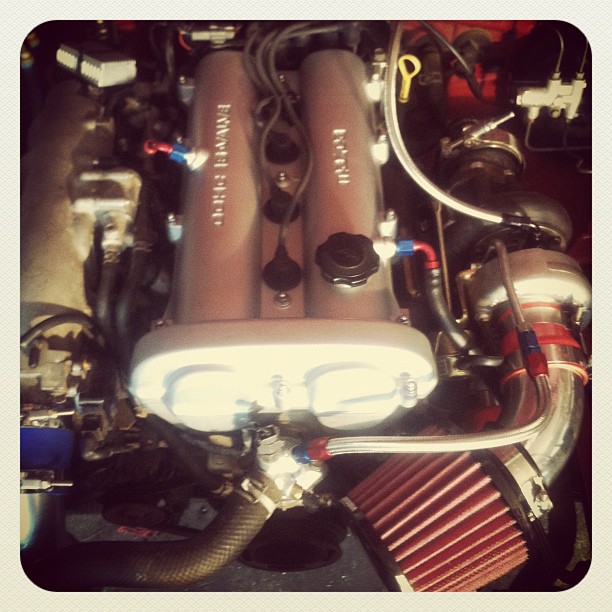

done! hot side pipe sitting a little low but its good for now. FMIC is set back. hard to see but its there..




good for now. but my clutch is slipping as i raised boost to a final 14 psi.. looking to order up some forged internals for a rebuild(just because), 949 twin disc clutch, and an os diff... hope you enjoyed. wish i got more photos but it was a quick weekend. thanks to my good friend duff for helping we swap the MS out of my other miata to the boosted one!
Attached Thumbnails
zipstrips turbo build MS GT25 14psi-582639_10152038195355226_863232088_n.jpg   zipstrips turbo build MS GT25 14psi-293279_10152043861030226_373467045_n.jpg   zipstrips turbo build MS GT25 14psi-419199_10152090528270226_604390274_n.jpg   zipstrips turbo build MS GT25 14psi-558605_10152090838580226_1736645233_n.jpg   zipstrips turbo build MS GT25 14psi-399653_10152090981825226_1967033565_n.jpg

zipstrips turbo build MS GT25 14psi-419325_10152093905585226_101290031_n.jpg   zipstrips turbo build MS GT25 14psi-223819_10152094099225226_1999826742_n.jpg   zipstrips turbo build MS GT25 14psi-578627_10152103374845226_448420697_n.jpg   zipstrips turbo build MS GT25 14psi-260061_10152103691090226_1979419094_n.jpg   zipstrips turbo build MS GT25 14psi-281906_10152107649210226_737215759_n.jpg

zipstrips turbo build MS GT25 14psi-393722_10152133543995226_610877174_n.jpg
zipstrips is offline   Reply With Quote
Old 11-26-2012, 08:45 AM   #2
Junior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2009
Location: scranton, pa
Posts: 103
Total Cats: 4
Default

Attached Thumbnails
zipstrips turbo build MS GT25 14psi-230501_342701162491050_311784699_n.jpg
zipstrips is offline   Reply With Quote
Old 11-27-2012, 04:08 AM   #3
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Nice looking setup man. Wish I could weld like that.
matthewdesigns is offline   Reply With Quote
Old 11-28-2012, 06:27 PM   #4
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,704
Total Cats: 237
Default

Looks like a nice budget build with that ebay t3 mani. Hows it drive?
Fireindc is offline   Reply With Quote
Old 11-28-2012, 09:30 PM   #5
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

Nice build. Nice photos.

Whats the story on the rest of the exhaust?
Miater is offline   Reply With Quote
Old 11-28-2012, 10:17 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,205
Total Cats: 2,586
Default

I'm a little torn here: its a nice build, but

- you used a quality garrett turbo with a cheap ebay log mani
- you converted the mani to t2 when there is a crazy amount of nice t3 turbos available
- you're rebuilding dinky 1.6 then buying a baller clutch and baller diff


Do you have split personality disorder? lol
18psi is offline   Reply With Quote
Old 11-29-2012, 04:05 AM   #7
Junior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2009
Location: scranton, pa
Posts: 103
Total Cats: 4
Default

Quote:
Originally Posted by 18psi View Post
I'm a little torn here: its a nice build, but

- you used a quality garrett turbo with a cheap ebay log mani
- you converted the mani to t2 when there is a crazy amount of nice t3 turbos available
- you're rebuilding dinky 1.6 then buying a baller clutch and baller diff


Do you have split personality disorder? lol


i may..

the garrett was aquired off a trade so i decided to use the "free" turbo

i really wanted to use a t2 like a 28 or 30... but that t25 fell into my lap

i have 1.6's and 1.8 blocks to play with.. rebuilds are really cheap and i do just about everything myself.
(have a 1.8 ready for rebuild, a 10:1 supertech eagle rod 1.8l shotblock ready, and FM t2 log manifold.. so its only a matter of time to try out some combos. i never gave the 1.6l a chance in my blue miata.. my bother has a boosted 94 too. just playing with some parts laying around. and i really pushed to complete it before i deployed to afghanistan.. im here now and hae until next september to decide where its headed.. clutch and diff are something i can carry over to any of my setups.)


Fireindc- drives great! im really pleased with the outcome. i need to get some better bends and redo my downpipe. maybe drop back to a 2.5DP for better clearance if needed..

Miatera- thank you! 3" dp to a jackson racing cat/ catback.. (came with the car)
zipstrips is offline   Reply With Quote
Old 11-29-2012, 09:10 AM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,205
Total Cats: 2,586
Default

I see. In that case yeah I'd highly recommend switching to one of the 1.8's
18psi is offline   Reply With Quote
Old 11-29-2012, 11:56 AM   #9
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,704
Total Cats: 237
Default

Quote:
Originally Posted by 18psi View Post
I see. In that case yeah I'd highly recommend switching to one of the 1.8's
This is what I'm in the process of doing. 1.6 was VERY fun though, no doubts about that.
Fireindc is offline   Reply With Quote
Old 04-08-2013, 05:15 AM   #10
Junior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2009
Location: scranton, pa
Posts: 103
Total Cats: 4
Default

Quote:
Originally Posted by 18psi View Post
I see. In that case yeah I'd highly recommend switching to one of the 1.8's
UPDATE: nothing big to note as im still in afghan

planning for my BP build and i already have some parts waiting my return..

upgrading to an MS2 board too!

already ordered: manely rods & supertech 9.0:1CR 85mm bore

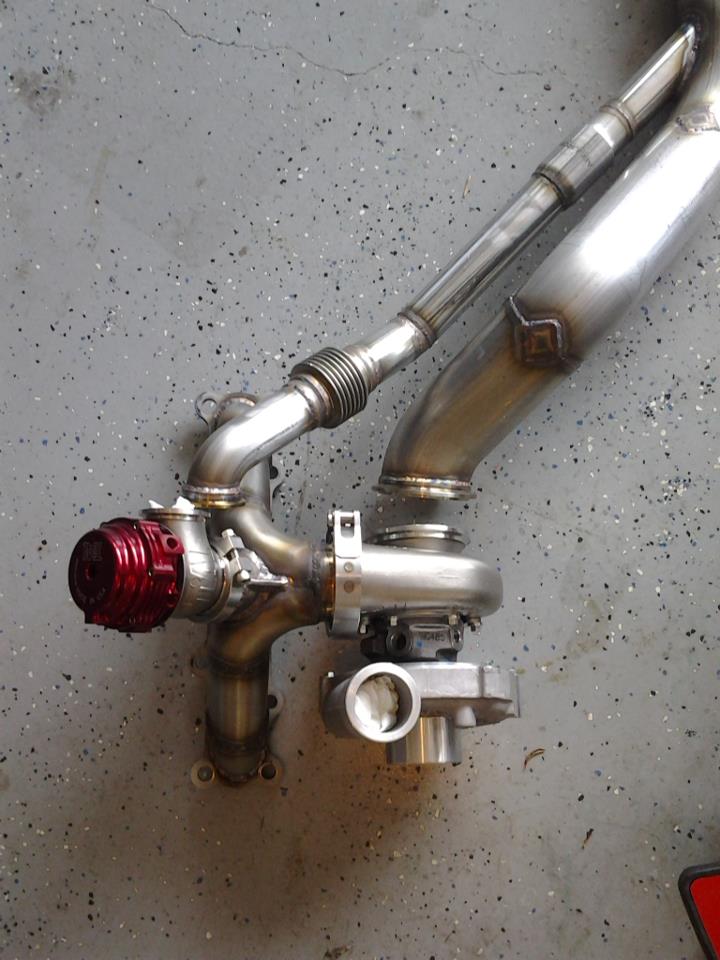

Cometic HG. absurdflow GT3071R vbanded set up w/ 38mm tialWG.

Boundry oil pump is next on my short block list...







and if it blows up im prepaired

Attached Thumbnails
zipstrips turbo build MS GT25 14psi-285760_491723420864402_938324428_n.jpg   zipstrips turbo build MS GT25 14psi-480128_480346988668712_1966798582_n.jpg
zipstrips is offline   Reply With Quote
Old 04-08-2013, 09:29 AM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

what MS do you currently have? did you buy the MS2 already?
Braineack is offline   Reply With Quote
Old 04-09-2013, 05:12 AM   #12
Junior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2009
Location: scranton, pa
Posts: 103
Total Cats: 4
Default

Quote:
Originally Posted by Braineack View Post
what MS do you currently have? did you buy the MS2 already?
have the ms1 and just upgrading it to the ms2 DB..

CPU - MegaSquirt-II Daughterboard DIYAutoTune.com

should i have been looking at something different?
zipstrips is offline   Reply With Quote
Old 04-09-2013, 09:28 AM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

yes, i have a spare ms2 daughterboard I can sell you soon.
Braineack is offline   Reply With Quote
Old 04-09-2013, 11:03 AM   #14
Junior Member
iTrader: (1)

Join Date: Sep 2010
Location: Scranton PA
Posts: 266
Total Cats: 4
Default

Can't wait to help out with this build.
duffbuster243 is offline   Reply With Quote
Old 04-10-2013, 02:06 PM   #15
Junior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2009
Location: scranton, pa
Posts: 103
Total Cats: 4
Default

Quote:
Originally Posted by Braineack View Post
yes, i have a spare ms2 daughterboard I can sell you soon.
damn, wish i knew sooner. i ordered my DB probably well over a month ago.. i will be in the market for another Ms setup. i want to put one back into my blue beater miata (1990).. possibly throwing this 1.6 setup in or dropping my 11:1 BP into it... any deals on the new msx? or anything old laying around


Quote:
Originally Posted by duffbuster243 View Post
Can't wait to help out with this build.
imagine how excited i am ha.. we can hopefully get started on my R&R! at least the short block...
zipstrips is offline   Reply With Quote
Old 04-10-2013, 02:08 PM   #16
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,205
Total Cats: 2,586
Default

you bought that baller AF setup???!!

OH MY

this is going to be awesome
18psi is offline   Reply With Quote
Old 04-10-2013, 02:09 PM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

no, i just happen to be upgrading a ms2 to ms3, thought I'd pass the savings.
Braineack is offline   Reply With Quote
Old 04-12-2013, 12:56 AM   #18
Junior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2009
Location: scranton, pa
Posts: 103
Total Cats: 4
Default

Quote:
Originally Posted by 18psi View Post
you bought that baller AF setup???!!

OH MY

this is going to be awesome
cannot wait to get it together! not trying to rush the build thou. i want to finish the short block 1st.. then focus on a head, hopefully i can come across a 99/00..

Quote:
Originally Posted by Braineack View Post
no, i just happen to be upgrading a ms2 to ms3, thought I'd pass the savings.
PM me the savings please, i could always order a ms1 and build it with this DB.. it would be more then enough to replace the Oem ecu in my 90 beater... it would be even better if i can build it while im working over here..
zipstrips is offline   Reply With Quote
