Default 1996 Mazda Miata - 293whp Rotrex Supercharged - $20000

Category: Import
Status: Clean Title

I have a 1996 Mazda Miata for sale, in Vancouver, British Columbia.

Engine Size: 1.6L


Asking price is $20000



After much deep consideration I have decided to put my Miata up for sale. Below is a list of more or less everything I can think of at this moment. I'm sure I'm missing few minor things here and there but you get an idea...

The obvious details;
1996 chassis, bought and imported to Canada from San Jose. Car has no rust to speak of.
Chassis had 122,000 Miles when I bought it and has since had a Racepak dash installed which does not record KMS that reliably. I have put a conservative 20,000kms since owning it, 15,000 of that on the motor set up I had built by Ocean at Chikara Motorsports in Vancouver, BC.
-5spd manual transmission
-no power steering
-no AC
-no power windows or locks
-comes with hard top, no soft top

Engine top and bottom end build by Ocean at Chikara Motorsports (porting was done before I bought the head and "finished" up by Ocean).

Engine Bottom End
Supertech 8.7:1 pistons
M-tuned connecting rods
ARP2000 con rod bolts
Maruha F112 rod and crank bearings
VVT high flow oil pump
Coolant reroute to increase flow and cooling to cyl #4
46mm Racing Aluminium radiator

Engine Top End
Shadbolt Cams custom grind cams
Ported/polished head (extensive work done)
Stainless steel Supertech 1mm OS valves
Mazdaspeed solid lifter buckets
Supertech valve shims
OBX cam gears on motor, TODA gears yet to be installed (included)
Gates Racing timing belt
Mazda 323 GTX Cam Cover
Maxim Works 4-2-1 Header ($1000+ Retail)
GotPSI intake manifold w/ velocity stacks and LS1 throttle body

Top/bottom end capable of over 8000RPM

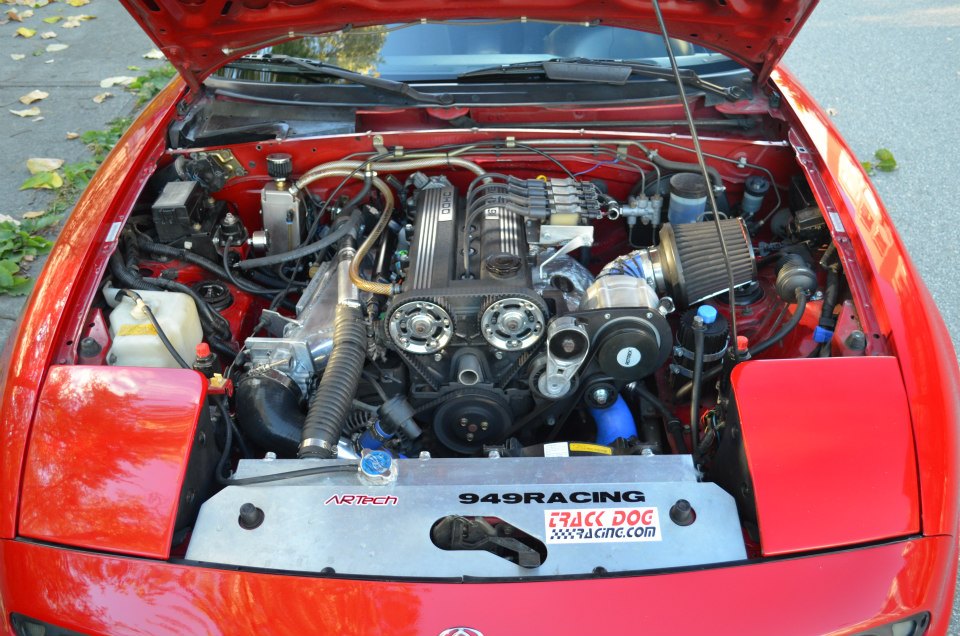

Power Adder
Kraftwerks Rotrex C30/94 Supercharger system with stand alone oiling system
16PSI peak at 8000RPM

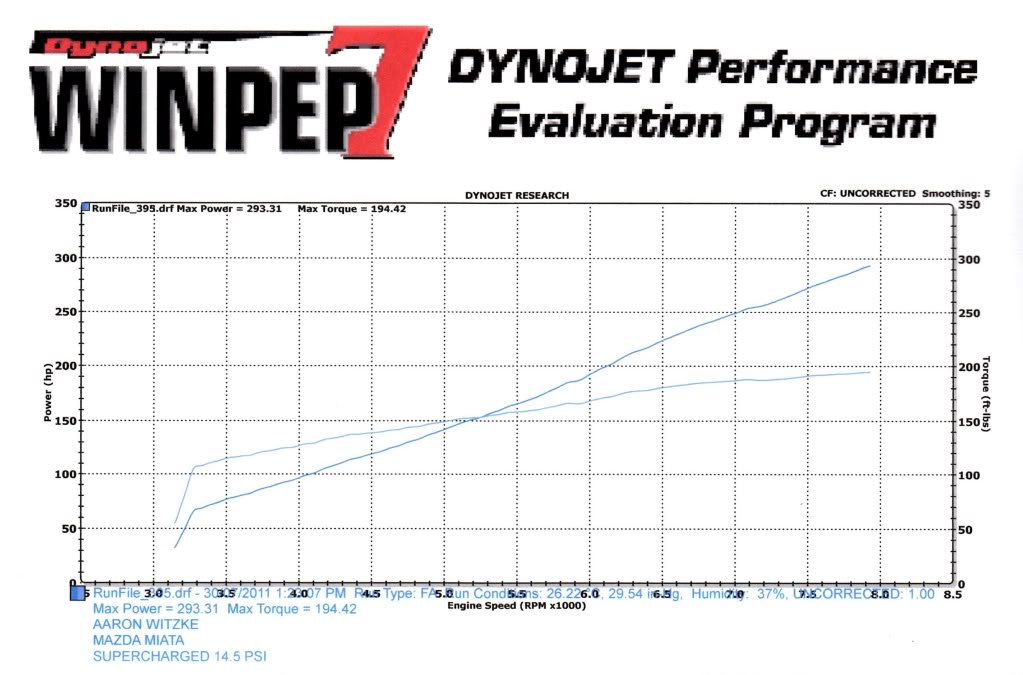

293whp, 194wtq
Pieced together intercooler system from spare parts
ARTech 3'' TIG'd 304SS exhaust with two resonators. Sounds mean. Meets sound limits at Mission.
2.5'' Enthuza test pipe

ECU and Electronics
Haltech Sprint 500 Stand Alone ECU - Running Direct Fire Ignition and sequential injection
Bosch EV14 700CC Injectors
LS7 Ignition Coils
Innovate LC1 Wideband (not currently installed, included)
Racepak dash system with;
-oil pressure
-oil temp
-water temp
-boost
-RPM
-KPH (driveshaft Hall sensor pic up)
-Lap timing + more!

Chassis
Bilstien HD shocks revalved by Stewart Development
450lb rear springs, 700lb front springs
Aluminium coilover sleeves
ISC racing top hats 1.5'' rear, 1'' front (front not installed but included)
Racing Beat front sway bar with Racing Beat endlinks
Stock rear bar (chassis is very neutral with this setup on track)
Torsen Differential
Fidanza 10lb flywheel
Flyin' Miata FM2 clutch

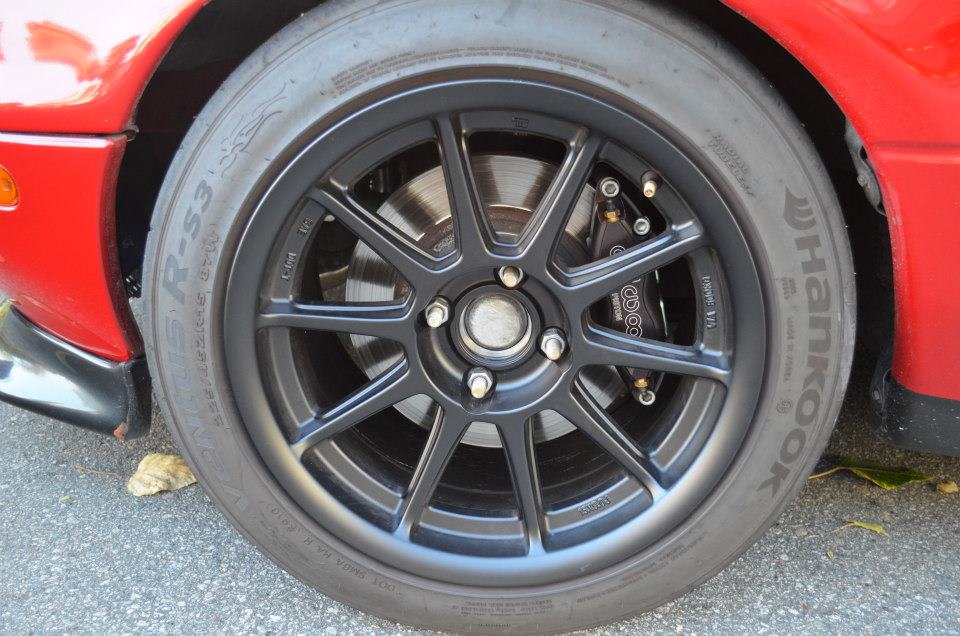

Chikara Motorsports Big Brake Kit
-custom machined brackets
-stainless lines
-Wilwood Dynapro Radial mount calipers
-Hawk HP+ rear pads, DTC-70 Front pads
-ATE Super Blue brake fluid
TireRack C3m 15x9 wheels
225/45/15 Hankook RS3 tires (80%+ tread)

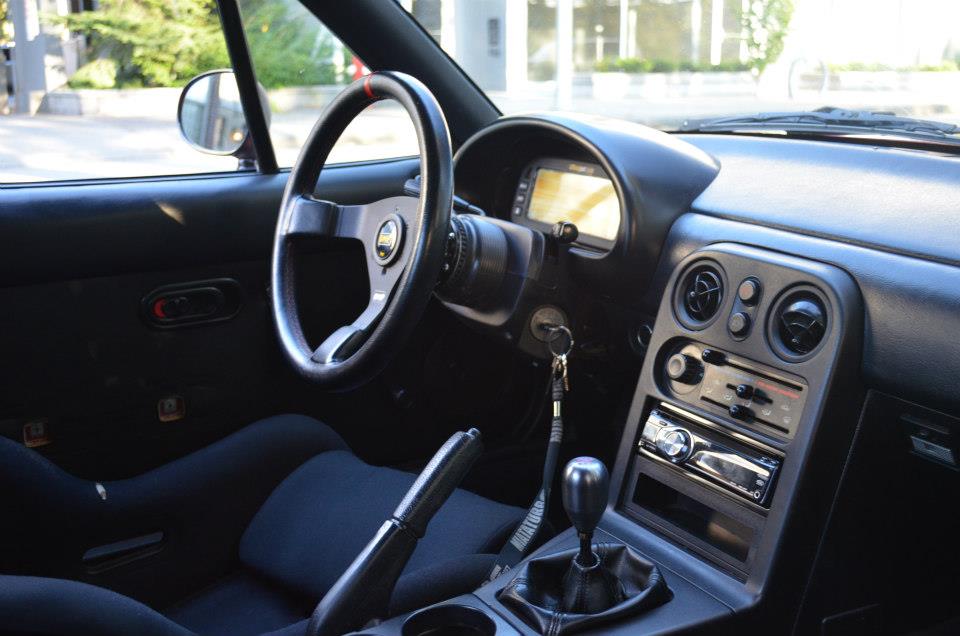

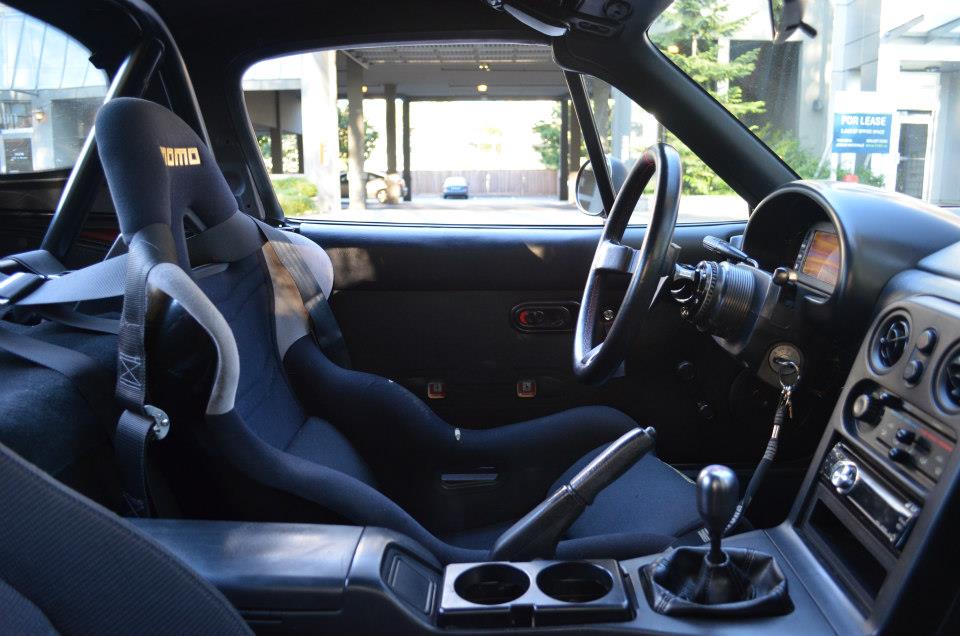

Interior

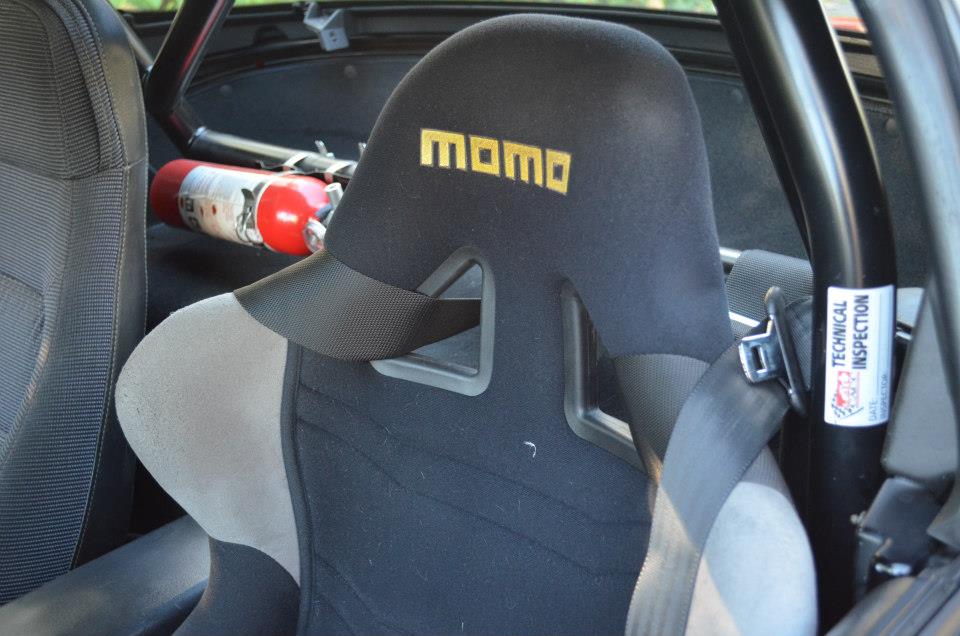

Momo Acropolis seat (super comfy!)
OMP leather 350mm steering wheel
Skunk2 Shift ****
Racepak dash (mentioned above)
Hard Dog roll bar
NA6 Dash

The car runs great, and has since I've had the motor set up in it. With multiple track days, a few hill climbs and thousands of daily driver miles it has never let me down or had any issues. If you're looking for a car that with a few additions could be quite competitive in SSM, or an all out track car this will do you either way. Or even a daily driver, this car can do it. It idles at a solid 900RPM even with the cams, gets (for what it is) great mileage and passed our BC Emissions rolling road test with no modifications to the tune and only with a cat. Our system is as strict as California's testing standards (some say higher!).

This car has been an absolute blast and I know one day I'll regret having sold it. However due to a varying amount of reasons I am deciding to let it go. I am not in a rush to sell, and at this point quite firm on price. I have a lot more into it than I am listing it for, but know cars are not an investment. If you are a serious buyer feel free to contact me, I am willing to ship at buyers expense and willing to sell to a US buyer (you take care of importation paperwork).

Here are two videos from two hill climbs I did last year.

https://www.youtube.com/watch?v=0ufki7XT3l0
https://www.youtube.com/watch?v=6I7b3pwb_Jg



$20,000

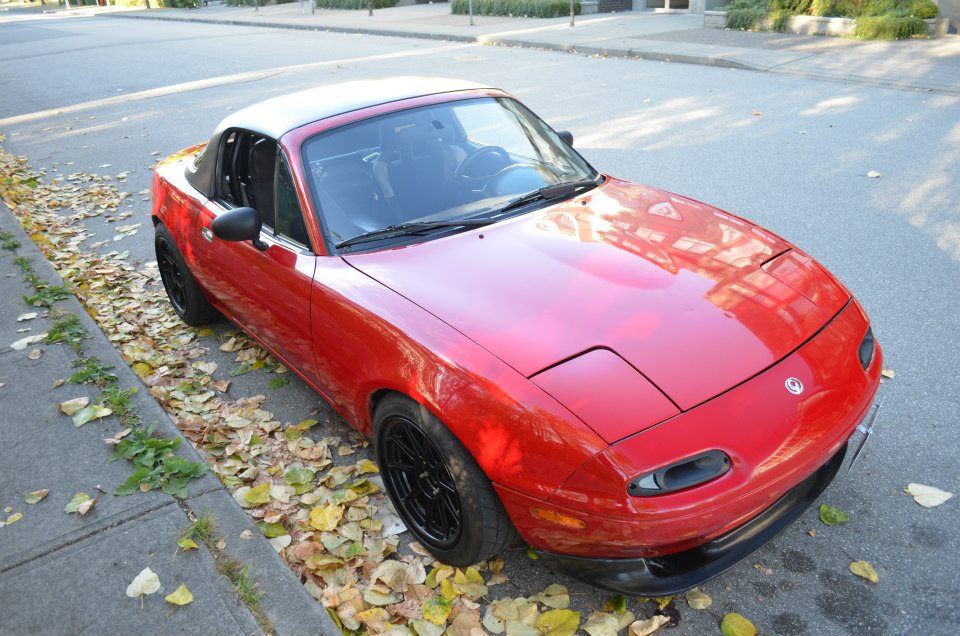

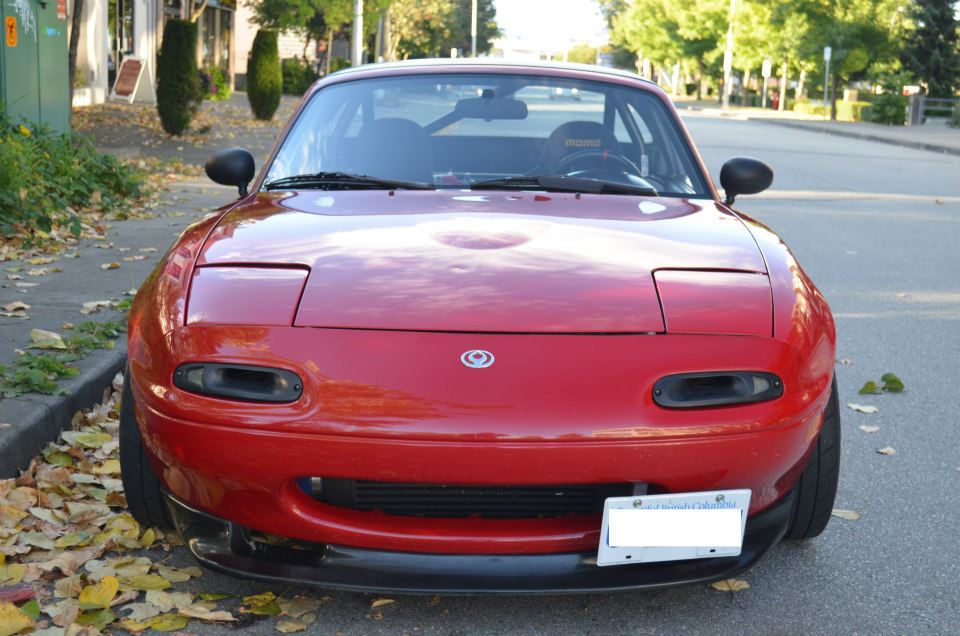

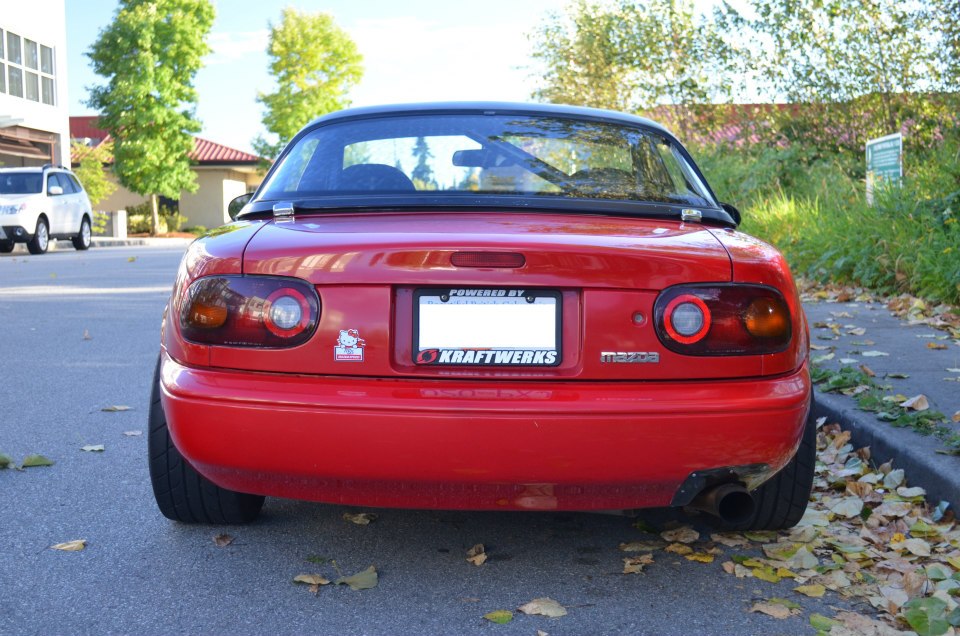

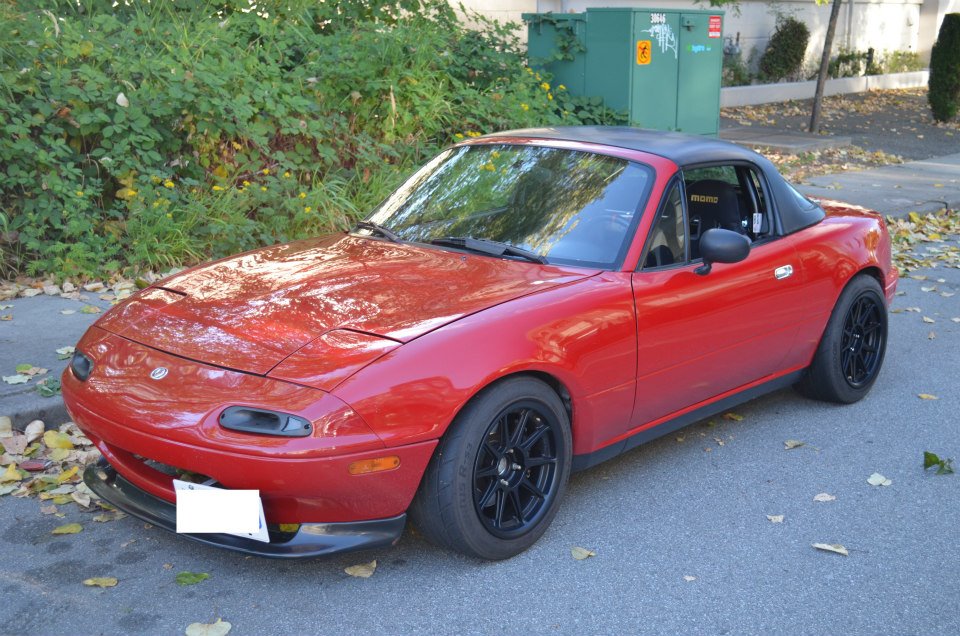

How the car looks currently.
Attached Thumbnails
1996 Mazda Miata - 293whp Rotrex Supercharged - 000-486853_4045990601613_1829669766_n.jpg   1996 Mazda Miata - 293whp Rotrex Supercharged - 000-dynojeteddypull.jpg
falcon is offline
Old 09-12-2012, 11:36 PM   #2
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default









Attached Thumbnails
1996 Mazda Miata - 293whp Rotrex Supercharged - 000-486853_4045990601613_1829669766_n.jpg   1996 Mazda Miata - 293whp Rotrex Supercharged - 000-427956_4045990761617_1150059530_n.jpg   1996 Mazda Miata - 293whp Rotrex Supercharged - 000-485788_4045990881620_111248245_n.jpg   1996 Mazda Miata - 293whp Rotrex Supercharged - 000-558455_4045991041624_1149870696_n.jpg   1996 Mazda Miata - 293whp Rotrex Supercharged - 000-556405_4045991921646_461068739_n.jpg

1996 Mazda Miata - 293whp Rotrex Supercharged - 000-392138_4045991721641_2093248802_n.jpg   1996 Mazda Miata - 293whp Rotrex Supercharged - 000-296470_4045991521636_1200941223_n.jpg   1996 Mazda Miata - 293whp Rotrex Supercharged - 000-429842_4045991241629_952409110_n.jpg   1996 Mazda Miata - 293whp Rotrex Supercharged - 000-422912_4045992201653_1786015165_n.jpg
falcon is offline
Old 09-12-2012, 11:52 PM   #3
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

20k....glws
leatherface24 is offline
Old 09-12-2012, 11:56 PM   #4
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Considering I've had some local interest in it already, I'm not to worried . Just though I'd post it up in the one most obvious forum I seemed to have forgotten about when I listed it.
falcon is offline
Old 09-13-2012, 12:05 AM   #5
Senior Member
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

Quote:
Originally Posted by falcon View Post
Considering I've had some local interest in it already, I'm not to worried . Just though I'd post it up in the one most obvious forum I seemed to have forgotten about when I listed it.
I hope you get 20k for it, I'll definitely be towing my miata down to van if I ever wanna sell it lol

Love the racepak btw
dc2696 is offline
Old 09-13-2012, 12:26 AM   #6
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

The market isn't any different here. The intrest has been from a few people who had a hand in building it and know how much work it was to get it to where it is today. Racepak is sweet. %100 better than the stock stuff... I couldn't imagine driving a Miata without one now.
falcon is offline
Old 09-13-2012, 09:48 AM   #7
Junior Member
iTrader: (2)

Join Date: Oct 2011
Posts: 207
Total Cats: -14
Default

Quote:
Originally Posted by falcon View Post
Considering I've had some local interest in it already, I'm not to worried . Just though I'd post it up in the one most obvious forum I seemed to have forgotten about when I listed it.
but it doesn't have a turbo

I'm joking, it's amazing. Would drive/10
TheDriver is offline
Old 09-13-2012, 09:30 PM   #8
Newb

Join Date: May 2011
Posts: 36
Total Cats: -42
Default

trades for rx7? pm me if interested
Johnnymx5 is offline
Old 09-19-2012, 04:12 AM   #9
Newb

Join Date: Oct 2010
Posts: 15
Total Cats: -4
Default

You looking for 20k Canadian $$?
closer98 is offline
Old 09-19-2012, 12:24 PM   #10
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Yeah.
falcon is offline
Old 09-20-2012, 01:46 AM   #11
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Open to trades for a truck, specifically a Tacoma or Frontier.
falcon is offline
Old 09-21-2012, 12:10 AM   #12
Junior Member

Join Date: Aug 2011
Location: Lakeland, FL
Posts: 76
Total Cats: 0
Default

Quote:
Originally Posted by falcon View Post
Open to trades for a truck, specifically a Tacoma or Frontier.
Hm.... I've got a 2012 V6 Frontier with 4k miles, and I want this thing bad. Wife might divorce me for doing a straight trade for a 96 Miata though, lol.
smbstyle is offline
Old 09-21-2012, 05:05 PM   #13
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Haha, I bet. Wasn't exactly thinking 2012, but hey, not going to say no if you offer. ;p
falcon is offline
Old 10-07-2012, 01:40 PM   #14
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

3 day sale, before I pull the supercharger as it's tentatively sold. Would much rather sell the car as one.

$15k firm.
falcon is offline
Old 10-07-2012, 02:15 PM   #15
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

That C30/94 is obviously too big for whatever application whoever is buying it wants to use it on. You should do them a favor and trade me your -94 for my -74 (no, serious...)

GLWS mang!
EO2K is offline
Old 10-07-2012, 02:33 PM   #16
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

You could always arrange that with him should no one want the car as it sits.

But I'm hoping that's not the case and the current price is more appealing. Adding up the ridiculous amount of dollars I've spent on this thing, 15k is truly a steal.
falcon is offline
Old 12-05-2012, 08:35 PM   #17
Newb

Join Date: Jan 2009
Location: vancouver/ suzuka city jp
Posts: 30
Total Cats: 0
Default

Free bumb for a truly wicked car. Ive bought many things off OP great guy
fc10a3 is offline
Old 12-25-2012, 09:23 AM   #18
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Free bump for a great guy with my very first intake manifold. This was actually my prototype off of my race car. This thing has the most beautiful velocity stacks you have ever seen.
Gotpsi? is offline
Old 12-25-2012, 08:59 PM   #19
MT Pony Underground
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

Bump for asking what throttle body to charge piping adapter is that?
Nagase is offline
Old 12-26-2012, 11:50 AM   #20
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

I really should have bought a -94 and just underdriven it

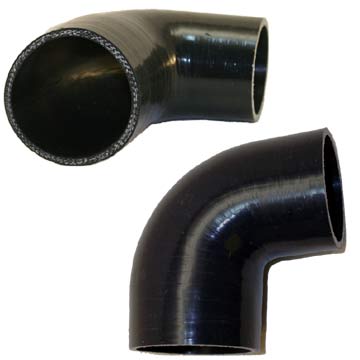

If I had to guess, I'd say that's probably a 90 Bend Reducer

Bending Reducer

Attached Thumbnails
1996 Mazda Miata - 293whp Rotrex Supercharged - 000-90_reducer_black_picture.jpg
