(MI) FS: 1992 Turbo Miata: no-excuses track build
For Sale:

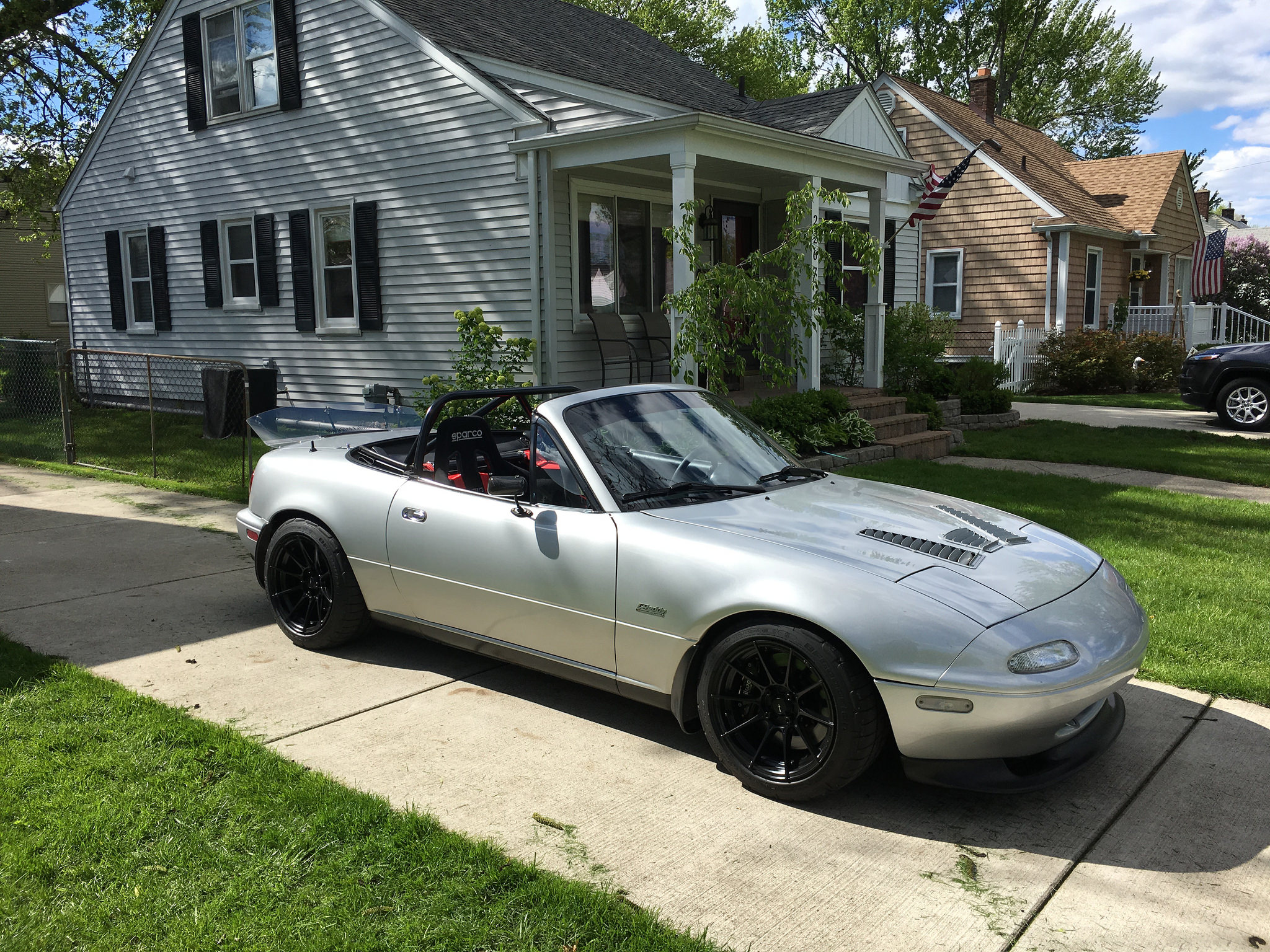

1992 MX-5 Miata
59k miles
Asking $11,900
Vehicle Basics:
Silver Stone Metallic
All original VIN matched body panels, clean rust-free, always garaged
"A" Package with A/C and P/S deleted properly. MiataCage blueprinted de-powered and welded rack
Track-day / HPDE no-expense-spared no excuses build. Runs 1:27's at Grattan and 1:41's at Gingerman.
Inside trunk lid signed by Bobby Rahal
Allegedly featured in 1999 Sport Compact Car magazine as an early GReddy turbo build (unable to verify)
Clean and clear title in hand
2218 pounds wet, no driver. Alignment and corner balancing by V2 Motorsports

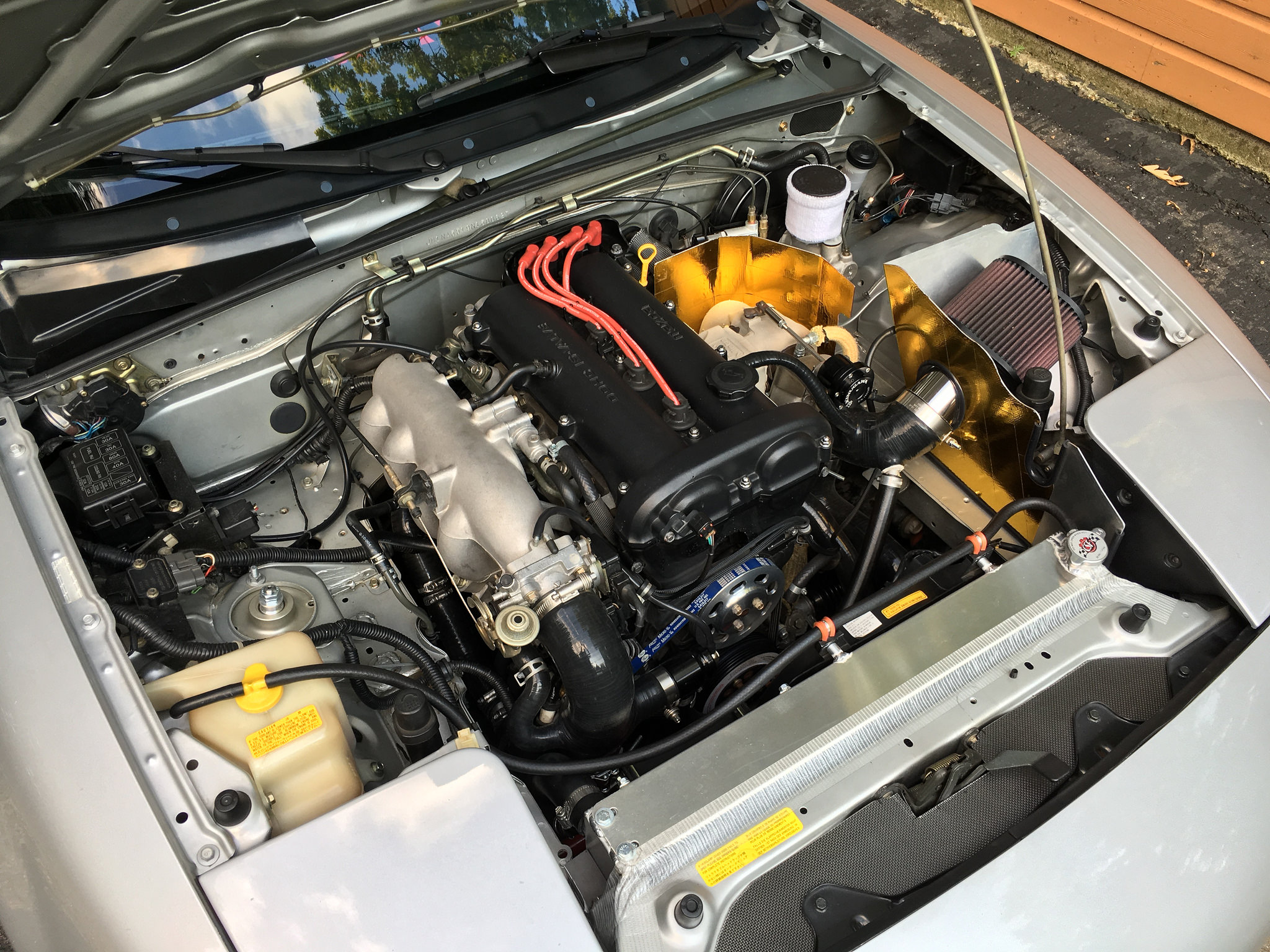

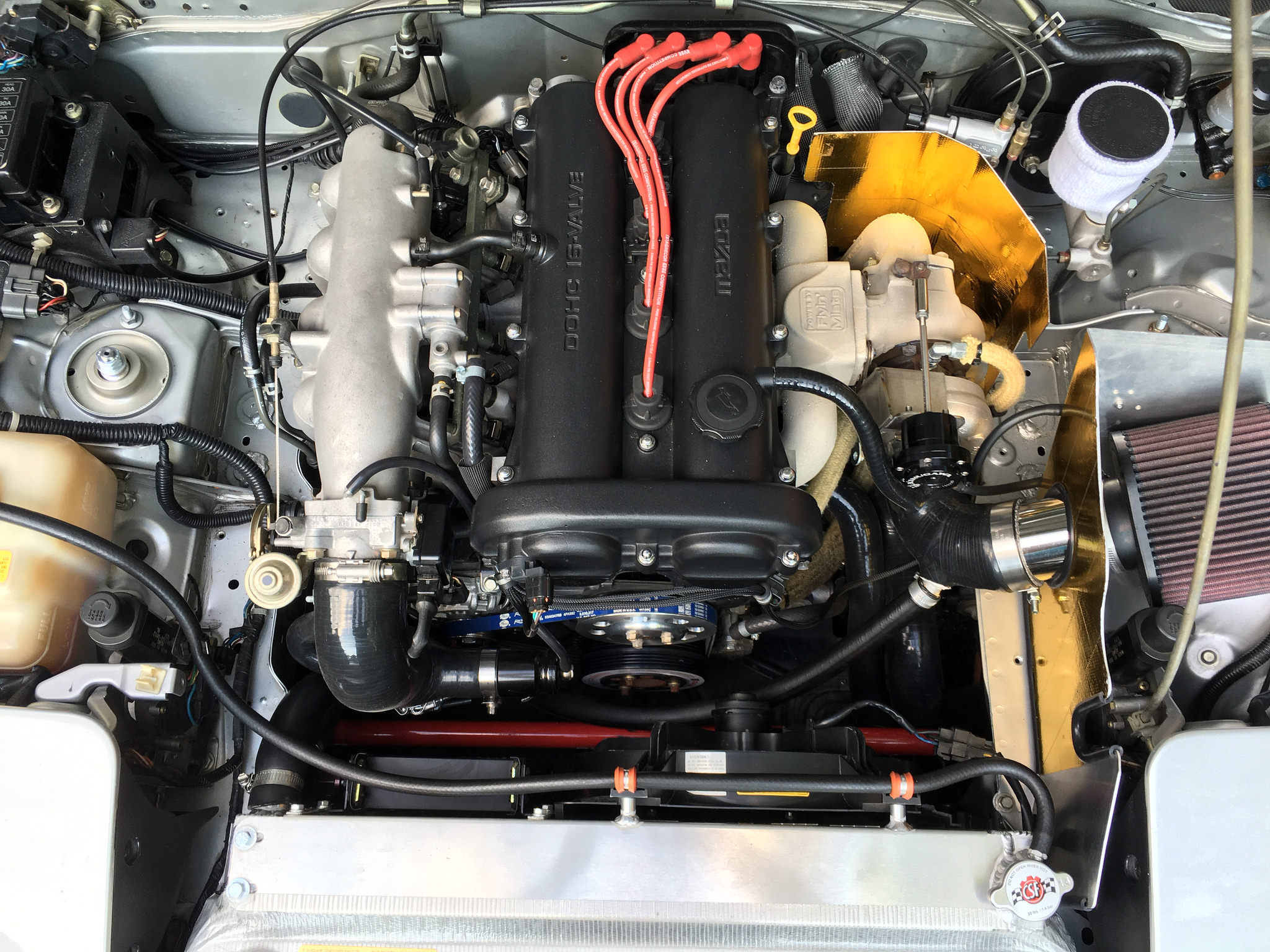

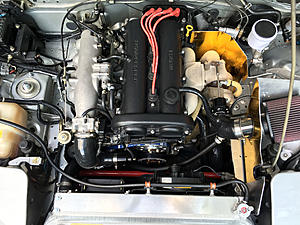

Powertrain: 232wHP and 208LbFt at 175 kPa

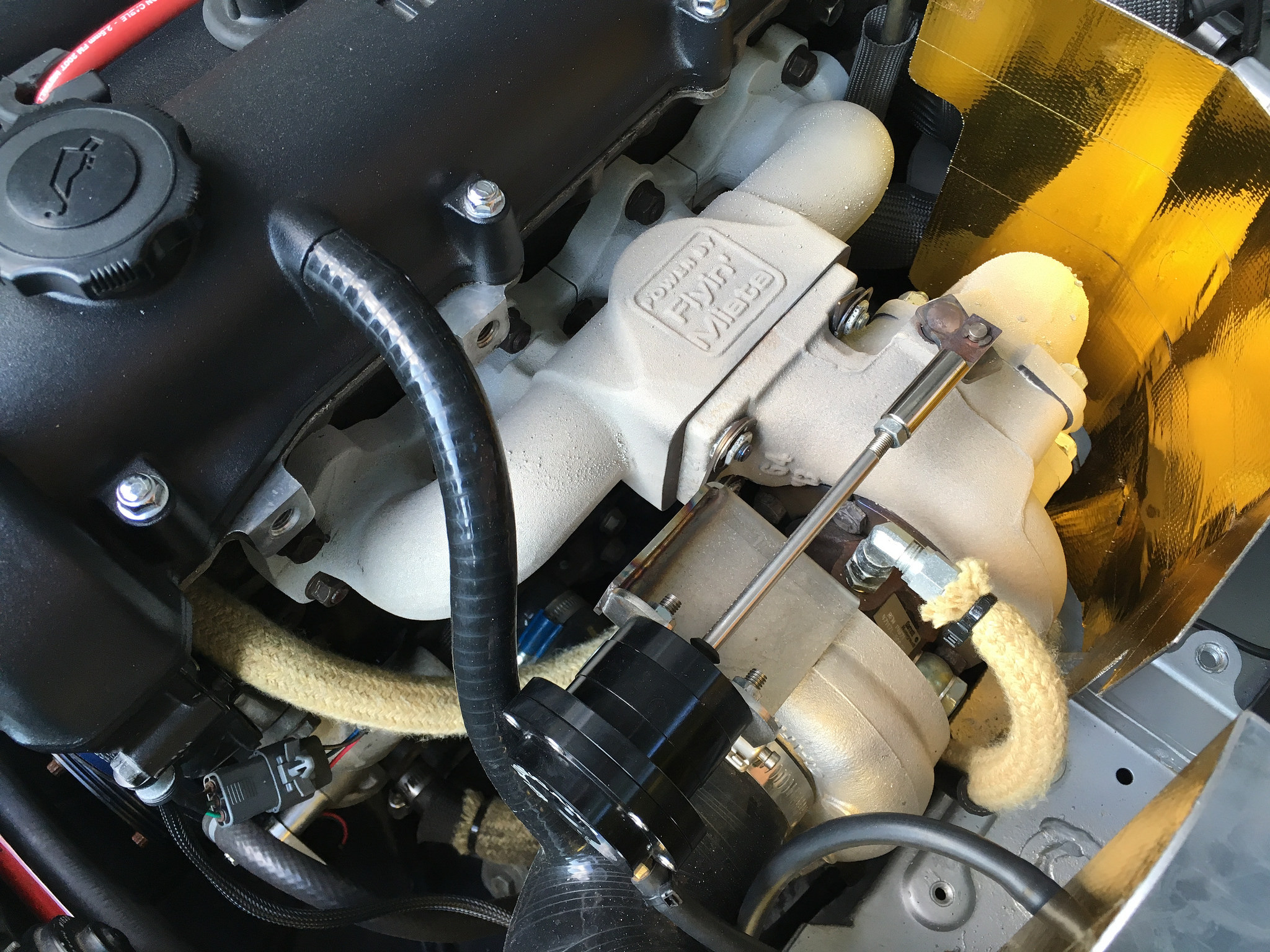

Flyin Miata FM2 turbo kit with Garrett GT2554R
FM 3" turbo-back stainless exhaust w/high-flow cat
Swaintech White Lightning turbo manifold, turbine housing, downpipe elbow
Kinugawa billet wastegate actuator with 0.75 bar spring
Turbo oil and coolant lines shrouded with kevlar thermal sleeving, coolant lines routed for correct thermosyphon effect upon engine-off.
FM airbox and turbo heatsheild improved with DEI gold-foil
MS-Labs Megasquirt 3 PNP with onboard baro sensor, DSP knock, accompanying CAN module
Innovative LC-2 wideband O2 with Bosch LSU 4.2.
DIYautotune EBC.
Bosch knock sensor mounted in OEM location.
Wells TPS retrofitted to OEM housing.
Grafted 1999 NB valve cover to factory valve cover (powder coated textured black) to accommodate FM 36-2 crank wheel, NB cam gear, and sequential fueling code in MS3. OEM NB blanking plug.
Accessories converted to NA8 4-rib with Garage Star billet 4-rib water pump and alternator pulleys, and ATI Superdamper. Auto Technik crank sensor brace
Bosch EV14 550cc matched flow injectors
Deatsch Werks DW200 fuel pump
Coolant re-route with Kia neck and custom silicone hoses, TSE front blanking plate
Mocal 180 deg thermostatic oil plate
Mishimoto oil sensor sandwich plate with oil temp and oil pressure sensors
Aeroquip socketless -10 lines and Setrab 19-row oil cooler
Springfield Dyno 2-row triple pass radiator
NGK BKR7EIX spark plugs with Magnecor plug wires
NA8 4.1 Torsen rear differential and axles
Flyin Miata Happy Meal clutch with 10 pound flywheel
Fresh OEM slave cylinder and stainless braided clutch line
Mazda Motorsports engine mounts
Gates Blue timing and accessory belts
-->All this adds up to the only 1.6 turbo running 36-2 on MS3 in the USA.

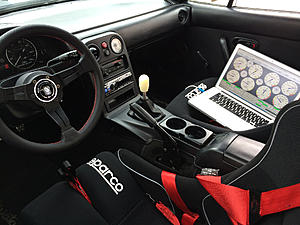

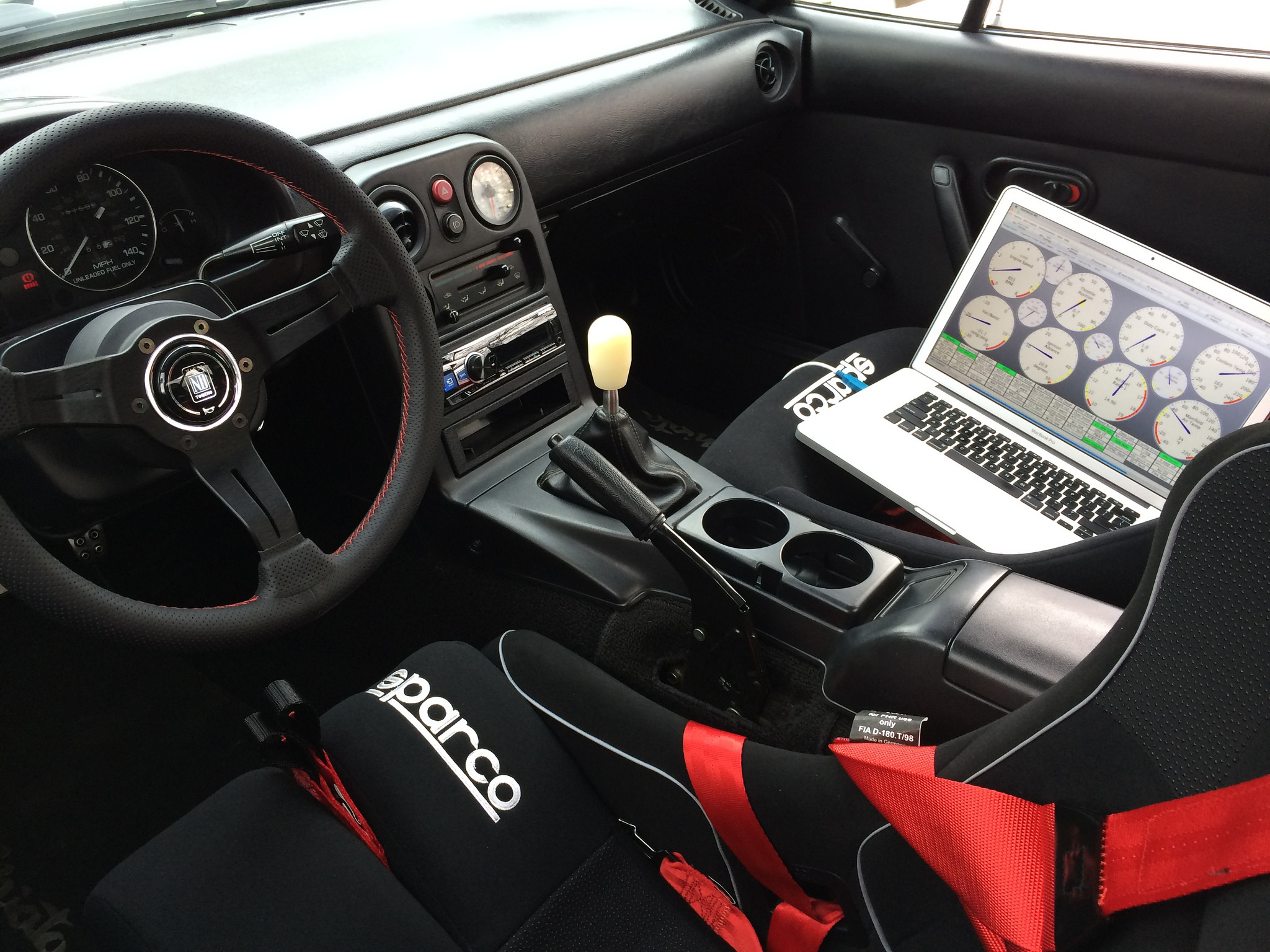

Interior:
Vintage GReddy EGT and MAP gauges that still work perfect and have memory function
Nardi Deep Corn 330 steering wheel
Works Bell hub and 10mm spacer
Techno Toy white nylon shift **** and Garage Star 2.75" stainless extension
Sparco Rev driver seat with Schroth Hybrid II 6-point HANS harness on modified Sparco steel mounts, modified AWR rail
Sparco Sprint passenger seat with Schroth Profi II 6-point HANS harness on modified Sparco steel mounts, modified AWR rail
unknown brand pedal covers, makes heel-n-toe a breeze
Hard Dog double diagonal 4-point roll bar with harness bar
Alpine head unit w/BT, Aux, and USB media receiver
Kicker 6.5" 2-way coaxial full-range in factory locations behind factory grilles
Chimera monofiliment carbon fiber case Lithium-Iron-Phosphate battery using Headway 38120HP cells in a 4S2P config. 7 pounds, 16AH, top-down balancing.
Exterior and Chassis:
Authentic Garage Vary front spoiler
Blackbird Fabworx lexan rear spoiler

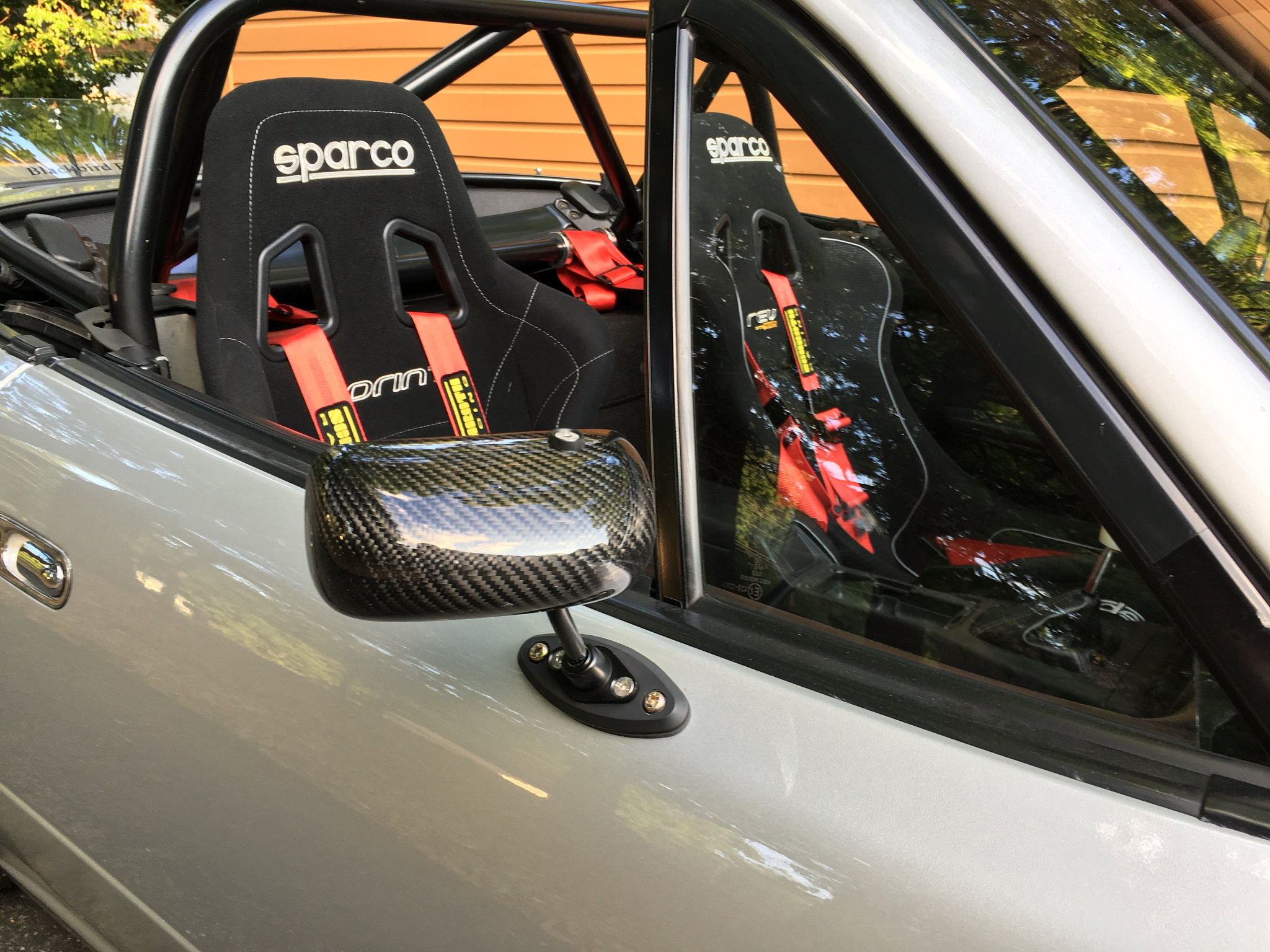

ARP carbon fiber mirrors with Slick Auto mounts
Singular hood vents, paint matched Silver Stone Metallic. Hood prop retained.
Flyin Miata Full Butterfly Brace
Frog Arms bracing
Garage Star delrin door bushings
Bespoke carbon fiber and Kydex radiator and intercooler ducting
Clear side marker lenses
New Robbins top professionally installed March 2015
Suspension and Brakes:
ANZE-built Penske 2-way dampers, 7500 bodies with 8500 valves.
Hyperco springs
Bespoke ANZE hard-anodized billet alumium shock mounts
Racing Beat 54107 front anti-roll bar
AWR reinforced front anti-roll bar chassis mounts
Eibach 15mm rear anti-roll bar
Improved Racing spherical bearing anti-roll bar adjustable drop-links
Energy Suspension polyurethane bushing kit, full plus rear diff housing
Blueprinted front hubs with AMSoil racing grease
949 Racing lug nuts
2 sets of Advanti 15x9 et35 wheels with BFG Rival S and Hoosier R7 225/45-15
Trackspeed Engineering front BBK with 11.75" rotors and Wilwood Dynapro6 calipers
Singular aluminum 2.5" backing plates, not currently ducted due to reasonble caliper temps on track
Flyin Miata rear BBK with NB sport rotors and Wilwood Powerlite 4-piston calipers with e-brake
Wilwood H compound / Carbotech XP10, plus Carbotech 1521's for street
Stainless braided brake lines
Castrol SRF
OEM Mazda Brake master cylinder in 2015
Alcon temperature stickers
Wilwood brake proportioning valve
Summary
Did you make it this far?! Congratulations, you have enough attention span to appreciate this Miata. :thumbs: If you've been searching for that excuse-free track-prepped Miata that is consistently several seconds quicker per lap than every NASA Spec Miata track record, this is your machine. A well balanced overall package, the torque is enough to sniff the redline in 5th on long track straightaways, but modestly and safely tuned to stay reliable for years at a time, not minutes. The bespoke Penske's are magical and bring the platform to the next level, no more mucking around with merely good dampers. When you're ready for the good stuff, PM or email me at Ryan at Ryephile dot com
1992 MX-5 Miata
59k miles
Asking $11,900
Vehicle Basics:
Silver Stone Metallic
All original VIN matched body panels, clean rust-free, always garaged
"A" Package with A/C and P/S deleted properly. MiataCage blueprinted de-powered and welded rack
Track-day / HPDE no-expense-spared no excuses build. Runs 1:27's at Grattan and 1:41's at Gingerman.
Inside trunk lid signed by Bobby Rahal
Allegedly featured in 1999 Sport Compact Car magazine as an early GReddy turbo build (unable to verify)
Clean and clear title in hand
2218 pounds wet, no driver. Alignment and corner balancing by V2 Motorsports
Powertrain: 232wHP and 208LbFt at 175 kPa
Flyin Miata FM2 turbo kit with Garrett GT2554R
FM 3" turbo-back stainless exhaust w/high-flow cat
Swaintech White Lightning turbo manifold, turbine housing, downpipe elbow
Kinugawa billet wastegate actuator with 0.75 bar spring
Turbo oil and coolant lines shrouded with kevlar thermal sleeving, coolant lines routed for correct thermosyphon effect upon engine-off.
FM airbox and turbo heatsheild improved with DEI gold-foil
MS-Labs Megasquirt 3 PNP with onboard baro sensor, DSP knock, accompanying CAN module
Innovative LC-2 wideband O2 with Bosch LSU 4.2.
DIYautotune EBC.
Bosch knock sensor mounted in OEM location.
Wells TPS retrofitted to OEM housing.
Grafted 1999 NB valve cover to factory valve cover (powder coated textured black) to accommodate FM 36-2 crank wheel, NB cam gear, and sequential fueling code in MS3. OEM NB blanking plug.
Accessories converted to NA8 4-rib with Garage Star billet 4-rib water pump and alternator pulleys, and ATI Superdamper. Auto Technik crank sensor brace
Bosch EV14 550cc matched flow injectors
Deatsch Werks DW200 fuel pump
Coolant re-route with Kia neck and custom silicone hoses, TSE front blanking plate
Mocal 180 deg thermostatic oil plate
Mishimoto oil sensor sandwich plate with oil temp and oil pressure sensors
Aeroquip socketless -10 lines and Setrab 19-row oil cooler
Springfield Dyno 2-row triple pass radiator
NGK BKR7EIX spark plugs with Magnecor plug wires
NA8 4.1 Torsen rear differential and axles
Flyin Miata Happy Meal clutch with 10 pound flywheel
Fresh OEM slave cylinder and stainless braided clutch line
Mazda Motorsports engine mounts
Gates Blue timing and accessory belts
-->All this adds up to the only 1.6 turbo running 36-2 on MS3 in the USA.
Interior:
Vintage GReddy EGT and MAP gauges that still work perfect and have memory function
Nardi Deep Corn 330 steering wheel
Works Bell hub and 10mm spacer
Techno Toy white nylon shift **** and Garage Star 2.75" stainless extension
Sparco Rev driver seat with Schroth Hybrid II 6-point HANS harness on modified Sparco steel mounts, modified AWR rail
Sparco Sprint passenger seat with Schroth Profi II 6-point HANS harness on modified Sparco steel mounts, modified AWR rail
unknown brand pedal covers, makes heel-n-toe a breeze
Hard Dog double diagonal 4-point roll bar with harness bar
Alpine head unit w/BT, Aux, and USB media receiver
Kicker 6.5" 2-way coaxial full-range in factory locations behind factory grilles
Chimera monofiliment carbon fiber case Lithium-Iron-Phosphate battery using Headway 38120HP cells in a 4S2P config. 7 pounds, 16AH, top-down balancing.
Exterior and Chassis:
Authentic Garage Vary front spoiler
Blackbird Fabworx lexan rear spoiler
ARP carbon fiber mirrors with Slick Auto mounts
Singular hood vents, paint matched Silver Stone Metallic. Hood prop retained.
Flyin Miata Full Butterfly Brace
Frog Arms bracing
Garage Star delrin door bushings
Bespoke carbon fiber and Kydex radiator and intercooler ducting
Clear side marker lenses
New Robbins top professionally installed March 2015
Suspension and Brakes:
ANZE-built Penske 2-way dampers, 7500 bodies with 8500 valves.
Hyperco springs
Bespoke ANZE hard-anodized billet alumium shock mounts
Racing Beat 54107 front anti-roll bar
AWR reinforced front anti-roll bar chassis mounts
Eibach 15mm rear anti-roll bar
Improved Racing spherical bearing anti-roll bar adjustable drop-links
Energy Suspension polyurethane bushing kit, full plus rear diff housing
Blueprinted front hubs with AMSoil racing grease
949 Racing lug nuts
2 sets of Advanti 15x9 et35 wheels with BFG Rival S and Hoosier R7 225/45-15
Trackspeed Engineering front BBK with 11.75" rotors and Wilwood Dynapro6 calipers
Singular aluminum 2.5" backing plates, not currently ducted due to reasonble caliper temps on track
Flyin Miata rear BBK with NB sport rotors and Wilwood Powerlite 4-piston calipers with e-brake
Wilwood H compound / Carbotech XP10, plus Carbotech 1521's for street
Stainless braided brake lines
Castrol SRF
OEM Mazda Brake master cylinder in 2015
Alcon temperature stickers
Wilwood brake proportioning valve
Summary
Did you make it this far?! Congratulations, you have enough attention span to appreciate this Miata. :thumbs: If you've been searching for that excuse-free track-prepped Miata that is consistently several seconds quicker per lap than every NASA Spec Miata track record, this is your machine. A well balanced overall package, the torque is enough to sniff the redline in 5th on long track straightaways, but modestly and safely tuned to stay reliable for years at a time, not minutes. The bespoke Penske's are magical and bring the platform to the next level, no more mucking around with merely good dampers. When you're ready for the good stuff, PM or email me at Ryan at Ryephile dot com
Reply
0
0
09-14-2017, 07:01 PM
#2
Junior Member
Thread Starter
iTrader: (1)
Join Date: Jun 2014
Location: Metro Detroit
Posts: 270
Total Cats: 26
The full suite of build progression pictures located by Googling Ryephile Flickr Miata
Build thread starting back in 2014 located at: Ryephile's Loosely Guided Build thread
Build thread starting back in 2014 located at: Ryephile's Loosely Guided Build thread
Reply
0
0
10-02-2017, 12:01 PM
#8
Senior Member
Join Date: Jul 2016
Location: San Diego
Posts: 557
Total Cats: 54
- remove turbo
- put CARB legal intake
- remove aftermarket header and exhaust, unless they have CA OE CARB stickers for this year
- have working catalytic converter
- have all O2 sensors in place and working
- possibly set timing within manufacturer's spec (there is a cut off date, but I don't remember what it is)
- there are also other items, but these above are most important
