Old 05-23-2015, 08:58 PM   #1
Junior Member
Thread Starter
iTrader: (1)

Join Date: May 2009
Posts: 168
Total Cats: 7
Default Supercharged Exomotive Exocet Sport - Track ready!

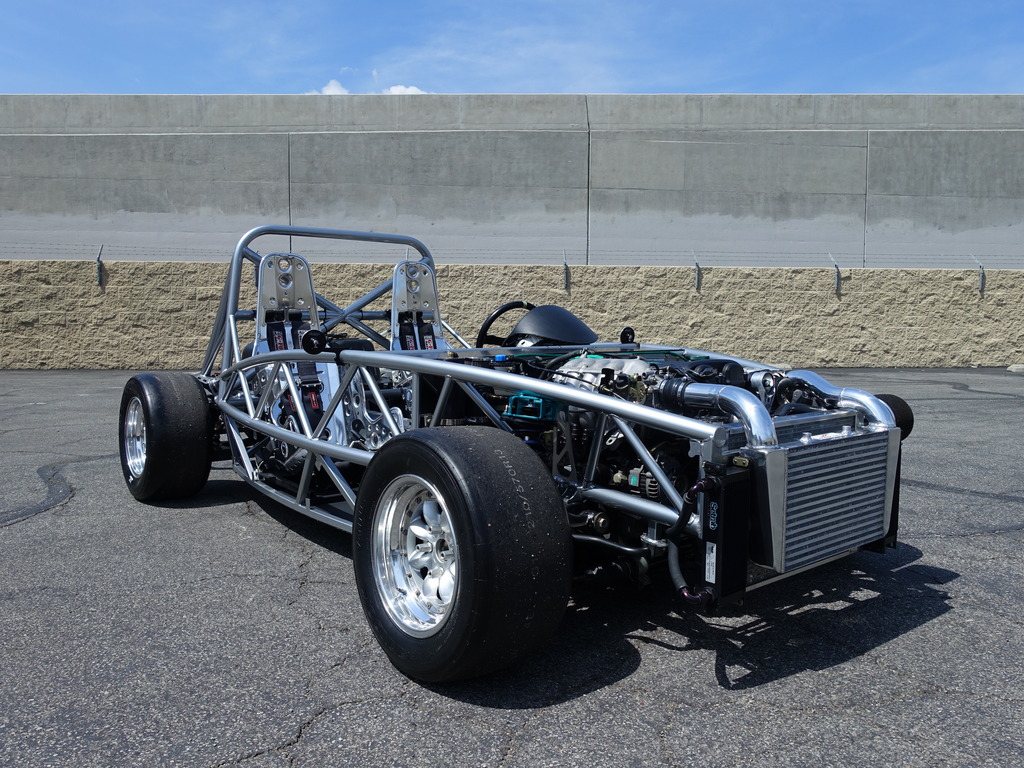

Blackbox Motorsport Exomotive Exocet - 263whp @ 9.5 psi - 1,515lbs w/ full tank - Power-weight ratio: 5.76:1 - 1.8+ lateral g's

Reference lap times: 1:56.2 @ Buttonwillow 13CW - 1:21.7 @ Streets of Willow Springs CCW - 1:29.1 @ Willow Springs (WSIR)

FULL PHOTO ALBUM HERE

Well over $40k of parts and 300+ hours of assembly and testing invested in this build with very low run hours on all components. Starts with the first turn of the key. Thoroughly sorted and ready for track time!

Asking $33,500

Tandem axle trailer available for an additional $2,000

Car is in Southern California/Los Angeles

Call or text 949.464.7602

Email: [email protected]
__________________________________________________ __________________________________________________ _______________

Exomotive Exocet Sport kit (purchased Mar. '14)
Additional passenger diagonal roll bar bracing - Wing mount kit for CoT wing setup - Domex shock spacer mounts - "80% chrome" chassis coating and "fine textured wrinkle black" aluminum panel finishing from Industrial Powder Coatings - M6 nut-sert fasteners for quick transmission tunnel removal with nickel plated Grade-8 hardware

Donor components from 2000 Mazda Miata: Subframes, control arms, uprights, and steering rack - Electronics and wiring harness - Fuel tank assembly - Pedal box and steering column - Brake and clutch hydraulic assemblies

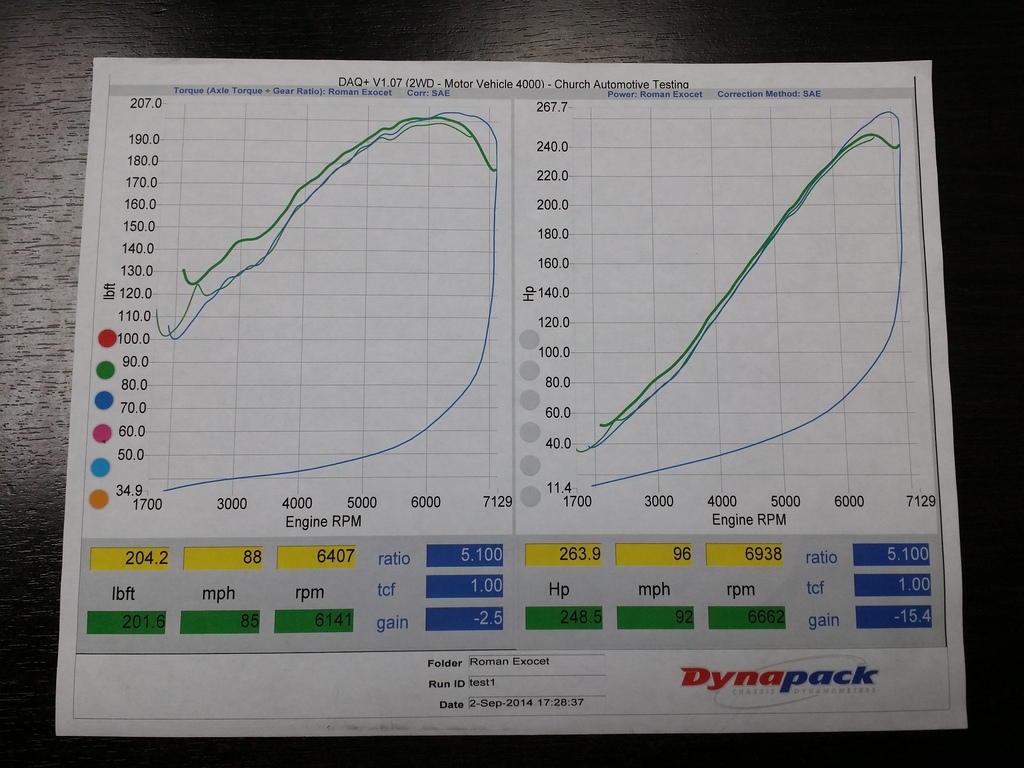

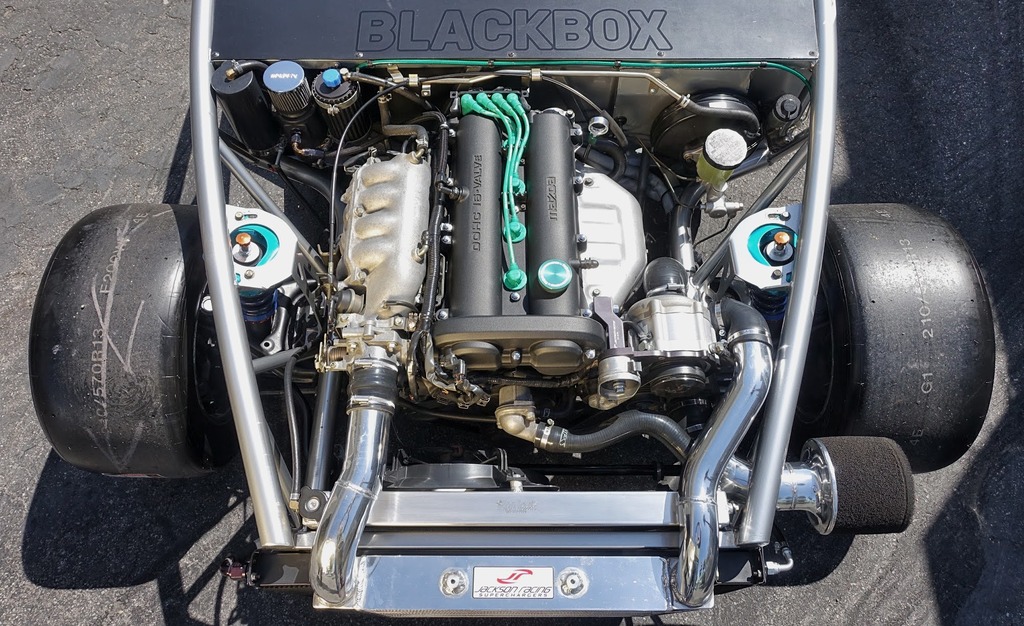

Engine: Mazda BP5A 1.8L Japanese engine - Jackson Racing Rotrex C30-74 supercharger - BP5A ECU with Jackson Racing fuel management (tuned @ Church's Automotive Testing) - Deatschwerks DW200 fuel pump - Denso 280cc injectors flow tested at RC Engineering - New OEM Mazda fuel filter - Denso IK22 Iridium spark plugs for Rotrex/F.I. - ITG Maxogen JC60/73 aluminum velocity stack air filter - Hytech Racing stainless exhaust system - SuperMiata urethane exhaust hangers - AWR Racing engine mounts (70 durometer) - BP6D 80 amp alternator - Gates Racing supercharger, timing, and alternator belts

Drivetrain: O.S. Giken Super-Single 225mm race clutch - ARP flywheel hardware - MiataRoadster straight-shot clutch line - O.S. Giken Super-Lock limited slip differential (assembled by Unitrax - official O.S. Giken assembler) - Mazdaspeed differential housing - Mazdaspeed driveshaft and axle set - 4.30 final drive ratio ring and pinion gear set - MiataRoadster Delrin differential mount kit

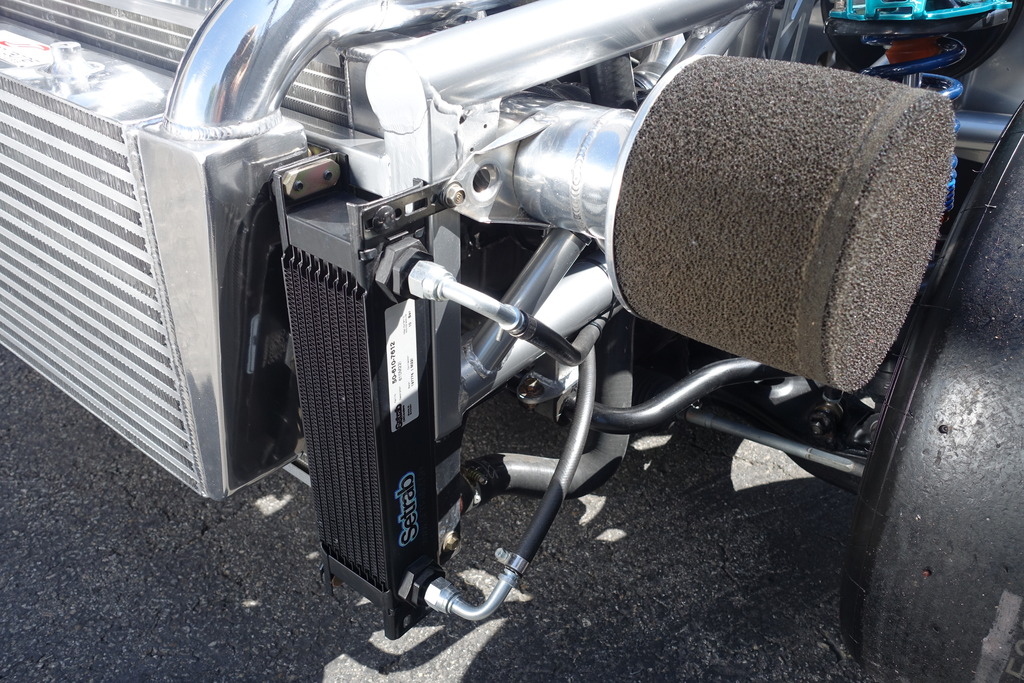

Cooling: Ron Davis cross-flow aluminum radiator - Custom one-piece intercooler setup (minimum charge length and volume, achieving near ambient IAT's) - Setrab 13 row engine oil cooler - Setrab 10 row supercharger traction fluid cooler - Mocal thermostatic oil sandwich plate - XRP 120 -10 AN fittings (x2) - XRP 90 -10 AN fittings (x2) - Aeroquip -10 AN - M22 adapters (x4) - Aeroquip AQP socketless oil hose - Moroso coolant overflow tank - Moroso oil catch can/breather tank with -6 AN line - HPS coolant hoses - Stant Racing high pressure radiator cap - Jackson Racing 160 low-temp thermostat - Oetiker stepless self-tensioning coolant hose clamps (x8) - Norma intercooler coupler clamps - Thermo-tec Multi-layer heat barrier transmission tunnel insulation (cool to the touch even after a full-tilt track session)

Suspension: 949 Racing XIDA Clubsport monotube dampers with 550F/350R spring rates and helper springs - AWR Racing Delrin control arm bushings - SuperMiata endlinks - Beatrush PPF/differential brace - New OEM Mazda wheel bearings (x4), tie rods/tie rod ends (x2), and alignment bolts (x8)

Brakes: Carbotech Racing pads XP12 Front / XP10 Rear - Centric Rotors F/R - Stoptech stainless brake lines F/R - Wilwood proportioning valve - Project Mu Racing brake fluid - New Mazda pad hardware F/R - Custom brake hard lines

Wheels/Tires: PANASPORT C8 13x9 3-piece racing wheels (4.4kg each!) - Four sets of Hankook Ventus F200 C90 compound 210/570/13 racing slicks - Custom machined hub-centric wheel spacers - ARP extended wheel studs - 949 Racing lug nuts (machined finish)

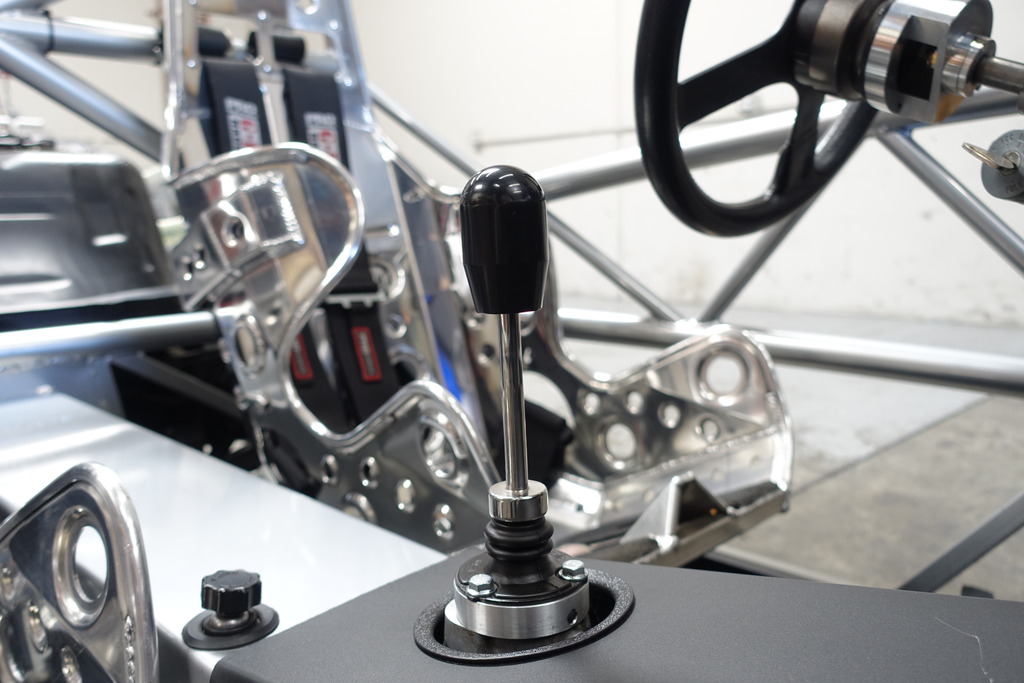

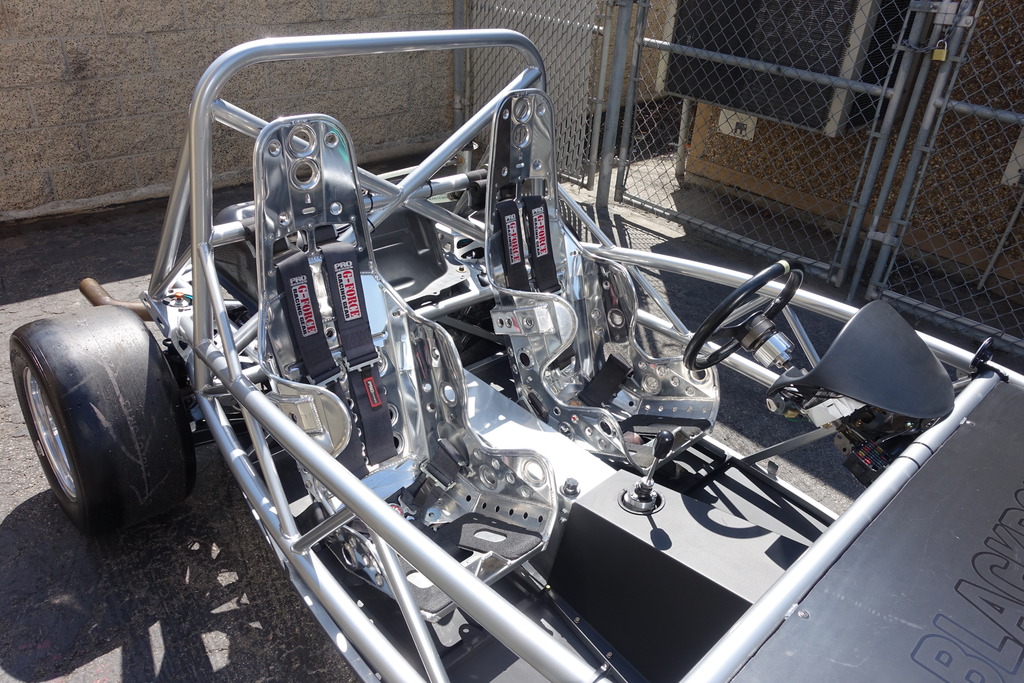

Safety/Cockpit/Controls: Kirkey Racing 58 series aluminum racing seats (professionally mirror polished, pad set included) - G-Force 5 point harnesses - MiataRoadster medium length slim short shifter kit - Tech Toy Tuning JGTC shift **** - Custom machined wheel hub - NRG quick release - I-O port back braces

Miscellaneous: Odyssey PC680 Racing battery and powdercoated mounting case - Pegasus "Afterburner" LED high-visibility brake light - Joe's Racing aluminum side mirrors - Project-G oil filler cap - Project-G oil dipstick pull - Mazdaspeed ignition wires - Powdercoated black fine texture valve cover - Chrome valve cover bolts

Maintenance/New: Water pump and gaskets - Idler and tensioner pulleys - F/R crankshaft main seals - Camshaft seals - Valve cover gasket - Hoses and vacuum lines - Pilot and throw out bearings - Motul 300V 5W40 engine oil - Motul Gear 300 75W90 transmission fluid - O.S. Giken 80W250 limited slip fluid

Links:

Exomotive Home

Exomotive Facebook

Flyin' Miata Exocet

Exocet videos

Exocet power to weight spreadsheet

Top Speed Exocet review

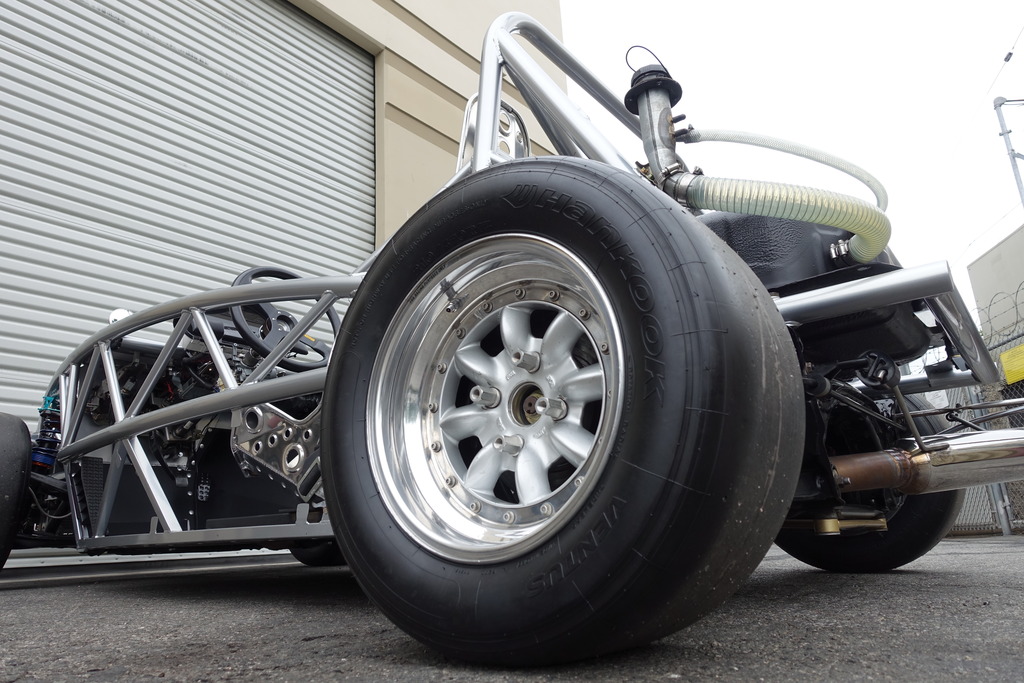

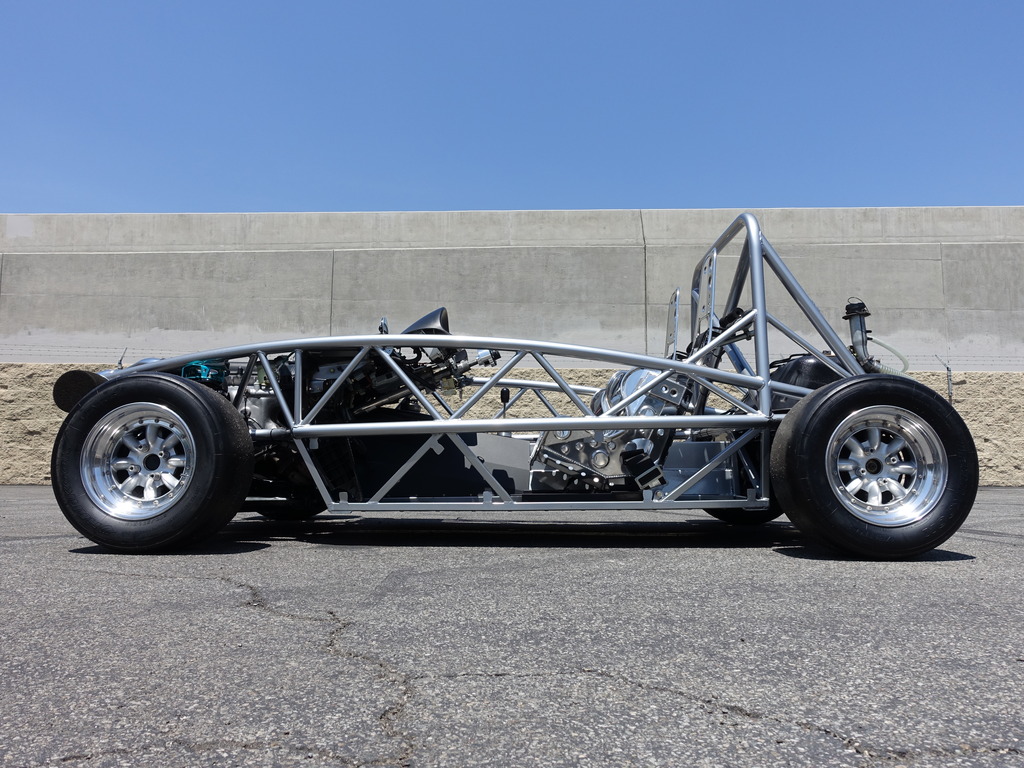

Attached Thumbnails
Supercharged Exomotive Exocet Sport - Track ready!-dsc05300.jpg   Supercharged Exomotive Exocet Sport - Track ready!-dsc04325.jpg   Supercharged Exomotive Exocet Sport - Track ready!-dsc04995.jpg   Supercharged Exomotive Exocet Sport - Track ready!-gbm50577.jpg   Supercharged Exomotive Exocet Sport - Track ready!-dsc04066.jpg

Supercharged Exomotive Exocet Sport - Track ready!-dsc04083.jpg   Supercharged Exomotive Exocet Sport - Track ready!-dsc04004.jpg   Supercharged Exomotive Exocet Sport - Track ready!-dsc04205.jpg   Supercharged Exomotive Exocet Sport - Track ready!-dsc04089.jpg   Supercharged Exomotive Exocet Sport - Track ready!-dsc04019.jpg

Supercharged Exomotive Exocet Sport - Track ready!-20150519_085028.jpg

Last edited by graexodus; 06-03-2015 at 08:03 PM.
graexodus is offline   Reply With Quote
Old 05-24-2015, 01:08 AM   #2
Newb

Join Date: May 2010
Location: Portland, OR
Posts: 30
Total Cats: 0
Default

This car was a pleasure to watch at MRLS last year. Good luck on the sale.
Diamond Dave is offline   Reply With Quote
Old 05-25-2015, 10:41 AM   #3
Junior Member
iTrader: (2)

Join Date: Mar 2008
Location: Navarre, Fl
Posts: 203
Total Cats: 3
Default

Looks very well put together, but gawd that's a bright car.
ericsbestshot is offline   Reply With Quote
Old 05-25-2015, 04:52 PM   #4
Junior Member
iTrader: (1)

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 404
Total Cats: 64
Default

<p>Brb, posting part out thread!</p><p>Such a well sorted car, GLWS!</p>
BoostedSmurf is offline   Reply With Quote
Old 05-26-2015, 10:39 AM   #5
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Quote:
Originally Posted by graexodus View Post
Custom one-piece intercooler setup ... achieving lower than ambient IAT's
Huh?
TurboTim is offline   Reply With Quote
Old 05-26-2015, 10:43 AM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

...it doubles as a refrigerator. lol

But seriously, wow this thing is absurdly clean and pretty. I'm guessing that's a pre-production JR rotrex setup?
18psi is offline   Reply With Quote
Old 05-26-2015, 10:47 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

<p>
Quote:
Originally Posted by TurboTim View Post
Huh?
</p><p>it's fancy way to overstate&nbsp;&quot;welded intercooler pipes&quot;</p>
Braineack is offline   Reply With Quote
Old 05-26-2015, 10:50 AM   #8
Crumple Zone Tester
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,656
Total Cats: 447
Default

Quote:
Originally Posted by Braineack View Post
<p></p><p>it's fancy way to overstate&nbsp;&quot;welded intercooler pipes&quot;</p>
I don't think that was the part he was questioning.
mgeoffriau is offline   Reply With Quote
Old 05-26-2015, 10:58 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

<p>I addressed that in stating &quot;overstate&quot;.</p><p>which was a nice way for me to understate &quot;******* BS&quot;</p>
Braineack is offline   Reply With Quote
Old 05-26-2015, 01:22 PM   #10
Junior Member

Join Date: Feb 2015
Location: Manitowoc, WI
Posts: 52
Total Cats: -19
Default

beautiful example of a properly done exocet.
Mr.Chow is offline   Reply With Quote
Old 05-26-2015, 05:37 PM   #11
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,927
Total Cats: 526
Default

Just wow. What an amazing car! good luck with sale. Awesome.
turbofan is offline   Reply With Quote
Old 05-26-2015, 10:19 PM   #12
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Awesome car, but 263whp on 280cc injectors has me confused.
aidandj is offline   Reply With Quote
Old 05-26-2015, 11:39 PM   #13
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,878
Total Cats: 344
Default

Quote:
Originally Posted by Braineack View Post
<p>I addressed that in stating &quot;overstate&quot;.</p><p>which was a nice way for me to understate &quot;******* BS&quot;</p>
Wind chill!

--Ian
codrus is offline   Reply With Quote
Old 06-27-2015, 09:55 PM   #14
Junior Member
Thread Starter
iTrader: (1)

Join Date: May 2009
Posts: 168
Total Cats: 7
Default

bump
graexodus is offline   Reply With Quote
Old 06-27-2015, 11:23 PM   #15
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

Quote:
Originally Posted by aidandj View Post
Awesome car, but 263whp on 280cc injectors has me confused.
10% Church fudge factor (~237whp) + 60psi NB fuel system + only 9psi boost
Savington is offline   Reply With Quote
Old 06-29-2015, 07:05 PM   #16
Junior Member
Thread Starter
iTrader: (1)

Join Date: May 2009
Posts: 168
Total Cats: 7
Default

Quote:
Originally Posted by Savington View Post
10% Church fudge factor (~237whp) + 60psi NB fuel system + only 9psi boost
This.
graexodus is offline   Reply With Quote
Old 07-05-2015, 10:23 PM   #17
Junior Member
Thread Starter
iTrader: (1)

Join Date: May 2009
Posts: 168
Total Cats: 7
Default

graexodus is offline   Reply With Quote
Old 07-06-2015, 02:33 AM   #18
Supporting Vendor
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,061
Total Cats: 40
Default

This is an excellent example of what an exocet could be. GLWS!

Maybe I missed it, but what is the reason for the sale? Sounds like you spent quite a bit of time getting to where you are, and the final product is immaculate.

Last edited by TheBandit; 07-06-2015 at 11:46 AM.
TheBandit is offline   Reply With Quote
Old 07-10-2015, 07:37 PM   #19
Junior Member
Thread Starter
iTrader: (1)

Join Date: May 2009
Posts: 168
Total Cats: 7
Default

Quote:
Originally Posted by TheBandit View Post
This is an excellent example of what an exocet could be. GLWS!

Maybe I missed it, but what is the reason for the sale? Sounds like you spent quite a bit of time getting to where you are, and the final product is immaculate.
Thank you!!

Simply put - too many projects. This is also the only refined one, making it the first candidate for sale. Hopefully I can find someone who will appreciate all the time that went into sorting this car... it's exceptionally fast
graexodus is offline   Reply With Quote
Old 07-15-2015, 11:51 AM   #20
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

I licked this car at [email protected] while no one was looking. It tastes like strawberries.

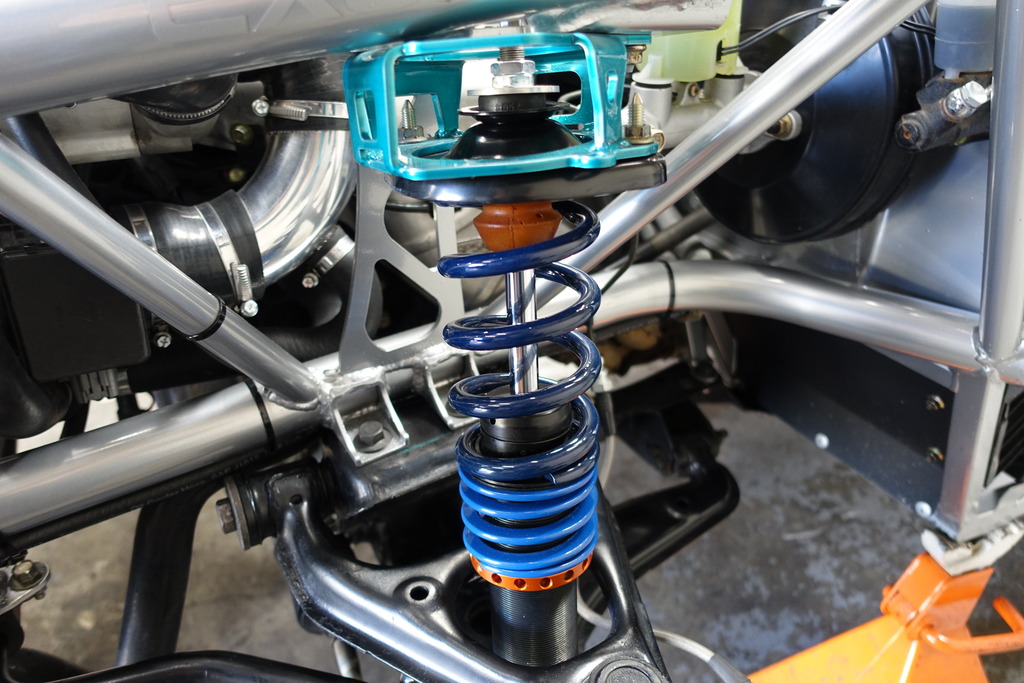

Where can I get a set of those fancy shock spacers? Not for me, uh, they are for a friend...
Attached Thumbnails
Supercharged Exomotive Exocet Sport - Track ready!-140309-supercharged-exomotive-exocet-sport-track-ready-dsc04004.jpg
